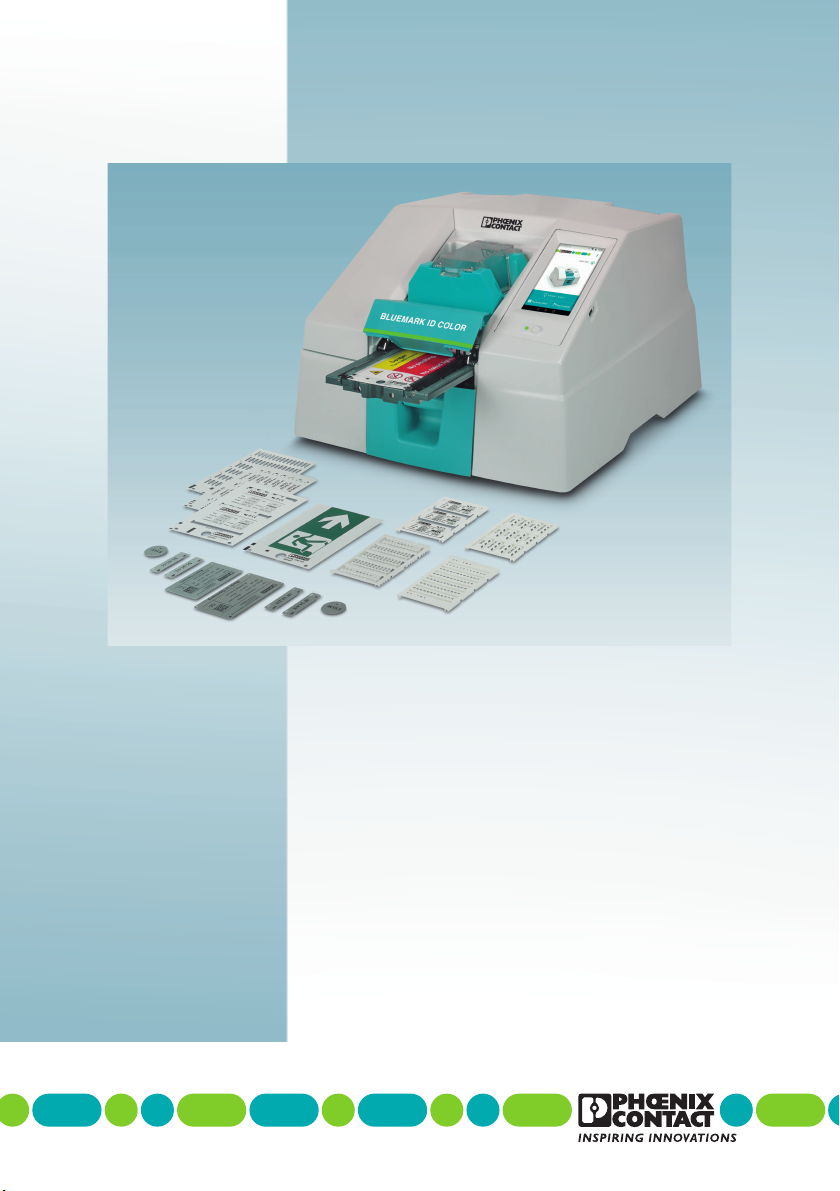

Phoenix Contact BLUEMARK ID User manual

User manual
Using the UV LED printing systems
BLUEMARK ID/BLUEMARK ID COLOR

2018-04-13
PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany
phoenixcontact.com
108369_en_00
BLUEMARK ID/BLUEMARK ID COLOR
User manual
UM EN BLUEMARK ID/BLUEMARK ID COLOR, Revision 00
Designation Version Order No.
BLUEMARK ID
BLUEMARK ID COLOR
1003334
1002329
This user manual is valid for:

Table of contents
108369_en_00 PHOENIX CONTACT 3 / 46
Table of contents
1 Safety and the environment .........................................................................................5
1.1 Description of the BLUEMARK ID/ID COLOR..........................................5
1.2 Identification of warning notes..................................................................5
1.3 Intended use ............................................................................................6
1.4 Qualification of users ...............................................................................7
1.4.1 Dangers to health .....................................................................7
1.4.2 Risk of device damage .............................................................8
1.4.3 Notes on use ............................................................................9
1.5 Disposal.................................................................................................10
2 Starting up the printer ................................................................................................ 11
2.1 Scope of supply .....................................................................................11
2.2 Unpacking..............................................................................................11
2.3 Requirements for the installation location ..............................................11
2.4 Overview of the device...........................................................................12
2.4.1 Outside view ...........................................................................12
2.4.2 View of fluid cartridges and cleaning cartridge
[with open cover] ....................................................................13
2.5 Inserting the fluid cartridge during startup ..............................................14
2.5.1 Overview of the interfaces ......................................................15
2.5.2 Connecting to a computer via USB .........................................16
2.5.3 Connecting to a network via Ethernet .....................................18
2.5.4 Installing drivers .....................................................................19
2.6 Printer menu ..........................................................................................20
2.6.1 Using the control panel ...........................................................20
2.6.2 Changing the language ..........................................................20
2.6.3 Start screen ............................................................................20
2.6.4 Printer settings .......................................................................21
2.6.5 Advanced settings (PIN-protected) ........................................22
2.7 Creating print jobs..................................................................................23
3 Printing ......................................................................................................................25
3.1 Switching on the device .........................................................................25
3.2 Loading the material ..............................................................................25

BLUEMARK ID/BLUEMARK ID COLOR
4 / 46 PHOENIX CONTACT 108369_en_00
4 Maintenance and cleaning .........................................................................................29
4.1 Cleaning.................................................................................................29
4.1.1 Cleaning the printer ................................................................29
4.1.2 Cleaning the printhead ...........................................................29
4.1.3 Cleaning the adapter for US sheets ........................................29
4.1.4 Cleaning the display ...............................................................29
4.2 Replacing the fluid cartridge and cleaning cartridge ..............................30
4.2.1 Notes on the fluid cartridge .....................................................30
4.2.2 Replacing the fluid cartridge ...................................................31
4.2.3 Replacing the cleaning cartridge ............................................32
4.3 Removing foreign objects from the printer .............................................33
4.4 Manual operation via handwheel in the event of error messages...........35
5 Maintenance and troubleshooting ............................................................................. 37
5.1 Troubleshooting and error messages ....................................................37
5.1.1 Troubleshooting .....................................................................37
5.1.2 Error messages ......................................................................38
5.2 Repairs ..................................................................................................38
5.3 Transporting or shutting down the device ..............................................38
5.3.1 Transport ................................................................................38
5.3.2 Shutdown ...............................................................................39
5.4 Software update.....................................................................................39
5.5 Standby..................................................................................................39
5.6 Disposal.................................................................................................39
6 Appendix ...................................................................................................................41
6.1 Ordering data.........................................................................................41
6.2 Technical data .......................................................................................42
6.3 Approvals and statements .....................................................................44
6.3.1 FCC ........................................................................................44
6.3.2 PL Code Statement ................................................................44

Safety and the environment
108369_en_00 PHOENIX CONTACT 5 / 46
1 Safety and the environment
Read this user manual carefully and keep it for future reference.
1.1 Description of the BLUEMARK ID/ID COLOR
BLUEMARK ID/ID COLOR are UV printers for labeling marking elements used in
the field of electrical engineering. The BLUEMARK ID is a monochrome version,
the BLUEMARK ID COLOR is a color version. Examples of printed materials in-
clude plastic and metal labels. The printing method is based on a printhead with an
LED UV unit for curing the fluid. The printer is controlled via a personal computer.
The supplied data medium contains user manuals, drivers, and our marking soft-
ware, for example.
1.2 Identification of warning notes
This symbol indicates hazards that could lead to personal injury.
There are three signal words indicating the severity of a potential injury.
DANGER
Indicates a hazard with a high risk level. If this hazardous situation is not avoided,
it will result in death or serious injury.
WARNING
Indicates a hazard with a medium risk level. If this hazardous situation is not
avoided, it could result in death or serious injury.
CAUTION
Indicates a hazard with a low risk level. If this hazardous situation is not avoided,
it could result in minor or moderate injury.
This symbol together with the NOTE signal word warns the reader of actions that
might cause property damage or a malfunction.
This symbol and the accompanying text provide the reader with additional infor-
mation or refer to detailed sources of information.

BLUEMARK ID/BLUEMARK ID COLOR
6 / 46 PHOENIX CONTACT 108369_en_00
1.3 Intended use
WARNING: Danger to health due to incorrect usage
The BLUEMARK ID/ID COLOR is only intended for use in commercial or indus-
trial sectors by persons that are older than 14 years of age. The BLUEMARK
ID/ID COLOR may only be used while in proper working order and for the intend-
ed purpose. Users must act safely and must comply with the operating instruc-
tions.
Faults, in particular those which affect safety, must be eliminated immediately.
Unauthorized modifications, which exceed the scope of replacing the fluid car-
tridge or cleaning cartridge and changes to the BLUEMARK ID/ID COLOR are
not permitted for reasons of safety.
Only carry out the actions described in these operating instructions. Other tasks
may only be performed by trained personnel or service engineers.
NOTE: The BLUEMARK ID/ID COLOR is solely intended to print on suitable ma-
terial approved by Phoenix Contact. Only print on material with complete rows,
as missing rows could damage the printhead. Only use consumables from
Phoenix Contact. For the order numbers of the fluid cartridge and cleaning car-
tridge, please refer to “Ordering data” .
Intended use includes observing the operating instructions. Before starting up
the printer, you must have read and understood the operating instructions.

Safety and the environment
108369_en_00 PHOENIX CONTACT 7 / 46
1.4 Qualification of users
This user manual is directed at those persons who are familiar with the relevant
safety concepts for handling electrical machines. Only persons who can identify
hazards may commission, operate, and maintain the device.
1.4.1 Dangers to health
WARNING: Life-threatening danger from mains voltage
Never open the printer forcibly and do not carry out any repairs yourself. The
BLUEMARK ID/ID COLOR is free of voltage after the mains connector on the de-
vice has been disconnected.
WARNING: Risk of hand injuries
The sheets are fed into the magazine with the help of pins. Be careful not to injure
yourself when handling the magazine.
WARNING: Danger of crushing
There are moving parts inside the printer. Never operate the BLUEMARK ID /
ID COLOR without its cover in place and do not attempt to access the inside of
the device through the device openings during operation. Otherwise, there is a
risk of injury.
WARNING: Irritation due to the fluid
Information on the hazards from the fluid can be found in the latest valid safety
data sheet for the consumables (see “Appendix” ). The safety data sheet can be
downloaded at:
phoenixcontact.net/qr/1002329

BLUEMARK ID/BLUEMARK ID COLOR
8 / 46 PHOENIX CONTACT 108369_en_00
1.4.2 Risk of device damage
NOTE: Notes on power connection
The BLUEMARK ID/ID COLOR is designed for power networks with an AC volt-
age of 100 V to 240 V. Only connect the printing system to sockets with a ground
conductor contact.
Only connect the BLUEMARK ID/ID COLOR to devices that have protective ex-
tra-low voltage. Before establishing or disconnecting connections, switch off all
affected devices (computer, printer, accessories).
NOTE: Protect the BLUEMARK ID/ID COLOR against moisture
Only operate the BLUEMARK ID/ID COLOR in a dry environment and do not ex-
pose it to any moisture (splash water, mist, etc.) or dust.
NOTE: Always secure the printer prior to transport
If you have to transport the printer, the printhead must be secured in place. The
device is fitted with an automatic transport lock.
You will also need to replace the fluid cartridge with a dummy cartridge. Other-
wise, fluid can leak from the printhead and contaminate the printer or render it
unusable.
Always use the original packaging for transportation.
NOTE: Disconnect the magazine before replacing it
The BLUEMARK ID/ID COLOR has a magazine that can be removed and re-
placed, if required. The magazine must only be removed after it has previously
been disconnected by making an entry on the display.
Do not attempt to forcibly pull out the magazine. This could lead to damage to the
material or the device. When inserting, you should be able to hear the magazine
engage with a click.

Safety and the environment
108369_en_00 PHOENIX CONTACT 9 / 46
1.4.3 Notes on use
NOTE: Limited durability of the fluid
The UV-curing fluid has limited durability. Once the expiry date is reached, the fluid
cartridge must be replaced. The printer will notify you that the durability period is
about to expire (see “Replacing the fluid cartridge and cleaning cartridge” ).
The fluid cartridge is designed for single use and cannot be refilled.
If the printer is not used over longer periods, the dummy cartridge has to be
inserted (see “Inserting the fluid cartridge during startup” ).
NOTE: Notes on storage
Store the fluid cartridge at 0°C ... 20°C to reach the optimum expiry date.

BLUEMARK ID/BLUEMARK ID COLOR
10 / 46 PHOENIX CONTACT 108369_en_00
1.5 Disposal
The BLUEMARK ID/ID COLOR contains valuable recyclable materials, which
should be utilized after the useful life (lifecycle) of the printer has ended.
The PCB of the BLUEMARK ID/ID COLOR is equipped with a lithium battery that
must be disposed of according to local regulations.
Please support us by contacting your local Phoenix Contact sales office to deter-
mine the best way of returning the old device. Phoenix Contact will then handle
the necessary recycling and disposal measures.
•Dispose of the printer separately from other waste, i.e., via an appropriate
collection site.
Dispose of the fluid cartridge correctly
Empty fluid cartridges can be disposed of with domestic waste. Used fluid car-
tridges that are not empty must be disposed of as hazardous waste, in the same
way as ink residue, for example. Please observe the local regulations.
Further information on disposal can be found in the latest valid safety data sheet
for the consumables. The safety data sheet can be downloaded at:
phoenixcontact.net/qr/1002329
Dispose of the cleaning cartridge correctly
The cleaning cartridge must be disposed of as hazardous waste, in the same
way as ink residue, for example. Please observe the local regulations.
Further information on disposal can be found in the latest valid safety data sheet
for the consumables. The safety data sheet can be downloaded at:
phoenixcontact.net/qr/1002329

Starting up the printer
108369_en_00 PHOENIX CONTACT 11 / 46
2 Starting up the printer
2.1 Scope of supply
– Printer
– Power cable
– USB cable
– DVD with driver and marking software
– Printed user manual (German/English)
– Brief instructions
– Dummy cartridges (inserted into the device)
The DVD also contains this user manual in several languages.
2.2 Unpacking
•Check the printer for transport damage.
•Retain the original packaging and the dummy cartridges for subsequent
transport.
2.3 Requirements for the installation location
•Place the printer on a level surface.
•Ensure free access and sufficient free space in front of the printer (tray pro-
trudes from the front during manual feed).
•Make sure not to block the ventilation slots.
•Place the printer on a solid and clean surface, e.g., table or workbench. Avoid
placing the printer on soft ground, such as carpets, foam mats, or fibrous ma-
terial that could block the ventilation slots.
General:
•Do not place anything on the printer.
NOTE: Damage to the printer
Place the printer in a dry location protected from splash water. Protect the printer
and printing materials from humidity, moisture, dirt and heat.

BLUEMARK ID/BLUEMARK ID COLOR
12 / 46 PHOENIX CONTACT 108369_en_00
2.4 Overview of the device
2.4.1 Outside view
Figure 2-1 BLUEMARK ID/ID COLOR device overview
1Control panel
2Button for standby mode
3LED
4Output magazine
5Tray
6Fluid cartridge cover
7Cleaning cartridge cover
8Infeed magazine
9Infeed magazine cover
LED
Green Ready to operate
Red Device in standby
Flashing red Error state, press the pushbutton and follow the information on the
display

Starting up the printer
108369_en_00 PHOENIX CONTACT 13 / 46
2.4.2 View of fluid cartridges and cleaning cartridge
[with open cover]
Figure 2-2 BLUEMARK ID COLOR/BLUEMARK ID fluid cartridges
Figure 2-3 BLUEMARK ID COLOR/BLUEMARK ID cleaning cartridge
1Tank cap
2Black and color fluid cartridges
3Tank cap
4Black fluid cartridge
5Printhead handwheel
6Cleaning cartridge
7Release lever

BLUEMARK ID/BLUEMARK ID COLOR
14 / 46 PHOENIX CONTACT 108369_en_00
2.5 Inserting the fluid cartridge during startup
For safety reasons, the BLUEMARK ID/ID COLOR is delivered with a dummy car-
tridge. The first step is to replace the dummy cartridge by a fluid cartridge that you
can order from Phoenix Contact.
•Connect the printer to the mains using the corresponding power cable. The
printer has a wide-range power supply unit (100 V AC ... 240 V AC), so that
voltage switching on the device is not required.
•Switch on the printer using the on/off switch on the rear of the device.
•Open the fluid cartridge cover.
•Open the tank cap by applying light pressure to the tank cap towards the right-
hand side of the printer, and remove the dummy cartridge.
•Push in the new fluid cartridge from the top.
Ensure that the tank of the BLUEMARK ID COLOR is aligned and positioned cor-
rectly by assigning the color correctly to the associated compartment. (See
Figure 2-2)
•Then close the tank cap again until it snaps into place.
•Repeat these steps for the BLUEMARK ID COLOR until all cartridges have
been replaced.
•Close the fluid cartridge cover again.
NOTE: Clean conditions when replacing the cartridge
Ensure a clean environment when replacing the fluid cartridge. Avoid dust or lint
on the tank or in the device. Otherwise, the ink system becomes dirty and the
print quality is reduced.
When the printer is started for the first time, the ink system is filled with ink. This
process will take a few minutes.
NOTE: Retain the dummy cartridge
It is clearly marked DUMMY.
It should be inserted again before the device is shipped.

Starting up the printer
108369_en_00 PHOENIX CONTACT 15 / 46
2.5.1 Overview of the interfaces
Figure 2-4 Overview of interfaces
1On/off button
2Fuses
3Mains connection
4Ethernet port (LAN)
5USB host port
6USB device port
7USB host port

BLUEMARK ID/BLUEMARK ID COLOR
16 / 46 PHOENIX CONTACT 108369_en_00
2.5.2 Connecting to a computer via USB
Requirements
Prior to driver installation, the following requirements must be met:
– The dummy cartridge has been replaced with a normal fluid cartridge.
– The BLUEMARK ID/ID COLOR is installed in a suitable location.
– The BLUEMARK ID/ID COLOR is connected to the power supply, but is
switched off.
– The BLUEMARK ID/ID COLOR is not yet connected to the PC.
Start driver installation with the supplied installation program, which uninstalls any
existing older BLUEMARK drivers and copies the new drivers.
•Insert the supplied DVD.
•Select the relevant driver and start the installation process.
A new window appears.
Figure 2-5 Driver installation: USB
•Select “USB” from the drop-down menu and click “Install”.
Any older BLUEMARK drivers will be uninstalled, and the new drivers will be copied.
A message window appears as soon as this process is complete.
•Confirm the message with “Ok”.
•Connect the printer to the PC using the supplied USB cable. The smaller USB
connector (type USB B, bottom connector in the image) is connected to the
printer, and the wider connector (top connector in the image) is connected to
the PC.
NOTE:
Errors during operation due to insufficient or missing shielding
Make sure that all connecting cables connected to the printer are shielded.

Starting up the printer
108369_en_00 PHOENIX CONTACT 17 / 46
Figure 2-6 USB cable
•Switch on the printer.
The PC will respond and install the pre-installed driver.
Firmware updates for the latest drivers can be found at
phoenixcontact.net/catalog

BLUEMARK ID/BLUEMARK ID COLOR
18 / 46 PHOENIX CONTACT 108369_en_00
2.5.3 Connecting to a network via Ethernet
The integrated Ethernet interface allows the printer to be operated in a network. A
patch cable with RJ45 connector for 10Base-T or 100Base-T is required in order to
connect the printer to a network socket.
The following parameters are required in order to operate the printer in a network.
If necessary, contact your network administrator.
– IP address
– Subnet mask
– Gateway, if necessary
Alternatively, you can also obtain the Ethernet configuration via a DHCP server.
Further setting options are available in the menu. You can configure the Ethernet
interface here.
NOTE: Errors during operation due to insufficient or missing shielding
Make sure that all connecting cables connected to the printer are shielded.
•Touch this symbol.
•Touch this symbol.
•Enter the admin PIN (“0000”).
•Touch this symbol.
•Touch this symbol.
•Disable DHCP. An input mask appears.
•Enter the IP address, subnet mask, and gateway, if required.

Starting up the printer
108369_en_00 PHOENIX CONTACT 19 / 46
2.5.4 Installing drivers
•Start driver installation with the supplied installation program, which uninstalls
any existing older BLUEMARK drivers and copies the new drivers.
•Insert the supplied DVD.
•Select the relevant driver and start the installation process.
A window appears.
Figure 2-7 Driver installation: LAN
•Select “LAN” from the drop-down menu.
•Enter the IP address that has been assigned to your printer.
•
The IP address can be read on the printer. Enter the IP address.
Example: IP address 172.24.20.109 or 172024020109.
•Once you have entered the IP address, click “Install”.
The printer driver will be installed and the printer is then ready for operation.

BLUEMARK ID/BLUEMARK ID COLOR
20 / 46 PHOENIX CONTACT 108369_en_00
2.6 Printer menu
2.6.1 Using the control panel
•To select a menu item, briefly touch the corresponding symbol.
•Move your finger up and down the control panel to scroll the list.
If the printer is not used for a longer period, it automatically switches to standby
mode. Touch the on button briefly to wake up the printer.
2.6.2 Changing the language
The language of the printer is set to English by default. To later select a different
language, proceed as follows:
2.6.3 Start screen
Figure 2-8 BLUEMARK ID / BLUEMARK ID COLOR start screen
•Touch this symbol.
•Touch this symbol.
•Enter the admin PIN (“0000”).
•Touch this symbol.
•Touch the desired language.
