1. Welcome 5
2. Important safety information:
Please read before operating your Phonak CROS
system for the first time 6
Hazard warnings 6
Information on product safety 8
3. Phonak CROS system description 10
4. Step-by-step instructions for using
the Phonak CROS system 14
Step 1. Getting to know your
Phonak CROS transmitter 14
Step 2. Battery preparation 17
Step 3. Inserting the battery 18
Step 4. Turning on the Phonak CROS
transmitter 19
Step 5. Placing the Phonak CROS transmitter 21
Step 6. Adjusting the volume 26
Step 7. Selecting the hearing program 28
Contents
Step 8. Removing the Phonak CROS
transmitter 29
Step 9. Turning off the Phonak CROS
transmitter 31
Step 10. Changing the battery 32
5. Care and maintenance 33
6. Troubleshooting 35
7. Wireless Accessories and FM systems 37
Wireless Accessories 37
FM systems 37
8. Service and warranty 39
9. Compliance information 40
10. Information and explanation of symbols 43
11. For the US market only, complies with the
FDA regulations 46

5
1. Welcome
Your new Phonak CROS system is a premium Swiss
quality product. It was developed by Phonak, one of
the world‘s leading companies in hearing technology.
Your Phonak CROS system offers the most modern
digital hearing technology currently available on the
market.
Please read these user instructions thoroughly in order
to benefit from all the possibilities your new Phonak
CROS system has to offer. With proper use and care, you
will be able enjoy your Phonak CROS system for many
years to come.
If you have any questions, please consult your hearing
care professional.
Phonak - life is on www.phonak.com
0459

6
7
Please read the information on the following pages
before using your Phonak CROS system
A Phonak CROS system will not restore normal hearing
and will not prevent or improve a hearing impairment
resulting from organic conditions. Infrequent use of a
Phonak CROS system does not permit a user to attain
full benefit from it. The use of a Phonak CROS system is
only part of hearing habilitation and may need to be
supplemented by auditory training and instruction in
lipreading.
2.1Hazard warnings
Use only Phonak CROS systems that have been
specially programmed for you by your hearing care
professional. Other systems may be ineffective
and may, in certain cases, damage your hearing.
Changes or modifications to the Phonak CROS system
that were not explicitly approved by Phonak are
not permitted. Such changes may damage your ear
or the hearing system.
2. Important safety information
Phonak CROS system batteries are toxic if they are
swallowed! Keep out of reach of children and pets. If
batteries are swallowed, consult your physician
immediately!
If you feel pain in or behind your ear, if it is inflammed
or if skin irritation and accelerated accumulations
of ear wax occur, please check with your hearing care
professional or physician.
Hearing programs in the directional microphone mode
reduce background noises. Please be aware that
warning signals or noises coming from behind, e. g.
cars, are partially or entirely suppressed.
The Phonak CROS system contains small parts
which can be swallowed by children.
External devices may only be connected if they have
been tested in accordance with corresponding
IECXXXXX standards. Only use accessories approved
by Phonak AG.

8
9
2.2 Information on product safety
Never immerse your Phonak CROS system in water!
Protect it from excessive moisture. Always remove
your hearing system before showering, bathing,
or swimming.
Protect your Phonak CROS system from heat
(never leave near a window or in the car.) Never
use a microwave or other heating devices to
dry your hearing system. Ask your hearing care
professional about suitable drying methods.
When you are not using your Phonak CROS system,
leave the battery compartment open so that any
moisture can evaporate. Make sure that you always
completely dry your Phonak CROS system after use.
Store the Phonak CROS system in a safe, dry and
clean place.
Do not drop your Phonak CROS system! Dropping
onto a hard surface can damage your Phonak CROS
system.
Always use new batteries for your Phonak CROS
system. You can return used batteries to your hearing
care professional.
Remove the battery if you are not using your
Phonak CROS system for a long period of time.
X-ray radiation (e. g. CT scans, MRI scans) may
adversely affect the correct functioning of your
Phonak CROS systems. We recommend that you
remove them before undergoing X-ray procedures
and keep them outside the room.
Do not use your Phonak CROS system in areas
where electronic equipment is prohibited.
In the event that Phonak CROS accidentally falls
off the ear, an acoustical alert ( ) will indicate
that the connection between the Phonak CROS and
the hearing instrument is broken.
2. Important safety information

10
11
The Phonak CROS system is a hearing application for
unilateral hearing loss to compensate the head shadow
effect for sounds originating on the unaidable side.
The Phonak CROS transmitter is placed on the unaidable
ear and transmitts sounds to the Phonak hearing aid
on the other ear. The sound is transmitted wireless and
can be heard clearly and directly on the hearing ear.
Phonak CROS transmitter + Phonak hearing aid =
Phonak CROS system
The following user instructions describe Behind-the-Ear
(BTE) and In-the-Ear (ITE) CROS transmitter models.
The BTE CROS transmitter can be adapted with a variety
of retention systems.
The ITE CROS transmitter are available as a HS-model
that are situated in the ear canal and a FS-model that
are situated only in the bowl of the ear.
On the following pages use the labeled drawings to
identify the model and the retention that you use.
3. Phonak CROS system description
Your hearing care professional will tell you what size
of battery you need for your Phonak CROS system.
BTE

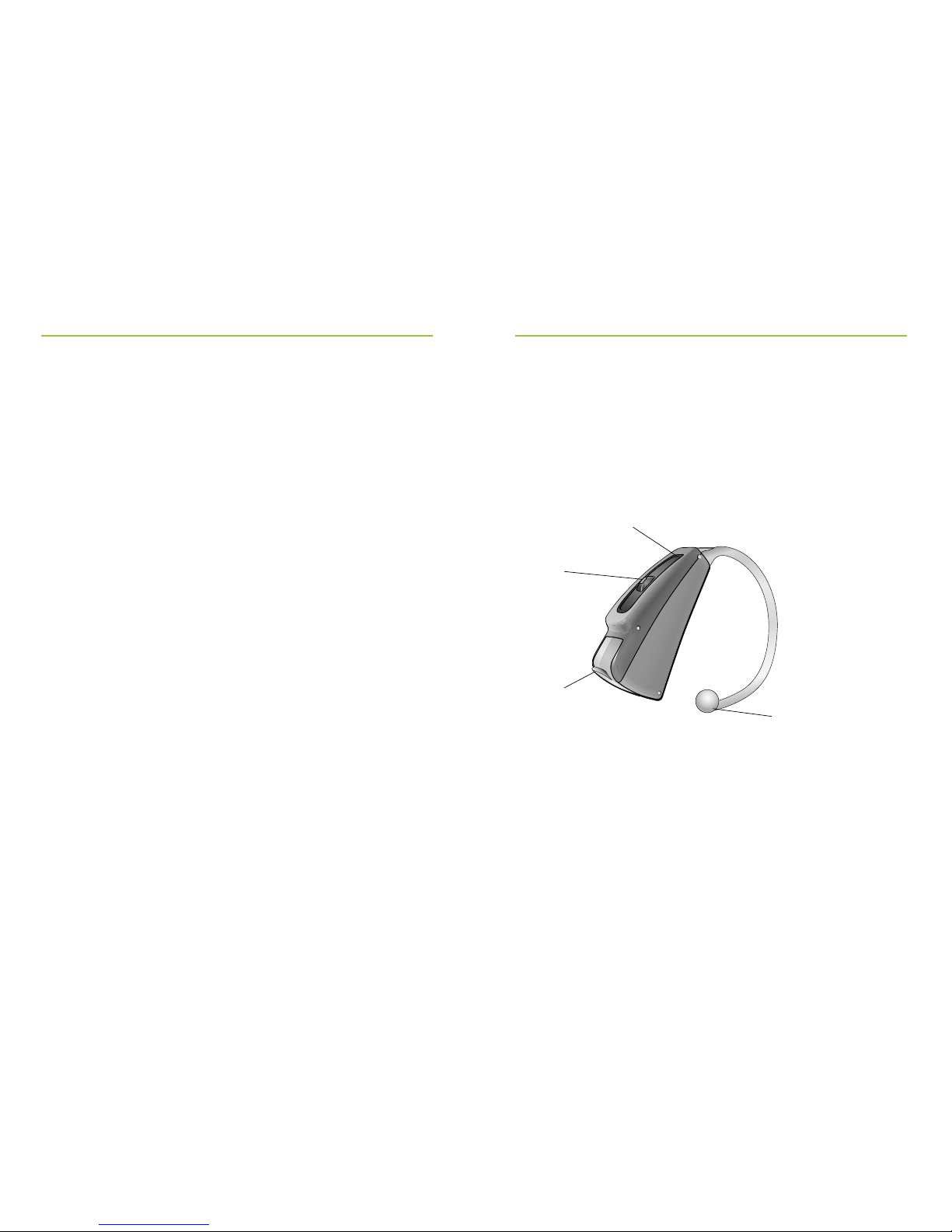

Option A: with Phonak CROS retention
aPhonak CROS retention
bBattery compartment with ON / OFF switch
cSwitch
dMicrophone input with microphone protector
d
b
c
a

12
13

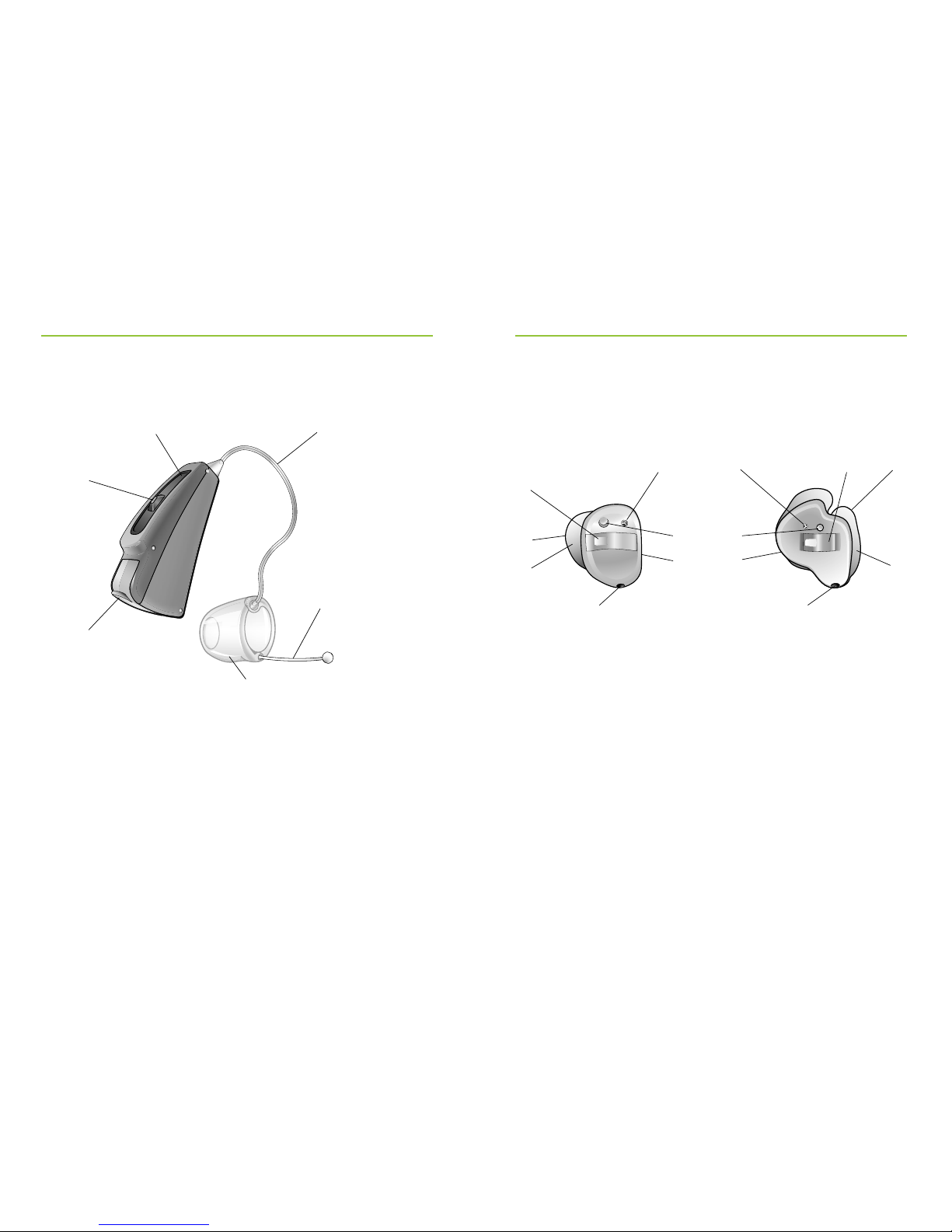

Option B: with Phonak CROS Tip
aEarpiece: Phonak CROS Tip
bBattery compartment with ON/OFF switch
cSwitch
dMicrophone input with microphone protector
eRetention
fRemoval handle
3. Phonak CROS system description
ITE
Option A: HS-model Option B: FS-model
aCustom made shell
bWax protection system
cBattery compartment with ON/OFF switch
dProtected microphone inlet
eSwitch
f Right or left indicator (right=red, left=blue)
gVent
a
b
c
e
d
g
a
bc
e
d
g
f f
a
f
ed
c
b

14
15
The following chapter provides step-by-step instructions
on how to use your Phonak CROS system. Please
follow these steps carefully. In the drawings, the parts
that are particularly important for each step are
shown in green.
Step 1. Getting to know your Phonak CROS transmitter
The Phonak CROS transmitter only works in
conjunction with a Phonak hearing aid as the
receiver.
Take the Phonak CROS transmitter in your hand and try
out the system controls. This will make it easier for
you to feel for and operate the controls later on when
wearing the Phonak CROS system.
4. Step-by-step instructions for using
the Phonak CROS system Your hearing care professional can configure your
Phonak CROS transmitter (push) switch as either a
volume control or a program selector.
To increase the volume, press the switch on your right
instrument*. To decrease the volume, press the switch
on your left instrument* (Fig. 1a/1b).
Option A: BTE
Left Right
* Phonak CROS transmitter or hearing aid
Fig. 1a
Decrease
volume
Increase
volume

16
17
Option B: ITE
Left Right
Fig. 1b
4. Using your Phonak CROS system
Decrease
volume
Increase
volume
In order to change a hearing program, press the
switch displayed (Fig. 1c/1d).
Option A: BTE Option B: ITE
Step 2. Battery preparation
Remove the protective foil from the new battery (Fig. 2).
Wait for two minutes before inserting to activate the
battery.
Fig. 1c Fig. 1d
Fig. 2

18
19

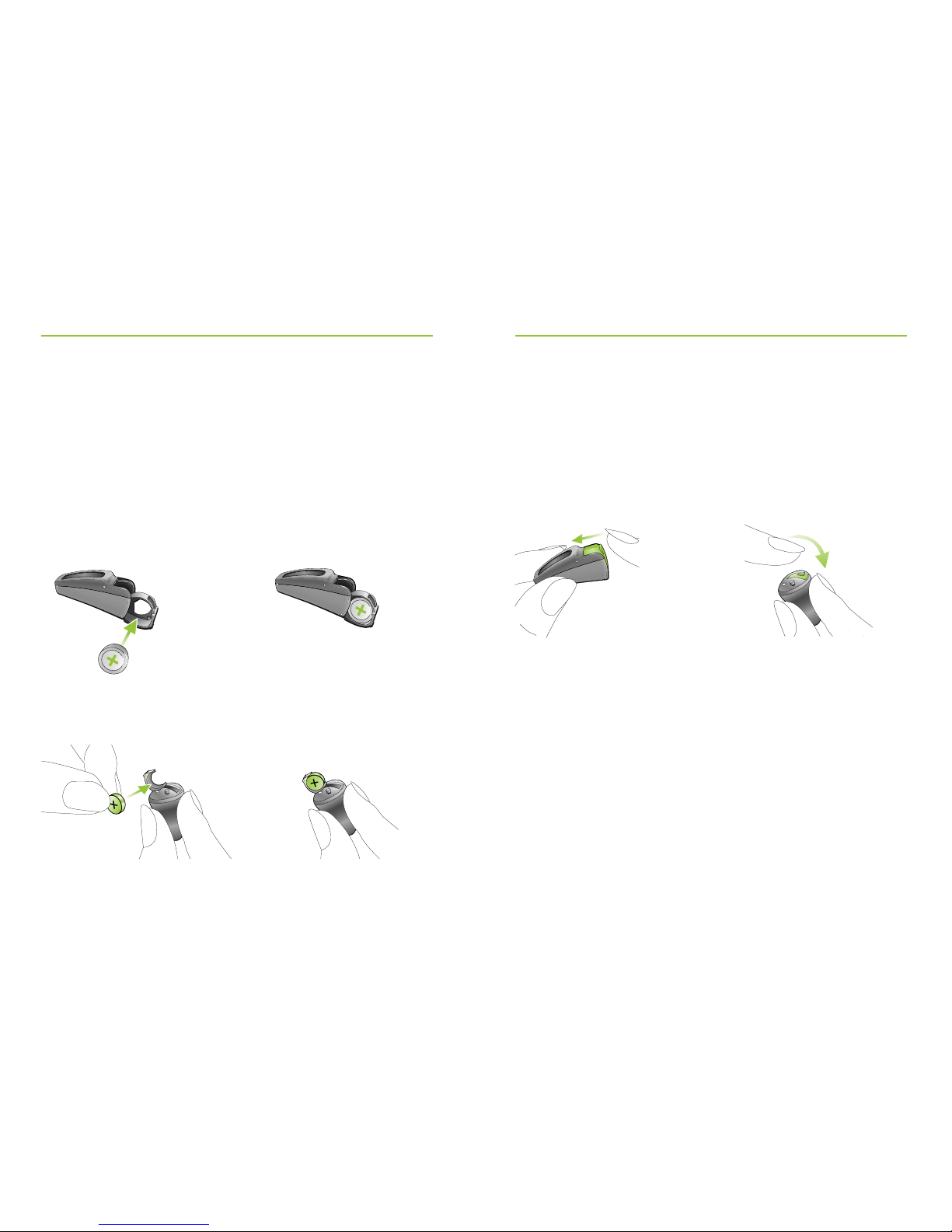

Step 3. Inserting the battery
Take the Phonak CROS transmitter in your hand
(Fig. 3a/3c) and open the battery door. Insert the
battery so that you see the + symbol on the battery
(Fig. 3b/3d).
Option A: BTE
Option B: ITE
Fig. 3a Fig. 3b
Fig. 3c Fig. 3d
4. Using your Phonak CROS system
Step 4. Turning on the Phonak CROS transmitter
The Phonak CROS transmitter is switched on by closing
the battery compartment (Fig. 4a/4b).
Option A: BTE Option B: ITE
Fig. 4a Fig. 4b

20
21
Open and close the battery compartment gently
and carefully.
Check if you feel resistance when closing the
battery compartment. Check to make sure
the battery is correctly inserted and in the correct
direction. If the battery is inserted the wrong
way, the Phonak CROS transmitter will not work
and the battery compartment can be damaged.
The Phonak CROS transmitter is now switched on. It
can take up to 15 seconds before it starts.
(When you wear the hearing aid, you will hear an
acoustic signal).
4. Using your Phonak CROS system
Step 5. Placing the Phonak CROS transmitter
This step shows you how to correctly place the
Phonak CROS transmitter. The model and the type
of retention determines how the Phonak CROS
transmitter is placed.
The Phonak CROS transmitter is individually
programmed for your right or left ear. For the
first step identify right and left so you will
be able to insert your Phonak CROS transmitter
in the correct ear.

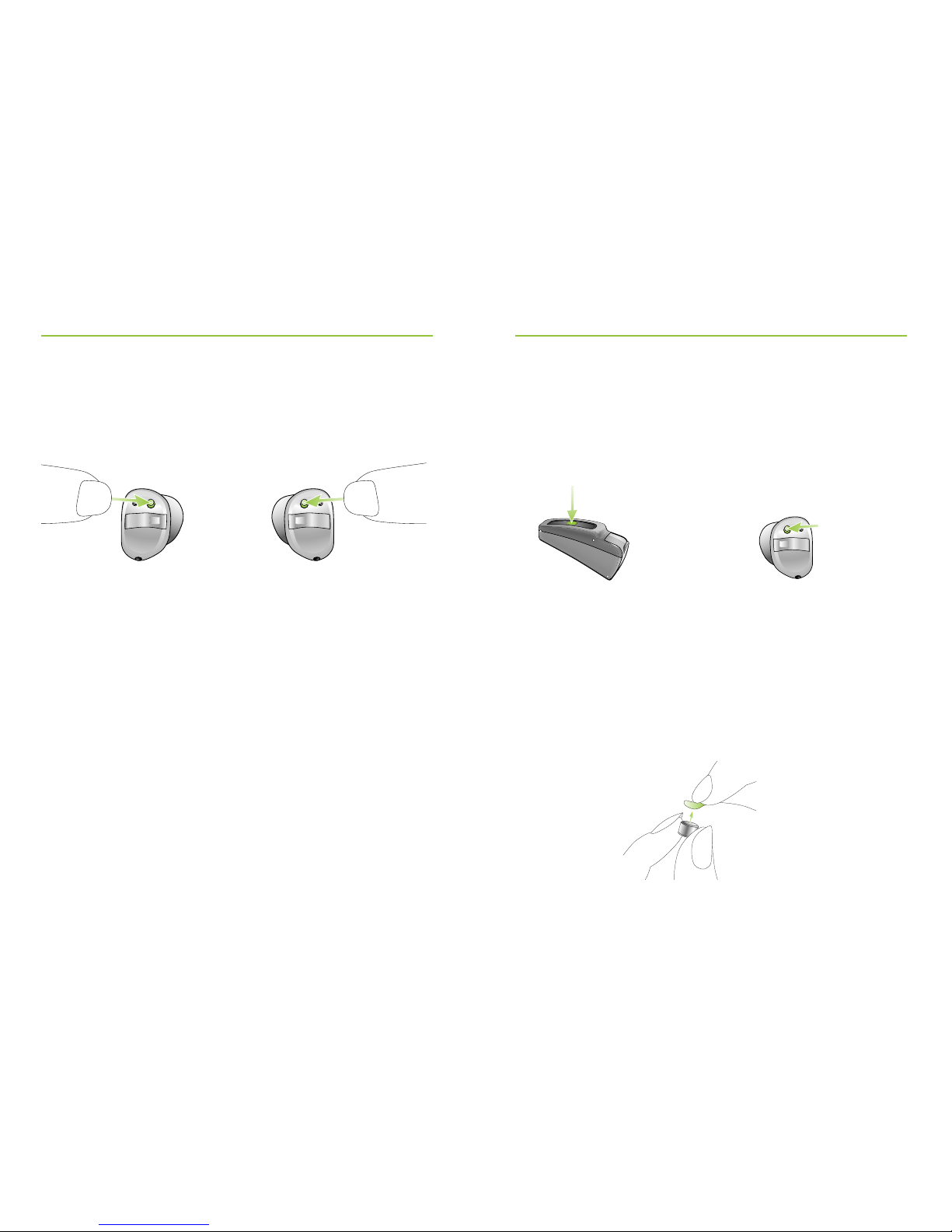

Step 5.1 Identifying the Phonak CROS transmitter for
the right or left ear
Color indicator:
right = red / left = blue
Option A: BTE Option B: ITE
Fig. 5a Fig. 5b

22
23
Step 5.2 Placing the BTE CROS transmitter with
Phonak CROS retention

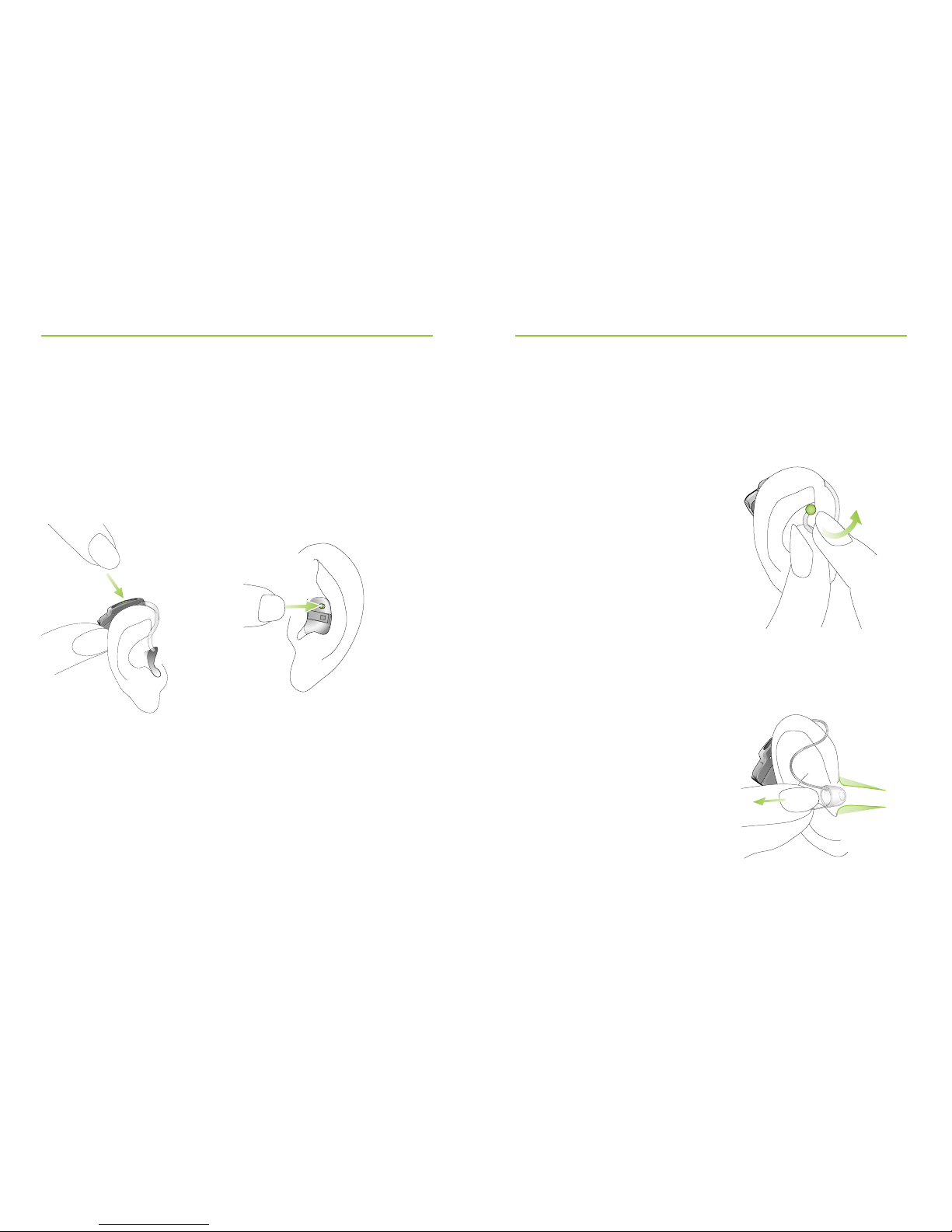

With your right hand, place the Phonak CROS transmitter
(red mark, see step 5.1) behind your right ear (Fig. 5c).
Place the Phonak CROS retention between your thumb
and forefinger (Fig. 5d). Insert the Phonak CROS retention
in the upper section of bowl of the ear (Fig 5e).
There may be a risk of losing the Phonak CROS
device with the Phonak CROS Retention. In this
case, an acoustic alert ( ) will indicate that the
wireless connection between the Phonak CROS and
the hearing aid is broken. For a more individualized
fit please use the Phonak CROS Tip.
4. Using your Phonak CROS system
Fig. 5c Fig. 5d Fig. 5e
Step 5.3 Placing a BTE CROS transmitter with a
Phonak CROS Tip
With your right hand, place the Phonak CROS transmitter
(red mark, see step 5.1) behind your right ear (Fig. 5f).
Place the retention between your thumb and forefinger.
Insert the Phonak CROS Tip deep enough into the ear
canal so that the retention lies flat on your ear (Fig. 5g).
Fig. 5f Fig. 5g

24
25
If you have problems placing the Phonak CROS
transmitter, use your other hand to gently pull your
earlobe downwards. This opens the ear canal a
little more and you can gradually rotate the Phonak
CROS Tip until it fits correctly.
You have now successfully placed the Phonak CROS
transmitter. Now insert your hearing aid by using
the specific user guide.
You place a left Phonak CROS transmitter in the same
way (marked in blue, see step 5.1)
Step 5.4 Inserting the ITE CROS transmitter (all models)

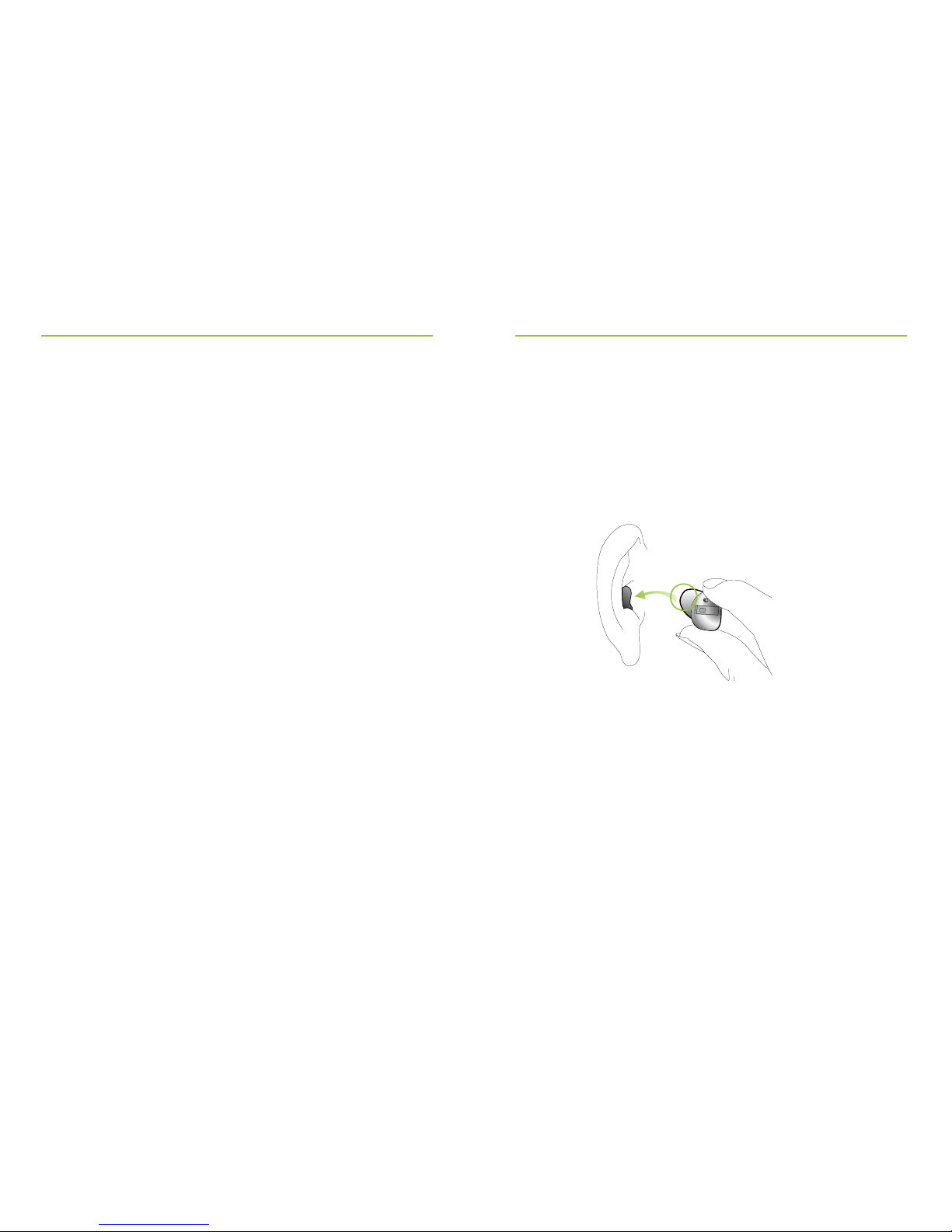

With your right hand, take your Phonak CROS transmitter
for the right ear (red mark, see step 5.1) between your
thumb and forefinger (Fig. 5h).
4. Using your Phonak CROS system
Insert the tip of the Phonak CROS transmitter into the
ear canal (see the part circled in green in Fig. 5h).
Carefully pull on your earlobe and push the Phonak
CROS transmitter into the correct position. Ensure
that it is positioned securely. In the beginning, please
use a mirror to check.
You have now successfully placed the Phonak CROS
transmitter. Now insert your hearing aid by using the
specific user guide.
You place a left Phonak CROS transmitter in the same
way (marked in blue, see step 5.1)
Fig. 5h

26
27
Step 6. Adjusting the volume
Your hearing care professional can configure your
Phonak CROS transmitter (push) switch as either a
volume control or a program selector.
To increase the volume, press the switch on your right
instrument*. To decrease the volume, press the switch of
your left instrument*. Use your thumb to lightly support
the instrument (Fig. 6a/6b).
Option A: BTE
Left Right
* Phonak CROS transmitter or hearing aid
Increase
volume
Decrease
volume
4. Using your Phonak CROS system
Fig. 6a
Option B: ITE
Left Right
Increase volumeDecrease volume
Fig. 6b

28
29
Step 7. Selecting the hearing program
In order to select or change a hearing program, press
the switch displayed in (Fig. 7a/7b).
Option A: BTE Option B: ITE
If you press it again, you change to the next program.
A signal indicates the change. A signal tone can only
be easily heard if you have turned on the hearing
aid and you are wearing it correctly.
Fig. 7a Fig. 7b
4. Using your Phonak CROS system
Step 8. Removing the Phonak CROS transmitter
Step 8.1 Removing the BTE CROS transmitter with
a Phonak CROS retention
Grasp the Phonak CROS
transmitter by the Phonak
CROS retention and
carefully remove it from
your ear (Fig. 8a).
Step 8.2 Removing the BTE CROS transmitter with
a Phonak CROS Tip
Grasp the Phonak CROS
transmitter by the removal
handle and carefully remove
it from your ear (Fig. 8b).
Fig. 8b
Fig. 8a

30
31
Step 8.3 Removing the ITE CROS transmitter
(all models)
Put your thumb behind your lobe (directly behind the
hard cartilage, Fig. 8c) and gently press your ear
upward to push the Phonak CROS transmitter out of
the canal. In order to help it along, make chewing
movements with your jaw.
4. Using your Phonak CROS system
Fig. 8c
Grasp the protruding
Phonak CROS transmitter
and remove it (Fig. 8d).
Step 9. Turning off the Phonak CROS transmitter
You can turn off your Phonak CROS transmitter by
opening the battery compartment (Fig. 9a/9b).
Option A: BTE Option B: ITE
Fig. 9a Fig. 9b
Fig. 8d

32
33
Step 10. Changing the battery
Before the battery of the Phonak CROS transmitter is
completely empty, your hearing aid will indicate to
you that the battery soon needs to be changed with an
acoustic signal. Once this happens, you have about
30 minutes (in some cases longer) to change the battery.
The battery warning signal is repeated every half hour.
We recommend that you always keep a spare battery
on hand.
4. Using your Phonak CROS system 5. Care and maintenance
Diligent and routine care of your Phonak CROS system
contributes to outstanding performance and a long
service life.
Please use the following specifications as a guideline:
General information
Before using hair spray or applying cosmetics, you
should remove your Phonak CROS system from your
ear, because these products may damage it.
Never wash or clean the microphone protection (see
chapter 3). Doing so could cause it to loose its special
acoustic features. Try to avoid touching this protection,
e. g. when inserting or operating the Phonak CROS
system.
If you feel pain in or behind your ear, or if it is inflamed,
please check with your hearing care professional or
physician.

34
35
Daily
Inspect the Phonak CROS system for earwax and
moisture deposits. Clean the surfaces with a lint-free
cloth. Never use cleaning agents such as household
detergents, soap, etc. for cleaning your Phonak CROS
system. If you need to clean your Phonak CROS system
intensively, ask your hearing care professional for
advice and information on filters or drying capsules.
Weekly
Clean the Phonak CROS system with a soft, damp
cloth or with a special cleaning cloth for Phonak CROS
systems. For more in depth maintenance instructions
or for more than basic cleaning, please see your hearing
care professional.
5. Care and maintenance
Phonak CROS system sound softer than usual /no
sound
First check whether you can adjust and make the
sound louder with the volume control. Check whether
the battery is correctly inserted and properly fitted,
adjust the fit if necessary. If there is no improvement,
change the battery. Then check the hearing aid for
earwax residue and clean if necessary (Please refer to
the hearing aid specific user guide). If the problem
persists, contact your hearing care professional.
Battery discharges too quickly
Insert a new battery and make note of exactly how
long it lasts. Contact your hearing care professional
with this information, they will be able to help and
advise you.
Crackling or buzzing background noises
Check the hearing aid (refer to the hearing aid
specific user guide). If the problem persists, contact
your hearing care professional.
6. Troubleshooting

36
37
Whistling
Check whether the hearing aid is correctly and firmly
fitted. If this is the case, but the problem persists, please
consult with your hearing care professional.
Pain or inflammation in your ear
Remove the Phonak CROS system and consult with your
hearing care professional. If the problem is serious,
please contact your physician.
6. Troubleshooting
7.1 Wireless accessories
The Phonak CROS system allows the use of wireless
accessories with the hearing aid. Phonak has developed
a broad range of wireless accessories that allow you
to best use and discreetly control your CROS system.
These include, for example, remote controls, wireless
connection modules to the TV and computer, and
much more. Programs and accessories that can help
you make phone calls simply and more comfortably
are also included in this product range.
When wireless accessories are used (excluding
remote controls), sound from the Phonak CROS
transmitter side will not be received in the hearing
aid.
7.2 FM systems
The Phonak CROS system allows the use of FM
systems with the hearing aid. FM Systems are wireless
communication systems consisting of a radio trans-
mitter and a radio receiver. The transmitter is placed
close to the sound source (e. g. TV/Radio/lectern). The
sound is transmitted clearly and directly to the hearing
aid in the form of radio signals – without disruptive
background noises or echoes.
7. Wireless Accessories and FM systems

38
39
7. Wireless Accessories and FM systems
Phonak is a leader in FM communication. In order to
take advantage of the benefits of these high-tech radio
systems, consult with your hearing care professional.
If you already have an FM system and need additional
information on using this system, please consult the
relevant user instructions on the FM transmitter or the
FM receiver.
For more information, please visit www.phonak.com, or
ask your hearing care professional
When FM systems are used (excluding remote
controls), sound from the Phonak CROS transmitter
side will not be received in the hearing aid.
8. Service and warranty
Phonak offers you a comprehensive, worldwide warranty,
valid starting from the date of purchase. Please ask
your hearing care professional about the term of the
warranty valid in the country of purchase. The warranty
covers repairs in case of processing and material errors.
No warranty claims will be considered if the hearing
system shows normal wear and tear, improper handling
or care, exposure to chemicals, immersion in water or
undue stress. In case of damage caused by third parties or
non-authorized service, the Phonak warranty is null and
void. This warranty does not cover services performed by
a hearing care professional at his or her workplace.
Serial number of the Serial number of the
left hearing system right hearing system
Purchase date:
