Piusi CUBE B.SMART Quick start guide

CUBE
Bulletin M0546 EN_01
Installation, use and maintenance EN

Installation, use and maintenance
M0546
2 /6 0
Bulletin M0546
ENGLISH

3/124
EN
3 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
1 CONTENTS
2 CONFORMITYDECLARATION 4
3 SAFETYINSTRUCTIONS 5
5 FIRSTAIDREGULATIONS 7
6 SAFETYNORMS 7

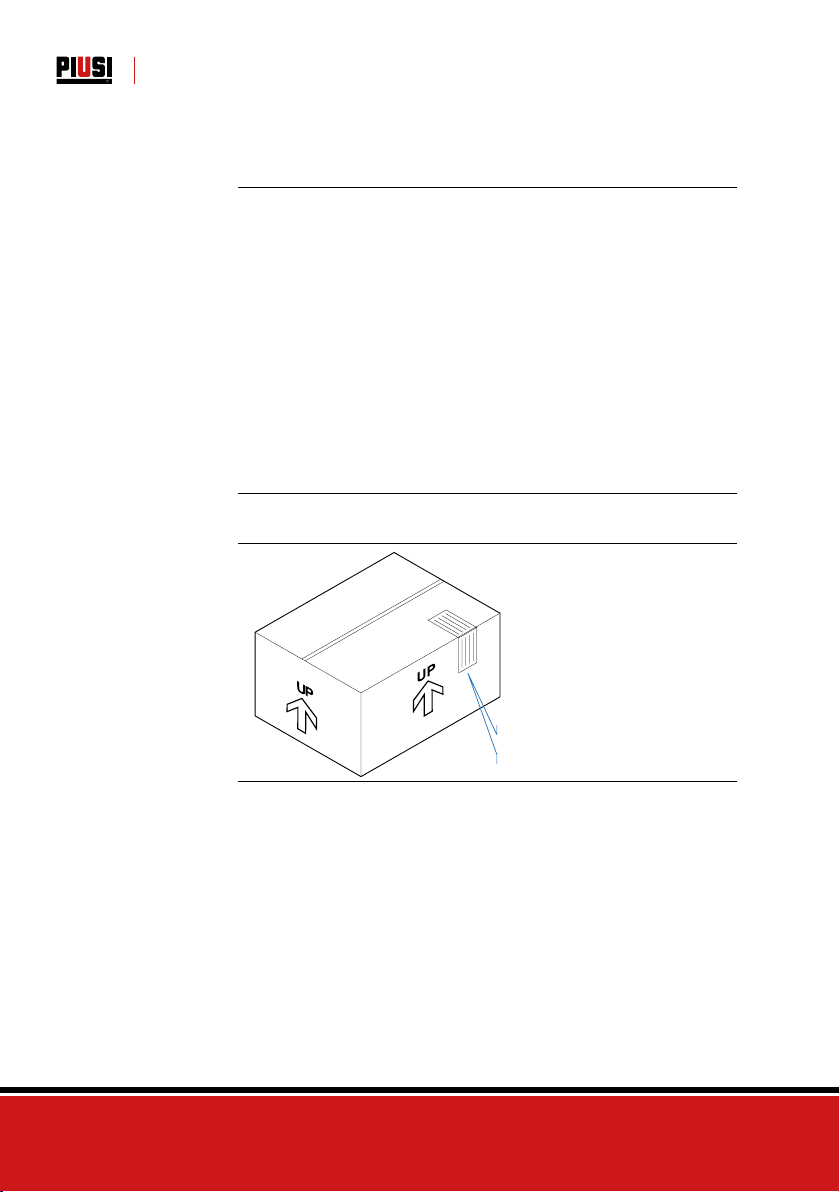

7 TRANSPORTHANDLINGANDUNPACKING 8
71 DIMENSIONSANDWEIGHTS 9
7 2 CONTENTOFTHEPACKAGING/PRELIMINARYINSPECTION 10
8 MACHINEANDMANUFACTURERIDENTIFICATION 11

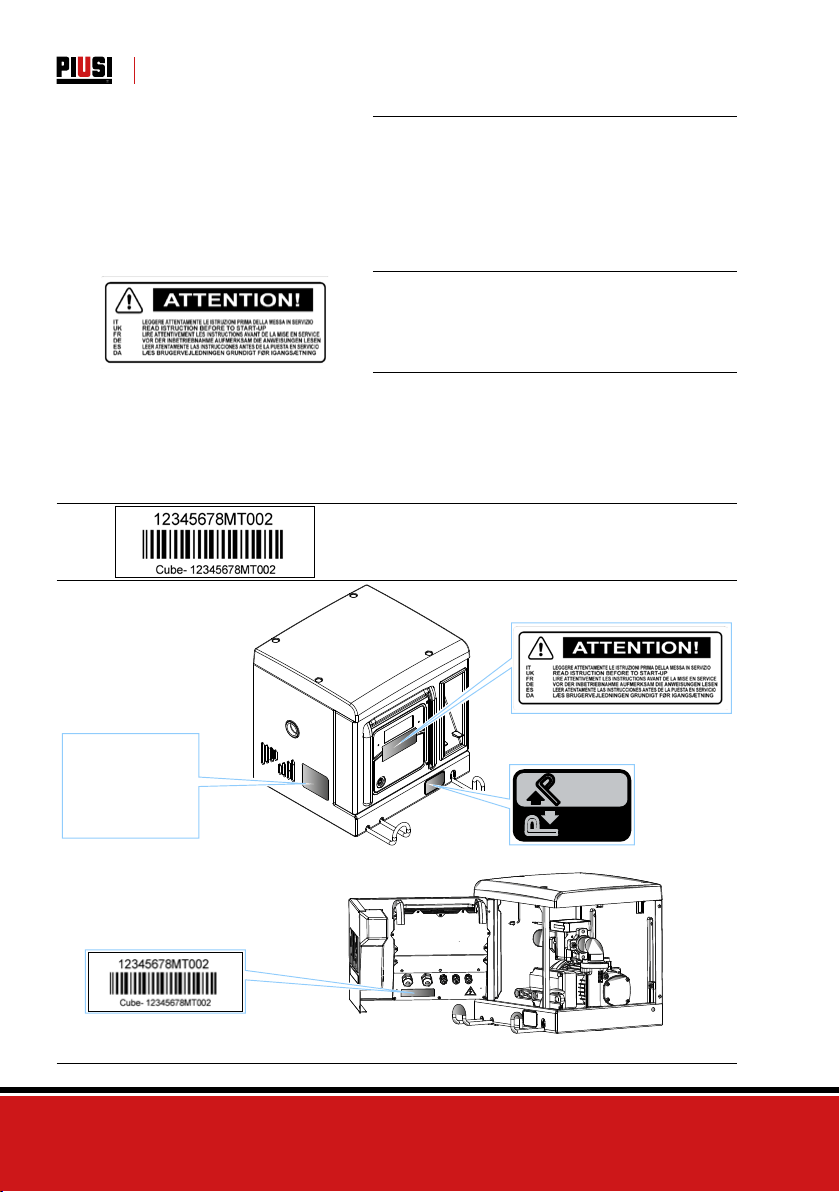

81 POSITIONOFTHEPLATES 11
9 DESCRIPTIONOFTHEMAINPARTS 13
91 CASINGANDPUMPINGUNIT 13
92 PULSERFLOWMETER 13
93 DISPENSINGNOZZLE 14
94 LEVELINDICATOR 14

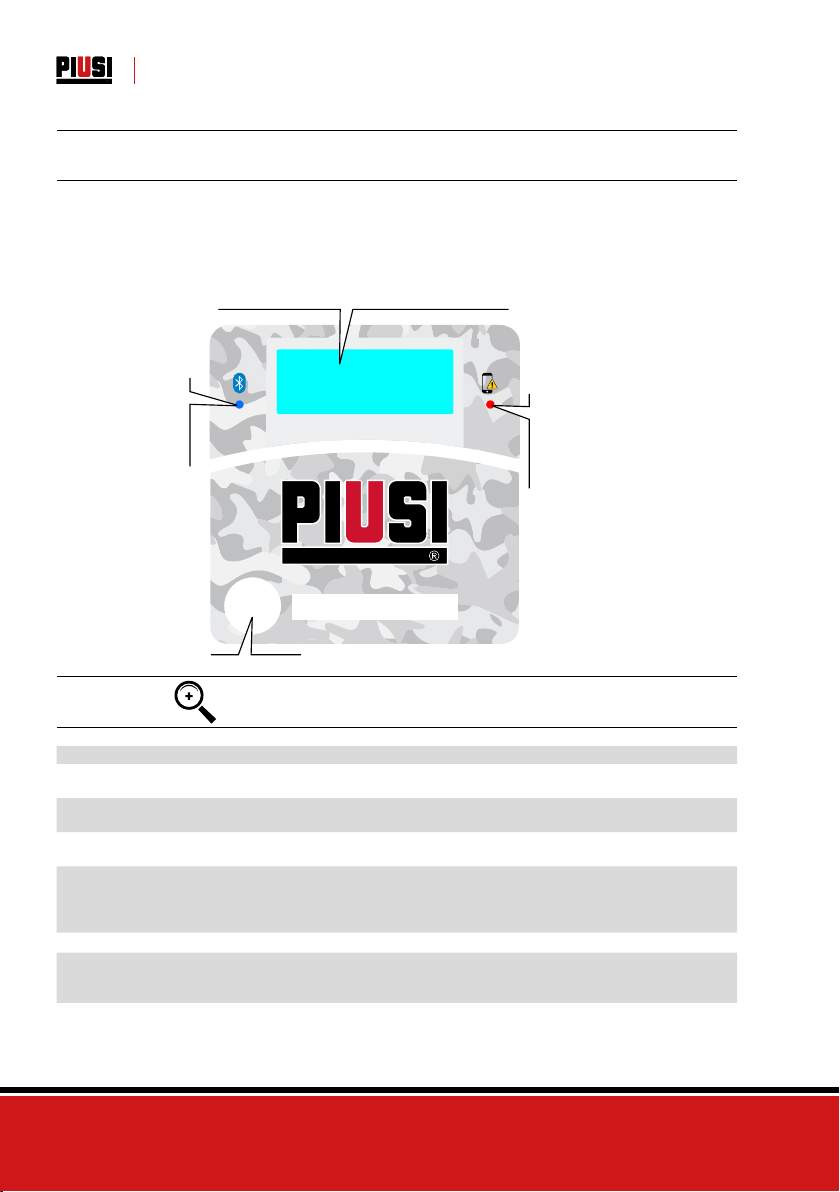

95 DISPLAYCOVER 14
96 DISPENSINGMANAGEMENTSYSTEM 14
10 OPERATION 16
12 TECHNICALSPECIFICATIONS 17
13 USE 19
131 INTENDEDUSE 19
132 UNINTENDEDUSE 19
133 REASONABLYFORESEEABLEMISUSE 19
14 INSTALLATION 20
141 STATIONPOSITIONING 20
142 STATIONFIXING 21
143 HYDRAULICCONNECTIONS 22
144 ELECTRICALCONNECTIONS 23
15 INITIALCONFIGURATION 26
151 SWITCHINGON 26
152 CONFIGURATIONVIAAPPANDWEBAPP 27
153 CONTROLLERCONFIGURATIONVIAWEBAPP 31
16 STARTUP 34
161 FIRSTPRIMING 34
17 FLOWMETERCALIBRATION 35
18 DAILYUSE 35
19 DRIVERACCESS 36
191 FIRSTDRIVERACCESSFROMAPP 36
192 DRIVERDISPENSINGVIAAPP 38
193 DISPENSINGVIAUSERKEYIBUTTON 42
20 MAINTENANCE 44
201 ROUTINEMAINTENANCE 44
202 EXTRAORDINARYMAINTENANCE 46
203 CHECKANDREPLACEMENTOFFUSES 47
21 TROUBLESHOOTING 49
211 MECHANICALANDHYDRAULICPROBLEMS 49
212 ELECTRICAL/ELECTRONICCONNECTIONS 50
213 PROBLEMSWITHTHESMARTPHONEAPP 51
22 FAQ 51
23 SCRAPPINGANDDISPOSAL 54
24 EXPLODEDVIEWS 55

Installation, use and maintenance
M0546
4 /6 0
2 CONFORMITY DECLARATION
The undersigned: PIUSI S.p.A.
Via Pacinotti 16/A - Z.I. Rangavino
46029 Suzzara - (MN) - Italy
DECLARES under its own responsibility, that the unit described below:
Description: Dispenser for diesel
Model: CUBE B.SMART
Serial number: refer to the Lot Number indicated on the CE plate affixed to the product
Year of manufacture: refer to the year of production indicated on the CE plate affixed to the product.
conforms to the legal regulations that transpose the following directives:
- Machinery Directive 2006/42/EC
- Electromagnetic Compatibility Directive 2014/30/EU
- ROHS Directive 2011/65/EU
- RED Directive 2014/53/UE
The documentation is at the disposal of the relevant authority upon justified request at PIUSI S.p.A. or
request via e-mail: [e-mail] The party authorised to compose the technical file and draw up
the declaration is Otto Varini in his capacity as legal representative.
Suzzara, 01/07/2019
Otto Varini
legal representative.
2 GENERAL WARNINGS
Important
information
For operators’ safety and to prevent any damage, the instruction manual
must be fully read and understood before carrying out any operation.
Symbols used
in the manual
The following symbols will be used in the manual to highlight particularly
important instructions, warnings and information.
IMPORTANT
This symbol indicates safety regulations for the operators and/or any
persons at risk.
WARNING
This symbol indicates the possibility of damage to the unit and/or its
components.
NOTE
This symbol indicates useful information.
Storage of the
manual
This manual must be whole and legible in its entirety. The end user and
specialist technicians authorised for installation and maintenance must be
able to read it at any time.
Reproduction
rights
All reproduction rights of this manual are reserved to Piusi S.p.A.
The text cannot be used in other printed publications without written authorisation
from Piusi S.p.A.
© Piusi S.p.A.
THIS MANUAL BELONGS TO PIUSI S.p.A.
THE REPRODUCTION OF ALL OR PARTS IS PROHIBITED.
This manual belongs to Piusi S.p.A., the exclusive holder of all rights envisaged
by the relevant laws, including by way of example copyright law. All rights
according to such law are reserved to Piusi S.p.A.: the reproduction of all or
parts of this manual, its publication, alteration, transcription, disclosure to the
public, distribution, sale in any form, translation and/or processing, loan, and
any other activity reserved by law to Piusi S.p.A.

5/124
EN
5 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
3 SAFETY INSTRUCTIONS
IMPORTANT
Electrical supply -
preliminary checks
for installation
Completely avoid contact between the electrical supply and the liquid to
be pumped.
Inspection and
maintenance
operations
Before any inspection or maintenance, cut off the POWER SUPPLY
FIRE AND
EXPLOSION
If there are
flammable liquids
in the working area,
flammable vapours
may be present
and may cause fire
or explosion during
station use.
To prevent fire and explosion risks:
Use the station only in ventilated areas
Keep the work area free of scraps, including scraps and solvent or petrol
tanks.
Do not plug or unplug or operate the switch in the presence of flammable
vapours.
All devices in the work area must be grounded.
Interrupt immediately any action if there are sparks or shocks. Do not use
the station until you have identified and resolved the problem.
Keep a fire-extinguisher in good working order close to the working area.
ELECTRIC
SHOCK
Electrocution
ordeath
FThis station must be grounded. Improper installation or use of the station
may result in danger of electric shock.
Switch off and unplug the power cord after use.
Connect only to grounded sockets.
Use only grounded cables in accordance with the applicable regulations.
Unsuitable extension leads may be dangerous.
Make sure that the plug and socket of the extension cords are intact.
Unsuitable extension leads may be dangerous.
In outdoor use, use only extensions suitable for the specific use, according
to the regulations in force.
The plug and socket must be connected far from water.
Do not expose to rain. Install in a sheltered location.
Never touch the plug or the socket with wet hands.
Donotturnthedistributionsystemonifthe supplyconnectioncable,important
parts of the equipment– the suction/delivery tube for example– the nozzle
or the safety devices are damaged. Replace the damaged pipe immediately
before use.
Before each use, check that the mains connection cable and the plug are
not damaged. If damaged, have the cable and plug replaced by qualified
personnel
.
The plug and socket must be connected far from water.
Outdoors, use only authorised extension leads for which this use is
envisaged with an adequate wire diameter in accordance with the
regulations in force.
As a general rule of electrical safety it is always recommended to power the
device by protecting the line with:
- circuit breaker/disconnector with a current rating suitable for the power
line
- 30 mA residual current device
The electrical connection must have a ground fault current interrupter
(GFCI).
Installation operations are carried out with the box open and the electrical
contacts accessible. All these operations must be carried out with the unit
isolated from the mains in order to avoid hazards of electrocution!

Installation, use and maintenance
M0546
6 /6 0
IMPROPER USE
OF THE UNIT
Improper use of the
device can cause
serious damage or
death.
!Do not operate the unit when tired or under the influence of drugs or
alcohol.
Do not leave the work area while the unit is on and operating.
Turn off the unit when not in use.
Do not alter or modify the unit. Alterations or modifications to the unit may
invalidate its type-approval and result in dangers to safety.
Arrange the hose and the power cables always far from transit areas,
sharp edges, moving parts and hot surfaces.
Do not twist the hose or use a stronger hose.
Keep children and animals far from the work area
Observe all applicable safety regulations.
Do not exceed the maximum working pressure or temperature of the
component with the lowest system rating.
See the technical specifications in all machine manuals.
Use liquids and solvents that are compatible with the wet parts of the
unit. See the technical specifications in all machine manuals. Read
the manufacturer’s warnings for liquids and solvents. To obtain more
information about the material, request the Safety Data Sheet (MSDS)
from your distributor or dealer.
Check the unit every day. Repair or replace worn or damaged parts
immediately with original manufacturer’s spare parts only.
Make sure that the unit is classified and approved in accordance with the
regulations for the environment in which it is used.
Use only the unit for its intended purpose. Contact your distributor for
more information.
Keep hoses and cables away from transit areas, edges, moving parts and
hot surfaces.
Do not bend or bend the hoses too much or use the hoses to pull the unit.
DANGER OF
BURNS
To avoid severe burns, do not touch liquids or equipment
Danger of smoke
and toxic fluids.
For problems deriving from the product handled with eyes, skin, inhalation
and ingestion, refer to the safety data sheet of the fluid used.
Store treated liquids in suitable containers and in compliance with
applicable regulations.
Prolonged contact with the product handled may cause skin irritation;
always use protective gloves when dispensing.

7/124
EN
7 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
FIRE AND
EXPLOSION
If it is necessary
to dispense in
areas classified
as hazardous for
explosion, it is
forbidden to use
the smartphone
less than 30 cm
away from the
fluid at the time
ofdispensing.
The PIUSI B-SMART product has been conceived to be used together
with the user’s mobile phone only and exclusively for the operations of
connection, authentication and connection of the user’s device to the fuel
dispenser in order to perform remotely certain operations described in this
manual.
If the PIUSI B-SMART product is used to refill petrol or other fuel or liquid
that emits flammable vapours or in any case creates potentially explosive
atmospheres according to the current ATEX regulations (Directive
2014/34/EU and relative applicable national implementing provisions,
including any later amendment or additions), the use of the mobile phone
while dispensing and in any case within any zone classified for ATEX
purposes in accordance with the regulations in force is strictly prohibited,
except in the case where the unit is regularly ATEX certified and authorised
for use in the relevant area. The mobile phone must therefore remain
outside this area or be switched off.
The use of the mobile phone by the user when refilling the vehicle with
other non-flammable liquids is in any case strongly discouraged as it can
cause distractions that can be dangerous.
PIUSI disclaims any and all liability in the event of damage to the person
or property of the user or third parties resulting from failure to comply with
the above warnings and / or any other negligent, reckless or imperishable
behaviour of the user.
5 FIRST AID REGULATIONS
Persons subjected
to electrical
discharge
Disconnect the supply, or use a dry insulator for protection when moving
the victim far away from any lead. Avoid touching the victim with bare
hands until they are far away from any lead. Request the assistance of
trained, qualified staff immediately. Never operate switches with wet
hands.
NO SMOKING Do not smoke near the dispenser and do not use the pump near open
flames.
6 SAFETY NORMS
Basic characteristics of
the protective equipment
Wear protective equipment that is:
• suitable for the operations to be carried out
• resistant to the products used for cleaning.
Personal
protective
equipment
tobeworn
Safety shoes;
Close-fitting clothing;
Protective gloves;
Safety goggles;
Other equipment Instruction manual.

Installation, use and maintenance
M0546
8 /6 0
7 TRANSPORT, HANDLING AND UNPACKING
CUBE B.SMART is shipped in a cardboard packaging that can be stacked.
During storage follow the directions shown on the packaging with graphic
patterns about the handling side. If the machine is lifted, check if the
capacity of the lifting means and of the accessories (such as the bands) is
correct. The use of mechanical means for handling and lifting must be solely
entrusted to authorised and suitably trained staff.
During machine inactivity, both packed or unpacked, it should be stored
in an area protected against weather agents (rain, moisture, sun, etc...)
and dust.
To open the cardboard packaging, use scissors or a cutter, taking care not
to damage the system.
With the help of a second operator, fully open the packaging and grasp the
CUBE B.SMART putting it vertical, so that it can be positioned afterwards.
Once removed from the packaging, the station should always be
kept vertical. The packaging elements (cardboard, wood, cellophane,
polystyrene, etc...) must be placed in the suitable containers and not left
in the environment or within children easy reach as they are potentially
harmful. Disposal should be performed in compliance with the standards
in force in the utilisation country.
The packaging shall bear the following indications:
- arrow indicating the UPPER side;
- label showing the information for the equipment (model, weight, etc.).
SB_D_001

9/124
EN
9 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
7.1 DIMENSIONS AND WEIGHTS
MODEL WEIGHT (kg) PACKAGING DIMENSIONS (mm)
CUBE B.SMART 25 400 x 400 x 460
PEDESTAL KIT 15 -
319
500
157
189
55 290
125
194
295 50

Installation, use and maintenance
M0546
10 /6 0
7.2 CONTENT OF THE PACKAGING/PRELIMINARY INSPECTION
Foreword Before assembly, make sure the machine is integer controlling all parts for
possible damage that could hinder safety and functionality.
In case of doubt, do not start up and contact the manufacturer’s technical
service.
Control if the accessory set is complete.
At the end of the inspection, assemble CUBE B.SMART:
1
INSTALL THE
PIPE-HOLDING
HOOK
2
INSTALL THE
ROCKER
OPERATING
LEVER
INSTALLATION
EXAMPLE

11/124
EN
11 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
3
APPLY THREAD
SEALANT
TO THE
CONNECTORS
BEFORE FINAL
ASSEMBLY
8 MACHINE AND MANUFACTURER IDENTIFICATION
The CUBE B.SMART stations are equipped with an identification plate
attached to the frame:
- Model
- Serial number / year of manufacture
- Technical data
- CE marking
- Manual code
IMPORTANT Before installation, always check that the dispensing system model
is correct and suitable for the supply currently available (Voltage /
Frequency).
8.1 POSITION OF THE PLATES
Some stickers and/or plates are applied to the distribution system to
indicate the most relevant information to the operator. It is necessary to
check that these do not deteriorate or detach over time.
NOTE Should this occur, please contact our customer assistance office so
that we can send you copies of the spoilt or missing plates/labels for
reapplication where originally provided.
The following labels are present:
ON
OFF
1
- Pump operation plate.

Installation, use and maintenance
M0546
12 /6 0
2 - CE plate with technical data
3 - Attention plate applied to the CUBE display
F0074200B
SELF SERVICE B SMART
1234567
4 - Corner label plate applied on the box
5 - Product warranty label
ON
OFF

13/124
EN
13 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
9 DESCRIPTION OF THE MAIN PARTS
9.1 CASING AND PUMPING UNIT
The CUBE B.SMART dispenser are designed for the transfer of diesel fuel for non-commercial
use. Featuring maximum safety and ease of use, CUBE dispensers are reliable, high-performance
equipment; they are installed quickly and are ready for use. Equipment and characteristics:
1 Self-priming rotary vane pump
with built-in by-pass valve.
2 Motor with IP55 protection
degree and thermal protection,
230 V AC single phase.
3 Four metres of antistatic rubber
hose for fuels.
4 Automatic dispensing nozzle with
ON/OFF switch integrated in the
nozzle support.
5 Steel casing with anti-corrosion
treatment and finishing paint.
6 Dispensing system
7 Flow meter
INSPECTION
PANEL
ROOF
NOZZLE
HOLDER
4
5
6
3
Unit with self-priming vane electric
pump, equipped with by-pass
valve. This valve allows operation
for short periods even with the
dispensing nozzle closed. The
motor, directly coupled to the pump
body, is asynchronous, closed type
(IP55 protection class according
to the EN 60034-5-86 norm), self-
ventilated, single-phase.
For more information, refer to the
individual component manuals.
7
2
1
9.2 PULSER FLOW METER
The Pulser K600/3 flow meter has a high-precision oval gear measuring system designed to allow
accurate fuel measurement. They consist of a sturdy die-cast aluminium structure, complete with inlet
filter and are easy to maintain and reliable. For further information, please refer to the dedicated manual.

Installation, use and maintenance
M0546
14 /6 0
9.3 DISPENSING NOZZLE
The dispensing nozzle supplied with CUBE B.SMART is an automatic type, with a stop device when
the tank is full.
9.4 LEVEL INDICATOR
The level indicators to which the dispenser can be connected are only clean contacts, which are
configured by WebApp.
9.5 DISPLAY COVER
To ensure adequate
protection for the
panel, a damper
display cover has
been designed which
can be lowered if
necessary.
It is advisable, in
very strong sunlight
conditions, to keep
the display cover
always lowered.

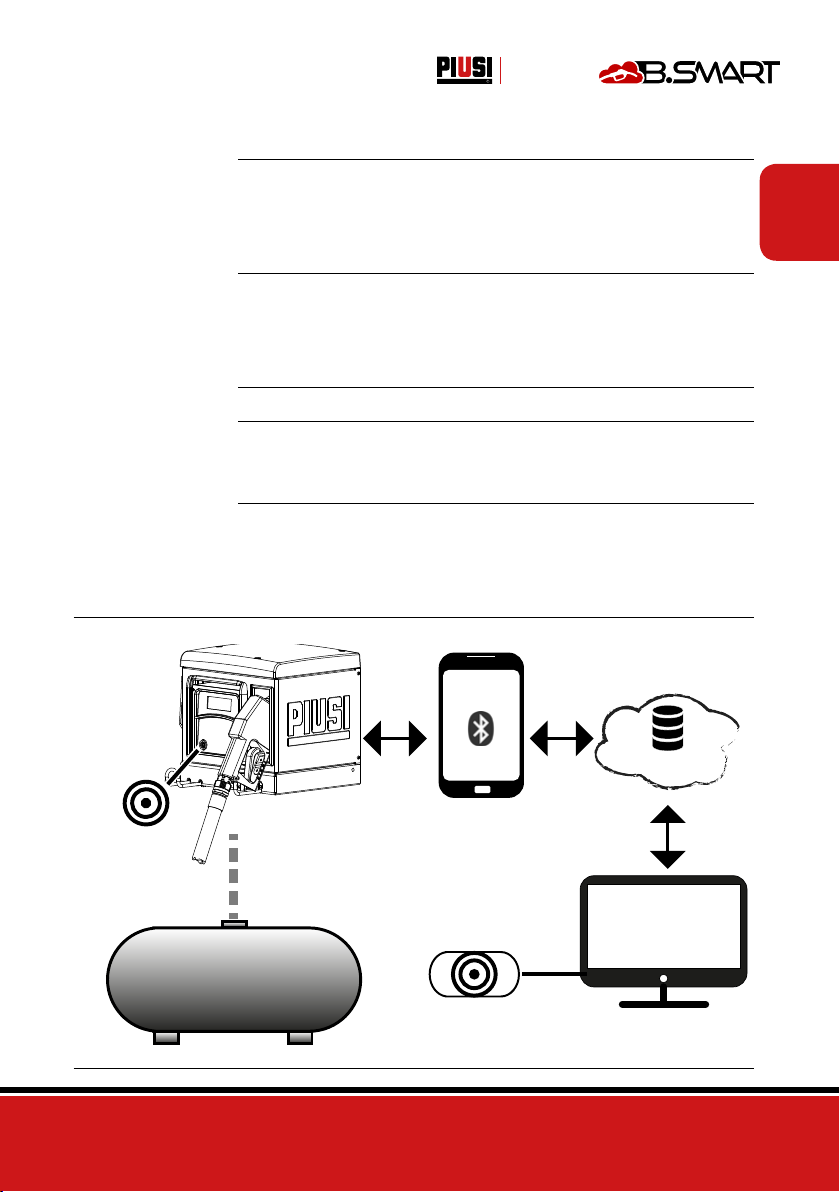

9.6 DISPENSING MANAGEMENT SYSTEM
FOREWORD B.SMART is an electronic system for controlling the dispensing of fluids via
smartphone.
The control system consists of:
An electronic controller
equipped with a BlueTooth interface (BLE 4.0 and later), a display and an
interface LED that controls a dispensing pump
An APP
installed on a smartphone equipped with an Android operating system or
Apple IoS
A WebAPP
namely an internet portal accessible from any PC or Tablet connected to the
internet from which the entire site can be monitored
SYSTEM FUNCTIONS • site configuration, acquisition and management of refillings,
management of refilling fuel dispensers, management of drivers,
vehicles and detailed reporting of the dispensings via WebAPP
accessible from any PC/Tablet, using your credentials
• Fuel dispensing using the dedicated APP: PIUSI APP, downloadable
only for smartphones from Play Store and App Store, which connects to
the fuel dispenser / controller via BLE connection
• Fuel dispensing using the dedicated APP also in areas without 3/4G
coverage and Wi-Fi
• Dispensing via iButton associated with the individual driver
• Possibility to remotely manage sites far from the company headquarters
COMPATIBILITY
WITH OPERATING
SYSTEMS
The system is compatible with the following iOS versions:
• iOS10
• iOS11
• iOS12 and subsequent

15/124
EN
15 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
The system is compatible with the following Android versions:
• 4.4
• 5.0 - 5.1
• 6.0
• 7.0 - 7.1
• 8.0
• 9.0 and subsequent
DISPENSER
Composed of an electronic controller to manage fuel dispensing, equipped with:
• Numeric display
• Reader for iButton
• BLE 4.0 connection (or following)
• Status sensors for: level alarms, flow meters, positioning of the
dispensing nozzle
• Pump on/off control
CLOUD Where there is the database to store the configurations of the site and the
dispenser, the drivers, the license plates of the vehicles and all the dispensings
WebApp Web interface used by the site manager. It has various functions: it monitors
the dispensings (from whom they were made, when, in which fuel dispenser),
creates/eliminates users from the site, adds/removes fuel dispensers from the
site. The only external device the WebApp connects to is a USB reader for
iButton
APP It makes several operations:
• It manages two types of users: driver and manager
• It sends commands to the fuel dispenser and receive answers, the
commands are used to perform: dispensing, calibration, updating
the firmware of the fuel dispenser, downloading updates of the fuel
dispenser configuration, managing the drivers or loading in the cloud
the dispensings in the fuel dispenser
iBuon WebApp
APP
iBuon
Cloud
Database
CUBE B.SMART

Installation, use and maintenance
M0546
16 /6 0
10 OPERATION
The fuel dispenser is powered by a voltage ranging from 220 V to 240 V, 50 Hz. It is equipped with
a motor, 4-character backlit display, iButton reader, blue LED for Bluetooth connection and red LED
for warning/alarm:
Red LED:
when it is on with a fixed light
it indicates a series of alarms
(code A1, A2, A3, A4, A6 see
table). When it is on with a
flashing light it indicates a
warning (see table).
• NOT FOR RESALE • NICHT EICHFÄHIG • PARA UTILISACION EXCLUSIVA DEL USUARIO •
INTERDIT POUR TOUTES TRANSACTIONS COMMERCIALES OU FISCALES • APPARECCHIO
NON IDONEO ALLA MISURAZIONE DI PRODOTTI PER LA VENDITA AL PUBBLICO • NE È
VIETATO L’USO IN RAPPORTO A TERZI • CIRC. MIN. N°67 DEL 25/07/1996 •
MADE in ITALY
If the display back lighting is active, this
means that the driver or manager has been
authenticated via smartphone or the driver has
been authenticated via iButton.
The display shows: the version of the installed
firmware, the dispensing value, the time, the
warning or alarm code when the red LED is on,
the boot status for the firmware update and the
percentage of firmware transferred
Blue LED: when
on it indicates
that a device
is connected in
Bluetooth
IBUTTON reader
A 1
NOTE Red LED on - It switches on due to several factors, each time the LED lights
up the display shows a code indicated by a letter A and by an incremental
number. Whenever the led is on, it is not possible to dispense.
Below are the possible coded errors, with their respective resolution methods:
Coding Description Explanation/Solution
A1 ALARM BUFFER FULL The buffer of the dispensing of the controller is full, bring
to the cloud all 500 dispensings present in the controller
A2 ALARM TANK
(EMPTYTANK)
The fuel tank is empty so you can not fill up, refill the tank
A3 ALARM INACTIVE
PUMP
The pump was disabled via WebApp by the site manager
A4 ALARM RTC RESET The time has been lost, because the capacitor used
to store the time has been discharged. Then you need
to download the current time to the controller via
smartphone
A6 ALARM LOW_BATTERY Expected, but not implemented
U7 WARNING TANK Red LED flashing; furthermore, if no smartphone is
connected or no driver has logged in with iButton, the
display shows the code U7

17/124
EN
17 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
12 TECHNICAL SPECIFICATIONS
INTENDED USE Implementation of a system for the dispensing and control of fluids for
private use not subject to special regulations such as ATEX for potentially
explosive environments.
IMPORTANT DO NOT INSTALL CUBE B.SMART IN ENVIRONMENTS CLASSIFIED
AS POTENTIALLY EXPLOSIVE IN ACCORDANCE WITH ATEX
REGULATIONS.
MAXIMUM
VARIATIONS IN
ELECTRICAL
PARAMETERS
The Motors in the fuel dispensers accept maximum variations:
of supply voltage of +/- 5% and maximum variations of frequency of +/- 2%
SEE TECHNICAL SPECIFICATIONS TABLE BELOW
IMPORTANT
BEFORE INSTALLATION, ALWAYS CHECK THAT YOUR MODEL IS
CORRECT AND SUITABLE FOR THE SUPPLY EFFECTIVELY AVAILABLE
(VOLTAGE / FREQUENCY).
Signal Standard
conditions
Limits Notes
Power supply
input
220 V ac – 240 V
ac for 230 V ac and
50 Hz
900 W - 4.2 A The electronic board is equipped with
a switching technology power supply
that allows a wide range of voltages
and frequencies and therefore makes
the equipment robust for the high
fluctuations of voltage or frequency
present on the power distribution mains
in many areas of the world
Electronic Key
Interface
YELLOW key
(iButton): Enabling
input by PIUSI
electronic key
Through a software pro-
cedure, the yellow keys
of the drivers are reg-
istered on the PC and
then these drivers are
enabled on one or more
dispensing stations
You can configure whether or not
such a key is present
Level 1 contact
input
(only for
versions where
available)
Clean contact or
Open Collector
(NPN) electronic sig-
nal If it is necessary
to supply a level sen-
sor, 24 V dc are also
available on the ter-
minal. The maximum
current available to
the sensor for its pow-
er supply is 25 mA
About 1 mA at 5 V dc
will be supplied on the
clean contact (or on
the open collector)
It is possible to configure whether or
not this signal is present, and it is also
possible to configure the type of signal
(normally open or normally closed
for versions where provided) Finally,
it is possible to choose the action to
be taken by the controller when it
receives this signal: it can only give an
alarm on the display or it can totally
inhibit other dispensings if the Pump
Block is set
Level 2 contact
input
(only for
versions where
available)
Clean contact or
Open Collector
(NPN) electronic sig-
nal If it is necessary
to supply a level sen-
sor, 24 V dc are also
available on the ter-
minal. The maximum
current available to
the sensor for its pow-
er supply is 25 mA
About 1 mA at 5 V dc
will be supplied on the
clean contact (or on
the open collector)
It is possible to configure whether or
not this signal is present, and it is also
possible to configure the type of signal
(normally open or normally closed
for versions where provided) Finally,
it is possible to choose the action to
be taken by the controller when it
receives this signal: it can only give an
alarm on the display or it can totally
inhibit other dispensings if the Pump
Block is set

Installation, use and maintenance
M0546
18 /6 0
24 V dc
auxiliary power
supply output
24 V dc auxiliary
output to supply
external electronic
devices
Imax = 25 mA The device to be supplied must not
absorb more than 25 mA with 24 V
dc power supply. Typically it could be
a level sensor
Fuses F1 (V ac power input) 800 mA T (delayed)
F2 (motor output) 20 A T (delayed)
F3 (AC/DC output) 800 mA T (delayed)
IP protection
degree
IP 55
Operating
temperature
From -10°C to +40°C
Storage
temperature
From -20°C to +60°C
Humidity < 90%
Wiring
distances
Max. pulser
distance
15 m
Max. level sensor
distance
100 m
Displaying and
Metering limits
The floating point sequence: 0.00 -> 99.99 -> 999.9 -> 9999
The maximum quantity that can be dispensed is 9999 units regardless of the unit of
measurement set litres/gallons/pints
0.00 9,999 99.99 999.9 9999
PRESET: Presettable
maximum quantity
9999 litres/gallons/
pints
Memories The electronic controller can store:
- Up to 500 drivers
- Up to 500 dispensings

19/124
EN
19 /6 0
This manual belongs to PIUSI S.p.A. The reproduction of all or parts is prohibited.
CUBE
EN (translated from Italian)
13 USE
13.1 INTENDED USE
THE B.SMART CUBE DISPENSER HAS BEEN DESIGNED AS A DIESEL
REFILLING STATION FOR NON-COMMERCIAL USE.
DEDICATED APP AND WEB APP MAKE IT EASY TO USE, BY RETURNING
A SUMMARY OF ALL DISPENSINGS.
IMPORTANT
Environmental
use conditions
Ambient temperature: min. -20°C / max. +40°C
Relative humidity: max. 90%
The limit temperatures indicated apply to the pump components and must
be observed to avoid possible damage or malfunction.
13.2 NOT INTENDED USE
IMPORTANT
Flammable
liquids and
explosive
atmospheres
CUBE B.SMART HAS NOT BEEN DESIGNED IN ACCORDANCE WITH
ATEX REGULATIONS OR TO OPERATE IN ENVIRONMENTS WITH A
POTENTIALLY EXPLOSIVE ATMOSPHERE.
DO NOT INSTALL CUBE B.SMART IN POTENTIALLY EXPLOSIVE
LOCATIONS.
The system was not designed for the dispensing of diesel, petrol, flammable
liquids with flash point <55°C/131°F, or for operation in environments with
a potentially explosive atmosphere.
Use in the conditions indicated above is therefore prohibited.
IMPORTANT
Use not
envisaged
Use of the system for purposes other than those intended is strictly
prohibited. Any use other than that for which the system was designed
and described in this manual is considered “IMPROPER USE”, for which
Piusi S.p.A. accepts no responsibility in case of damage to property,
persons, animals or the system itself.
13.3 REASONABLY FORESEEABLE MISUSE
The smartphone is an indispensable tool for CUBE B.SMART to set up and record the dispensings
managed by the system, but it is forbidden to use it when dispensing near the dispenser.
IMPORTANT Use your smartphone only and exclusively to connect, authenticate and
pair from your device to the dispenser. When refilling the vehicle, even
with non-flammable liquids, the use of the telephone is in any case
strongly discouraged as it can cause distractions that can be dangerous.

Installation, use and maintenance
M0546
20 /6 0
14 INSTALLATION
FOREWORD CUBE B.SMART can be installed outdoors However, it is advisable to shelter
it under a canopy to ensure a longer life and provide more comfort when
refilling in bad weather. The installation of the dispenser must be carried
out by specialised personnel and carried out according to the instructions
provided in this chapter. If CUBE B.SMART is not sheltered under a canopy,
a “display cover” is provided as protection for the display and keypad.
WARNING
Staff
authorised for
installation
All installation operations must be performed only by competent and
authorised staff, who must:
Install the system in a dry, well-ventilated place;
Properly install the accessories necessary for the correct operation of the
equipment.
Use solely the accessories provided with the system.
IMPORTANT The use of unsuitable accessories not provided with the system is strictly
prohibited. Piusi S.p.A. accepts no responsibility for harm to persons,
property or the environment due to failure to observe this instruction.
THE UNIT IS FOR PROFESSIONAL USE ONLY.
The unit must be installed in an adequately lit location, in compliance with
the regulations in force.
The unit has been designed to be used in a dry place. If it is installed
outdoors, provide adequate protective covering.
The motors are not explosion-proof. Do NOT install in places with
explosion hazard.
14.1 DISPENSER POSITIONING
The positioning of CUBE B.SMART must ensure that:
- Removable panels can be easily removed for access to internal components
when necessary.
- The maximum distances and differences in level between the station and
the tank are respected
- A correct and solid fixing of the casing to the ground on a horizontal plane
is possible.
The positioning of the station determines the following parameters, which
characterize each installation:
Hp: Priming height
Ls: Total length of the suction pipes - from the bottom valve to the station
(in metres).
The following restrictions must be observed for the stations to function
properly:
Hp max: no more than 3 metres
Ls max: no more than 15 metres
