PMI SG51029 User manual

Hardware ANCHORAGE
CONNECTORS
PMIROPE.COM 1-800-282-ROPE
T
PMI®
ANCHOR SLING
SG51029 SG51030 SG51031
Manufacturer’s Instructions
For more information about this or other
PMI products, please contact us at:
PIGEON MOUNTAIN INDUSTRIES
PO Box 803
LaFayette, GA 30728, USA
706-764-1437
1-800-282-ROPE (7673)
[email protected]
PMIROPE.COM
RM00395 V5-0118
PMI LIMITED WARRANTY
PMI products are warranted to the original retail purchaser to be free from defect
in material and workmanship for a period of one year. PMI will repair or replace
the item without charge provided inspection at our factory discloses no misuse or
alteration, which, in our judgment, has affected the condition or functioning of the
product. All implied warranties imposed by law in connection with the sale of PMI
products are also limited in duration to a period of one year. PMI expressly excludes
and shall not be liable for any consequential damages arising out of any breach of
the express or implied warranties on sales of PMI products. Because of the high risks
involved in high angle rope work such as, but not limited to, rescue, rope access,
caving, rappelling, rock climbing and mountaineering, no further warranties exist
or are implied by PMI. Regulations issued under the Magnuson-Moss Warranty Act
require us to include the following statement: some states do not allow limitations
on how long an implied warranty lasts nor the excluding or limitation of incidental or
consequential damages, so the above limitations may not apply to you.
• YOU COULD BE KILLED OR SERIOUSLY INJURED IF YOU DO NOT READ AND
UNDERSTAND THIS BOOKLET BEFORE USING PRODUCT.
• SPECIAL TRAINING AND KNOWLEDGE ARE REQUIRED TO USE THIS PRODUCT.
• YOU MUST THOROUGHLY READ AND UNDERSTAND ALL MANUFACTURER’S
INSTRUCTIONS BEFORE USE.
• USE AND INSPECT THIS PRODUCT ONLY IN ACCORDANCE WITH THE
MANUFACTURER’S INSTRUCTIONS.
• YOU CAN CONTACT THE MANUFACTURER AT 706-764-1437 FOR IMPORTANT
SAFETY INFORMATION.
WARNING
74F9
Any person rigging life safety rated anchors will want to have many of these lightweight, compact,
high strength and incredibly versatile PMI Anchor Slings always on hand. Easy to set up and very
reliable, these slings are great to build anchors in a end to end, basket or choker conguration. Use
these congurations to wrap it around an appropriate full strength life safety anchor, such as a steel
I-beam, and attach your rope or fall arrest system in a manner that minimizes abrasion and is secure to
the anchor. It comes in multiple lengths ideal for a variety of rigging environments, so you may want
to have different sizes for ultimate efciency. The PMI Anchor Sling is certied to NFPA and ANSI
standards.
KEY FEATURES:
1 3/4” wide nylon webbing • 3 different lengths • Compact • Lightweight • Thick at webbing
for extra protection over sharp edges • Multiple congurations for adaptability • Fast setup and
connection capability with large D-Ring attachment points • High strength • Certied to NFPA and
ANSI standards
SG51029 SG51030 SG51031
LENGTH: 3 FT (100 CM) LENGTH: 4 FT (150 CM) LENGTH: 6 FT (200 CM)
WIDTH: 1.75” (4.4 CM) WIDTH: 1.75” (4.4 CM) WIDTH: 1.75” (4.4 CM)
WEIGHT: 11.0 OZ (311 G) WEIGHT: 12.0 OZ (354 G) WEIGHT: 14.0 OZ (410 G)
Materials - Nylon, polyester and steel.
Meets ANSI Z359.18, 2017 Edition, Type A- Anchorage Connector.
MEETS THE MULTIPLE CONFIGURATION STRAP REQUIREMENTS OF NFPA 1983, STANDARD ON
LIFE SAFETY ROPE AND EQUIPMENT FOR EMERGENCY SERVICES, 2017 EDITION.
PMI® ANCHOR SLING IS MADE IN THE USA
Additional information regarding multiple conguration straps can be found in NFPA 1500 and NFPA
1983.
This anchorage connector has been tested in compliance with the requirements of ANSI/ASSE
Z359.7.
The ANSI Compliance and testing covers only the hardware and does not extend to the anchorage and
substrate to which the anchorage connector is attached.
For Type A and Type T, load-bearing metallic materials used in anchorage connectors shall maintain
adequate toughness at temperatures between -30 degrees F (-34 degrees C) and +130degrees
F (+54 degrees C) or be engineered to account for the reduced toughness at low temperatures.
Adequate toughness is dened as no more than a 10% drop in energy absorption between
representative material specimens conditioned at -30 degrees F (-34 degrees C) and +130 degrees F
(+54 degrees C) undergoing a recognized impact test. The manufacturer may provide published for
fracture toughness at these temperatures as evidence that adequate toughness is maintained. Metallic
components that have been tested and certied as meeting ANSI/ASSE Z359.12, are deemed to
comply with 3.1.3.2.
PRODUCT DESCRIPTION
SPECIFICATIONS
CERTIFICATIONS
6PMIROPE.COM T1-800-282-ROPE
Catalog No216
Static Rope
Rope
Webbing
and Cordage
Per sona l
Gear
Hardware
Solutions
and Kits
Patient
Care
Logistics and
Support Gear
Training and
Education
10 mm (25/64”)
Preferred by experienced professionals, PMI®10 mm is the ultimate choice for single person rope work.
Weight: 66.0 g/m » MBS: 26.5 kN (5957 lbf) » Elongation: 2.4% at 300 lbf | 4.6% at 600 lbf | 7.4% at 1000 lbf » Elongation at 10% MBS: 4.7%
9 mm (23/64”)
The lightest certified PMI®Classic rope. If you need a rope that has a good strength to weight ratio, PMI®9 mm will hold up to the test.
Weight: 53.0 g/m » MBS: 18.3 kN (4114 lbf) » Elongation: 3.7% at 300 lbf | 5.4% at 600 lbf | 7.6% at 1000 lbf » Elongation at 10% MBS: 4.3%
PMI®Hudson Classic Professional
PMI®’s Classic EZ-Bend 16-carrier construction combined with the toughest nylon on the market makes PMI ropes some of the toughest in the world. PMI®
Classic 16-carrier ropes will always beat 32, 40, and 48-carrier designs made with lesser quality nylons hands down in abrasion and real-world durability tests.
Although all diameters of PMI®Classic rope are 16-carrier sheath design, the denier (thickness) of each diameter’s sheath is different. It is carefully designed to
provide the maximum abrasion resistance, “grab” the core to minimize sheath slippage, and provide the desired hand for the intended applications.
Key Features: NFPA Certified • 16-carrier construction • CI1801 • Third party certified by UL (Underwriters Laboratories) • Torsionally balanced, continuous
filament nylon • Available in many colors • Also available in custom colors and lengths
COMPLIANT NFPA 1983 (2012), T CI1801, STATIC EN 1891-A
WHITE/BLACK (WB) ORANGE/BLACK (OB)
WHITE/ORANGE (WO) YELLOW/WHITE (YW)
ORANGE/WHITE (OW) RED/WHITE (RW)
BLUE/WHITE (BW) YELLOW/BLACK (YB)
RED/BLACK (RB) BLUE/BLACK (BB)
BLUE (BL) BLACK (BK)
RED (RD) OD GREEN (OD)
Colors: Available colors for the PMI®Hudson Classic Professional. Rope
colors and tracers vary with rope diameter. EZ-Bend ropes have two tracers.
Max Wear ropes have one tracer.
COMPLIANT CI1801, STATIC EN 1891-A
MADE IN THE USA
Orange/White Red/White Blue/White Black OD Green
30 m (100 ft) RR100OW030E RR100RW030E RR100BW030E RR100OD030E $94.30
46 m (150 ft) RR100OW046E RR100RW046E RR100BW046E RR100BK046E RR100OD046E $141.50
61 m (200 ft) RR100OW061E RR100RW061E RR100BW061E RR100OD061E $188.70
92 m (300 ft) RR100OW092E RR100RW092E RR100BW092E RR100BK092E RR100OD092E $283.20
183 m (600 ft) RR100OW183E RR100RW183E RR100BW183E RR100BK183E RR100OD183E $566.50
200 m (656 ft) RR100OW200E RR100RW200E RR100BW200E RR100BK200E RR100OD200E $619.40
White/Black Orange/Black
30 m (100 ft) RR090WB030E $71.40 RR090OB030E $85.20
46 m (150 ft) RR090WB046E $107.10 RR090OB046E $127.90
61 m (200 ft) RR090WB061E $142.90 RR090OB061E $170.50
92 m (300 ft) RR090WB092E $214.40 RR090OB092E $255.90
183 m (600 ft) RR090WB183E $428.80 RR090OB183E $511.80
White/Orange
30 m (100 ft) RR100WO030E $81.70
46 m (150 ft) RR100WO046E $122.60
61 m (200 ft) RR100WO061E $163.40
92 m (300 ft) RR100WO092E $245.30
183 m (600 ft) RR100WO183E $490.60
200 m (656 ft) RR100WO200E $536.50
WARNINGS
ABOUT YOUR PERSONAL SAFETY
• You are responsible for your own safety and decisions while using this product.
• Special training and knowledge are required to use this product. This sling is intended for use by
those who are trained and experienced in technical rope rigging and rescue applications.
• Before using this product you must thoroughly read and understand these Manufacturer’s
Instructions, as well as all warnings, product labels and associated information.
• Activities involving the use of this product are inherently dangerous; you must understand and
accept the risks involved.
• Failure to follow these stated warnings may result in serious injury or death.
• Copy these Manufacturer’s Instructions after they are separated from the sling and keep as
a permanent record; Keep Manufacturer’s Instructions, all product labels and the Equipment
Inspection Log WITH the equipment so that any potential user can refer to them before and after
use if desired and make inspection, use or status entries as needed.
WARNINGS (continued)
• Please contact PMI at 706-764-1437 to answer any additional questions regarding safety and use
of this equipment.
• Only attach equipment to the metal attachment points of these slings.
• Be aware of the hazards created when this product is being used in conjunction with a fall arrest
system.
• Be aware and take precautions to prevent injury while using these slings around moving machinery,
electrical hazards and avoid using on or near elements with high temperatures that can damage the
sling.
• Avoid contact between moving textiles (such as nylon rope or webbing) and stationary textiles.
Friction between textiles can quickly melt through the xed part.
• Avoid exposure of this product to any liquids, solids, gases, mists, or vapors of any chemical or
other material that can deteriorate the ber from which it is made. Consult with the manufacturer
in any case of doubt regarding the safe use and any possibility of damage to the product. If in
doubt of the safety of the product, then retire, cut up the product immediately and discard it in a
manner where it cannot be used again or cannot be put back in service.
• All connectors used with these slings must be closed and locked in a manner that prevents it from
opening or coming detached from the lanyard during use.
• These manufacturer’s instructions shall be provided; or immediately available, to authorized
persons.
• Do not use these lanyards for material handling.
• Do not remove or alter any manufacturer labels for this product.
• Use, storage, care, maintenance, inspection, and retirement of this product should be done in
accordance with these manufacturer’s instructions and in accordance with ANSI/ASSE Z359.2,
Minimum Requirements for a Managed Fall Protection Program. Inspections should only be
conducted by an individual designated by the employer to be competent for all tasks required.
PMI is not responsible or liable in any way for damages of any kind, injury or death resulting from
direct or indirect incidents related to the use of its products.
The entire life safety anchor system including the anchor points, ropes, webbing, carabiners and other
equipment in the system must be of sufcient strength to safely hold the maximum weight of the
intended transferred load.
Check to be sure that this product is compatible with the other components of your system before
use.
Avoid possible abrasion that can happen when slings come into contact with hard, sharp or rough
surfaces.
DO NOT attempt any repairs, alterations, relocations or additions to the the sling in any way. Any of
these actions to this product will immediately void the warranty and can compromise the safety of
this product leading to possible severe injury or death. Contact PMI with any questions.
If the user is unable to determine whether the anchorage meets the manufacturer’s specications and
instructions, then the anchorage connector shall only be attached to anchorages that:
a) can withstand 5,000 pounds (22.2 kN) without failure, except that lower strengths are acceptable
when permitted by applicable legislation; or
b) are certied by a professional engineer as having the required strength for fall arrest or travel
restraint, as applicable; or
c) the manufacturer may provide specications of allowable materials including the minimum shapes,
sizes and geometry of structural elements to which the anchorage connector may be fastened. A
qualied person shall approve these specications.
Only one fall protection system or positioning system may be attached to an individual connection
point.
Remove any surface contamination such as concrete, stucco, roong material, etc., that
could accelerate cutting or abrading of attached components.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
PRODUCT
NAME SKU CALCULATED MINIMUM BREAKING STRENGTH (kN)
NFPA 1983-2017
TYPE/CLASS
ANSI/ASSE
Z359.18-2017
PMI®
Anchor
Sling
SG51029
SG51030
SG51031
Basket (U) 70.9 (15,950 lbf) Multiple
Conguration
Strap – General
Use
Anchorage
Connector –
Type A
End-to-End 39.2 (8,815 lbf)
Choker 29.1 (6,550 lbf)

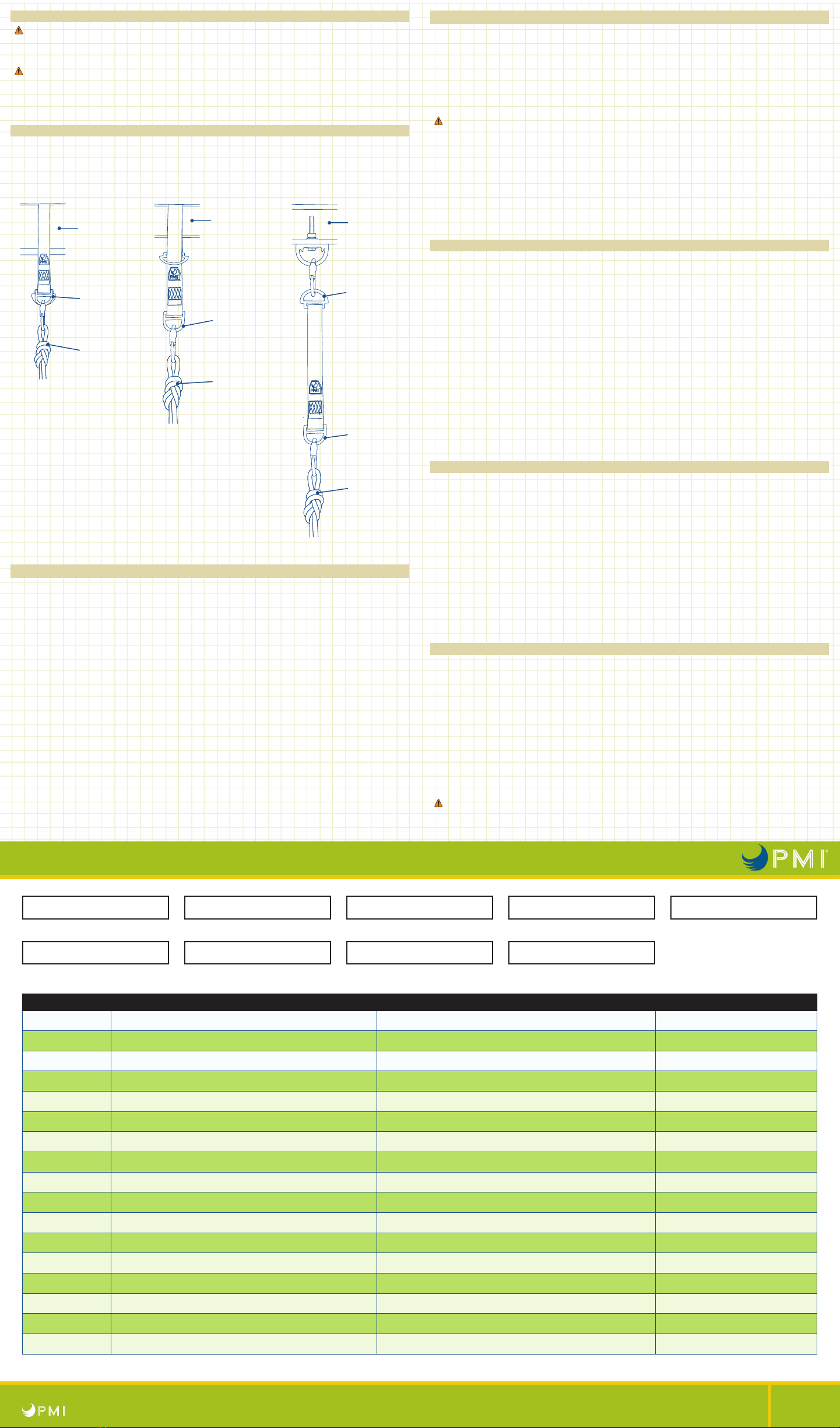

Item Model # Date of Manufacture Date in Service Size
Lot Number Purchased From Purchase Date ID Markings
Date Used Use/Maintenance Comments Name
Pigeon Mountain Industries, Inc. | PO Box 803, LaFayette, GA 30278 | Fax: [phone] | Email: [e-mail]
Hardware ANCHORAGE
CONNECTORS
PMIROPE.COM 1-800-282-ROPE
T
Retiring your sling is a judgment that is the responsibility of the user and should be based largely on
results of frequent inspections, environment and use history. If you have any questions regarding
retirement of a PMI product you can contact PMI at [phone].
Regardless of history and use, a PMI® Anchor Sling should be retired if it is greater than 10 years
from the date of manufacture. The actual service life may be much less than 10 years and should
be based largely on the results of frequent inspection and use history. Material integrity and product
performance characteristics will degrade over time. PMI recommends that you thoroughly inspect
your equipment before each use and at a minimum at least once every 6 months. Specialized training
may be required to become competent with inspecting equipment and knowing when to retire your
equipment. Good judgment, as well as proper care and inspection, are key to making personal
decisions regarding the retirement of your sling.
A signicant event with the potential to change the product should prompt you to consider retiring it
immediately even if before or after only one use. Factors that may affect the safety of a sling depends
on the type and frequency of usage (light to heavy), the environment including harsh environments
with extreme temperatures, marine (salty or highly corrosive) environments, chemical contact, contact
with sharp edges, etc. Textiles can become dry and brittle, plastics can weaken in areas, small cracks
can form, etc. The best way to know when a change has occurred is to implement frequent detailed
inspections before each use.
• RETIRE IMMEDIATELY any sling where the stitching is cut, torn, excessively worn or visibly
damaged.
• RETIRE IMMEDIATELY any sling whose strength may have been compromised during use.
• RETIRE IMMEDIATELY any sling which is subjected to uncontrolled or excessive loading.
• RETIRE IMMEDIATELY any sling which is greater than 10 years old, regardless of history and
usage.
• RETIRE IMMEDIATELY any sling whose history and past usage you are uncertain about.
• RETIRE IMMEDIATELY any sling that has been exposed to heat, direct flame or excessive
abrasion.
• RETIRE IMMEDIATELY any sling that has been exposed to liquids, solids, gases, mists, or vapors
of any chemical or other material that can deteriorate the sling.
• RETIRE IMMEDIATELY any sling that does not pass inspection when following the inspection
procedures in these instructions, both before and after each use.
• RETIRE IMMEDIATELY any sling when there is any doubt about its safety or serviceability.
CUT RETIRED slings to discourage future use and discard them entirely. A retired sling should not be
stored, kept or maintained in such a way that it could inadvertently be used for life safety purposes.
• Inspect the sling upon receiving it and before and after each use to ensure proper function,
product integrity, and condition of stitching.
• Inspect by starting at one end and look at and feel every inch of the sling. Watch for signs that
might indicate possible damage such as discoloration, chemical odors, abrasion marks, cuts,
nicks and any visible differences.
• Use the RETIREMENT section statements as part of your inspection process and retire any sling
that does not pass the criteria of each bullet point.
• IF IN DOUBT, THROW IT OUT- If you are not sure about the integrity of your sling, DO NOT USE
IT. Consult PMI if you need help or have questions.
• Maintain an Equipment Log for each individual sling and review it regularly. Include information
such as date of manufacture, date placed in service, dates of use, conditions under which
equipment is used, results of inspections, document any cleanings and other information specic
to your application.
• Use and inspection of this product should only be done in accordance with the Manufacturer’s
Instructions. Inspections should only be conducted by an individual competent in all aspects and
safety considerations of life safety equipment used at height or a person that is designated as
competent by the employer to inspect this equipment.
• If a sling is dropped or impact-loaded, then remove from service immediately and have it
inspected by a competent person to determine if it should be retired.
• At a minimum, regardless of use, inspect your Anchor Sling every 6 months.
• Always inspect metal components which can be subjected to corrosion or deterioration.
• Inspect where the metal and soft goods interact to determine that there are no sharp edges or
damage to the soft goods.
PRODUCT LIFETIME
RETIREMENT
INSPECTION
EQUIPMENT INSPECTION LOG
RM00398 V5-0118
Proper care and maintenance of this PMI® Anchor Sling can help maintain the safety features and
prolong the life of this product.
• Maintain this PMI® Anchor Sling in accordance with these Manufacturer’s Instructions where the
metal components are subjected to corrosion or deterioration, and do not store with dissimilar
metals.
• Do not expose the sling to ame or extreme low or high temperatures. Carry the sling where it
will be protected as it can melt or burn and fail if exposed to ame or high temperatures. Avoid
storage in a hot vehicle.
• Keep your sling clean using the cleaning guidelines found in this instruction. Dirt rubbing into and
against the bers will deteriorate it.
• Hang to air dry after washing and dry completely before storing your sling.
• Store your sling in a clean, dark, dry environment, not on a cement floor, and away from
exposure to chemicals, noxious fumes, corrosive or other harmful agents.
CLEANING YOUR PMI® ANCHOR SLING
• Washing - You can wash a sling that is dirty by hand using clean cool to warm water <30°C
(<86°F) with a mild soap. PMI recommends using PMI Rope Soap, otherwise non detergent
soaps are best. Soap used should not contain any bleaching agents.
DO NOT:
• DO NOT use top loading washing machines with agitators because they may tangle the sling and
can cause damage to the machine.
• DO NOT use a commercial dryer to dry the sling.
• DO NOT leave wet slings on a surface from which contaminants might leach (such as concrete)
for an extended period of time.
• DO NOT expose any slings to exhaust fumes.
DISINFECTING - Disinfection of a sling may occasionally become necessary, such as when
exposed to bloodborne pathogens. To disinfect a sling, PMI recommends following the NFPA standard
for cleaning rescue gear of bloodborne pathogens. Keeping in mind that undiluted household bleach is
known to damage nylon, NFPA calls for using a diluted solution of household bleach to clean rescue
gear exposed to bloodborne pathogens. Add 60 ml of household bleach per 4 liters of tap water.
That’s about one quarter (1/4) cup of household bleach per gallon of water. Be aware that some
commercial bleach solutions are stronger than the recommended 1.5% that is typical for household
bleach. Soak the gear in the diluted solution for ten minutes, then rinse thoroughly with tap water.
The rinsing cycle is critical to prevent any damage to the rope from the bleach. It is good to soak the
gear in tap water for the same amount of time it soaked in the bleach solution.
The use of bleach over a long period of time, in repeated uses, can cause damage to bers such as
nylon. Bleach should be used sparingly and then only when needed. If there is noticeable damage DO
NOT use the sling.
DRYING - Allow the sling to thoroughly dry in a cool, dry, well-ventilated area out of direct sunlight
before storing it. For best results, it should be hung up to air dry in a low humidity environment and
off of surfaces from which contaminants might leach (such as concrete).
WRITE IT DOWN - Remember to record the cleaning on the Equipment Log.
KEEP IT CLEAN - Store your sling in a clean, dark, dry environment, away from exposure to
acids, other harmful chemicals, noxious fumes or other abuse.
CARE & MAINTENANCE
CARE & MAINTENANCE (cont.)
WARNINGS (cont.)
The diagrams in this section show the intended use and proper installation around an appropriate
anchor for the PMI® Anchor Sling.
Read and understand the Warnings section before use. Always make sure to do the following:
• Check to be sure this product is compatible with the other components of your system.
• Ensure the anchors are designed to be of sufcient strength for the intended load.
• Beware of possible abrasion or cutting where the sling comes in contact with hard or sharp
surfaces. Use additional edge protection in these situations to prevent damage to the sling.
USE
These slings are intended for use by personnel trained and experienced in rope rigging applications.
They are designed for anchoring and tethering purposes, including rope access, rescue, and related
activities, and may include an end to end or choker conguration.
These anchorage connectors have been tested in compliance with the requirements of ANSI/ASSE
Z359.7. Be aware and use caution that the ANSI compliance and testing covers only the hardware
and does not extend to the anchorage and substrate to which the anchorage connector is attached.
SAVE THESE INSTRUCTIONS.
WARNING
WARNING
WARNING
WARNING
70.9 kN (15,950 lbf)
in a Basket (U)
Conguration
Anchorage
(I-Beam)
Connector
Attachment
Points
Rope or Fall
Arrest System
Connector
Attachment
Point when
in choker
conguration
Rope or Fall
Arrest System
Anchorage
(I-Beam)
29.1 kN (6,550 lbf) in
a choker conguration
Connector
Attachment
Point
Connector
Attachment
Point
Rope or Fall
Arrest System
Anchorage
(I-Beam)
39.2 kN (8,815 lbf)
when pulled end to end
