PMI HD26232 User manual

V2-1215
IMPORTANT!!!
ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR
WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT. ALL INDIVIDUALS WHO USE
THIS PRODUCT MUST BE PROPERLY INSTRUCTED ON HOW TO USE THIS DEVICE.

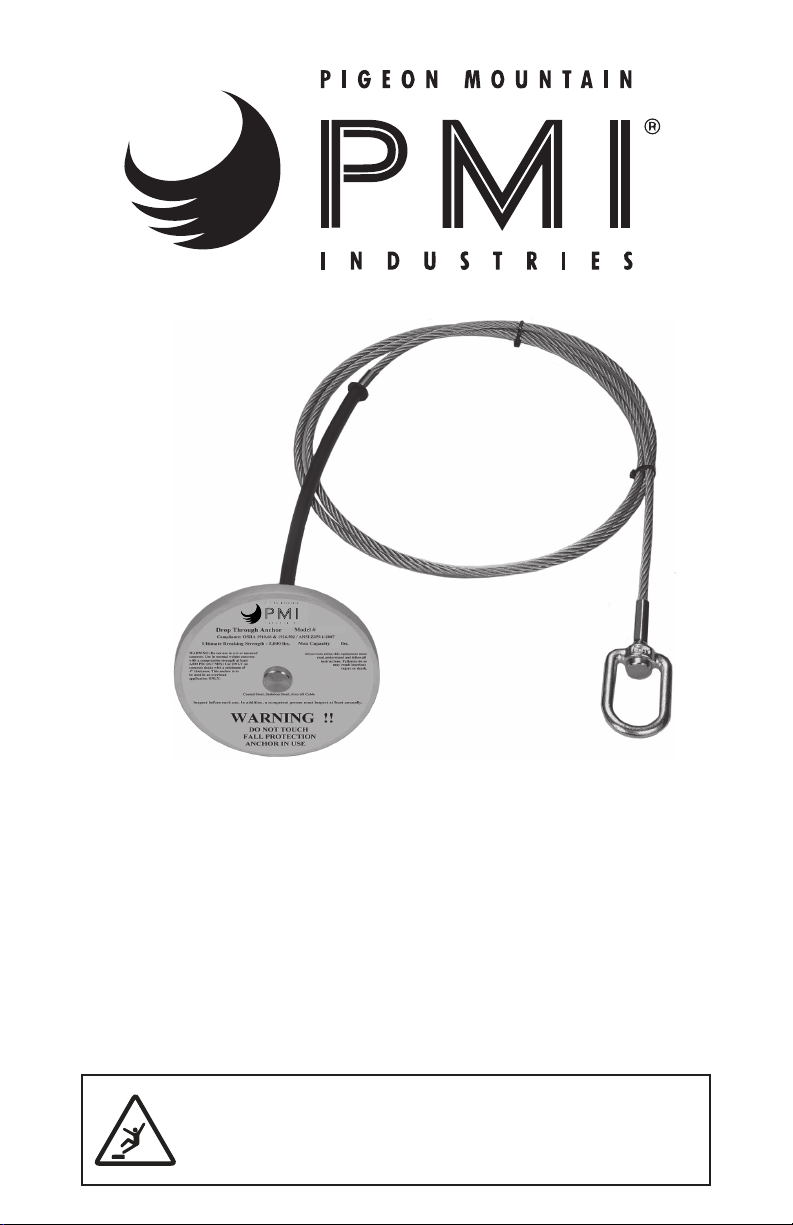

DROP THROUGH ANCHOR
5,000-lbf / 22kN
Model # HD26232
Made in the USA
HD26232
310

User Instructions must always be available to the user and are not to be removed except by the user of this equipment. For proper
use, see supervisor, User Instructions, or contact the manufacturer.
Compliant fall protection and emergency rescue systems help prevent serious injury during fall arrest. Users and purchasers of
this equipment must read and understand the User Instructions provided for correct use and care of this product. All users of this
equipment must understand the instructions, operation, limitations and consequences of improper use of this equipment and
be properly trained prior to use per OSHA 29 CFR 1910.66 and 1926.503 or applicable local standards. Misuse or failure to follow
warnings and instructions may result in serious personal injury or death.
PURPOSE
The HD26232 is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work
positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage
connector” in this manual include, and apply to, the HD26232.
USE INSTRUCTIONS
1. A user must be of sound mind and body to properly and safely use this equipment in normal and emergency
situations. Users must have a physician ensure they are clear of any medical conditions that may aect the proper
and safe use of this equipment in normal and emergency situations.
2. Before using a personal fall arrest system, user must be trained in accordance with the requirements of OSHA 29
CFR 1910.66 in the safe use of the system and its components.
3. Use only with ANSI/OSHA compliant personal fall arrest or restraint systems. The anchorage must have the
strength capable of supporting a static load, applied in the directions permitted by the system, of at least 5,000-lbf
(22kN) in the absence of certication.
4. The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the
arrest of a fall to a maximum of 8 kN (1800-lbf)
5. Use of this product must be approved by an Engineer or other qualied person to be compatible with any and
all structural & operational characteristics of the selected installation location and system to be connected to this
anchorage connector.
6. The anchorage connector must be inspected prior to each use for wear, damage, and other deterioration. If
defective components are found the anchorage connector must be immediately removed from service in
accordance with the requirements of OSHA 29 CFR 1910.66 and 1926.502.
7. The anchorage connector should be positioned in such a way that minimizes the potential for falls and the
potential fall distance during use. The complete fall protection system must be planned (including all components,
calculating fall clearance, and swing fall) before using.
8. A rescue plan, and the means at hand to implement it, must be in place that provides the prompt rescue of users
in the event of a fall, or assures that users are able to rescue themselves.
9. After a fall occurs the anchorage connector must be removed from service and destroyed immediately.
USE LIMITATIONS: The anchorage connector shall not be used outside its limitations, or for any purpose other than that
for which it is intended.
1. The anchorage connector is designed for single user, with a capacity up to 310 lbs (140 kg) including
clothing, tools, etc.
2. The anchorage connector may only be installed on a horizontal surface that is above the user’s location.
3. The anchorage connector is designed to be used in temperatures ranging from -40ºF to +130ºF (-40°C to +54°C).
4. Do not expose the anchorage connector to chemicals or harsh solutions which may have a harmful eect.
5. Do not alter or modify this product in any way.
6. Caution must be taken when using any component of a fall protection, work positioning, rope access, or rescue
system near moving machinery, electrical hazards, sharp edges, or abrasive surfaces, as contact may cause
equipment failure, personal injury, or death.
7. Do not use/install equipment without proper training by a“competent person”as defined by OSHA 29
CFR 1926.32(f).
8. Do not remove the labeling from this product.
9. Additional requirements and limitations may apply depending on anchorage type and fastening option utilized
for installation. All placements must be approved by an engineer or other qualied person.
10. This anchorage connector should not be used as part of a horizontal lifeline system that has not been designed
and or approved to be used with 5,000-lbf anchorage connectors.
11. The anchorage connector should only be used for personal fall protection and not for lifting equipment.
COMPATIBILITY LIMITATIONS
All anchorage connector must only be coupled to compatible connectors. OSHA 29 CFR 1926.502 prohibits snaphooks from being
engaged to certain objects unless two requirements are met: it must be a locking type snaphook, and it must be “designed for”
making such a connection. “Designed for” means that the manufacturer of the snaphook specifically designed the snaphook to be
used to connect to the equipment listed. The following connections must be avoided, because they can result in rollout* when a
nonlocking snaphook is used:
• Direct connection of a snaphook to horizontal lifeline.
• Two (or more) snaphooks connected to one D-ring.
• Two snaphooks connected to each other.
• A snaphook connected back on its integral lanyard.
• A snaphook connected to a webbing loop or webbing lanyard.
• Improper dimensions of the D-ring, rebar, or other connection point in relation to the snaphook dimensions that
would allow the snaphook keeper to be depressed by a turning motion of the snaphook.
*Rollout: A process by which a snaphook or carabiner unintentionally disengages from another connector or
object to which it is coupled. (ANSI Z359.0-2007)
Read This Instruction Manual Carefully Before Using This Equipment.

Installation:
1. The HD26232 drop through anchor can only be used on a horizontal surface that is above
the users location.
2. Locate or create a through hole in concrete, steel or metal grating capable of
withstanding a 5,000-lbf. Static load or meeting OSHA 1926.502 requirements for a safety
factor of two. (Refrence gure below for dimentional requirements.)
3. Place cable through the hole from top side. The label on plate should be facing up. Plate
must rest at and ush on the mounting surface.
PERFORMANCE:
Static Tensile Strength: 5000-lbf (22kN)
Maximum Capacity: One worker with max
weight of 310-lbs when used as a single
point anchorage connector for personal fall
arrest or restraint system.
DIMENSIONS:
Weight: Varies by cable length
Length: Custom cable length
Diameter: 4”, 6” & 12”
Thickness: 3/16”
REGULATORY COMPLIANCE:
ANSI Z359.1-2007, ANSI Z359.7-2011,
OSHA 1926.502, OSHA 1910.66
COMPONENT MATERIALS:
Aircraft Cable: Cable
Coated Steel: Plate
Polyurethane: Tubing
Zinc Plated Steel: Swivel Ring
WARNING LABEL LOCATIONS
(A)
min fromany edge
(B)
min
1-3/4” to 2”Ø
Hole size
(4.1cm to 4.4cm)
Material: (A)” Minimum distance from edge/corner (B)” thickness
HOLE REQUIRMENT CHART
Concrete
Steel
12” in. (30.5 cm)
4” in. (10 cm)
4” in. (10 cm)
1/4” in. (.635 cm)
HD26232
HD26232 4”, 6” & 12”Ø
3/16” Plate
Swivel Ring
Polyurethane
Sleeve
Aircraft Cable
(length specied by customer)
310

MAINTENANCE, CLEANING AND STORAGE
Cleaning periodically will prolong the life and proper functioning of the product. The frequency
of cleaning should be determined by inspection and by severity of the environment. Clean with
compressed air and/or a sti brush using plain water or a mild soap and water solution. Do not use
any corrosive chemicals that could damage the product. Wipe all surfaces with a clean dry cloth
and hang to dry, or use compressed air. When not in use, store anchorage connectors in a cool, dry,
clean environment, out of direct sunlight and free of corrosive or other degrading elements.
Inspection:
Ocial periodic inspection must be made at least annually. The inspection must be
performed by a qualied person other than the intended user. If severe weather or conditions
exist then inspections must be carried out more frequently. All inspection results must be
logged in the space provided above. (It is recommended that the anchor device is marked
with the date of the next or last inspection.)
If any damage that could aect the strength or operation of the device, or unsafe
conditions are found, proper disposal is required. The anchorage connector must
be rendered unusable and then properly discarded.
MODEL NUMBER:
DATE OF MANUFACTURE:
INSPECTION AND MAINTENANCE LOG
Date Part Number Comments Inspector Name
Product Warranty, Limited Remedy and Limitation of Liability
WARRANTY: THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES OR CONDITIONS, EXPRESS OR
IMPLIED, INCLUDING THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
PMI LIMITED WARRANTY: PMI products are warranted to the original retail purchaser to be free from defect
in material and workmanship for a period of one year. PMI will repair or replace the item without charge
provided inspection at our factory discloses no misuse or alteration, which, in our judgment, has aected
the condition or functioning of the product. All implied warranties imposed by law in connection with the
sale of PMI products are also limited in duration to a period of one year. PMI expressly excludes and shall
not be liable for any consequential damages arising out of any breach of the express or implied warranties
on sales of PMI products. Because of the high risks involved in high angle rope work such as, but not limited
to, rescue, rope access, caving, rappelling, rock climbing and mountaineering, no further warranties exist or
are implied by PMI. Regulations issued under the Magnuson-Moss Warranty Act require us to include the
following statement: some states do not allow limitations on how long an implied warranty lasts nor the
excluding or limitation of incidental or consequential damages, so the above limitations may not apply to
you. LIMITATION OF LIABILITY: IN NO EVENT WILL PIGEON MOUNTAIN INDUSTRIES BE LIABLE FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED
TO LOSS OF PROFITS, IN ANY WAY RELATED TO THE PRODUCTS REGARDLESS OF THE LEGAL THEORY
ASSERTED. Pigeon Mountain Industries
