PolyVision a3 CeramicSteel Flow 1830 User manual

a3™ CeramicSteel Flow™
Frameless Application
Installation Guide
Guidelines for installing your new
a3CeramicSteel Frameless Flow
Americas 2019
English
Español
Français Canadien
Doc # 143200 | Rev A | Page 1 of 38

3 Safety Requirements
4 Handling + Storing of Panels
5 Required Materials + Equipment
6 1830 Vertical Wall Bracket Positioning
7 2420 Vertical Wall Bracket Positioning
8 1830 Horizontal Wall Bracket Positioning
9 2420 Horizontal Wall Bracket Positioning
13 Warranty
English
a3CeramicSteel Frameless Flow - Wall Mounted
Dry Erase Board, Non-Seismic Applications
Safety Requirements
Minimum Required Wall Construction
Drywall with metal studs:
• Must be at least 0.6 mm (.02") thick Metal
stud 48.8 mm x 50 mm (1.92" x 1.97")
• Studs on maximum 600 mm (24") centers
• Must be at least 2 x 12,5 mm (.49") Type X
gypsum drywall
• 35 mm (1.34") drywall screws on 250 mm
(12") centers
Verify Wall Construction
CAUTION! Adequate wall construction is
required to support the weight of the board.
Minimum wall construction must be capable
of supporting weight amounts listed in Table
1 on page 4.
The building’s Engineer of Record must be
consulted to determine if there are any seismic
requirements.
Drywall with wooden studs:
• Stud grade SPF, DFL or Hem-Fir 45 mm
x 70 mm (1.5” x 3.5”)
• Studs on 600 mm (24”) centers
• Must be atleast 25 mm (5/8”) thick Type X
gypsum drywall for the US or 2 x 12,5 mm (1/2”)
for EU
• 35 mm (#6 x 11/4”) drywall screws on 250 mm
(12”) centers
Doc # 143200 | Rev A | Page 3of 38Doc # 143200 | Rev A | Page 2of 38

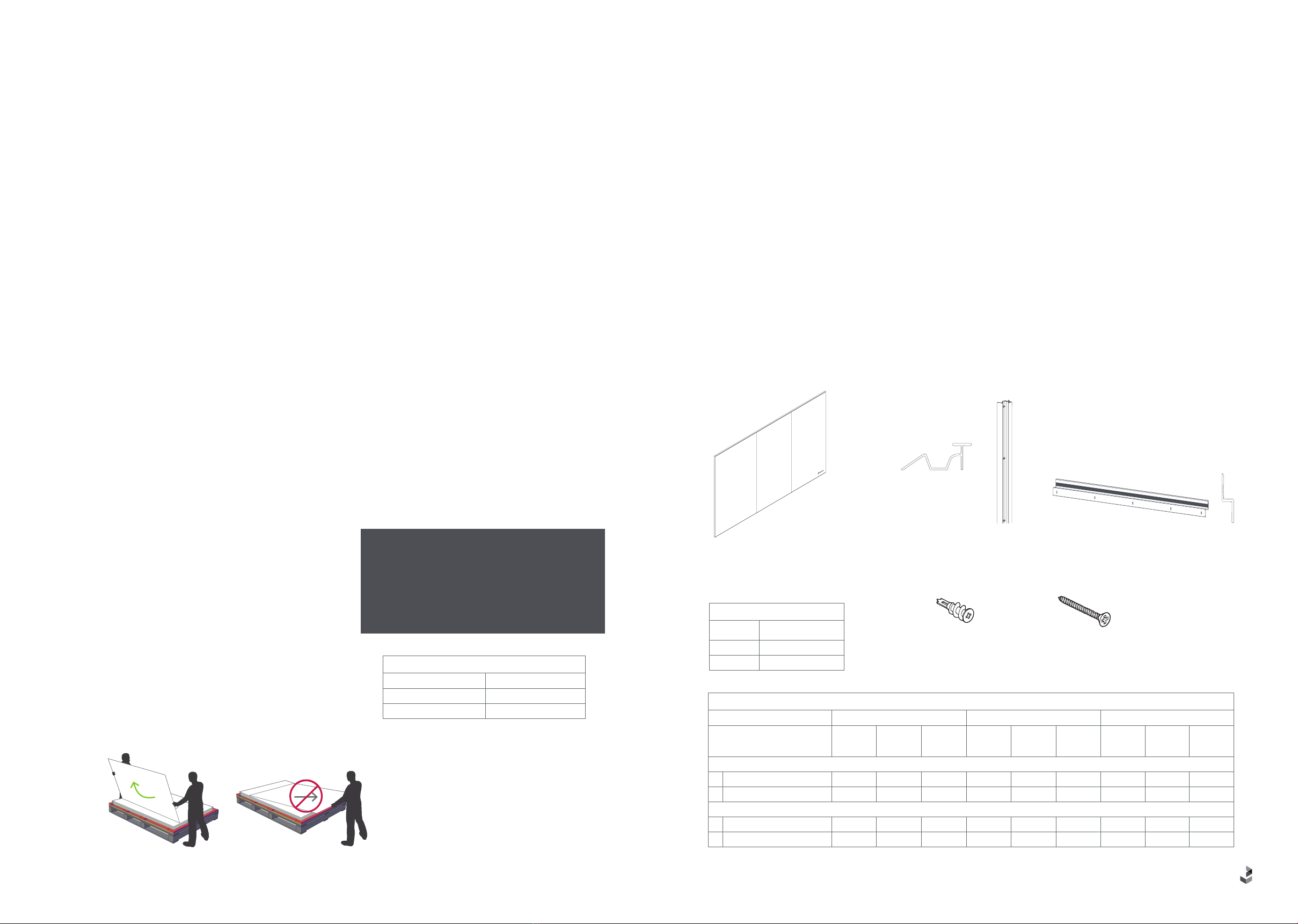

Handling + Storing of Panels
Handling
• When a3CeramicSteel panels are shipped, they
are protected by craft paper or a self-adhesive
transparent polyethylene ilm. Keep panels in the
original package until installation.
• Handle with care to prevent damage.
• Never slide panels o the stack during handling.
Panels should always be lifted and moved in a
vertical position.
• Never place an a3panel in a vertical position on
the loor. This is to prevent damage to the edges.
• Prevent dirt from settling on and between panels
to avoid surface damage, scratches or defects.
• Follow all safety instructions regarding personal
protection when processing the panels.
• Protect panel surface against sawdust and
sparks (metal particles).
• a3CeramicSteel will chip when cut or drilled with
power tools. Hand-cutting can cause chipping
up to approx. 2 mm from the edge. When
chipping is in excess of 2 mm, please check the
state of cutting tools and check that the panel is
adequately supported and clamped to prevent it
from vibrating.
• All cut or drilled sections should be protected
against humidity with PVC tape and/or by
covering/sealing proiles or sealing washers.
• For detailed processing instructions, please refer
to the a3processing instructions.
Storing
• Keep panels dry and free of debris.
• Store panels inside temps 5090 °F (1032 °C).
• Any panels stored outside should be protected
from inclement weather conditions.
• Place panels on hard, lat surfaces that are not
subject to standing water.
• a3CeramicSteel panels should be stacked no
more than three high.
• Panels should never be stored vertically or in
such a way that the corners are vulnerable to
damage.
If you have a problem, question, or a request, call
your local fabricator, your regional sales manager
or PolyVision Customer Service. PolyVision’s global
customer service team can be contacted on
polyvision.com.
Table 1 Horizontal Installation
Product Weight (kg/lb)/panel
Frameless Flow 1830 28 kg / 61.73 lb
Frameless Flow 2420 37 kg / 81.57 lb
• Drill
• #2 Bit
• Glass suction cup lifters (2)
• Pliers
• Pencil
• Level or laser
• 2 or 3-step ladder
• Tape measure
Required Materials + Equipment
Required Equipment
Materials Provided
NOTE: Items are not drawn to scale. Quantity of wall anchors and screws will vary per product
due to the various widths. Board size determines the quantity of anchors and screws.*
Horizontal wall bracketsVertical wall brackets
Horizontal oriented panels
or vertical oriented panels
Anchors Screws
Table 2
Product Panel A (right) Panel B (intermediate) Panel C (left)
# Vertical
Brackets
# Horizontal
Brackets
# Screws/
Anchors
# Vertical
Brackets
# Horizontal
Brackets
# Screws/
Anchors
# Vertical
Brackets
# Horizontal
Brackets
# Screws/
Anchors
Vertical Frameless Flow
Frameless Flow 1830 1 2 17 1 2 17 0 2 10
Frameless Flow 2420 1 3 24 1 3 24 0 3 15
Horizontal Frameless Flow
Frameless Flow 1830 1 2 15 1 2 15 0 2 10
Frameless Flow 2420 1 2 25 1 2 25 0 2 20
Frameless Flow Panels
Panel A Right
Panel B Intermediate
Panel C Left
Doc # 143200 | Rev A | Page 5of 38Doc # 143200 | Rev A | Page 4of 38

Frameless Flow
1830 Vertical Wall Bracket Positioning
1. Deine the centerline of the Frameless Flow installation
2. Deine the centerline of panel A and panel C. This will be the centerline of the brackets.
If uneven panels: from center of wall left and right 1185 mm (465/8").
If even panel: from center of wall left and right 592.5 mm (235/16").
3. Deine the top of the wall to install from the ground level.
4. Measure 220 mm (811/16") down from top of predeined top of wall.
This mark is the bottom of the top wall bracket
5. Measure 1515 mm (595/8") down from the irst horizontal wall bracket to deine the position
of the second bracket.
6. Use the predrilled holes of the wall bracket as a template to mark all the holes.
Pre-drill 6,5 mm (1/4") hole in the drywall. Insert all anchors into the holes and screw them lush.
Fix all the brackets. Make sure the top brackets are perfectly aligned, leveled and ixed irmly.
Repeat for all the brackets.
Frontview
Frameless Flow
2420 Vertical Wall Bracket Positioning
1. Deine the centerline of the Frameless Flow installation
2. Deine the centerline of panel A and panel C. This will be the centerline of the brackets.
If uneven panels: from center of wall left and right 1185 mm (465/8").
If even panel: from center of wall left and right 592,5 mm (235/16")
3. Deine the top of the wall to install from the ground level.
4. Measure 220 mm (811/16") down from top of predeined top of wall.
This mark is the bottom of the top wall bracket
5. Measure 1065 mm (4115/16") down from the irst horizontal wall bracket to deine the position
of the second and 2105 mm down to the third.
6. Use the predrilled holes of the wall bracket as a template to mark all the holes.
Pre-drill 6,5 mm (1/4") hole in the drywall. Insert all anchors into the holes and screw them lush.
Fix all the brackets. Make sure the top brackets are perfectly aligned, leveled and ixed irmly.
Repeat for all the brackets.
Frontview
Doc # 143200 | Rev A | Page 7of 38Doc # 143200 | Rev A | Page 6of 38

Frameless Flow
1830 Horizontal Wall Bracket Positioning
1. Deine the centerline of the Frameless Flow installation
2. Deine the centerline of panel A and panel C. This will be the centerline of the brackets.
If uneven panels: from center of wall left and right 1830 mm (72").
If even panel: from center of wall left and right 915 mm (36")
3. Deine the top of the wall to install from the ground level.
4. Measure 220 mm (811/16") down from top of predeined top of wall.
This mark is the bottom of the top wall bracket
5. Measure 870 mm (341/4") down from the irst horizontal wall bracket to deine the position
of the second bracket.
6. Use the predrilled holes of the wall bracket as a template to mark all the holes.
Pre-drill 6,5 mm (1/4") hole in the drywall. Insert all anchors into the holes and screw them lush.
Fix all the brackets. Make sure the top brackets are perfectly aligned, leveled and ixed irmly.
Repeat for all the brackets.
Frontview
Frameless Flow
2420 Horizontal Wall Bracket Positioning
1. Deine the centerline of the Frameless Flow installation
2. Deine the centerline of panel A and panel B/C. This will be the centerline of the brackets.
If uneven panels: from center of wall left and right 550 mm (215/8") + 1320 mm (5115/16") +
1100 mm (435/16"). If even panel: from center of wall left and right 660 mm (26") + 1100 mm (425/16").
3. Deine the top of the wall to install from the ground level.
4. Measure 220 mm (811/16") down from top of predeined top of wall.
This mark is the bottom of the top wall bracket
5. Measure 870 mm (341/4") down from the irst horizontal wall bracket to deine the position
of the second bracket.
6. Use the predrilled holes of the wall bracket as a template to mark all the holes.
Pre-drill 6,5 mm (1/4") hole in the drywall. Insert all anchors into the holes and screw them lush.
Fix all the brackets. Make sure the top brackets are perfectly aligned, leveled and ixed irmly.
Repeat for all the brackets.
Frontview
Doc # 143200 | Rev A | Page 9of 38Doc # 143200 | Rev A | Page 8of 38

7. Place Panel A onto the wall brackets by lifting it up, holding it against the wall
above the brackets and slide it downwards in the wall brackets. Make sure the
panel is perfectly level.
8. Clean the groove before inserting the vertical proile. Insert the vertical proile
in the groove starting 10 mm (3/8") from the top of the panel. Use the pre-drilled holes
as a template to mark the holes. Remove the proile and pre-drill 6,5 mm (1/4")
hole in the drywall. Insert anchors into the holes and screw them lush. Reinsert the
vertical proile and ix the proile at the area where the proile touches the wall.
Make sure the proile is ixed at least on top, middle and bottom.
Make sure the vertical proile is inserted completely in the groove over the length
of the panel.
10. Place Panel B/C: carefully insert bottom of panel at an angle at the bottom corner.
Let the panel slide towards the previous installed panel, make sure the panels make
contact over the length of the panel and snap it down irmly onto the horizontal
wall bracket.
Repeat as many times as there is a panel B.
Once all B panels are installed, repeat for panel C
Tip: To remove the panel, use opposite handling from installation.
Doc # 143200 | Rev A | Page 11 of 38Doc # 143200 | Rev A | Page 10 of 38

©2019 PolyVision Corporation. All rights reserved. Trademarks used herein are the trademarks of PolyVision
Corporation or their respective owner. PolyVision Corporation reserves the right to make changes in
product design, construction or detail, and to discontinue any product or material without notice.
polyvision.com 07-31-19 ENG
CeramicSteel Surface: Forever warranty
PolyVision warrants that all porcelain-enameled surfaces and/or products made with
e3™ CeramicSteel (Premium Writing Surfaces) or a3™ CeramicSteel (Collaborative Products)
will retain its writing and erasing qualities and maintain its gloss variance and color
consistency for the life of the building or for as long as the product is in use, whichever
comes irst.
Panel Construction: 10 year limited warranty
PolyVision warrants that our panels, under normal atmospheric conditions and when sealed
from moisture, will not delaminate from the substrate or warp for a period of 10 years.
Accessories: 2 year limited warranty
PolyVision warrants that our accessories, including but not limited to Collaborative ToolBar
and round magnetic eraser, when used under normal conditions will perform as intended
for a period of 2 years. Consumables like markers and chalk sticks are not covered by the
Accessories warranty.
Should any failure to conform to this warranty become apparent, then, upon written notice
from the customer, PolyVision, at its option, will correct such nonconformity by repair or
replacement. Correction in the manner provided above shall constitute a fulillment of
all liabilities of PolyVision with respect to the quality of the CeramicSteel. The warranty is
applicable only under normal usage and maintenance and does not cover defects caused
by improper handling, vandalism or abuse, or arising from failure to follow PolyVision’s
instructions and recommendations for maintenance.
The warranty is voided if any modiications are made to the products by the customer or
other trades with or without PolyVision’s written consent or prior knowledge. The warranty
does not include the cost of removal or reinstallation. This warranty is eective as of July 12,
2019, and supersedes the terms and conditions of all prior surface warranties issued to the
customer by PolyVision.
This limited warranty is the sole remedy for product defects and no other express or
implied warranty is provided, including but not limited to any implied warranties of
merchantability or itness for a particular purpose. PolyVision shall not be liable for
consequential or incidental damages arising from any product defect.
Collaborative Products Warranty
Doc # 143200 | Rev A | Page 13 of 38Doc # 143200 | Rev A | Page 12 of 38

3 Requisitos de seguridad
4 Manipulación + almacenamiento de paneles
5 Materiales + equipos requeridos
6 1830 Posicionamiento del soporte vertical de pared
7 2420 Posicionamiento del soporte vertical de pared
8 1830 Posicionamiento del soporte horizontal de pared
9 2420 Posicionamiento del soporte horizontal de pared
13 Garantía
Español
a3CeramicSteel Frameless Flow - Pizarra
montada a la pared para borrado en seco y
aplicaciones no sísmicas
Requisitos de seguridad
Construcción mínima requerida de las paredes
Panel de yeso con montantes metálicos:
• Montantes metálicos de 48,8 mm x 50 mm
(1,92"x 1,97") que tengan un grosor mínimo de
0,6 mm (0,02").
• Montantes con centros a 600 mm (24”) como
máximo.
• Al menos 2 paneles de yeso tipo X de 12,5 mm
(0,49").
• Tornillos para panel de yeso de 35 mm (1,34") con
centros a 250 mm (12").
Veriicar la construcción de la pared
¡ADVERTENCIA! La construcción de la pared
deberá ser la adecuada para soportar el peso de
la pizarra. La construcción mínima de la pared
debe poder soportar los pesos indicados en la
Tabla 1 que aparece en la página 4.
Se deberá consultar al ingeniero responsable
del ediicio para determinar si existe algún
requisito sísmico.
Panel de yeso con montantes de madera:
• Montantes de grado SPF, DFL o Hem-Fir de
45mm x 70 mm (1,5” x 3,5”).
• Montantes con centros a 600 mm (24”).
• Panel de yeso tipo X con un grosor mínimo de
25 mm (5/8”) para los EE. UU. o 2 x 12,5 mm (1/2”)
para la UE.
• Tornillos para panel de yeso de 35 mm
(n.° 6 x 11/4”) con centros a 250 mm (12”).
Doc # 143200 | Rev A | Page 15 of 38Doc # 143200 | Rev A | Page 14 of 38

Manipulación + almacenamiento de paneles
Manipulación
• Cuando se envían paneles a3CeramicSteel, se los
protege con papel madera o con una película de
polietileno transparente autoadhesiva. Mantenga los
paneles en el embalaje original hasta su instalación.
• Manipule con cuidado para evitar daños.
• Nunca deslice los paneles para desapilar durante
la manipulación. Los paneles siempre deben
levantarse y trasladarse en posición vertical.
• Nunca coloque un panel a3en posición vertical
sobre el piso. Esto es para evitar daños en los bordes.
• Evite que se acumule suciedad sobre y entre los
paneles para prevenir daños, rayones o defectos en
la supericie.
• Siga todas las instrucciones de seguridad con
respecto a la protección personal al procesar los
paneles.
• Proteja la supericie del panel contra el serrín y las
chispas (partículas metálicas).
• El a3CeramicSteel se astillará si se corta o perfora
con herramientas eléctricas. El corte manual puede
ocasionar un astillamiento de aproximadamente
2mm desde el borde. Cuando el astillamiento
supera los 2 mm, veriique el estado de las
herramientas de corte y compruebe que el panel
esté bien apoyado y sujetado para evitar que vibre.
• Todas las secciones cortadas o perforadas deben
protegerse contra la humedad con cinta de PVC o
cubriendo o sellando los periles o las arandelas de
sellado.
• Para obtener instrucciones detalladas sobre el
procesamiento, consulte las instrucciones de
procesamiento de a3.
Almacenamiento
• Mantenga los paneles secos y limpios.
• Almacene los paneles a temperaturas en
interiores de 50 °F a 90 °F (10 °C a 32 °C).
• Los paneles almacenados en exteriores se
deberán proteger contra la intemperie.
• Coloque los paneles sobre supericies duras y
planas en las que no se estanque agua.
• Los paneles a3CeramicSteel no deben
guardarse en pilas de más de tres.
• Los paneles nunca deben almacenarse
verticalmente o de forma tal que las esquinas
queden vulnerables a sufrir daños.
Si tiene algún problema, consulta o solicitud, llame a
su fabricante local, al gerente de ventas regional o al
Servicio de Atención al Cliente de PolyVision. Podrá
contactarse con el equipo perteneciente al servicio
global de atención al cliente de PolyVision desde
polyvision.com.
Tabla 1: Instalación horizontal
Producto Peso (kg/lb)/panel
Frameless Flow 1830 28 kg/61,73 lb
Frameless Flow 2420 37 kg/81,57 lb
• Taladro
• Broca n.° 2
• Ventosas para levantar
vidrios (2)
• Pinza
• Lápiz
• Nivel o láser
• Escalera de 2 o 3 peldaños
• Cinta métrica
Materiales + equipos requeridos
Equipos requeridos
Materiales proporcionados
NOTA: los artículos no están dibujados a escala. La cantidad de anclajes para paredes y de
tornillos variará conforme al distinto ancho del producto. El tamaño de la pizarra determina la
cantidad de anclajes y tornillos.*
Soportes horizontales de paredSoportes verticales de paredPaneles orientados en forma
horizontal o paneles orientados
en forma vertical
Anclajes Tornillos
Tabla 2
Producto Panel A (derecho) Panel B (intermedio) Panel C (izquierdo)
Cant.
soportes
verticales
Cant.
oportes
horizontales
Cant.
tornillos/
anclajes
Cant.
soportes
verticales
Cant.
soportes
horizontales
Cant.
tornillos/
anclajes
Cant.
soportes
verticales
Cant.
soportes
horizontales
Cant.
tornillos/
anclajes
Frameless Flow vertical
Frameless Flow 1830 1 2 17 1 2 17 0 2 10
Frameless Flow 2420 1 3 24 1 3 24 0 3 15
Frameless Flow horizontal
Frameless Flow 1830 1 2 15 1 2 15 0 2 10
Frameless Flow 2420 1 2 25 1 2 25 0 2 20
Paneles Frameless Flow
Panel A Derecho
Panel B Intermedio
Panel C Izquierdo
Doc # 143200 | Rev A | Page 17 of 38Doc # 143200 | Rev A | Page 16 of 38

Frameless Flow
1830 Posicionamiento del soporte vertical de pared
1. Determine la línea central de la instalación de Frameless Flow.
2. Determine la línea central del panel A y el panel C. Esta será la línea central de los soportes.
Silospaneles son desiguales: desde el centro de la pared, 1185 mm (465/8") hacia la izquierda y
la derecha. Si los paneles son iguales: desde el centro de la pared, 592,5 mm (235/16") hacia la
izquierda y la derecha.
3. Determine la parte superior de la pared para realizar la instalación desde el suelo.
4. Mida 220 mm (811/16") hacia abajo desde la parte superior predeterminada de la pared. Esta marca
corresponde a la parte inferior del soporte de pared superior.
5. Mida 1515 mm (595/8") hacia abajo desde el primer soporte horizontal de pared para determinar la
posición del segundo soporte.
6. Use los oriicios ya perforados en el soporte de pared como plantilla para marcar todos los oriicios.
Perfore oriicios de 6,5 mm (1/4") en el panel de yeso. Introduzca todos los anclajes en los oriicios
y atorníllelos al ras. Fije todos los soportes. Asegúrese de que los soportes superiores estén
perfectamente alineados, nivelados y airmados. Repita con todos los soportes.
Vista de frente
Frameless Flow
2420 Posicionamiento del soporte vertical de pared
1. Determine la línea central de la instalación de Frameless Flow.
2. Determine la línea central del panel A y el panel C. Esta será la línea central de los soportes.
Silospaneles son desiguales: desde el centro de la pared, 1185 mm (465/8") hacia la izquierda y
la derecha. Si los paneles son iguales: desde el centro de la pared, 592,5 mm (235/16") hacia la
izquierda y la derecha.
3. Determine la parte superior de la pared para realizar la instalación desde el suelo.
4. Mida 220 mm (811/16") hacia abajo desde la parte superior predeterminada de la pared. Esta marca
corresponde a la parte inferior del soporte de pared superior.
5. Mida 1065 mm (4115/16") hacia abajo desde el primer soporte horizontal de pared para determinar
la posición del segundo soporte, y 2105 mm hacia abajo para el tercero.
6. Use los oriicios ya perforados en el soporte de pared como plantilla para marcar todos los oriicios.
Perfore oriicios de 6,5 mm (1/4") en el panel de yeso. Introduzca todos los anclajes en los oriicios
y atorníllelos al ras. Fije todos los soportes. Asegúrese de que los soportes superiores estén
perfectamente alineados, nivelados y airmados. Repita con todos los soportes.
Vista de frente
Doc # 143200 | Rev A | Page 19 of 38Doc # 143200 | Rev A | Page 18 of 38
