Important information concerning Product
Liability.
According to the laws governing product liability, the manufacturer and dealer are obliged to hand the
operating manual to the customer at the time of sale, and to instruct them in the recommended operating,
safety, and maintenance regulations. Conrmation is necessary to prove that the machine and operating
manual have been handed over accordingly.
For this purpose,
- document A is to be signed and sent to Pöttinger,
- document B remains with the dealer supplying the machine,
- and the customer receives document C.
In accordance with the laws of product liability, every farmer is an entrepreneur.
According to the laws of product liability, property damage is damage caused by a machine and not to
it. An excess of Euro 500 is provided for such a liabilioty.
In accordance with the laws of product liability, entrepreneurial property damages are excluded from
the liability.
Attention! Should the customer resell the machine at a later date, the operating manual must be given
to the new owner who must then be instructed in the recommended regulations referred to herein.
GB Dear Farmer
You have just made an excellent choice. Naturally we are very happy
and wish to congratulate you for having chosen Pöttinger. As your
agricultural partner, we offer you quality and efciency combined with
reliable servicing.
In order to assess the spare-parts demand for our agricultural machines
and to take these demands into consideration when developing new
machines, we would ask you to provide us with some details.
Furthermore, we will also be able to inform you of new developments.

Dokument D
GB-0600 Dokum D Anbaugeräte - 3 -
ALOIS PÖTTINGER Maschinenfabrik GmbH
A-4710 Grieskirchen
Tel. [phone]
Telefax [phone]
GEBR. PÖTTINGER GMBH
D-86899 Landsberg/Lech, Spöttinger-Straße 24
Telefon [phone] / 112
Telefax (0 81 91) 92 99-188
GEBR. PÖTTINGER GMBH
Servicezentrum
D-86899 Landsberg/Lech, Spöttinger-Straße 24
Telefon [phone] / 231
Telefax (0 81 91) 59 656
Machine checked according to delivery note. All attached parts removed. All safety equipment, drive shaft and operating
devices at hand.
Operation and maintenance of machine and/or implement according to operating instructions explained to the customer.
Tyres checked re. correct pressure.
Wheel nuts checked re. tightness.
Drive shaft cut to correct lenght.
Correct power-take-off speed indicated.
Fitting to tractor carried out: to three-point linkage
Trial run carried out and no defects found.
Functions explained during trial run.
Pivoting in transporting and operating position explained.
Information given re. optional extras.
Absolute need to read the operating manual indicated.
Please check. X
According to the product liability please check the above mentioned items.
INSTRUCTIONS FOR
PRODUCT DELIVERY
GB
In order to prove that the machine and the operating manual have been properly delivered, a confirmation is necessary.
For this purpose please do the following:
- sign the document A and send it to the company Pöttinger
(in case of Landsberg equipment: to the company Landsberg)
- document B stays with the specialist factory delivering the machine.
- document C stays with the customer.

- 4 -
0800_GB-INHALT_2041
GB







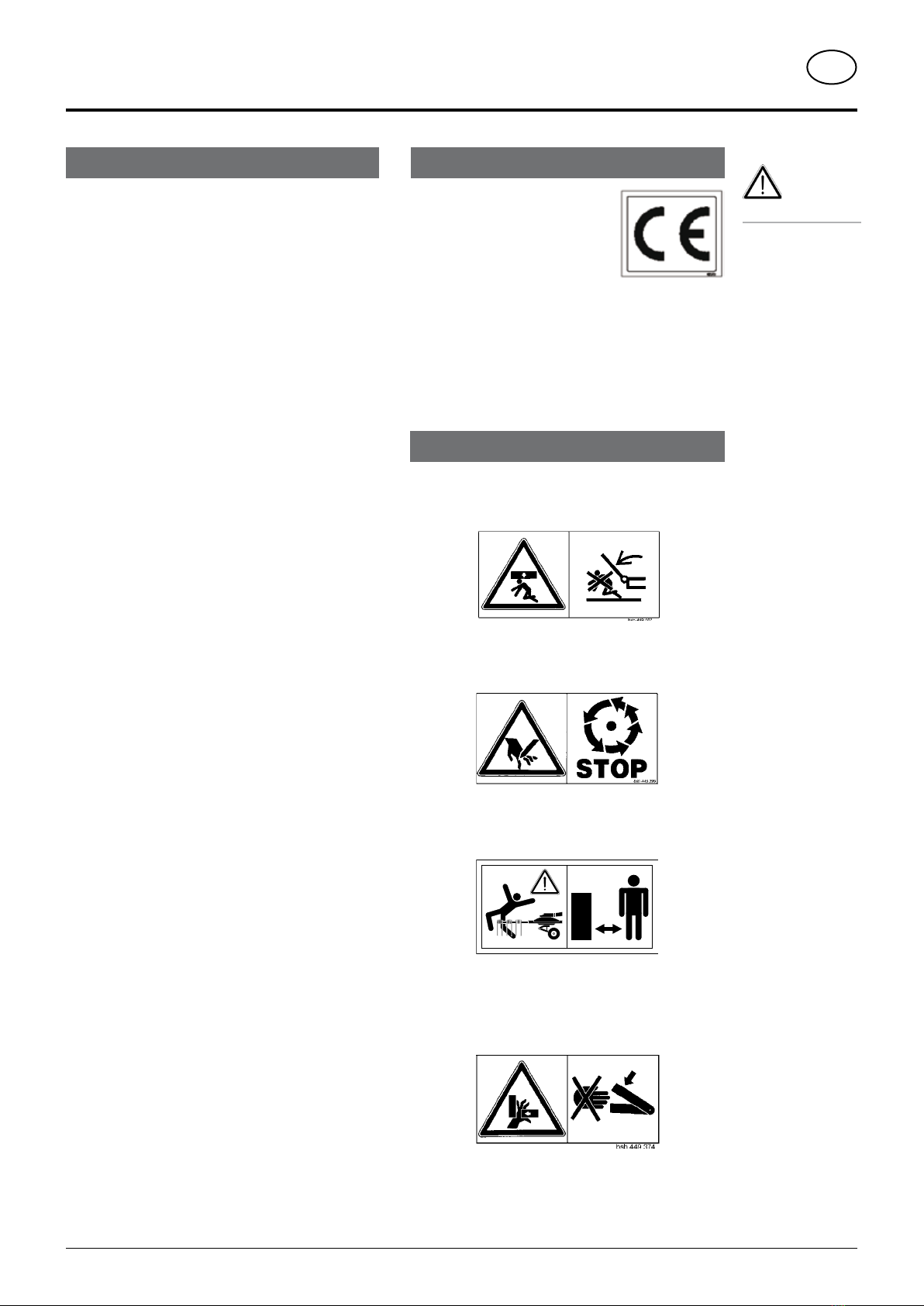

The CE sign, which is affixed by the
manufacturer, indicates outwardly
that this machine conforms to the
engineering guideline regulations and
the other relevant EU guidelines.

By signing the EU Declaration of Conformity, the
manufacturer declares that the machine being brought
into service complies with all relevant safety and health
requirements.

Stay clear of swinging area of implements
Wait until all machine components have completely
stopped before touching them.
Do not enter rotor area while driving motor is running.
Never reach into the crushing danger area as long as
parts may move.
495.173

TABLE OF CONTENTS
CE sign ...........................................................................4
Meaning of warning signs ..............................................4
HITCHING
Hitching of machines with three point linkage ...............5
Drive shaft adaption .......................................................5
Connecting hydraulic system to the tractor ...................5
Locking the headstock during use on roads and when
lowering .........................................................................5
Hydraulic hoses and electrical cables............................5
Lowering the rotary tedder.............................................6
Parking in the open ........................................................6
Winter storage ................................................................6
Lowering the machine (Danger of tipping!) ....................7
ADJUSTMENTS BEFORE OPERATION
Adjustment of rotor inclination .......................................8
Tine adjustment..............................................................8
Driving on public roads: .................................................8
Conversion from working to transport position..............9
Conversion from transport to workingposition...............9
USE
General guidelines for working with the machine ........10
Tractor control device (ST) ...........................................10
Operating on slopes .....................................................10
Shock absorbtion struts ...............................................10
Adjustment ...................................................................10
Setting lower link..........................................................10
Clearing eld edges (border tedding) to the left or to the
right ..............................................................................11
Tine adjustment............................................................11
MAINTENANCE
Safety point ..................................................................12
General maintenance hints...........................................12
Cleaning of machine parts ...........................................12
Parking in the ope ........................................................12
Winter storage ..............................................................12
Drive shafts...................................................................12
Hydraulic unit ...............................................................12
Safety hints...................................................................13
After the rst hours of operation ..................................13
Intake transmission ......................................................13
Changing tines .............................................................13
Driveshaft .....................................................................13
TECHNICAL DATA
Technical data ..............................................................14
Erforderliche Anschlüsse..............................................14
The dened use of the rotary tedder............................14
Optional extras .............................................................14
Main elements of rake ..................................................15
Position of Vehicle Identication Plate .........................15
SUPPLEMENT
Recommendations for work safety .............................18
Driveshaft .....................................................................19
Lubricants ....................................................................21
Lubrication chart .........................................................23
Working with windrowing gear ....................................25
Combination of tractor and mounted implement.........26

- 5 -
0800_GB-Anbau_2041
GB
HITCHING
Hydraulic hoses and electrical cables
Note: Overlengthed hydraulic hoses and electrical cables
are fitted to the machine. This enables the machine to
be coupled to various tractors
• Roll hydraulic lines and electrical cables together
appropriately and secure with cable binders (K).
•Rotating rotor must not damage hydraulic
hoses and electrical cables.
Theremustalwaysbesufficient distanceto
the rotating parts even when cornering.
• Observe lengths "L1 and L2"!
Hitching of machines with three point linkage
Safety hints:
see supplement-A1 points 7.), 8a. - 8h.)
- Pinning the machine to the three point linkage.
- Fix the hydraulic lower link (4) in such a way that the
machine cannot swing out sideways. Push in the
support foot (5) and secure.
Drive shaft adaption
"Shorten the drive shaft" see Supplement-B .
Connecting hydraulic system to the tractor
For reasons of accident prevention the
p.t.o. must be switched off and the rotors
mustcome to a standstillbeforeraisingthe
side rotors.
Release rope(Only lifting
is hydraulic)
- Run rope (S) into tractor
cabin.
Locking the headstock during use on
roads and when lowering
For transport the headstock (SB) must be locked using
a lock nut.
A = working position
B = transport position
TD34/90/4
5
4
Important!
Only reposition the
lock pin when the
machine is in the
raised position.

- 6 -
0800_GB-Anbau_2041
GB
HITCHING
Parking in the open
• When parking for longer periods in the open, clean
plunger rods and then coat with grease.
Important!
- The runner wheels on the swivelled up rotors are to be
turned vertically.
Doing this will prevent rain water from penetrating the
wheel bearings.
Winter storage
Therunnerwheelsshouldbedisengagedwhengaraging
the implement.
Lowering the rotary tedder
Always park implement stabily!
- secure against rolling and tipping over.
• The implement can be parked while in the transport or
working position.
-Secure bolts in position B on the headstock (SB).
Important!
Only reposition bolts when the machine is
in the raised position.
- Lower the machine with the tractor hydraulic system
and place on support foot.
- Pull off drive shaft and rest on support.
Do not rest drive shaft on safety chain (H)!
- Remove hydraulic cables.
- Unhitch machine from tractor.
FETT

- 7 -
0800_GB-Anbau_2041
GB
HITCHING
(for HIT 470, HIT 540)
Before uncoupling
- Fold front support stand down and secure
- Pull rear support stand out and down and secure with
pin (V)
-Use both support stands (otherwise danger of
tipping).
- Then uncouple the implement from the tractor.
Note!
When in operation the support stand must be placed
in the upper position and secured with pin (V).
Lowering the machine (Danger of tipping!)
- Only park implement with side rotors swivelled up
(Danger of tipping).
If a rotory tedder is to be parked with the
siderotorsswivelledup,thefollowingmust
be observed, especially with the draw-bar
machine:

- 8 -
9500-GB VOREINSTELLUNGEN (204)
GB
ADJUSTMENTS BEFORE OPERATION
Adjustment of rotor inclination
Safety points
• Turn engine off when adjustment, service and repair
work is to be done.
• Do not work under the machine without safe
support.
Implement with slewing headstock "N"
The cog enables the darrier axles to be adjusted within a swivel
range of 10°.
1 setting = 1° alteration to rotor inclination
A lot of fodder = greater angle
Not much fodder = smaller angle
Driving on public roads:
• Observe the official regulations of your country.
• Travelling on open roads may only be carried out as described in
chapter "Transport position".
Total implement width in the working position: more than 3 m
Total implement widht in the transport position: see Techn.
Data
• Always swing the outer rotors in before transporting.
Only in this position is the maximum permissable transport width
not exceeded.
No-one can be injured by the rotor tines in this
position.
Hydraulic lower link
- Fix the hydraulic lower link (U) in such a way that the machine
cannot swing out sideways.
Tine adjustment
Tine position can be altered
by turning the tine carrier
(80).
• Position "S1"
Standard position (ex
factory)
• Position "S2"
For use under difficult conditions, e. g. with very
dense, awkward forage. This tine position increases
the strewing action.
• Direction of rotation "R"
Be aware of this when installing tines.
TD16/96/1
80
S1S2
80
TD 16/96/2
R

GB
9500-GB TRANSPORTSTELLUNG (204) - 9 -
TRANSPORTPOSITION
WORKINGPOSITION
Conversion from working to transport position
Safety Precaution!
Changing fromworkingpositiontotransportposition
is only to be carried out on even, firm ground.
• For safety reasons, turn off drive shaft and wait for rotor to stop
completely.
• Make sure that swivel area is free and that nobody is standing in
the danger area.
Hydraulic raising (Variation)
- The outer rotors are raised into the transport position by actualing
the control valve (ST).
The locking hooks engage automatically.
Attention !
- Check whether the locking hooks (10) are locked into
position correctly.
Manual raising (standard fitting withe the HIT 47)
- Hold the tubular handle (9) with your hand and during raising
swivel the outer rotor into
the transport position.
Thelockinghooksengage
automatically.
Attention!
- Check whether the
lockinghooks(10)are
locked into position
correctly.
- Using the tractor's lifting
gear, lower the implement far enough so that it stands on the
ground on both centre running wheels.
- Swivel the outer rotors inward to the transport position.
Swivelling the outer rotors
- Hold the tubular handle in one hand and release the bolts (position
C) with the other.
- When swivelling do not release the tubular handle until the bolts
are locked again (position G).
Conversion from transport to workingposition
Safety Precaution!
Changing fromworkingpositiontotransportposition
is only to be carried out on even, firm ground.
Make sure that swivel area is free and that nobody
is standing in the danger area.
- Turn the rotors outward.
See "Swivelling the Outer Rotors".
- Release mechanical locks (10).
Withhydraulic raising:movethecontrol
valve (ST) briefly to the "raise" position
simultaneously pulling on the rope
(S).
Doing this releases the mechanical
locks (10).
- Lower outer rotors to the working
position.
G
C
TD 40/93/3
10
TD26/93/36
G
C
TD 40/93/2

- 10 -
0700-GB EINSATZ_2041
GB
USE
General guidelines for working with the machine
All work in the immediate area of the rotors may only be carried
out when the p.t.o. is switched off.
Caution! Do not
enter rotor area
while driving motor
is running.
- Choose the speed of travel so that all crops are picked up
thoroughly.
- In cases of overloading, shift down one gear.
Three-point slewing headstock "type N"
- Lift three point follower machine before going around sharp bends
and when reversing.
Beware!
Machine swings automatically back to central
position (M) when lifted and is locked into position.
Take care that the swinging machine does not
endanger anybody and does not hit solid obstacles.
When lowering the machine the locking devise is
automatically lifted.
Tractor control device (ST)
- Put tractor control device (ST) into "free gear" (floating position
or "lower").
In this way the rotors adapt to
uneven ground.
Operating on slopes
Take note! Machine with three-point slewing headstock
"type N"
If the implement is being raised by the lifting gear whilst travelling
in a curve, the implement swings automatically into the central
position. If workingonslopes thiscanleadtodangeroussituations,
partly due to the balance
weight of the implement
(tipping, slipping, material
breakage etc.).
The function of the shock
absorbtion struts is to allow
the swinging procedure to
be executed slowly and
continuously, not in jerks and jolts.
Shock absorbtion struts
(Optional extra)
Shock absorbtion struts (D) are
recommended for work on slopes
as they increase travel safety.
Adjustment
By turning the hexagonal nut (SK)
theinitialtensionofthediskspring
and, with that, the pressure on the
frictionelements (R)ontherod can
be altered.
Adjustment
- Adjust length of upper link (9) so that rotors are inclined forward
and spring tines lightly touch the ground (see chapter "Adjustment
of rotor inclination" also). Check upper link (9) adjustment regularly
during work operation.
Setting lower link
- Tractor's lower link (U) must be set so that there is no sideways
play in order to prevent tedder from swinging back and forth.
495.173

USE
- 11 -
0700-GB EINSATZ_2041
GB
• Clearing field edges can normally (exceptions can be found later
in this manual) be carried out using only a three-point slewing
headstock and the swivelling runner wheels belonging to it.
The machine runs slantwise behind the tractor according to the
direction of the runner wheels. This causes the forage to be strewn
into the field away from the edge.
Swinging of a single runner wheel
- Press up the adjusting lever
(7).
- Swing the wheels to the right
or to the left.
- Lock the adjusting lever into
the desired position.
Note
In this working position the swivel area (9) is used to its full extent.
When driving around bends away from the edge of the field or at the
end of the field, the machine must therefore be lifted.
Attention!
The machine swings back into the central position
(M).
Clearing field edges (border tedding) to the left or to the right
Tine adjustment
• Position "S1" , "S2"
- seechapter "ADJUSTMENTSBEFORE
OPERATION"
TD26/93/44�
7�
S1S2
80
TD 16/96/2
R

- 12 -
GB
0400_GB-BA-Allg. Wartung
Parking in the ope
When parking in the open for
long periods of time, clean
piston rods and then coat
with grease.
FETT
Safety
points!
• Turn engine off
when adjustment,
service and repair
work is to be
done.
• Do not work un-
der the machine
without safe
support.
• Retighten all
screws after the
first hours of
operation..
General maintenance hints
In order to keep the implement in
good condition after long periods
of operation, please observe the
following points:
- Tighten all screws after the first
hours of operation.
In particular check:
- blade screws on the mowers
- tine screws on the swather and tedder.
Spare part
a. The original components and accessories have
been designed especially for these machines and
appliances.
b. We want to make it quite clear that components and
accesories that have not been supplied by us have
not been tested by us.
c. The installation and/or use of such products can,
therefore, negatively change or influence the
construction characteristics of the appliance. We are
notliablefordamagescausedbytheuseofcomponents
and accessories that have not been supplied by us.
d. Alterations and the use of auxiliary parts that are
not permitted by the manufacturer render all liability
invalid.
Cleaning of machine parts
Attention! Do not use high-pressure washers for the
cleaning of bearing- and hydraulic parts.
- Danger of rust!
- After cleaning, grease the machine according to the
lubrication chart and carry out a short test run.
- Cleaning with too high pressure may do damage to
varnish.
Safety point
• Turn engine off when adjustment, service and repair
work is to be done.
Hydraulic unit
Caution! Danger of injury or infection!
Under high pressure, escaping fluids can penetrate
the skin. Therefore seek immediate medical help!
After the first 10 operating hours and then every
consecutive 50 operating hours
- Check the hydraulic unit and lines for tightness and
retighten screw connections if necessary.
Before operation
- Check hydraulic hoses for wear.
Replacewornordamagedhydraulichosesimmediately.
The replacement hoses must meet the manufacturer’s
technical requirements.
Hose lines are subject to natural ageing. The period of
use should not exceed 5 – 6 years.
Winter storage
- Thoroughly clean machine before storage.
- Put up protection against weather.
- Change or replenish gear oil.
- Protect exposed parts from rust.
- Lubricate all greasing points according to lubrication
chart.
Drive shafts
- see notes in the supplement
For maintenance please note!
The instructions in this operating manual are always
valid.
In case there are no special instructions available, then
thenotesintheaccompanyingdriveshaft manufacturer´
instructions are valid.
Repair In-
structions
Please refer to
repair instructions
in supplement (if
available)
MAINTENANCE

- 13 -
MAINTENANCE
0700_GB-Wartung_2041
GB
Safety hints
• Turn engine off when adjustment, service and repair
work is to be done.
• Do not work under the machine without safe
support.
After the first hours of operation
- Tighten all screws.
Inparticular thetineconnections(12 kpm),the tinebarconnections
(9 kpm) and the slewing headstock connections should be
checked.
- Always keep the stipulated air pressure in the tyres.
- Grease the lubrication points in accordance with the regulation
(see lubrication schedule).
Grease the lubrication nipples with universal grease after every
20 hours of operation.
- Before leaving the machine over winter, oil all the joints well and
grease all bearings.
Intake transmission
- The intake transmission
runs in oil which must be
renewedoradded toafter
every year of operation:
- Pourgearlubricantoilinto
the intake transmission
(see enclosure on fuel
regulation).
Quantity: 0,5 l
Changing tines
- Remove broken tine after loosening the hexagonal nut and fit new
tine.
- For correct fitting observe the direction of the rotors!
- Tighten hexagonal screw with 12 daNm (= 12 kpm).
Driveshaft
- see Supplement Driveshaft -B
Drehrichtung�
direction of rotation�
TD26/93/48�
5�
12 kpm�
8
h
FETT

GB
0800-GB Techn.Daten_2041 - 14 -
TECHNICAL DATA
The defined use of the rotary tedder
The „HIT 470 N, HIT 470 H, HIT 540 N“ rotary tedder is intended solely for normal use in agricultural work.
• For the tedding, turning and raking of green and raw fodder and silage.
Any other uses outside of these are regarded as undefined.
The manufacturer takes no responsibility for any resulting damage which occurs henceforth. The risk is carried by the user alone.
• The keeping of operating, service and maintenance requirements layed down by the manufacturer also come under the heading of „defined
use“.
Technical data
All data subject to revision.
Necessary connections
1 single-action hyfraulic connection
pressure min.: 80 bar
pressure max.: 180 bar
7-pole electric connection for lighting (12 Volt)
Description HIT 470 N / H
(model ZK 2041)
HIT 540 N
(model ZK 2051)
Width of appliance in working position [m] 4,70 5,40
Working widh [m] 4,40 5,20
Width - swung up for transport [m] 2,50 2,90
Parking height [m] 2,25 2,60
Transport height [m] 2,75 3,00
no. of rotors 4 4
Tine arms per rotor 6 7
Diameter of rotor [m] 1,42 1,67
Minimum troctor power required [kW/PS] 13 / 18 15 / 20
Maximum p.t.o. speed [rpm] 540 540
Tyre equipment 15x6.00-6 4 Ply rating 15x6.5-8 4 Ply rating
Tyre pressure [bar] 1,5 1,5
Maximum permissible speed [km/h] 30 30
Weight - with trailer draw-bar
with rigid hydraulic attachment
with three-point swivel frame
[kg]
[kg]
[kg]
377
361
384
411
--
420
permanent sound emmision level [db (A)] <70 75,9
Optional extras
• Reserve wheel holder
• Winding protection
• Lighting
• Shock absorbtion struts (see chapter "Use")
• Windrowing gear
• Feeler wheel

GB
0800-GB Techn.Daten_2041
TECHNICAL DATA
- 15 -
Main elements of rake
1 = Drawbar (model "A")
2 = Rigid hitch frame (model "H")
3 = Swing frame (model "N")
4 = Hydraulic facilities (optional extra at HIT 40)
5 = Outside rotor
6 = Tubular guard
7 = Tines
8 = Inside rotor
9 = Tension spring (Standard at HIT 40)
10 = Gearbox
Ihre/Your/Votre
Masch.Nr. / Fgst.Ident.Nr.
Position of Vehicle Identification Plate
The factory number is imprinted on the accompanying Vehicle
Identification Plate (as shown) and on the frame. Guarantee issues
and further inquiries cannot be processed without the factory number
being stated.
Please enter the number onto the front page of the operating manual
immediately after taking delivery of the vehicle/implement.

GB-Anhang Titelblatt _BA-Allgemein
GB
SUPPLEMENT

GB-Anhang Titelblatt _BA-Allgemein
GB
The decision must be made, ”original” or ”imitation”? The decision is often governed
by price and a ”cheap buy” can sometimes be very expensive.
Be sure you purchase the ”Original” with the cloverleaf sym-
bol!
• Quality and precise fitting
- Operating safety.
• Reliable operation
• Longer lasting
- Economy
• Guaranteed availability through your
Pöttinger Sales Service.
Things will run better with
genuine Pöttinger parts
The original cannot be copied ...

9400_GB-Anhang A_Sicherheit
SUPPLEMENT - A
Recommendations for work safety
- A 1 -
20%
Kg
Recommendations for work safety
All points refering to safety in this manual are indicated
by this sign.
1.)Defined use
a. See "Technical Data".
b. The keeping of operating, service and maintenance requirements
layed down by the manufacturer also come under the heading of
"defined use".
2.) Spare parts
a. The original components and accessories have been designed
especially for these machines and appliances.
b. We want to make it quite clear that components and accesories
that have not been supplied by us have not been tested by us.
c. The installation and/or use of such products can, therefore,
negatively change or influence the construction characteristics
of the appliance. We are not liable for damages caused by the
use of components and accessories that have not been supplied
by us.
d. Alterations and the use of auxiliary parts that are not permitted
by the manufacturer render all liability invalid.
3.) Protection devices
All protection devices must remain on the machine and be
maintained in proper condition. Punctual replacement of worn
and damaged covers is essential.
4.) Before starting work
a. Before commencing work, the operator must be aware of all
operating devices and functions. The learning of these is too late
after having already commenced operation!
b. The vehicle is to be tested for traffic and operating safety before
each operation.
5.) Asbestos
- Certain sub-supplied components of the
vehicle may contain asbestos due to technical
reasons. Observe the warning on spare
parts.
6.) Transport of persons prohibited
a. The transport of persons on the machine is not permitted.
b. The machine may only be driven on public roads when in the
position stipulated for road transport.
7.) Driving ability with auxiliary equipment
a. The towing vehicle is to be sufficiently equiped with weights at the
front or at the rear in order to guarantee the steering and braking
capacity (a minimum of 20% of the vehicle’s tare weight on the
front axle).
b. The driving ability is
influenced by ground
conditions and by the
auxiliary equipment. The
driving must be adapted
to the corresponding
terrain and ground
conditions.
c. When driving through
curves with a connected
appliance, observe the
radius and swinging
mass of the appliance.
d. When travelling in a curve with attached or semimounted
implements, take into account the working range and swing mass
of the implement!
8.) General
a. Before attaching implement to three-point linkage, move system
lever into a position whereby unintentional raising or lowering is
ruled out!
b. Danger of injury exists when coupling implement to tractor!
c. Danger of injury through crushing and cutting exists in the three-
point linkage area!
d. Do not stand between tractor and implement when using three-
point linkage external operation!
e. Attach and detach drive shaft only when motor has stopped.
f. When transporting with raised implement, secure operating lever
against lowering!
g. Before leaving tractor, lower attached implement to the ground
and remove ignition key!
h. Nobody is to stand between tractor and implement without tractor
being secured against rolling using parking brake and/or wheel
chocks!
i. For all maintenance, service and modification work, turn driving
motor off and remove universal drive.
9.) Cleaning the machine
Do not use high-pressure washers for the cleaning of bearing- and
hydraulic parts.

- B1 -
0700_ GB-Gelenkwelle_BA-ALLG
GB
DRIVESHAFT
Supplement - B
Rules for working
Never exceed the maximum p. t. o. speed when using
the implement.
- When the p.t.o. is switched off, the implement hitched
up may not stop at once.
Do not go close to the implement until all motion has
stopped; only then may work be done on it.
- When the implement ist parked, either remove the
driveshaft and store it, or secure it with a chain. Do
not use retaining chain (H) for this.
Wide-angle joint:
Maximumangleofdeflectionwhenworking/stationary:
70°
Standard joint :
Maximum angle of deflection when stationary: 90°
Maximum angle of deflection when working: 35°
Maintenance
Replace worn-out covers/guards at
once.
- Lubricate with a brand-name grease before starting
work and every 8 hours worked.
- Before any extended period of non-use, clean and
lubricate driveshaft.
For winter working, grease the tube guards, to avoid
them freezing together.
Matching driveshaft to tractor
To determine the actual length required, hold the two
halves of the driveshaft side by side.
Procedure for cutting to length
- To determine length required, set implement in closest
working position (L2) to tractor, hold driveshaft halves
side by side and mark off.
Important!
• Note the maximum operating length (L1)
- Try to attain the greatest possible shaft over-
lap (min. 1/2X)!
• Shorten inside and outside tube guard by the same
amount.
• Fit torque limiter (2) of drive shaft to implement end of
driveshaft!
• Always check that drive shaft locks are securely
engaged before starting work.
Retaining chain
- Use chain to prevent tube guard from rotating.
Take care that chain does not impede driveshaft
pivoting.
8h
FETT
Important!
Only use the indi-
cated or accom-
panying drive
shaft, otherwise
the right to claim
under guarantee
for any possible
damage does not
exist.

- B1 -
0700_ GB-Gelenkwelle_BA-ALLG
GB
DRIVESHAFT
Supplement - B
L
L
K92E,K92/4E
K90,K90/4,K94/1
How a cam type cut out safety clutch works
This overload clutch switches the torque transmitted to
zero if overloaded. To revert to normal operation, stop the
p.t.o. drive briefly.
The clutch reengages at a speed below 200 rpm.
IMPORTANT!
Re-engaging is also possible by decreasing the
p.t.o. r.p.m.
TAKE NOTE!
The overload clutch on the driveshaft is not a “Full up”
indicator. It is purely a torque limiter designed to protect
the implement against damage.
Driving the right way will avoid triggering the clutch too
often, and thus causing unnecessary wear on it and the
implement.
Lubricating interval: 500 hrs (Special lubricant)
Important for driveshafts with friction clutch
Torque is limited with overloading and brief torque peaks
and evenly transferred during slipping.
Prior to initial operation and after long periods out of use,
check friction clutch for proprer function.
a.) Measure dimension „L“ at compression spring of
K90, K90/4 and K94/1 or at set screw of K92Eand
K92/4E.
b.) Loosen screws to release the pressure on the
friction disk.
Slip the clutch.
c.) Tighten set screws to dimension „L“.
Clutch is ready for use.
