Pottinger EUROTOP 601 A User manual


GB
Ihre / Your / Votre • Masch.Nr. • Fgst.Ident.Nr.


Ihre / Your / Votre • Masch.Nr. • Fgst.Ident.Nr.

99 243.GB.80H.1
Double Rotary Swather
EUROTOP 601 A
(Type SK 243 : +..01001)
EUROTOP 611
(Type SK 243 : +..01001)

ALLG./BA SEITE 2 / 0000-GB
Important information concerning Product
Liability.
According to the laws governing product liability, the manufacturer and dealer are obliged to hand the
operating manual to the customer at the time of sale, and to instruct them in the recommended operating,
safety, and maintenance regulations. Confirmation is necessary to prove that the machine and operating
manual have been handed over accordingly.
For this purpose,
- document A is to be signed and sent to Pöttinger,
- document B remains with the dealer supplying the machine,
- and the customer receives document C.
In accordance with the laws of product liability, every farmer is an entrepreneur.
According to the laws of product liability, property damage is damage caused by a machine and not to
it. An excess of Euro 500 is provided for such a liabilioty.
In accordance with the laws of product liability, entrepreneurial property damages are excluded from
the liability.
Attention! Should the customer resell the machine at a later date, the operating manual must be given
to the new owner who must then be instructed in the recommended regulations referred to herein.
GB Dear Farmer
You have just made an excellent choice. Naturally we are very happy
and wish to congratulate you for having chosen Pöttinger. As your
agricultural partner, we offer you quality and efficiency combined with
reliable servicing.
In order to assess the spare-parts demand for our agricultural machines
and to take these demands into consideration when developing new
machines, we would ask you to provide us with some details.
Furthermore, we will also be able to inform you of new developments.

Dokument D
GB-0600 Dokum D Anbaugeräte - 3 -
ALOIS PÖTTINGER Maschinenfabrik GmbH
A-4710 Grieskirchen
Tel. [phone]
Telefax [phone]
GEBR. PÖTTINGER GMBH
D-86899 Landsberg/Lech, Spöttinger-Straße 24
Telefon [phone] / 112
Telefax (0 81 91) 92 99-188
GEBR. PÖTTINGER GMBH
Servicezentrum
D-86899 Landsberg/Lech, Spöttinger-Straße 24
Telefon [phone] / 231
Telefax (0 81 91) 59 656
❑ Machine checked according to delivery note. All attached parts removed. All safety equipment, drive shaft and
operating devices at hand.
❑ Operation and maintenance of machine and/or implement according to operating instructions explained to the
customer.
❑ Tyres checked re. correct pressure.
❑ Wheel nuts checked re. tightness.
❑ Drive shaft cut to correct lenght.
❑ Correct power-take-off speed indicated.
❑ Fitting to tractor carried out: to three-point linkage
❑ Trial run carried out and no defects found.
❑ Functions explained during trial run.
❑ Pivoting in transporting and operating position explained.
❑ Information given re. optional extras.
❑ Absolute need to read the operating manual indicated.
Please check. X
According to the product liability please check the above mentioned items.
INSTRUCTIONS FOR
PRODUCT DELIVERY
GB
In order to prove that the machine and the operating manual have been properly delivered, a confirmation is necessary.
For this purpose please do the following:
- sign the document A and send it to the company Pöttinger
(in case of Landsberg equipment: to the company Landsberg)
- document B stays with the specialist factory delivering the machine.
document C stays with the customer.

- 4 -
0700_GB-INHALT_243
TABLE OF CONTENTS GB
CE sign
Recommendations
for work safety
All points refer-
ring to satety in
this manual are
indicated by this
sign.
Meaning of warning signs
The CE sign, which is affixed by the manufacturer, indicates outwardly that this machine
conforms to the engineering guideline regulations and the other relevant EU guidelines.
EU Declaration of ConformityBy signing the EU Declaration of Conformity, the manufacturer
declares that the machine being brought into service complies with all relevant safety and
health requirements.
Do not enter rotor area while driving
motor is running.
Never reach into the crushing danger
area as long as parts may move.
Stay clear of swinging area of imp-
lements.
495.173
Table of contents
CE sign .......................................................................... 4
Meaning of warning signs ............................................. 4
Hydraulic connection .................................................... 5
Lowering the machine ................................................... 5
Initial attachment to tractor ........................................... 6
Drive shaft ..................................................................... 6
Preparations for initial operation ................................... 7
Distance (X) adjustment (up to 2003 model) ................ 7
Distance (X) adjustment (from 2004 model) ................. 8
Hydraulic hoses and electrical cables ........................... 8

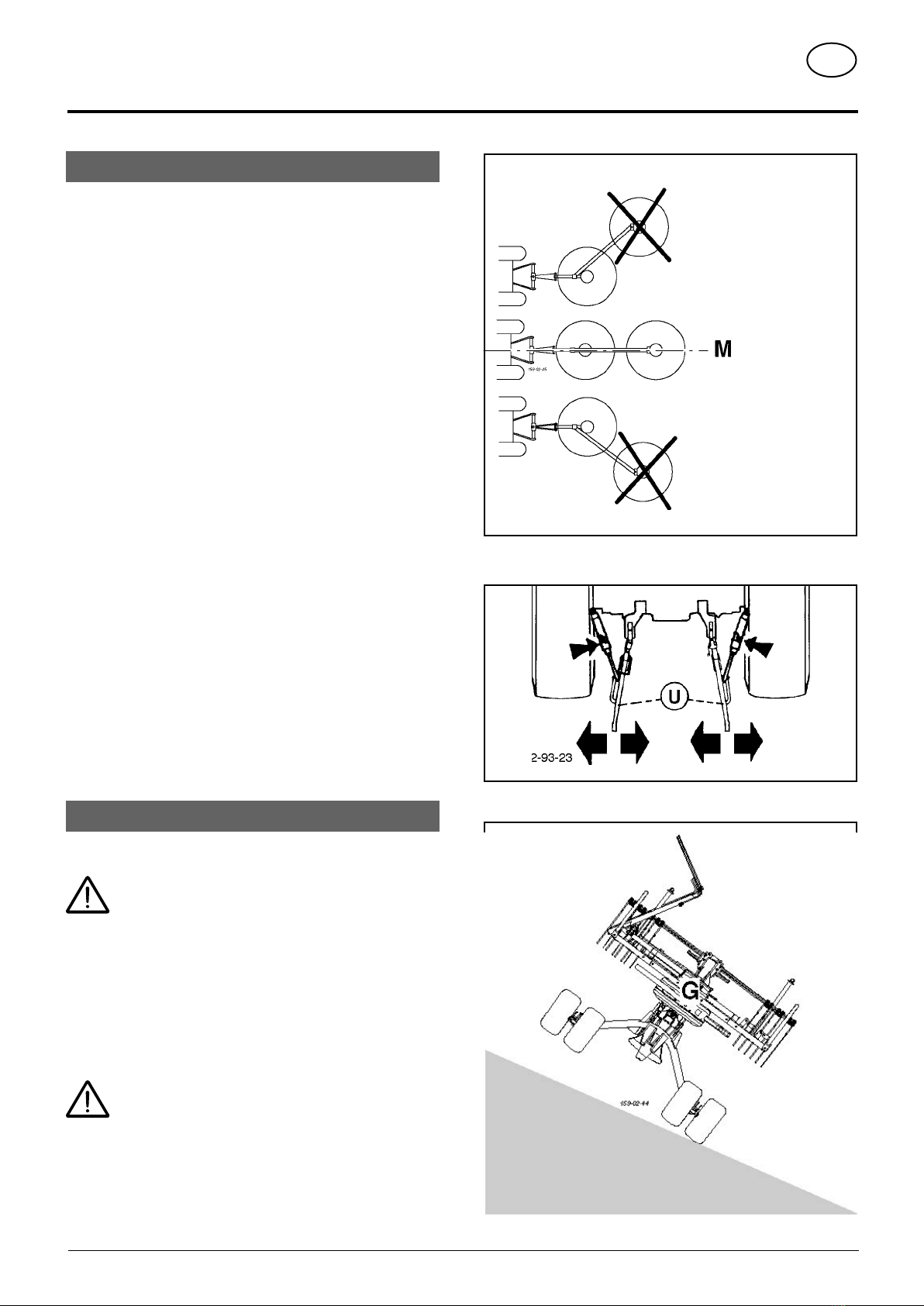

Driving on public roads (M) ........................................... 9
Take care when turning on slopes! ................................ 9
Changing to Transport position ................................... 10
Working position .......................................................... 11
Conversion from transport to working position ........... 11
Preparing for operation ............................................... 12
Two single swaths or one side swath .......................... 13
Important points befor starting work ........................... 14
P.t.o. speed .................................................................. 14
Hydraulic control device (ST) ...................................... 14
General guidelines for working with the machine ....... 14
Safety point ................................................................. 17
General maintenance hints .......................................... 17
Cleaning of machine parts .......................................... 17
Parking in the ope ....................................................... 17
Winter storage ............................................................. 17

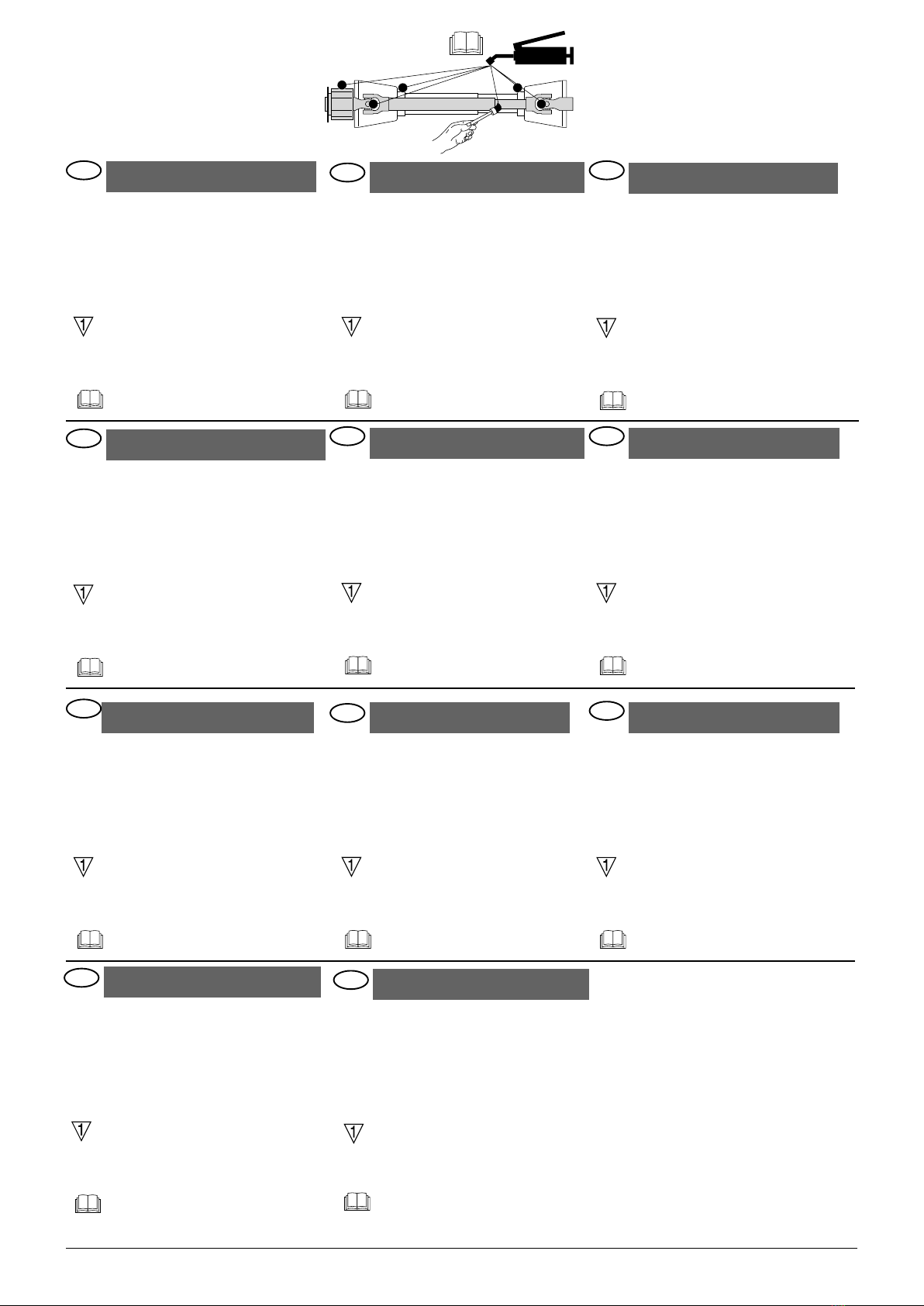

Drive shafts .................................................................. 17
Hydraulic unit .............................................................. 17
Lubrication points ........................................................ 18
Gear ............................................................................. 18
Technical data ............................................................. 21
Defined use of the Rotary Swather ............................. 21
Position of Vehicle Identification Plate ........................ 21
Optional equipment ..................................................... 24
Combination of tractor and mounted implement ........ 31
Important! Additional Information ................................ 31

GB
ATTACHING TO THE TRACTOR
- 5 -
0400-GB Anbau_243
A
E
TD 26/92/16
s
h
0
ST
DW
DW
EW
TD44/94/1
Hydraulic connection
There must be at least one double action and one single action hydraulic
connection available on the tractor.
Connecting hydraulic system to the tractor
- Only connect hydraulic system to the tractor when stopcock is closed
(position A).
EW Connect the plug-in connection with the ”red” dust cap to the single
action control valve.
DW Connect both plug-in connections with the ”blue” dust caps to the
double action control valve.
Lowering the machine
The machine can be lowered both from the working position and from
the transport position.
- Park machine stabily!
- Secure implement from rolling using wheel chocks!
- Swing support stand down (5a) , secure with locking pin
(B)
- Pull off drive shaft and rest on support.
Do not rest drive shaft on safety chain!
- Close stopcock on every connector (pos. A) and then disconnect hydraulic
lines from tractor.
Should problems occur when disconnecting:
- Move servo-valve (ST) briefly to "lower" position (s).
Doing this will reduce any possible pressure remaining in the connector
and allows a trouble-free disconnection of the hydraulic lines.
- Disconnect appliance from tractor.
Shorten total length (80 cm)
- by swinging the forward rotor unit inward

GB
ATTACHING TO THE TRACTOR
- 6 -
0400-GB Anbau_243
Initial attachment to tractor
Safety hints:
see supplement-A1 points 7.) 8a. - 8h.)
Procedure:
1. Attach shaft to tractor´s linkage drawbar
Important! The tractor linkage drawbar must be movable (A-B)
- Left and right lifting struts (4) must be of equal length.
2. Secure fixing bolts using linch pin (V).
3. Fix the hydraulic lower link (5) in such a way that the
machine cannot swing out sideways.
4. Raise jackstand (10) and secure with bolt.
5. Set tractor hydraulic at correct height (H).
Ensure sufficient distance to drive shaft (X) particularly
when travelling over humps.
6. Connecting hydraulic line to tractor.
- Stopcock closed (position A)
- Connect hydraulic line (60) to tractor.
7. Lowering implement
- Stopcock opened (position E)
- Engage servo-valve (ST).
Implement is lowered slowly to the ground.
Drive shaft
Before operation, check lengths of drive shafts and adapt if ne-
cessary (see chapter "Adaption of Drive Shaft" in supplement B
also).
Important!
Always connect wide angle joint to tractor, not
to machine!

GB
ATTACHING TO THE TRACTOR
- 7 -
0400-GB Anbau_243
Preparations for initial operation
Important!
1. The working position means that implement is lowe-
red and rotor tines are lightly touching the ground
(A1)
2. The distance (X) between drive shaft and linkage
drawbar should be at least 120 mm when in working
position (standard). Take note of distance ”X” parti-
cularly when travelling over humps.
3. The position of rotor tines should be roughly parallel
to the ground. A slight inclination forward is allowed.
4. Set distance (X1) using thresded spindle
For machines with the ”MULTITAST” system, set a shaft swivel
range here which enables rotor tines (A1) to adapt well to
gound in uneven areas.
- see chapter ”THE ”MULTITAST” SYSTEM” also.
Distance (X) adjustment (up to 2003 model)
1. Attach machine to tractor and bring to working position (see
above).
2. Remove linch pin (V).
3. Swing lever (H) up (90°)
4. Turn threaded spindle accordingly.
MULTITAST system (Optional extra)
- see chapter ”THE ”MULTITAST” SYSTEM” also
For machines without ”MULTITAST”
- turn threaded spindle until it stops (X1 =0 mm)
For machines with ”MULTITAST”
- turn threaded spindle to a distance of X1 = 30 – 50 mm.
5. Swing lever (H) down (0°) and secure with linch pin (V).
In this position the threaded spindle is secured against turning.

GB
ATTACHING TO THE TRACTOR
- 8 -
0400-GB Anbau_243
Distance (X) adjustment (from 2004 model)
1. Attach machine to tractor and bring to working position (see
above).
2. Swing lever (H) up (90°)
3. Turn threaded spindle accordingly.
MULTITAST system (Optional extra)
- see chapter ”THE ”MULTITAST” SYSTEM” also
For machines without ”MULTITAST”
- turn threaded spindle until it stops (X1 = 190 mm)
For machines with ”MULTITAST”
- turn threaded spindle to a distance of X1 = 220 – 240 mm.
4. Swing lever (H) down (0°).
In this position the threaded spindle is secured against turning.
Hydraulic hoses and electrical cables
Note: Overlengthed hydraulic hoses and electrical cables
are fitted to the machine. This enables the machine to be
coupled to various tractors
• Roll hydraulic lines and electrical cables together appropriately
and secure with cable binders (K).
• Rotating rotor must not damage hydraulic hoses and
electrical cables.
There must always be sufficient distance to the
rotating parts even when cornering.
• Observe lengths "L1 and L2"!

TRANSPORT POSITION
GB
0200-GB-TRANSPORT_243 - 9 -
Driving on public roads (M)
• Observe the official regulations of your country.
• Travelling on open roads may only be carried out as described in
chapter "Transport position".
• Swing machine to central position (M).
• Close all hydraulic circuits (A).
• Protection devices must be in proper condition.
• Before travelling bring all swivelling parts into their correct positions
and secure against dangerous changes to position.
• Check that lighting functions before travelling.
• Important information can also be found in the supplement of this
operating manual.
Hydraulic lower link
- Fix the hydraulic lower link (U) in such a way that the machine
cannot swing out sideways.
Take care when turning on slopes!
The tractor's travelling characteristics are influenced
by the weight (G) of the rotor unit. This can lead to
dangerous situations, especially on slopes.
Danger of tipping occurs
• when the rotor units are in a raised position
• when travelling in a curve with the rotor units raised
Safety advice
• Reduce speed in curves accordingly.
• It is better to travel in reverse on a slope than to carry
out a risky turning manoeuvre.

TRANSPORT POSITION
GB
0200-GB-TRANSPORT_243 - 10 -
Changing to Transport position
Safety hints:
see supplement-A1 points 7.), 8a. - 8h.)
• Changing from working position to transport position is only
to be carried out on even, firm ground.
• For safety reasons, turn off drive shaft and wait for rotor to
stop completely.
1. Swing machine to central position
Use double action control valve (ST)
2. Lower machine to ground.
3. Slide trap sheet (9) completely in and secure with T-screw (K).
4. Swing all guard rails (10) up
The locking pins catch automatically in the final position.
5. Detach all tine arms and put on (position 1).
Attention!
All tine arms must always be taken off. The rotor could turn
by itself during travel.
6. Swing machine up into transport position (T1).
Use single action control valve (ST)
7. Close stop valves (position A)
For safety, travel on roads only with stop valves closed!
Pos. 1
AE
TD44/94/8
ST

GB
WORKING POSITION
- 11 -
0300-GB-ARBEITSSTELLUNG_243
AE
TD44/94/8
ST
Montage-
positionen
159-02-47
Conversion from transport to working position
Changing from working position to transport position
is only to be carried out on even, fi rm ground.
1. Stopcock opened (position E).
2. Make sure that swivel area is free and that nobody is
standing in the danger area.
3. Lower both rotor units into operating position (A1).
• Move single action servo-valve (ST) to "lower" position and
lower rotor units to the ground.
4. Swing guard rails (6), left and right, outward
- Release lock (A)
- The locking pins catch automatically in the fi nal position.
Working position
Stand clear of implement's swivel range.

GB
WORKING POSITION
- 12 -
0300-GB-ARBEITSSTELLUNG_243
TD 44/94/11
6
6a
≈ 40 cm
159-02-52
max. 50 cm
Caution!
Do not enter rotor area while driving motor is
running.
Preparing for operation
1. Install all tine arms onto both rotors.
• Place tine bearers onto rotor arms and secure with linch pin.
2. Swing all guard rails (6) (left and right) to the safeguarding
position.
3. Pull trap sheet out and secure with fixing screw
(maximal 50 cm - Collision-danger).
Normal adjustment is a gap of about 40cm from tines.
4. The tine height is adjusted using the crank handle
(8)
Tines should lightly touch the ground. An adjustment that is to
deep will dirty the forage or damage the turf.
up to 2003 model from 2004 model

GB
WORKING POSITION
- 13 -
0300-GB-ARBEITSSTELLUNG_243
159-02-17
44a L2
159-02-16
44a
R2
159-02-18
44a
M2
Two single swaths or one side swath
1. Setting for two single swaths
A second trap sheet can be used in this operating position (optional
extra).
• Swing the rear rotor to the correct position (R2).
2. Setting for a large side swath.
In this operating position only one large swath is formed on the left
side of the implement. The left rear rotor takes on the swath already
formed by the front rotor.
• The second trap sheet (44a) can be used or it can be removed.
• Swing the rear rotor to the left operating position (L2).
3. Setting for a small swath
In this operating position only one swath is formed on the left side of
the implement. The rear rotor therefore has no essential function.
• The second trap sheet (44a) can be used or it can be removed.
• Swing the rear rotor to the central position (M2).

OPERATION GB
0200-GB Einsatz_243 - 14 -
Important points befor starting work
1. Turn p.t.o. on.
Turn the p.t.o. on only when all safety devices (coverings,
protective aprons, casings, etc.) are in proper condition
and attached to the implement in the correct protective
positions.
2. Switch-on the machine only in working position
and do not exceed the prescribed power take-
off speed (for example max. 540 rpm).
A transfer, which is located near the gear, advises which
p.t.o. speed your machine is equipped for.
P.t.o. speed
- P.t.o. speed max. = 540 rpm
The most favourable p.t.o. rpm is about 450 rpm.
- Should the forage be pulled back from the swath into
the raked strips (untidy operation), then the p.t.o. rpm
is to be reduced.
Hydraulic control device (ST)
- Put hydraulic control device (ST) into "free gear" (floating
position or "lower").
Safety
hints!
(see
supplement-A1
points 1, 2, 3 and
4)
All work in the
immediate area
of the rotors may
only be carried
out when the
p.t.o. is switched
off.
General guidelines for working with the
machine
All work in the immediate area of the rotors
may only be carried out when the p.t.o. is
switched off.
Caution!
Do not enter rotor area while driving motor
is running.
- Choose the speed of travel so that all crops are picked
up thoroughly.
- In cases of overloading, shift down one gear.
- In order to obtain tidy raking operation, the rotor must
be as horizontal as possible. A very slight inclination
forward is allowed.
- The tine height is adjusted using the crank handle (8).
Tines should lightly touch the ground. An adjustment
that is to deep will dirty the forage or damage the turf.
Setting the feeler wheel (optional equipment)
- The tine height is set by inserting the linch pin in the
relevant position. Tines should lightly touch the ground.
An adjustment that is to deep will dirty the forage or
damage the turf.
495.173
159-02-39
V

- 15 -
0700_GB-Multitast_243
GB
THE SYSTEM "MULTITAST"
Swather with „MULTITAST“ system
General
Machines with the ”MULTITAST” system have feeler wheels installed. The rotor units are therefore not rigidly fixed, but
can be swung up and down (approx. 4°) through hinges.
Using the feeler wheel enables the tines to attain optimum ground adaption (4°) even on extremely uneven surfaces.
As the tines are located quite close to the feeler wheel they are able to follow the uneven ground optimumly. The result
is very tidy raking.
Using the machine without the feeler wheel
Particular operating conditions require that the feeler
wheel (2) be removed.
• When working without the feeler wheel (2) the turning
joint of the rotary unit must be fixed. Otherwise the
rotary unit will tip down and the tines will then dig into
the ground.
However ground adaption with a fixed turning joint is no
longer optimal. For this reason, this type of operation
should be avoided as often as possible.
Machine without feeler wheeler (2)
Machine with feeler wheel (2)
Important!
Converting to
the relative
operation is
described on
the next page.
Please follow
the directions
exactly in order
to prevent
damage to the
machine.

- 16 -
0700_GB-Multitast_243
GB
THE SYSTEM "MULTITAST"
Converting to operation
without feeler wheel
1. Remove axle (Pos. 4b)
2. Remove 6 (M14 x 35) screws
3. Swivel the axle bearer around 180° to the rear (4a) and
refit
4. Refit the axle (pos. 4)
5. Aline both rotary units as parallel as possible on even
ground
6. Remove hydraulic cylinder (Hyd) and install accompa-
nying spindle (6)
- Adjust the spindle (6) so that the rotor tines are po-
sitioned as parallel as possible to the ground (A1).
7. Correctly set the distance (X1) using threaded spindle
- see chapter ”Attaching to the Tractor” also.
8. Remove (2) feeler wheel
Converting to operation
with feeler wheel
1. Fit feeler wheel (2)
2. Lower both rotary units onto even ground
3. Remove accompanying spindle (6)
4. Install hydraulic cylinder (Hyd)
5. Correctly set the distance (X1) using threaded spindle
- see chapter ”Attaching to the Tractor” also.

- 17 -
GB
0400_GB-BA-Allg. Wartung
Parking in the ope
When parking in the open for
long periods of time, clean
piston rods and then coat
with grease.
FETT
Safety
points!
• Turn engine off
when adjustment,
service and repair
work is to be
done.
• Do not work un-
der the machine
without safe
support.
• Retighten all
screws after the
first hours of
operation..
General maintenance hints
In order to keep the implement in
good condition after long periods
of operation, please observe the
following points:
- Tighten all screws after the first
hours of operation.
In particular check:
- blade screws on the mowers
- tine screws on the swather and tedder.
Spare part
a. The original components and accessories have
been designed especially for these machines and
appliances.
b. We want to make it quite clear that components and
accesories that have not been supplied by us have
not been tested by us.
c. The installation and/or use of such products can,
therefore, negatively change or influence the
construction characteristics of the appliance. We are
not liable for damages caused by the use of components
and accessories that have not been supplied by us.
d. Alterations and the use of auxiliary parts that are
not permitted by the manufacturer render all liability
invalid.
Cleaning of machine parts
Attention! Do not use high-pressure washers for the
cleaning of bearing- and hydraulic parts.
- Danger of rust!
- After cleaning, grease the machine according to the
lubrication chart and carry out a short test run.
- Cleaning with too high pressure may do damage to
varnish.
Safety point
• Turn engine off when adjustment, service and repair
work is to be done.
Hydraulic unit
Caution! Danger of injury or infection!
Under high pressure, escaping fluids can penetrate
the skin. Therefore seek immediate medical help!
After the first 10 operating hours and then every
consecutive 50 operating hours
- Check the hydraulic unit and lines for tightness and
retighten screw connections if necessary.
Before operation
- Check hydraulic hoses for wear.
Replace worn or damaged hydraulic hoses immediately.
The replacement hoses must meet the manufacturer’s
technical requirements.
Hose lines are subject to natural ageing. The period of
use should not exceed 5 – 6 years.
Winter storage
- Thoroughly clean machine before storage.
- Put up protection against weather.
- Change or replenish gear oil.
- Protect exposed parts from rust.
- Lubricate all greasing points according to lubrication
chart.
Drive shafts
- see notes in the supplement
For maintenance please note!
The instructions in this operating manual are always
valid.
In case there are no special instructions available, then
the notes in the accompanying drive shaft manufacturer´
instructions are valid.
Repair In-
structions
Please refer to
repair instructions
in supplement (if
available)
MAINTENANCE

GB MAINTENANCE
0300-GB Wartung_243 - 18 -
Lubrication points
Symbols have been stuck on the machine at various points.
These indicate one or more lubrication points.
• Remove cover (90)
• Grease lubrication points according to lubrication chart.
Gear
- Change oil after the first 50 operating hours.
Under normal operating conditions, oil is to be changed annually.
- Change oil after 100h at the latest.
Amount of oil in upper gears: 1,2 Liter SAE 90
Amount of oil in lower gears: 1,23 Liter SAE 90
MAINTENANCE
FETT
FETT

GB
- 19 -
0600_GB-Zinkenarmwartung_2611
MAINTENANCE

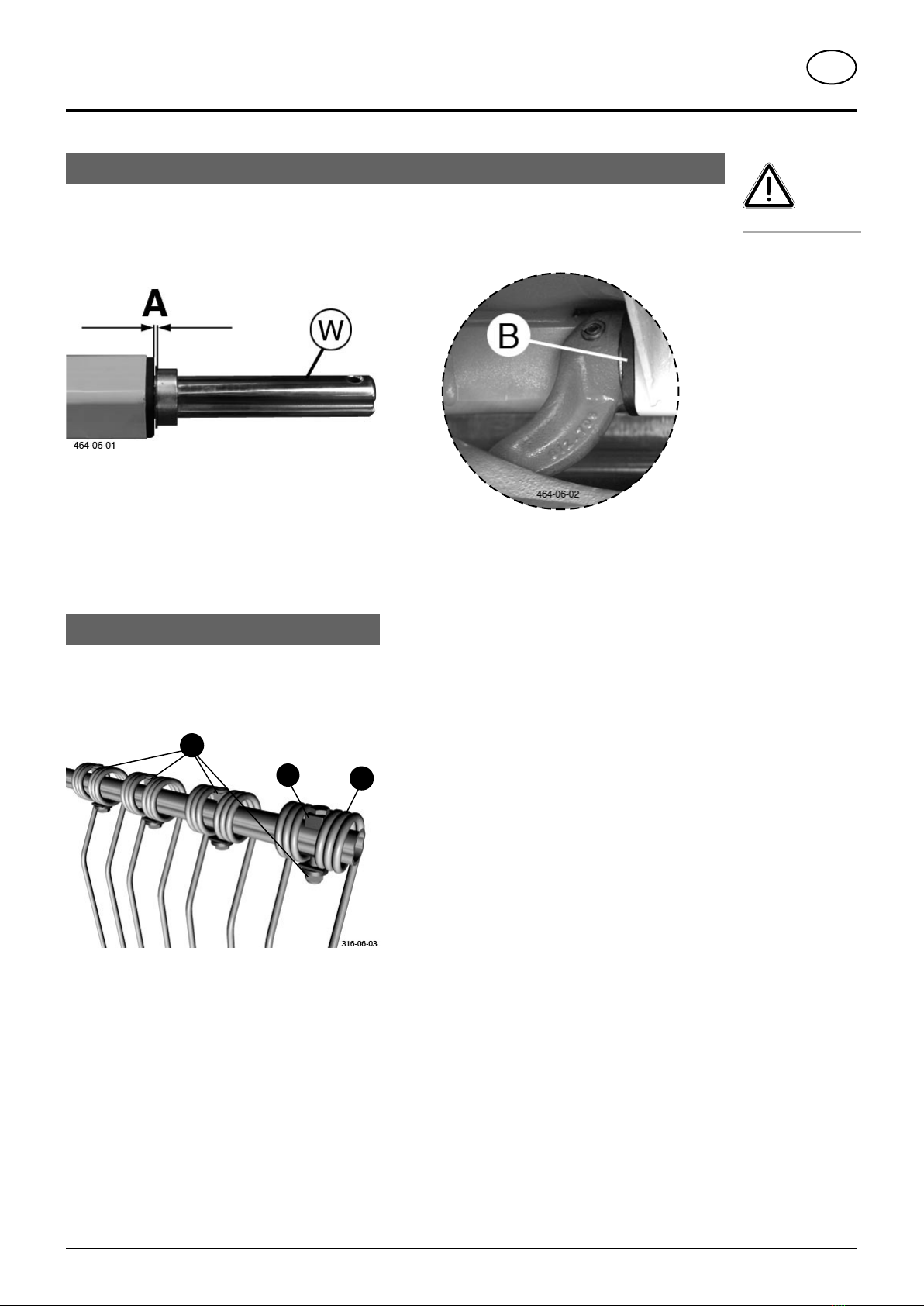

Take Note!
Check the shaft
gap at least once
per year
• In normal operation the gap (A) should be approx. 1
mm. If shaft play (W) is greater then it can be corrected
with washers
• If the gap (A) is greater than 4 mm then change the
bushings (B) on the inner side of the tine arms. Otherwise
consequent damage can occur to the machine.
Tine arms
Spring tines
• Check the spring tines fastening bolts after the first 10
operating hours and tighten if necessary
From the 2007 model *
An additional spacer (U) will be fitted on the outer tines
(ZA)
- longer bolts will be needed (80 mm)
- for this the bolts will be fitted with the head at the
top
U
ZA
S
* Applies to Eurotop 421A / 421N / 461N / 601 / 691 / 771 / 881

9900 LEGENDE-SCHMIERPL / BA/EL ALLG / BETRIEBSSTOFFVORSCHRIFT - 20 -
Schmierplan
8h alle 8 Betriebsstunden
20h alle 20 Betriebsstunden
40 F alle 40 Fuhren
80 F alle 80 Fuhren
1 J 1 x jährlich
100 ha alle 100 Hektar
FETT FETT
= Anzahl der Schmiernippel
(IV) Siehe Anhang "Betriebsstoffe"
Liter Liter
* Variante
Siehe Anleitung des Herstellers
Smeerschema
8h alle 8 bedrijfsuren
20h alle 20 bedrijfsuren
40 F alle 40 wagenladingen
80 F alle 80 wagenladingen
1 J 1 x jaarlijks
100 ha alle 100 hectaren
FETT VET
= Aantal smeernippels
(IV) Zie aanhangsel "Smeermiddelen"
Liter Liter
* Varianten
zie gebruiksaanwijzing van de fabrikant
Schema di lubrificazione
8h ogni 8 ore di esercizio
20h ogni 20 ore di esercizio
40 F ogni 40 viaggi
80 F ogni 80 viaggi
1 J volta all'anno
100 ha ogni 100 ettari
FETT GRASSO
= Numero degli ingrassatori
(IV) vedi capitolo “materiali di esercizio”
Liter litri
* variante
vedi istruzioni del fabbricante
Plan de graissage
8h Toutes les 8 heures de service
20h Toutes les 20 heures de service
40 F Tous les 40 voyages
80 F Tous les 80 voyages
1 J 1 fois par an
100 ha tous les 100 hectares
FETT GRAISSE
= Nombre de graisseurs
(IV) Voir annexe "Lubrifiants"
Liter Litre
* Variante
Voir le guide du constructeur
Lubrication chart
8h after every 8 hours operation
20h after every 20 hours operation
40 F all 40 loads
80 F all 80 loads
1 J once a year
100 ha every 100 hectares
FETT GREASE
= Number of grease nipples
(IV) see supplement "Lubrificants"
Liter Litre
* Variation
See manufacturer’s instructions
FETT
Esquema de lubricación
8h Cada 8 horas de servicio
20h Cada 20 horas de servicio
40 F Cada 40 viajes
80 F Cada 80 viajes
1 J 1 vez al año
100 ha Cada 100 hectáreas
FETT LUBRICANTE
= Número de boquillas de engrase
(IV) Véase anexo “Lubrificantes”
Liter Litros
* Variante
Véanse instrucciones del fabricante
Plano de lubrificação
8h Em cada 8 horas de serviço
20h Em cada 20 horas de serviço
40 F Em cada 40 transportes
80 F Em cada 80 transportes
1 J 1x por ano
100 ha Em cada100 hectares
FETT Lubrificante
= Número dos bocais de lubrificação
(IV) Ver anexo ”Lubrificantes"
Liter Litro
* Variante
Ver instruções do fabricante
Smörjschema
8h Varje 8:e driftstimme
20h Varje 20:e driftstimme
40 F Varje 40: e lass
80 F Varje 80: e lass
1 J 1 x årligen
100 ha Varje 100:e ha
FETT FETT
= Antal smörjnipplar
(IV) Se avsnitt ”Drivmedel”
Liter liter
* Utrustningsvariant
Se tillverkarens anvisningar
Smøreplan
8h Hver 8. arbeidstime
20h Hver 20. arbeidstime
40 F Hvert 40. lass
80 F Hvert 80. lass
1 J 1 x årlig
100 ha Totalt 100 Hektar
FETT FETT
= Antall smørenipler
(IV) Se vedlegg "Betriebsstoffe"
Liter Liter
* Unntak
Se instruksjon fra produsent
D
NL
I
F
S
EP
GB
N
Voitelukaavio
8h 8 käyttötunnin välein
20h 20 käyttötunnin välein
40 F 40 kuorman välein
80 F 80 kuorman välein
1 J kerran vuodessa
100 ha 100 ha:n välein
FETT RASVA
= Voitelunippojen lukumäärä
(IV) Katso liite ”Polttoaineet”
Liter Litraa
* Versio
Katso valmistajan ohjeet
FIN
DK
Smøreplan
8h Hver 8. driftstime
20h Hver 20. driftstime
40 F Hvert 40. læs
80 F Hvert 80. læs
1 J 1 gang årligt
100 ha For hver 100 hektar
FETT Fedt
= Antal smørenipler
(IV) Se smørediagrammet
Liter Liter
* Udstyrsvariant
Se producentens anvisninger
