Power Electronics SD300312 User manual

VARIABLE SPEED DRIVE

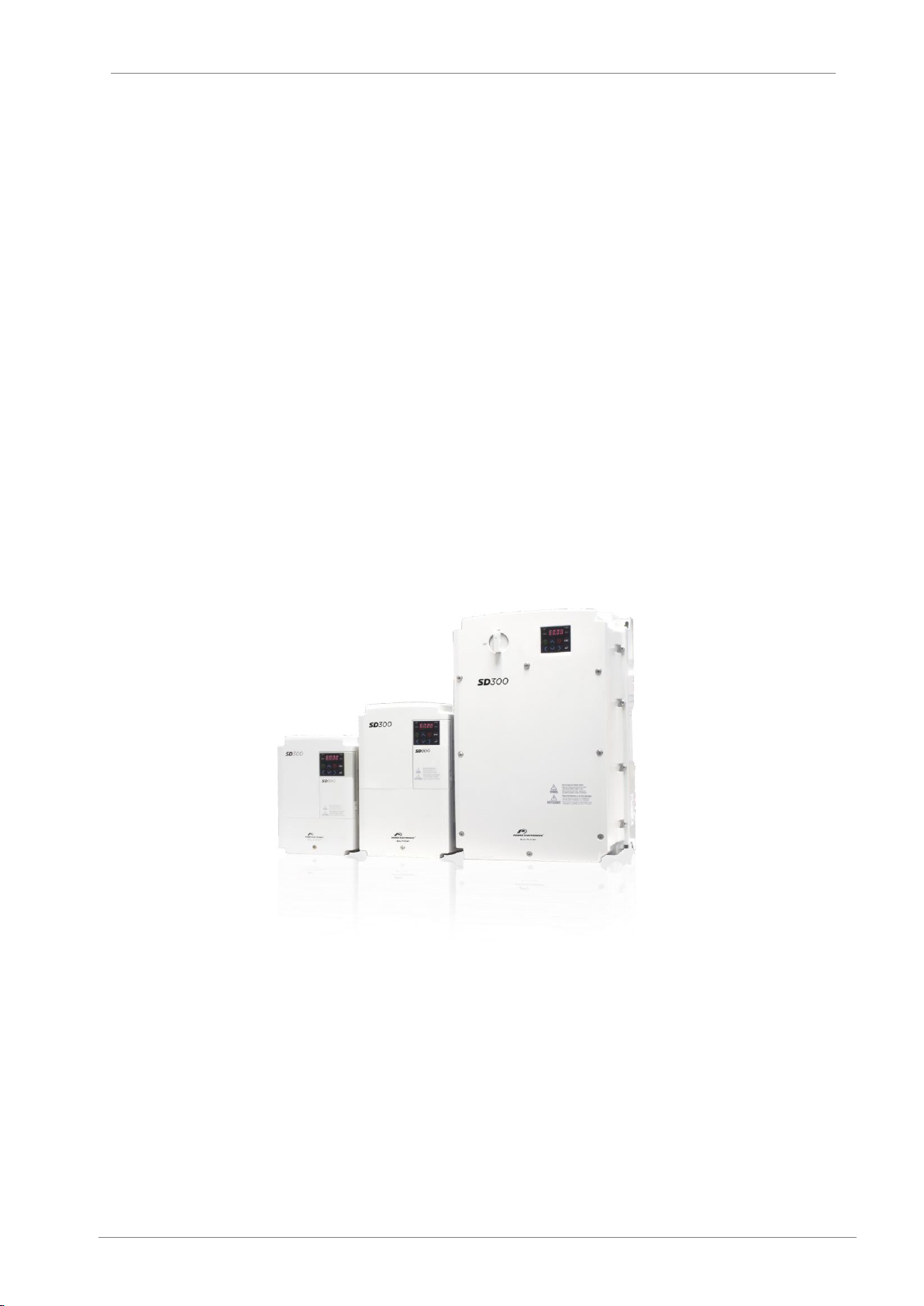

Variable Speed Drive
Hardware and Installation Manual

Variable Speed Drive
Hardware and Installation Manual
Edition: February 2017
SD30MTHW01CI Rev. C

SD300 SERIES
POWER ELECTRONICS
2
SAFETY SYMBOLS

POWER ELECTRONICS
SD300 SERIES
3
ABOUT THIS MANUAL
PURPOSE
This manual contains important instructions for the installation and maintenance of Power
Electronics SD300 variable speed drives.
INTENDED USERS
This manual is intended for qualified customers who will install, operate and maintain Power
Electronics SD300 variable speed drives.
Only trained electricians approved by the installation company may install and
commission the drives. The instructions assume that the installer is familiar with electrical
installation rules and regulations.
REFERENCE MANUALS
The following reference guides are available for the SD300 variable speed drives:
SD300 Programming and Software Manual.
SD300 Hardware and Installation Manual.
POWER ELECTRONICS CONTACT INFORMATION
Power Electronics, S.A.
C/ Leonardo da Vinci, 24 –26
46980 –PATERNA
SPAIN
Tel. [phone] (Spain) • Tel. [phone] • Fax [phone]
Email: [e-mail]
Website: www.power-electronics.com

SD300 SERIES
POWER ELECTRONICS
4
SAFETY SYMBOLS
SAFETY SYMBOLS
Always follow safety instructions to prevent accidents and potential hazards from occurring.
In this manual, safety messages are classified as follows:
The following CAUTION symbols are used in this manual and they symbolise:
WARNING
Identifies potentially hazardous situations where dangerous voltage may be
present, which if not avoided, could result in minor personal injury, serious
injury or death
Be extremely careful and follow the instructions to avoid the risk of electrical
shocks.
CAUTION
Identifies potentially hazardous situations, which if not avoided, could result
in product damage, or minor or moderate personal injury.
Read the message and follow the instructions carefully.
NOTICE
Identifies important measures to take in order to prevent damage equipment
and warranty lost, as well as encouraging good use and environmental
practices.
Hot surface. Be careful and follow the instructions to avoid burns and personal injuries.
Risk of fire. Be careful and follow the instructions to prevent causing an unintentional fire.

POWER ELECTRONICS
SD300 SERIES
5
Revisions
Date Revision Description
04 / 11 / 2016 A First Edition.
10 / 01 / 2017 B Standard ratings, Technical characteristics, Control connection.
01 / 02 / 2017 C Standard ratings, Power connection, Power terminals
The equipment and technical documentation are periodically updated. Power Electronics reserves the right to modify all or part of the
contents of this manual without previous notice. To consult the most updated information of this product, you may access through our
website www.power-electronics.us where the latest version of this manual can be downloaded.

SD300 SERIES
POWER ELECTRONICS
6
TABLE OF CONTENTS
TABLE OF CONTENTS
About this manual.......................................................................................................................................3
1. INTRODUCTION...............................................................................................................................12
2. CONFIGURATION TABLE & STANDARD RATINGS......................................................................13
3. TECHNICAL CHARACTERISTICS ..................................................................................................16
4. DIMENSIONS....................................................................................................................................18
5. RECEPTION, HANDLING AND TRANSPORTATION......................................................................26
6. MECHANICAL INSTALLATION .......................................................................................................27
7. POWER CONNECTION....................................................................................................................31

POWER ELECTRONICS
SD300 SERIES
TABLE OF CONTENTS
7
8. CONTROL CONNECTION................................................................................................................41
9. COMMUNICATION ...........................................................................................................................47
10. COMMISSIONING ............................................................................................................................50
11. USE OF THE DISPLAY ....................................................................................................................52
12. MAINTENANCE................................................................................................................................56
13. ACCESSORIES ................................................................................................................................58
DECLARATION OF CONFORMITY CE.....................................................................................................61

SD300 SERIES
POWER ELECTRONICS
8
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
IMPORTANT!
Read carefully this manual to maximize the performance of the product and to ensure its safe use.
In order to appropriately use the drive, please, follow all instructions described in the installation manual
which refer to transportation, installation, electrical connection and commissioning of the equipment.
Power Electronics accepts no responsibility or liability for partial or total damages resulting from
incorrect use of equipment.
Please, pay careful attention to the following recommendations:
WARNING
Do not run the drive with the front cover removed.
Otherwise, you may get an electric shock.
The drive does not remove the voltage from the input terminals of the drive. Before working on
the drive, isolate the whole drive from the supply.
If you do not remove the power supply, you may get an electric shock.
Do not remove the cover except for periodic inspections or wiring, even if the input power is not
applied.
Otherwise, you get an electric shock.
Before opening the covers for wiring or periodic inspections, ensure DC voltage has been fully
discharged. Check with a multimeter the following measures:
Measure between the output power busbars U, V, W and the cabinet and check that the
voltage is around 0V.
Measure that the DC link terminals +, - and chassis voltage are below 30VDC.
Otherwise, you may get an electric shock.
Operate the drive with dry hands.
Otherwise, you may get an electric shock.
Do not use cables with damaged insulation.
Otherwise, you may get an electric shock.
Do not subject the cables to abrasions, excessive stress, heavy loads or pinching.
Otherwise, you may get an electric shock.
Do not make any insulation or voltage withstand tests on the motor while the drive is connected.

POWER ELECTRONICS
SD300 SERIES
SAFETY INSTRUCTIONS
9
CAUTION
Install the drive on a non-flammable surface. Do not place flammable material
nearby. Otherwise, a fire could occur.
Disconnect the input power if the drive is damaged.
Otherwise, it could result in a secondary accident or fire.
Do not allow lint, paper, wood chips, dust, metallic chips or other foreign matter
into the drive. Otherwise, a fire or accident could occur.
The inverter becomes hot during operation. Wait until it cools down before
performing any actions.
Touching hot parts may result in skin burns.
Do not apply power to a damaged drive or to a drive with parts missing, even if
the installation is complete.
Otherwise, you may get an electric shock.
NOTICE
RECEPTION
The SD300 are carefully tested and perfectly packed before delivering.
In the event of transport damage, please ensure to notify the transport agency and POWER
ELECTRONICS: 902 40 20 70 (International [phone]), or your nearest agent, within 24hrs
from receiving the goods.
UNPACKING
Make sure model and serial number of the variable speed drive are the same on the box, delivery
note and unit.
Each variable speed drive is delivered with Hardware and Software technical manuals.
RECYCLING
Packing of the equipment should be recycled. For this, it is necessary to separate the different
included materials (plastic, paper, cardboard...) and deposit them in their relevant recycling areas.
Waste products of electric and electronic devices should be selectively collected for their correct
environmental management.
ELECTROMAGNETIC COMPATIBILITY (EMC)
The drive is intended to be used in industrial environments (Second Environment). It achieves
compliance with C3 category defined in IEC/EN 61800-3 standard when the installation
recommendation within this manual are followed.
Select communication and control system according to the drive EMC environment. Otherwise,
systems could suffer from interferences due to a low EMS level.

SD300 SERIES
POWER ELECTRONICS
10
SAFETY INSTRUCTIONS
SAFETY
Before operating the drive, read this manual thoroughly to gain an understanding of the unit. If any doubt
exists, please contact POWER ELECTRONICS, (902 40 20 70 / [phone]) or your nearest
agent.
Wear safety glasses when operating the drive with power applied or for when the front cover is
removed.
Handle and transport the drive following the recommendations within this manual.
Install the drive according to the instructions within this manual and local regulations.
Do not place heavy objects on the drive.
Ensure that the drive is mounted vertically and keeping the minimum clearance distances.
Do not drop the drive or subject it to impact.
The SD300 drives contain static sensitive printed circuits boards. Use static safety procedures when
handling these boards.
Avoid installing the drive in conditions that differ from those described in the Environmental Ratings
section.
CONNECTION PRECAUTIONS
To ensure a correct operation of the drive, it is recommended to use a SCREENED CABLE for the
control wiring.
The motor cable should comply with the requirements within this manual. Due to increased leakage
capacitance between conductors, the external ground fault protection threshold value should be
adjusted ad hoc.
Do not disconnect motor cables if the input power supply remains connected.
The internal circuits of the SD300 Series will be damaged if the incoming power is connected and
applied to the output terminals (U, V, W).
Do not use power factor correction capacitor banks, surge suppressors, or RFI filters on the output
side of the drive. Doing so may damage these components.
Before wiring the terminals, make sure that the inverter keypad display is turned off and the front
cover is off as well. The inverter may hold a high voltage electric charge long after the power supply
has been turned off.
TRIAL RUN
Verify all parameters before operating the drive. Alteration of parameters may be required depending
on application and load.
Always apply voltage and current signals to each terminal that are within the levels indicated in this
manual. Otherwise, damage to the drive may occur.
EARTH CONNECTION
Ground the drive and adjoining cabinets to ensure a safe operation and to reduce electromagnetic
emission.
Connect the input PE terminal only to the dedicated PE terminal of the drive. Do not use the case,
nor chassis screws for grounding.
Ground the drive chassis through the labelled terminals. Use appropriate conductors to comply with
local regulations. The ground conductor should be connected first and removed last.
Motor ground cable must be connected to the PE output terminal of the drive and not to the
installation’s ground. We recommend that the section of the ground conductor (PE) is equal or
greater than the active conductor (U, V, W).

POWER ELECTRONICS
SD300 SERIES
SAFETY INSTRUCTIONS
11
HOW TO USE THIS MANUAL
Quick Guide
1- Make sure model and serial number of the drive are the same on the delivery note and unit.
2- Read carefully the safety instructions before installation, commissioning, operation and
maintenance of the drive. See Safety Instructions section.
3- For reception, handling and transportation see Chapter 5.
4- Before the mechanical installation, check the environmental ratings, drive configuration, mounting
and clearances. See Chapter 5 and Chapter 6.
5- Follow the mechanical installation instructions. See Chapter 6.
6- Before the electrical installation, check basic configuration and wiring recommendations, see
Chapter 7 and Chapter 8.
7- Follow the electrical installation instructions in Chapter 7 and Chapter 8.
8- For Modbus Communication hardware, see Chapter 9.
9- Follow the commissioning instructions in Chapter 10.
10- For instruccions on how to use the display, refer to Chapter 11.
11- For preventive maintenance instructions, follow the recommendations in Chapter 12.

SD300 SERIES
POWER ELECTRONICS
12
INTRODUCTION
1. INTRODUCTION
The SD300 is a high performance general purpose AC drive suitable for demanding heavy duty applications
that require high starting torque and precise control. The dual duty rating of the SD300 (IP20) also ensures
compatibility with less demanding normal duty loads. The IP66/NEMA4X option further enhances the
flexibility of the product to meet the most severe environments.
The SD300 is entirely suitable for applications such as water treatment and irrigation, food and beverage,
ventilation systems, material handling, lifting systems, textiles, plastic, wood processing...in fact, any
application where OEMs need to control and automate apparatus and machinery.
Some of its outstanding features are:
Easy-to-use, compact and robust product, offering users savings in time and space.
Space saving design with side by side mounting.
The overall motor control features and the motor/drive protection functions limit unexpected machine
downtime.
A built-in display with keypad offers programming and operation capabilities. Remote LCD display
option.
Integrated communication port and Modbus protocol allows the SD300 to exchange data for
machine/process monitoring, control and preventive maintenance.
Safe Torque Off (STO) as standard.
Figure 1.1 SD300 Series

POWER ELECTRONICS
SD300 SERIES
CONFIGURATION TABLE & STANDARD RATINGS
13
2. CONFIGURATION TABLE & STANDARD
RATINGS
Configuration Table
EXAMPLE
CODE: SD305846F
SD3
058
4
6
F
SERIE
Drive current
(Normal Duty) [1]
Drive Voltage
Degree of
protection
EMC Filter
SD3
SD300
002
2A
1
230VAC single-phase
2
IP20
F
Extended
…
2
230VAC three-phase
6
IP66
-
Standard
069
69A
4
400VAC three-phase
[1] Heavy duty for IP66 models.
CODIFICATION EXAMPLES:
oSD305842F SD300, 58A, 400Vac three-phase, IP20 degree of protection, EMC extended.
oSD301212 SD300, 12A, 230Vac single-phase, IP20 degree of protection.
oSD303046 SD300, 30A, 400Vac three-phase, IP66 degree of protection.
The following figure shows an example of designation label:
Figure 2.1 Type designation label (located on lateral panel)

SD300 SERIES
POWER ELECTRONICS
14
CONFIGURATION TABLE & STANDARD RATINGS
Standard Ratings –230VAC single-phase
Power ND
(kW)
Power HD
(kW)
Current ND
(A)
Current HD
(A)
EMC STANDARD
EMC EXTENDED
Model
Frame
Model
Frame
0.75
0.4
3.1
2.5
SD300312
2N
SD300312F [1]
1F
1.5
0.75
6.0
5.0
SD300612
3N
SD300612F [1]
2F
2.2
1.5
9.6
8.0
SD300912
4N
SD300912F [1]
3.7
2.2
12.0
11.0
SD301212
5N
SD301212F [1]
3F
[1] EMC class 2.
Standard Ratings –230VAC 3-phase
IP20
Power ND (kW)
Power HD (kW)
Current ND (A)
Current HD (A)
Model
Frame
0.75
0.4
3.1
2.5
SD300322
1N
1.5
0.75
6.0
5.0
SD300622
2N
2.2
1.5
9.6
8.0
SD300922
3N
4
2.2
12
11
SD301222
4N
5.5
4
18
17
SD301822
5N
7.5
5.5
30
24
SD303022
4
11
7.5
40
32
SD304022
15
11
56
46
SD305622
5
22
15
69
60
SD306922
6
IP66 (Only HD)
Power HD (kW)
Current HD (A)
Model
Frame
0.4
2.5
SD300326
1I
0.75
5.0
SD300526
1.5
8.0
SD300826
2I
2.2
11
SD301126
4
17
SD301726
5.5
24
SD302426
3I
7.5
32
SD303226
11
46
SD304626
4I
15
60
SD306026
5I

POWER ELECTRONICS
SD300 SERIES
CONFIGURATION TABLE & STANDARD RATINGS
15
Standard ratings –400VAC
IP20
Power ND (kW)
Power HD (kW)
Current ND (A)
Current HD (A)
EMC STANDARD
EMC EXTENDED
Model
Frame
Model
Frame
0.75
0.4
2.0
1.3
SD300242
1N
SD300242F [2]
1F
1.5
0.75
3.1
2.4
SD300342
2N
SD300342F [2]
2.2
1.5
5.1
4.0
SD300542
3N
SD300542F [2]
2F
4
2.2
6.9
5.5
SD300742
4N
SD300742F [2]
5.5
4
10
9.0
SD301042
5N
SD301042F [2]
3F
7.5
5.5
16
12
-
SD301642F [2]
4
11
7.5
23
16
SD302342F [2]
15
11
30
24
SD303042F [2]
5
18.5
15
38
30
SD303842F [2]
22
18.5
44
39
SD304442F [2]
6
30
22
58
45
SD305842F [2]
[2] EMC class 3.
IP66
Power HD (kW)
Current HD (A)
EMC STANDARD
EMC EXTENDED
Frame
Model
Model
0.4
1.3
SD300146
SD300146F [2]
1I
0.75
2.4
SD300246
SD300246F [2]
1.5
4.0
SD300446
SD300446F [2]
2I
2.2
5.5
SD300646
SD300646F [2]
4
9.0
SD300946
SD300946F [2]
5.5
12
SD301246
SD301246F [2]
3I
7.5
16
SD301646
SD301646F [2]
11
24
SD302446
SD302446F [2]
4I
15
30
SD303046
SD303046F [2]
18.5
39
SD303946
SD303946F [2]
5I
22
45
SD304546
SD304546F [2]
[2] EMC class 3.
Maximum applicable capacity is indicated in the case of using a 4-pole standard motor (200 and 400V
classes are based on 220 and 440V, respectively).
For the rated capacity, 200 and 400V class input capacities are based on 220 and 440V, respectively.
The rated output current is limited depending on the setup of carrier frequency [G4.4].
The output voltage becomes 20~40% lower during no-load operations to protect the drive from the
impact of the motor closing and opening (0.4~4.0kW models only).
Dual rating is supported except IP66/NEMA 4X.

SD300 SERIES
POWER ELECTRONICS
16
TECHNICAL CHARACTERISTICS
3. TECHNICAL CHARACTERISTICS
SD300 SERIES
INPUT
Power ranges
0.4kW –2.2kW 230V –Single Phase
0.4kW –22kW 230V –3-Phase
0.4kW –30kW 400V –3-Phase
Voltage range
230V: 200-240V Single Phase / 3-Phase (-15%/+10%)
400V: 380V-480V 3-Phase (-15%/+10%)
EMC Filter
C2 (First environment)
C3 (Second environment)
OUTPUT
Overload capacity
150% for 60sec. (Heavy duty)
120% for 60sec. (Normal duty) [2]
200% for 3sec. (Heavy Duty)
Control Method
V/f, Slip compensation, Sensorless vector, PMSM VC [1]
Frequency Setting Resolution
Digital command: 0.01Hz / Analog command: 0.06Hz (maximum frequency: 60Hz)
Frequency Accuracy
1% of the maximum output frequency
V/F Pattern
Linear, Quadratic, User V/F
Output frequency
0-400Hz (Sensorless: 0-120Hz)
Torque Boost
Manual/Automatic torque boost
OPERATION
Operation Mode
Keypad / Terminal / Communication option selectable
Frequency Setting
Analog: -10~10[V], 0~10[V], 4~20[mA] / Digital: Keypad, Pulse train input
Operation Function
PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse
direction rotation, Speed search, Power braking, Leakage reduction, Up-down operation,
DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning,
Energy buffering, Flux braking, Fire Mode
Input
Multi-function Terminal
IP66 degree: 5 DIs
IP20 degree: 7 DIs
NPN (Sink) / PNP (Source) Selectable
Function: Forward run, Reverse run, Reset, External trip, Emergency stop, Jog operation,
Multi-step frequency-high, middle, low, Multi-step acceleration/ deceleration-high, middle,
low, DC braking at stop, 2nd motor select, Frequency up/down, 3-wire operation, Change
into normal operation during PID operation, Change into main body operation during
option operation, Analog command frequency fixing, Acceleration/deceleration stop etc.
Selectable
Analog Input
V1: -10~10V, selectable V2: 0~10V/I2 4~20mA
Pulse Train
0~32kHz, Low level: 0~2.5V, High level: 3.5~12V
Output
Open Collector Terminal
Fault output and drive
operation status output
Less than DC 24V 50mA
Multi-function Relay
(N.O., N.C.) less than AC 250V 1A, less than DC 30V 1A
Analog Output
Selectable 0~12Vdc/0~24mA Frequency, Output current, Output voltage, DC stage
voltage etc. selectable
Pulse Train
Maximum 32kHz, 10~12 [V]
PROTECTIVE
FUNCTION
Trip
Over current trip, External signal trip, ARM short circuit current trip, Over heat trip,Input
imaging trip, Ground trip, Motor over heat trip, I/O board link trip, No motor trip, Parameter
writing trip, Emergency stop trip, Command loss trip, External memory error, CPU
watchdog trip, Motor normal load trip, Over voltage trip, Temperature sensor trip, Drive
over heat, Option trip, Output imaging trip, Drive overload trip, Fan trip, Pre-PID operation
failure, External break trip, Low voltage trip during operation, Low voltage trip, Safety A(B)
trip, Analog input error, Motor overload trip.
Alarm
Command loss trip alarm, overload alarm, normal load alarm, drive overload alarm, fan
operation alarm, resistance braking rate alarm, number of corrections on rotor tuning error
Momentary Power Loss
HD below 15ms (ND below 8ms): Continuous operation (To be within rated input voltage,
rated output) HD above 15ms (ND above 8ms): Automatic restart operation enable
ENVIRONMENT
Cooling Type
Forced fan cooling structure
Protection Degree
IP20/UL Open (Default), UL Enclosed Type 1 (Option), IP66/NEMA 4X (Option)
Ambient Temperature
IP20:
HD: -10~50˚C (14~122˚F) / ND: -10~40˚C (14~104˚F) [However, it is recommended to
use load below 80% when using at 50°C under light load]
IP66:
HD: -10~40˚C (14~104˚F)
Storage Temperature
-20~65˚C (-4~149˚F)
Humidity
Relative humidity below 90% RH (no dew formation)
Altitude, Vibration
Below 1,000m, below 9.8m/sec2(1G)
Location
No corrosive gas, flammable gas, oil mist and dust etc. indoors (Pollution Degree 3 Env.)
Pressure
70~106 kPa
REGULATIONS
Global certification
CE, UL, cUL, RoHS
PCB
3C2 Conformal coating
[1] Please consult Power Electronics before the installation with this kind of motors. [2] Only available with IP20 protection degree.

POWER ELECTRONICS
SD300 SERIES
TECHNICAL CHARACTERISTICS
17
Enhanced Sensorless Control
Sensorless Control
Starting torque of 200% / 0.5Hz is produced and provides robust power in the low speed region.
The motor auto-tuning function is optimized to maximize motor performance.
Figure 3.1 Sensorless control
Flying Start Function
The SD300 is capable of performing quick and reliable smooth restarts. It is equipped with
standstill/rotary auto-tuning.
Figure 3.2 Flying start function

SD300 SERIES
POWER ELECTRONICS
18
DIMENSIONS
4. DIMENSIONS
IP20 Drives Dimensions
Frame 1N Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
3
SD300322
380~480[V]
3
SD300242
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
68 (2.7”)
61.1 (2.4”)
128 (5”)
119 (4.7”)
5 (0.2”)
123 (4.8”)
3.5 (1.4”)
4 (0.2”)
4.2 (1.65’’)
0.86 (1.9lb)
Figure 4.1 Frame 1N dimensions
Frame 2N Dimensions
INPUT VOLTAGE
PHASES
EQUIPMENT
200~240[V]
1
SD300312
200~240[V]
3
SD300622
380~480[V]
3
SD300342
DIMENSIONS [mm/inch]
WEIGHT
(kg/lb)
W1
W2
H1
H2
H3
D1
A
B
Ø
68 (2.7”)
61.1 (2.4”)
128 (5”)
119 (4.7”)
5 (0.2”)
128 (5”)
3.5 (1.4”)
4 (0.2”)
4.2 (1.65’’)
0.86 (1.9lb)
Figure 4.2 Frame 2N dimensions
