Power Electronics SD 500 Series User manual

DeviceNet Communication
Communication Network

Communication Network
DeviceNet Communication
Edition: March 2011
SD50BC02AI Rev. A

SD500 - DEVICENET
POWER ELECTRONICS
2

POWER ELECTRONICS
SD500 - DEVICENET
SAFETY SYMBOLS
3
SAFETY SYMBOLS
Always follow safety instructions to prevent accidents and potential hazards
from occurring.
Edition March 2011
This publication could present technical imprecision or misprints. The
information here included will be periodically modified and updated, and all
those modifications will be incorporated in later editions.
To consult the most updated information of this product you might access
through our website www.power-electronics.com where the latest version of
this manual can be downloaded.
Revisions
Date Revision Description
28 / 03 / 2011 A First edition
This symbol means improper operation may results in
serious personal injury or death.
Identifies shock hazards under certain conditions.
Particular attention should be given because dangerous
voltage may be present. Maintenance operation should be
done by qualified personnel.
Identifies potential hazards under certain conditions. Read
the message and follow the instructions carefully.

SD500 - DEVICENET
POWER ELECTRONICS
4
The equipment and technical documentation are periodically updated. Power Electronics se reserves the
right to modify all or part of the contents of this manual without previous notice.

POWER ELECTRONICS
SD500 - DEVICENET
TABLA DE CONTENIDOS
5
INDEX
SAFETY INSTRUCTIONS ................................................................................7
1. INTRODUCTION.......................................................................................12
1.1. Description of DeviceNet Optional board.....................................12
2. TECHNICAL CHARACTERISTICS..........................................................13
2.1. General Information .....................................................................13
3. INSTALLATION AND CONNECTION......................................................15
3.1. Installation of DeviceNet Optional Board .....................................15
3.2. Connections of DeviceNet Optional Board ..................................16
4. CONFIGURATION OF DEVICENET OPTIONAL BOARD ......................19
4.1. EDS File .......................................................................................19
4.2. Parameter Setting of DeviceNet ..................................................20
4.3. Setting of Other Parameters ........................................................22
4.4. Poll I/O Connection ......................................................................23
5. OPERATION MODES...............................................................................24
5.1. Initialization or Reset of DeviceNet Board ...................................24
5.2. Explicit Message Connection (EMC) established by Scanner ....25
6. FAULT DIAGNOSIS .................................................................................26
6.1. NS led (Network Status) ..............................................................26
6.2. MS led (Module Status) ...............................................................27
7. DEVICENET DATA TABLES ...................................................................28
7.1. DeviceNet Object Classes ...........................................................28
8. GROUP G20.4 DEVICENET. PARAMETER LIST...................................40
9. ADDRESS LIST ........................................................................................44
9.1. Common Area ..............................................................................44
9.2. Programming Parameters............................................................48
9.3. Visualization Parameters .............................................................66

SD500 - DEVICENET
POWER ELECTRONICS
6
SAFETY INSTRUCTIONS

POWER ELECTRONICS
SD500 - DEVICENET
SAFETY INSTRUCTION
7
SAFETY INSTRUCTIONS
IMPORTANT!
Safety instructions showed in this manual are useful to teach user
how to use the product in a correct and safety way with the purpose
of preventing possible personal injuries or property damages.
Safety messages included here are classified as it follows:
WARNING
Be sure to take ESD (Electrostatic Discharge) protection measures
when you touch the board.
Otherwise, the optional board may get damaged due to static charges.
Implement wiring change on the optional board after checking that
the power supply is off.
Otherwise, there is a danger of connecting error and damage to the
board.
Be sure to connect correctly the optional board to the inverter.
Otherwise, there is a danger of connecting error and damage to the
board.
Be sure to install a termination resistor (120Ω, 1/4W) at the end of the
network.
Do not remove the cover while the power is applied or the unit is in
operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to the high voltage
terminals or exposure of charged capacitors.

SD500 - DEVICENET
POWER ELECTRONICS
8
SAFETY INSTRUCTIONS
Do not remove the cover except for periodic inspections or wiring,
even if the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.
Wiring and periodic inspections should be performed at least 10
minutes after disconnecting the input power and after checking the
DC Link voltage is discharged with a meter (below 30VDC).
Otherwise, you may get an electric shock.
Operate the switches with dry hands.
Otherwise, you may get an electric shock.
Do not use cables with damaged insulation.
Otherwise, you may get an electric shock.
Do not subject the cables to the abrasions, excessive stress, heavy
loads or pinching.
Otherwise, you may get an electric shock.
CAUTION
Install the inverter on a non-flammable surface. Do not place
flammable material nearby.
Otherwise, fire could occur.
Disconnect the input power if the inverter gets damaged.
Otherwise, it could result in a secondary accident or fire.
After the input power is applied or removed, the inverter will remain
hot for a couple of minutes.
Touching hot parts may result in skin burns.
Do not apply power to a damaged inverter or to an inverter with parts
missing even if the installation is complete.
Otherwise, fire or accident could occur.
Do not allow lint, paper, wood chips, dust, metallic chips or other
foreign matter into the drive.
Otherwise, fire or accident could occur.

POWER ELECTRONICS
SD500 - DEVICENET
SAFETY INSTRUCTION
9
WARNINGS
RECEPTION
Material of Power Electronics is carefully tested and perfectly
packed before leaving the factory.
In the even of transport damage, please ensure that you notify
the transport agency and POWER ELECTRONICS: 902 40 20 70
(International [phone]) or your nearest agent, within
24hrs from receipt of the goods.
UNPACKING
Make sure received merchandise corresponds with delivery note,
models and serial numbers.
Each optional board is supplied with a technical manual.
SAFETY
Before operating the inverter, read this manual thoroughly to gain
and understanding of the unit. If any doubt exists then please
contact POWER ELECTRONICS, (902 40 20 70 / [phone]
57) or your nearest agent.
Wear safety glasses when operating the inverter with power
applied and the front cover is removed.
Handle the inverter with care according to its weight.
Install the inverter according to the instructions within this
manual.
Do not place heavy objects on the inverter.
Ensure that the mounting orientation is correct.
Do not drop the inverter or subject it to impact.
The SD500 inverters contain static sensitive printed circuits
boards. Use static safety procedures when handling these
boards.

SD500 - DEVICENET
POWER ELECTRONICS
10
SAFETY INSTRUCTIONS
CONNECTION PRECAUTIONS
To ensure correct operation of the inverter it is recommended to
use a SCREENED CABLE for the control wiring.
For EMERGENCY STOP, make sure supply circuitry is open.
Do not disconnect motor cables if input power supply remains
connected. The internal circuits of the SD450 Series will be
damaged if the incoming power is connected and applied to
output terminals (U, V, W).
It is not recommended to use a 3-wire cable for long distances.
Due to increased leakage capacitance between conductors, over-
current protective feature may operate malfunction.
Do not use power factor correction capacitors, surge
suppressors, or RFI filters on the output side of the inverter.
Doing so may damage these components.
Always check whether the DC Link LED is OFF before wiring
terminals. The charge capacitors may hold high-voltage even
after the input power is disconnected. Use caution to prevent the
possibility of personal injury.
TRIAL RUN
Verify all parameters before operating the inverter. Alteration of
parameters may be required depending on application and load.
Always apply voltage and current signals to each terminal that
are within levels indicated within this manual. Otherwise, damage
to the optional board may result.

POWER ELECTRONICS
SD500 - DEVICENET
SAFETY INSTRUCTION
11
EARTH CONNECTION
The inverter is a high frequency switching device, and leakage
current may flow. Ground the inverter to avoid electrical shock.
Use caution to prevent the possibility of personal injury.
Connect only to the dedicated ground terminal of the inverter. Do
not use the case or the chassis screw for grounding.
When installing, grounding wire should be connected first and
removed last.
The earth cable must have a minimal cross sectional area that
meets local country electrical regulations.
Motor ground must be connected to the drive ground terminal
and not to the installation’s ground. We recommend that the
section of the ground connection cable should be equal or higher
than the active conductor.
Installation ground must be connected to the inverter ground
terminal.

SD500 - DEVICENET
POWER ELECTRONICS
12
INTRODUCTION
1. INTRODUCTION
1.1. Description of the DeviceNet Optional Board
The optional board for DeviceNet communication allows SD500 drive
to connect it to a DeviceNet network. Thanks to this optional board:
Inverter can be controlled and monitored by PLC sequence
program or any master module.
Multiple inverters can be connected to one communication cable
with simple and easy installation, saving wiring, maintenance cost
and time.
Compatible with PC System, PLC and any controllers is available,
making Factory Automation more easily.

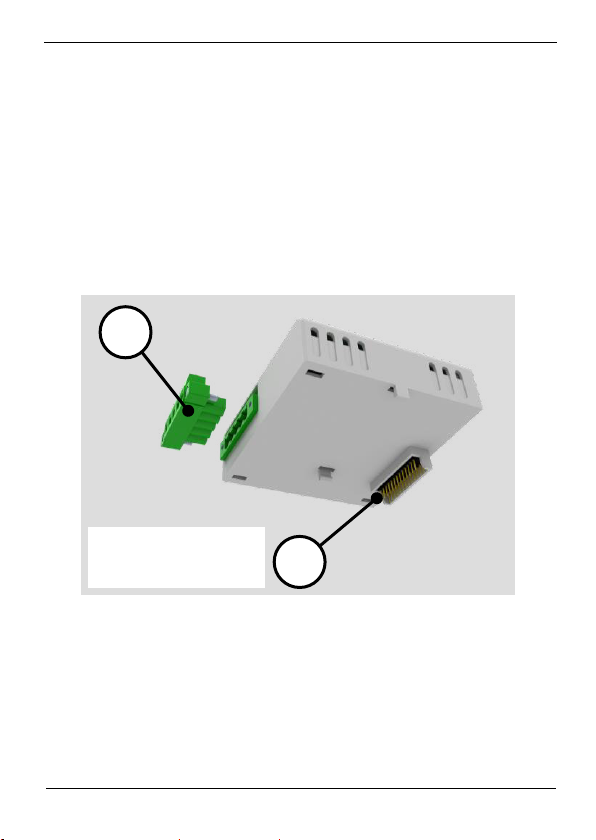

1. DeviceNet board
2. Status leds
3. DeviceNet connector
3
2
1

POWER ELECTRONICS
SD500 - DEVICENET
TECHNICALCHARACTERISTICS
13
2. TECHNICAL CHARACTERISTICS
2.1. General Information
2.1.1. Contents of DeviceNet Optional Board Kit
The DeviceNet optional board kit consists of:
o1 DeviceNet optional board.
o1 Connector of 5 pins.
o1 Fixation screw.
o1 120(1/4W) termination resistor.
o1 Technical Manual.
o1 EDS file (see section ‘4.1. EDS File’).
2.1.2. Specifications of DeviceNet Optional Board
oDevice Type: AC Drives.
oExplicit Peer to Peer Messaging: Support
oI/O Peer to Peer Messaging: Not available.
oConfiguration Consistence Value: Not available.
oFaulted Node Recovery: Support.
oBaud Rate Support: 125, 250, 500 (kbps).
oMaster/Scanner (predefined connection): Support.
oI/O Slave Messaging:
Polling Support.
Bit Strobe (bits activation), Cyclic, Change of State (COS) No
available.
oRange of Input Voltages: 11 –25Vdc.

SD500 - DEVICENET
POWER ELECTRONICS
14
TECHNICAL CHARACTERISTICS
2.1.3. Local Indications
LED
Description
Function
MS
Module Status
It supplies information about the status of
incoming power to optional board, CPU function
and communication to the inverter.
NS
Network Status
It supplies information about the connection of
optional board on the network and DeviceNet
power status.
Note: See section ‘6. FAULT DIAGNOSIS’ to obtain more detailed
information of Status Leds.

POWER ELECTRONICS
SD500 - DEVICENET
INSTALLATION AND CONNECTION
15
3. INSTALLATION AND CONNECTION
3.1. Installation of DeviceNet Optional Board
The DeviceNet optional board is connected to the SD500 Series
inverters of Power Electronics directly (through a connector) to
integrate the equipment into a DeviceNet communications network.
Therefore, it is necessary to use one DeviceNet optional board for any
equipment to connect it to the network.
CAUTION
Motor controllers of Power Electronics operate with a high electric
energy.
Make sure the power supply has been disconnected and wait for at least
10 minutes to guarantee that DC Link voltage is discharged, before
installing the DeviceNet optional board. Otherwise, you may get personal
injuries or an accident could occur.

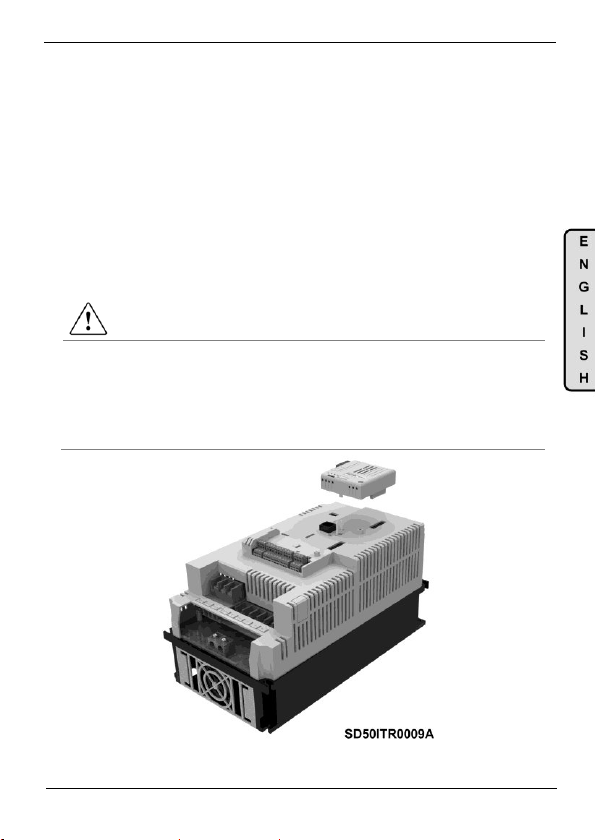

Figure 3.1 Installation of DeviceNet optional board to the inverter

SD500 - DEVICENET
POWER ELECTRONICS
16
INSTALLATION AND CONNECTION
3.2. Connections of DeviceNet Optional Board
3.2.1. Description of Terminals and Leds
In the DeviceNet optional board there are two connectors and two
leds. One connector is used to connect the board to the SD500
inverter; in the other connector, DeviceNet specific signals are
connected. On the other hand, leds provide with information about
the status of the device and the communications.
Figure 3.2 Location of connectors on the DeviceNet board
1. Connector with the
drive
2. DeviceNet connector
1
2

POWER ELECTRONICS
SD500 - DEVICENET
INSTALLATION AND CONNECTION
17
Figure 3.3 Description of the DeviceNet optional board LEDs

SD500 - DEVICENET
POWER ELECTRONICS
18
INSTALLATION AND CONNECTION
CONNECTOR
/ LED
DESCRIPTION
DeviceNet
connector
Connector for the connections of the specific signals of
DeviceNet network.
Terminal
Signal
Function
Cable Colour
V-
Common
Common
Black
CAN_L
CAN Low
Low Signal (-)
Blue
S
Shield
Shield
-
CAN_H
CAN High
High Signal (+)
White
V+
Power
Supply
Power Supply
(11 –24Vdc)
Red
Figure 3.4Detail of DeviceNet connector
Inverter
Connector
By using it, DeviceNet board is connected to the
inverter.
MS Led
Depending on its status (solid / flashing) and its colour
(green / red) supplies information about the connection
of the board to the inverter and the incoming power to
the board. See section ‘6.2. MS Led (Module Status)’ to
obtain more detailed information.
NS Led
Depending on its status (solid / flashing) and its colour
(green / red) supplies information about the connection
of the board to the network and the communications
status. See section ‘6.1. NS Led (Network Status)’ to
obtain more detailed information.
