ABOUT THIS MANUAL
2
ABOUT THIS MANUAL
PURPOSE
This manual contains important instructions for the installation, configuration and use of the Profinet
optional board for Power Electronics’SD750 variable speed drives.
TARGET AUDIENCE
This manual is intended for qualified customers who will install, operate and maintain Power Electronics
SD750 variable speed drives.
Only trained electricians may install and commission the drives.
REFERENCE MANUALS
The following reference documents are available for SD750 variable speed drives:
•Hardware and Installation Manual.
•Programming and Software Manual.
•Maintenance Manual.
•Pumps Application Manual.
POWER ELECTRONICS CONTACT INFORMATION
Power Electronics USA Inc.
4777 N 44th Ave
Phoenix
AZ 85031
UNITED STATES OF AMERICA
US Sales: 602-354-4890 / [phone]
Fax: [phone]
Power Electronics España, S.L.
Polígono Industrial Carrases
Ronda del Camp d’Aviació nº 4
46160, Llíria (Valencia)
SPAIN
Fax: [phone]
Website: www.power-electronics.com

POWER ELECTRONICS
SD750
REVISIONS
3
EN
REVISIONS CONTROL
DATE
REVISION
DESCRIPTION
02 / 10 / 2019
A
First Edition.
The equipment and technical documentation are periodically updated. Power Electronics reserves the right to modify all or part of the
contents of this manual without previous notice. To consult the most updated information of this product, you may access our website
www.power-electronics.com, where the latest version of this manual can be downloaded. The reproduction or distribution of the present
manual is strictly forbidden, unless express authorization from Power Electronics.

SD750
POWER ELECTRONICS
4
TABLE OF CONTENTS
TABLE OF CONTENTS
ABOUT THIS MANUAL ...............................................................................................................................2
SAFETY SYMBOLS.....................................................................................................................................5
SAFETY INSTRUCTIONS............................................................................................................................6
INTRODUCTION.....................................................................................................................................7
TECHNICAL FEATURES .......................................................................................................................8
Profinet Board Specifications ...............................................................................................................8
LED Indicators......................................................................................................................................8
GSDML File..........................................................................................................................................8
CONNECTION TO THE DRIVE..............................................................................................................9
Connectors description and LED indicators........................................................................................10
COMMISSIONING ................................................................................................................................12
Parameters setting .............................................................................................................................13
FAULTS AND WARNINGS LIST..........................................................................................................15

POWER ELECTRONICS
SD750
SAFETY SYMBOLS
5
EN
SAFETY SYMBOLS
Always follow safety instructions to prevent accidents and potential hazards from occurring.
In this manual, safety messages are classified as follows:
Other symbols used in this manual for safety messages are the following:
WARNING
Identifies potentially hazardous situations where dangerous voltage may be
present, which if not avoided, could result in minor personal injury, serious
injury or death.
Be extremely careful and follow the instructions to avoid the risk of electrical
shocks.
CAUTION
Identifies potentially hazardous situations, which if not avoided, could result
in product damage, or minor or moderate personal injury.
Read the message and follow the instructions carefully.
NOTICE
Identifies important measures to take in order to prevent damage equipment
and warranty lost, as well as encouraging good use and environmental
practices.
Hot surface. Be careful and follow the instructions to avoid burns and personal injuries.
Risk of fire. Be careful and follow the instructions to prevent causing an unintentional fire.
Caution, risk of electric shock. Energy storage timed discharge. Wait for the indicated
time to avoid electrical hazards.
Caution, risk of hearing damage. Wear hearing protection.

SD750
POWER ELECTRONICS
6
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
IMPORTANT!
Read carefully this manual to maximize the performance of the product and to ensure its safe installation
and use.
In order to appropriately use the drive, please, follow all instructions described in the Hardware and
Installation Manual which refer to transportation, installation, electrical connection and commissioning of
the equipment.
For maintenance operations, follow the instructions from the Maintenance Manual.
Power Electronics accepts no responsibility for any damages resulting from incorrect use of equipment.
CAUTION
Read carefully the Hardware and Installation Manual, the Maintenance Manual and all documentation
related to the drive to guarantee its safe use and avoid the risk of personal injuries and damages to the
equipment.
Ensure compliance with local and national regulations of the installation site.
NOTICE
CAUTION IN CONNECTIONS
Use conductive paste between plates in every electrical connection. Otherwise, resistance will
increase and an overheat in the contact zone of the conductors may occur.

POWER ELECTRONICS
SD750
INTRODUCTION
7
EN
INTRODUCTION
SD750 drives are compatible with several optional boards:
•Communication boards (Ethernet/IP, Profinet, CANopen…).
•Encoder board.
•Digital and analog I/O expansion boards.
•Optical fiber board
…among others. Up to three optional boards can be connected, maximum two of the same type.
This manual focuses on the optional communication board Profinet. The Profinet board allows the
SD750 to be configured as a slave of a PLC master using the Profinet industrial communication protocol.
This communication allows information to be exchanged between both devices through the configuration
of reading and writing variables.
Thanks to this board, the SD750 drive can be controlled and monitored through the network, either by the
user or through a PLC sequence program or any master device. Also, Profinet is easy to connect, allowing
a faster installation and easier maintenance.
1

SD750
POWER ELECTRONICS
8
TECHNICAL FEATURES
TECHNICAL FEATURES
Profinet Board Specifications
Feature
Description
Communication protocol
Profinet IO CC-A
Communication speed
100 Mbps
Communication type
Full Duplex
Max. number of nodes
64 ea
Service
DPV0 Custom
Topology
Line, Tree, Star topology
LED Indicators
The Profinet board includes 5 leds (status, run, ready, Eth1 y Eth2) that provide information about the
power supply of the board, network detection and communication status. For further information, refer to
section “Connectors description and LED indicators”.
GSDML File
The GSDML file contains information about the Profinet communication module installed ina drive. When
you configure the Profinet network, the network configuration software requires the GSDML file.
** For downloading the file, please contact Power Electronics.
2

POWER ELECTRONICS
SD750
CONNECTION TO THE DRIVE
9
EN
CONNECTION TO THE DRIVE
The Profinet board can be connected directly, through the connector on its back side, to any of the three
expansion connectors of the SD750 drive central control board. Once connected, it allows integrating the
SD750 drive in an Profibus network.
Once connected, it allows integrating the drive in a Profinet network. One Profinet board will be necessary
for each equipment which is going to be connected to such network.
CAUTION
Power Electronics’ SD750 drives operate with a high electric energy.
Make sure the power supply has been disconnected and wait for at least 10 minutes to guarantee that
DC bus is discharged before installing the Profinet board. Otherwise, there is a risk of personal injuries
or accidents.
3

SD750 POWER ELECTRONICS
10 CONNECTION TO THE DRIVE
Connectors description and LED indicators

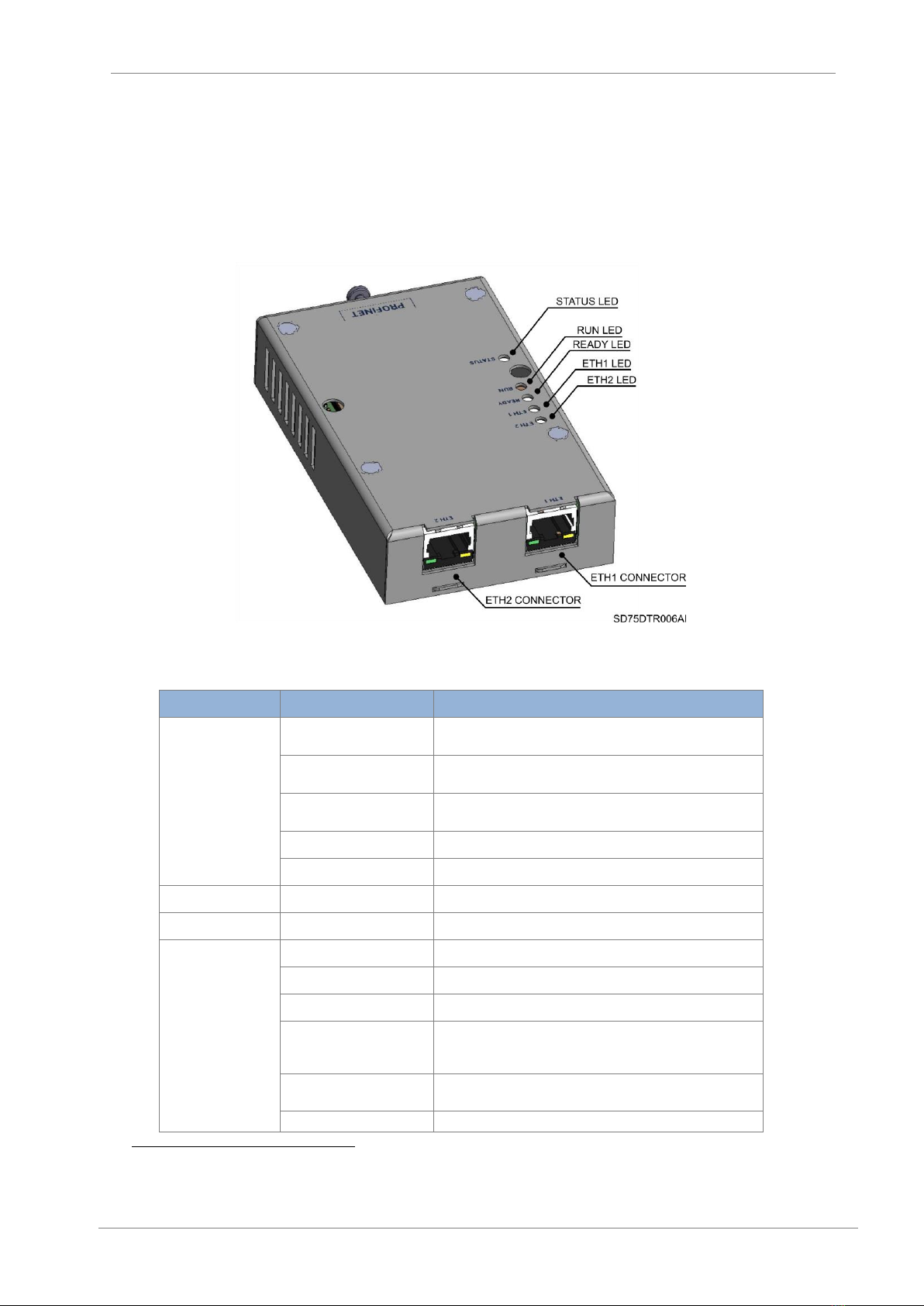

The LED indicators on the Profinet expansion board provide information about the board and
communication status. Please notice that some LEDs are bicolor and will change their color and
frequency according to the situation. Refer to the following table for the description of all posible colors
and frequency of each LED indicator, as well as what they represent.
All leds are explained in the following table:
LED COLOR / FREQUENCY DESCRIPCIÓN
STATUS
Red, steady Hardware failure or inability to install the protocol.
The board probably has to be repaired.
Red, slow blinking The board cannot stablish communication with the network
controller or initialize the protocol.
Red, fast blinking The board cannot stablish communication with the SD750
central board.
Green, slow blinking The system is operating correctly 1.
Green, fast blinking Test mode. User has set the board to test mode.
RUN Green User application is running without errors.
READY Green Board’s operating system is working correctly.
ETH1
Green, steady Device operational: The devices is operating correctly
Green, flashing Standby: The device has not been configured.
Red / green, flashing Self-test: The device is performing its power up testing.
Red, flashing
Minor fault: the device has detected a recoverable minor fault.
E.g. an incorrect or inconsisten configuration can be considered
as a minor fault.
Red, steady Major fault: The device has detected a non-recoverable major
fault.
Off No power: The power supply to the device is missing.
1When we state that the system operates correctly, it means that the communication between the expansion board, the
network controller and the central SD750 microcontroller is correct. This does not mean, however, that the communication
with the PLC is correct.

POWER ELECTRONICS
SD750
CONNECTION TO THE DRIVE
11
EN
LED
COLOR / FREQUENCY
DESCRIPCIÓN
ETH2
Green, steady
Connected: The device has at least one established connection
(even to the Message Router).
Green, flashing
No connections: The device has no established connections
but has obtained an IP address.
Red / green, flashing
Self-test: The device is performing its power up testing.
Red, flashing
Connection timeout: One or more of the connections in which
this device is the target has timed out. This status will be finished
only if all timed out connections are reestablished or if the device
is reset.
Red, steady
Duplicate IP: the device has detected that its IP address is
already in use.
Off
Not powered, no IP address: The device does not have an IP
address (or is powered off).
Note: “Device” refers to the communication slave.
Finally, the two RJ45 connectors ETH1 and ETH2 allow ring communication in the Profinet network (the
board can be connected to two different networks).

SD750
POWER ELECTRONICS
12
COMMISSIONING
COMMISSIONING
The Profinet expansion board allows configuring the SD750 drive as a Profinet industrial communication
slave. Once connected the board to the expansion connectors and loaded the GSDML in the PLC master,
the parameters of the drive related to Profinet communication must be configured.
The following steps must be followed:
1. Load GSDML file in the PLC master.
Once the GSDML file is loaded, which allows us to introduce the SD750 device into a Profinet
network, the configuration from the PLC master will indicate to the system how many variables are
going to share, both writing variables (from the PLC to the SD750) and reading variables (from the
SD750 to the PLC). In both cases, the number of variables that can be selected is in power of 2,
from 0 variables to 16. In other words, 0, 2, 4, 8, or 16 input variables can be configured and, in the
same way, 0, 2, 4, 8 or 16 output variables. These variables are called Custom Modbus (see section
“Object Custom Modbus”).
2. Configure network parameters (G21, see section “Parameters settings”) so they match with the
data expected by the master
3. Configure the Profinet slave on the PLC master (network configuration and number of shared
variables).
The Master Input variables are the first 16 Custom Modbus variables, while the Master Output
variables range from Custom Modbus 17 to 32.
4. Configure the Profinet slave on the PLC master (networkconfiguration and Custom Modbus related
to the shared variables). Network configuration is found in group G21.4.1. In case object Custom
Modbus is used, configure variables in groups G21.4.2 and G21.4.3.
5. Verify communication is stablished. Configure action in case of communication faults with the
master.
6. Connect communication wiring and ensure communication with the SD750 is correct (G23.3).
Configure action in case of communication fault.
Once the slave has been configured correctly, both in the PLC and in the SD750 itself, the connection may
be made, and the configured variables will be shared.
The rest of the commissioning depends on the PLC, the program used, etc.
4

POWER ELECTRONICS
SD750
COMMISSIONING
13
EN
Parameters setting
Up next, the relevant parameters are summarized. For details about the range of values and Modbus
addresses, refer to the Software and Programming Manual for SD750 drives.
Subgroup 21.4: Profinet
Subgroup 21.4 of the SD750 drive allows configuring Profinet.
•G21.4.1: Network parameters configuration group.
•G21.4.2: Configuration group of the master’s input variables for object Custom Modbus (PE
Status). The number of variables to configure will depend on the number of variables selected in
the master.
•G21.4.3: Configuration group of the master’s output variables for object Custom Modbus (PE
Status). The number of variables to configure will depend on the number of variables selected in
the master, up to 16.
•G21.4.4: Read-only parameter, shows whether connector 1 of the Profinet board is off or on.
•G21.4.5: Status of the connector 1 and response in case there is no communication with the
master.
o[Fault] If timeout is exceeded, the fault F110 will be triggered. F110: Lost c1 Profinet
comm.
o[Ignore]. Fault F110 will not be triggered.
•G21.4.6: Read-only parameter, shows whether connector 2 of the Profinet board is off or on.
•G21.4.7: Enables the fault associated to the Profinet connector 2 [Ignore, Fault].
o[Fault] If timeout is overcome, the fault F111 will be triggered. F111: Lost c2 Profinet
comm.
o[Ignore]. Fault F111 will not be triggered.
NOTICE
The status of connectors indicates the of communication status with the PLC master. In case the
application does not require ring connection, the SD750 will have to be configured to ignore the fault of
the unused connector.
−Fault 60: connector 1
−Fault 112: connector 2

SD750
POWER ELECTRONICS
14
COMMISSIONING
Subgroup G23.3: Communications
Subgroup G23.3 allows visualizing the status of communication between the COIN and the SD750.
•Warning 48: Communication COIN –SD750
•Fault 108: Communication COIN –SD750
Object Custom Modbus
This is a customized object, with a single instance. Each attribute represents a custom Modbus value
(1 ... 32). Attributes 1 to 16 are read-only for the master (Get) and from 17 to 32 are write-only (Set).
Note: For the correct operation of this object, user must configure the custom parameters in groups
G21.4.2 and G21.4.3 of the SD750. Attributes of the object Custom Modbus make use of these
parameters, so the user is capable of configuring them with the variables from the SD750 drive that
are most relevant to him.
Attribute ID
Name
Data type
1
Modbus Var 1
UINT
2
Modbus Var 2
UINT
3
Modbus Var 3
UINT
4
Modbus Var 4
UINT
5
Modbus Var 5
UINT
6
Modbus Var 6
UINT
7
Modbus Var 7
UINT
8
Modbus Var 8
UINT
9
Modbus Var 9
UINT
10
Modbus Var 10
UINT
11
Modbus Var 11
UINT
12
Modbus Var 12
UINT
13
Modbus Var 13
UINT
14
Modbus Var 14
UINT
15
Modbus Var 15
UINT
16
Modbus Var 16
UINT
17
Modbus Var 31
UINT
18
Modbus Var 32
UINT
19
Modbus Var 33
UINT
20
Modbus Var 34
UINT
21
Modbus Var 35
UINT
22
Modbus Var 36
UINT
23
Modbus Var 37
UINT
24
Modbus Var 38
UINT
25
Modbus Var 39
UINT
26
Modbus Var 40
UINT
27
Modbus Var 41
UINT
28
Modbus Var 42
UINT
29
Modbus Var 43
UINT
30
Modbus Var 44
UINT
31
Modbus Var 45
UINT
32
Modbus Var 46
UINT

POWER ELECTRONICS
SD750
FAULTS AND WARNINGS LIST
15
EN
FAULTS AND WARNINGS LIST
Please, consult the full list of fault and warning messages in the Software and Programming Manual for
SD750 drives.
Fault list:
Screen
Possible cause
Actions
F108: Expansion
Profinet comm
Failure in communication with the Profinet board.
Verify the board is connected correctly.
Consult with Power Electronics.
F110: Lost PNET c1
comms
Failure in communication with the connector 1 of the
Profinet board.
F111: Lost PNET c2
comms
Failure in communication with the connector 2 of the
Profinet board.
Warning:
Warning
Acronym
Name
Description
W48
PNE
Profinet expansion
There is a communications problem with the Profinet board.
5

SD750
POWER ELECTRONICS
16
FAULTS AND WARNINGS LIST

24H TECHNICAL ASSISTANCE 365 DAYS A YEAR
FIND YOUR NEAREST DELEGATION
POWER-ELECTRONICS.COM/CONTACT/
