ABOUT
ABOUT THIS MANUAL
PURPOSE
This manual contains important instructions for the installation, configuration and use of the optional
analogue input/output (I/O) expansion board for Power Electronics’SD750 variable speed drives.
TARGET AUDIENCE
This manual is intended for qualified customers who will install, operate and maintain Power Electronics
SD750 variable speed drives.
Only trained electricians may install and commission the drives.
REFERENCE MANUALS
The following reference documents are available for SD750 variable speed drives:
•Hardware and Installation Manual.
•Programming and Software Manual.
•Maintenance Manual.
•Pumps Application Manual.
POWER ELECTRONICS CONTACT INFORMATION
Power Electronics USA Inc.
4777 N 44th Ave
Phoenix
AZ 85031
UNITED STATES OF AMERICA
US Sales: 602-354-4890 / [phone]
Fax: [phone]
Power Electronics España, S.L.
Polígono Industrial Carrases
Ronda del Camp d’Aviació nº 4
46160, Llíria (Valencia)
SPAIN
Fax: [phone]
Website: www.power-electronics.com

POWER ELECTRONICS
SD750
REVISIONS
3
EN
REVISIONS CONTROL
DATE
REVISION
DESCRIPTION
18/ 02 / 2020
A
First Edition.
The equipment and technical documentation are periodically updated. Power Electronics reserves the right to modify all or part of the
contents of this manual without previous notice. To consult the most updated information of this product, you may access our website
www.power-electronics.com, where the latest version of this manual can be downloaded. The reproduction or distribution of the present
manual is strictly forbidden unless express authorization from Power Electronics.

SD750
POWER ELECTRONICS
4
TABLE OF CONTENTS
TABLE OF CONTENTS
ABOUT THIS MANUAL ...............................................................................................................................2
SAFETY SYMBOLS.....................................................................................................................................5
SAFETY INSTRUCTIONS............................................................................................................................6
INTRODUCTION.....................................................................................................................................7
Analog I/O expansion board specifications...........................................................................................8
LED indicators......................................................................................................................................8
CONNECTION TO THE DRIVE..............................................................................................................9
Connectors description.......................................................................................................................10
Connections Schema .........................................................................................................................11
COMMISSIONING ................................................................................................................................12
Parameters setting .............................................................................................................................13
Visualization parameters....................................................................................................................22
Summary of MODBUS addresses......................................................................................................24
FAULTS AND WARNINGS LIST..........................................................................................................28
Description of Fault list.......................................................................................................................28
Troubleshooting..................................................................................................................................28
List of Warning Messages..................................................................................................................28

POWER ELECTRONICS
SD750
SAFETY SYMBOLS
5
EN
SAFETY SYMBOLS
Always follow safety instructions to prevent accidents and potential hazards from occurring.
In this manual, safety messages are classified as follows:
Other symbols used in this manual for safety messages are the following:
WARNING
Identifies potentially hazardous situations where dangerous voltage may be
present, which if not avoided, could result in minor personal injury, serious
injury or death.
Be extremely careful and follow the instructions to avoid the risk of electrical
shocks.
CAUTION
Identifies potentially hazardous situations, which if not avoided, could result
in product damage, or minor or moderate personal injury.
Read the message and follow the instructions carefully.
NOTICE
Identifies important measures to take in order to prevent damage equipment
and warranty lost, as well as encouraging good use and environmental
practices.
Hot surface. Be careful and follow the instructions to avoid burns and personal injuries.
Risk of fire. Be careful and follow the instructions to prevent causing an unintentional fire.
Caution, risk of electric shock. Energy storage timed discharge. Wait for the indicated
time to avoid electrical hazards.
Caution, risk of hearing damage. Wear hearing protection.

SD750
POWER ELECTRONICS
6
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
IMPORTANT!
Read carefully this manual to maximize the performance of the product and to ensure its safe installation
and use.
In order to appropriately use the drive, please, follow all instructions described in the Hardware and
Installation Manual which refer to transportation, installation, electrical connection and commissioning of
the equipment.
For maintenance operations, follow the instructions from the Maintenance Manual.
Power Electronics accepts no responsibility for any damages resulting from incorrect use of equipment.
CAUTION
Read carefully the Hardware and Installation Manual, the Maintenance Manual and all documentation
related to the drive to guarantee its safe use and avoid the risk of personal injuries and damages to the
equipment.
Ensure compliance with local and national regulations of the installation site.
NOTICE
CAUTION IN CONNECTIONS
Use conductive paste between plates in every electrical connection. Otherwise, resistance will
increase and an overheat in the contact zone of the conductors may occur.

POWER ELECTRONICS
SD750
INTRODUCTION
7
EN
INTRODUCTION
SD750 drives are compatible with several optional boards:
•Communication boards (Ethernet/IP, Profinet, CANopen…).
•Encoder board.
•Digital and analog I/O expansion boards.
•Optical fiberboard
…among others. Up to three optional boards can be connected, maximum two of the same type.
This manual focuses on the optional analogue input/output (I/O) expansion board. This board allows
to increase the number of analog inputs and outputs compared to those of the SD750.
This board allows the drive to increase its inputs and outputs as follows:
•increases two analog inputs, configurable with the same behavior as the standard analog input.
•Increases two analog outputs, with the same behavior as the serial analog output.
The front of the analog I/O expansion board is shown below:
1

SD750
POWER ELECTRONICS
8
INTRODUCTION

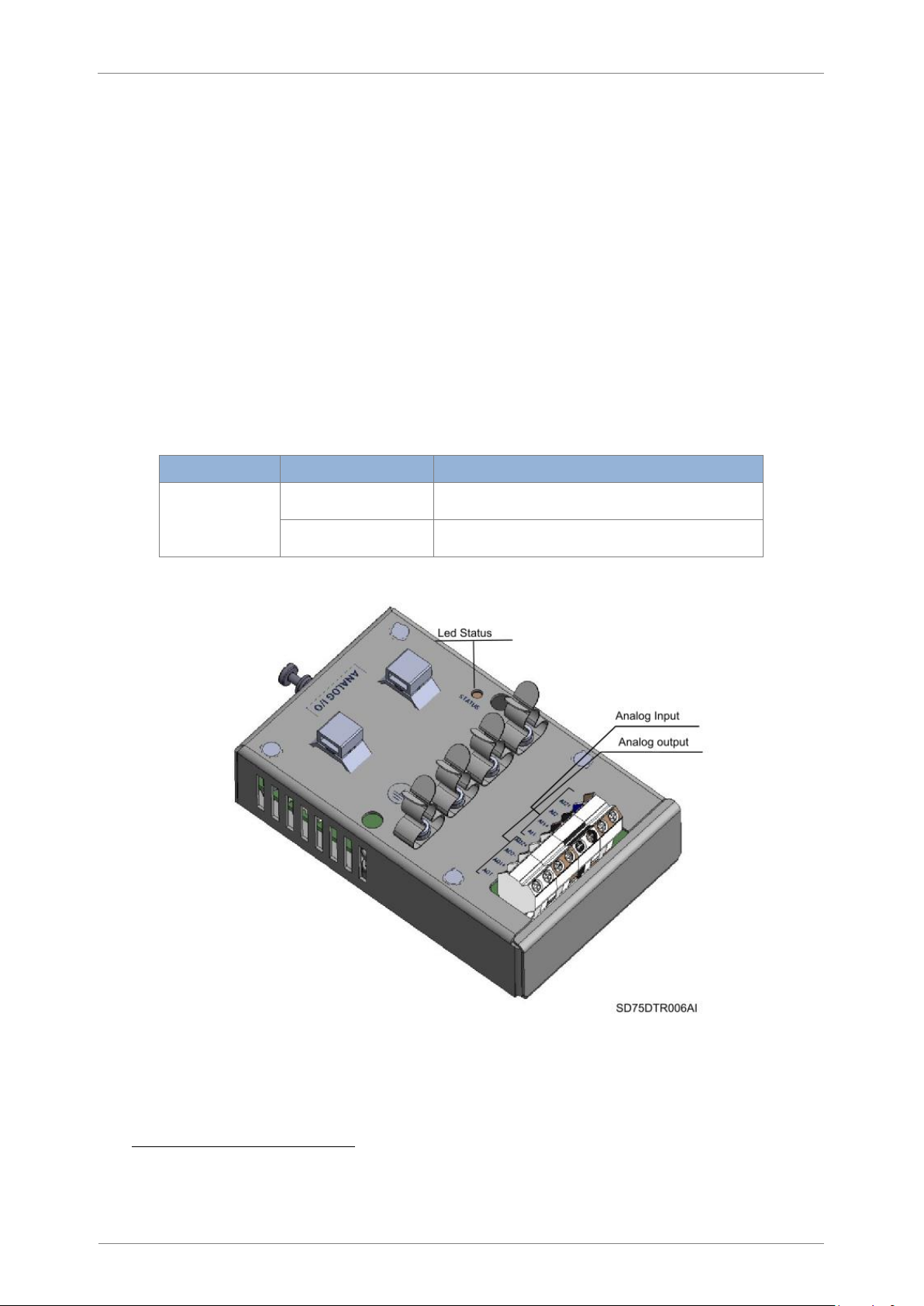

Analog I/O expansion board specifications
•Device type: I/O expansion
•Form factor: Insert card.
•Type of wiring: Preferably shielded hose
LED indicators
The analog I/O board expansion board includes 1 led indicator (status) that provides information about
the operation of the card. See section "Connectors description and led indicators" for more information.
It is green and its frequency changes according to the operating state of the system. Its operation is
explained in the following table:
LED
COLOR / FREQUENCY
DESCRIPTION
STATUS
Green / slow blinking
The system is operating correctly 1.
Green / fast blinking
Test mode. The user has put the board in test mode, it is useful
to locate the board when there are several identical boards.
1
When we state that the system operates correctly, it means that the communication between the expansion board, the
network controller and the central SD750 microcontroller is correct. This does not mean, however, that the
communication with the PLC is correct.

POWER ELECTRONICS
SD750
CONNECTION TO THE DRIVE
9
EN
CONNECTION TO THE DRIVE
The analog expansion board can be connected directly, through the connector on its back side, to any of
the three expansion connectors of the SD750 drive central control board. Once connected, it allows the
drive to be equipped with more analog input and output options and to display new parameter groups. Up
to two cards of this type can be connected to each drive.
Part Back of the board.
CAUTION
Power Electronics’ SD750 drives operate with high electric energy.
Make sure that the power has been disconnected and allow at least 10 minutes to ensure that the DC
bus has been discharged. Make sure with a multimeter that there is no voltage at the input, output or
DC bus before installing the expansion card. Otherwise, there is a risk of personal injury or accident
2

SD750
POWER ELECTRONICS
10
CONNECTION TO THE DRIVE

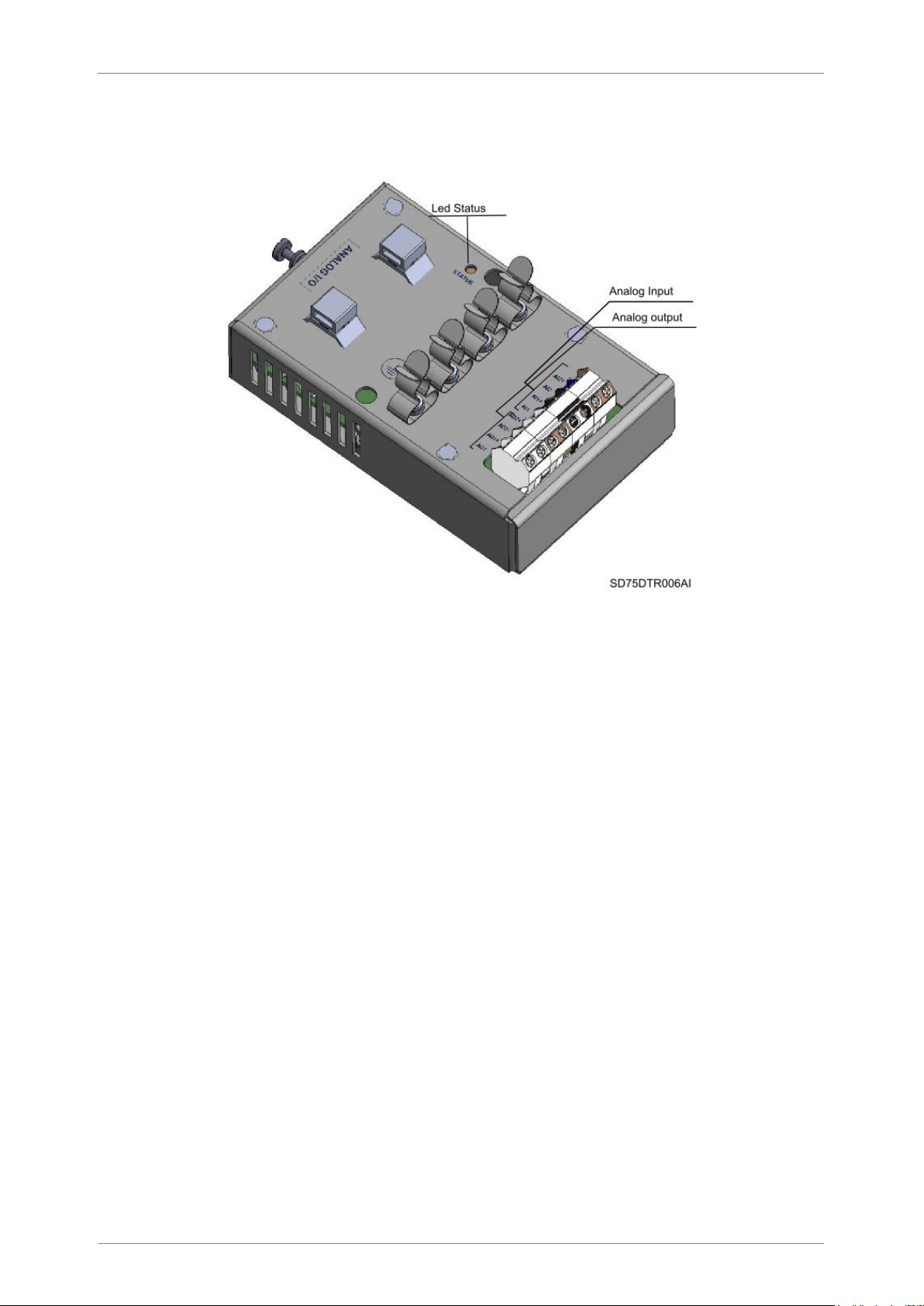

Connectors description
The I/O expansion board has a terminal block on the front, it will be for the analog inputs and outputs.
It has four analog input connectors, two for each analog input (AI1, AI1+, AI2, AI2+).
There are four output connectors, two for each analog output (A01, A01+, A02, A02+).
On the back side, there is a sixteen-pin ID connector to connect to the SD750 central board.

POWER ELECTRONICS
SD750
CONNECTION TO THE DRIVE
11
EN

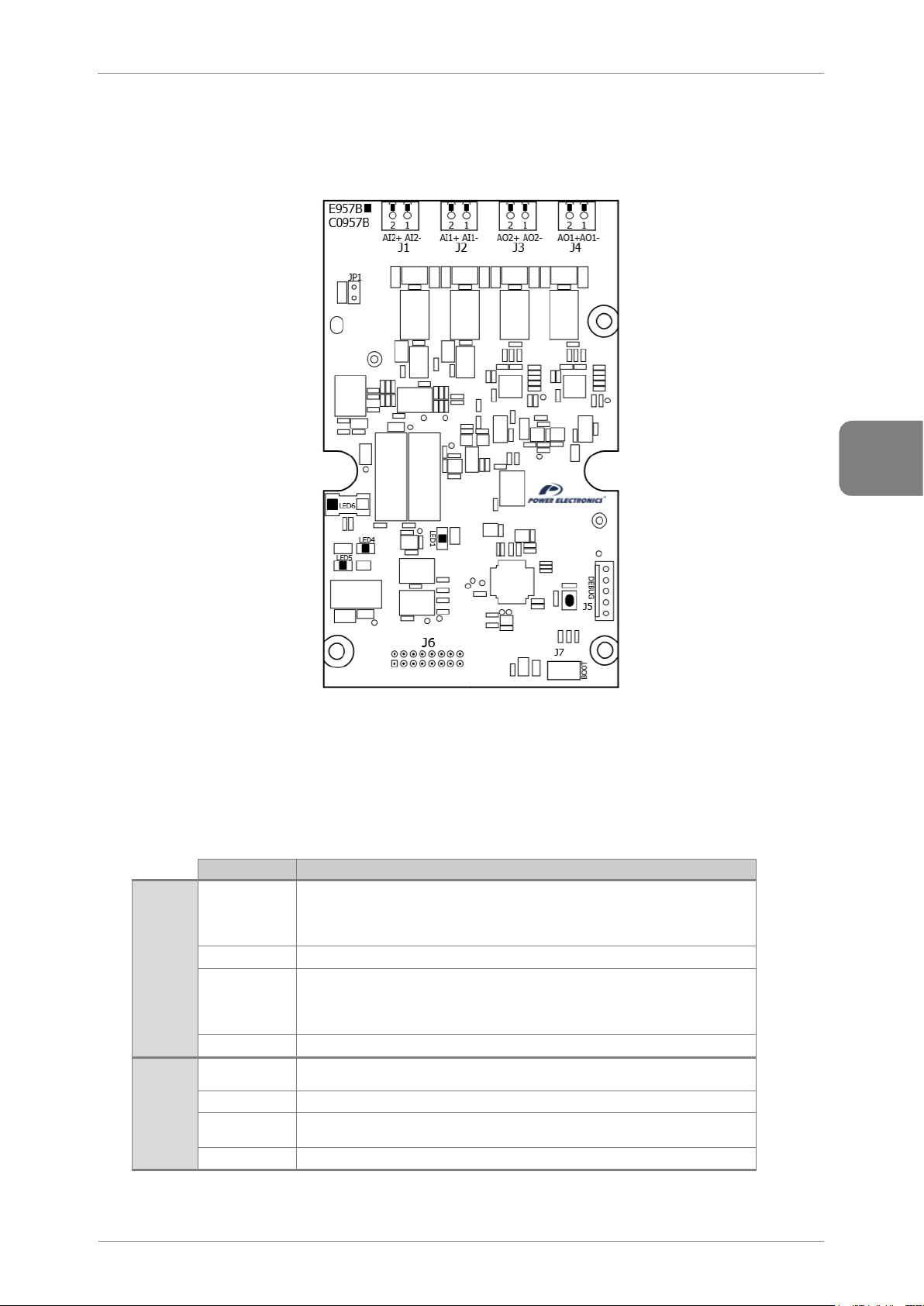

Connections Schema
The following figure shows a detailed distribution of the components of the optional input/output card.
In the current printing the analog inputs 4 and 5 appear as AI1, AI2 and the analog outputs 3 and 4
appear as A01, AO2 as shown in the figure above.
The following table shows the connection signals of analog cards as a function of the supply voltage and
the type of output.
In case a second card is added, analog inputs 6 and 7 and outputs 5 and 6 will be enabled.
SIGNAL
DESCRIPTION
ANALOG
INPUTS
AI2+ (Input 5)
Analog input 2 programmable in voltage, current (V or mA) Configurable for 0 - 20mA, 4
- 20mA, 0 - 10Vdc, ±10Vdc .
The value of the input resistance in voltage mode is Ri=20kΩ. The value of the input
resistance in current mode is Ri=250Ω.
AI2- (Input 5)
Common to Analog Input 2.
AI1+-( Input 4)
Analog input 1 programmable in voltage, current (V or mA) Configurable for 0 - 20mA, 4
- 20mA, 0 - 10Vdc, ±10Vdc.
The value of the input resistance in voltage mode is Ri=20kΩ. The value of the input
resistance in current mode is Ri=250Ω.
AI1- (Input 4)
Common to Analog Input 1.
ANALOG
OUTPUTS
AO2+(Output 4)
Analogue Output 2 programmable in voltage, current (V or mA). Configurable for
±10VDC, 0-20mA (selectable ranges) .
AO2-(Output 4)
Common to Analog Output 2.
AO1+(Output 3)
Analogue Output 1 programmable in voltage, current (V or mA). Configurable for
±10VDC, 0-20mA (selectable ranges).
AO1-(Output 3)
Common to Analog Output 1.

SD750
POWER ELECTRONICS
12
COMMISSIONING
COMMISSIONING
The analog I/O expansion card allows you to increase the number of inputs and outputs compared to the
standard SD750.
The following steps must be followed:
1. After stopping and de-energizing the drive, connect the expansion card to the connector of the
equipment prepared for the expansion cards that are free.
2. Check that the communication with the SD750 is correct (by displaying group G23.2). See that
the analog expansion board (A/B) status is activated (G23.2.5). Reference is made to a card A if
only one card is connected and B if there is a second card. In this case, new parameter groups
will be visible that will allow the adjustment and display of the expansion board status.
3. Set the inputs/outputs according to the desired behavior (G4.5, G4.6 or G8.5).
To see the measurement status of the analog input or output, see group SV3 (External display), values
belonging to EA4/EA5 for analog input and AO3/AO4 for the new analog outputs.
•Group SV3.13, SV3.16: Analog input status (format configurable in G4.5.3, G4.6.3, G4.7.3,
G4.8.3)
•Group SV3.26, SV3.28: Analog output status (format configurable in G8.4.2, G8.5.2, G8.6.2,
G8.7.2)
3

POWER ELECTRONICS
SD750
COMMISSIONING
13
EN
Parameters setting
Up next, the relevant parameters are summarized.
NOTICE
For details about the range of values and Modbus addresses, refer to the Software and
Programming Manual for SD750 drives
Subgroup G23.2: Input / Output
Sub-group G23.2 of the SD750 drive enables the status of the input and output boards to be configured
Check that the corresponding board is activated at start-up and is not in test mode. As it is possible to
connect up to two analog I/O expansion cards, the following parameters will be displayed:
Screen
Range
Function
Set on
RUN
G23.2.5 IO analog A
status = Off
Off
On
Shows the status of the analog inputs and outputs expansion board A.
OPT.
FUNCTION
Off
The board is not connected.
On
The board is connected
NO
G23.2.6 IO analog A
test = No
No
Yes
Enables led fast blinking. This is useful to help locate the board when several boards of the same
type are connected.
Note: this parameter only appears if the I/O expansion board A has been connected.
NO
G23.2.7 IO analog B
status = Off
Off
On
Shows the status of the analog inputs and outputs expansion board B.
OPT.
FUNCTION
Off
The board is not connected.
On
The board is connected
NO
G23.2.8 IO analog B
test = No
No
Yes
Enables led fast blinking. This is useful to help locate the board when several boards of the same
type are connected.
Note: this parameter only appears if the I/O expansion board B has been connected.
NO
Analog Inputs
Groups G4.2 to G4.4 of the SD750 drive are used to configure the analog inputs.
Connecting an expansion board to the drive enables new groups of analog input parameters in group
G4.
They will be enabled from G4.5 to G4.8:

SD750
POWER ELECTRONICS
14
COMMISSIONING
Subgroup 4.5: Analogue input 4
Note: This group will only be shown if an expansion board has been connected.
Screen
Range
Function
Set on
RUN
G4.5.1 Enable sensor
= No
No
Yes
Allows user to configure analogue input 4 and activates the parameters which are necessary to
set it up. See [G4.5.2] to [G4.5.7].
OPTION
FUNCTION
No
The sensor connected to this input can be used to introduce the speed
reference and as open loop sensor.
Yes
Analogue input enabled as feedback in closed loop control.
NO
G4.5.2 Sensor unit =
l/s
%
l/s
m3/s
l/m
m3/m
l/h
m3/h
m/s
m/m
m/h
bar
kPa
psi
m
ºC
ºF
K
Hz
rpm
Allows choosing different measure units for the analogue input 4 depending on the function of the
sensor to be used. Changing this parameter implies that the minimum and maximum values of the
sensor range will be affected by the corresponding conversion. Thus, it is necessary to verify the
values adjusted in:
[G4.5.5 Sensor low level =+0.0l/s] ➔Sensor minimum level.
[G4.5.7 Sensor high level =+10.0l/s] ➔Sensor maximum level.
Available if [G4.5.1 = YES].
NO
G4.5.3 AI4 Format =
V
V
mA
Allows configuring the format of the analogue input 4 to connect a voltage or current signal,
depending on the sensor to be used to introduce the reference.
NO
G4.5.4 AI4 low level =
0.0 V
-10.0V to G4.5.6
+0.0mA to G4.5.6
Defines the minimum value of voltage or current for analogue input 4 according to the
characteristics of the sensor that is going to be connected.
YES
G4.5.5 Sensor low
level = 0.0 l/s
-3200.0 to G4.5.7
Engineering units
Adjusts the minimum unit value of the sensor connected to the analogue input 4, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.5.4].
Available if [G4.5.1 = YES].
Note: This value must be revised if the units are changed in [G4.5.2]. It must be adjusted for
operation in open and closed loop.
YES
G4.5.6 AI4 high level
= 10.0 V
G4.5.4 to +20.0V
G4.5.4 to +20mA
Defines the maximum value of voltage or current for analogue input 4 according to the
characteristics of the sensor that is going to be connected.
YES
G4.5.7 Sensor high
level = 10.0 l/s
G4.5.5 to 3200.0
Engineering units
Adjusts the maximum unit value of the sensor connected to the analogue input 4, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.5.6].
Available if [G4.5.1 = YES].
Note: This value must be revised if the units are changed in [G4.5.2]. It must be adjusted for
operation in open and closed loop.
YES
G4.5.8 AI4 Ref speed
min = 0.0 %
-250.0 to G4.5.9
Allows adjusting the speed reference for the minimum range of analogue input 4, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.5.4]. It is
configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.5.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.5.9 AI4 Ref speed
max = 100.0 %
G4.5.8 to 250.0%
Allows adjusting the speed reference for the maximum range of analogue input 4, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.5.6]. It
is configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.5.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.5.10 Sensor min
value = 0.0 l/s
-3200.0 to G4.5.12
Engineering units
Adjust the minimum working range, if the real working range is different than the one covered by
the sensor that is going to be used as sensor in open loop. Corresponds with the level of voltage
or current set in G4.5.4. It must be configured to work with the sensor in open loop. Available if
[G4.5.1 = SI].
YES
G4.5.11 Open loop
min speed = 0.0 %
-250.0 to 250.0%
Allows adjusting the minimum speed range which corresponds to the minimum sensor range set
in G4.5.10, when the sensor is going to be used in open loop.
The value is a percentage of motor nominal speed. Available if [G4.5.1 = SI].
YES
G4.5.12 Sensor max
value = 10.0 l/s
G4.5.10 to 3200.0
Engineering units
Adjust the maximum working range, if the real working range is different than the one covered by
the sensor that is going to be used as sensor in open loop. Corresponds with the level of voltage
or current set in G4.5.6. It must be configured to work with the sensor in open loop. Available if
[G4.5.1 = SI].
YES
G4.5.13 Open loop
max speed = 100.0 %
-250.0 to 250.0%
Allows adjusting the minimum speed range which corresponds to the minimum sensor range set
in G4.5.12, when the sensor is going to be used in open loop.
The value is a percentage of motor nominal speed. Available if [G4.5.1 = SI].
YES

POWER ELECTRONICS
SD750
COMMISSIONING
15
EN
Screen
Range
Function
Set on
RUN
G4.5.14 AI4 loss
protection = No
No
Yes
Adjusts stop mode of the drive in case the signal from analogue input 4 is lost.
OPTION
FUNCTION
No
Function is disabled.
Yes
Whenever a sudden drop on the analogue input level is detected, terminating
in zero, it indicates the sensor is damaged and the drive will stop, triggering a
fault F42.
YES
G4.5.15 AI4 zero
band filter = Off
Off = 0.0; 0.1% to
2.0%
Analogue input 4 signal filtering. By adjusting this value, the analogue signal is filtered to eliminate
possible electrical noise that prevents reading a zero value when it should.
YES
G4.5.16 AI4 stabilizer
filter = Off
Off = 0.0; 0.1 to
20.0s
Allows adjusting a filtering to the analogue input 4 signal. By adjusting the value of this time
constant, it is possible to eliminate possible instabilities in the signal caused by noise, wiring faults,
etc.
Note: The application of a low pass filter to any analogue signal produces a delay of approximately
the value of the configured time constant.
YES
Subgroup 4.6: Analogue input 5
Note: This group will only be shown if an expansion board has been connected.
Screen
Range
Function
Set on
RUN
G4.6.1 Enable sensor
= No
No
Yes
Allows user to configure analogue input 5 and activates the parameters which are necessary to
set it up. See [G4.6.2] to [G4.6.7].
OPTION
FUNCTION
No
The sensor connected to this input can be used to introduce the speed
reference and as open loop sensor.
Yes
Analogue input enabled as feedback in closed loop control.
NO
G4.6.2 Sensor unit =
l/s
%
l/s
m3/s
l/m
m3/m
l/h
m3/h
m/s
m/m
m/h
bar
kPa
psi
m
ºC
ºF
K
Hz
rpm
Allows choosing different measure units for the analogue input 5 depending on the function of the
sensor to be used.
Changing this parameter implies that the minimum and maximum values of the sensor range will
be affected by the corresponding conversion. Thus, it is necessary to verify the values adjusted
in:
[G4.6.5 Sensor low level =+0.0l/s] ➔Sensor minimum level.
[G4.6.7 Sensor high level =+10.0l/s] ➔Sensor maximum level.
Available if [G4.6.1 =YES].
NO
G4.6.3 AI5 Format =
V
V
mA
Allows configuring the format of the analogue input 5 to connect a voltage or current signal,
depending on the sensor to be used to introduce the reference.
NO
G4.6.4 AI5 low level =
0.0 V
-10.0V to G4.6.6
+0.0mA to G4.6.6
Defines the minimum value of voltage or current for analogue input 5 according to the
characteristics of the sensor that is going to be connected.
YES
G4.6.5 Sensor low
level = 0.0 l/s
-3200.0 to G4.6.7
Engineering Units
Adjusts the minimum unit value of the sensor connected to the analogue input 5, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.6.4].
Available if [G4.6.1 = YES].
Note: This value must be revised if the units are changed in [G4.6.2]. It must be adjusted for
operation in open and closed loop.
YES
G4.6.6 AI5 high level
= 10.0 V
G4.6.4 to +10V
G4.6.4 to +20mA
Defines the maximum value of voltage or current for analogue input 5 according to the
characteristics of the sensor that is going to be connected.
YES
G4.6.7 Sensor high
level = 10.0 l/s
G4.6.5 to 3200.0
Engineering Units
Adjusts the maximum unit value of the sensor connected to the analogue input 5, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.6.6].
Available if [G4.6.1 = YES].
Note: This value must be revised if the units are changed in [G4.6.2]. It must be adjusted for
operation in open and closed loop.
YES

SD750
POWER ELECTRONICS
16
COMMISSIONING
Screen
Range
Function
Set on
RUN
G4.6.8 AI5 Ref speed
min = 0.0 %
-250.0 to G4.6.9
Allows adjusting the speed reference for the minimum range of analogue input 5, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.6.4]. It is
configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.6.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.6.9 AI5 Ref speed
max = 100.0 %
G4.6.8 to 250.0%
Allows adjusting the speed reference for the maximum range of analogue input 5, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.6.6]. It
is configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.6.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.6.10 Sensor min
value = 0.0 l/s
-3200.0 to G4.6.12
Engineering Units
Adjust the minimum working range, if the real working range is different than the one covered by
the sensor that is going to be used as sensor in open loop. Corresponds with the level of voltage
or current set in G4.6.4. It must be configured to work with the sensor in open loop. Available if
[G4.6.1 = SI].
YES
G4.6.11 Open loop
min speed = 0.0 %
-250.0 to 250.0%
Allows adjusting the minimum speed range which corresponds to the minimum sensor range set
in G4.6.10, when the sensor is going to be used in open loop.
The value is a percentage of motor nominal speed. Available if [G4.6.1 = SI].
YES
G4.6.12 Sensor max
value = 10.0 l/s
G4.6.10 to 3200.0
Engineering Units
Adjust the maximum working range, if the real working range is different than the one covered by
the sensor that is going to be used as sensor in open loop. Corresponds with the level of voltage
or current set in G4.6.6. It must be configured to work with the sensor in open loop. Available if
[G4.6.1 = SI].
YES
G4.6.13 Open loop
max speed = 100.0 %
-250.0 to 250.0%
Allows adjusting the minimum speed range which corresponds to the minimum sensor range set
in G4.6.12, when the sensor is going to be used in open loop.
The value is a percentage of motor nominal speed. Available if [G4.6.1 = SI].
YES
G4.6.14 AI5 loss
protection = No
No
Yes
Adjusts stop mode of the drive in case the signal from analogue input 5 is lost.
OPTION
FUNCTION
No
Function is disabled.
Yes
Whenever a sudden drop on the analogue input level is detected, terminating
in zero, it indicates the sensor is damaged and the drive will stop, triggering a
fault F42.
YES
G4.6.15 AI5 zero
band filter = Off
Off = 0.0; 0.1% to
2.0%
Analogue input 5 signal filtering. By adjusting this value, the analogue signal is filtered to eliminate
possible electrical noise that prevents reading a zero value when it should.
YES
G4.6.16 AI5 stabilizer
filter = Off
Off = 0.0; 0.1 to
20.0s
Allows adjusting a filtering to the analogue input 5 signal. By adjusting the value of this time
constant, it is possible to eliminate possible instabilities in the signal caused by noise, wiring faults,
etc.
Note: The application of a low pass filter to any analogue signal produces a delay of approximately
the value of the configured time constant.
YES
Subgroup 4.7: Analogue input 6
Note: This group will only be shown if a second expansion board has been connected.
Screen
Range
Function
Set on
RUN
G4.7.1 Enable sensor
= No
No
Yes
Allows user to configure analogue input 6 and activates the parameters which are necessary to
set it up. See [G4.7.2] to [G4.7.7].
OPTION
FUNCTION
No
The sensor connected to this input can be used to introduce the speed
reference and as open loop sensor.
Yes
Analogue input enabled as feedback in closed loop control.
NO

POWER ELECTRONICS
SD750
COMMISSIONING
17
EN
Screen
Range
Function
Set on
RUN
G4.7.2 Sensor unit =
l/s
%
l/s
m3/s
l/m
m3/m
l/h
m3/h
m/s
m/m
m/h
bar
kPa
psi
m
ºC
ºF
K
Hz
rpm
Allows choosing different measure units for the analogue input 6 depending on the function of the
sensor to be used.
Changing this parameter implies that the minimum and maximum values of the sensor range will
be affected by the corresponding conversion. Thus, it is necessary to verify the values adjusted
in:
[G4.7.5 Sensor low level =+0.0l/s] ➔Sensor minimum level.
[G4.7.7 Sensor high level =+10.0l/s] ➔Sensor maximum level.
Available if [G4.7.1 = YES].
NO
G4.7.3 AI6 Format =
V
V
mA
Allows configuring the format of the analogue input 6 to connect a voltage or current signal,
depending on the sensor to be used to introduce the reference.
NO
G4.7.4 AI6 low level =
0.0 V
-10.0V to G4.7.6
+0.0mA to G4.7.6
Defines the minimum value of voltage or current for analogue input 6 according to the
characteristics of the sensor that is going to be connected.
YES
G4.7.5 Sensor low
level = 0.0 l/s
-3200.0 to G4.7.7
Engineering Units
Adjusts the minimum unit value of the sensor connected to the analogue input 6, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.7.4].
Available if [G4.7.1 = YES].
Note: This value must be revised if the units are changed in [G4.7.2]. It must be adjusted for
operation in open and closed loop.
YES
G4.7.6 AI6 high level
= 10.0 V
G4.7.4 to +10V
G4.7.4 to +20mA
Defines the maximum value of voltage or current for analogue input 6 according to the
characteristics of the sensor that is going to be connected.
YES
G4.7.7 Sensor high
level = 10.0 l/s
G4.7.5 to 3200.0
Engineering Units
Adjusts the maximum unit value of the sensor connected to the analogue input 6, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.7.6].
Available if [G4.7.1 = YES].
Note: This value must be revised if the units are changed in [G4.7.2]. It must be adjusted for
operation in open and closed loop.
YES
G4.7.8 AI6 Ref speed
min = 0.0 %
-250.0 to G4.7.9
Allows adjusting the speed reference for the minimum range of analogue input 6, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.7.4]. It is
configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.7.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.7.9 AI6 Ref speed
max = 100.0 %
G4.7.8 to 250.0%
Allows adjusting the speed reference for the maximum range of analogue input 6, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.7.6]. It
is configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.7.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.7.10 Sensor min
value = 0.0 l/s
-3200.0 to G4.7.12
Engineering Units
Adjust the minimum working range, if the real working range is different than the one covered by
the sensor that is going to be used as sensor in open loop. Corresponds with the level of voltage
or current set in G4.7.4. It must be configured to work with the sensor in open loop. Available if
[G4.7.1 = SI].
YES
G4.7.11 Open loop
min speed = 0.0 %
-250.0 to 250.0%
Allows adjusting the minimum speed range which corresponds to the minimum sensor range set
in G4.7.10, when the sensor is going to be used in open loop.
The value is a percentage of motor nominal speed. Available if [G4.7.1 = SI].
YES
G4.7.12 Sensor max
value = 10.0 l/s
G4.7.10 to 3200.0
Engineering Units
Adjust the maximum working range, if the real working range is different than the one covered by
the sensor that is going to be used as sensor in open loop. Corresponds with the level of voltage
or current set in G4.7.6. It must be configured to work with the sensor in open loop. Available if
[G4.7.1 = SI].
YES
G4.7.13 Open loop
max speed = 100.0 %
-250.0 to 250.0%
Allows adjusting the minimum speed range which corresponds to the minimum sensor range set
in G4.7.12, when the sensor is going to be used in open loop.
The value is a percentage of motor nominal speed. Available if [G4.7.1 = SI].
YES
G4.7.14 AI6 loss
protection = No
No
Yes
Adjusts stop mode of the drive in case the signal from analogue input 6 is lost.
OPTION
FUNCTION
No
Function is disabled.
Yes
Whenever a sudden drop on the analogue input level is detected, terminating
in zero, it indicates the sensor is damaged and the drive will stop, triggering a
fault F42.
YES
G4.7.15 AI6 zero
band filter = Off
Off = 0.0; 0.1% to
2.0%
Analogue input 6 signal filtering. By adjusting this value, the analogue signal is filtered to eliminate
possible electrical noise that prevents reading a zero value when it should.
YES

SD750
POWER ELECTRONICS
18
COMMISSIONING
Screen
Range
Function
Set on
RUN
G4.7.16 AI6 stabilizer
filter = Off
Off = 0.0; 0.1 to
20.0s
Allows adjusting a filtering to the analogue input 6 signal. By adjusting the value of this time
constant, it is possible to eliminate possible instabilities in the signal caused by noise, wiring faults,
etc.
Note: The application of a low pass filter to any analogue signal produces a delay of approximately
the value of the configured time constant.
YES
Subgroup 4.8: Analogue input 7
Note: This group will only be shown if a second expansion board has been connected.
Screen
Range
Function
Set on
RUN
G4.8.1 Enable sensor
= No
No
Yes
Allows user to configure analogue input 7 and activates the parameters which are necessary to
set it up. See [G4.8.2] to [G4.8.7].
OPTION
FUNCTION
No
The sensor connected to this input can be used to introduce the speed
reference and as open loop sensor.
Yes
Analogue input enabled as feedback in closed loop control.
NO
G4.8.2 Sensor unit =
l/s
%
l/s
m3/s
l/m
m3/m
l/h
m3/h
m/s
m/m
m/h
bar
kPa
psi
m
ºC
ºF
K
Hz
rpm
Allows choosing different measure units for the analogue input 7 depending on the function of the
sensor to be used.
Changing this parameter implies that the minimum and maximum values of the sensor range will
be affected by the corresponding conversion. Thus, it is necessary to verify the values adjusted
in:
[G4.8.5 Sensor low level =+0.0l/s] ➔Sensor minimum level.
[G4.8.7 Sensor high level =+10.0l/s] ➔Sensor maximum level.
Available if [G4.8.1 = YES].
NO
G4.8.3 AI7 Format =
V
V
mA
Allows configuring the format of the analogue input 7 to connect a voltage or current signal,
depending on the sensor to be used to introduce the reference.
NO
G4.8.4 AI7 low level =
0.0 V
-10.0V to G4.8.6
+0.0mA to G4.8.6
Defines the minimum value of voltage or current for analogue input 7 according to the
characteristics of the sensor that is going to be connected.
YES
G4.8.5 Sensor low
level = 0.0 l/s
-3200.0 to G4.8.7
Engineering Units
Adjusts the minimum unit value of the sensor connected to the analogue input 7, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.8.4].
Available if [G4.8.1 = YES].
Note: This value must be revised if the units are changed in [G4.8.2]. It must be adjusted for
operation in open and closed loop.
YES
G4.8.6 AI7 high level
= 10.0 V
G4.8.4 to +10V
G4.8.4 to +20mA
Defines the maximum value of voltage or current for analogue input 7 according to the
characteristics of the sensor that is going to be connected.
YES
G4.8.7 Sensor high
level = 10.0 l/s
G4.8.5 to 3200.0
Engineering Units
Adjusts the maximum unit value of the sensor connected to the analogue input 7, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.8.6].
Available if [G4.8.1 = YES].
Note: This value must be revised if the units are changed in [G4.8.2]. It must be adjusted for
operation in open and closed loop.
YES
G4.8.8 AI7 Ref speed
min = 0.0 %
-250.0 to G4.8.9
Allows adjusting the speed reference for the minimum range of analogue input 7, which
corresponds with the minimum level of voltage or current of the sensor configured in [G4.8.4]. It is
configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.8.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.8.9 AI7 Ref speed
max = 100.0 %
G4.8.8 to 250.0%
Allows adjusting the speed reference for the maximum range of analogue input 7, which
corresponds with the maximum level of voltage or current of the sensor configured in [G4.8.6]. It
is configured to introduce the speed reference through the analogue input. Adjust parameter
‘G4.8.1 Enable sensor = N’. The value is a percentage of motor nominal speed.
YES
G4.8.10 Sensor min
value = 0.0 l/s
-3200.0 to G4.8.12
Engineering Units
Adjust the minimum working range, if the real working range is different than the one covered by
the sensor that is going to be used as sensor in open loop. Corresponds with the level of voltage
or current set in G4.8.4. It must be configured to work with the sensor in open loop. Available if
[G4.8.1 = SI].
YES
