Powerfix Profi 102668 User manual

IAN 102668
ULTRASONIC DISTANCE METER
ULTRASCHALL-ENTFERNUNGSMESSER
Bedienungs- und Sicherheitshinweise
ULTRALYDS-AFSTANDSMÅLER
Brugs- og sikkerhedsanvisninger
ULTRALJUDSAVSTÅNDSMÄTARE
Bruksanvisning och säkerhetsanvisningar
ULTRASONIC DISTANCE METER
Operation and Safety Notes
ULTRAÄÄNIETÄISYYSMITTARI
Käyttö- ja turvallisuusohjeet
TÉLÉMÈTRE À ULTRASONS
Instructions d‘utilisation et consignes de sécurité
ULTRASONE AFSTANDMETER
Bedienings- en veiligheidsinstructies

GB/IE Operation and Safety Notes Page 5
FI Käyttö- ja turvallisuusohjeet Sivu 19
SE Bruksanvisning och säkerhetsanvisningar Sidan 33
DK Brugs- og sikkerhedsanvisninger Side 47
FR / BE Instructions d‘utilisation et consignes de sécurité Page 60
NL/BE Bedienings- en veiligheidsinstructies Pagina 75
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 89

3
O
N
/
O
F
F
F
T
/
M
M
O
D
E
R
E
C
A
L
L
7
8
9
10
11
3
5
4
12
1
6
2

4
A
MIN. 0.6 m
Max. 16 m
O
N
/
O
F
F
F
T
/
M
M
O
D
E
R
E
C
A
L
L
AB
B
7

5GB/IE
Intended use...................................Page 6
Parts description .........................Page 6
Technical Data...............................Page 6
Scope of delivery........................Page 7
General safety
instructions.......................................Page 7
Safety Instructions
for Batteries....................................Page 8
Before using
Inserting/changing the battery ...........Page 9
Start-up
Measuring length..................................Page 10
Avoiding measuring errors ...................Page 11
Adding lengths together .......................Page 12
Measuring surface area .......................Page 13
Measuring volume ................................Page 13
Adding surface areas or
volumes together...................................Page 14
Displaying the last measured values....Page 15
Temperature display .............................Page 16
Changing the unit of measurement......Page 16
Battery state display..............................Page 16
Switching off/ Automatic shut-down....Page 16
Cleaning and Care.....................Page 17
Disposal..............................................Page 17
Warranty...........................................Page 17

6 GB/IE
Ultrasonic Distance Meter
Intended use
This ultrasonic rangefinder is intended for measur-
ing lengths and for calculating surface areas and
volumes. The device also has a temperature
measuring facility. This device is solely intended
for private use.
Parts description
1Ultrasonic transmitter/receiver
2Temperature sensor
3FT/M button
4READ button
5RECALL button
6Reference area
7Level indicator
8MODE button
9ON/OFF button
10 Display
11 Laser diode
12 Battery compartment cover
Technical Data
Operating voltage: max. 9V
Battery type: 6LR61 (9V block)
Measuring range: 0.6m – 16m
Measuring accuracy: +/-1%
Capacity display: up to 9999.99
Laser wave length: 635–660nm, 1 mW
Laser class: 2

7GB/IE
Ultrasonic frequency: 40kHz
Thermometer
measuring range: -10°C – +40°C
(14°F – 104°F)
Scope of delivery
1 Ultrasonic Distance Meter
1 9V block battery
1 Set of operating instructions
General safety
instructions
Before using the product, please familiarise your-
self with all of the safety information and instruc-
tions for use! When passing this product on to
others, please also include all the documents!
Check the product for damage before use!
Never use a damaged product!
Do not expose the device to moisture! This
may damage it.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabili-
ties or lack of experience and knowledge if
they have been given supervision or instruc-
tion concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.

8 GB/IE

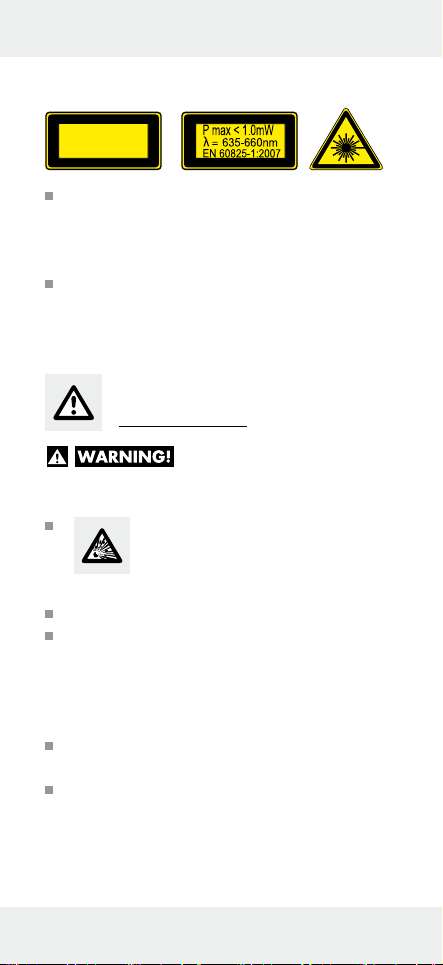

Danger from laser radiation
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
The device contains a Class 2 laser. Never
point the laser beam at persons or animals.
Never look directly into the beam. Even a
weak laser beam can cause eye damage.
Never point the laser beam at reflective sur-
faces or materials. Even a reflected laser
beam can cause eye damage.
Safety Instructions
for Batteries
DANGER TO LIFE! Batteries
are not intended for children. If accidentally
swallowed seek immediate medical attention!
CAUTION! EXPLOSION
HAZARD! Never recharge non-
rechargeable batteries, do not
short-circuit and/or open batteries!
Never throw batteries into fire or water!
Do not subject batteries to any mechanical
load!
Risk of battery leakage
In the event of a battery leak, immediately
remove it from the device to prevent damage!
Avoid contact with the skin, eyes and mucous
membranes! In the event of contact with bat-
tery acid, thoroughly flush the affected area
with plenty of clean water and seek immediate
medical attention!

9GB/IE
Only use the same type of batteries! Do not
mix used and new batteries!
Avoid extreme environmental conditions and
temperatures, which could affect batteries,
e.g. above radiators/in direct sunlight.
Remove the batteries from the device if they
have not been used for a long period!
Risk of equipment damage
Only use the specified battery type!
When inserting the battery ensure that it is
inserted the right way round! This is shown in
the battery compartment!
If necessary, clean the battery and device
contacts before inserting the battery!
Remove dead batteries from the device
immediately!
Before using
Before initial use, remove the protective film
from the device display 10 and insert the
enclosed battery.
Inserting/changing
the battery
If the battery symbol appears in the
display 10 , the inserted battery is almost drained
and must be replaced. Empty batteries can falsify
the measured result.
To insert the battery proceed as follows:
Open the battery compartment cover 12 on
the back of the device. You can remove the

10 GB/IE
used battery more easily with the aid of the
material strip, which is inside the battery
compartment. Just pull on the material strip.
Remove the used battery.
Plug the contacts of the 9V block battery on
the contacts of the profiled plug. Make sure
you fit the batteries the right way round. This
is specified by the profiled shape of the con-
tacts. Also ensure without fail that the material
strip is underneath the battery.
Insert the battery in the battery compartment
and close the cover again, so that it audibly
latches into place.
Start-up
Measuring length
Press the ON/OFF button 9to switch the
device on. If you do not press any button for
60 s, the display 10 shuts down.
To switch the device off manually, hold the
ON/OFF button pressed down for 3 sec-
onds, until the display goes out and a double
tone signal sounds.
Press the MODE button 8repeatedly, until
the display shows the symbol for length meas-
urement „ “ as well as the length designa-
tion 0.00m (or 0‘00“).
Hold the reference area 6of the ultrasonic
rangefinder at the start point of your meas-
urement. Hold the device in such a way, that
the reference area is aligned parallel to the
target area of the measurement.
If necessary use the level indicator 7to
align the ultrasonic rangefinder horizontally.

11GB/IE
The air bubble of the level indicator should
be between the two markings if the
alignment is horizontal.
Press the READ button 4. The laser diode 11
projects a dot of light onto the end point of
the measurement. This dot of light will help you
to correctly align the ultrasonic rangefinder.
After successful measuring, the length will
appear in the display.
Avoiding measuring errors
In order to avoid measuring errors,
please note the following information:
The measurement is performed by ultrasound,
which travels from the ultrasonic transmitter 1
in a conical manner. The ultrasound is reflected
from the target area and received by the ul-
trasonic receiver. The ultrasonic rangefinder

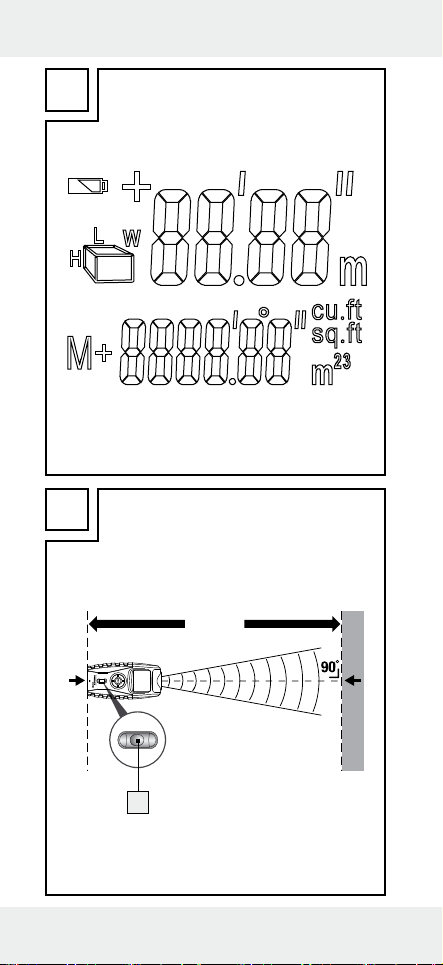

calculates the measured length (Fig. B) from
the travel time of the signal.
In order to guarantee an exact measure-
ment, the following conditions must be
maintained (Fig. B):
The reference area (A) must be parallel to the
target area (B).
The distance to be measured must be be-
tween 0.6m and 16m long.
There must be no objects in the conical path
of the ultrasound, which could reflect the ul-
trasound prematurely. The conical path of the
ultrasound has a width of about 5m at a
length of 16m.
The target area must have a smooth surface,
so that the ultrasound can be well reflected.

12 GB/IE
Transparent surfaces, such as glass, generally
reflect the ultrasound.
The battery must not be empty. An empty bat-
tery is shown in the display 10 by the battery
symbol .
If a definitive measurement is not possible,
the display shows the „Err“ information. The
measurement must then be repeated.
Adding lengths together
Measure a length as described in the section
„Measuring length“. The length appears in
the top line of the display 10 .
Now press the RECALL button 5. The length is
transferred to the bottom line. This means that
it has been saved in the aggregate memory.
The character „+“ appears at the top of the
display. The device displays in this way, that it
is ready for a new length measurement.
Press the READ button 4. The length, which
has now been measured, appears at the top
of the display.
Press the RECALL button. The measured value
is then transferred to the aggregate memory,
and the aggregate of the two measured
lengths appears at the bottom of the display.
If the measurement is an incorrect measure-
ment, do not press the RECALL button but
press the READ button again. The measured
value, which is displayed at the top, is over-
written. Press the RECALL button to adopt the
value into the aggregate memory.
You can repeat this procedure as often as
you wish, as long as the length of 9999.99m
is not exceeded.

13GB/IE
Measuring surface area
Note: In order to avoid errors in the measuring
method, please familiarize yourself first with the
information about measuring lengths.
Press the ON/OFF button 9to switch the
device on.
Press the MODE button 8repeatedly until
the symbol for surface area measurement
„“, as well as the designation 0.00m
(or 0‘00“), appear in the display 10 . The
symbol „ “ for length measurement flashes.
The device displays in this way, that it is
ready for the first measurement.
Align the device and press the READ button
4. If the measurement is successful, the
length will appear at the top of the display.
The symbol for width measurement „ “
also flashes. The device displays in this way,
that it is ready for the measurement of the width.
Align the device and press the READ button
again. If the measurement is successful, the
width appears at the top of the display, and
at the bottom appears the surface area in the
m2 unit of measurement (or sq.ft = square feet).
Press the MODE button briefly, if a further
surface area measurement is required. The
figures in the display are reset, and the device
is ready for a new surface area measurement.
Measuring volume
Note: In order to avoid errors in the measuring
method, please familiarize yourself first with the
information about measuring lengths.

14 GB/IE
Press the ON/OFF button 9to switch the
device on.
Press the MODE button 8repeatedly until
the symbol „ “ for volume measurement, as
well as the designation 0.00m (or 0‘00“),
appear in the display 10 . The symbol „ “
for length measurement flashes. The device
displays in this way, that it is ready for the first
measurement.
Align the device and press the READ button 4.
If the measurement is successful, the length
will appear at the top of the display. The
symbol for width measurement „ “ also
flashes. The device displays in this way, that it
is ready for the measurement of the width.
Align the device and press the READ button.
If the measurement is successful, the width
will appear at the top of the display. The
symbol for height measurement „ “ also
flashes. The device displays in this way, that it
is ready for the measurement of the height.
Align the device and press the READ button
again. If the measurement is successful, the
height appears at the top of the display, and
at the bottom appears the volume in the m3
unit of measurement (or cu.ft = cubic feet).
Press the MODE button briefly, if a further
volume measurement is required. The figures
in the display are reset, and the device is
ready for a new volume measurement.
Adding surface areas or
volumes together
Measure a surface area or volume as de-
scribed in the section „Measuring surface

15GB/IE
area“ or „Measuring volume“. The surface
area/volume appears in the bottom line of
the display.
Press the RECALL button 5to save the meas-
ured result. The symbol M+ appears in the
display and this indicates that the measured
result, which is shown at the bottom of the
display, is saved in the device 10 .
Press the MODE button 8briefly. The de-
vice is now ready to measure the next surface
area or volume.
Measure the next surface area or volume in
the same way as you performed the first
measurement.
Now press the RECALL button again to adopt
the new result into the aggregate memory.
The result of the addition is shown in the
bottom line of the display.
If you would like to add further surface areas
or volumes, repeat steps 3 to 5.
Hold the MODE button pressed down for
3 seconds in order to leave the Addition
mode.
Displaying the last
measured values
After you have measured a surface area or a
volume, press the READ button 4repeatedly
in order to display the individual values of the
measurement.
The symbol of the corresponding measured
value flashes, and the measured result is
shown in the top line of the display.

16 GB/IE
Temperature display
Hold the FT/M button 3pressed down for
approx. 3 seconds. The current room temper-
ature, in the official °C temperature unit, is
shown in the display 10 .
In order to switch over to the °F temperature
unit, press the FT/M button briefly.
Press the MODE button 8briefly in order to
leave the temperature display mode.
Changing the unit of
measurement
Press the FT/M button 3in order to switch
over from the official metric unit of measure-
ment to the imperial unit of measurement
(display in feet‘ and inches“).
Battery state display
If the battery charge status is low, the battery
symbol appears in the display 10 . Replace
the battery as quickly as possible, if this symbol
appears. Empty batteries can falsify the measured
result. The battery change is described in the
section „Inserting/changing the battery“.
Switching off/
Automatic shut-down
Switch the device off by holding the ON/
OFF button 9pressed down for 3 seconds.

17GB/IE
Cleaning and Care
The device should only be cleaned on the
outside with a soft dry cloth.
Disposal
The packaging is made of environmen-
tally friendly materials, which may
be disposed of through your local
recycling facilities.
Contact your local or municipal author-
ity for information on how to dispose
of the device at the end of its opera-
tional life.
Pb
Never dispose of batteries in your
household waste. They may contain
toxic heavy metals and are subject to
hazardous waste regulations. The
chemical symbols of the heavy metals
are: Cd = cadmium, Hg = mercury, Pb
= lead. Therefore dispose of used bat-
teries through your municipal collection
site.
Warranty
The device has been manufactured to strict quality
guidelines and meticulously examined before
delivery. In the event of product defects you have
legal rights against the retailer of this product.
Your legal rights are not limited in any way by our
warranty detailed below.

18 GB/IE
The warranty for this device is 3 years from the
date of purchase. Should this device show any
fault in materials or manufacture within three
years from the date of purchase, we will repair or
replace it - at our choice - free of charge to you.
The warranty period begins on the date of pur-
chase. Please keep the original sales receipt in a
safe location. This document is required as your
proof of purchase. This warranty becomes void if
the device has been damaged or improperly
used or maintained.
The warranty applies to faults in material or man-
ufacture. This warranty does not cover product
parts subject to normal wear, thus possibly consid-
ered consumables (e.g. batteries) or for damage
to fragile parts, e.g. switches, rechargeable
batteries or glass parts.

19FI
Määräystenmukainen
käyttö....................................................Sivu 20
Osien kuvaus..................................Sivu 20
Tekniset tiedot................................Sivu 20
Toimituksen sisältö.....................Sivu 21
Yleiset turvallisuusohjeet .....Sivu 21
Paristoja koskevia
turvallisuusohjeita......................Sivu 22
Toimenpiteet ennen
käyttöönottoa
Pariston asennus/ vaihto .......................Sivu 23
Käyttöönotto
Pituuden mittaus......................................Sivu 24
Mittausvirheiden välttäminen.................Sivu 25
Pituuden lisääminen ...............................Sivu 26
Pinta-alan mittaus ...................................Sivu 26
Tilavuuden mittaaminen.........................Sivu 27
Pinta-alan tai tilavuuden
laskeminen yhteen..................................Sivu 28
Viimeisten mittausarvojen näyttö...........Sivu 29
Lämpötilan näyttö...................................Sivu 29
Mittayksikön vaihto................................Sivu 30
Paristojen näyttö.....................................Sivu 30
Laitteen sammuttaminen/Laitteen
automaattinen sammuttaminen..............Sivu 30
Puhdistus ja hoito........................Sivu 30
Hävittäminen..................................Sivu 30
Takuu.....................................................Sivu 31

20 FI
Ultraäänietäisyysmittari
Määräystenmukainen käyttö
Tämä ultraääni-etäisyysmittari on suunniteltu
mittaamaan etäisyyksiä sekä laskemaan pintoja
ja tilavuutta. Lisäksi tällä laitteella voidaan mitata
lämpötila. Tuote on tarkoitettu ainoastaan yksityis-
käyttöön.
Osien kuvaus
1Ultraäänilähetin/–vastaanotin
2Lämpötila-anturi
3FT/M-näppäin
4READ-näppäin
5RECALL-näppäin
6Referenssipinta
7Vesivaaka
8MODE-näppäin
9ON/OFF-näppäin (PÄÄLLÄ /POIS PÄÄLTÄ)
10 Näyttö
11 Laserdiodi
12 Paristolokeron kansi
Tekniset tiedot
Käyttöjännite: kork. 9V
Paristomalli: 6LR61 (9V–sarja)
Mittausalue: 0,6m – 16m
Mittaustarkkuus: +/-1%
Näytön kapasiteetti: enintään 9999,99
Laserin aallonpituus: 635–660nm, 1mW
Laser-luokka: 2
