Infrared Thermometer
Introduction
We congratulate you on the purchase of your new product. You have chosen a
high quality product. The instructions for use are part of the product. They contain
important information concerning safety, use and disposal. Before using the prod-
uct, please familiarise yourself with all of the safety information and instructions for
use. Only use the product as described and for the specified applications. If you
pass the product on to anyone else, please ensure that you also pass on all the
documentation with it.
Intended use
The product surface temperatures ranging from -50°C to +380°C (-58°F to
+716°F) as well as comparing temperatures with a previously recorded reference
value. The surfaces of several objects may be measured successively and the tem-
perature deviations compared visually, by colour, and acoustically. Only use the
built-in laser pointer for measuring temperature to locate a measuring point on the
product under test.
The product is only intended for private use and may not be used for commercial
or industrial purposes. Only use the product in dry environments, resp. indoors.
Any use of the product for other or additional purposes is considered improper use.
Any claims for damages resulting from improper use are excluded. The user is
solely responsible for any and all damages or injuries due to risks of improper use.
Functionality
The infrared sensor 2acquires and measures the infrared radiation emitted by
the surface it is aimed at. The product determines the temperature of the surface
from this infrared radiation.
The product features a laser pointer 1, pointing at the middle of the measuring
range, to visualise the area of the surface the infrared sensor is acquiring the radi-
ation from.

7GB/CY
The measuring range is a circular area around this laser point which increases as
the distance to the measuring distance increases. For details, please refer to chapter
„Measuring temperature“.
Description of parts
1Laser pointer
2Infrared sensor
3Measure button
4Battery cover
5Display
6Reference value display
7Temperature unit
8Measurement
9Tolerance range selection
10 button
11 °C/°F/SET button
12 button
13 9V block battery
Scope of delivery
1 Infrared thermometer
1 9V block battery
1 Set of instructions for use
Technical data
Power supply: 9V (Direct current)
(1 x 9V block battery type 6F22 or 6LR61)
Measuring range: -50°C to +380°C (-58°F to +716°F)
Measurement accuracy for T > 0°C: ±1.5°C or ±1.5% of the measurement
Measurement accuracy for T < 0°C: ±3°C or ±3% of the measurement
Laser class: 2
Laser wavelength: 650nm
Laser output power: <1mW
Operating temperature: 0°C to 40°C
Humidity: ≤ 75%
Dimensions: approx. 18 x 12 x 4.2cm
Weight without battery: approx. 170g

8 GB/CY
Safety instructions
Before using the product, please familiarise yourself with all of the safety information
and instructions for use! When passing this product on to others, please also include
all the documents!

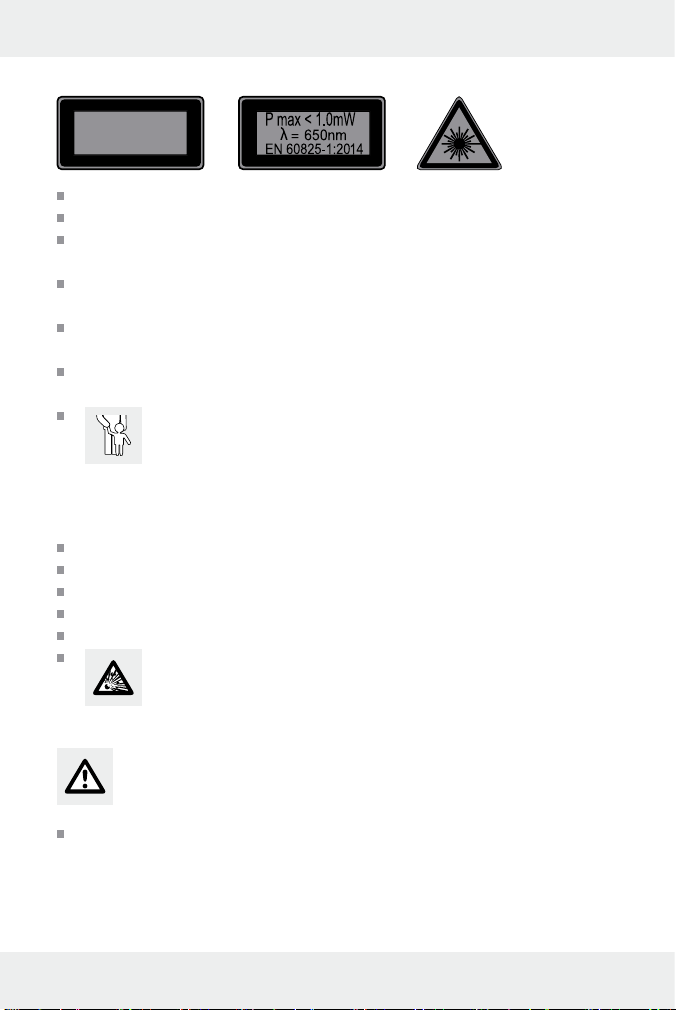

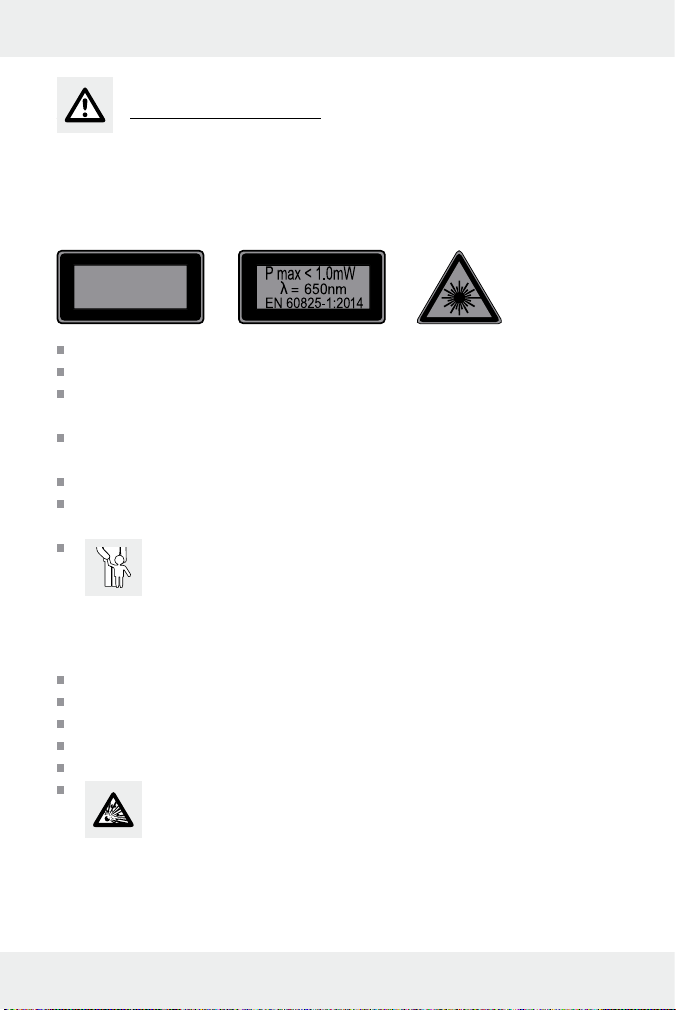

Danger from laser radiation
LASER RADIATION
DO NOT LOOK INTO THE
LASER BEAM / LASER CLASS 2
This product features a Class 2 laser.
Never direct the laser beam at persons or animals.
Never look directly into the beam. Even a weak laser beam can cause eye
damage.
Never point the laser beam at reflective surfaces or materials. Even a reflected
laser beam can cause eye damage.
Any adjustment intensifying the laser beam is prohibited. Risk of injury!
We assume no liability for damages arising from manipulating the laser product
and for failure to observe the safety notices.
This product may be used by children age 8 years and up, as well
as by persons with reduced physical, sensory or mental capacities,
or lacking experience and knowledge, so long as they are supervised
or instructed in the safe use of the appliance and understand the associated
risks. Do not allow children to play with the product. Cleaning and user main-
tenance should not be performed by children without supervision.
Do not use this product if you notice any damage.
Keep away from open flames!
Protect the product from moisture and from liquids entering the product.
Avoid direct sunlight.
Do not modify the product.
CAUTION! EXPLOSION HAZARD! Do not use the product in
locations with a fire hazard or explosion hazard, for example near
flammable liquids or gasses.

9GB/CY
Safety instructions for batteries /
rechargeable batteries
DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of
children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge non-rechargeable
batteries. Do not short-circuit batteries/rechargeable batteries
and/or open them. Overheating, fire or bursting can be the result.
Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries /rechargeable batteries.
Risk of leakage of batteries/rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect
batteries/rechargeable batteries, e.g. radiators/direct sunlight.
Avoid contact with the skin, eyes and mucous membranes. In the event of
contact with battery acid, thoroughly flush the affected area with plenty of clean
water and seek immediate medical attention.
WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/
rechargeable batteries can cause burns on contact with the skin.
Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries, immediately remove
them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used
and new batteries/rechargeable batteries.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
Insert batteries/rechargeable batteries according to polarity marks (+) and
(-) on the battery/rechargeable battery and the product.
Clean the contacts on the battery/rechargeable battery and in the battery
compartment before inserting!
Remove exhausted batteries/rechargeable batteries from the product
immediately.
Before use
Note: Remove all packaging materials from the product.

10 GB/CY
The display 5is covered by protective film to protect from transport damage.
First remove the protective film.
To operate the product, insert the included battery (9 V block). Proceed as described
below:
Inserting/changing the battery
To insert / change the battery 13 , open the battery cover 4. To do so, slide
the battery cover in the direction of the arrow and flip open.
If applicable, remove the old battery and insert a new one. If necessary, clean
the contacts of the battery compartment and the battery. Only use a 9 V block
battery type 6F22 or 6LR61.
Ensure the correct polarity when inserting the battery. This is indicated on the
battery cover (Fig. C).
Close the battery cover.
Your infrared thermometer is now ready for use.
Start-up
Hold the handle of the product so the index finger can operate the Measure
button 3and the thumb buttons 10 to 12 .
Switching on and off
Press the Measure button 3to switch on the product. The display 5will
light up and a brief tone will sound.
Press and hold the °C/ °F / SET button 11 for approx. 3 seconds to switch
off the product. Two brief tones will sound.
When the product is no longer being used, the backlight of the display swill
switch off after approx. 15 seconds. After approx. 60 seconds the product
will automatically switch off; this is indicated by two brief tones.

11GB/CY
Selecting the temperature unit
After switching on, the last temperature unit used will initially be selected.
Briefly press the °C/ °F / SET button 11 to change the temperature units 7
(°C or °F).
The official temperature unit in Europe in °C.
Measuring temperature
Allow about 30 minutes for the product to acclimate to the conditions of the envi-
ronment.
Hold the Measure button 3whilst aiming the laser pointer 1at the surface
you wish to measure.
The temperature is measured whilst pressing the Measure button; the display
5will read „SCAN“.
After releasing the Measure button the last temperature measured will appear
in the display and the laser pointer will be deactivated.
The temperature determined is the average temperature of the area measured.

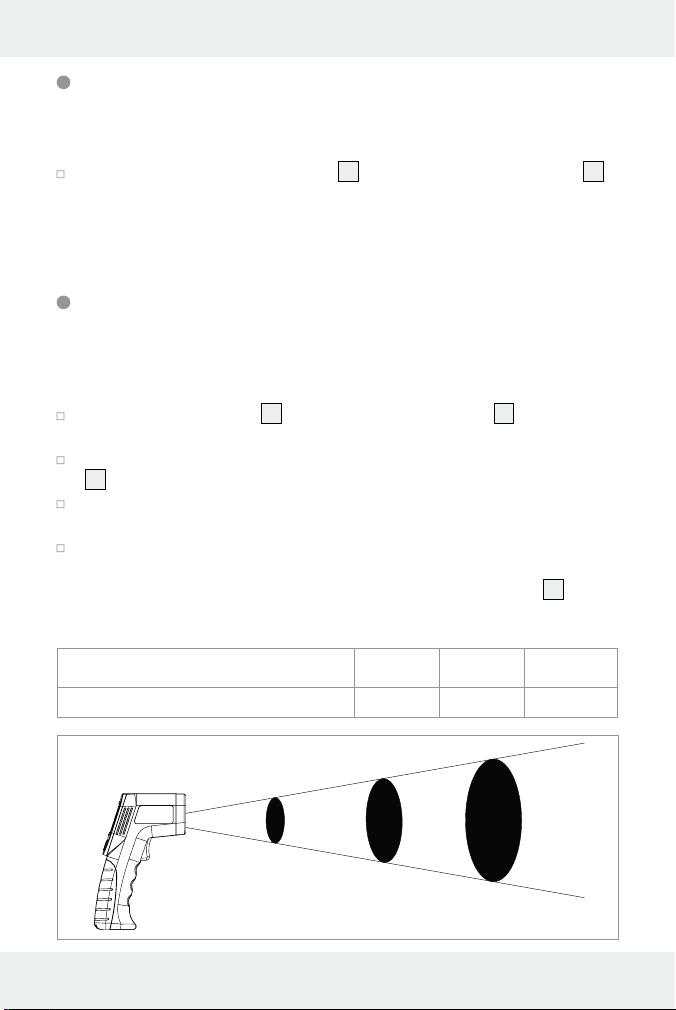

The area measured is circular. The diameter of the area measured „S“ is one
twelfth of the distance between the surface and the infrared sensor 2„D“.
Below you will find some values as a guide:
S (for surface diameter): 10mm 20mm 30mm
D (for distance): 120mm 240mm 360mm

12 GB/CY
Please note:
The surface of the target object must be significantly larger than the measuring
diameter of the product. Otherwise the measurement will not be reliable.
Always measure at the closest possible distance to the measuring surface.
Aim the product as vertical to the measuring surface as possible.
Do not measure in dusty, steaming or smoky atmospheres.
Do not measure through transparent materials such as glass or plastic.
Show temperature deviation
The temperature deviation is the difference between a previously established refer-
ence value and a temperature measurement. The display 5indicates the deviations
as numeric values and displayed in colour. An acoustic signal also sound.
Determine reference value
Press the measure button 3and aim the laser pointer 1at the area of which
you wish to use the temperature as the reference. The temperature is indicated
in the display 5.
Whilst holding the Measure button, press the °C/°F/SET button 11 to use
the temperature value as the reference value. This temperature is indicated in
the display next to „REF“ as the reference display 6.
Select tolerance range
You can set the temperature deviation from the reference value as of which the
product will respond with a visual and acoustic signal.
To do so, whilst the reference value 6appears in the display 5, press the
button 10 or the button 12 . Using this button the symbol will move to
the right ( ) or to the left ( ) above the tolerance range 9selection in the
display.

13GB/CY
Use this method to select the tolerance range indicated below the display:
OFF 0.5°C
1°F
3°C
5°F
5.5°C
10°F
Scan temperature deviation
Select a reference temperature as described above.
Press the Measure button 3and aim the laser pointer 1at the area you
wish to measure. The temperature is indicated in the display 5.
Hold the measure button whilst scanning, and slowly and steadily move the
laser dot across the surface you wish to measure. The temperature deviations
between the reference value and the measurement are indicated as follows:
Visual
indication
Acoustic
indication Cause
Red display
background
Rapid tone series The upper temperature threshold has
been exceeded
Green display
background
No tone Within the temperature range setting
Blue display
background
Slow tone series The value is below the lower threshold
Example of use
To e.g. test cold air entering the space between a window frame and brickwork,
first scan the temperature along the entire frame, next to the closed window. Select
the warmest area of the frame as the reference temperature, then e.g. a temperature
variation of 3°C / 5°F.
Now steadily scan again, along all sides of the window, next to the frame. The
blue colour display and a slow tone series indicates a possible influx of cold air
with a difference of 3°C / 5°F.

14 GB/CY
Battery state display
The battery symbol appears in the display 5as soon as the battery voltage is
too low.
Insert a new battery as described in chapter „Inserting/replacing the battery“
when this symbol appears.
A drained battery may leak. In addition, the measurement may not be accurate
as specified in „Technical data“ if the battery voltage is low.
Troubleshooting
Note: The product contains sensitive electronic components. For this reason it is
possible that it can be disrupted by radio transmitting equipment in the immediate
vicinity. If you notice that the product is malfunctioning, remove any sources of in-
terference from the area around the product.
Note: Electrostatic discharge can cause malfunctions. In the event of such
malfunctions, briefly remove and replace the battery.
The following table will help you locate and correct minor malfunctions:
Fault Possible cause Solution
The display 5is
blank.
The battery 13 is inserted
incorrectly.
Insert the battery as shown on
the battery cover 4(Fig. C).
The battery is drained. Insert a new battery.
When the product
is turned on, the
display shows
„----“ for 5 sec-
onds (approx) &
shows OFF for
next 3 seconds
(approx) and
then the display
turns off.
The ambient temperature is
too low (or) too high.
Turn-off the product. Move to
the place, where the ambient
temperature can be reached
within the mentioned range.
Allow the product to stabilize
in the working ambient tem-
perature range for minimum
30 minutes. Then, turn on the
product. The product should
function normally.

15GB/CY
Fault Possible cause Solution
Incorrect tempera-
ture value is
shown on the
display.
Low battery. Replace with new battery
Did not allow about 30 min-
utes for the product to accli-
mate to the environmental
condition after an ambient
condition has been changed
drastically.
Allow about 30 minutes for
the product to acclimate to
the environmental condition.
Not suitable measuring
surface.
Change the measuring
surface.
Maintenance and Cleaning
Ensure that no water enters the product during cleaning!
Regularly clean the product with a dry, lint-free cloth.
If the product is very dirty, use a slightly damp cloth with a detergent.
Ensure no objects enter the opening for the infrared sensor 2. If necessary,
only clean the opening with light compressed air.
Disposal
The packaging is made entirely of recyclable materials, which you may
dispose of at local recycling facilities. The Green Dot is not valid for
Germany.
b
a
Observe the marking of the packaging materials for waste separation,
which are marked with abbreviations (a) and numbers (b) with follow-
ing meaning: 1–7: plastics/ 20–22: paper and fibreboard / 80–98:
composite materials.
The product and packaging materials are recyclable, dispose of it sepa-
rately for better waste treatment. The Triman logo is valid in France only.

16 GB/CY
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out product.
To help protect the environment, please dispose of the product properly
when it has reached the end of its useful life and not in the household
waste. Information on collection points and their opening hours can be
obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance
with Directive 2006/66/EC and its amendments. Please return the batteries/
rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the
batteries/rechargeable batteries!
Batteries/rechargeable batteries may not be disposed of with the usual domestic
waste. They may contain toxic heavy metals and are subject to hazardous waste
treatment rules and regulations. The chemical symbols for heavy metals are as fol-
lows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of
used batteries/rechargeable batteries at a local collection point.
Warranty
The product has been manufactured to strict quality guidelines and meticulously
examined before delivery. In the event of product defects you have legal rights
against the retailer of this product. Your legal rights are not limited in any way by
our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this pro-
duct show any fault in materials or manufacture within 3 years from the date of
purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of pu rchase. Please keep the original sales
receipt in a safe location. This document is required as your proof of purchase.
This warranty becomes void if the product has been damaged, or used or
maintained improperly.

17GB/CY
The warranty applies to defects in material or manufacture. This warranty does not
cover product parts subject to normal wear, thus possibly considered consumables
(e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batte-
ries or glass parts.

18 HR
Uvod......................................................................................................Stranica 19
Namjenska uporaba.............................................................................Stranica 19
Način funkcioniranja ............................................................................Stranica 19
Opis dijelova......................................................................................... Stranica 20
Opseg isporuke..................................................................................... Stranica 20
Tehnički podaci.....................................................................................Stranica 20
Sigurnosne upute.......................................................................Stranica 20
Sigurnosne upute za baterije/punjive baterije ..................................Stranica 21
Prije stavljanja u pogon........................................................Stranica 22
Umetanje/zamjena baterije................................................................Stranica 23
Korištenje..........................................................................................Stranica 23
Uključivanje i isključivanje .................................................................... Stranica 23
Odabir jedinice temperature................................................................Stranica 23
Mjerenje temperature ...........................................................................Stranica 24
Prikazivanje otklona temperature.........................................................Stranica 25
Utvrđivanje referencijalne vrijednosti................................................... Stranica 25
Odabir područja tolerancije ................................................................Stranica 25
Skeniranje otklona temperature ........................................................... Stranica 25
Prmjer uporabe......................................................................................Stranica 26
Prikaz baterije........................................................................................Stranica 26
Uklanjanje smetnji.....................................................................Stranica 27
Održavanje i čišćenje..............................................................Stranica 28
Zbrinjavanje................................................................................... Stranica 28
Jamstvo..............................................................................................Stranica 29

19HR
Infracrveni uređaj za mjerenje temperature
Uvod
Čestitamo vam na kupnji novog proizvoda. Ovom kupnjom odlučili ste se za
visokokvalitetan proizvod. Uputa za uporabu je sastavni dio ovog proizvoda.
Ona sadrži važne upute o sigurnosti, uporabi i uklanjanju otpada. Prije upotrebe
proizvoda upoznajte se sa svim njegovim uputama za korištenje i sigurnosnim upu-
tama. Koristite ovaj proizvod u skladu s navedenim uputama te u navedene svrhe.
Ukoliko proizvod dajete nekoj drugoj osobi, predajte toj osobi također i sve upute.
Namjenska uporaba
Proizvod služi mjerenju temperature na površini na području od -50°C do
+380°C (-58°F do +716°F) kao i usporedbi temperatura s ranije spoznatom
referencijalnom vrijednosti. Moguće je mjeriti površine više objekata jedan iza
drugoga i otklone u temperaturi optički, u boji i akustički međusobno uspoređivati.
Integrirani laserski pokazivač smije se koristiti isključivo u okviru mjerenja tempera-
ture za lokalizaciju neke mjerne točke na mjernom objektu.
Proizvodj je isključivo namijenjen za uporabu u privatne svrhe i ne smije se upotre-
bljavati u poslovne ili industrijske svrhe. Proizvod koristite samo u suhoj okolini
odn. u unutrašnjim prostorima. Svako drugo korištenje koje nije ovdje navedeno
nije u skladu s njegovom namjenom. Zahtjevi bilo kakve vrste zbog šteta koje su
nastale zbog nenamjenske upotrebe isključeni su. Sveukupne rizike od šteta koje
su nastale zbog nestručnog korištenja odn. ozljede snosi sam korisnik.
Način funkcioniranja
Infracrveni senzor 2obuhvaća i mjeri infracrveno zračenje koje daje površina na
koju je usmjeren. Proizvod iz ovog infracrvenog zračenja pronalazi temperaturu
površine.
Za vizualizaciju područja površine čije zračenje lovi infracrveni senzor, proizvod
posjeduje laserski pokazivač 1koji pokazuje u sredinu mjernog područja.
Mjerno područje nalazi se kružno oko ove laserske točke i povećava se rastom
udaljenosti mjerača. Detalje za to pronaći ćete u poglavlju „Mjerenje temperature“.

20 HR
Opis dijelova
1Laserski pokazivač
2Infracrveni senzor
3Mjerna tipka
4Poklopac pretinca za baterije
5Zaslon
6Prikaz referencijalne vrijednosti
7Jedinica temperature
8Mjerna vrijednost
9Odabir područja tolerancije
10 tipka
11 °C/°F/SET-tipka
12 tipka
13 9V-blok baterija
Opseg isporuke
1 Infracrveni mjerač temperature
1 9V blok baterija
1 Upute za korištenje
Tehnički podaci
Opskrba naponom: 9V (istosmjerna struja)
(1 x 9V-Bblok baterija tipa 6F22 ili 6LR61)
Mjerno područje: -50°C do +380°C (-58°F do +716°F)
Točnost mjerenja za T > 0°C: ±1,5°C odn. ±1,5% izmjerene vrijednosti
Točnost mjerenja za T < 0°C: ±3°C odn. ±3% izmjerene vrijednosti
Klasa lasera: 2
Valna duljina lasera: 650nm
Izlazna snaga lasera: <1mW
Radna temperatura: 0 °C do 40 °C
Vlažnost zraka: ≤ 75%
Dimenzije: oko 18 x 12 x 4,2cm
Težina bez baterije: oko 170g
Sigurnosne upute
Prije prve uporabe proizvoda upoznajte se sa svim sigurnosnim uputama i
uputama za uporabu! Ako proizvod dajete nekoj drugoj osobi, predajte joj i
pripadajuću dokumentaciju!

21HR
Opasnost od laserskih zraka
LASERSKA ZRAKA
NE GLEDAJTE U LASERSKE ZRAKE
KLASA LASERA 2
Proizvod sadrži laser klasu 2.
Lasersku zraku nikada ne usmjeravajte na osobe ili životinje.
Nikada ne gledajte izravno u lasersku zraku. Već i slaba laserska zraka može
uzrokovati oštećenje očiju.
Nikada ne usmjeravajte lasersku zraku na reflektirajuće površine ili materijale.
Čak i reflektirajuća laserska zraka može izazvati oštećenje očiju.
Zabranjeno je svako podešavanje za pojačavanje laserske zrake. Postoji
opasnost od ozljeda!
Za štete zbog manipulacije usmjeravanjem lasera kao i nepridržavanjem
sigurnosnih uputa ne preuzima se jamstvo.
Ovaj proizvod mogu koristiti djeca od 8godina i starija djeca, kao
i osobe s umanjenom psihičkom, senzoričkom i mentalnom sposob-
nošću ili s pomanjkanjem iskustva i znanja, ako su pod nadzorom
ili ako su upoznati sa sigurnom uporabom proizvoda i razumiju opasnosti koje
iz nje proizlaze. Djeca se ne smiju igrati s proizvodom. Čišćenje i održavanje
ne smiju obavljati djeca bez nadzora.
Nikada ne upotrebljavajte proizvod ako ste utvrdili bilo kakva oštećenja.
Držite otvoreni plamen dalje od proizvoda!
Zaštitite proizvod od vlage i prodiranja tekućina.
Izbjegavajte izravne sunčeve zrake.
Nemojte raditi promjene na proizvodu.
OPREZ! OPASNOST OD EKSPLOZIJE! Nemojte koristiti proi-
zvod na mjestima na kojima postoji opasnost od požara ili eksplo-
zija, primjerice u blizini zapaljivih tekućina ili plinova.
Sigurnosne upute za baterije/
punjive baterije
OPASNOST PO ŽIVOT! Baterije/punjive baterije držite podalje od djece.
U slučaju gutanja odmah potražite liječničku pomoć!
