Precor Elliptical Fitness Crosstrainer EFX 5.21 User manual

EFX®5.21
EFX® 5.23
Assembly Guide
Elliptical Fitness CrosstrainersTM

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 1
Thank you for choosing Precor. For proper installation, please read this guide
thoroughly and follow the assembly instructions. If you do not assemble the EFX
according to these guidelines, you could void the Precor Limited Warranty.
Obtaining Service
You should not attempt to service the EFX except for maintenance tasks
described in the owner’s manual. Should you need more information regarding
Customer Support numbers or a list of Precor authorized Service Centers, visit
the Precor web site at www.precor.com.
Unpacking the Equipment
The EFX is carefully tested and inspected before shipment. The unit is shipped in
one box. Ask for help to unpack and assemble the EFX. If any items are missing,
contact your dealer.
Important: (240 volt 5.23 model only) If the power cord attached to your
equipment is not compatible with your local power plug standards, the container
should also include a power cord for your region. You will need to install this
cord in place of the one attached to the equipment. If you need such a cord and
it was not included with your EFX, please contact your Precor dealer for the
correct Precor power cord. For a list of authorized Precor dealers in your area,
please contact Customer Support at www.Precor.com.
Required Tools
• Wire cutter
• Rubber mallet (EFX 5.23 only)
• Philips head screwdriver
Installation Requirements
Follow these installation requirements when assembling the unit:
•Assemble the EFX in the location where you plan to use it. No rollers or
wheels exist on the EFX, so it is not easy to move once it is fully
assembled.
•Provide ample space around the unit.
Important: Consult your owner’s manual for proper placement of your
equipment.
•Set up the unit on a solid, flat surface.
A smooth, flat surface under the unit helps keep it level. A level unit has fewer
malfunctions.
•Open the box and assemble the components in the sequence presented
in this guide.
•Obtain assistance.
Ask another capable adult for assistance during the assembly process.
•Use your fingers or the appropriate tools to insert fasteners.
Proper alignment helps alleviate cross-threading. Do not fully tighten
fasteners until instructed to do so.
When fully tightened, the head of the fastener should be flush with the
product. If it is not, cross-threading has occurred. Do not attempt to rework
the assembly as more damage to the equipment will occur. Contact
Customer Support. Refer to Obtaining Service.

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 2

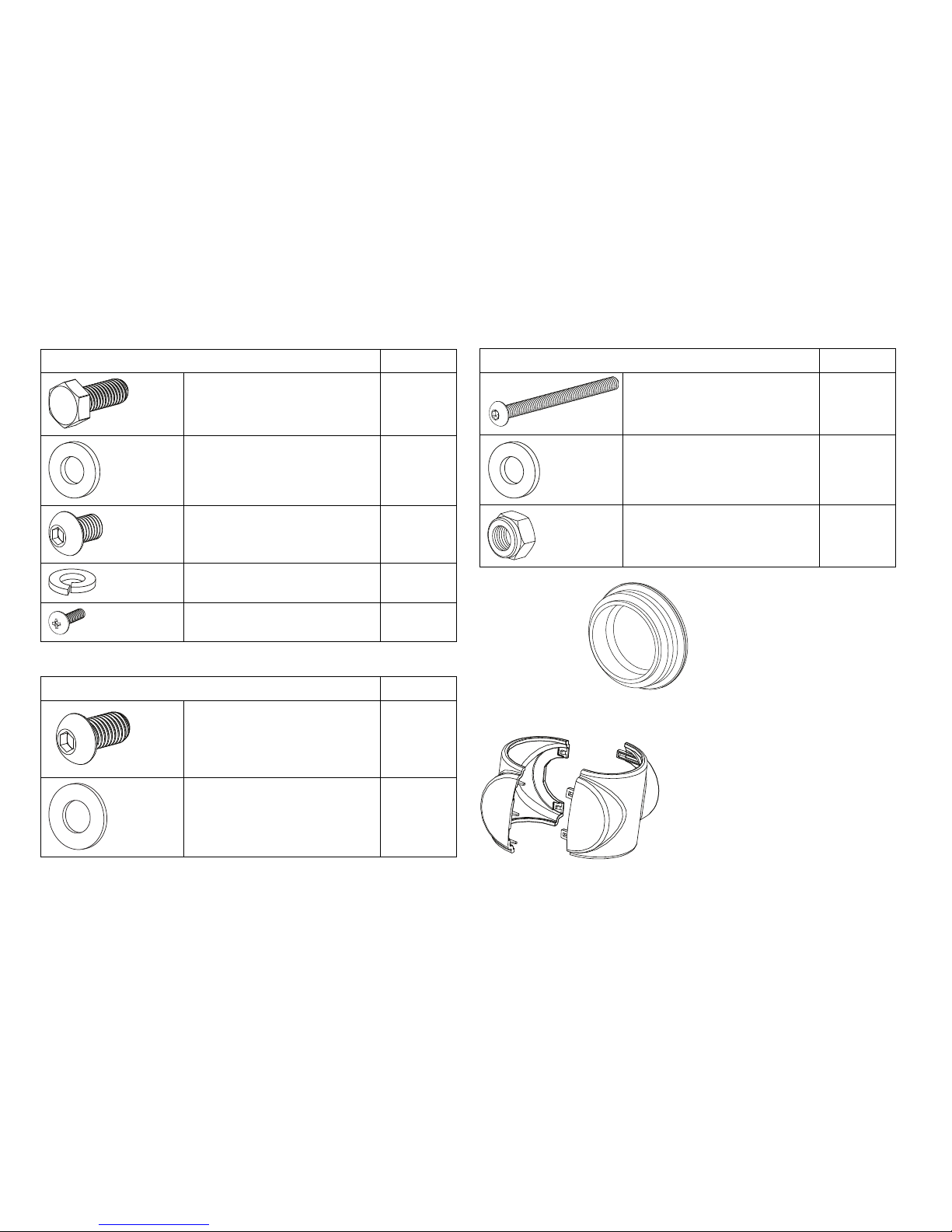

Hardware Kit
Fasteners Quantity
(A) Hex head screw (M8 x 20 mm) 8
(B) Flat washer (M8) 8
(C) Buttonhead screw (M8 x 12 mm) 6
(D) Lock washer (M8) 6
(K) Phillips-head screw (M5 x 16 mm) 3
Additional Fasteners for EFX5.23 only Quantity
(E) Buttonhead screw (M10 x 20
mm) 2
(F) Flat washer (M10) 2
Additional Fasteners for EFX5.23 only Quantity
(G) Buttonhead screw (M8 x 50 mm) 2
(H) Flat washer (M8) 4
(J) Locknut (M8) 2
2 — Handlebar
caps (L)
(EFX 5.23 only)
2 - Moveable arm
cuffs (each cuff is
two pieces) (M) (EFX 5.23 only)
1 — Double-ended box wrench
2 — Hex key
1 — Power cord

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 3
Assembly Steps
Important: Read the Installation Requirements before assembling
the EFX.

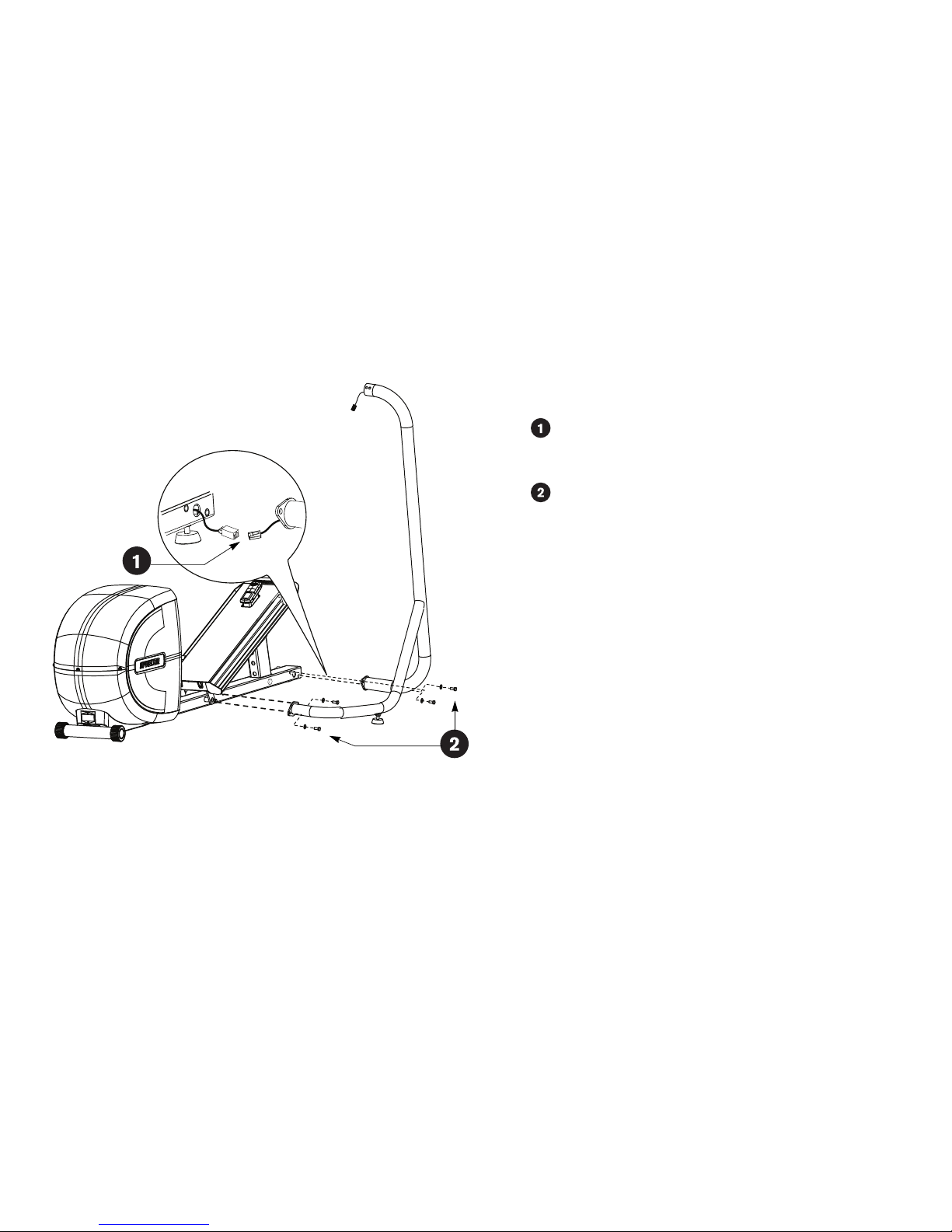

Ask your assistant to hold the right stabilizer, which has the cable
protruding from both ends, next to the base frame. Connect the
base cable. An audible click is heard when the cable is properly
attached. Place excess cable into the base frame.
Secure the stabilizer to the base frame using four hex head screws
(A) and four washers (B). Partially tighten.
Note: For easier access to the base mounts, lift the front of the
EFX off the floor and place a wedge of packing material beneath its
base.

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 4
Cut any wire ties that secure the cable to the stabilizer. Unwrap the
cable and remove any kinks. Feed the cable through the console
bracket as shown in the illustration.
Slide the console bracket into the right stabilizer and align the
three mounting holes. Insert the top two buttonhead screws (C)
with lock washers (D). Partially tighten.
CAUTION: Make sure you do not pinch the cables while attaching
the console bracket. Any damage caused during installation is
not covered by the Precor Limited Warranty.
Insert the bottom buttonhead screw (C) with lock washer (D).
Partially tighten.
Slide the left stabilizer onto the console bracket and secure its
base using four hex head screws (A) and four washers (B). Partially
tighten.
Note: You may need to pivot the stabilizer back and forth to fit it
snugly onto the console bracket.
Return to the console bracket and insert the three remaining
fasteners. Fully tighten all six console bracket fasteners.

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 5
Important: If your EFX is a 5.23 model, you will need to
attach the movable arms. If your EFX is a 5.21 model, please skip
steps 8-11.

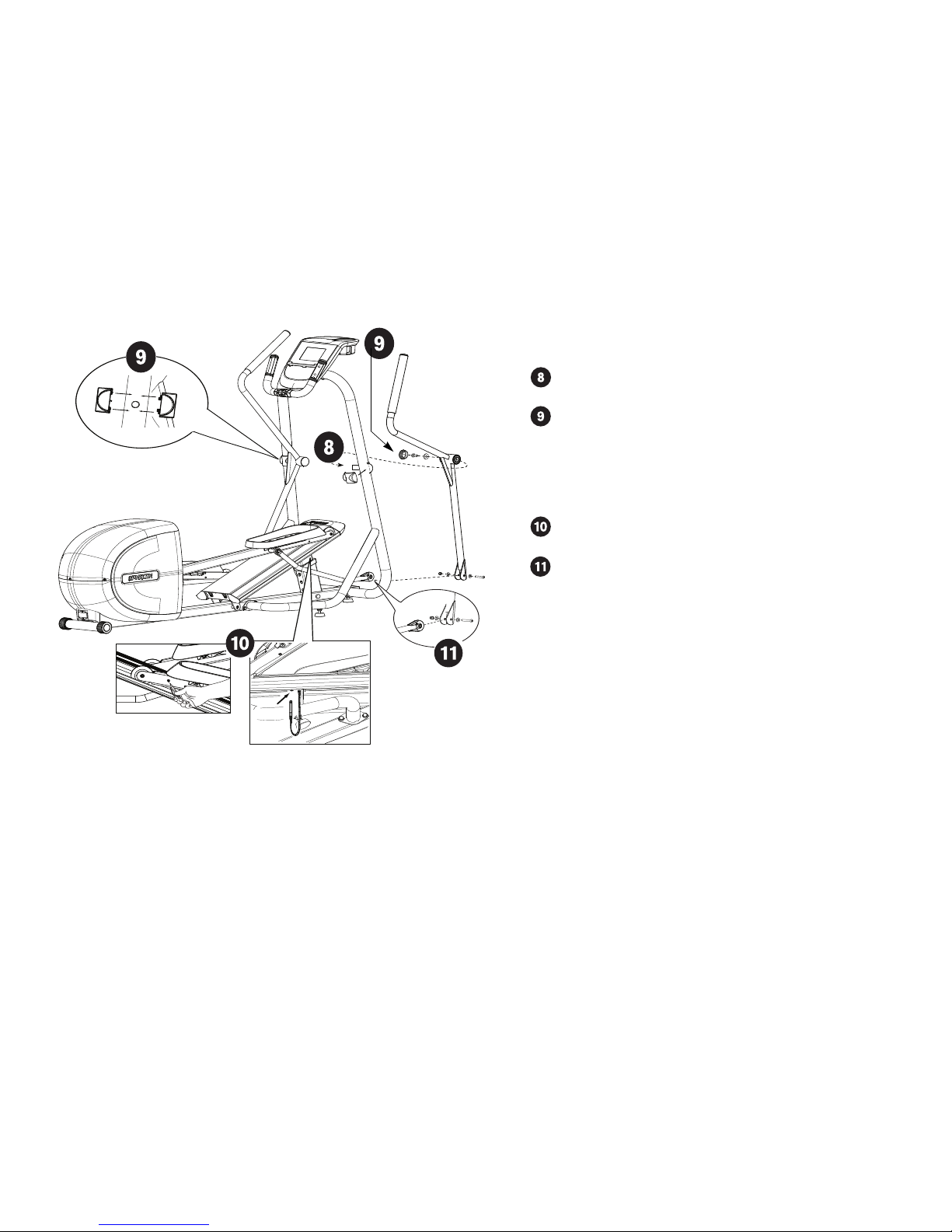

Attach the right moving handlebar. Slide the handlebar pivot joint
onto the stabilizer axle (use a rubber mallet if needed).
Secure the handlebar using one buttonhead screw (E) and one
washer (F). Fully tighten. Snap the moveable arm cuff (M) into
place and then place a handlebar cap (L) onto the connection.
CAUTION: Guide the handlebar to its balance point and let it rest
there. When attaching the lower link arms, have your assistant
hold the moving handlebar for safety. Failure to do so could
result in injury.
Remove the locking pin so you can move the foot pedals to a
convenient location to attach the moving handlebars. Store the
locking pin in the hole underneath the ramp.
Attach the handlebar to the lower link arm using one buttonhead
screw (G), two washers (H), and one locknut (J). Fully tighten.
Repeat steps 8, 9, and 10 to secure the left handlebar.

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 6

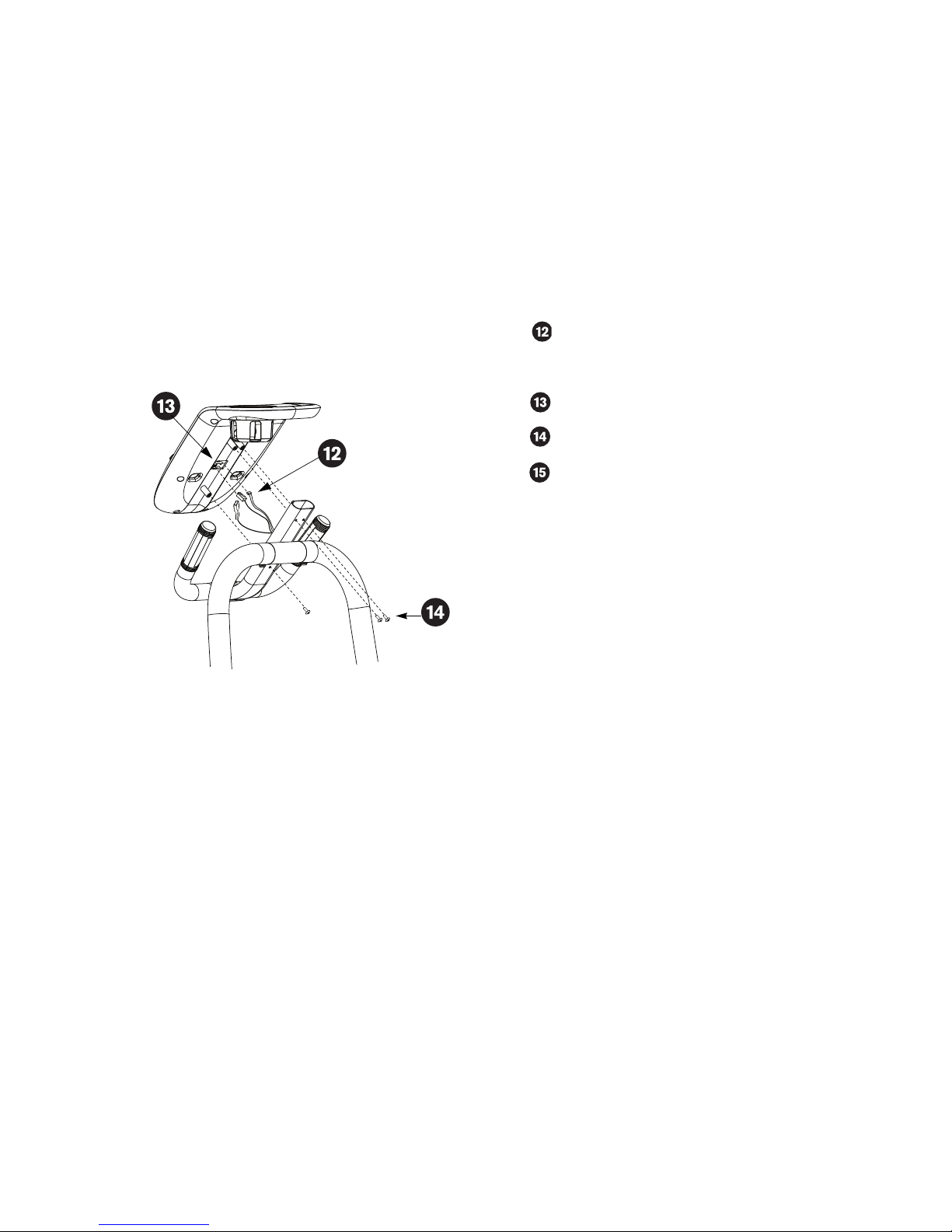

Connect the 4-pin connector and the RJ45 to the appropriate
receptacles on the back of the display console. You will hear the
cable click into place when it is properly attached.
Place the excess cable into the console bracket.
Connect the green grounding wire to the middle receptacle
marked GND.
Attach the display console to the console bracket using three
Phillips-head screws (K). Tighten securely.
Return to the base of the stabilizers and fully tighten all eight hex
head screws.
Note: If necessary, remove the wedge of packing material used in
step 2.

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 7
Adjusting the Ramp
The EFX ramp incline can be set to one of three positions: Low (15
degrees), Medium (20 degrees), or High (25 degrees).
If you are on the equipment, dismount. To adjust the ramp, you can
straddle the equipment with one foot on either side or stand to one
side of it.
CAUTION: To adjust the ramp, you must be standing on the floor.
You cannot be standing on the equipment or the foot pedals.
Place one hand under the front of the ramp and one hand on the
lever. Pull the front of the ramp up and toward you while pulling the
lever back and up. This releases the ramp for adjustment.
Carefully adjust the ramp to the desired height.
Important: Before releasing your grip, test the ramp by gently
pushing it down with your hands to make sure that it has securely
clicked into one of the incline positions. The ramp should not move
when tested.
CAUTION: Be aware of the position of the handrails and console
when you are adjusting the ramp. Be careful not to bump your head
on the console when you stand up.

EFX 5.21/ 5.23 Elliptical Fitness Crosstrainer Assembly Guide 8
Before exercising, make sure the EFX is level and does not wobble from
side to side.
Important: If the EFX is placed on a slightly uneven surface, turning the
leveling pads can help, but will not compensate for extremely uneven
surfaces.
1. Kneel by the side of the stabilizer and lift the base slightly so you can
access the levelers.
2. Rotate the levelers as needed.
3. When the EFX is level, fully tighten the lock nut and lower the EFX to the
floor.
Connect the power cord.
CAUTION: Use the supplied and appropriate power cord. Do not remove
or otherwise bypass the 3-prong plug with an adapter in order to use a
non-grounded outlet. Do not plug the EFX into a power transformer in an
attempt to adjust the voltage requirements. Failure to follow these
instructions might damage the unit and will void the Precor Limited
Warranty. If an appropriate cord for your location was not included with
your EFX, please contact your Precor dealer for the proper Precor power
cord. For more information on authorized Precor dealers in your area,
please contact Customer Support at www.Precor.com.
1. Insert the power plug connector into its receptacle at the rear of the unit.
2. Plug the other end into a grounded outlet so you can maintain a
consistent power source without overloading any other circuitry. Be sure
to use the appropriate voltage. Refer to Grounding Instructions in the
owner’s manual.
Turn the unit On.
Use the power switch to turn the unit On. Check that the Precor banner
appears on the display. If the display remains blank, cycle the power. If the
display continues to remain blank, check the cable connections.
Important: Make sure the locking pin is removed and stored before you
begin exercising.

©2011 Precor Incorporated
www.precor.com
EFX 5.21/5.23 AG 300085-201, en
15 September 2011
Precor Incorporated
20031 142nd Avenue NE
P.O. Box 7202
Woodinville, WA USA 98072-4002
1-800-347-4404

QUICKSTART™
CAUTION: Before using the EFX, read all these
instructions. Failure to do so may result in serious injury.
•Do not allow children or those unfamiliar with its
operation, on or near this equipment.
•Before beginning any fitness program, see your
physician for a thorough physical examination.
Seek advice from your physician to learn the
target heart rate appropriate for your
fitness level.
•Always face the display and use the
stationary handrail for balance. Never
attempt to turn around on the EFX.
•If you feel pain, faintness, or dizziness,
stop exercising immediately.
The Locking Pin on the
Roller Arm
The locking pin on the EFX
ramp secures the roller arm
from use. To prevent unauthorized
use, secure the roller arm with the
locking pin after every workout.
Pull firmly on the pin to slide it
out of the roller arm. A lanyard
attaches the locking pin to
the ramp. Store the locking
pin underneath the ramp
once it is removed from
the roller arm.
Workout Tips
•Before and after an exercise session, gently
stretch your lower body and back to help prevent
stiffness or soreness.
•At the beginning of an exercise session, take
several minutes to bring your heart rate into your
target zone (shown in Diagram A on the other side
of this card).
•To display your heart rate, use both hands to grasp
the touch-sensitive grips.
•
To pause during your workout, stop pedaling. Pause
mode has a 10-minute time limit.
•Incorporate a cool-down period into your exercise
session to help lower your heart rate and minimize
muscle stiffness and soreness.
Begin Your Workout with QUICKSTART
To begin exercising immediately without personalizing your exercise
session, take the following steps.
1. Turn On the EFX using the power switch located at the rear of the
unit, near the power cord.
2. Remove the locking pin that secures the roller arm.
3. Manually adjust the ramp to your preferred incline
4. Hold on to the stationary handrail and step on the foot pedals.
5.
Begin pedaling. Maintain a comfortable stride rate between 100
and 150 strides per minute depending on your level of fitness.
6. Press QUICKSTART and the Manual Program begins. An exercise
session goal of 30 minutes appears in the TIME display and
counts down.
Note: To select a different program, refer to your owner’s manual.
7. When you reach the time goal, you automatically enter a
cool-down period. After you complete the cool-down period, the
equipment displays a summary of your exercise session statistics.
If you used the touch-sensitive grips during your workout, your
average heart rate appears in the display as well.
8. Stop pedaling and hold on to the stationary handrail while you
carefully step down from the EFX.
9. To prevent unauthorized use, turn Off the EFX and secure the
roller arm with the locking pin.
EFX 5.21/5.23 QSC 300997-141, July 2011, en
EFX®5.21
EFX®5.23


Choosing a Program
•Determine your level of fitness: beginner, intermediate,
or advanced.
•Determine your immediate goal: endurance training,
cardio-conditioning, or weight loss.
If you are a beginner, start a cardio-conditioning program
to slowly adjust your body to a comfortable level of
exercise. Over a recommended 8-week period, you will
increase your endurance and strength while improving
flexibility.
For all fitness levels, plan to exercise at a comfortable
pace for 20 to 30 minutes a day. To monitor your heart
rate, use the touch-sensitive grips. Supplement your plans
with fitness workouts from the Precor web site
(www.precor.com).
Using the Touch Heart Rate Feature
Note: Touch heart rate performance may vary based on a
user’s physiology, fitness level, age, and other factors. You
may experience an erratic readout if your hands are dry,
dirty, or oily, or if the skin on your palms is especially thick.
Wearing hand lotion can also cause an erratic readout. In
addition, make sure that the sensors are clean to ensure
proper contact can be maintained.
To use the touch heart rate feature, place the palm of your
hands directly on the metal heart rate sensors on the
equipment’s handlebars. To ensure a more accurate heart
rate readout, make sure you follow these tips:
•Both hands must grip the sensors for your heart rate to
register.
•It takes a number of consecutive heart beats
(15-20 seconds) for your heart rate to register.
•When gripping the sensors, do not grip tightly. Keep a
loose, cupping hold. Holding the grips tightly can
affect the reading.
•As you work out, your perspiration will help transmit
your heart rate signal. If you have difficulty using the
handheld grips to determine your heart rate, try the
sensors again later in the workout to see if you can
obtain a heart rate signal.
•If the touch heart rate feature does not work for you,
Precor recommends that you use a chest transmitter
strap.
CAUTION: Your heart rate should never exceed 85%
of your maximum aerobic heart rate. Your
maximum heart rate is equal to 220 minus your age.
(Diagram A).
Diagram A
Using a Chest Strap Transmitter
Signals used by the Chest Strap
Transmitter (or heart rate strap)
may interfere with pacemakers or
other implanted devices. Consult
your physician and the
manufacturers of your Chest Strap
Transmitter and implanted device
before using a Chest Strap
Transmitter.
Wearing a chest strap transmitter during your workout
provides steady heart rate information. For the equipment
to detect your heart rate, you must grip the touch heart
rate sensors or wear a chest strap transmitter while
exercising. In the presence of both touch and wireless
data, the touch data takes precedence and will display.
Note:
To receive an accurate reading, the strap needs to
be in direct contact with the skin on the lower sternum
(just below the bust line for women).
To use a chest strap:
1. Carefully dampen the back of the strap with tap water.
Important: Do not use deionized water. It does not
have the proper minerals and salts to conduct
electrical impulses.
2. Adjust the strap and fasten it around your chest. The
strap should feel snug, not restrictive.
3. Make sure that the chest strap is right side up, lies
horizontally across, and is centered in the middle of
your chest.
4. Test the chest strap placement by checking the heart
rate function on the equipment. If a heart rate is
registering, your chest strap placement is correct. If
the equipment does not register a heart rate, readjust
the strap and recheck the heart rate function.
20 25 30 35 40 45 50 55 60 65 70 75
70
80
90
100
120
130
140
150
160
170
180
190
200
110
Heart Rate Target Zones
Yo u r A g e
Your Heart Rate
Peak
Cardio
Warmup
RecommendedCardiovascularZone
RecommendedWeightLossZone
Fatburn
High
Precor Incorporated
20031 142nd Avenue NE
P.O. Box 7202
Woodinville, WA USA 98072-4002
www.precor.com
5.2x HR INFO 300090-141
©2011 Precor Incorporated
WARNING

EFX
®
5.21
EFX
®
5.23



Owner’s Manual: Important Safety Instructions 1
IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
Read the following precautions thoroughly before you
begin assembly, and save them afterward for future
reference.
Important: (240 volt 5.23 model only) If the power cord
attached to your equipment is not compatible with your
local power plug standards, the container should also
include a power cord for your region. You will need to
install this cord in place of the one attached to the
equipment. If you need such a cord and it was not
included with your EFX, please contact your Precor
dealer for the correct Precor power cord. For a list of
authorized Precor dealers in your area, please contact
Customer Support at www.Precor.com.
Safety Precautions
Always follow basic safety precautions when using the
EFX to reduce the chance of injury, fire, or damage. Other
sections in this manual provide more details of safety
features. Be sure to read these sections and observe all
safety notices. These precautions include the following:
• Read all instructions in this guide before installing and
using the equipment and follow any labels on the
equipment.
• Make sure all users see a physician for a complete
physical examination before they begin any fitness
program.
• Il est conseillé de subir un examen médical complet
avant d'entreprendre tout programme d'exercise. Si
vous avez des étourdissements ou des faiblesses,
arrêtez les exercices immédiatement.
• Do not allow children, or people unfamiliar with the
operation of this equipment, on or near it. Do not leave
children unsupervised around the equipment.
• Make sure all users wear proper exercise clothing and
shoes for their workouts and avoid loose or dangling
clothing. Users should not wear shoes with heels or
leather soles, and they should check the soles of their
shoes to remove any dirt and embedded stones. They
should also tie long hair back.
• Never leave the equipment unattended when it is
plugged in. Unplug the equipment from its power
source when it is not in use, before cleaning it, and
before providing authorized service.
Note: The optional power adapter is considered a
power source for self-powered equipment.
• Use the power adapter provided with the equipment.
Plug the power adapter into an appropriate, grounded
power outlet as marked on the equipment.

Owner’s Manual: Important Safety Instructions 2
IMPORTANT SAFETY INSTRUCTIONS
• Care should be taken when mounting or dismounting
the equipment.
• Read, understand, and test the emergency stop
procedures before use.
• Keep the power cord or optional power adapter and
plug away from heated surfaces.
• Route power cables so that they are not walked on,
pinched, or damaged by items placed upon or against
them, including the equipment itself.
• Ensure the equipment has adequate ventilation. Do not
place anything on top of or over the equipment. Do not
use on a cushioned surface that could block the
ventilation opening.
• Assemble and operate the equipment on a solid, level
surface.
• Proper Location for Equipment
• For all equipment other than treadmills: Locate at
least 40 inches (1 meter) away from walls or furniture
on either side of the equipment, and 40 inches (1
meter) away from objects behind the equipment.
• For treadmills: Locate at least 40 inches (1 meter)
away from walls or furniture on either side of the
treadmill, and at least 80 inches (2 meters) away
from objects behind the treadmill.
• Equipment Weight Restriction: Do not exceed the
maximum specified user weight of 250 pounds
(115 kg).
• Keep equipment away from water and moisture. Avoid
dropping anything on or spilling anything inside the
equipment to prevent electric shock or damage to the
electronics.
• Do not operate electrically powered equipment in
damp or wet locations.
• Never operate this equipment if it has a damaged cord
or plug, if it is not working properly, or if it has been
dropped, damaged, or exposed to water. Call for
service immediately if any of these conditions exist.
• Maintain the equipment to keep it in good working
condition, as described in the Maintenance section of
the assembly and maintenance guide. Inspect the
equipment for incorrect, worn, or loose components,
and then correct, replace or tighten prior to use.
• If you plan to move the equipment, obtain help and use
proper lifting techniques. Refer to the "Moving the
Equipment" section of the assembly and maintenance
guide.
• Use the equipment only for its intended purpose as
described in this manual. Do not use accessory
attachments that are not recommended by Precor.
Such attachments may cause injuries.

Owner’s Manual: Important Safety Instructions 3
IMPORTANT SAFETY INSTRUCTIONS
• Do not operate the equipment where aerosol (spray)
products are being used or where oxygen is being
administered.
• Do not use outdoors.
• Do not attempt to service the equipment yourself,
except to follow the maintenance instructions in this
manual.
• Never drop or insert objects into any opening. Keep
hands away from moving parts.
• Do not set anything on the stationary handrails,
handlebars, control console, or covers. Place liquids,
magazines, and books in the appropriate receptacles.
• Do not lean on or pull on the console at any time.
CAUTION: DO NOT remove the cover, or you may risk
injury due to electric shock. Read the assembly and
maintenance guide before operating. There are no
user-serviceable parts inside. Contact Customer
Support if the equipment needs servicing. For use
with single phase AC supply only.
Grounding Instructions
Important: (240 volt 5.23 model only) If the power cord
attached to your equipment is not compatible with your
local power plug standards, the container should also
include a power cord for your region. You will need to
install this cord in place of the one attached to the
equipment. If you need such a cord and it was not
included with your EFX, please contact your Precor
dealer for the correct Precor power cord. For a list of
authorized Precor dealers in your area, please contact
Customer Support at www.Precor.com.
The EFX must be grounded. If the unit malfunctions or
breaks down, grounding provides a path of least
resistance for electric current, which reduces the risk of
electrical shock. The unit is equipped with a power cord
having an equipment-grounding conductor and a
grounding plug. The plug must be inserted into an outlet
that is properly installed and grounded in accordance with
all local codes and ordinances. Failure to properly ground
the EFX could void the Precor Limited Warranty.
Improper connection of the
equipment-grounding conductor can
result in a risk of electric shock. Check
with a qualified electrician or service
person if you are in doubt as to
whether the unit is properly grounded.
Do not modify the plug provided with
the EFX. If it does not fit the outlet,
have a proper outlet installed by a
qualified electrician.
DANGER

Owner’s Manual: Important Safety Instructions 4
IMPORTANT SAFETY INSTRUCTIONS
Hazardous Materials and Proper
Disposal
The batteries within self-powered equipment contain
materials that are considered hazardous to the
environment.
Federal law requires proper disposal of these batteries. If
you plan to dispose of your equipment, contact Precor
Commercial Products Customer Support for information
regarding battery removal. Refer to Obtaining Service.
Product Recycling and Disposal
This equipment must be recycled or discarded according
to applicable local and national regulations.
Product labels, in accordance with European Directive
2002/96/EC concerning waste electrical and electronic
equipment (WEEE), determine the framework for the
return and recycling of used equipment as applicable
throughout the European Union. The WEEE label
indicates that the product is not to be thrown away, but
rather reclaimed upon end of life per this Directive.
In accordance with the European WEEE Directive,
electrical and electronic equipment (EEE) is to be
collected separately and to be reused, recycled, or
recovered at end of life. Users of EEE with the WEEE
label per Annex IV of the WEEE Directive must not
dispose of end of life EEE as unsorted municipal waste,
but use the collection framework available to customers
for the return, recycling, and recovery of WEEE.
Customer participation is important to minimize any
potential effects of EEE on the environment and human
health due to the potential presence of hazardous
substances in EEE. For proper collection and treatment,
refer to Obtaining Service.
