Introduction
The Accent® 800 is a speech-generating device that offers user-friendly features to make speaking fast
and easy for individuals with severe speech impairments. This manual describes how to use and
maintain your device.
To learn about the NuVoice® software that comes with your device, use the Help button to the right
of the text display area when the device is turned on. You can also download the latest versions of the
NuVoice Software Manual and this manual from the PRC web site: www.prentrom.com/support.
Overview of Features
Front View
1
Handle
8
Volume button
2
Microphone
9
Microphone
3
Front camera
10
Battery/charging LED
4
Light sensor
11
Power LED
5
Camera indicator
12
Display screen
6
Power button
13
Tools key
7
Carry strap holders
1
2
3
4
5
13
7
7
7
7
8
9
12
6
10
11

Accent 800 Hardware Manual 6
Back View
1
Handle
9
QRM mounting plate location (plate optional)
2
Mini USB connector for NuPoint®head tracker
(accessible when handle is removed)
10
Replaceable battery (under battery cover)
11
Battery cover screws
3
Attachment point for handle or NuPoint head tracker
12
Headphone jack
4
Rear camera
13
Switch jack B *
5
SD card slot
14
Switch jack A *
6
USB 3.0 port
15
Charging port
7
USB 2.0 ports
16
HDMI port
8
External access mini port
* If you use a switch or switches for access to your device, plug them into switch jacks A and B. To use
a joystick, you will need a Y-adapter. If you have a joystick plugged in and it does not respond
normally, reverse the way it is plugged in (plug switch A into jack B, switch B into jack A).
1
2
3
3
4
9
10
11
11
11
5
6
7
8
12
13
15
16
14
7
11
11
11

Accent 800 Hardware Manual 7

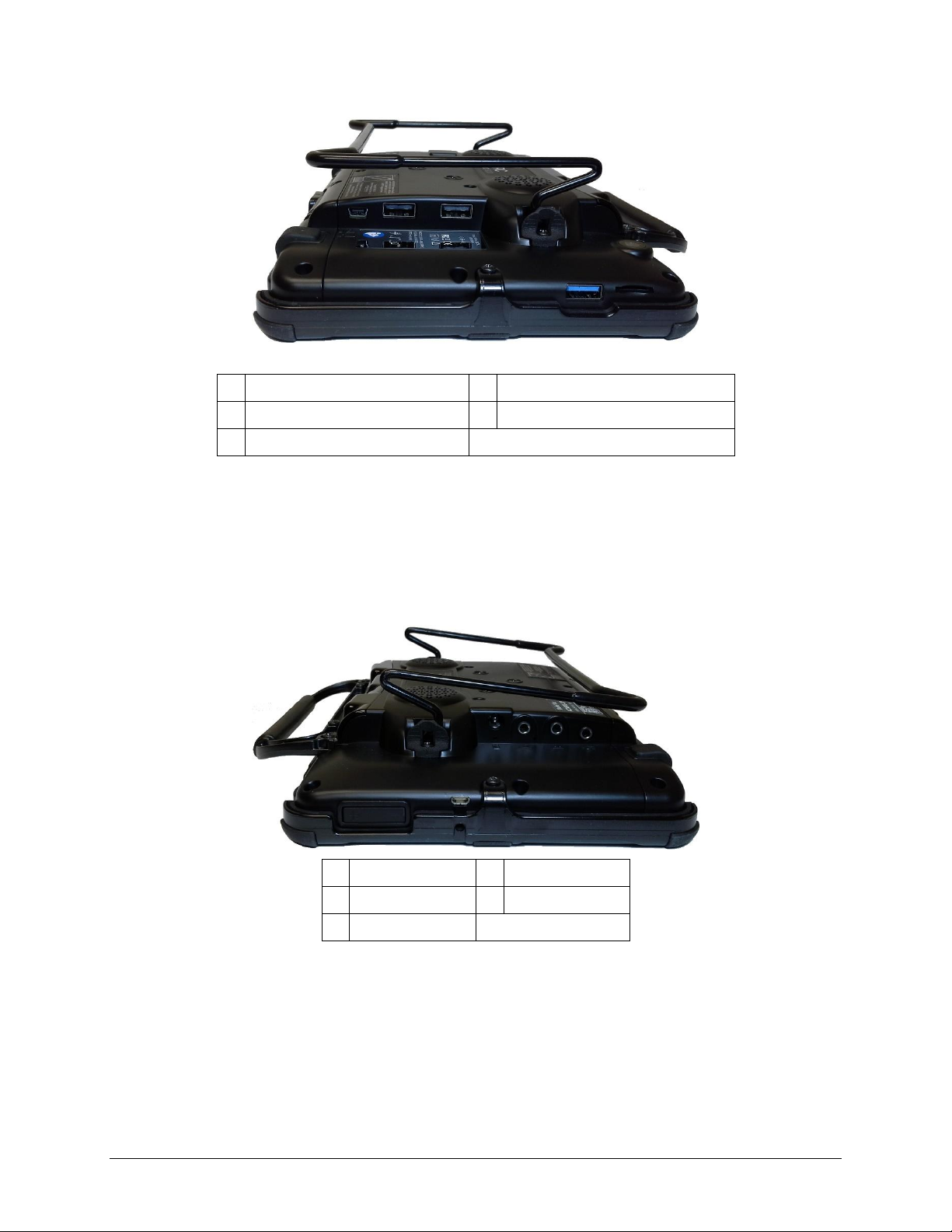

Left Side View
1
External access mini port
4
USB 3.0 port *
2
USB 2.0 port **
5
SD card slot
3
USB 2.0 port **
*The USB 3.0 port supports USB 3.0, USB 2.0, and USB 1.0 accessories.
** The USB 2.0 ports support USB 2.0 and USB 1.0 accessories.
Right Side View
1
Charging port
4
Headphone jack
2
Switch jack A *
5
HDMI port
3
Switch jack B *
* If you use a switch or switches for access to your device, plug them into switch jacks A and B. To use
a joystick, you will need a Y-adapter. If you have a joystick plugged in and it does not respond
normally, reverse the way it is plugged in (plug switch A into jack B, switch B into jack A).
2
3
4
1
5
1
2
3
4
5

Accent 800 Hardware Manual 8
Commonly Used Features
Touch Screen
Important! Do not use sharp, pointed objects on the touch screen. The touch screen is designed to be used
with your finger or the stylus that came with your device. This stylus is made specifically for a capacitive
touch screen. Anything else will harm your touch screen and may cause your device to stop working.
The touch screen is a liquid crystal display (LCD). Should the display break (unlikely except in extreme
circumstances) and you come into contact with the liquid crystal, wash and rinse your skin thoroughly. Be
careful to avoid splintered glass.
For information on cleaning the touch screen, see “Cleaning the Touch Screen” on page 40.
Power Button
When you press the power button, the power LED will
illuminate and the device will open to the NuVoice
software. For detailed information about using this
button, see “Turning the Device On or Off/Putting it to
Sleep” on page 9. For information on changing how the
power button operates, see “Managing Power Settings
from the Advanced Settings Menu” on page 35.
Volume Button
Use the volume button to increase or decrease the
volume. You can also use the volume controls in the
NuVoice software.
To prevent possible hearing damage, do not listen
to earphones at high volume levels for long periods.
Tools Key
On the Device: Press the Tools key twice to open the Toolbox. Alternatively, press the Tools key once to
open a menu of frequently used tools (including the Toolbox).
In the NuVoice Software: Select the Tools key twice to open the Toolbox.
Alternatively, press the Tools key once to open a menu of frequently used tools
(including the Toolbox).
Tools Key
Power Button
Volume Button

Accent 800 Hardware Manual 9
Turning the Device On or Off/Putting it to Sleep
To change the operation of the power button in the NuVoice software, see “Managing Power Settings
from the Advanced Settings Menu” on page 35.
Turning on the Device
1. Press and hold the power button located on the top edge of the device. When you hear a beep,
release the button. The green power LED will illuminate. The LED will remain illuminated while the
device is on and while the device is in sleep mode.
2. Wait for the NuVoice software to load. This will take about 45 seconds.
3. First time only: Review the NuVoice Software Agreement and select I Agree. The Exploration Wizard
will load.
4. Once the Exploration Wizard loads, check the battery status level. For details, see “Charging the
Battery” on page 10.
Putting the Device to Sleep/Waking the Device
When you finish using the device for the day, put it in sleep mode overnight. This allows Windows®
updates to download. To put the device to sleep, do either of the following:
Quickly press and release the power button or
Select the Sleep key in the NuVoice Toolbox
When the device is inactive for a prolonged period, it will go into sleep mode automatically. The green
power LED will remain illuminated while the device is in sleep mode. To wake the device, do either of
the following:
Select the Tools key on the front of the device or
Quickly press and release the power button
Note: The device may wake up if Windows updates are set to install automatically. To preserve the
charge overnight, either connect the charger or power off the device. Transporting the device in a carry
case may also wake it. In that case, power off the device.
Restarting the Device
Recommendation: Restart your device once per week if you don’t normally turn if off at night or every
few days. When the device won’t be used for more than a couple days or when it will be transported in
a carry case, power it off instead (see “Powering Off the Device” below). To restart the device:
1. Select the Tools key and then select the Toolbox key.
2. Select Advanced Settings and then select Power Options.
3. Select Restart and then select Yes at the confirmation prompt.
Powering Off the Device
Recommendation: Power off the device when it won’t be used for more than a couple days or when it
will be transported in a carry case. If you plan to store it for at least a month, see “Storing Your Device”
on page 39.
1. Select the Tools key.
2. Select the Shutdown option.
3. Select Yes at the confirmation prompt.

Accent 800 Hardware Manual 10
Charging the Battery
Important! Always use the battery charger that came with your device. Any other charger may damage the
batteries. If you think your charger needs to be replaced, call the PRC Service Department at 800-262-1990;
outside the U.S., call your distributor. Service can determine if replacement is necessary and direct you to the
correct charger.
How long the battery lasts depends on how you use your device. You may be able to get up to 14 or 15 hours
of use from one charge, or you may use your device so heavily that a charge only lasts about 8 hours.
Check the battery status in the status display area to quickly view the battery’s charge level.
Note: You can also check the Advanced Settings’ Battery Status for battery information.
The time required to fully charge the battery varies depending on the charge level when the charge
begins. When the device needs charging, locate the charging port on the back of the device and connect
the battery charger.
Charging a Dangerously Low or Dead Battery
To fully charge a dangerously low battery will take about 10 hours. If the battery is totally dead, an
additional two hours may be required. Please note that battery status in the status display area will not
show a charge for the first few hours of charging. A battery that is not fully depleted will require less
time to recharge.
Note: If you need to use the device immediately, plug in the battery charger and leave it plugged in
while using the device.
Best Practice
Plug in your battery charger every night when you go to bed and any time you see the low battery
warning and/or see the low battery LED come on.
If you cannot plug in the charger overnight, it is best to power off the device to conserve battery charge.
The Battery/Charging LED
When the device is on and the charger is NOT plugged into the device:
The battery/charging LED is not illuminated.
When the battery has less than 15% (about three hours) of its power remaining, the
battery/charging LED will glow red.
When the device is plugged into the charger:
If the device is on: The battery/charging LED will glow yellow. When the device is fully charged,
the LED will turn green.
If the device is off: The battery/charging LED will glow yellow. When the device is fully charged,
the LED will turn off.

Accent 800 Hardware Manual 11

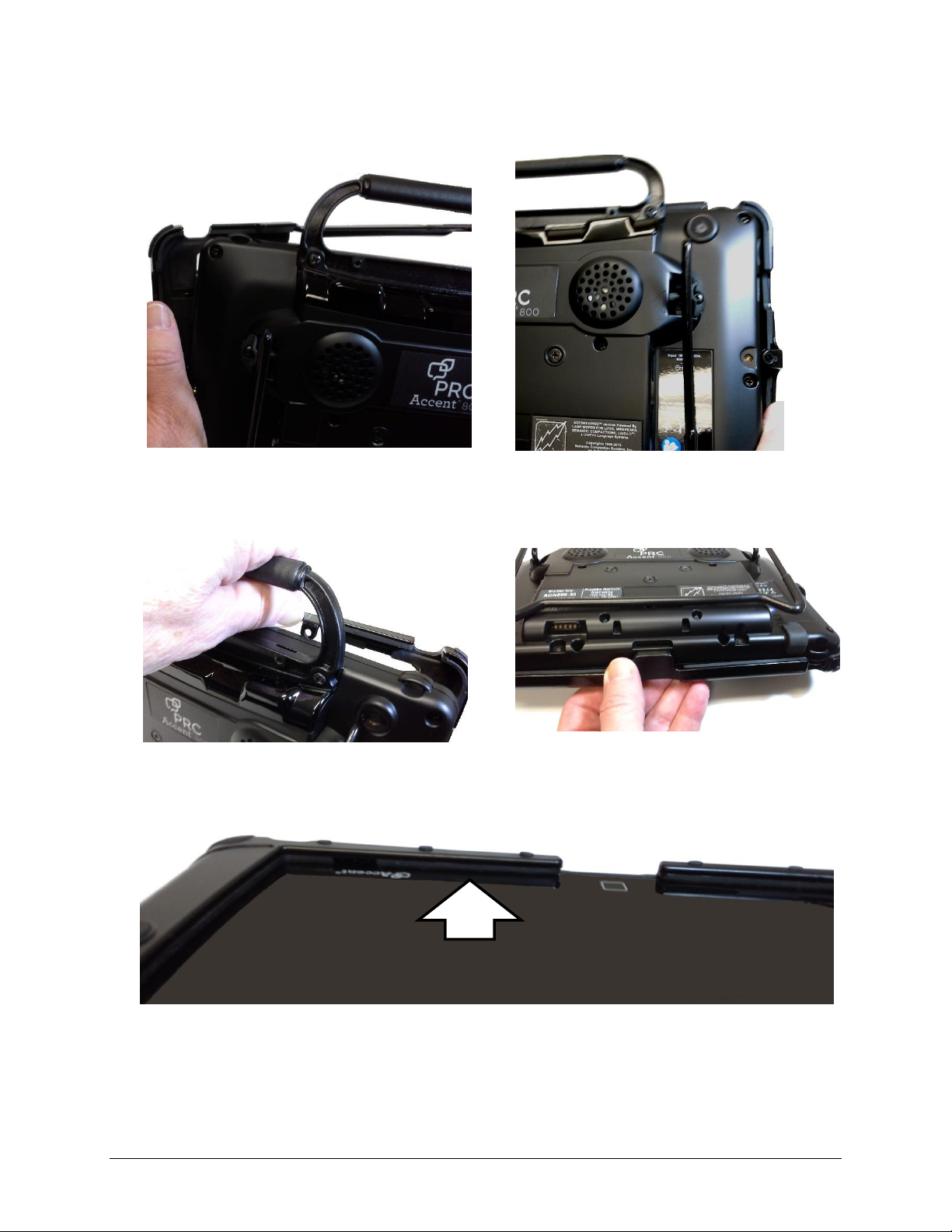

Positioning the Wire Stand
Do not carry the device by the stand. When carrying the device, use the handle or carry strap.
The stand provides two viewing positions. When latched against the back of the device, the stand provides
a slight angle for viewing the screen when the device is sitting on a flat surface. When you need an
additional angle, extend the legs of the stand away from the back of the device by doing the following:
1. Place the device face-down on a flat surface.
2. Rotate the stand away from the back of the device.
3. Allow the stand to latch in the fully extended position.
Stand latched against
the back of the device
Stand latched in the
fully extended position
Removing the Wire Stand
If you do not want to use the stand, you can remove it from the back of the device. You can reattach it
at any time.
1. Place the device face-down on a flat surface.
2. Using a Phillips screwdriver, remove the screws from the holders at the top of each of the stand’s legs.
3. Pull the holders free and put the holders, screws, and washers in a safe place in case you need to
use them later. Alternatively, you can reinsert the screws and washers in the holes in the device.
Loose holders, screws, and washers could be a choking hazard.
4. Spread the legs apart to pull them out of the holes in the back of device.
5. Pull the stand free and put it in a safe place in case you need to use it later.
Important! If you reattach the stand, be sure to secure the legs with the holders to prevent
someone from pulling it loose accidentally.
Screw and
washer
Note: A washer is located under
each screw. Be sure to keep the
washers with the screws.

Accent 800 Hardware Manual 12
Removing or Reattaching the Handle

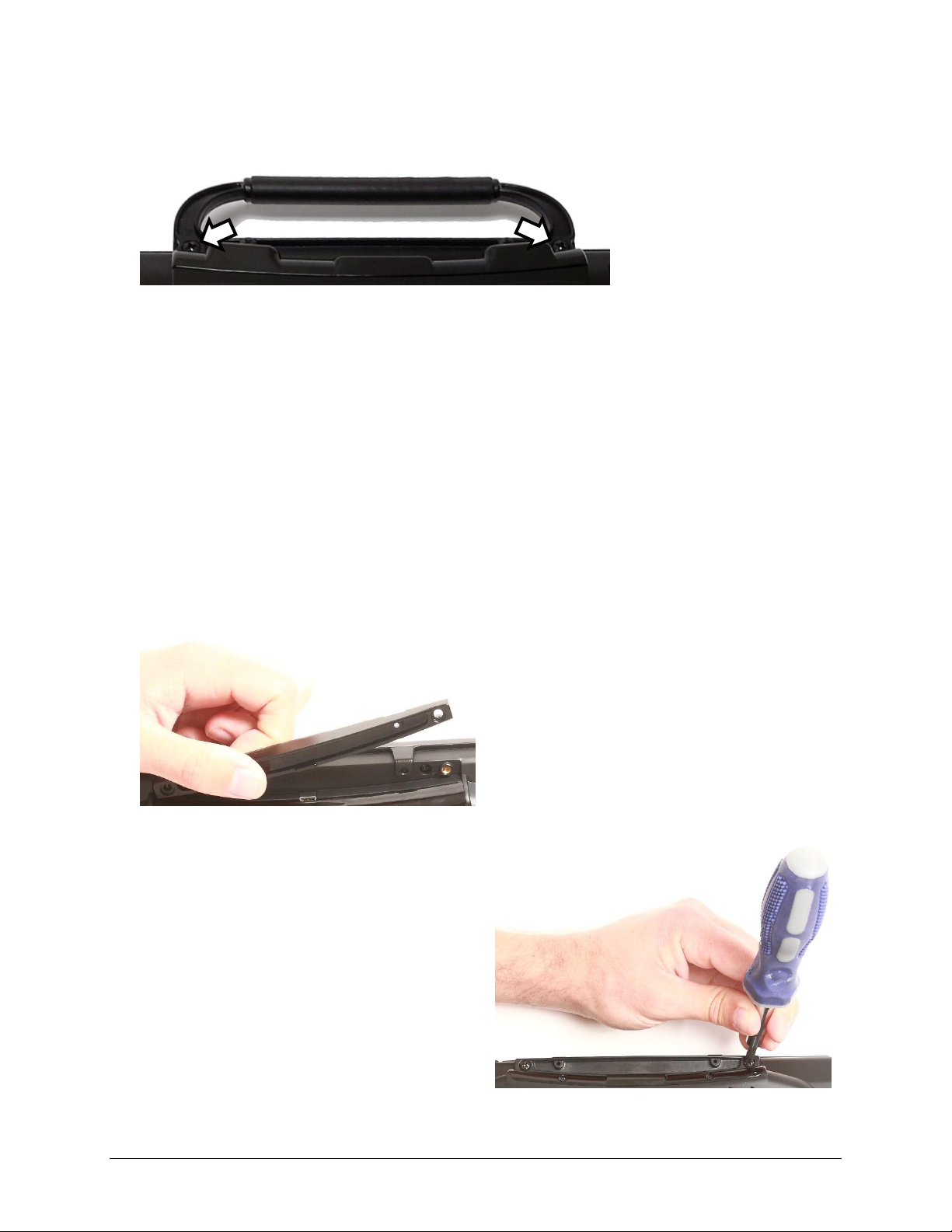

To remove the handle from the device:
1. Using a Phillips screwdriver, remove the two screws that hold the handle in place.
2. Pull the handle away from the device.
3. If you are not going to mount a NuPoint module, it is important to attach the port cover to protect
the mini USB connector. See “Attaching or Removing the Port Cover”below.
To reattach the handle:
Remove the port cover or NuPoint module, line up the holes in the handle with the holes on the back of
the device, and insert the two screws.
Attaching or Removing the Port Cover
If you removed the handle and are not going to mount a NuPoint module, it is important to attach the
port cover to protect the Mini USB Connector on the top of the device.
To attach the port cover to the device:
1. Line up the holes in the cover with the holes on the back of the device.
2. Insert the two screws that previously secured the handle and tighten them using a Phillips screwdriver.
To remove the port cover:
Remove the two screws that hold the port
cover in place. Use the screws to mount a
NuPoint module or to reattach the handle.
Note: Store the port cover where you can
find it if you need to use it again.
Screw
Screw

Accent 800 Hardware Manual 13
Mounting the IR Reflector
Your device emits infrared signals from the IR area on the back of the device. The optional IR reflector
allows the user to better “aim” those signals from any position. If you have the IR reflector, follow these
instructions to attach it to the device.
The IR reflector can be mounted on the device handle, port cover, or NuPoint module, depending on
which is already attached to your device. The reflector kit includes the reflector, two short screws, and
two long screws.

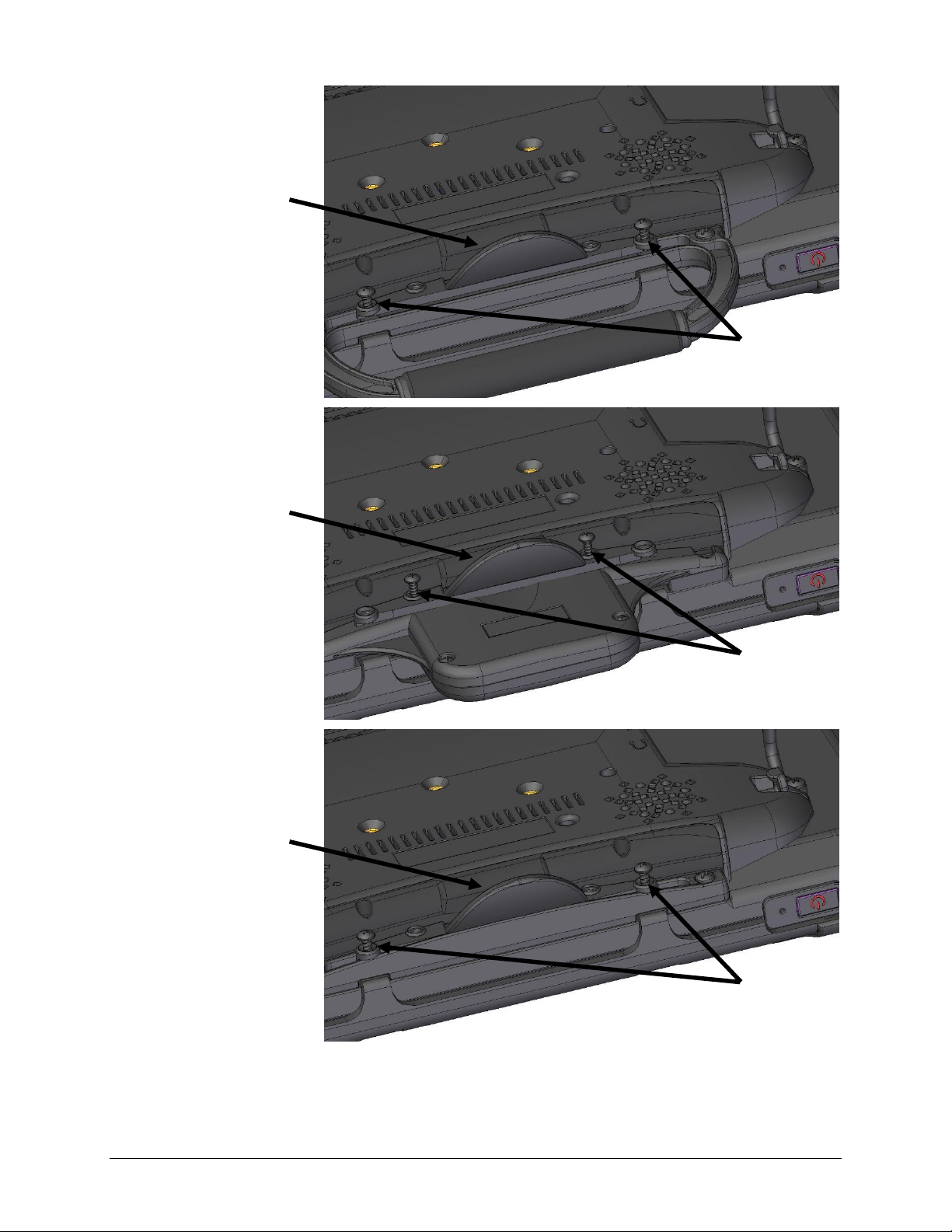

1. Using a Phillips screwdriver, remove the appropriate screws, as shown.
Handle: If the handle is attached to your device and the front device frame is held in place with
screws, remove the top frame screws.
NuPoint Module: If a NuPoint module is attached to your device, remove the two inside screws
from the module.
Port Cover: If a port cover is attached to your device, and the front device frame is held in place with
screws, remove the top frame screws.
2. Align the holes in the reflector with the empty holes in the handle, port cover, or NuPoint module.
Important! Make sure the reflective shield is aimed downward toward the back of the device, as
shown in step 3 on the next page.
Remove these two screws, if present
Remove these two screws, if present
Remove these
two screws

Accent 800 Hardware Manual 14
3. Insert the appropriate screws in the holes, as shown.
4. Tighten the screws.

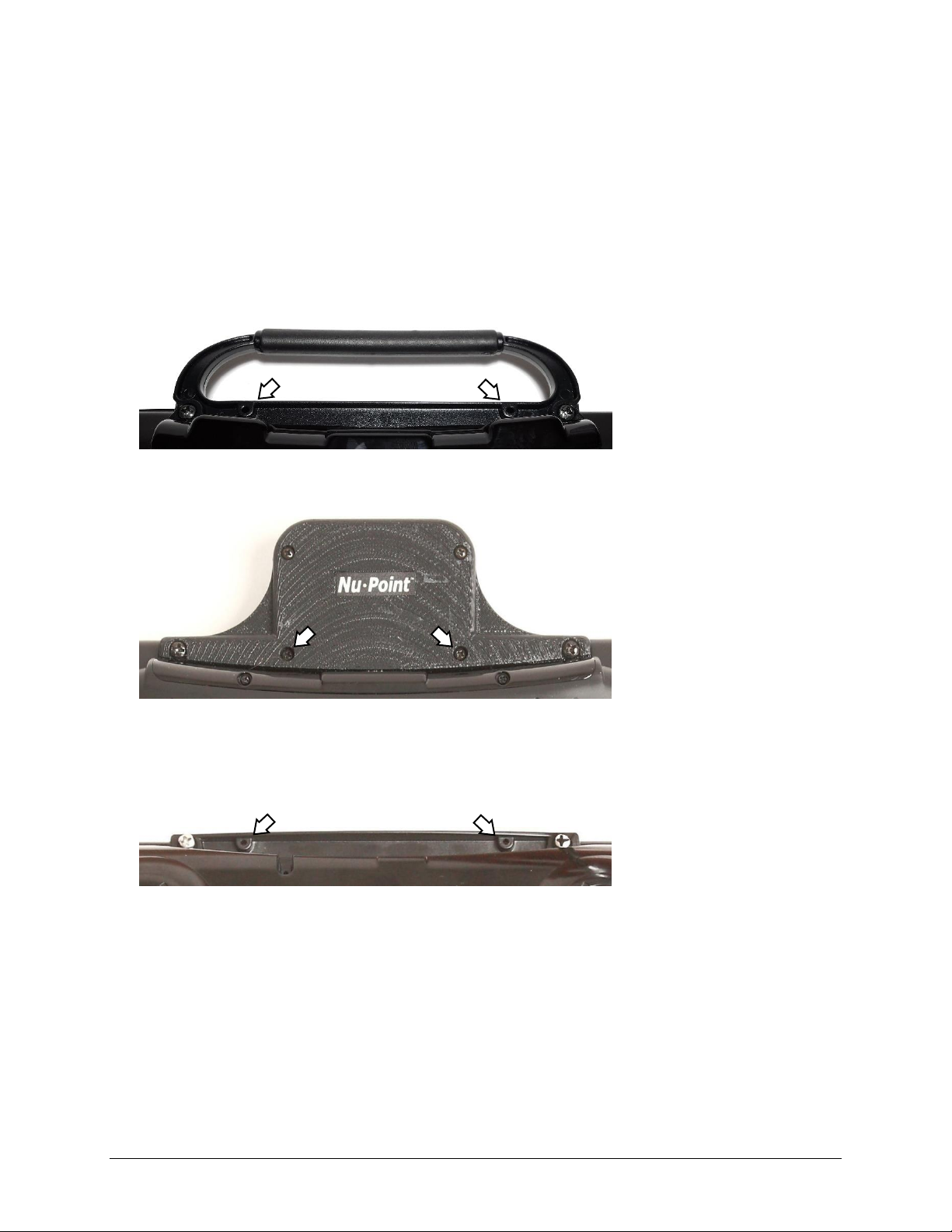

Handle:
NuPoint Module:
Port Cover:
Insert the two
short screws
Insert the two
long screws
Insert the two
short screws
Reflector side
pointing downward
Reflector side
pointing downward
Reflector side
pointing downward

Accent 800 Hardware Manual 15
Applying a Screen Protector
If you plan to use a screen protector, you must first remove the device frame. To remove the frame, see
“Removing or Replacing the Device Frame” on page 16.
There are six screen protectors in the kit. Three have a matte finish and three have a lustre finish. The
matte finish offers the most glare resistance. Matte protectors can be identified by the small red square
on the backing.
1. Turn your device off and lay it flat on a table.
2. Remove dust and fingerprints from the screen using a lint-free cloth dampened with water or flat-
screen TV cleaner.
Hint: Do not dry the screen before applying the screen protector. You may find it easier to smooth
out the protector and remove air bubbles (step 7 below) if the screen is slightly damp.
3. Peel a screen protector from its backing.
4. Hold the protector along the edges, with the side that was against the backing now facing the screen.
5. Align one edge of the protector with one edge of the screen.
6. Press the protector onto the screen, adjusting the protector until it covers the screen along all edges.
7. Use the squeegee included to smooth out the protector and remove air bubbles and wrinkles.
8. Wipe the protector with a lint-free cloth to remove any fingerprints.
Hint: Regularly wipe off the protector with a damp lint-free cloth to remove fingerprints, smudges,
etc. If the protector becomes too dirty, peel it off and replace it with a new protector.

Accent 800 Hardware Manual 16
Removing or Replacing the Device Frame
Your device came with a frame mounted on it. If you need to remove or replace the frame, follow these
instructions.
Removing the Frame

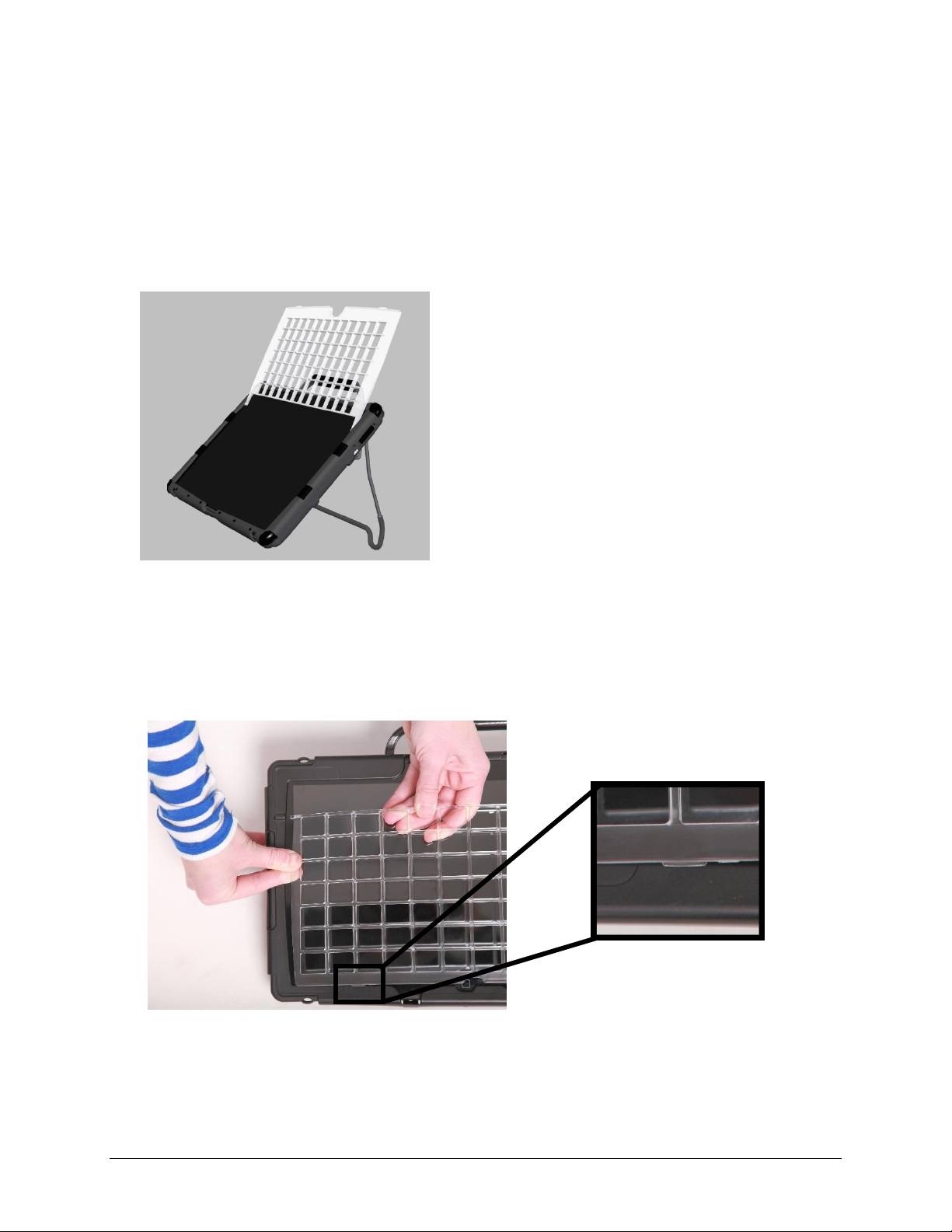

1. If you are using a Keyguard or TouchGuide, remove it from the frame. See “Removing the Keyguard”
on page 20 or “Removing the TouchGuide” on page 21.
2. Using a Phillips screwdriver, remove the four
screws thatsecure theframe tothe device—two on
top and one on each side.
3. Grasp one side of the frame and pull it loose
from the device.
Important! Store these screws in a safe location in
case you later decide to reattach the frame.
Loose screws could be a choking hazard.
Hint: You may want to use a flat-head
screwdriver or similar tool to gently lift
the side and bottom tab on the back of
the device.
4. Grasp the other side of the frame and pull it
loose from the device.
5. Pull the tabs on the top of the frame out of
the slots on the device.
6. Pull the tab on the bottom of the frame out of
the slot on the device.
7. Proceed to the next section, “Attaching the
New Frame”.
Screws
Note: When you pull
the other side loose,
the top or bottom
tabs (steps 5 and 6)
may pull out at the
same time.

Accent 800 Hardware Manual 17
Attaching the New Frame
You must attach the device frame before you can mount a Keyguard or TouchGuide over the screen.
1. Press one side of the frame onto the edge of
the device.
2. Pull the other side into place.
Note: The top tabs and/or bottom tab may snap
into place as you pull on the side.
Note: You can start with either the left side or
the right side.
3. If necessary, pull the top tabs into place.
4. If necessary, pull the bottom tab into place.
5. Look along the inside edge of the frame along the top, bottom, and sides to make sure the rubber
backing didn’t bunch up between the frame and the edge of the device. In this example, the rubber
is bunched up, leaving a gap between the frame and the edge of the device.
If necessary, lift up the inside edge slightly and press until the rubber backing fits smoothly between
the frame and device.
6. To secure the frame to the device with screws, proceed to the next section, “Attaching the Frame
More Securely”.

Accent 800 Hardware Manual 18
Attaching the Frame More Securely
If you do not expect to remove and reattach the frame to the device frequently, you may want to insert
the original screws in the top and side holes of the frame. If you expect to remove and reattach the
frame to the device frequently, you may not want to use the screws.
1. Place the device face-down on a flat surface.
2. Insert the two screws with wood-style threads that you removed earlier (page 16, “Removing the
Frame”, step 2) through the holes in the top of the frame and into the corresponding holes in the
top of the device.
3. Insert the other two screws that you removed earlier through the holes in each side of the frame
and into the corresponding holes in the sides of the device.
4. Tighten all four screws with a Phillips screwdriver.
When the device frame is attached securely:
After you attach the frame securely to the device, you can attach a Keyguard or TouchGuide to the
frame. See “Attaching the Keyguard” on page 19 or “Attaching the TouchGuide” on page 21.
Insert screws with
wood-style threads
Insert screw
Insert screw

Accent 800 Hardware Manual 19
Attaching, Raising, and Removing a Keyguard
Your device came with a frame mounted on it. The Keyguard attaches to the frame. If you removed the
frame, first reattach it, referring to “Removing or Replacing the Device Frame” on page 16.
Attaching the Keyguard
1. Hold the Keyguard over the screen, with the pins toward the top of the screen and the tabs toward
the bottom.
Important! Position the Keyguard so that the tabs are on the bottom. The tabs must be able to lie
flat against the screen, allowing the Keyguard to snap into place.
2. Insert one of the Keyguard pins into the
opening near the top of the device frame.
3. While holding the pin in place, lift upward
with your fingers to bend the middle of the
Keyguard upward slightly. Then insert the
other pin into the opening on the other side
of the device frame.
4. Press down on the bottom portion of the Keyguard to snap the tabs into place.
Note: If the Keyguard tabs at the bottom do not snap into place, make sure that the Keyguard is not
upside-down. (See step 1.)

Accent 800 Hardware Manual 20
Raising the Keyguard
If you need temporary access to the screen—for example, for programming, changing device settings,
cleaning the screen, etc.—you can raise the Keyguard without removing it completely. If you want to
remove the Keyguard from the device completely, see “Removing the Keyguard” below.
1. While holding the bottom edge of the device with one hand, use the thumb of your other hand to
grasp the bottom edge of the Keyguard in the middle.
2. Pull upward to release the bottom tabs.
3. Leaving the pins inserted in the top of the device frame, simply lift the bottom of the Keyguard to
uncover the screen. The Keyguard will remain the upright position, giving you easy access to the screen.
Removing the Keyguard
1. While holding the bottom edge of the device with one hand, use the thumb of your other hand to
grasp the bottom edge of the Keyguard in the middle.
2. Pull upward to release the bottom tabs.
3. Lift upward with your fingers to bend the top-middle portion of the Keyguard upward slightly.
4. Pull the pins out of the openings at the top of the device frame.
Bottom tabs already pulled
loose from the device.
