Prince Castle DCFT-BKNA User manual

Operation
Manual
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR,
-BKCL, -BKEAC, -BKJP
355 EAST KEHOE BLVD. ~ CAROL STREAM, IL, 60188, USA
PHONE: [phone] ~ TOLL FREE: 1-800-PCASTLE
FAX [phone] ~ WWW.PRINCECASTLE.COM
525-299revB-EN 1Printed in USA 03/31 © 2017
Product Identification
TABLE OF CONTENTS
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 4
Management Programming . . . . . . . . . . . . . . . . . . . . .. . . . . 5
Programming Diagram . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 7
Daily Planned Maintenance . . . . . . . . . . . . . . . . . . . . .. . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Exploded View and Parts List . . . . . . . . . . . . . . .. . . . . . . . . 11
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 13
Declaration of Conformity. . . . . . . . . . . . . . . . . .. .. . . . . . . . 14
LCD DISPLAY
UP AND DOWN
SCROLL BUTTONS
PRINCE CASTLE
LOGO BUTTON
MODE BUTTON
INFORMATION
BUTTON
ON/OFF SWITCH
CONTROL PANEL
COMPRESSION
ADJUSTMENT
KNOBS
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 2 years (repair parts) + 2 years (service,
labor) from date of original installation, not to exceed 30 months from
date of shipment from our factory. Any part or component which
proves to be faulty in material and/or workmanship within the
warranty period will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost to the customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this
warranty and all work must be performed by an authorized
Prince Castle Service Agent.
• All labor shall be performed during regular work hours.
Overtime premium will not be covered.
• Travel charges are limited to 100 miles (200 kilometers) round
trip, 2 hours travel time, one trip per repair.
• Damage caused by carelessness, neglect, and/or abuse (e.g.,
using wrong current, dropping, tampering with or altering
electrical components, or improper cleaning) is not covered.
• Equipment damaged in shipment, by fire, flood or an act of
God is not covered.
• Damage to non-stick coated surfaces is not covered by this
warranty.
• Normal maintenance or adjustments including belt tension.

Printed in USA 03/31 © 2017 2525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Installation
Safety Information
WARNING
Indicates information important to the proper operation of the unit.
Failure to observe may result in damage to the equipment and/or
severe bodily injury or death.
CAUTION
Indicates information important to the operation of the unit.
Failure to observe may result in damage to the equipment.
Important
Prince Castle reserves the right to change specifications and
product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements,
additions or replacements for previously purchased
equipment.
Electrical Specifications
200-240V, 50/60 Hz, 2150-3100W Single Phase
General
This appliance is designed for toasting bread products in a
commercial kitchen. The dimensions of the bread product are
defined by customer.
1Unpack and inspect. Remove the unit from the
carton and inspect for signs of damage. If there is
damage to the unit:
• Notify the carrier within 24 hours of delivery.
• Save carton and packaging materials for inspection
purposes.
• Contact your local dealer, or if purchased directly,
the Prince Castle Sales Department at
1-800-722-7853 or 630-462-8800 to arrange for a
replacement unit.
2Verify parts. Verify that all parts have been received:
• Dual Continuous Feed Toaster with two conveyors.
• Bun Splitter
• Ramp
• Release Sheet
3Place toaster on flat surface. Remove blue and/or
white protective covering.
CAUTION
Two person lift, unit weight >100 lbs. (45 kg).
4Remove packing. Remove the cardboard spacer
4 holding the conveyors up for shipping.
CAUTION
Equipment must be elevated from the floor at all times
during cleaning and operation.
5

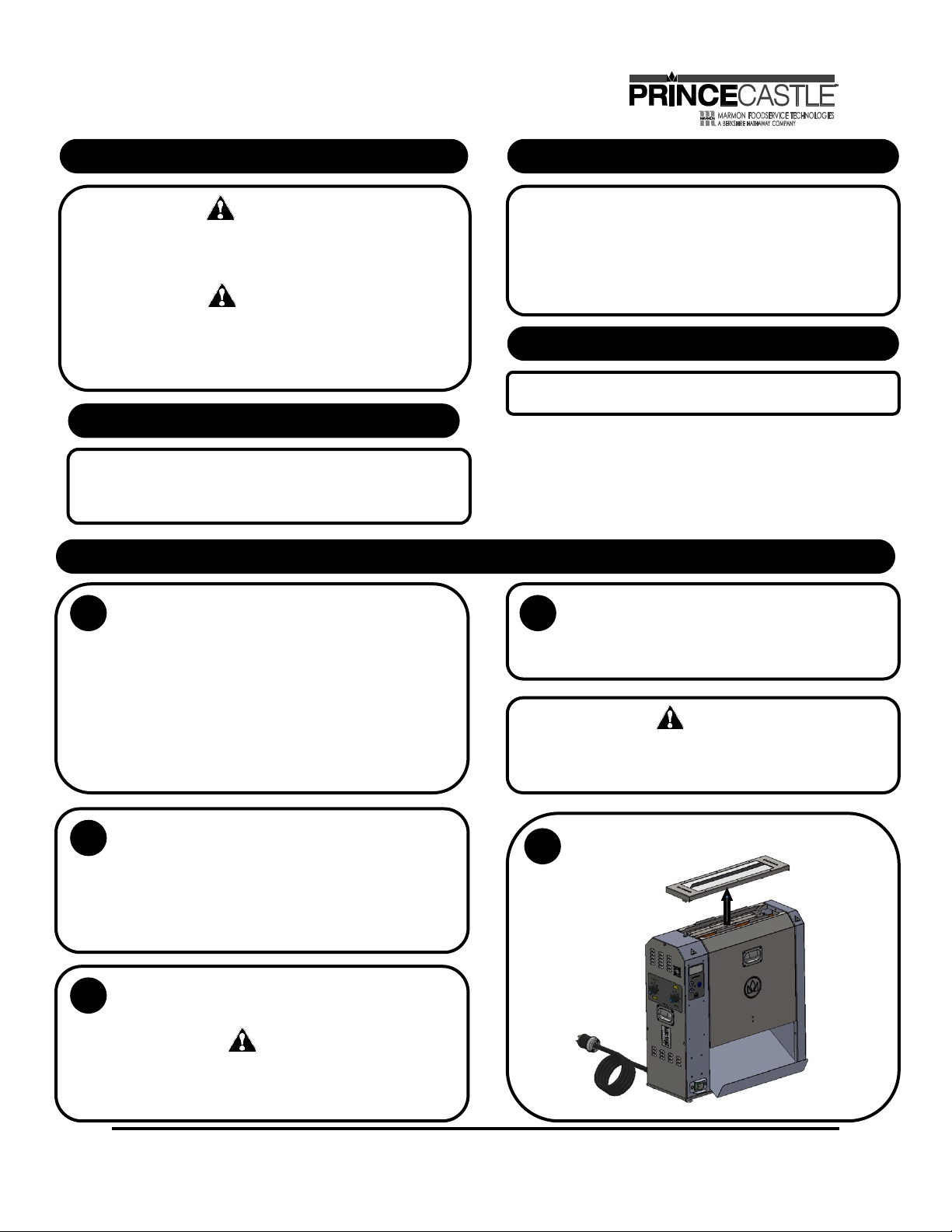

Remove bun infeed by lifting from toaster.

525-299revB-EN 3Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Installaon (connued)
6
• Install release sheet.
Place Teflon® release sheet over the platen.
• Replace bun infeed.
7
Plug unit in. Plug
unit into a grounded
receptacle with a
matching plug
configuration.
All electrical connections must be in accordance
with local electrical codes and any other
applicable codes.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance.
WARNING
8
To prevent an electric shock hazard this device must be
bonded to equipment in close proximity with an equipotential
bonding conductor. This device is equipped with a grounding
lug identified with the symbol shown below for this purpose.

Printed in USA 03/31 © 2017 4525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Operation
Turn unit ON. Turn the
On/Off switch located
below the display
panel to ON. The
Prince Castle DCFT
screen will appear in
the LCD display for
3 seconds.
1
BURN/ELECTRICAL SHOCK HAZARD! Platen
sections are HOT and can cause severe burns or
severe shock. Keep hands and objects out of the
toaster unit! Failure to exercise caution may result
in serious injury! Turn the unit off, unplug it and let
it cool down completely before touching or
working on internal apparatus.
Wait through Warm-
Up. During warm-up,
the LCD display will
read “STATUS” and
“WARMING…”.
Warm-Up time is about
10-15 minutes.
2
3
Watch for READY
status. When ready
temperature is reached,
the LCD display will
read “STATUS” and
“READY”.
WARNING:
View temperature, if
desired. Pressing
the INFORMATION
button once will
display the platen
actual temperature.
Pressing a second
time will return the
LCD display to the
READY screen.
4
Choose the
compression
adjustments. Dial the
front compression
adjustment knob for
the product part
(Regular Crown, etc.)
that you will be toasting
in the front of the unit.
Dial the rear
compression
adjustment knob for
the product part
(Regular Heel, etc.)
that you will be toasting
in the rear of the unit.
5
6
Begin continuous
feeding. Feed
product into top of
DCFT, sending the
correct product parts
down the front and
rear of the unit. The
sides to be toasted
should face the
platen. Toasted
product will exit
at the base of
the DCFT.
STATUS
WARMING...
STATUS
READY
INFORMATION BUTTON
ON/OFF SWITCH
REAR KNOB
FRONT KNOB
STATUS
READY

525-299revB-EN 5Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Choose Toast Time. From
the PROGRAMMING
VERSION screen, press the
DOWN scroll button once.
From the TOAST TIME
screen that appears, press
the MODE button.
A. From the TOAST TIME
screen that appears, use
the UP and DOWN scroll
buttons to select TIME.
(8 to 36 sec.)
B. Accept the new time by
pressing the MODE
button to return to the
TOAST TIME screen.
NOTE: To return without
accepting the new
setting, press the
PRINCE CASTLE logo
button.
Choose Fahrenheit or
Celsius. From the
PROGRAMMING VERSION
screen, press the DOWN
scroll button once. From the
SELECT F/C screen that
appears, press the MODE
button.
A. From the SET F/C
screen that appears, use
the UP and DOWN scroll
buttons to select TEMP =
F (Fahrenheit) or TEMP
= C (Celsius).
B. Accept the new scale by
pressing the MODE
button to return to the
SELECT F/C screen.
NOTE: To return without
accepting the new
setting, press the
PRINCE CASTLE logo
button.
Management Programming
1
2
3
Enter program screens.
Press and hold the PRINCE
CASTLE logo button for 6
seconds. The
PROGRAMMING VERSION
screen will appear in the
LCD display for 10 seconds.
From the PROGRAMMING
VERSION screen, you may:
A. Press the DOWN scroll
button once to adjust toast time.
B. Press the DOWN scroll
button twice to choose
Fahrenheit or Celsius.
C. Press the DOWN scroll
button three times to adjust
temperature.
D. Press the DOWN scroll button four times to
change language.
E. Press the PRINCE CASTLE logo button or leave
the controls inactive for 10 seconds to exit
programming.
STATUS
READY
PRINCE CASTLE LOGO BUTTON
MODE BUTTON
UP/DOWN SCROLL BUTTONS
MODE BUTTON
TOAST
TIME
TOAST TIME
12 SEC
TOAST TIME
12 SEC
MODE BUTTON
MODE BUTTON
SELECT
F/C
SET F/C
TEMP F
SET F/C
TEMP C
UP/DOWN SCROLL BUTTONS

Printed in USA 03/31 © 2017 6525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Management Programming (Continued)
Adjust set point
temperature. From the
SELECT F/C screen, press
the DOWN scroll button.
From the SELECT PLATEN
TEMPERATURE screen,
press the mode button.
A. From the SET PLATEN
screen that appears,
adjust the platen set
point temperature using
the UP and DOWN scroll
buttons.
(300-560 degrees F)
B. Accept the new platen
setting by pressing the
MODE button to return to
the SELECT PLATEN
TEMPERATURE screen.
NOTE: To return without
accepting the new
setting, press the
PRINCE CASTLE logo
button.
5Change language. From
the SELECT PLATEN
TEMPERATURE screen,
press the DOWN scroll
button. From the SELECT
LANGUAGE screen, press
the MODE button.
A. From the LANGUAGE
screen that appears, use
the UP and DOWN scroll
buttons to select a
different language.
B. Accept the new language
by pressing the MODE
button to return to the
SELECT LANGUAGE
screen. NOTE: To return
without accepting the
new setting, press the
PRINCE CASTLE logo
button.
6Exit programming.
Press the PRINCE
CASTLE logo button
from the SELECT F/
C, SELECT PLATEN
TEMPERATURE or
SELECT LANGUAGE
screen or leave the
controls inactive for
10 seconds.
4SELECT PLATEN
TEMPERATURE
SET PLATEN
TEMP = 540F
SET PLATEN
TEMP = 539F
SELECT
LANGUAGE
LANGUAGE
FRENCH
LANGUAGE
ENGLISH
SELECT
F/C
MODE BUTTON
MODE BUTTON
MODE BUTTON
MODE BUTTON
UP/DOWN SCROLL BUTTONS UP/DOWN SCROLL BUTTONS
PRINCE CASTLE LOGO BUTTON
Temperature Factory Presets New Seng
Platen 540 F/283 C
Toast Time 12 sec.

525-299revB-EN 7Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Programming Diagram

Printed in USA 03/31 © 2017 8525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
WARNING:
BURN/ELECTRICAL SHOCK HAZARD! Platen sections are
HOT and can cause severe burns or severe shock. Keep
hands and objects out of the toaster unit! Failure to exer-
cise caution may result in serious injury! Turn the unit off,
unplug it and let it cool down completely before touching
or working on internal apparatus.
WARNING:
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified per-
son to avoid a hazard.
WARNING:
Do not immerse toaster in water. Do not clean with a water
hose or jet spray. Do not use abrasive cleaners, pads or
tools on the platen or the release sheet. Failure to exercise
caution will result in damage to the unit and will not be
covered by warranty. Cleaning and user maintenance shall
not be made by children without supervision.

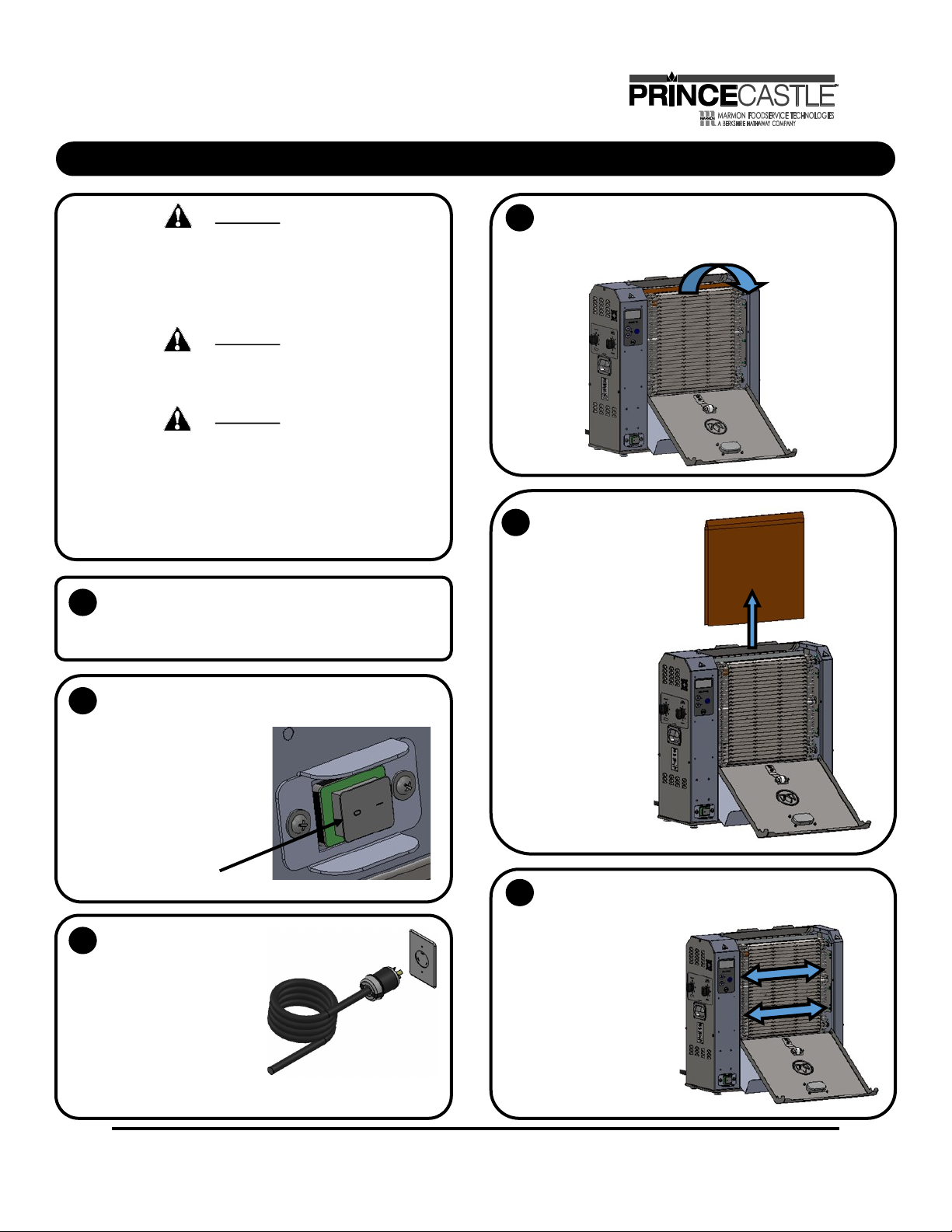

Daily Planned Maintenance
Gather cleaning materials. You will need a clean, damp
cloth, soft bristle brush, neoprene gloves, lukewarm soap
and water, and non-abrasive cleaner.
1
Turn DCFT OFF.
Turn the On/Off switch to OFF.
2
Unplug and let
cool. Allow platen to
cool for 60 minutes
before cleaning. The
plug removed from
the outlet shall
remain clearly
visible to the
operator during the
maintenance procedure.
3
Open doors.
Clean inside of doors with damp cloth.
4
Remove the
release sheet.
Lay the release
sheet on a flat
surface.
5
Clean the
conveyors. Put
on neoprene
gloves. Wipe the
conveyors with a
damp cloth. Use a
soft bristle brush
as necessary.
6
ON/OFF SWITCH

525-299revB-EN 9Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Daily Planned Maintenance (Continued)
7
Clean the release sheet. Dampen a clean cloth
with lukewarm soap and water. Wipe down both
sides of the release sheet, making sure all built-up
sugar is removed. Allow to air dry. NOTE: Rotate
sheets daily for longer life. Depending on volume of
product toasted, sheets should be replaced every
4 to 6 weeks.
Close conveyor doors.
8
9Clean outside of the DCFT. Dampen a clean cloth
with lukewarm soap and water. Wipe down the
outside of the entire DCFT. Wipe down the entire
DCFT again with a fresh clean, sanitized towel. Wipe
down ramp.

Printed in USA 03/31 © 2017 10 525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Belt Maintenance
Maintain proper tension on the conveyor belt to prevent jamming.
Tension should be checked every 3 months.
Observed symptom: Belt skipping, or not rotating.
Solution: Remove belt link.
1
2
Turn off the unit.
TURN OFF AND UNPLUG THE
TOASTER AND LET IT COOL
Measure the rollers for wear.
The top of the unit should line up with the line on
the roller side of the belt tool when the belt tool is
placed on the roller as shown. If the rollers are
worn, replace them using kit 525-332S.
Measure the belt pullout.
Make sure the belt pullout is at least to the line on the belt side of the belt tool, before moving forward.
Otherwise the belt will be too short after removing one link. NOTE: The line on the belt tool assumes
that the rollers are not worn.
6”
6”
Pull out the belt in the
middle of the belt and
take a measurement.

525-299revB-EN 11 Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Belt Maintenance
3
Open the belt.
Use the belt removal tool and the needle nose pliers to open the belt.
Find the master link gap.
This gap is in the middle of
the belt where the master
link connects.
Use the belt tool to open
master link hooks on both
sides of the belt
View of the open hook

Printed in USA 03/31 © 2017 12 525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Belt Maintenance
4
Unhook the hooks using the needle nose pliers. Pullout the master link.

525-299revB-EN 13 Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Belt Maintenance
5
Place one master link through
the belt and under the top
shaft to keep it from falling.
Hang the belt.
Make sure the hooks are facing up

Printed in USA 03/31 © 2017 14 525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Belt Maintenance
6
Cut the bottom link
Cut the bottom wire using
the bolt cutters.
View of the cut wire
Pull out the link
Open the hooks on the
bottom link on both sides
using the belt tool.
Remove the slat

525-299revB-EN 15 Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Belt Maintenance
7
Install the belt
Install the master link.
The belt must be engaged on the bottom sprockets.
Crimp the right hook
Crimp the left hook
Make sure the belt hooks are facing up

Printed in USA 03/31 © 2017 16 525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Troubleshooting
BURN/ELECTRICAL SHOCK HAZARD! Platen is HOT and can cause severe burns or severe shock.
Keep hands and objects out of the toaster unit! Failure to exercise caution may result in serious injury!
Turn the unit off, unplug it and let it cool down completely before touching or working on internal apparatus.
The plug removed from the outlet shall remain clearly visible to the operator during the maintenance procedure.
WARNING
PROBLEM POSSIBLE CAUSE SOLUTION
Unit has no power Unit unplugged Plug unit in.
Breaker tripped Reset breaker.
High limit Call for service (888-375-2938).
Loose connection on power switch Call for service (888-375-2938).
Inoperable power switch Call for service (888-375-2938).
Unit will not heat up Loose connection on platen Call for service (888-375-2938).
Open platen Call for service (888-375-2938).
Loose connection to the main control board Call for service (888-375-2938).
Inoperable main control board Call for service (888-375-2938).
Inoperable SS Relay Call for service (888-375-2938).
Unit heats up, but the conveyor
does not run
Inoperable motor Call for service (888-375-2938).
Stripped drive gear Call for service (888-375-2938).
Stripped conveyor gear Call for service (888-375-2938).
Jammed conveyor assembly Call for service (888-375-2938).
Inoperable drive train Call for service (888-375-2938).
Not toasting properly (under- or
over-done)
Inoperable t-probe Call for service (888-375-2938).
Improper set point Adjust set point in programming (see Management
Programming section).
Improper compression Adjust compression (see Operation section).
Torn or soiled release sheet Clean or replace release sheet.
Bad platen Call for service (888-375-2938).
Jumpy display Improper ground Call for service (888-375-2938).
Blank display Inoperable display Call for service (888-375-2938).
Inoperable main control board Call for service (888-375-2938).
Loose wiring harness Call for service (888-375-2938).
Relay shorted Loose wiring harness Call for service (888-375-2938).

525-299revB-EN 17 Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Exploded View and Parts List
With the exception of maintenance items, such as Teflon sheets, electrical and mechanical parts should be replaced only by a
qualified service representative.
See diagram on next page
No. Part No. Descripon No. Part No. Descripon
165-058S Relay (ss) 23 525-339S Bun Splier
2525-318S Relay (Power) 24 525-340S Door (qty. 2)
3526-221S Knobs (qty. of 2) 25 526-627S Platen
472-446S Power Cord DCFT-BKNA 26 525-342S Overlay
572-458S Power Cord DCFT-BKEU 27 525-343S Membrane Switch
672-469S Power Cord DCFT-BKUK 28 525-344S Handle (qty. 4)
777-092-03S Terminal Block 29 525-345S Cut O Switch
878-233S Switch, Rocker 30 525-138S Chain
985-144-25S Power Supply 31 525-347S Hinge Pins (qty. 8)
10 525-002S Ramp 32 526-021S LCD Display
11 525-004S Release Sheet 33 526-022S Temperature Probe
12 525-328S Drive Train 34 526-023S Fan
13 525-329S Ball Bearings (qty. of 8) 35 525-136S PCB Main Board
14 525-330S Boom Shas (qty. 2) 36 526-281S High Limit Switch
15 525-331S Expansion Plate 37 525-353S Bracket For Control Board
16 525-462S Top Shas (qty. 2) 38 525-354S Motor
17 525-205S Air Shield 39
18 525-334S Side Panel - Support Side 40 525-363S Power Cord DCFT-BKIN
19 525-335S Side Panel - Control Side 41 72-683S Power Cord DCFT-BKCL
20 525-336S Tensioner For Belt (qty. 2) 42 525-358S Power Cord DCFT-BKBR
21 525-337S Belt (qty. 2) 43 525-469S Power Cord DCFT-BKEAC
22 525-338S Tensioner For Chain 44 525-357S Power Cord DCFT-BKJP
45 525-303S Belt Tool (Not Shown)
46 525-364S Single belt (Not Shown)
47 525-397S Guard (Not Shown)
48 525-435S Lube (Not Shown)
49 525-453S Hardware (Not Shown)
50 525-464S Wear strips (Not Shown)

Printed in USA 03/31 © 2017 18 525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Exploded View and Parts List
With the exception of maintenance items, such as Teflon sheets, electrical and mechanical parts should be replaced only by a
qualified service representative.
40
41
42
43
44

525-299revB-EN 19 Printed in USA 03/31 © 2017
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Wiring Diagram

Printed in USA 03/31 © 2017 20 525-299revB-EN
Dual Continuous Feed Toaster
DCFT-BKNA, -BKEU, -BKUK, -BKIN, -BKBR, -BKCL, -BKEAC, -BKJP
Conformity
