Pro-Form 500 Ekg Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Model No. PFEVEL2785.0
Serial No.
QUESTIONS?
As a manufacturer,we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if there are missing
or damaged parts, please call:
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG
UK
email: [email protected]
www.iconeurope.com
Visit our website at
USER’S MANUAL
Serial Number
Decal
08457 089 009

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
IMPORTANT PRECAUTIONS
WARNING:Toreduce the risk of serious injury,read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser.Use the ellipti-
cal exerciser only as described.
2. It is the responsibility of the owner to
ensure that all users of the elliptical exercis-
er are adequately informed of all precau-
tions.
3. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dis-
mount, and use the elliptical exerciser.
4. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
5. Keep children under 12 and pets away from
the elliptical exerciser at all times.
6. The elliptical exerciser should not be used
by persons weighing more than 115 kg (250
lbs.).
7. Wear appropriate exercise clothes when
using the elliptical exerciser. Always wear
athletic shoes for foot protection.
8. Hold the handlebars when mounting, dis-
mounting, or using the elliptical exerciser.
9. Keep your back straight when using the
elliptical exerciser. Do not arch your back.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
11. If you feel pain or dizziness whilst exercis-
ing, stop immediately and cool down.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

3
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM®
500 EKG elliptical exerciser. The 500 EKG elliptical
exerciser is an incredibly smooth exerciser that moves
your feet in a natural elliptical path, minimizing the
impact on your knees and ankles. And the unique 500
EKG features adjustable resistance and a simple-to-
use console to help you get the most from your exer-
cise.
For your benefit, read this manual carefully before
using the elliptical exerciser. If you have questions
after reading this manual, please call the telephone
number on the front cover of this manual. To help us
assist you, please note the product model number
and serial number before calling. The model number
is PFEVEL2785.0. The serial number is found on a
decal attached to the elliptical exerciser (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarise yourself with
the parts that are labeled in the drawing below.
Handlebar
FRONT
BACK
Pedal Arm
Pedal Disk Pedal
Console Pulse Sensor
Fan
Wheel
&
s, Inc.
%
01/20/04
A
209489
R
ADD PART NO. 210125 AND TABLE
1274-10
210125
REVISIONS
DRAWINGS PREVIOUS TO LAST REV. DATE ARE OBSOLETE
DATE
TITLE:TOLERANCESR
BIKES/ELLIP
GYMS
STEPPERS
TREADMILLS
MISC.
X.
.X
.XX
.XXX
ANGLES
+
+
+
+
+
PROJECT/MODEL:
NO. PER UNIT:
DWG. NO.
REV. LEVEL: SCALE:SCALE: SHEET:
A
This drawing and all information thereof is the property of ICON Health and Fitness, Inc. and is
CONFIDENTIAL. This drawing is NOT to be made public or copied. This drawing is LOANED,
subject to return upon demand, and is NOT to be used directly or indirectly in any way detrimental
to the interests of ICON Health and Fitness, Inc.
M
X
DECAL, NON-FREWHL AEROBIC GNRL WRNG
ONE
1-1
PRODUCTSD
100%
REV ECN DESCRIPTION OF CHANGE
209489
A
ELLIP/BIKES NON FREEWHEEL
B
Awarning decal has been placed on the
elliptical exerciser. If the decal is missing or
illegible, call the telephone number on the
front cover of this manual and order a free
replacement decal. Apply the decal in the
location shown.

4
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver , an adjustable
spanner , and a rubber mallet .
Use the chart below to identify the small parts used in assembly. The number in parentheses below each part is
the key number of the part, from the PART LIST on page 14. The number after the parentheses is the quantity
needed for assembly. Note: Some parts may have been preattached for shipping. If a part is not in the
parts bag, check to see if it has been preattached.
Pedal Arm Bolt
Set (40)–2 M10 x 25mm
Patch Screw (22)–2
M8 x 53mm Button Bolt (34)–4
M6 x 38mm Button Bolt (50)–4
M8
Washer (48)–4
M8 Split
Washer (59)–4
M6 Nylon
Locknut (27)–4 Wave Washer
(9)–2
M8 Nylon
Locknut (38)–4
M6 x 48mm Flat Head
Screw (36)–4 M8 x 19mm Button
Screw (68)–4
M4 x 20mm
Screw (43)–4
M10 Washer
(35)–2
1. Identify the Front Stabiliser (10). Whilst another person
lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M8 x 53mm Button
Bolts (34), two M8 Washers (48), and two M8 Nylon
Locknuts (38).
10
38
34
1
48
48
1

5
2. Whilst another person lifts the back of the Frame (1),
attach the Rear Stabiliser (28) to the Frame with two
M8x53mm Button Bolts (34), two M8 Washers (48),
and two M8 Nylon Locknuts (38).
34
28
48
48
1
2
38
3. The Console (23) requires four 1.5V “D” batteries;
alkaline batteries are recommended. Remove the
screw from the battery drawer, pull the battery drawer
open, and insert four batteries. Make sure that the
batteries are oriented as shown by the markings
inside the battery drawer. Close the battery drawer
and reattach the screw.
4. Have another person hold the Console (23) in the
position shown. Connect the console wire to the Upper
Wire (44). Next, insert the excess wire down into the
Upright (2).
Attach the Console (23) to the Upright (2) with four M4
x20mm Screws (43). Be careful to avoid pinching
the wires.
3
23
23
4
Batteries
Screw
43 2
Console Wire
44

6
50
27
6. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Arms (5); make sure that the Handlebar
Arm is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Arm with two M6 x 38mm Button Bolts (50)
and two M6 Nylon Locknuts (27). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Apply a small amount of the included grease to the left
axle on the Upright (2).
Make sure that there are two Small Handlebar
Bushings (49) in the Left Handlebar (6). Slide a
Handlebar Spacer (47) and the Left Handlebar onto the
left axle on the Upright (2) as shown. Make sure that the
Handlebar Spacer is turned so the curved side is fac-
ing the Upright. Tap an Axle Cap (14) onto the axle.
Repeat this step to assemble the Right Handlebar (8)
and the other Handlebar Arm (5).
Grease
6
47
14
49
5
2
5
68
Hexagonal
Holes
5
1
2
68 68Make sure that
the wires do
not get pinched
and damaged
during this
step.
44
53
68
59
59
59
5. Whilst another person holds the Upright (2) near the
Frame (1), connect the Upper Wire (44) to the Sensor
Wire (53).
Push the excess wire down into the Frame (1). Slide
the Upright (2) onto the Frame. Becareful to avoid
pinching the wires. Attach the Upright with four M8 x
19mm Button Screws (68) and four M8 Split Washers
(59). Do not tighten the Button Screws yet.

7
9. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the ellip-
tical exerciser.
8. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide the Left Pedal Arm (11) and a
Wave Washer (9) onto the axle. Next, slide an M10
Washer (35) onto an M10 x 25mm Patch Screw (22),
and tighten the Patch Screw into the axle.
Next, hold the lower end of the left Handlebar Arm (5)
inside of the bracket on the Left Pedal Arm (11). Apply
grease to a Pedal Arm Bolt Set (40). Attach the Left
Pedal Arm to the left Handlebar Arm with the Bolt Set.
Do not overtighten the Bolt Set; the Handlebar Arm
must pivot freely.
Attach the Right Pedal Arm (12) to the right side of the
elliptical exerciser in the same way.
See step 5. Tighten the M8 x 19mm Button Screws (68)
in the Upright (2).
See step 6. Tighten the M8 x 38mm Button Bolts (50)
in the Handlebar Arms (5).
Grease
22 35
11
12
5
8
40
40
9
736
11
13

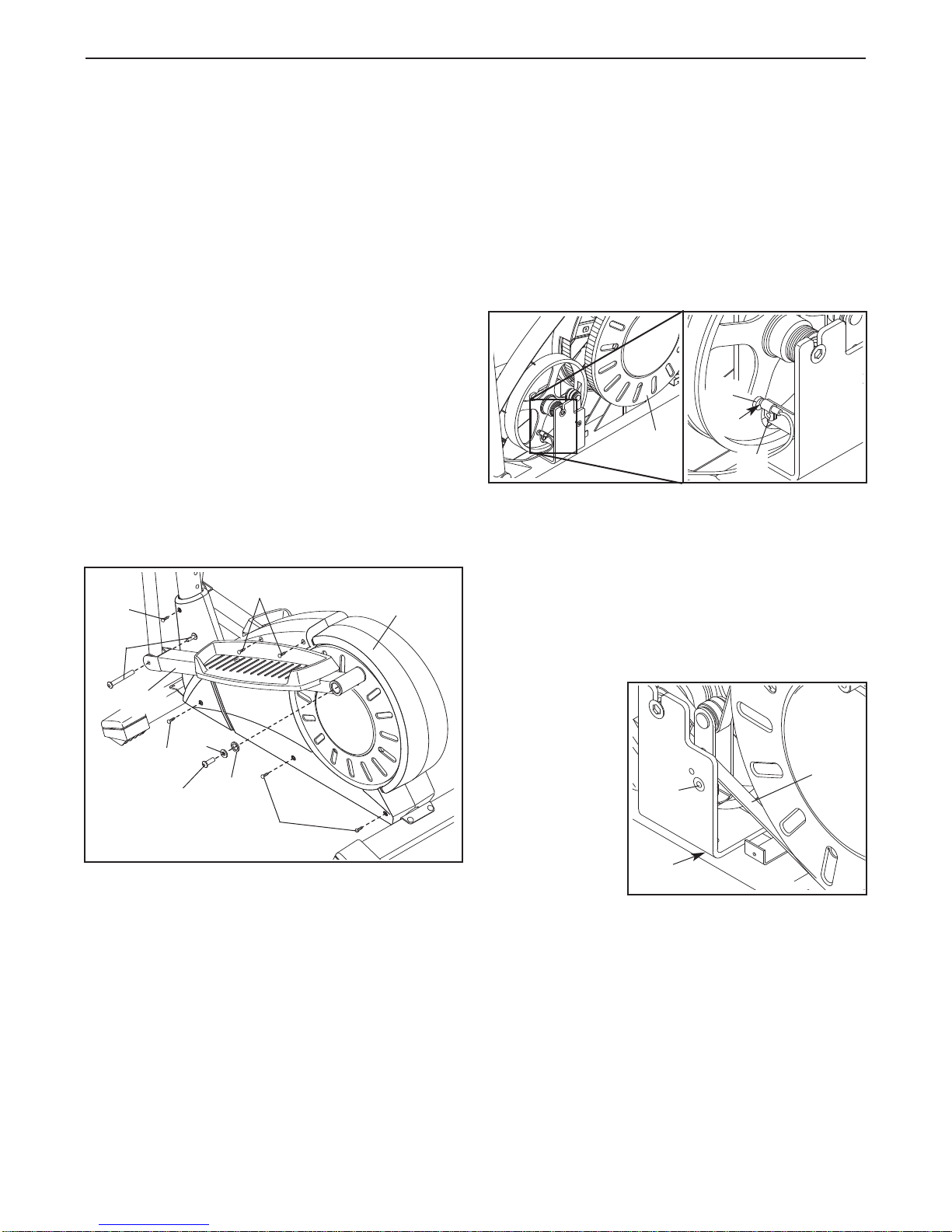

7. Identify the Left Pedal Arm (11). Attach a Pedal (13) to
the Left Pedal Arm with two M6 x 48mm Flat Head
Screws (36) as shown.
Attach the other Pedal to the Right Pedal Arm (not
shown) in the same way.
Grease
16

8
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedal disks can turn in either direction. It is
recommended that you move the pedal disks in
the direction shown by the arrow; however, for
variety, you may turn the pedal disks in the oppo-
site direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step offthe lowest pedal.
Pedal Disk
Pedal
Handlebars

9
The easy-to-use console offers a selection of features
designed to help you get the most from your workouts.
Follow the instructions below to operate the console.
Turn on the console.
Note: The console requires four 1.5V “D” batteries.
See assembly step 3 on page 5 for battery instal-
lation instructions.
Toturn on the console, press the On/Reset button
(see the drawing above to identify the On/Reset
button). Note: Moving the pedals is another way to
turn on the console.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the ped-
als by pressing the + and – buttons below the
large display. There are ten resistance levels—
level 10 is the most challenging. Note: After the
buttons are pressed, it will take a few seconds for
the resistance to reach the selected setting.
Follow your progress with the small display
and the large display.
The small display will
show your pedaling pace,
in revolutions per minute
(RPM). The indicator bar
in the small display will
increase or decrease in
length as you increase or
decrease your pedaling
pace. Note: When you
use the handgrip pulse
sensor,the small display will show your heart
rate (see step 4 on page 10).
The upper sec-
tion of the large
display will
show the dis-
tance you have
pedaled and the
numbers of
calories and fat calories you have
burned (see FAT BURNING on page 13 for an
explanation of fat calories). The display will
change from one number to the next every few
seconds.
3
2
1
ELPE2785
Display Buttons
Fan Button
On/Reset Button
Resistance Buttons
HOW TO OPERATE THE CONSOLE
Indicator Bar

10
To view only the distance
you have pedaled or the
number of calories or fat
calories you have burned,
press the upper button on
the left side of the large
display until only the word
DISTANCE, CALORIES,
or FAT CALS appears in the upper section of the
large display; make sure that the word SCAN
does not appear. To again view the distance you
have pedaled and the numbers of calories and fat
calories you have burned, press the upper button
until the word SCAN reappears.
The centre of
the large dis-
play will show
the elapsed time
and your current
pace (pace is
shown in minutes per mile in this section of the
large display). The display will change from one
number to the other every few seconds.
To view only the elapsed
time or your pace, press
the centre button on the
left side of the large dis-
play until only the word
TIME or PACE appears;
make sure that the word
SCAN does not appear.To
again view both the elapsed time and your pace,
press the centre button until the word SCAN
reappears.
The lower sec-
tion of the large
display will show
your pedaling
speed and the
resistance level.
The display will change from one number to the
other every few seconds.
Toview only your pedaling
speed or the resistance
level, press the lower but-
ton on the left side of the
large display until only the
word SPEED or RESIS-
TANCE appears; make
sure that the word SCAN does not appear. To
again view both your pedaling speed and the
resistance level, press the lower button until the
word SCAN reappears.
To reset the displays, press the On/Reset button.
Note: The con-
sole can show
speed and dis-
tance in either
miles or kilome-
ters. The letters
MPH or KM/H will appear in the lower section of
the large display to show which unit of measure-
ment is selected. To change the unit of measure-
ment, hold down the On/Reset button for about six
seconds. Note: When the button is held down, the
fan will turn on for a moment. When the batteries
are replaced, it may be necessary to reselect the
desired unit of measurement.
Measure your heart rate if desired.
If there are thin
sheets of plas-
tic on the metal
contacts on the
handgrips, peel
off the plastic.
Touse the hand-
grip pulse sen-
sor, hold the
handgrips with
your palms resting against the metal contacts.
Avoid moving your hands.
When your pulse is
detected, the heart-
shaped indicator in the
small display will flash
each time your heart
beats. After a moment,
two dashes (– –) will
appear and then your
heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds.
4
ELPE2785
ELPE2785
ELPE2785
Upper Button
ELPE2785
Centre Button
ELPE2785
Lower Button
ELPE2785
Metal
Contacts

11
Turn on the fan if desired.
To turn on the
fan at low
speed, press
the fan button.
To turn on the
fan at high
speed, press
the fan button a
second time. To
turn off the fan, press the fan button a third time.
Note: If the fan is turned on and the pedals are
not moved for about half a minute, the fan will
turn off to conserve the batteries.
Rotate the thumb wheel on the right side of the
console to pivot the fan to the desired angle.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds,
the displays will pause and the time will flash in
the large display.
If the pedals are not moved and the console but-
tons are not pressed for a few minutes, the con-
sole will turn off to conserve the batteries.
6
5
Thumb
Wheel
Fan
Button

12
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
asmall amount of mild soap. Important: Keep liq-
uids away from the console, place only a sealed
water bottle in the water bottle holder, and keep
the console out of direct sunlight. During storage,
remove the batteries from the console.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 3 on page 5.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. Toadjust the reed
switch, you must remove the Left Pedal Arm (11) and
the Left Side Shield (3).
Remove the Pedal Arm Bolt Set (40), the M10 x
25mm Patch Screw (22), the M10 Washer (35), and
the Wave Washer (9) from the Left Pedal Arm (11).
Remove the Left Pedal Arm. Next, remove the two M4
x25mm Screws (56) and the four M4 x 16mm Screws
(42) from the Left Side Shield (3).
See the drawing below and locate the Reed Switch
(53). Loosen, but do not remove, the indicated M4 x
16mm Screw (42). Slide the Reed Switch slightly
toward or away from the Magnet (58) on the flywheel,
and then retighten the Screw. Turn the left Pedal Disc
(15) for a moment. Repeat until the console displays
correct feedback. When the Reed Switch is correctly
adjusted, reattach the Left Side Shield (3) and the Left
Pedal Arm (11).
HOW TO ADJUST THE DRIVE BELT
If the pedals slip whilst you are pedaling, even when
the resistance is adjusted to the highest setting, the
Drive Belt (19) may need to be adjusted. To adjust the
Drive Belt, you must first remove the left side shield.
See HOW TO ADJUST THE REED SWITCH at the
left and remove the left side shield.
Next, loosen the
M8 x 22mm Flat
Head Screw
(41) and turn
the M10 x
60mm Button
Bolt (62) until
the Drive Belt
(19) is tight.
When the Drive
Belt is tight,
retighten the
Flat Head
Screw.Then, reattach the left side shield.
MAINTENANCE AND TROUBLESHOOTING
42 56
42
42
22
35
3
40
15
41
62
19
9
11
58
53
42

13
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your “training zone.”
The lowest number is the recommended heart rate for
fat burning, the middle number is the recommended
heart rate for maximum fat burning, and the highest
number is the recommended heart rate for aerobic
exercise.
Fat Burning
Toburn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
Ifyour goal is to burn fat, adjust the intensity of your
exercise until your heart rate is between the lowest
number and the middle number in your training zone
as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
Awarm-up,consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise,consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exer-
cise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down,with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exer-
cise a regular and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of
35 or persons with pre-existing health prob-
lems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

14
Note: # indicates a non-illustrated part. Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEVEL2785.0 R0506A
1 1 Frame
21 Upright
3 1 Left Side Shield
41 Right Side Shield
5 2 Handlebar Arm
6 1 Left Handlebar
7 1 Idler Assembly
8 1 Right Handlebar
9 2 Wave Washer
10 1 Front Stabiliser
11 1 Left Pedal Arm
12 1 Right Pedal Arm
13 2 Pedal
14 2 Axle Cap
15 2 Pedal Disc
16 2 Disc Crossbar
17 1 Flywheel
18 1 “C”-magnet
19 1 Drive Belt
20 2 M6 x 16mm Bolt
21 4 Endcap
22 2 M10 x 25mm Patch Screw
23 1 Console
24 2 Handgrip
25 2 Long Pedal Arm Bushing
26 1 Resistance Bracket
27 8 M6 Nylon Locknut
28 1 Rear Stabiliser
29 2 Flywheel Bearing
30 2 Large Snap Ring
31 2 Large Bearing
32 1 Pedal Axle
33 1 M10 Nylon Locknut
34 4 M8 x 53mm Button Bolt
35 2 M10 Washer
36 4 M6 x 48mm Flat Head Screw
37 2 Pedal Arm Bushing
38 6 M8 Nylon Locknut
39 2 Flywheel Washer
40 2 Pedal Arm Bolt Set
41 1 M8 x 22mm Flat Head Screw
42 10 M4 x 16mm Screw
43 4 M4 x 20mm Screw
44 1 Upper Wire
45 4 Motor Washer
46 2 Handlebar Cap
47 2 Handlebar Spacer
48 4 M8 Washer
49 4 Small Handlebar Bushing
50 4 M6 x 38mm Button Bolt
51 8 M6 x 35mm Button Screw
52 1 Spring
53 1 Reed Switch/Sensor Wire
54 1 Cable Clamp
55 1 Resistance Motor
56 2 M4 x 25mm Screw
57 1 M10 Flat Head Bolt
58 1 Magnet
59 4 M8 Split Washer
60 4 Large Handlebar Bushing
61 2 5/16” x 25.4mm Hex Bolt
62 1 M10 x 60mm Button Bolt
63 4 Motor Screw
64 1 M6 Nut
65 2 M6 x 40mm Bolt
66 1 Resistance Cable Assembly
67 1 M6 x 38mm Bolt
68 4 M8 x 19mm Button Screw
69 2 Wheel
70 1 Return Spring
# 3 Hex Key
# 1 Grease
#1User’s Manual

EXPLODED DRAWING—Model No. PFEVEL2785.0 R0506A
15
24
8
4
3
42
42
5
47
23
44
24
6
47
5
60
68
17
21
34
57
10
39
12 35
37
51
15
19
16
61
61
16
62
1
30 3132
38
38
51
51 15
13
37
35
11
40
40
20
7
59
59
58
27
50
50
27
60
60
2
49
49
49 49
42
42
42
42
42
21
60
51
51
41
54
42
53
38
25
25
40
40 13
28
21
21
38
34
30
31
55
46
46
14
14
36
36
29
29
22
22
56
39
33
20
26
27
38 18
64
67
52
27
69
69
65
27
65
27
43
68
59
68
48
48
48
63
66
45
9
9
70

Part No. 229476 R0506A Printed in China © 2006 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4, Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
Tel:
Outside the UK: 0 (044) 113 387 7133
Fax: [phone]
Tohelp us assist you, please be prepared to give the following information:
•the MODEL NUMBER of the product (PFEVEL2785.0)
•the NAME of the product (PROFORM 500 EKG elliptical exerciser)
•the SERIAL NUMBER of the product (see the front cover of this manual)
•the KEY NUMBER and DESCRIPTION of the part(s) (see page 14)
08457 089 009
PROFORM is a registered trademark of ICON IP, Inc.
