Pro-Form CADENCE LE User manual

Serial
Number
Decal
Model No. PFEL62919.0
Serial No.
Write the serial number in the space
above for reference.
proform.com
USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
To register your product and
activate your warranty today,
go to my.proform.com.
For service at any time, go to
support.proform.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The
Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS
is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL ..............................................................16
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
MAINTENANCE AND TROUBLESHOOTING ....................................................25
EXERCISE GUIDELINES ....................................................................27
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

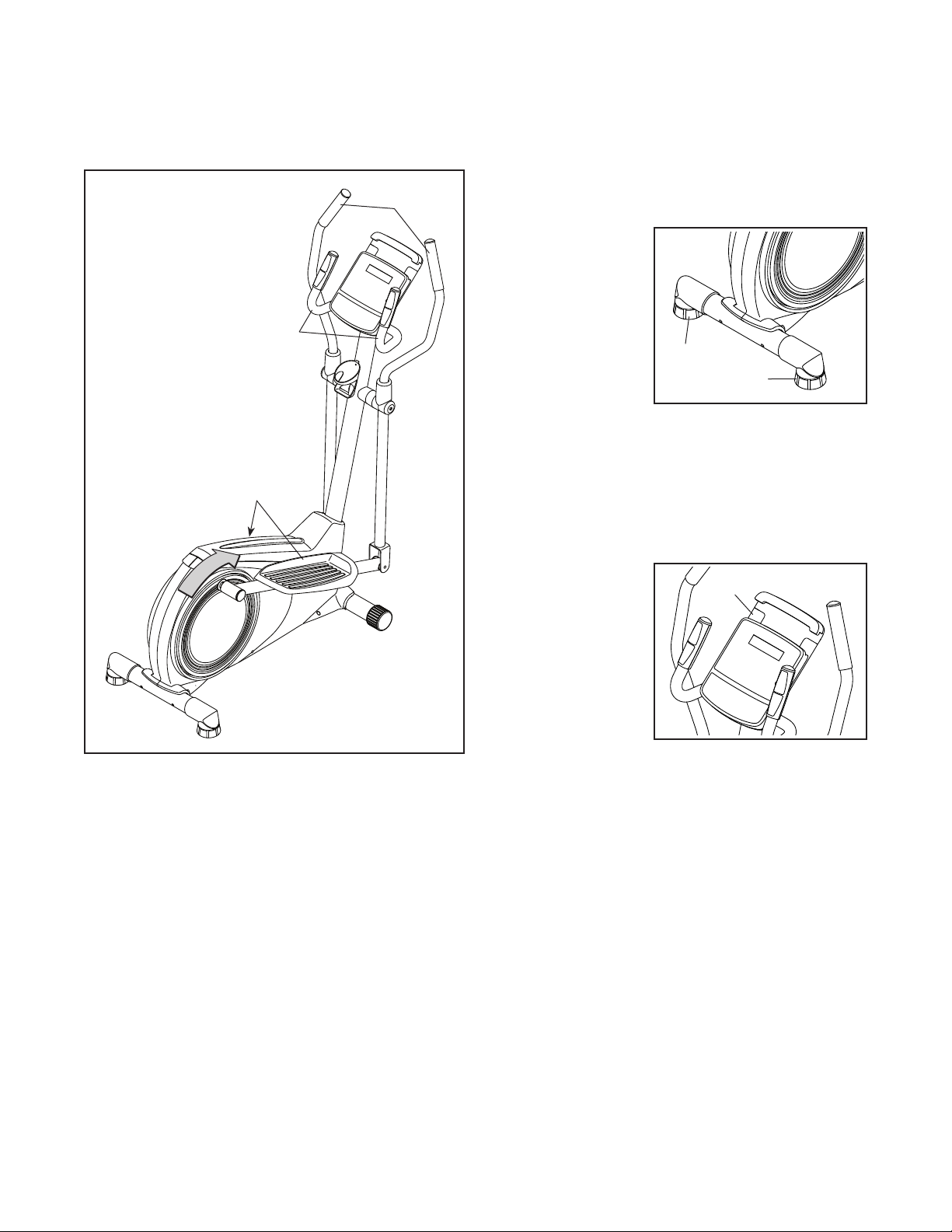

This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 16 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the
elliptical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
all
STANDARD SERVICE PLANS

5
Heart Rate Monitor Upper Body Arm
Tablet Holder
Pedal Disc
*Water bottle is not included
Pedal
Wheel
Console
Water Bottle Holder*
Thank you for selecting the new PROFORM®
CADENCE LE elliptical. The CADENCE LE elliptical
provides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Leveling Foot
Handlebar
BEFORE YOU BEGIN
Length: 4 ft. 6 in. (137 cm)
Width: 2 ft. 2 in. (66 cm)

6

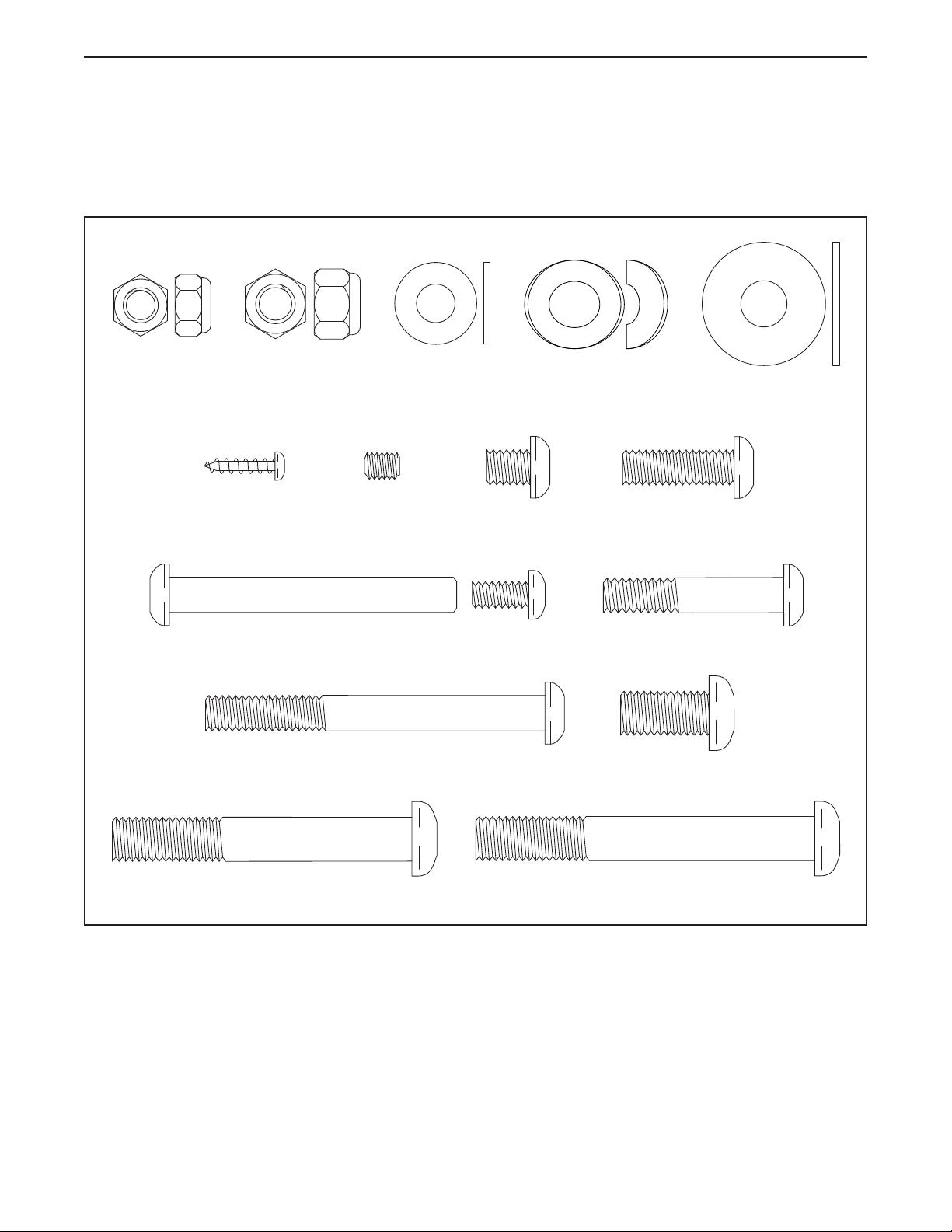

M8 x 77mm Bolt (79)–2 M10 x 20mm
Screw (40)–6
M6 Bolt Set (25)–2 M8 x 41mm Bolt (50)–6
M10 x 68mm Screw (34)–4 M10 x 77mm Bolt (7)–1
M10 Locknut
(33)–1
M8 Jam Nut
(38)–8 M10 x 28mm
Washer (83)–2
M8 Washer
(55)–2 M10 Curved
Washer (88)–1
M8 x 10mm
Screw (27)–6
M8 x 25mm
Screw (56)–2
M4 x 16mm
Screw (52)–6
M6 x 8mm
Set Screw
(89)–2
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled.

7
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left and right parts are marked “L” or “Left” and
“R” or “Right.”
• To identify small parts, see page 6.

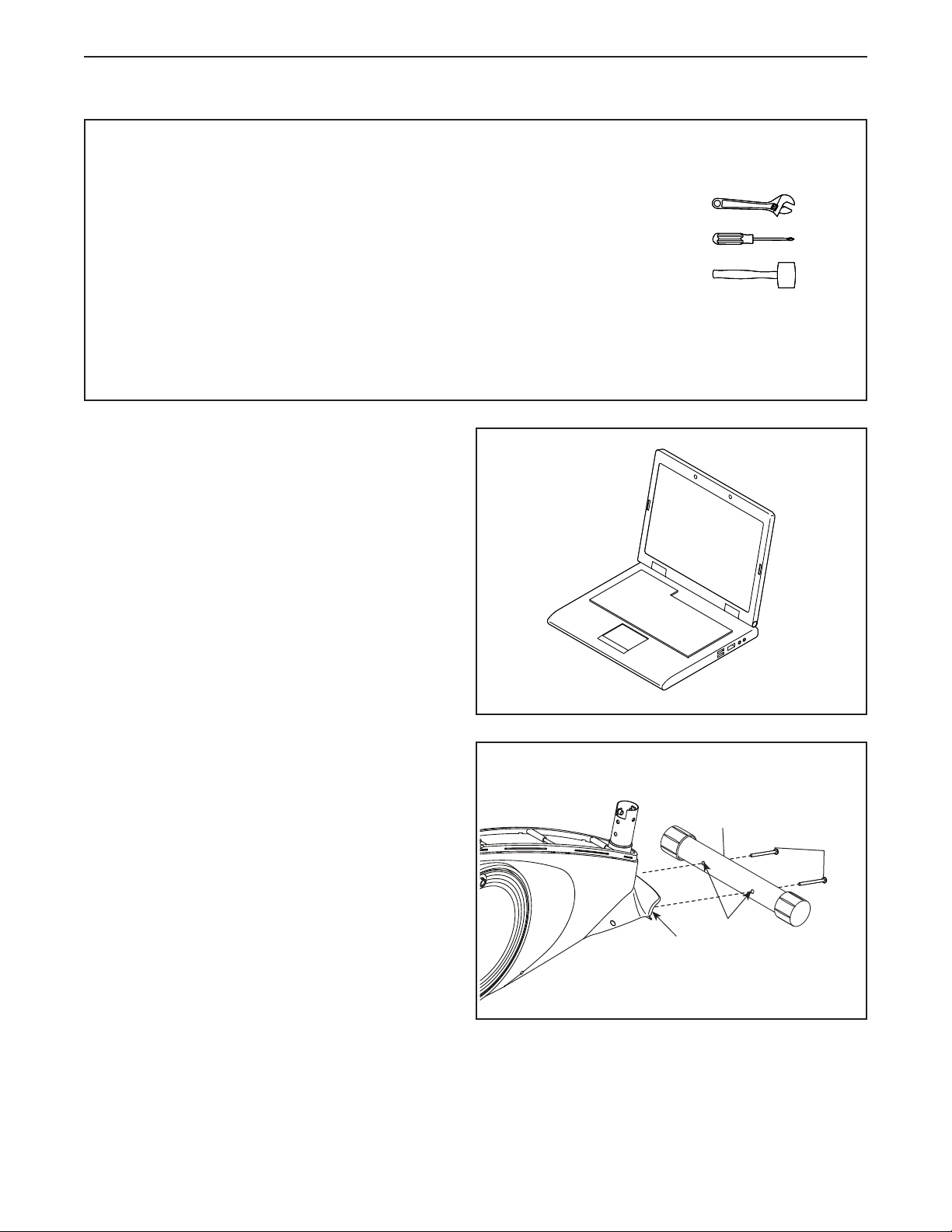

• In addition to the included tool(s), assembly
requires the following tools:
one adjustable wrench
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. Identify the Front Stabilizer (63), and orient it
as indicated by the sticker. Make sure that the
large holes (A) in the Front Stabilizer are fac-
ing the Frame (1).
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (63) to the
Frame with two M10 x 68mm Screws (34).
63
34
A
1
2
1. Go to my.proform.com on your computer and
register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

8
3. Orient the Rear Stabilizer (9) as indicated by the
sticker.
While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (9) to the Frame
with two M10 x 68mm Screws (34).
34
9
1
3
4
4. Orient the Upright (2) and the Top Shield (41)
as shown. Slide the Top Shield upward onto the
Upright. Do not remove the wire ties (B, C)
from the Upright.
Next, slide the Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 20mm
Screws (40), an M10 x 77mm Bolt (7), an M10
Curved Washer (88), and an M10 Locknut
(33); do not tighten the Screws and the
Locknut yet.
2
41
33
88 7
1
40
40
40
B
B
C

9
5
5. See the inset drawing. Locate the wire tie (C)
in the lower end of the Upright (2). Tie the wire
tie to the Wire Harness (73). Next, pull the upper
end of the wire tie until the Wire Harness is
routed through the Upright.
Tip: To prevent the Wire Harness (73) from
falling into the Upright (2), secure the Wire
Harness with the wire tie (C).
Next, slide the Top Shield (41) downward to the
Frame (1); do not press the Top Shield into
place yet.
Then, attach the Water Bottle Holder (29) to the
Upright (2) with two M4 x 16mm Screws (52).
2
29
52
6. Identify the Left and Right Handlebars (85, 86).
Have a second person hold the Left and Right
Handlebars (85, 86) near the Upright (2). Next,
locate the remaining two wire ties (B) inside the
Upright. Tie the lower ends of the wire ties to the
Pulse Wires (84). Then, pull the upper ends of
the wire ties upward out of the top of the Upright.
Tip: While inserting the M8 x 77mm Bolts (79),
avoid damaging the Wire Harness (73) and
the Pulse Wires (84) inside the Upright (2).
Attach the Left and Right Handlebars (85, 86) to
the Upright (2) with two M8 x 77mm Bolts (79)
and two M8 Jam Nuts (38).
6
85
38
38
86 79
84 73
84
B
B
2
Avoid pinching the
Pulse Wires (84)
2
1
73
73
C
C
41

10

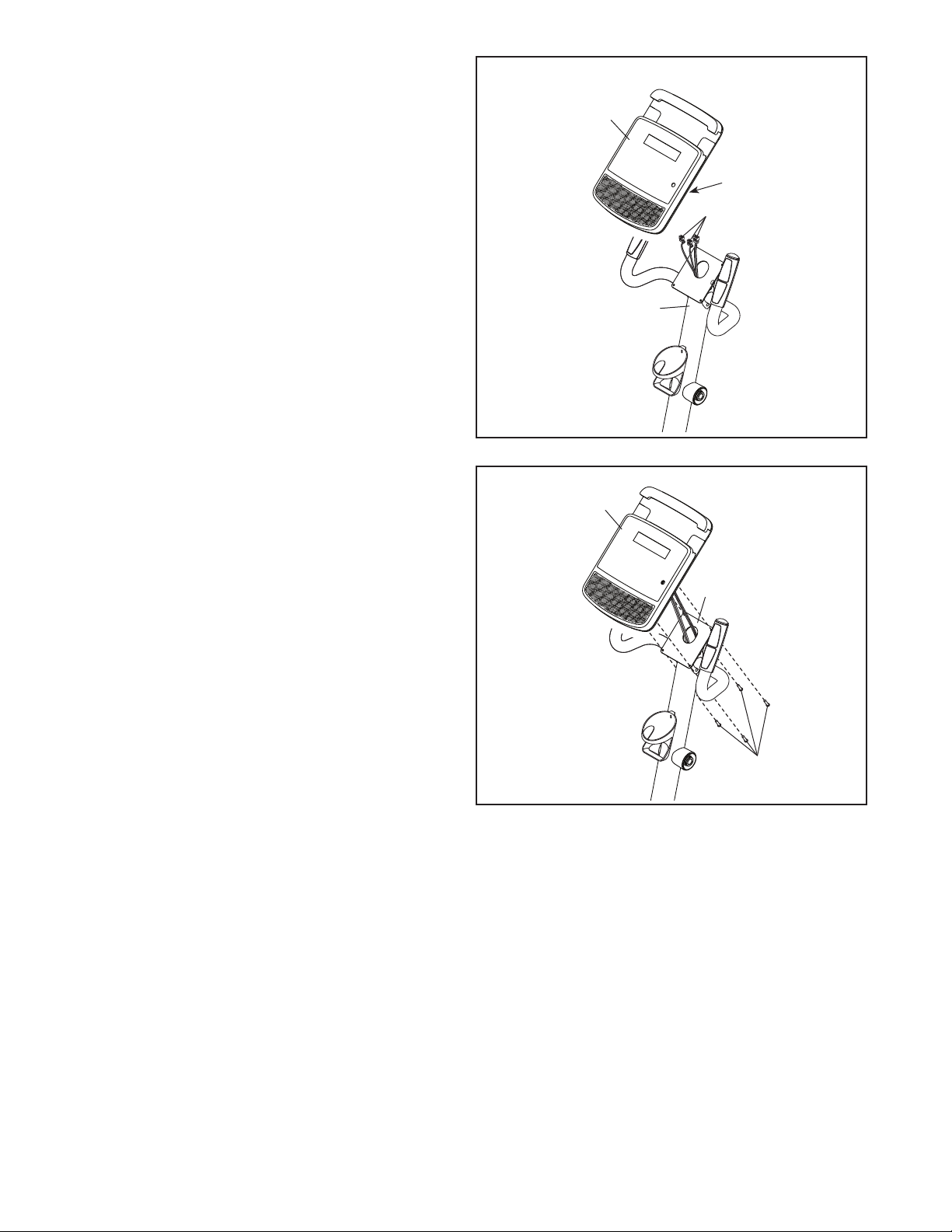

7. While a second person holds the Console (23)
near the Upright (2), plug the Wire Harness (73)
and the Pulse Wires (84) into the receptacles (D)
on the Console.
The connectors on the Wire Harness (73) and
the Pulse Wires (84) should slide easily into
the receptacles (D) and snap into place. If a
connector does not slide easily into a receptacle,
turn the connector and try again. If you do not
connect the connectors properly, the Console
(23) may become damaged when you use the
elliptical.
7
2
23
D
73, 84
8
8. Insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach the
Console (23) to the Upright (2) with four
M4 x 16mm Screws (52); start all the Screws,
and then tighten them.
23
Avoid pinching
the wires
52
2

11
9
8
6
5
42
42
38
38
50
50
5

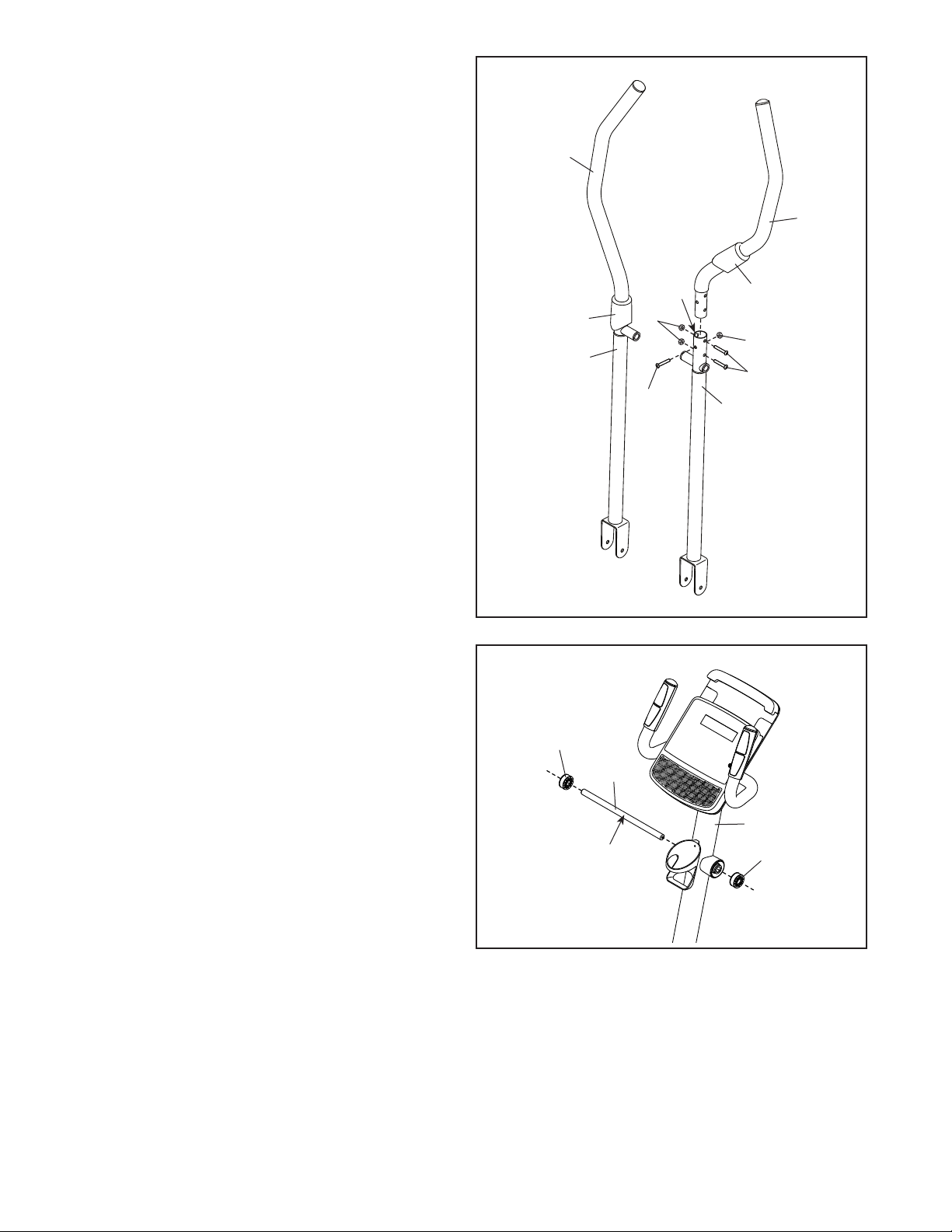

9. Identify the Right Upper Body Arm (8).
Slide an Upper Body Arm Cover (42) upward
onto the Right Upper Body Arm (8).
Next, insert the Right Upper Body Arm (8) into
an Upper Body Leg (5).
Tip: Have a second person hold the Upper
Body Arm Cover (42) while you perform this
action:
Attach the Right Upper Body Arm (8) to the
Upper Body Leg (5) with three M8 x 41mm Bolts
(50) and three M8 Jam Nuts (38). Make sure
that the Jam Nuts are inside the hexagonal
holes (E).
Assemble the Left Upper Body Arm (6) and
the other Upper Body Leg (5) in the same
way.
E
Grease
26
69
69
2
10
10. Insert the Pivot Axle (26) into the Upright (2), and
center the Pivot Axle.
Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to both ends of the Pivot Axle (26).
Then, slide a Pivot Spacer (69) onto each side of
the Pivot Axle (26).

12
8
6
26
47
55
42
56
56
46
11
11. Orient an Upper Body Arm Spacer (47) as
shown, and slide it onto the right side of the
Pivot Axle (26).
Next, slide the Right Upper Body Arm (8) onto
the right side of the Pivot Axle (26).
Repeat these actions on the other side of the
elliptical.
Next, tighten an M8 x 25mm Screw (56) with an
M8 Washer (55) into each end of the Pivot Axle
(26) at the same time.
Next, slide the right Upper Body Arm Cover
(42) upward. Then, press the tabs on an Axle
Cap (46) into the Upper Body Arm Spacer (47).
Repeat this action on the other side of the
elliptical.
Then, slide the Upper Body Arm Cover (42)
downward to cover the M8 x 41mm Bolts (not
shown). Repeat this action on the other side
of the elliptical.
12. Identify the Right Pedal (14) and the Right Pedal
Arm (12).
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with three M8 x 10mm Screws (27);
start all the Screws, and then tighten them.
Attach the Left Pedal (13) to the Left Pedal
Arm (11) in the same way.
12
12
14
27
13
11

13
13
14

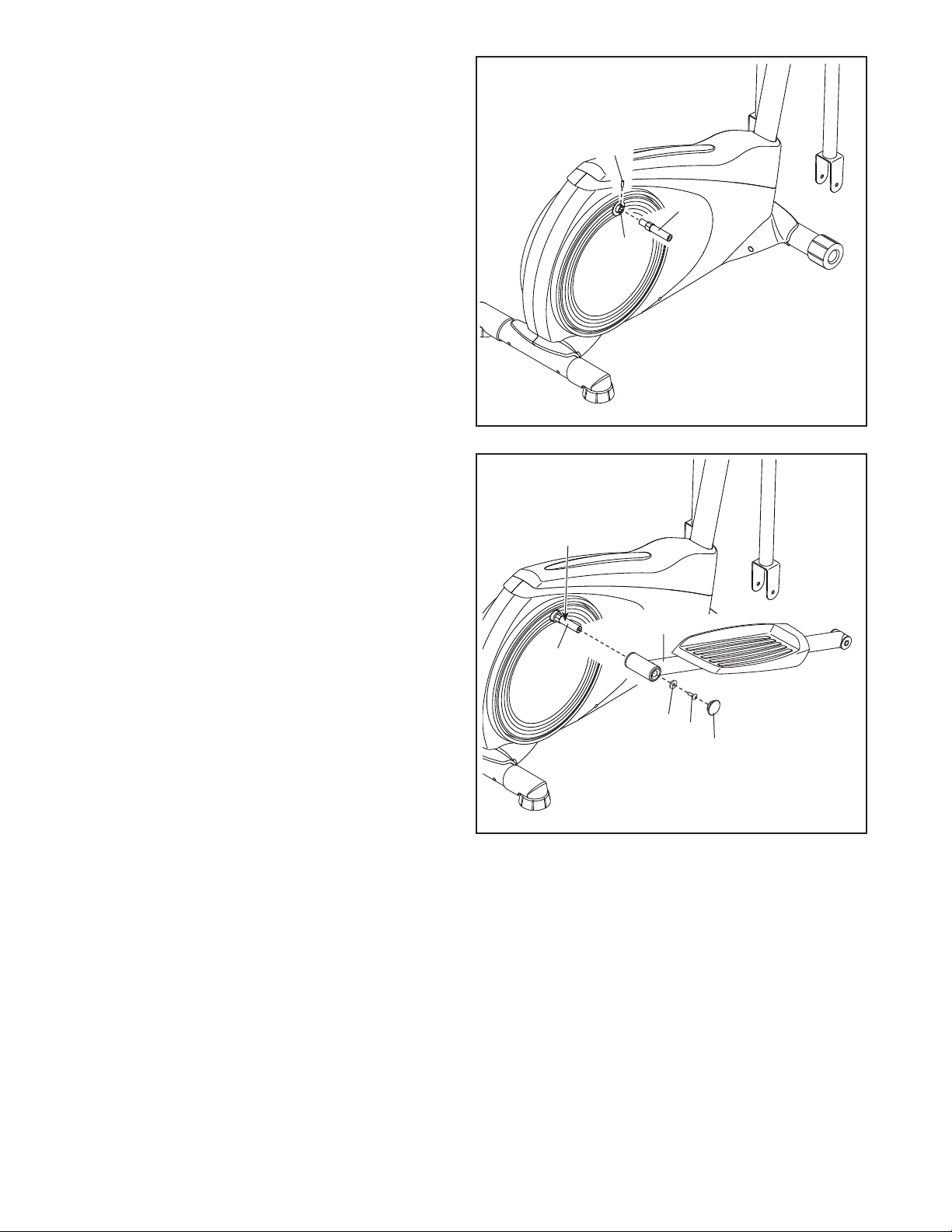

13. Orient a Crank Arm Stud (32) as shown, and
tighten it firmly into the Right Crank Arm (80).
IMPORTANT: Make sure that the Crank Arm
Stud is firmly tightened.
Then, tighten an M6 x 8mm Set Screw (89) into
the Right Crank Arm (80) and the Crank Arm
Stud (32).
Repeat this step on the other side of the
elliptical.
14. Apply a small amount of grease to the axle on
the right Crank Arm Stud (32).
Slide the Right Pedal Arm (12) onto the axle on
the right Crank Arm Stud (32).
Next, slide an M10 x 28mm Washer (83) onto an
M10 x 20mm Screw (40), and tighten the Screw
into the axle.
Then, press a Pedal Arm Cap (74) into the Right
Pedal Arm (12).
Repeat this step on the other side of the
elliptical.
74
40
83
12
89
32
80
32
Grease

14
15

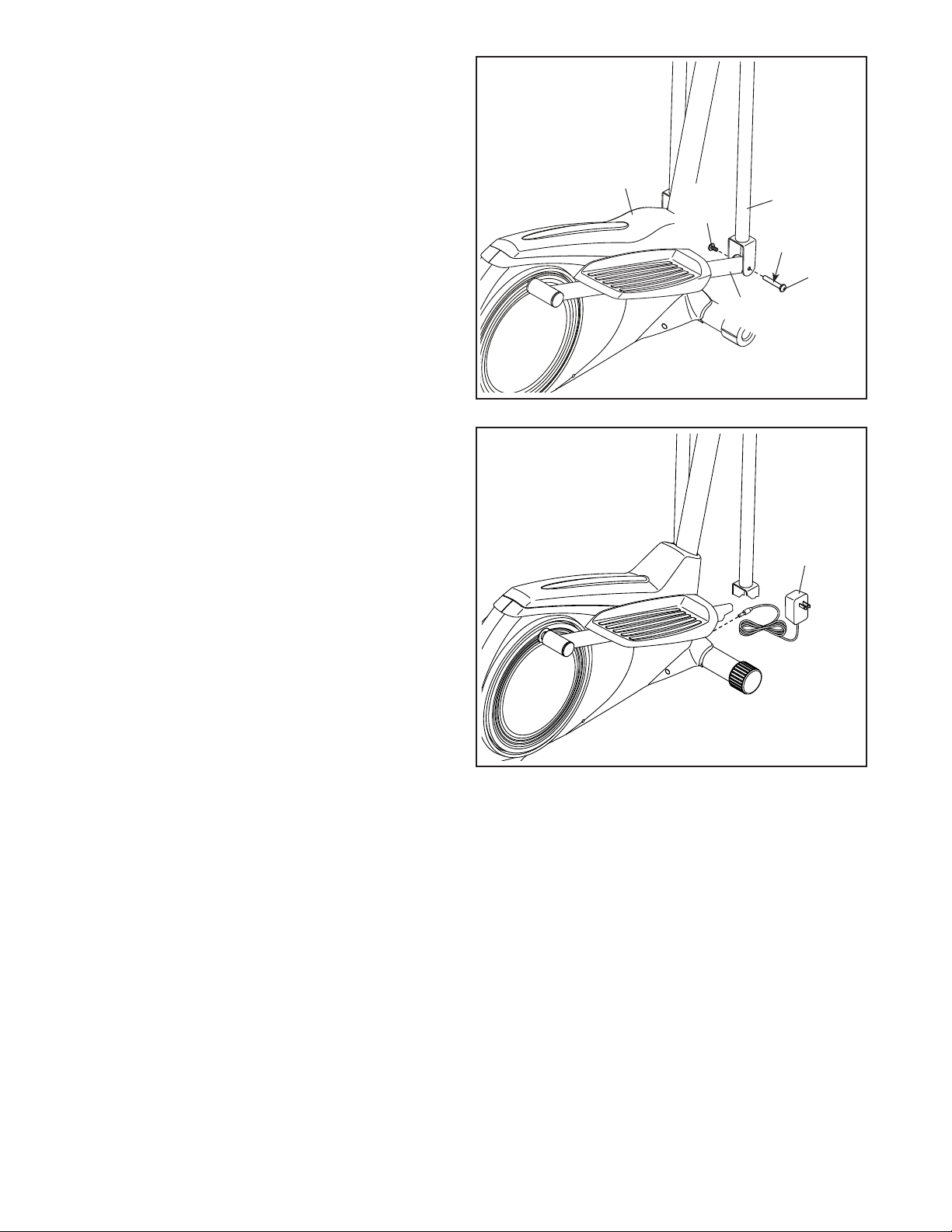

15. See assembly steps 4 and 5. Tighten the
M10 x 20mm Screws (40) and the M10 Locknut
(33). Then, press the Top Shield (41) into place.
Next, apply a small amount of grease to an M6
Bolt Set (25).
Hold the end of the Right Pedal Arm (12) inside
the bracket on the right Upper Body Leg (5).
Attach the right Upper Body Leg (5) to the Right
Pedal Arm (12) with the M6 Bolt Set (25).
Repeat this step on the other side of the
elliptical.
5
25
12
41
25
Grease
16
75
16. Make sure that all parts are properly
tightened. Extra parts may be included. Place a
mat beneath the elliptical to protect the floor.
Next, plug the Power Adapter (75) into the
receptacle on the frame of the elliptical.
Then, plug the Power Adapter (75) into an
outlet (see HOW TO PLUG IN THE POWER
ADAPTER on page 16).

15
17
23
17. IMPORTANT: You must activate your Console
(23) to begin using its exclusive features.
First, press any button on the Console (23) to
turn on the power.
Then, using your smartphone or tablet, go to
iFit.com/activate and follow the instructions to
activate the Console (23).
Note: If you do not have a smartphone or tablet,
use your computer to go to iFit.com/activate for
an alternate way to activate the Console (23). If
you do not have a computer, call Customer Care
(see the front cover of this manual).

16

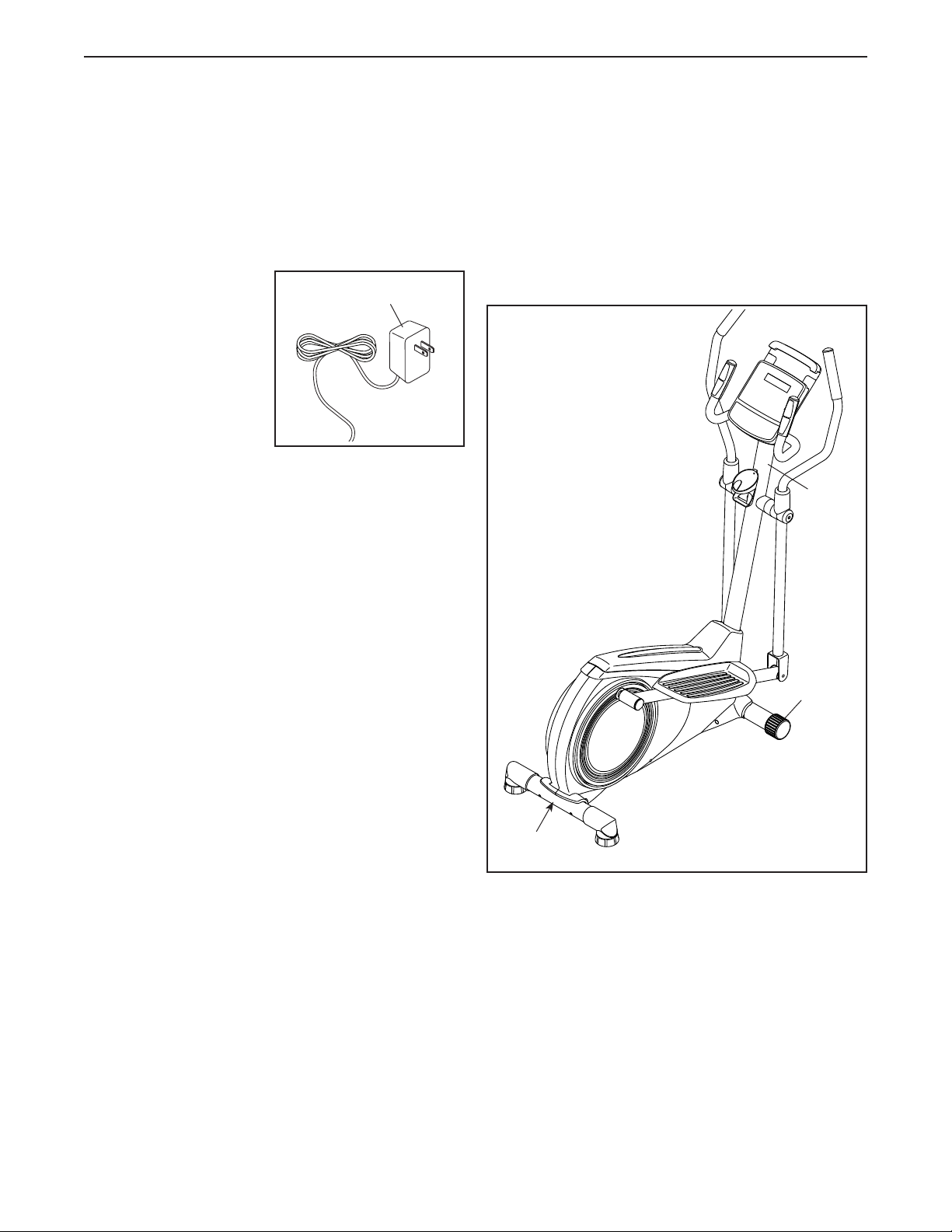

HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter (A).
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
(A) into the recep-
tacle on the front of
the elliptical. Then,
plug the power adapter
into an appropriate
outlet that is properly
installed in accordance
with all local codes and
ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (B), and place one foot against one
of the front wheels (C). Pull on the upright and have a
second person lift the rear stabilizer (D) until the ellipti-
cal will roll on the wheels. Carefully move the elliptical
to the desired location, and then lower it to the floor.
A
C
B
D
HOW TO USE THE ELLIPTICAL

17
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (E) or the
upper body arms (F) and step onto the pedal (G) that is
in the lowest position. Then, step onto the other pedal.
Push the pedals (G) until they begin to move with a
continuous motion. Note: The pedal discs can turn
in either direction. It is recommended that you
move the pedal discs in the direction shown by the
arrow; however, for variety, you can turn the pedal
discs in the opposite direction.
To dismount the elliptical, wait until the pedals (G)
come to a complete stop. Note: The elliptical does
not have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the higher pedal first. Then, step off
the lower pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your floor
during use, turn
one or both of the
leveling feet (H)
beneath the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The Tablet Holder (I) is designed
for use with most full-size tablets. Do not place
any other electronic device or object in the Tablet
Holder.
To insert a tablet
into the Tablet
Holder (I), set the
bottom edge of the
tablet in the tray.
Then, pull the clip
over the top edge
of the tablet. Make
sure that the tablet
is firmly secured
in the Tablet
Holder. Reverse these actions to remove the tablet
from the Tablet Holder.
G
F
E
H
H
I

18
FEATURES OF THE CONSOLE
IMPORTANT: To activate your console and begin
using its exclusive features, see assembly step 17
on page 15.
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
As you exercise, the console will provide continu-
ous exercise feedback. You can even measure your
heart rate using the handgrip heart rate monitor or
a compatible heart rate monitor. See page 23 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit®–Smart Cardio Equipment app to record
and track your workout information.
The console also offers a selection of onboard work-
outs. Each onboard workout automatically changes the
resistance of the pedals and prompts you to maintain
a target pedaling speed as it guides you through an
effective workout.
To use the manual mode, see page 19. To use
an onboard workout, see page 21. To connect
your tablet to the console, see page 22. To
connect your heart rate monitor to the console,
see page 22. To change console settings, see
page 23.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Note: The console can display speed and distance
in either standard or metric units. To change the unit
of measurement, press the St/M button repeatedly.
For simplicity, all instructions in this section refer to
standard units.
Fletch
ELPF62919
PFEL62919.0
PFEL62919.1
CONSOLE DIAGRAM
HOW TO USE THE CONSOLE

19
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected automatically.
If you have selected a workout, reselect the manual
mode by pressing any of the Workouts buttons
repeatedly until zeros appear in the display.
3. Change the resistance of the pedals as desired.
Press the Start button or begin pedaling to start the
manual mode.
As you pedal, you can
change the resistance
of the pedals. To change
the resistance, press
one of the numbered
Resistance buttons
or press the Resistance increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the display.
The displays can show the following workout
information:
Calories (CALS.)—When the manual mode and
most onboard workouts are selected, the approxi-
mate number of calories you have burned. When
calorie workouts are selected, the approximate
number of calories that remain to be burned in the
workout.
Distance (DIST.)—The distance that you have
pedaled in miles or kilometers. To change the unit
of measurement, press the St/M button.
Heart Rate (heart symbol)—Your heart rate when
you use the handgrip heart rate monitor or a com-
patible heart rate monitor (see step 5).
Matrix—When the manual mode is selected, a
track that represents 1/4 mile (400 m). As you exer-
cise, the flashing rectangle will show your progress.
When an onboard workout is selected, a profile of
the resistance levels of the workout.
Resistance Level—The resistance level of the
pedals.
RPM—Your pedaling speed in revolutions per
minute (RPM).
Speed—Your pedaling speed in miles per hour or
kilometers per hour. To change the unit of mea-
surement, press the St/M button.
Time—When the manual mode or a calorie
workout is selected, the elapsed time. When an
onboard workout is selected, the time remaining in
the workout.
Press the Display button repeatedly to view the
desired workout information in the displays.
Scan mode—The
console also has a scan
mode that will display
workout information in
a repeating cycle. To
turn on the scan mode,
press the Display button repeatedly until the word
SCAN appears in the display.
Note: The console will show your heart rate in the
scan cycle automatically whenever it detects a
pulse from a heart rate monitor.

20
To pause the console, simply stop pedaling or
press the End button. When the console is paused,
the time will flash in the display. To continue your
workout, simply resume pedaling.
To end the workout, press the End button
repeatedly.
Note: The console can show speed and distance
in standard or metric units of measurement. To
change the unit of measurement, press the St/M
button.
5. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or an optional chest
heart rate monitor (see page 23 for information
about the optional chest heart rate monitor).
Note: The console is compatible with Bluetooth®
Smart heart rate monitors.
Note: If you use both heart rate monitors at
the same time, the Bluetooth Smart heart rate
monitor will have priority.
If there are sheets
of plastic on the
metal contacts (A)
on the handgrip
heart rate monitor,
remove the plastic.
To measure your
heart rate, hold the
handgrip heart rate
monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will be
shown in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, the
console will pause and the time will flash in the
display. To resume your workout, simply resume
pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
Note: The console features a demo mode,
designed to be used if the elliptical is displayed in
a store. If the demo mode is turned on, the con-
sole will not turn off and the display will not be
reset when you nish exercising. To turn off the
demo mode, see HOW TO CHANGE CONSOLE
SETTINGS on page 23.
A
