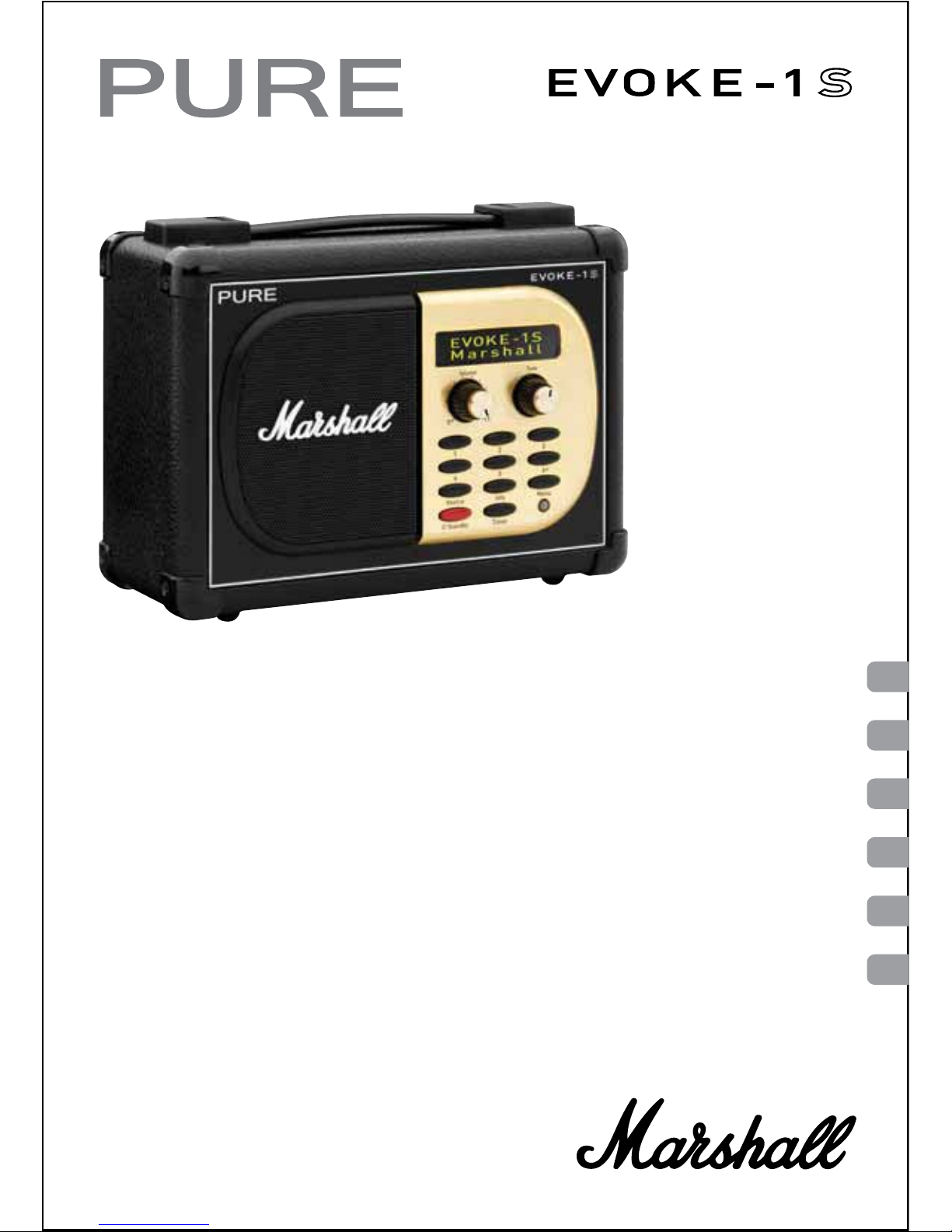

PURE Marshall EVOKE-1S User manual

Owner’s manual
IT
DE
DK
FR
EN
ES
Bedienungsanleitung
Manuale dell’utente
Manuel de l’utilisateur
Brugsvejledning
Manual de instrucciones

Safety instructions
Keep the radio away from heat sources.
Do not use the radio near water.
Avoid objects or liquids getting into the radio.
Do not remove screws from or open the radio casing.
Fit the mains adaptor to an easily accessible socket,
located near the radio and ONLY use the mains
power adapter supplied. Always switch the unit off
and disconnect it from mains power before inserting
or removing a ChargePAK.
Consignes de sécurité
Tenir la radio éloignée de toute source de chaleur.
Ne pas utiliser la radio à proximité d’un point d’eau.
Éviter que des objets ou des liquides ne pénètrent à
l’intérieur de la radio.
Ne pas ouvrir le boîtier de la radio ou en enlever les vis.
Branchez l’adaptateur sur une prise de courant
facilement accessible, à proximité de la radio et
utilisez UNIQUEMENT l’adaptateur fourni.
Toujours éteindre la radio et la débrancher du secteur
avant d’insérer ou de retirer le ChargePAK.
Sicherheitshinweise
Halten Sie das Radio fern von Heizquellen.
Benutzen Sie das Radio nicht in der Nähe von Wasser.
Verhindern Sie, dass Gegenstände oder Flüssigkeiten
in das Radio gelangen.
Entfernen Sie keine Schrauben vom Gehäuse und
öffnen Sie dieses nicht.
Schließen Sie das Netzteil an eine leicht erreichbare
Steckdose in der Nähe des Radios an, und benutzen
Sie AUSSCHLIESSLICH das mitgelieferte Netzteil.
Schalten Sie das Gerät immer aus und trennen Sie
es vom Netz, bevor Sie ein ChargePAK einsetzen oder
entnehmen.
Istruzioni di sicurezza
Tenere la radio lontana da fonti di calore.
Non utilizzare la radio vicino all’acqua.
Evitare che oggetti o liquidi penetrino nella radio.
Non rimuovere le viti né aprire l’involucro della radio.
Collegare l’adattatore di rete ad una presa della
corrente facilmente accessibile, situata vicino alla
radio e utilizzare ESCLUSIVAMENTE l’adattatore di rete
fornito. Prima di inserire o rimuovere un ChargePAK, è
indispensabile spegnere l’unità e scollegarla dalla rete
di alimentazione.
Copyright
Copyright 2010 by Imagination Technologies Limited.
All rights reserved. No part of this publication may be
copied or distributed, transmitted, transcribed, stored
in a retrieval system, or translated into any human
or computer language, in any form or by any means,
electronic, mechanical, magnetic, manual or otherwise,
or disclosed to third parties without the express written
permission of Imagination Technologies Limited.
Trademarks
Marshall and the Marshall logo are trademarks or
registered trademarks of Marshall Amplification plc.
EVOKE-1S, the EVOKE-1S logo, Intellitext, textSCAN,
ChargePAK, PURE, the PURE logo, PURE, the PURE logo,
EcoPlus, the EcoPlus logo, Imagination Technologies,
and the Imagination Technologies logo are trademarks
or registered trademarks of Imagination Technologies
Limited. All other product names are trademarks of
their respective companies. Version 5 July 2010.
Copyright
Copyright 2010 by Imagination Technologies Limited.
Alle Rechte vorbehalten. Kein Teil dieser Publikation
darf ohne ausdrückliche und schriftliche Zustimmung
von Imagination Technologies Limited in irgendeiner
Form (elektronisch, mechanisch, magnetisch, manuell
oder auf andere Weise) kopiert, verteilt, übermittelt,
überschrieben, in einem Suchsystem gespeichert,
in eine andere natürliche oder Computersprache
übersetzt oder Dritten zugänglich gemacht werden.
Warenzeichen
EVOKE-1S, das EVOKE-1S Logo, Intellitext, textSCAN,
ChargePAK, PURE, das PURE Logo, PURE, das
PURE Logo, EcoPlus, das EcoPlus logo, Imagination
Technologies und das Imagination Technologies
Logo sind Warenzeichen oder eingetragene
Warenzeichen von Imagination Technologies Limited.
Alle anderen Produktnamen sind Warenzeichen
ihrer jeweiligen Besitzer. Version 5 . Juli 2010
Copyright
Copyright 2010 Imagination Technologies Limited.
Tous droits réservés. Aucune partie de la présente
publication ne doit être copiée ou diffusée, transmise,
retranscrite, stockée dans un système de récupération
de données ou traduite, que ce soit dans une langue
humaine ou dans un langage informatique, sous
quelque forme et par quelque moyen que ce soit,
électronique, mécanique, magnétique, manuel ou autre,
ou encore diffusée auprès de tiers sans autorisation
écrite expresse de Imagination Technologies Limited.
Marques commerciales
EVOKE-1S, le logo EVOKE-1S, Intellitext, textSCAN,
ChargePAK, PURE, le logo PURE, PURE, le logo PURE,
EcoPlus, le logo EcoPlus, Imagination Technologies et
le logo Imagination Technologies sont des marques
commerciales ou des marques déposées de Imagination
Technologies Limited. Tous les autres noms de
produits sont des marques commerciales de leurs
détenteurs respectifs. Version 5 er juillet 2010.
Copyright
Copyright 2010 by Imagination Technologies Limited.
Tutti i diritti riservati. Nessuna parte della presente
pubblicaziEVOKE-1S può essere copiata o distribuita,
trasmessa, trascritta, memorizzata in un sistema
di archiviaziEVOKE-1S, o tradotta in un formato
normalmente comprensibile, in qualsiasi forma o con
qualsiasi mezzo, elettronico, meccanico, magnetico,
manuale o altro, o divulgata a terze parti senza il
permesso scritto di Imagination Technologies Limited.
Marchi
EVOKE-1S, il logo EVOKE-1S, Intellitext, textSCAN,
ChargePAK, PURE, il logo PURE, PURE, il logo PURE,
EcoPlus, il logo EcoPlus, Imagination Technologies e
il logo Imagination Technologies sono marchi o marchi
registrati di Imagination Technologies Limited. Tutti
gli altri nomi di prodotti sono marchi di proprietà
delle rispettive società. Version 5. luglio 2010.
Sikkerhedsforskrifter
Hold radioen på afstand af varmekilder.
Brug ikke radioen i nærheden af vand.
Undgå at der kommer genstande eller væske i
radioen.
Fjern ikke skruer fra og åbn ikke radiokabinettet.
De bør tilslutte strømforsyningen til et
lettilgængeligt strømudtag tæt på radioen. De
bør KUN bruge den medfølgende strømforsyning.
Sluk altid for enheden, og afbryd den fra
hovedstrømforsyningen, før du isætter eller fjerner
ChargePAK.
Copyright
Copyright 2010 tilhører Imagination Technologies
Limited. Alle rettigheder forbeholdes. Ingen dele af
denne publikation må kopieres eller distribueres,
transmitteres, omskrives, gemmes i et system, hvor den
kan hentes, eller oversættes til menneskeligt forståeligt
sprog eller computersprog, i nogen som helst form eller
med nogen som helst midler, det være sig elektroniske,
mekaniske, magnetiske, manuelle eller på anden
måde, eller fremvises til tredje parter uden udtrykkelig,
skriftlig tilladelse fra Imagination Technologies Limited.
Varemærker
EVOKE-1S, EVOKE-1S-logoet, Intellitext, textSCAN,
ChargePAK, PURE, PURE-logoet, PURE, PURE-
logoet, EcoPlus, EcoPlus-logoet, Imagination
Technologies og Imagination Technologies-logoet
er varemærker eller registrerede varemærker, der
tilhører Imagination Technologies Limited. Alle
andre produktnavne er varemærker, der tilhører
deres respektive virksomheder. Version 1. juli 2010.
Instrucciones de seguridad
Mantenga la radio alejada de fuentes de calor.
No utilice la radio cerca del agua.
Evite que entren objetos o líquidos en la radio.
No retire los tornillos ni abra el alojamiento de
la radio.
Ajuste el adaptador de corriente a un enchufe
accesible, situado cerca de la radio y use
EXCLUSIVAMENTE el adaptador de corriente
suministrado.
Apague siempre la unidad y desconéctela de
la red eléctrica antes de insertar o retirar un
ChargePAK.
Copyright
Copyright 2010 por Imagination Technologies Limited.
Reservados todos los derechos. Ninguna parte de
esta publicación puede copiarse o distribuirse,
transmitirse, transcribirse, almacenarse en un sistema
de recuperación, o traducirse a ningún idioma humano
o informático, de ninguna forma o por ningún medio, ya
sea electrónico, mecánico, magnético, manual o de otro
tipo, ni revelarse a terceras partes sin el consentimiento
explícito por escrito de Imagination Technologies Limited.
Marcas comerciales
Sirocco 150, PURE, el logotipo PURE, Imagination
Technologies y el logotipo Imagination Technologies son
marcas comerciales o marcas comerciales registradas
de Imagination Technologies Limited. Todos los demás
nombres de productos son marcas comerciales de
sus respectivas compañías. Versión del 2 de agosto
de 2010.

Contents
Start ........................................................................ 2
Quick set up .........................................................................................2
Controls at a glance ..............................................................................3
Rear connectors ....................................................................................3
Using your EVOKE-1S Marshall................................... 4
Volume controls.....................................................................................4
Switching between DAB (digtal radio), FM and Auxiliary device..................4
Changing stations..................................................................................4
Changing the information shown on screen..............................................5
Using textSCAN™to pause and control scrolling text .................................5
Setting the alarm & timer .......................................... 6
Setting the alarm ..................................................................................6
To cancel a sounding tone or radio alarm ................................................7
Kitchen timer ........................................................................................7
Setting the sleep timer...........................................................................8
Presets and Intellitext ............................................... 8
Storing and selecting presets .................................................................8
Intellitext®.............................................................................................9
Setup options ......................................................... 10
Options available in DAB......................................................................10
Options available in FM........................................................................10
General options...................................................................................11
Changing your preferred language.........................................................11
Adjusting the display ...........................................................................11
Energy saving......................................................................................12
Software Updates................................................................................12
Using a ChargePAK™............................................................................12
Help and Specifications........................................... 13
Secondary and inactive stations ...........................................................13
Hints and tips .....................................................................................13
Technical Specifications.......................................................................14
EN

2
Select your language when prompted. Turn the tune dial to select (English/Francais/
Deutsch) and push to confirm.
Unclip the aerial and fully extend it (steps Aand B).
Insert the jack of the supplied mains adapter into the socket on the rear of the radio (C).
Plug the mains adapter into the mains supply (step D).
This will be followed by the Energy Saving mode screen.
By default, Energy saving is enabled but can be switched off from within the menu.
With energy saving mode on, the power consumption of EVOKE-1S Marshall in standby
is less than 1 Watt.
For more information: energy saving > page 12
Wait for EVOKE-1S Marshall to complete an Autotune for available digital stations (this
takes about a minute). When the Autotune is complete, a station will be selected.
Start
Quick set up
B
A
Aerial Aerial
6V DC C
D
6V DC
EVOKE-1S
Marshall
Tune
Autotune... 29 Now tuning...
1
‘World in blood’: Slayer
Planet Rock
Enabled
Energy saving
Tune
Deutsch
ect Language. Choisissez
Quick set up > Controls at a glance > Rear connectors

3
Controls at a glance
Volume dial
Adjust and mute
volume
> page 4
Tune dial
Browse and select radio
stations > page 4
Use textSCAN > page 5
Presets 1 −6+
Store up to 30 DAB or FM
preset stations > page 8
Light sensor
Auto-adjusts the display
brightness > page 11
Menu
Use Intellitext > page 9
Adjust the display > page 11
Setup options > pages 10-13
Source
Switch audio
source
> page 4
Standby
Switch the radio
into standby.
(Off if ChargePAK is
fitted > page 12)
Timer
Kitchen timer > page 7
Sleep timer > Page 8
Alarm > Page 6
Info
Change the information shown
on screen > page 5
Rear connectors
6V DC
Stereo Out
Mini-B type
USB connector
for upgrades
only.
Aux In
Analogue
stereo input
for iPod/MP3
player, etc.
3.5 mm
headphone
socket.
Connect to
an external
amplifier.
Aux Speaker
Connect to
an optional
Marshall S-1
speaker for
stereo sound.
Connect to
supplied
mains
adapter only.
USB
EN

4
Using your EVOKE-1S Marshall
Volume controls
Adjusting the volume
Switching between DAB (digtal radio), FM and Auxiliary device
Press the Source button and then repeat to listen to digital radio, FM or an Auxiliary device (a
separate device connected by a cable, such as an MP3 player).
Changing stations
When listening to digital radio
Turn the Tune dial left or right to browse through the list of available DAB stations. The current
station remains at the top of the screen. Push the Tune dial to change the station.
When listening to FM
Seek Tuning
Turn and release the Tune dial right or left to seek to the next or previous FM station that has a
strong signal.
Manual Tuning
1. Change the FM tuning mode to ‘Manual’ (see page 11).
2. Turn the Tune dial right or left to step up or down 0.05 MHz.
Adjust volume > Switch DAB/FM/Aux > Change stations > Change on-screen info > textSCAN™
Source
Muting the volume
Volume
Volume
Volume
FM
Tune
Tune
Tune
BBC Radio 6Music
Planet Rock Now playing: Race For T BBC Radio 6Music
Muted
Planet Rock
96.60MHz FM
87.50MHz FM
Searching... >
Source
Auxiliary Input

5
Changing the information shown on screen
You can change the information that is displayed on screen. Press the Info button and repeat to
cycle through the information display options available for the current audio source.
Scrolling text Information broadcast by most digital and FM (RDS) stations.
Full screen time Displays the time (and an alarm indicator if the alarm is set).
Signal quality Displays digital signal quality: 85-100 good; 70-84 OK; 0-69 poor.
Signal strength Displays a meter illustrating the strength of the digital or FM signal.
ChargePAK status Displays a charging or percentage power remaining indicator for the
optional ChargePAK E1 rechargeable battery pack (see page 12).
Using textSCAN™to pause and control scrolling text
1. When ‘Scrolling text’ information is displayed in either digital radio or FM, push the Tune
dial to pause the scrolling text.
2. Turn the Tune dial right and left to scroll forwards and backwards through the current
scrolling text. To exit textSCAN push the Tune dial again.
OR
Now playing: Race For T
BBC Radio 6Music Playing: Race For Th BBC Radio 6Music
The prize by Flaming
BBC Radio 6Music
> Exit
BBC Radio 6Music
charging BBC Radio 6Music
50%
Charging indicator
(on mains power).
% Charge remaining
(when powered by ChargePAK E1)
Tune
Tune
Tune
EN

6
Setting the alarm & timer
Setting the alarm
EVOKE-1S Marshall has an alarm which switches the radio on (from standby mode only) and
tunes to a digital or FM radio station, or sounds an alarm tone.
1. Press the Timer button, push the Tune dial to select ‘Alarm settings’.
2. Push the Tune dial to select ‘Set alarm’, scroll to ‘On’ and push the Tune dial to select. The
alarm is now active.
3. Push the Tune dial to select ‘Set time’. To set the time you want the alarm to sound turn the
Tune dial to adjust the hours and then push to confirm. Repeat to adjust the minutes.
4. Push the Tune dial to select ‘Set days’. Choose when you want the alarm to repeat (turn the
Tune dial to browse through the options and push to select).
Daily Every day
Weekday Monday –Friday, every week
Weekend Every weekend
Saturday Every Saturday
Sunday Every Sunday
Once only The alarm will sound at the time you have selected and not repeat.
5. Push the Tune dial to select ‘Set mode’ and choose the type of alarm you want to sound:
DAB, FM or Tone. If you select ‘Tone’, there are no further options.
6. For DAB and FM alarms only, push the Tune dial to select ‘Select station’ and choose which
digital or FM radio station you want to sound for the alarm.
For DAB alarms
Select a digitalstation from the station list or ‘last tuned’. If you select ‘Last tuned’ the alarm
will tune to the last station you listened to before the alarm sounds.
For FM alarms
Choose between ‘Last tuned’ or an FM preset station.
Set the alarm > Set the kitchen timer
08:00 set hours
07:00
Tune
Tune
If you want to set a
one-off alarm choose
‘Once only’.
(Timer > Alarm settings)
Set alarm
Off On
Off
Tune
Tune

7
7. If you have selected a DAB or FM alarm you can push the Tune dial to select ‘Alarm volume’
and turn to adjust the volume level for the alarm from 1 (very quiet) to 32 (very loud).
That’s it! You can see if the alarm is currently switched on in the ‘Full screen time’ display (see
page 5). Alarms can be set and adjusted from standby by pressing the Timer button.
To cancel a sounding tone or radio alarm
When a tone alarm is sounding, push the Tune dial or press Standby to cancel the alarm. To
cancel a radio alarm and return the radio to standby, press the Standby button.
Kitchen timer
EVOKE-1S Marshall has a countdown timer which will sound an alarm after a set time period –
handy for use in the kitchen.
To set a kitchen timer
1. Press the Timer button.
2. Turn the Tune dial to change the hours and push to confirm. Turn again to change the minutes
and push to confirm and start the countdown timer.
The alarm will sound after the time period you have set whether the radio is on or in standby.
Cancel the beeping alarm tone by pressing any button on the radio.
To stop and reset the kitchen timer
To stop and reset the kitchen countdown timer to zero before it sounds a beeping tone, press and
hold down the Timer button for three seconds until you see the message ‘Timer cleared’.
Timer
Timer
Tune
Tune
Tune
TuneTune
01 hours 00 mins
01 hours 25 mins
08:30
08:30
Tune Tune
or
Timer cleared
22:45
08:30
08:30
The alarm is set to
sound at 8:30 am
Alarm volume
08
Tune
10
An outlined bell
shows that the alarm
will not sound within
the next 24 hours.
EN

8
Presets and Intellitext
Storing and selecting presets
Store up to 30 of your favourite DAB or FM radio stations in a combined list.
To quick-store a station to a preset button (1–5)
Tune to the digital or FM station you want to store. Press and hold one of the numbered Preset
buttons (1–5)for two seconds until you see the ‘Preset saved’ message on the bottom line.
To store a station to the preset list (1–30)
1. Tune to the digital or FM station you want to store.
2. Press and release the 6+ button to view the numerical list of stored presets, then turn the
Tune dial to choose any Preset number between 1 and 30.You can overwrite existing presets.
Store and select preset stations > Browse Intellitext
Empty preset
Preset 06 Empty Preset
Preset 10
Text us your gig stories
NME Radio
Preset 01 saved
BBC Radio 6Music
BBC Radio 6 Music
Now playing: No Cars G
2
Tune
Tune
Tune
Setting the sleep timer
EVOKE-1S Marshall has a sleep timer that switches your radio into standby (or off if powered by a
ChargePAK) after a number of minutes has elapsed. Use this if you want to fall asleep to the radio.
To set a sleep timer
1. Press the Timer button, turn the dial to display ‘Sleep timer’ then push the dial to select.
2. Turn the dial to increase the duration of the sleep timer from 15 to 90 minutes in fifteen
minute intervals. Press the dial to start the sleep timer.
The time remaining until shut-down is displayed on the right of the full-screen clock view.
45 minutes
Sleep off
Tune Tune
08:30
45
To cancel a sleep timer
Press and hold the Timer button until you see the message ‘Timers cleared’.

9
Intellitext®
Intellitext provides on-demand text information such as sports headlines, weather forecasts
and news from digital stations that support the service. The text is updated by the broadcasters
and stored in your radio while you listen to stations. Intellitext is listed by station and split into
categories, eg, Football, Cricket, Headlines, etc.
To view Intellitext messages
1. Press Menu, then use the Tune dial to select ‘Intellitext’ and enter the Intellitext menu. Push
the Tune dial to select ‘View’ and access a list of stations for which you have Intellitext
information (if you see ‘No data’ you need to tune to a station broadcasting Intellitext for a
few minutes before information is received).
2 Push the Tune dial to select a station then turn and push the Tune dial to browse Intellitext
categories for that station, e.g., Radio Sport > SPORT > FOOTBALL. The selected information
will scroll across the screen.
To change Intellitext options
Set timeout
Choose to delete old Intellitext messages after 1 week (default) or 1 day.
Clear all
Delete all stored Intellitext messages immediately.
FOOTBALL
SPORT England team training fo FOOTBALL
Preset 10 saved
NME Radio
Text us your gig stories
NME Radio
2
Tune
DAB NME Radio
Preset 10
Tune
Tune
Tune
(Menu >Intellitext >View)
(Menu > Intellitext > Options)
2
To recall a preset when listening to radio
1. To tune to Presets 1 to 5, press the corresponding numbered button on the unit (1to 5).
2. To access the full list of presets (from 1 to 30), press and release the 6+ button, turn the
Tune dial right or left to scroll through the list of presets, then push and release the Tune dial
to tune to the selected preset. Presets are labelled with ‘DAB’, ‘FM’ or ‘Empty Preset’.
3. Press and hold the 6+ button (or the Tune dial) for two seconds until you see the ‘Preset
saved’ message. The current station is now stored to that number on the Preset list.
EN

10
Setup options
Options available in DAB
When listening to digital radio, press the Menu button, turn the Tune dial to scroll through the
options and push the Tune dial to select.
Autotune
Scans all digital frequencies for stations and automatically adds any new stations found to the
station list. This may take a few minutes. To stop an Autotune press Menu.
Options available in FM
FM tuning mode
Seek
When you turn the Tune dial, the radio tunes to the next station with a good signal.
Manual
When you turn the Tune dial, the radio tunes up or down the FM frequency range by 0.05 MHz.
FM stereo mode
Choose from Stereo or Mono (default). Mono may improve audio clarity where stereo signals are
weak.
Options available in DAB > Options available in FM > General options
(Menu > Autotune)
(Menu > FM tuning mode)
(Menu > FM stereo mode)

11
General options
Changing your preferred language
You can select the language that your EVOKE-1S Marshall uses for menus and options.
1. Press Menu, scroll to ‘Language’ and push the Tune dial.
2. Turn the Tune dial to select a language (English/Francais/Deutsch) and press to confirm.
Adjusting the display
You can adjust the brightness and time-out duration of the display for when the unit is switched
on and in standby. To change display options:
1. Press Menu, scroll to ‘Display settings’ and push the Tune dial.
2. Now choose either ‘Active’ to change settings that apply when the unit is switched on, or
‘Standby’ to change settings that apply in standby.
Changing the display time-out duration
Select ‘Duration’ and choose from the following two modes:
Always on The screen is always set to your preferred brightness level.
Timed off The screen is set to your preferred brightness level when a
button is pressed and then switches off after 7 seconds of inactivity.
Changing your preferred brightness level
Select ‘Brightness’ and choose from the following options:
Automatic The brightness of the screen adjusts automatically depending on the ambient light
levels in the room (default).
1–10 Turn the Tune dial to vary the brightness level between 1 (very dim) and 10 (very
bright) and push to confirm your preferred setting.
Set clock
You can manually set the time and date if required. If you have a digital signal and/or a good FM
(RDS) reception these will be updated automatically.
(Menu > Display settings)
(Menu > Set clock)
(Menu > Language)
EN

12
Energy saving
EVOKE-1S Marshall is part of the PURE EcoPlus product family, designed and manufactured
to minimise power consumption when the unit is switched on and to use less than 1 Watt in
standby. One way this low power consumption is enabled is by not collecting and storing Intellitext
messages when the unit is in standby. You can override this option by switching off energy saving
mode, but this will increase standby power consumption. Two options are available:
Energy saving On (the default setting)
EVOKE-1S Marshall updates the Intellitext data when you tune to a station that broadcasts
Intellitext. Intellitext data is not collected in standby.
Energy saving Off
EVOKE-1S Marshall collects Intellitext data in standby from the last station you tuned to with
Intellitext, which increases standby power consumption.
Note: if you fit the optional ChargePAK E1 (see below) the unit will switch off when you press the
Standby button and not enter standby, as long as the unit is not connected to mains power.
Software Updates
Software updates for your EVOKE-1S Marshall may be made available in the future. If you register
your product and include a valid e-mail address you will receive notification of software updates.
Alternatively, visit http://support.pure.com at any time to check for available software updates.
To update your software
Connect your radio to your PC using a suitable USB cable. Follow the instructions provided with
the software download at support.pure.com.
Note: USB update requires a PC (not Mac) with internet access running Microsoft® Windows XP
or higher and a suitable USB cable (not included).
Using a ChargePAK™
ChargePAK E1 is a rechargeable battery pack which plugs into the socket in the radio’s battery
compartment. Whenever your radio is connected to a mains supply the ChargePAK will charge
up and the power remaining will be available to view as a percentage in the Information display
options (page 5).
To purchase a PURE ChargePAK E1, contact your nearest PURE dealer, or visit www.pure.com
Important: EVOKE-1S Marshall can only be powered by ChargePAK E1 and is not compatible
with any other batteries, either disposable or rechargeable, or any other ChargePAK model. Always
switch the unit off and disconnect it from mains power before inserting or removing a ChargePAK.
Charge a new ChargePAK for 24 hours before first using battery power.
+
™
ChargePAK
+
(Menu > Upgrade)
(Menu > Energy saving)

13
Help and Specifications
Secondary and inactive stations
(<</>>) Secondary services
Secondary services accompany some stations, providing extra information or alternative content
and may only be broadcast at certain times. If a station has secondary services available, the
station shows ‘>>’ next to its name in the station list and the secondary service appears next to
the station in the list. A secondary service has a ‘<<’ before its name in the station list.
(?) Inactive or unavailable stations
Inactive or unavailable stations appear on the station list preceded by ‘?’ and cannot be tuned
to. A station may be inactive or unavailable because the station is not broadcasting at the current
time (check with the station) or has stopped broadcasting altogether. Also, you may not have a
strong enough signal to receive the Multiplex on which the station is broadcast.
Hints and tips
Display says ‘No stations available’
Use Autotune (page 10) to search for stations. Try adjusting your aerial or radio position.
Receiving new digital stations that have started broadcasting
Use Autotune (page 10) to scan for new stations and add any new DAB stations to the station list.
The screen is very dark
Check that the light sensor on the front panel is not obstructed.
Using the alarm when a ChargePAK E1 is fitted
When the radio is powered by a ChargePAK E1 for portable listening, i.e., a ChargePAK
rechargeable battery is fitted and the unit is not connected to mains power, the radio switches off
completely when the Standby button is pressed and the alarm will not sound. In this case, the
message ‘Disabling alarm’ will be displayed when the Standby button is pressed.
Resetting your radio
Resetting your radio removes all presets, clears the station list and resets all options to defaults.
1. Press and hold the Menu button for three seconds to enter the hidden menu. Select ‘Factory
reset’
2. Push the Tune dial within 3 seconds to confirm the reset or the reset will cancel.
Secondary and inactive stations > Hints and tips > Technical Specifications
EN

14
Technical Specifications
Radio Stereo*digital and FM radio.
Frequencies DAB Band III 174-240 MHz (UK), FM 87.5-108 MHz. DAB/DAB+/DMB-R
decode up to 256 kbps (non-UK). UK products receive DAB/FM; non-UK
products receive DAB/DAB+/DMB Radio/FM. Chargeable DAB+ upgrade
available for UK products if UK broadcasts commence.
Speaker Full-range 3” drive unit.
Inputs 6V DC power adaptor socket (230V supplied). 3.5mm Line-in for auxiliary
devices. USB mini socket for software updates.
Outputs 3.5mm headphone, 3.5mm line out (analogue), 3.5mm auxiliary speaker output.
Presets 30 digital and FM presets in a combined list.
Display High contrast yellow graphical 128 x 22 OLED display
Power supply 230V AC to 6V DC external power adapter.
Approvals CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/EC
and 2006/95/EC). ETSI EN 300 401 compliant.
Dimensions 175 mm high x 210 mm wide x 110 mm deep.
Aerial Captive telescopic aerial.
*Stereo output requires optional auxiliary speaker, headphones or external amplifier.
Disposal of Waste Electrical & Electronic Equipment
This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed
over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling
of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.

DE
Inhalt
Zu Beginn................................................................. 2
Quick Setup - Schnellstart......................................................................2
Die Bedienelemente auf einen Blick........................................................3
Anschlüsse auf der Rückseite .................................................................3
Bedienung Ihres radio ............................................... 4
Lautstärkeregler ....................................................................................4
Umschalten zwischen DAB, UKW und einem Zusatzgerät............................4
Senderwechsel ......................................................................................4
Angezeigte Display-Informationen ändern ................................................5
textSCAN™zum Anhalten und Überprüfen von Lauftext ..............................5
Einstellen von Wecker und Timer ................................ 6
Einstellen des Weckers...........................................................................6
Abstellen des Wecksignals oder des Radio-Wecksignals............................7
Küchenwecker .......................................................................................7
Speicherplätze und Intellitext...................................... 8
Voreinstellungen speichern und anwählen................................................8
Intellitext®.............................................................................................9
Einstellungsoptionen ............................................... 10
Optionen im DAB-Betrieb .....................................................................10
Optionen im UKW-Betrieb.....................................................................10
Allgemeine Optionen............................................................................11
Ändern der Display-Einstellungen..........................................................11
Energiesparmodus...............................................................................12
Software-Updates................................................................................12
Verwendung von ChargePAK™................................................................12
Hilfe und Spezifikationen......................................... 13
Sekundärstationen / inaktive Stationen.................................................13
Tipps und Tricks...................................................................................13
Technische Daten ................................................................................14

2
Drücken Sie die Antenne aus ihrer Arretierung, und ziehen Sie sie vollständig heraus
(Schritte Aund B).
Stecken Sie den Stecker des mitgelieferten Netzteils in die Buchse auf der Rückseite
des Radios (C).
Verbinden Sie das Netzteil mit dem Netzanschluss (Schritt D).
Zu Beginn
Quick Setup - Schnellstart
Wenn Sie dazu aufgefordert werden, wählen Sie Ihre Sprache aus. Stellen Sie die
gewünschte Sprache (English/Francais/Deutsch) mit dem Wählrad ein, und drücken
Sie es zum Bestätigen.
Daraufhin öffnet sich das Menü für den Energiesparmodus.
Der Energiesparmodus ist standardmäßig aktiviert, lässt sich aber in diesem Menü
deaktivieren.
Bei aktiviertem Energiesparmodus liegt der Stromverbrauch des EVOKE-1S Marshall im
Standby-Betrieb bei unter 1 Watt. Weitere Informationen: Energiesparmodus > Seite 12
Warten Sie, bis das EVOKE-1S Marshall die automatische Sendersuche für alle
verfügbaren DAB-Sender abgeschlossen hat (dies dauert etwa eine Minute). Wenn die
automatische Sendersuche abgeschlossen ist, wird ein Sender ausgewählt.
Autotune... 29 Now tuning...
1
‘World in blood’: Slayer
Planet Rock
Enabled
Energy saving
Deutsch
ect Language. Choisissez
B
A
Aerial
Aerial
6VDC C
D
6V DC
Tune
Tune
EVOKE-1S
Marshall
Schnellaufstellung > Die Bedienelemente auf einen Blick > Anschlüsse auf der Rückseite

3
DE
Die Bedienelemente auf einen Blick
Lautstärkeregler
Lautstärkereglung
und Stummschalten
> Seite 4
Tune (Frequenzsteller)
Radiosender suchen und
auswählen > Seite 4
Verwendung von textSCAN
> Seite 5
Speicherplätze 1 −6+
Speichern von bis zu
30 DAB- oder UKW-
Voreinstellungen > Seite 8
Lichtsensor
Automatische Anpassung
der Helligkeit des Displays
> Seite 11
Menu
Verwendung von Intellitext > Seite 9
Anpassen des Displays > Seite 11
Einstellungsoptionen > Seite 10-13
Quelle
Wechseln der
Audioquelle
> Seite 4
Stand-by
Schalten des
Radios in den
Stand-by-Modus
oder Ausschalten
bei eingesetztem
ChargePAK
> Seite 12 Timer
Küchenwecker > Seite 7
Sleep-timer > Seite 8
Wecker > Seite 6
Info
Anpassung der auf dem Display
angezeigten Informationen > Seite 5
Anschlüsse auf der Rückseite
6V DC
Aux InAux Speaker Stereo Out
USB-Anschluss
(Typ Mini-B) nur
für Software-
Upgrades.
Analoger
Stereoeingang für
iPod/Mp3 Player
usw.
3,5-mm-
Buchse für
Stereokopf-
hörer
Anschluss
für externen
Verstärker
Anschluss für
einen optionalen
S-1-Lautsprecher
für Stereo-
Wiedergabe
Anschluss
nur für
mitgelieferten
Netz-Adapter

4
Bedienung Ihres radio
Lautstärkeregler
Lautstärkereglung
Umschalten zwischen DAB, UKW und einem Zusatzgerät
Drücken Sie die Quelltaste Source ein- bzw. zweimal, um zwischen DAB, UKW oder Aux
(einem separaten Zusatzgerät wie etwa einem MP3-Player) umzuschalten. Durch Drücken des
Frequenzstellers Tune wird die Audioquelle unmittelbar gewechselt.
Senderwechsel
Bei DAB-Betrieb
Drehen Sie den Frequenzregler Tune nach links oder rechts um sich durch die Liste der
verfügbaren DAB-Sender zu bewegen. Der aktuelle Sender bleibt dabei auf der ersten Zeile des
Displays angezeigt. Drücken Sie den Frequenzsteller Tune, um den Sender zu wechseln.
Bei UKW-Betrieb (FM)
Automatische Sendersuche
Drehen Sie den Frequenzsteller Tune nach links oder rechts um zum jeweils nächsten bzw.
vorhergenden UKW-Sender mit einem starken Signal zu gelangen.
Manuelle Senderwahl
1. Wechseln Sie den UKW-Frequenzwahlmodus auf manuell (siehe Seite 11).
2. Drehen Sie den Frequenzsteller Tune nach links oder rechts, um sich jeweils um 0,05 MHz
fortzubewegen.
Lautstärkeregelung > Umschaltung DAB/FM/Aux > Senderwechsel > Info > textSCAN™
Source Source
Stummschalten
Volume
FM
BBC Radio 6Music
BBC Radio 2 Now playing: Race For T BBC Radio 6Music
Auxiliary Input
Volume Volume
Muted
Planet Rock
Tune
Tune
Tune
96.60MHz FM
87.50MHz FM
Searching... >
