PURE One Mini Series 2 User manual

Pure Warranty Statement for Australia
This statement replaces any reference to warranty which may be contained
elsewhere within this manual.
What do you need to do now?
Option 1: You can register your purchase on-line at https://www.pure.com/au/
register/register.asp
Option 2: Or you can do nothing other than keep your proof of purchase as
evidence of your purchase date. This proof of purchase would need to be
presented if warranty service was ever required.
If you have any questions about your warranty you can call us toll free:
1800 988 268
What’s covered by this warranty?
s Pure agrees to refund, repair or replace, at your election, without charge to
you, any part found to be defective during the warranty period.
s If equipment has been used according to its accompanying instruction
manual and is used in a domestic situation, a two year warranty period
applies (excludes rechargeable ChargePAK where fitted. A one year warranty
period applies to all ChargePAKs).
How do you make your claim?
Call 1800 988 268 for instructions on how to return your Pure product for warranty
service or go to: http://support.pure.com/au/ and complete the contact us form.
What’s NOT covered by this warranty?
Under this express warranty Pure will not be liable for loss or damage of any kind
whatsoever, whether direct, indirect, incidental, consequential or otherwise.
s Replacement of parts due to normal wear and tear.
s Products with serial number defacement, modification or removal.
s Water damage or corrosion caused by dampness.
s Any damage or deterioration due to shipments.
s Any damage or deterioration due to shipment.
s Any product which has been subjected to misuse, abuse or accident.
Australian consumers —The benefits to the consumer given by this express
warranty are in addition to other rights and remedies of the consumer under a law
in relation to the goods or services to which this warranty relates. Our goods
come with guarantees that cannot be excluded under the Australian Consumer
Law, You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Pure is distributed and supported in Australia by PIONEER ELECTRONICS
AUSTRALIA PTY LTD, 5 ARCO LANE, HEATHERTON, VICTORIA, 3202.

1
Thank you for choosing One Mini. This
manual will help you get your product up
and running in no time and explains how
to get the best out of all its great features.
If you need any further assistance, please
visit the support pages on our website at
www.pure.com.

2
Safety Instructions
1. Keep the radio away from heat sources.
2. Do not use the radio near water.
3. Avoid objects or liquids getting into the radio.
4. Do not remove screws from or open the radio casing.
5. Fit the mains adapter to an easily accessible socket, located near the radio
and ONLY use the mains power adapter supplied.
6. Always switch the unit off and disconnect it from mains power before inserting
or removing a ChargePAK.
7. Should not be immersed in water, used in shower or bathroom if plugged into
the mains.
Warranty information
Imagination Technologies Ltd. warrants to the end user that this product will
be free from defects in materials and workmanship in the course of normal
use for a period of two years from the date of purchase. This guarantee covers
breakdowns due to manufacturing or design faults; it does not apply in cases
such as accidental damage, however caused, wear and tear, negligence,
adjustment, modification or repair not authorised by us. Should you have a
problem with your unit please contact your supplier or contact Pure Support at
http://support.pure.com.
Disclaimer
Imagination Technologies Limited makes no representation or warranties with
respect to the content of this document and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. Further,
Imagination Technologies Limited reserves the right to revise this publication
and to make changes in it from time to time without obligation of Imagination
Technologies Limited to notify any person or organization of such revisions or
changes.
Trademarks
One Mini Series 2, textSCAN, ChargePAK, Pure, the Pure logo, Imagination
Technologies, and the Imagination Technologies logo are trademarks or registered
trademarks of Imagination Technologies Limited.
Copyright
Copyright © 2012 Imagination Technologies Limited. All rights reserved. No part
of this publication may be copied or distributed, transmitted, transcribed, stored
in a retrieval system, or translated into any human or computer language, in any
form or by any means, electronic, mechanical, magnetic, manual or otherwise, or
disclosed to third parties without the express written permission of Imagination
Technologies Limited. Version 1 April 2012.
Disposal of Waste Electrical & Electronic Equipment
This symbol on the product or on its packaging indicates that this
product should not be treated as household waste. Instead it should
be handed over to a suitable collection point for the recycling of elec-
trical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. The recy-
cling of materials will help to conserve natural resources. For more
detailed information about recycling of this product, please contact
your local council office, your household waste disposal service or
the shop where you purchased the product.

3
Contents
4 Getting started
4 Quick set up
5 Controls at a glance
6 Side connectors
6 Display
6 Adjusting the volume
7 Listening to radio
7 Selecting digital radio
7 Changing digital stations
7 Selecting FM radio
7 Seek tuning
7 Manual tuning
8 Using radio presets
9 Basic options
9 Autotune
9 Using textSCAN to pause and control scrolling text
9 Changing the language
10 Advanced options
10 Upgrade
10 Reset

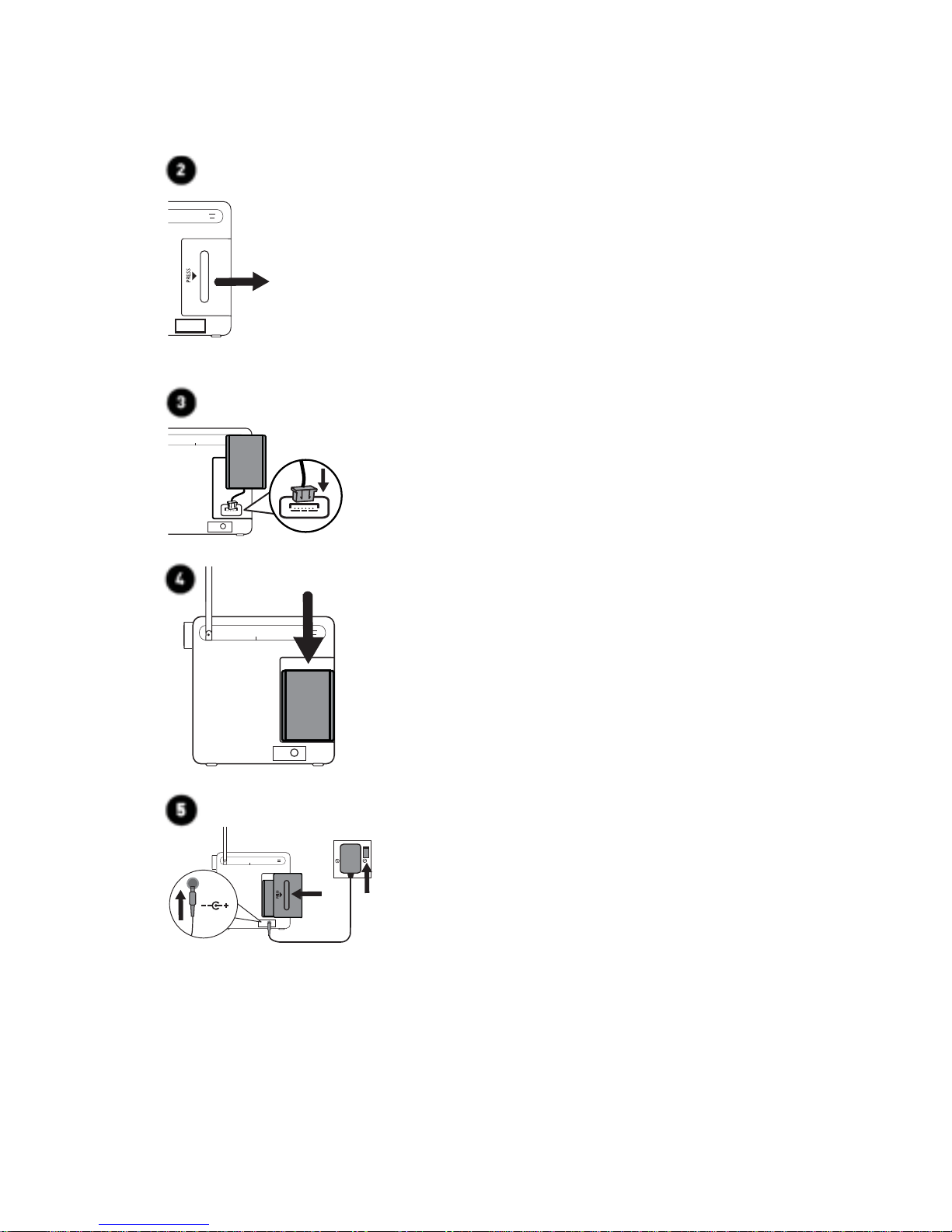

11 Installing the ChargePAK B1
12 Technical specifications

4
Getting started
Note: If you have a ChargePAK B1 rechargeable battery (sold
separately) fit it now before plugging One Mini in. See page 11 for
more information.
Unclip the aerial and fully extend it (steps A and B).
Insert the jack of the supplied mains adapter into the socket on the
rear of the radio (C).
Plug the mains adapter into the mains supply. (D).
1
Wait for the radio to complete an Autotune for all available stations.
When the Autotune is complete, a station will be selected.
Note: By default, the menus on One Mini are displayed in English. To
use another language (Italian, German or French) see page 9.
2
5.5V DC
B
A
D
C
Pure One Mini 25
1
the latest news
BBC Radio 2
Quick set up

5
Controls at a glance
No. Name Description
1 Standby On/standby switch (mains powered) or on/off switch
(ChargePAK powered).
2 Source Press to switch between digital and FM radio.
3 Info Press to switch between scrolling text and the date.
4 Autotune Press to scan for new stations and remove inactive ones.
5 Presets Store and select presets. See page 8.
6 Stations Press then use the Dial to change stations. See page 7.
7 Dial Turn to adjust volume or scroll stations. See page 6.
8 Side connectors USB, headphone and aux in connectors. See page 6.
the latest
new
s
BBC Radio 2

6
Side connectors
Mini-B type USB connector
For software updates only.
Line in
Analogue stereo input for iPod, MP3 player, etc.
Note: One Mini automatically switches from the digital
or FM source to the Line In source if you connect an
auxilliary device to the Line In connector.
3.5 mm stereo headphone socket
Adjusting the volume
Turn the Dial to adjust the volume.
Volume
the latest news
BBC Radio 2
Volume/mute
Volume level Signal strength
the latest news
BBC Radio 2
Source indicator
Displays the current radio source:
DAB indicates digital radio
FM indicates FM
Station name
Date/scrolling text
Clock
Display

7
Listening to radio
Selecting digital radio
Press Source until ‘DAB’ is displayed at the
top of the screen.
Changing digital stations
1. Press Stations so that the scroll symbols
are shown on the display.
2. Turn the Dial to the station you want to
listen to.
3. Push the Dial to tune into the station.
Selecting FM radio
Press Source until ‘FM’ is displayed at the
top of the screen.
Seek tuning
1. Press Autotune so that ‘Turn to seek’ is
shown on the display.
2. Turn the Dial to automatically scan for the
next station. The scan will stop when a
station with a strong signal is found.
Manual tuning
1. Press Stations so that ‘Turn to tune’ is
shown on the display.
2. Turn the Dial to the required frequency.
the latest news
BBC Radio 2
87.50MHz
87.60MHz
Turn to tune
87.5MHz
Turn to seek
BBC 6Music
BBC Radio 2

8
Using radio presets
Storing a radio preset
1. Tune into the station that you want to
store.
2. Press Presets.
3. Turn the Dial to to the required Preset
number.
4. Push and hold the Dial for two seconds
to store the radio station as a preset.
Note: To overwrite a radio preset, tune into
the station that you want to store and follow
the above steps.
Selecting a radio preset
1. Press the Presets button.
2. Turn the Dial to the station that you want
to listen to.
3. Push the Dial to tune in to the station.
Store up to 8 digital and 8 FM radio stations for quick access.
Preset 2 saved
BBC Radio 2
Preset 02
BBC Radio 2
Preset 02
Empty preset
the latest news
BBC Radio 2

9
Basic options
Autotune
You can use the autotune function to
automatically scan for new digital radio
stations and remove inactive ones.
Note: Autotune is only available when you
have selected ‘Digital’ as the radio source.
1. Press Autotune.
2. Push the Dial.
The number of stations found will be
displayed during the autotune.
3. When the autotune has finished, One Mini
will tune to the last station that you were
listening to.
Using textSCAN to pause and
control scrolling text
1. When ‘Scrolling text’ information is
displayed in either digital or FM radio,
push the Dial to pause the scrolling text.
2. Turn the Dial again to scroll forwards
and backwards through the text. To exit
textSCAN push the Dial again.
Changing the language
1. Press Info and hold until ‘Language’ is
displayed on the screen and push the
Dial.
2. Turn the Dial until the language you want
to use is displayed.
3. Push the Dial to save your changes.
Autotune... 12
confirm autotune
Push dial to
news and sport
BBC Radio 2
the latest news
BBC Radio 2
Language
English

10
Upgrade
Contact Pure technical support
(http://support.pure.com) for more
information on how to update One Mini to the
latest software version.
Reset
Resetting your One Mini removes all presets,
stored stations and resets all other options to
default settings.
1. Ensure your aerial is fully extended and
vertical.
2. Press and hold Info for two seconds.
3. Turn the Dial to ‘Factory reset’.
4. Press the Dial to confirm that you want to
reset the One Mini to default settings.
Advanced options
Factory reset

11
Installing the ChargePAK B1
1. Switch One Mini off and disconnect from
the mains power supply.
2. Open the battery compartment.
3. insert the ChargePAK connector plug into
the socket in the compartment. Line up
the ridges on the plug with the slots in the
socket to ensure correct orientation. Do
not force the plug.
4. Insert ChargePAK into the battery
compartment, logo side out.
5. Replace the battery cover and connect
One Mini to the mains.
6. ChargePAK will begin charging.
Note: When charging your ChargePAK
for the first time or after an extended
period of inactivity it is recommended
that it is charged for around 24 hours to
ensure full battery power. If ChargePAK is
in a highly discharged state there may be
a slight delay before the battery charging
indicator is displayed.
5.5V DC

12
Radio Digital and FM, UK products receive DAB and
FM; non-UK products receive DAB/DAB+/
DMB-Radio/FM depending on region.
Audio 1.6W RMS. Full-range 3" drive unit.
Input Connectors 5.5V DC power adaptor socket (230V
supplied), Mini USB connector for product
upgrades, 3.5mm Line-in for auxiliary devices
Output Connectors 3.5mm headphone socket.
Power 230V AC to 5.5V (1.0A) DC external power
adapter or optional ChargePAK B1.
Power Consumption Standby: 0.70W, Active: 1.9W.
Approvals CE marked. Compliant with the EMC and
Low Voltage Directives (2004/108/EC and
2006/95/EC) ETSI EN 300 401 compliant.
Australian C-Tick N1600 and Electrical Safety.
Technical specifications

Pure
Imagination Technologies Ltd
Home Park Estate
Kings Langley
Herts, WD4 8LZ
United Kingdom
http://support.pure.com
Pure Australasia Pty Ltd
PO Box 5049
Wonga Park
Victoria 3115
Australia
[e-mail]
http://support.pure.com/au

103MW
www.pure.com
www.thelounge.com
www.facebook.com/pure
