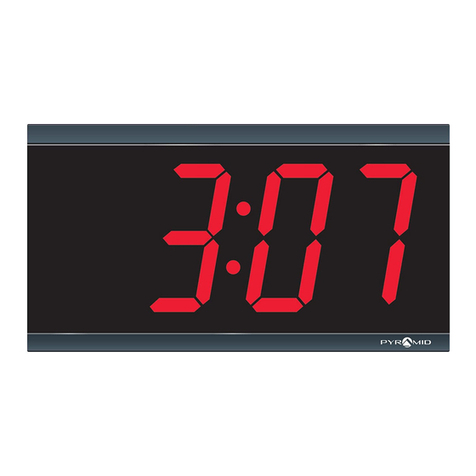

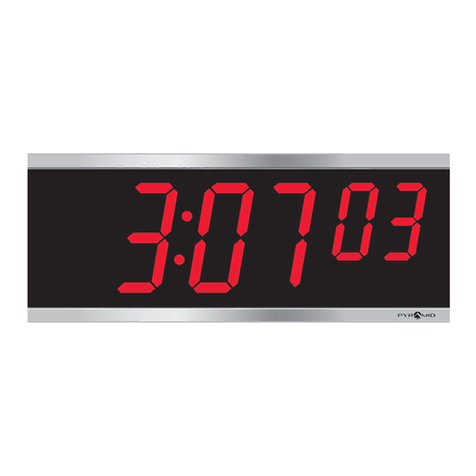

DIGITAL CLOCK
Part 41357G & 61357G
TIME FORMAT SETTNGS
The 41357G/61357G requires time signal from a Master Clock. The clock may be connected to any of the following
Pyramid Time System devices to receive time signal:
9T1W1 TimeTrax Sync 902-928 MHz RF Wireless Shelf Transmitter
S9DSXOLAUB TimeTrax Sync 902-928 MHz Secondary Shelf Transmitter
S9DWXSLAUB TimeTrax Sync 902-928 MHz RF Wireless Wall Transmitter
42337 TimeTrax Sync 902-928 MHz Secondary Wall Transmitter
TTELITEEK TimeTrax Elite Biometric Time & Attendance System
TTPROXEK Time Trax Elite Proximity Time & Attendance System
7000 7000 Master Clock Controller1
1The 7000 Master Clock Controller is able to time correct up to 100 clocks. The Pyramid Master Clock Controller Booster (#7050) in conjunction with the Master Clock Controller is able to control up
to 100 additional clocks.
NOTE: The 41357G/61357G may receive its time source from any Master Clock System that supplies BCD, 58th minute (synchronous wired) correction, or 59th minute correction. Pyramid Time
Systems strongly recommends using the Pyramid 7000 Master Controller, which sends an update correction signal every minute utilizing a BCD correction method. Most other Master Clock Systems
which utilize a 58th or 59th minute correction, will update the clock once or twice daily. Clocks using a 58th or 59th minute correction may be out of synchronization for up to 24 hours verses the
Pyramid Time System, which may only be out of synchronization for up to one minute following a power interruption.
To change time format setting, locate rectangular hole in back of clock that contains 6 pins with a black jumper
installed. Reposition the jumper according to desired time format settings as shown in Figure 1-3.
FIG 1 FIG 2 FIG 3
12-HR
Use with Master Clocks
other than Pyramid or if a
clock is desired to be a
different time than
Pyramid Master
24-HR
Use with Master Clocks
other than Pyramid or if a
clock is desired to be a
different time than
Pyramid Master
PYRAMID
MASTER CLOCK
CONTROLLER
indicates
jumper
location
USING PYRAMID TIME SYSTEM DEVICE
Connect Correction/Power Harness to 6 pin Molex on back of clock. The clock is powered through 6 pin Molex
connector. Hardwire black & white wires to 120VAC source, and green wire to ground.
Insert RJ45 BCD signal cable from Pyramid TimeTrax Time & Attendance System, Pyramid 7000 Master Control
System, or TimeTrax Sync 902-928MHz RF Wireless Transmitter (AUX out from TTSync only) into RJ45
connector.
Mount clock on wall using mounting holes located on back of clock. Attach security mounting bracket to single
or double electrical work box, then attach clock to bracket using the four hooks.
NOTE: After system is set up and power is applied, the 41357G/61357G clock will take up to 2 minutes to display correct time. If there
is not a correction, check that all connections are secure.
I2048 REV H

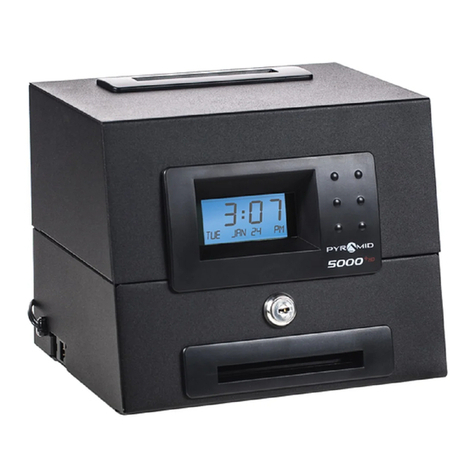

4000/4000HD Auto Totaling Time Clocks
