r.LiNK RL3-MBN51 User manual

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
r.LiNK Video-inserter
RL3-MBN51
Compatible with Mercedes Benz vehicles
with NTG5-205 or NTG5.1
with 4pin HSD connector at the monitor
Comand Online
Audio20 CD
Audio20 USB
Video-inserter for rear-view camera input
and 2 additional video sources
Product Features
Video-Inserter for Factory-Infotainment Monitors
Rear-view camera FBAS Input
2 FBAS Video Inputs for After-Market Devices (e.g. DVD-Player, DVD-Tuner)
Automatic Switching to Rear View Camera, Input by Engagement of Reverse Gear
Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page2
Contents
1. Prior to installation

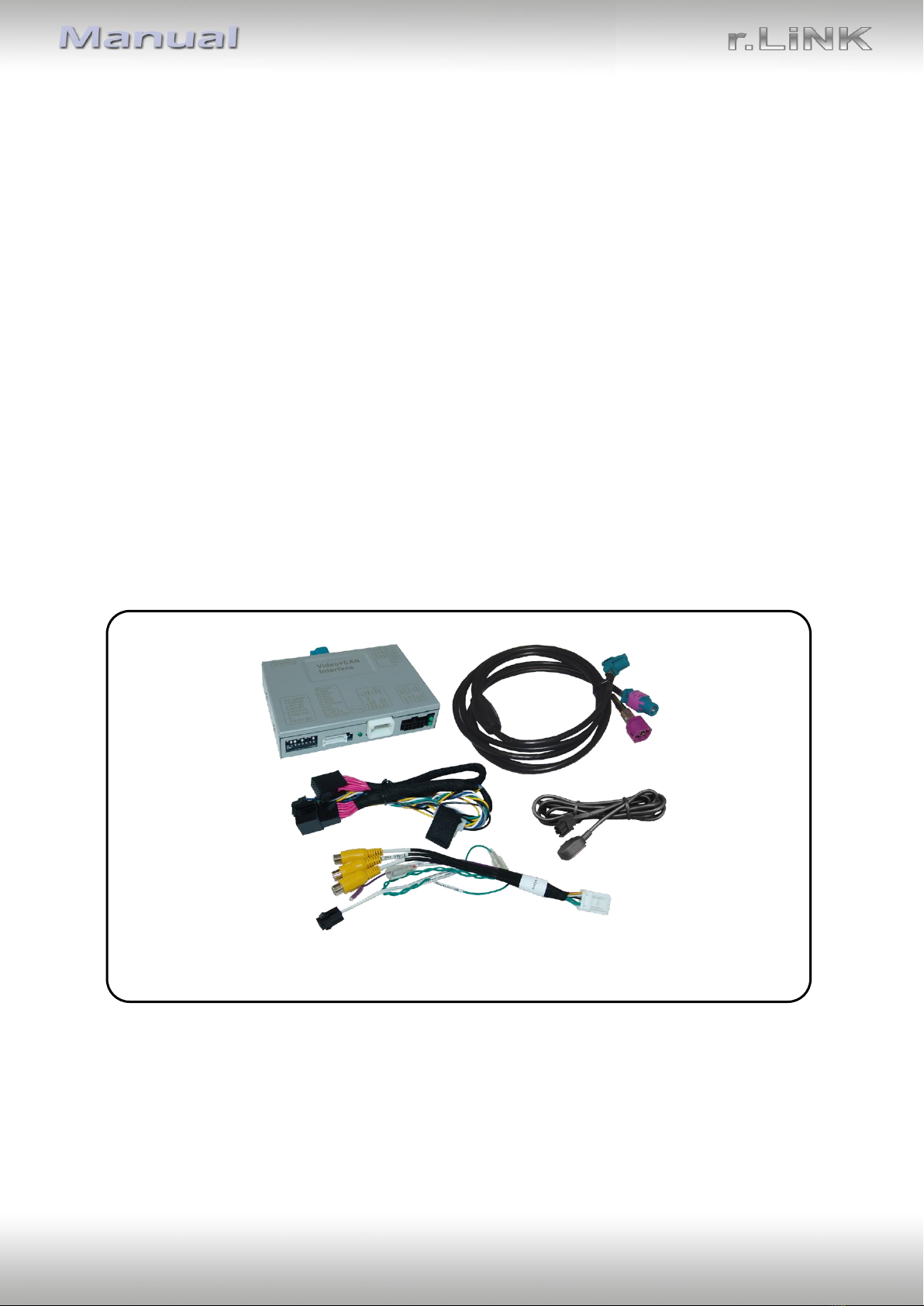

1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Connection Video-Interface
1.4. Settings of the 8 Dip switches (black)
1.4.1. Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
1.4.3. Monitor selection (dips 6-8)
1.5. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection to the head-unit
2.3.1. Picture signal cable
2.3.2. Power and CAN connection
2.4. Analog power supply for the video interface
2.5. Connecting video sources
2.5.1. Audio insertion
2.5.2. After-market rear-view camera
2.5.2.1. Case 1: Video-interface receives the reverse gear signal
2.5.2.2. Case 2: Video interface does not receive the reverse gear signal
2.6. Connecting video-interface and external keypad
2.7. Picture settings and guide lines
3. Interface operation
3.1. By Comand buttons
3.2. By external keypad
4. Specifications
5. FAQ –Trouble shooting
6. Technical support

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. If
available, we offer free software-updates for our interfaces for one year after purchase. To
receive a free update, the interface must be sent in at own cost. Labor cost for and other
expenses involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page4
Compatibility
Brand
Compatible vehicles
Compatible systems
Mercedes Benz
C-Klasse (W205), C-Klasse Coupé
(C205) since 2015, GLC (X253), GT
AMG (C190) V-Klasse (W447) since
2014
Command Online NTG5-205,
Audio20 CD NTG5-205,
Audio20 USB NTG5-205
A-Klasse (W176) since 09/2015, B-
Klasse (W246) since 11/2014, CLA-
Coupé (C117) since ca. 10/2014, CLA-
Shooting B (X117) since 03/2015,
CLS-Coupé (W218) since ca. 08/2014,
E-Klasse (S/W212) since ca. 11/2014,
E-Klasse Coupé (C207) since ca.
06/2015, G-Model (G463) since
10/2016, GL-Klasse (X166) since
09/2016, GLA (X156) since 09/2015,
GLE-Klasse (C292), GLS-Klasse (X166)
since ca. 11/2015, ML-Klasse (W166)
since 08/2015, SLC-Klasse (R172)
since 2016, CLS Shooting B (X218)
since ca. 08/2014
Command Online NTG5.1,
Audio20 NTG5.1
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For sound use an FM-modulator. Only for Comand Online NTG5-
205, the optional OBD-coder for factory audio-AUX is available
(OBD-N5-X-01).
Video Sources<. Only compatible to NTSC Video Sources
Factory Rear View Camera Automatical switching to Rear Rear View Camera as long as the
Rerverse Gear is enganged. For Retardation of Switch-Back
additional Electronics is required.
Guidelines If the video interface does not receive the required information
from the vehicle CAN-bus, the guide-lines will not be supported.
Factory rear-view camera Automatic switch-back from inserted video to factory rear-view
camera only while reverse gear is engaged. To delay the switch-
back time, additional electronics is required.
1.2. Checking the compatibility of vehicle and accessories

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page5
1.3. Connection Video-Interface
The video-interface converts the connected after-market sources video signals into a digital
RGB signal which is inserted in the factory monitor using separate trigger options.
Furthermore, it reads vehicle’s digital signals out of the vehicle’s CAN-bus system and
converts them for the video interface.
1.4. Dip-switch settings (black)
Some settings must be selected by the dip-switches on the
video-interface. Dip position down is ON and position up is OFF.
See the following chapters for detailed information.
After each Dip-switch-change a power-reset of the Interface-box has to be performed!
Dip
Function
ON (down)
OFF (up)
1
No Function
Set OFF
2
Video 1
enabled
disabled
3
Video 2
enabled
disabled
4
No Function
Switch to OFF
5
Rear-view cam type
After-Market
Factory or none
6
Monitor
selection
Try all possible combinations of dip 6, 7 and 8 to find the
best picture (quality and size)
7
8

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page6
1.4.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It`s recommended to enable only the required inputs, for the disabled will be
skipped when switching through the video interfaces inputs.
1.4.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display a factory rear-view camera or a factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input “Camera-IN” while the
reverse gear is engaged.
Note: Dips 1and 4 are out of function and have to be set to OFF.
1.4.3. Monitor selection (dips 6-8)
Dips 6-8 are for monitor-specific video settings which cannot be predicted as even within the
same head-unit version, the monitor specifications may vary. It is necessary to try all
possible combinations - while a working video source is connected to the chosen input of the
interface - to see which combination gives the best picture quality and size (some may give
no picture). It is possible to first hot plug through the dip combinations, but if you do not
experience any change of picture after trying all options, retry and disconnected the 10pin
power plug of the video-box between every change of the dip setting.
After each Dip-switch-change a power-reset of the Interface-box has to be performed!
1.5. Settings of the 4 Dip switches (CAN functions –red)
Dip position down is ON and position up is OFF.
Vehicle/infotainment
Dip 1
Dip 2
Dip 3
Dip 4
Vehicles with NTG5 (-205)*
OFF
OFF
OFF
OFF
Vehices with NTG5.1*
OFF
OFF
ON
OFF
Warning: If dip switch 3 has not been set to the vehicle specific correct position, CAN-bus
faults may occur, which extremely disturb the vehicle’s instrument electronics!
*Vehicle specific infotainment assignments can be taken from the yellow box on page 4!

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page7
2. Installation
Switch off the ignition and disconnect the vehicle’s battery! The interface needs a
permanent 12V source. If -according to factory rules- a disconnection of the battery has to
be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode
doesn’t succeed, the battery has to be disconnected with a resistor lead.
The Interface needs a permanent power supply! If power isn’t directly taken from the
battery, the connection’s power has to be checked for being start-up proven and
permanent.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
2.1. Place of installation
The interface is installed on the backside of the head-unit.

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page8
2.2. Connection Scheme

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page9
2.3. Connections to Head Unit
Remove Comand Head-Unit.
2.3.1. Picture signal cable

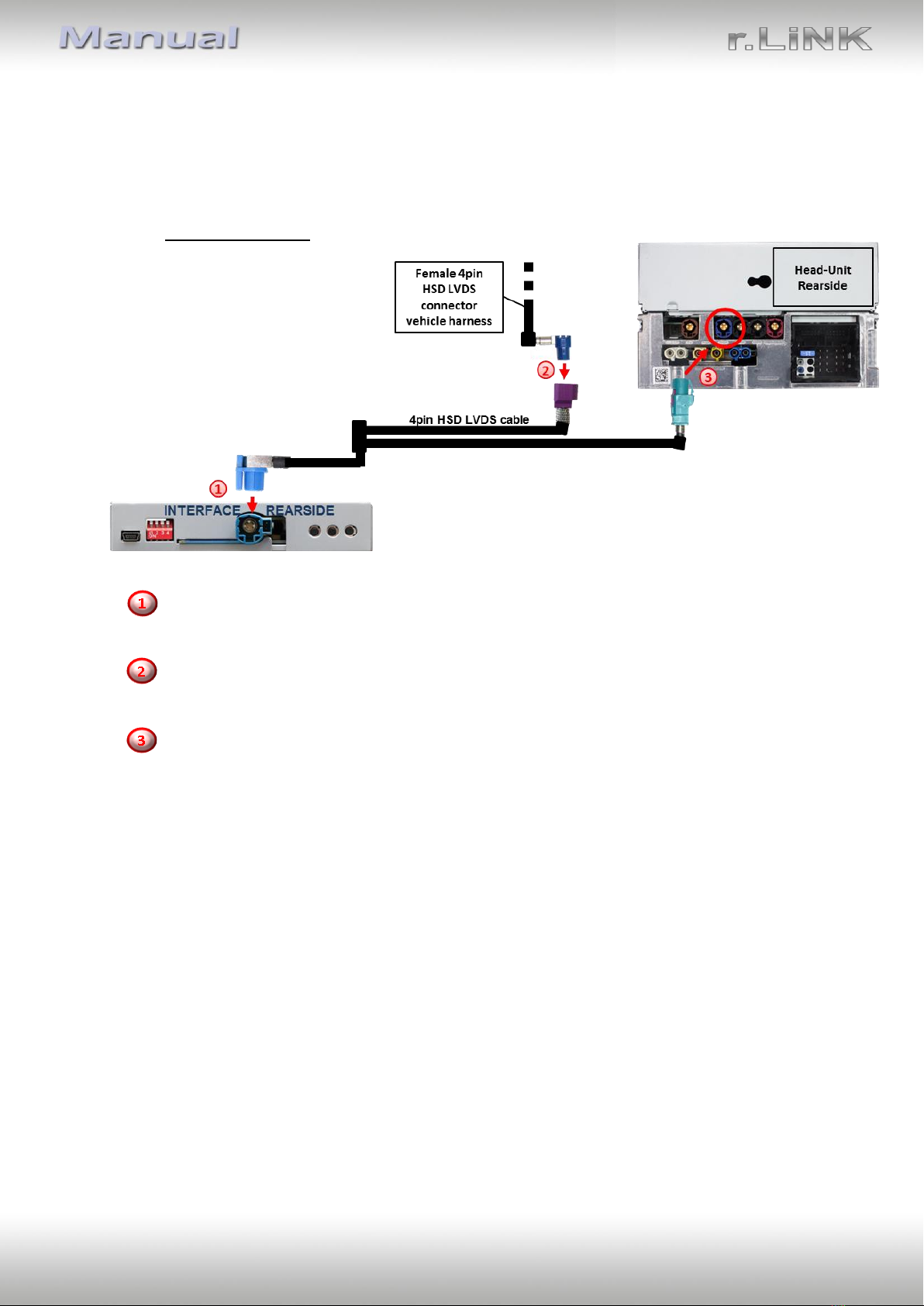

Connect the female 4+2pin HSD connector of the 4pin HSD LVDS cable to the male
4+2pin HSD LVDS connector of the interface-box.
Remove the blue female 4pin HSD connector from the rear of the factory monitor
and connect it to the male 4pin HSD LVDS connector of the 4pin HSD LVDS cable.
Connect female 4pin connector of the 4pin HSD LVDS cable to the male 4pin HSD
LVDS connector of Head-Unit.
Note: If the HSD image cable of the vehicle harness is too short for the installation, an HSD
extension can be ordered separately with item number CAB-HSD-ML100.

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page10
2.3.2. Power and CAN connection
Connect the 10pin power/CAN cable’s female 10pin connector to the 10pin connector of the
interface
Connect the single, yellow wire of the 10pin power/CAN cable to +12V permanent and
stabile power supply.
Connect the single, black wire of the 10pin power/CAN cable to the vehicle’s negative
ground.
Remove the female Quadlock connector of the vehicle harness
from the rear of the head-unit and connect the previously
clipped out black female 12pin connector (see graphic)
to the male 12pin connector of the PNP harness.
Clip in the female 12pin connector of the PNP
harness in the previously become free
position of the female Quadlock connector
before finishing the Quadlock reconnection at
the rear of the head-unit.
If, after connecting the PNP harness, no interface LED lightens up while the ignition is

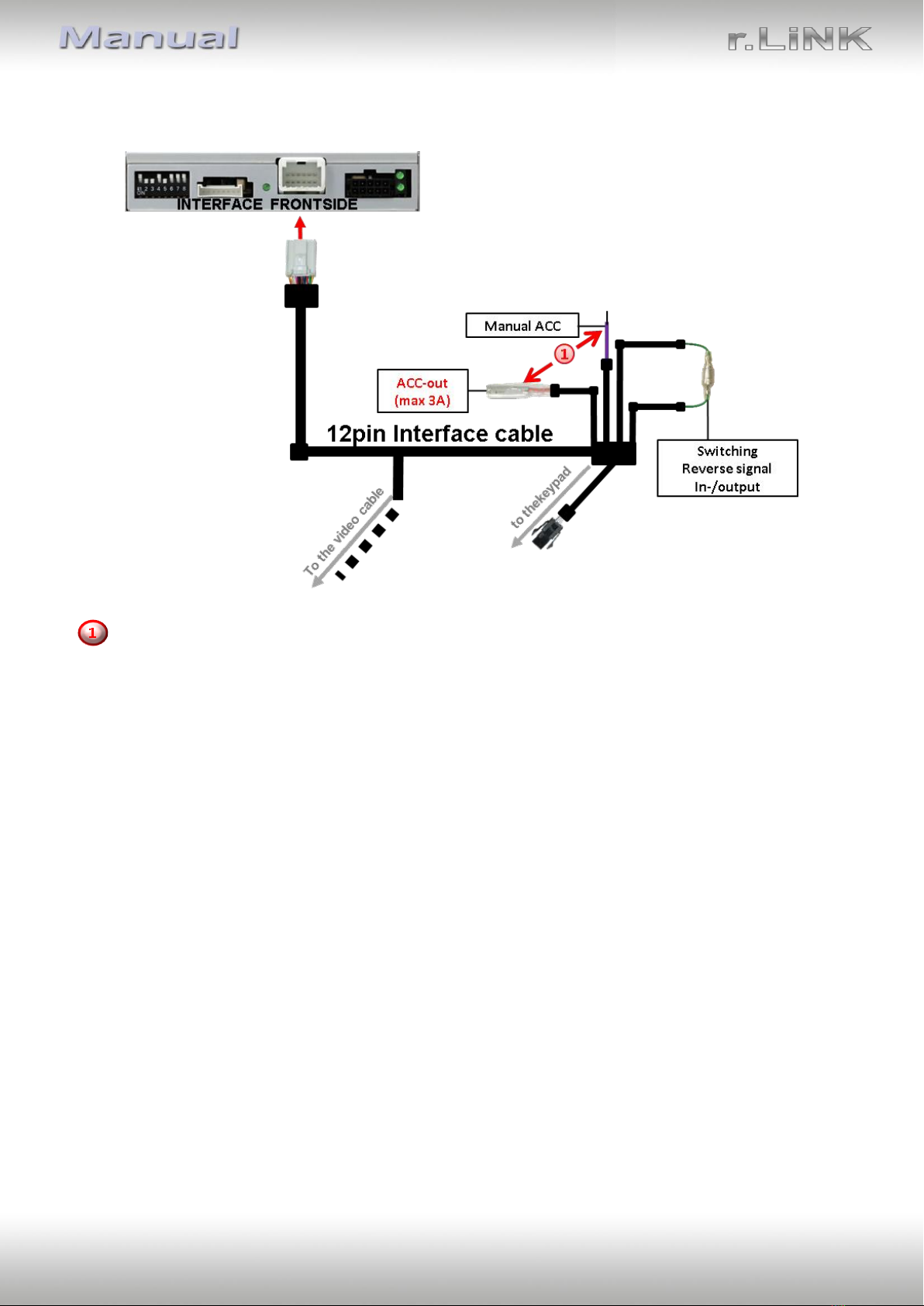

turned on, the single red wire ACC-out (max 3A) and the purple coloured wire Manual ACC
of the 12pin interface cable both have to be connected additionately to S-contact terminal
86s +12V (e.g. glove compartment illumination).

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page11
2.4. Analog power supply for the video interface
If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned
on, the single red wire ACC-out (max 3A) and the purple coloured wire Manual ACC of the
12pin interface cable both have to be connected additionately to S-contact terminal 86s
+12V (e.g. glove compartment illumination).

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page12
2.5. Connection of video sources
It is possible to connect an after-market rear-view camera and two more AV sources to the
video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video-interface.
Connect the video RCA of the AV source 1 and 2 to the female RCA connector “Video IN1”
and ”Video IN 2” of the 12pin interface cable.
Connect the video RCA of the Rear-view camera to the female RCA connector “Camera IN”
of the 20pin interface cable (refer also to chapter “Video signal connection of the rear-view
camera”)

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page13
2.5.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment.
2.5.2. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. In this case there are two different ways of installation. If the video-
interface is able to detect an enabled vehicle’s reverse gear, the green wire of the 6pin to
12pin cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set video interface’s dip5 to ON before testing.
2.5.2.1. Case 1: Interface receives the reverse gear signal
If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input “Camera IN” while the reverse gear is engaged.

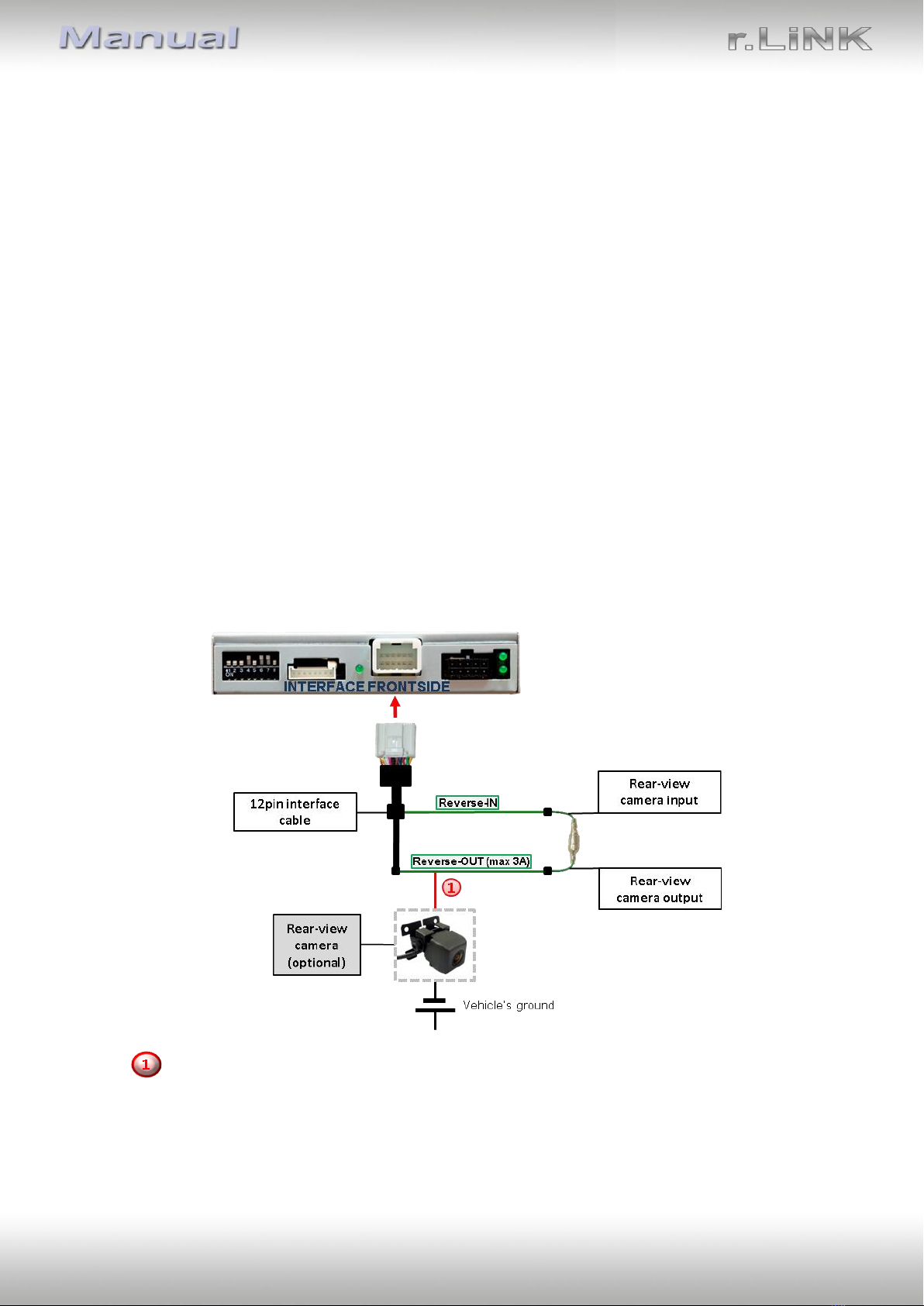

Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken
from the green wire of the 12pin interface cable.

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page14
2.5.2.2. Case 2: CAN-box does not receive the reverse gear signal
If the video interface does not deliver +12V on the green wire of the 12pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stabile all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter

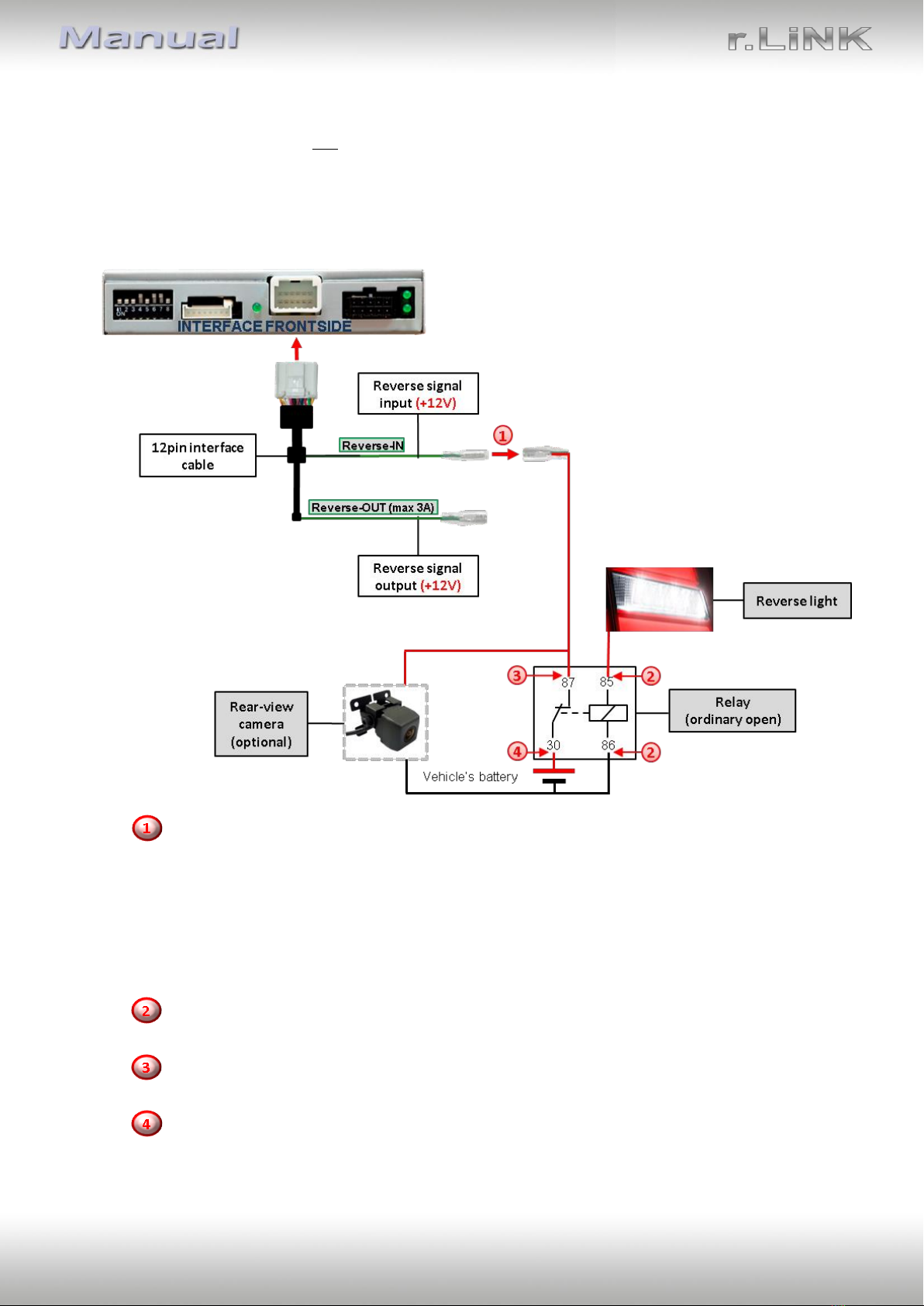

(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s preconnected male- and female connectors of the 12pin
cable and connect the green input cable “Reverse-IN” to the output connector (87)
of the relay.
Note: Last but not lot least to avoid short circuits, the best solution should be, to
crimp a male 4mm connector to the relay’s output cable and connect it to the green
cable’s female 4mm connector. The output-cable “Reverse-OUT” remains
disconnected as it’s out of function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page15
2.6. Connecting video-interface and keypad

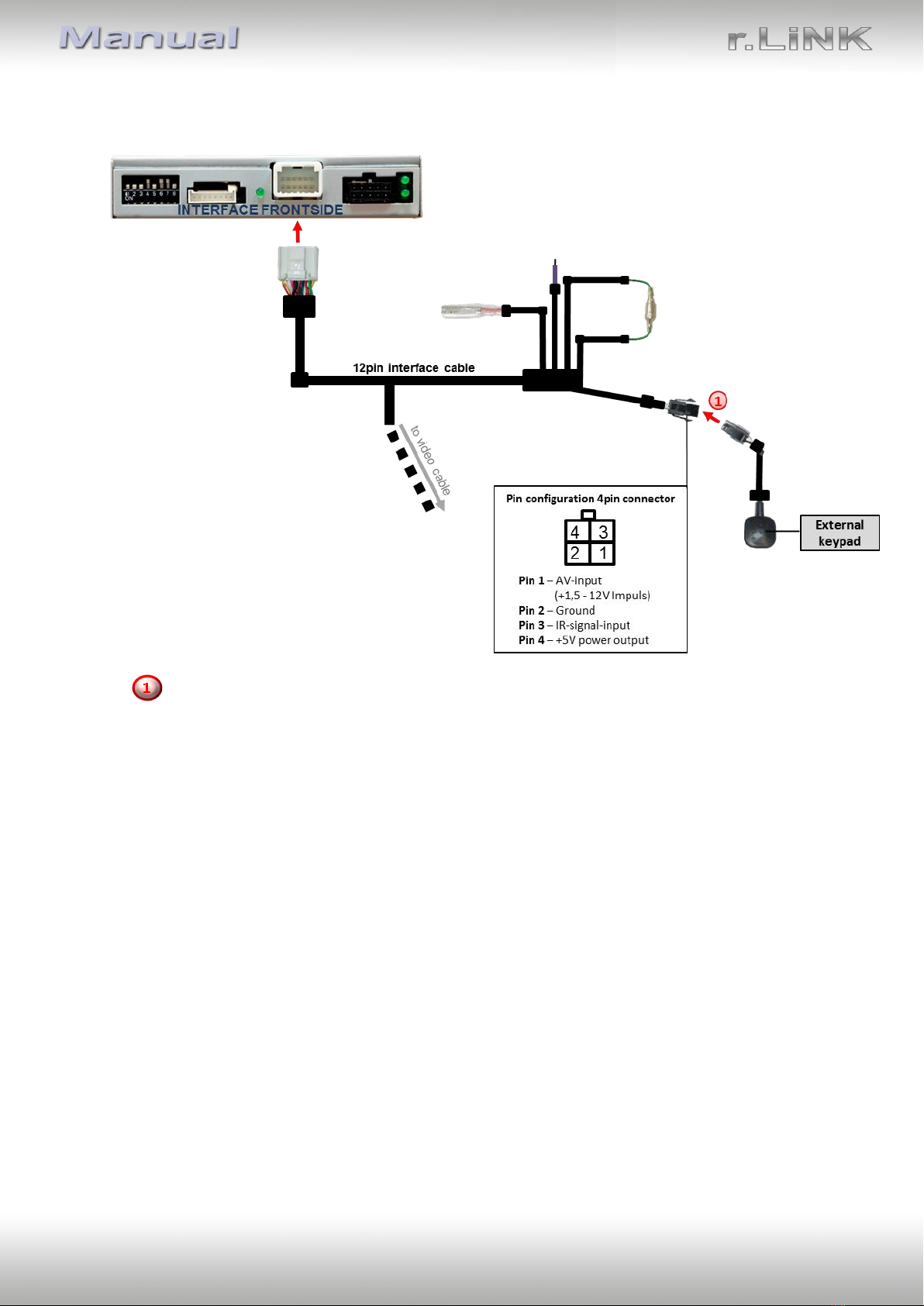

Connect the female 4pin connector of the keypad to the male 4pin connector of the
12pin interface cable.
Note: Even if switching through several video sources by the keypad mightn’t be required,
the invisible connection and availability is strongly recommended.

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page16
2.8 Picture settings and guide lines
The picture settings are adjustable by the 3 push-buttons on the video-interface. Press the
MENU button to open the OSD settings menu or to switch to the next menu item. Press UP
and DOWN to change the selected value. The buttons are placed inside in the housing to
avoid accidental changes during or after the installation. Picture settings must be done
separately for Video1, Video 2 and rear-view camera while the corresponding input is
selected and visible on the monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
IR-AV1 (out of function)
IR-AV2 (out of function)
Guide-L Setting Guide lines
UI-CNTRL PDC function on/off
(ALLON+PDCON=PDC on, ALLOFF=PDC off, RETON=No function)
Guide-CNTRL Guide lines on/off
H-SIZE (horizontal) picture adjustment
V-SIZE (vertical) for rear-view camera
Note: If the vehicle’s CAN communication does not support the video interface, the guide-
lines cannot be used, even if they’re once shown with the first operation!

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page17
3. Interface operation

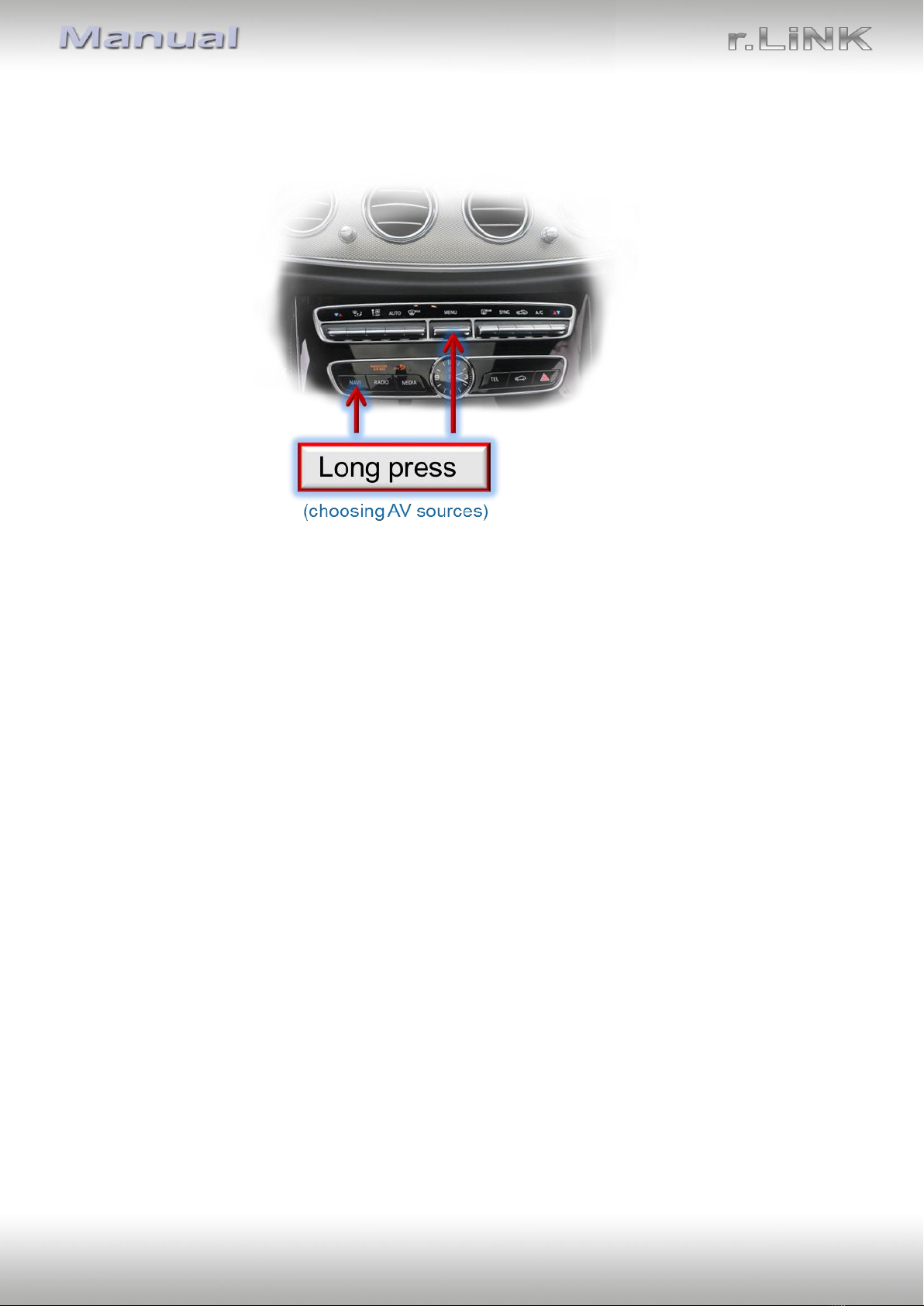

3.1. By Comand-buttons
A short press of the NAVI button or the Menu button switches the input from factory mode
to the inserted video sources.
Inputs which are not enabled by dip switch settings are skipped.
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external
keypad must be used.
Note: The white wire of the 6pin cable can be used with a +5-12V pulse to switch the video-
sources alternatively.
3.2. By keypad
Alternatively or additionally to the factory infotainment buttons the interface’s external
keypad can be used to switch the enabled inputs.

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page18
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain <10mA
Video input 0.7V - 1V
Video input formats NTSC
Temperature range -40°C to +85°C
Dimensions video-box 118 x 25 x 84 mm (W x H x D)

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page19
5. FAQ –Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.

Version 29.01.2020 HW: CAM (V97)/ (V52)GD RL3-MBN51
Page20
Symptom
Reason
Possible solution
Camera input picture
black.
Camera power taken directly
from reverse gear lamp.
Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.
Camera input picture
has distortion.
Camera input picture
settings cannot be
adjusted.
Camera input picture settings
can only be adjusted in AV2
mode.
Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.
Graphics of a car in
camera input picture.
Function PDC is ON in the
interface OSD.
In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.
Chinese signs in
camera input picture
Function RET or ALL is ON
(function for Asian market) in
the interface OSD.
Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.
Not possible to switch
video sources by OEM
button.
CAN-bus interface does not
support this function for
vehicle.
Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Pressed too short.
For video source switching a longer press of about 2.5
seconds is required.
Not possible to switch
video sources by
external keypad.
SW-version of interface does
not support external keypad.
Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Interface does not
switch to camera input
when reverse gear is
engaged.
CAN-bus interface does not
support this function for the
vehicles.
Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" R-gear lamp power.
Interface switches
video-sources by itself.
CAN-bus interface
compatibility to vehicle is
limited.
Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.
6. Technical Support
Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.
NavLinkz GmbH
distribution/tech dealer-support
Heidberghof 2
D-47495 Rheinberg
Tel [phone]
Email [email protected]
10R-03 5384
Made in China
