PRECAUTIONS
Prior to installation, use or maintenance activities, carefully read this user
manual and follow the provided guidelines.
Prior to the first use, carefully read this user manual. Use the weighing
device only as intended.
Place weighed loads in the centre of the weighing pan.
Load the weighing pan with loads of gross weight which does not exceed
the maximum capacity.
Mind not to leave heavy loads on the weighing pan for longer periods
of time.
Protect the indicator against considerable temperature variation, solar and
UV radiation, substances causing chemical reactions.
The weighing device must not be operated in hazardous areas
endangered with explosion of gases, and in dusty environments.
In case of damage, immediately unplug the device from the mains.
Scales to be decommissioned must be decommissioned in accordance
with valid legal regulations.
Do not let battery discharge in case of prolonged storage of the device
in low temperature.
Accumulators do not belong to regular household waste. The European
legislation requires discharged accumulators to be collected and disposed
separately from other communal waste with the aim of being recycled.
Symbols on batteries identify harmful compounds: Pb = lead,
Cd = cadmium, Hg = mercury. Dear user, you are obliged to dispose of the
worn out batteries as regulated.
If the scale is to be operated in conditions that are difficult due to
electrostatics (e.g. printing house, packing centre, etc.), you must connect
it to the earth wire. To enable this, the device features functional earthing
terminal, marked with symbol.

4
CONTENTS
1. INTENDED USE .................................................................................................................................................5
2. WARRANTY CONDITIONS ...............................................................................................................................5
3. MAINTENANCE ACTIVITIES ............................................................................................................................5
3.1. Cleaning ABS Components.........................................................................................................................6
3.2. Cleaning Stainless Steel Components........................................................................................................6
4. SERVICE AND REPAIR.....................................................................................................................................6
5. RECYCLING.......................................................................................................................................................7
6. MECHANICAL DESIGN.....................................................................................................................................7
6.1. 1-Load-Cell Scales......................................................................................................................................7
6.2. Multiple Load Cell Scales............................................................................................................................8
6.3. Scales with Load-Cell Modules...................................................................................................................8
6.4. Dimensions..................................................................................................................................................9
6.5. Connectors Arrangement ............................................................................................................................9
6.6. Pins Arrangement......................................................................................................................................10
6.7. Operation panel.........................................................................................................................................10
7. SCALE INSTALLATION ..................................................................................................................................11
7.1. Unpacking and Installation........................................................................................................................11
7.1.1. C315.xx.K, C315.xx.R, C315.F1.M Series.....................................................................................11
7.1.2. C315.C2.M, C315.C3.M Series......................................................................................................11
7.1.3. C315.4 Series.................................................................................................................................12
7.2. Levelling.....................................................................................................................................................13
7.2.1. Levelling: 1-Load-Cell Platform Scales..........................................................................................13
7.2.2. Levelling: 4-Load-Cell Platform Scales..........................................................................................13
7.3. Start-Up .....................................................................................................................................................14
7.4. Battery Status............................................................................................................................................14
7.5. Battery Charge Status Check....................................................................................................................14
8. OPERATING THE MENU................................................................................................................................. 15
8.1. Return to Weighing....................................................................................................................................15
9. WEIGHING........................................................................................................................................................ 16
9.1. Good Weighing Practice: 4-Load-Cell Platform Scales............................................................................16
10. DIAGRAMS OF CONNECTION CABLES.....................................................................................................17
11. TECHNICAL SPECIFICATIONS....................................................................................................................18
12. TROUBLESHOOTING ...................................................................................................................................18
13. ERROR MESSAGES .....................................................................................................................................19

5
1.INTENDED USE
C315 series scales enable fast and accurate mass measurement in laboratory
and industry. They feature plastic housing and backlit LCD. The devices are
equipped with an internal battery which allows their operation in places where
there is no access to the mains. Standard C315 scales feature RS232 interface
for communication with external devices (printer, computer, etc.) and offers
wireless communication.
2.WARRANTY CONDITIONS
A. RADWAG feels obliged to repair or exchange all elements that appear
to be faulty by production or by construction.
B. Defining defects of unclear origin and means of their elimination can only
be realized with assistance of manufacturer and user representatives.
C. RADWAG does not bear any responsibility for damage or losses
resulting from unauthorized or inadequate performing of production
or service processes.
D. The warranty does not cover:
mechanical damage caused by product exploitation other than
intended, damage of thermal and chemical origin, damage caused by
lightning, overvoltage in the power network or other random event,
inappropriate cleaning habits.
E. Loss of warranty takes place if:
a repair is carried out outside RADWAG authorized service point,
service claims intrusion into mechanical or electronic construction by
unauthorized people,
the scale does not bear security stickers.
F. Warranty conditions outline the warranty period for rechargeable
batteries attached to the device for 12 months.
G. For detailed warranty conditions read the warranty certificate.
H. Contact with the central authorized service: [phone].
3.MAINTENANCE ACTIVITIES
In order to ensure safety in the course of cleaning, it is necessary to disconnect
the device from the mains. With this condition met, uninstall the weighing pan
and other detachable components.
Cleaning the weighing pan while still installed may cause
damage of the measuring system.

6
3.1. Cleaning ABS Components
To clean dry surfaces and avoid smudging, use clean non-colouring cloths
made of cellulose or cotton. You can use a solution of water and detergent
(soap, dishwashing detergent, glass cleaner). Gently rub the cleaned surface
and let it dry. Repeat cleaning process if needed.
In the case of hard to remove contamination, e.g. residues of adhesive, rubber,
resin, polyurethane foam etc., you can use a special cleaning agents based on
a mixture of aliphatic hydrocarbons that do not dissolve plastics. Before using
the cleanser for all surfaces we recommend carrying out tests. Do not use
cleansers containing abrasive substances.
3.2. Cleaning Stainless Steel Components
Avoid using cleansers containing any corrosive chemicals, e.g. bleach
(including chlorine). Do not use cleansers containing abrasive substances.
Always remove the dirt using microfiber cloth to avoid damage of protective
coating.
In case of a daily maintenance:
1. Remove the dirt using cloth dipped in warm water.
2. For best results, add a little bit of dishwashing detergent.
4. SERVICE AND REPAIR
In case of any sign of damage, it is necessary to disconnect
the device form the mains immediately. The damaged
component must be replaced or repaired by RADWAG
service immediately.
In case of any problems with correct operation of the scale, contact the closest
manufacturer's service point.
In case of defects, deliver the faulty product to the manufacturer's service point.
If the product cannot be delivered to the manufacturer's service point, call the
service and report the defect. Repair scope and method will be set up.
The user is NOT ALLOWED to carry out any kind of repair
of the device himself/herself. Any attempt of scale
modification, repair etc., by unauthorized persons, will result
with loss of validity of manufacturer-issued certificates,
declarations and warranty.

7
5. RECYCLING
C315 scales must be recycled, they are not to be treated as a regular
household waste. Scales to be decommissioned must be decommissioned in
accordance with valid legal regulations.
6. MECHANICAL DESIGN
6.1. 1-Load-Cell Scales
1-load-cell scale C315 is intended to carry out fast and precise mass
measurement of up to 300 kg loads. Its characteristic feature is a platform with
one load cell only. The platform is equipped with a stainless steel weighing
pan. Depending on a scale model, the cross and base are made of either
stainless steel or powder-coated steel.
1-load-cell scale design, the main components:
1-load-cell scale design, the main components:
1 –weighing pan, 2 –cross, 3 - load cell, 4 - base.

8
6.2. Multiple Load Cell Scales
Multiple load cell scale C315 is intended to carry out fast and precise mass
measurement of large loads. Its characteristic feature is a platform equipped
with numerous load cells, usually four. The platform, depending on a scale
model, is made of stainless steel or powder-coated steel, it features
customized mechanical design suiting particular customer’s requirements
(pallet, beam, platform scales).
Multiple load cell scale design, the main components:
Multiple load cell scale design, the main components:
1 - weighing pan, 2 - load cells, 3 - feet.
6.3. Scales with Load-Cell Modules
C315 scale with load cell modules is intended to carry out mass measurement
of silos. Modules are built into construction of ground-fixed silo's support.
In most cases, the scale includes 3-4 load cell modules. The modules,
depending on the model, are made of stainless or galvanized steel.

9
Scale design, the main components:
Scale design, the main components: 1 - module, 2 - junction box.
6.4. Dimensions
For overall dimensions, read product card of a respective scale, the product
cards are to be found on RADWAG website www.radwag.com.
6.5. Connectors Arrangement
1 –power supply socket
2 –RS232 (1) connector
3 –weighing platform cable inlet
4 –RS232 (2) connector *
*) –option.

10

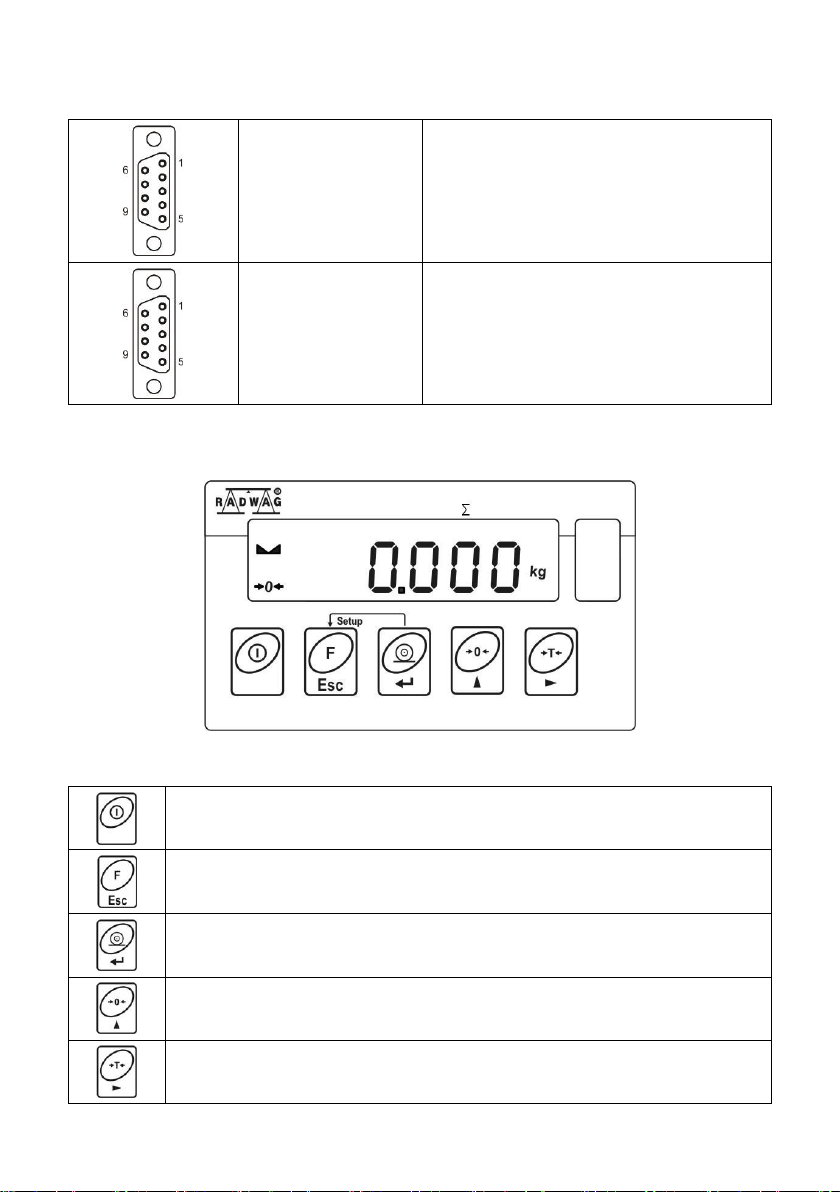

6.6. Pins Arrangement
Pin2 –RxD
Pin3 –TxD
Pin4 –5VDC
Pin5 –GND
RS232 (1) connector DB9/M (male)
Pin2 –RxD
Pin3 –TxD
Pin4 –5VDC
Pin5 –GND
RS232 (2) connector DB9/M (male)
6.7. Operation panel
Keys:
Press to switch the weighing device on/off –keep the key pressed for
about 1 second.
Function key, press to change the working mode.
Press to send the weighing result to a printer or a computer.
Press to zero the scale.
Press to tare the scale.

11
Upon pressing + keys combination, functions
of given keys change. Detailed information concerning use
of the above keys combination is to be found further down
this manual.
7. SCALE INSTALLATION
7.1. Unpacking and Installation
Mind not to damage cable connecting the indicator and
a weighing platform.
7.1.1. C315.xx.K, C315.xx.R, C315.F1.M Series
A. Take the device out of the packaging.
B. Place the device on a flat and even surface. Keep it far away from any
sources of heat.
C. Remove transport locks and install the weighing pan:
7.1.2. C315.C2.M, C315.C3.M Series
A. Take the device out of the packaging.
B. Place the device on a flat and even surface. Keep it far away from any
sources of heat.
C. Remove transport locks and install the weighing pan:

12
D. Fix the post to the scale, next fix the indicator to the post:
E. Lead the cable (in excess) into the post, next fix the support foot under the
post:
7.1.3. C315.4 Series
A. Take the device out of the packaging (pallet).
B. Place the device on a flat and even surface. Keep it far away from any
sources of heat.
C. Remove transport locks (if installed):

13
D. Fix the feet (if not installed):
7.2. Levelling
7.2.1. Levelling: 1-Load-Cell Platform Scales
To level the weighing instrument turn its feet. Keep turning the feet until the air
bubble takes central position:
7.2.2. Levelling: 4-Load-Cell Platform Scales
To level the platform use the levelling feet and the level indicator. Each foot can
be turned left and right, turning causes tilt. Adjustment span of the scale level is
narrow therefore the correct level is obtained using steel washers which are to
be put under the feet.
Keep turning the feet until the air bubble takes central position:

14
7.3. Start-Up
The weighing device can be connected to the mains only with a power supply
that comes standard with the particular model. Nominal voltage of the power
supply (specified on the power supply data plate) has to be compatible with the
mains nominal voltage.
Procedure:
Connect the power supply to the mains. Plug it to the power supply socket
(back side of the scale housing).
Press key. The key is also used to switch the scale on/off.
Display test proceeds (all symbols are backlit for a moment), program
name and number is displayed first, ZERO indication with reading unit
next (displayed reading unit is conditioned by scale type).
In case the weighing result is not zero after indication stabilisation, press
button.
7.4. Battery Status
The scale of standard design is equipped with an internal battery. Battery state
is signalled by pictogram, the pictogram is displayed in the top bar of the
display.
pictogram display mode
Meaning
No pictogram
Battery charged. Regular scale operation.
Pictogram displayed continuously
Too low battery charge (the scale is about to shut
down). Charge the battery immediately.
Blinking pictogram, blink frequency:
ca. 1 s
Battery charge in progress. The device is connected to
the power supply charging the battery.
Blinking pictogram, blink frequency:
ca. 0.5 s
Battery error. Battery damaged.
7.5. Battery Charge Status Check
Press and keys combination.
Depending on the battery state, a respective status is displayed on the
screen for 2s:

15
80%
Battery power supply. Battery power given in %.
CHArGE
Battery charge in progress. The device is connected to the power supply
charging the battery.
-Err5-
Battery error. Battery is damaged.
Next, the home screen is displayed automatically.
8. OPERATING THE MENU
In order to navigate the menu use the operation panel.
+
Press to enter the main menu.
+
Press to enter tare manually.
Press to enter tare from tare database.
Press to change value by 1 digit up.
Press to scroll the menu up.
+
Press to check battery/accumulator state.
+
Press to view date/time.
Press to scroll the menu down.
Press to change current parameter value.
Press to enter given submenu.
Press to modify given parameter.
Press to confirm modification.
Press to exit, function remains unmodified.
Press to move one menu level up.
8.1. Return to Weighing
Introduced modifications are automatically recorded upon return to the home
screen. To return to the home screen press key repeatedly.

16
9.WEIGHING
Load the weighing pan. Read the result when stability marker is displayed.
To assure long-term operation and correct mass measurements, follow the
rules presented below:
Avoid applying mechanical shocks
to the weighing pan.
Place the loads centrally on the
weighing pan (eccentricity errors are
specified by PN-EN 45501 standard,
point 3.6.2).
Do not apply concentrated force (total
load in one point).
Avoid side loading, in particular side
shocks.
9.1. Good Weighing Practice: 4-Load-Cell Platform Scales
It is forbidden to apply load other than intended for a particular scale:
beam scales; self-supporting, rigid load or load placed in rigid load-
transferring packaging:

17
pallet scales (load placed on EUR-pallet using pallet truck); middle block
of pallet placed on the scale must remain unsupported:
10. DIAGRAMS OF CONNECTION CABLES
Scale - computer cable
Scale - printer cable (EPSON)

18
11. TECHNICAL SPECIFICATIONS
For technical specifications of respective scales go to RADWAG website
www.radwag.pl.
12. TROUBLESHOOTING
Problem
Cause
Solution
Scale start-up fail.
Power supply disconnected.
Connect the power supply to the scale.
Battery discharged.
Connect the power supply to the mains,
charge the battery.
No battery (not installed or
installed incorrectly).
Check if the battery is installed correctly
(polarization).
The scale switches
off automatically.
<7.4.t1> parameter set to
value enforcing scale shut-
down after particular time
interval.
Go to <P7.Othr> menu, set <7.4.t1>
parameter to 'nonE' value.
During the start-up,
message 'LH' is
displayed.
Weighing pan loaded during
the start-up.
Unload the weighing pan. Zero indication
is displayed.
Communication with
the computer not
established.
Incorrect computer port set in
parameter <5.1.1.Prt>.
Enter < P5.ducE / 5.1.PC> submenu and
set correct <5.1.1.Prt> parameter value.
Incorrect transmission
parameters for the selected
computer port.
Enter <P4.Conn> menu and set correct
transmission parameters for the selected
computer port.
Incorrect printout frequency
for continuous transmission.
Enter < P5.ducE / 5.1.PC> submenu and
set correct <5.1.3.Int> parameter value.
No printout on a
scale-connected
printer.
Incorrect printer port set in
<5.2.1.Prt> parameter.
Enter < P5.ducE / 5.2.Prtr> submenu and
set correct <5.2.1.Prt> parameter value.
Incorrect transmission
parameters for the selected
printer port.
Enter <P4.Conn> menu and set correct
transmission parameters for the selected
printer port.
No variable declared in
weighing printout project.
Enter <P6.Prnt / 6.2.GLP> submenu and
declare variables that are to be printed.
Communication with
the additional display
not established..
Incorrect additional display
port set in <5.3.1.Prt>
parameter.
Enter < P5.ducE / 5.3.AdSP> submenu
and set correct <5.3.1.Prt> parameter
value.
Incorrect transmission
parameters for the selected
computer port.
Enter <P4.Conn> menu and set correct
transmission parameters for the selected
additional display port.
Displayed mass unit
does not comply with
the scale data plate.
Changed scale start unit in
<9.1.UnSt> parameter.
Enter <P9.Unit / 9.1.UnSt> submenu and
set unit complying with the scale data
plate.
Changed custom unit in
<9.2.Unin> parameter.
Enter <P9.Unit / 9.2.Unin> submenu and
set unit complying with the scale data
plate.

19
13. ERROR MESSAGES
- E r r 2 -
Value beyond zero range.
- E r r 3 -
Value beyond tare range.
- E r r 4 -
Adjustment weight or start mass out of range (1% for adjustment weight, 10
for start mass).
- E r r 5 -
Battery error. Battery is damaged.
- E r r 8 -
Time of the following operations exceeded: taring, zeroing, start mass
determining, adjustment process.
- n u l l -
Zero value from converter.
- F U L L -
Weighing range exceeded.
- L H -
Start mass error, indication out of range (10% of start mass).
- H i -
Display range of total mass on scale display exceeded in 'Totalizing' mode.
- E r r L o -
- Determined mass of single part in 'Parts counting' mode too small.
- Value of 'Min' threshold is greater than value of 'Max' threshold in '+/- control'
mode.
- E r r H i -
- Entered value of single part greater than maximum capacity in 'Parts
counting' working mode.
- Entered value of 'Max' threshold greater than maximum capacity in '+/-
control' mode.
- Entered reference mass greater than maximum capacity in 'Percent weighing'
mode.

20
