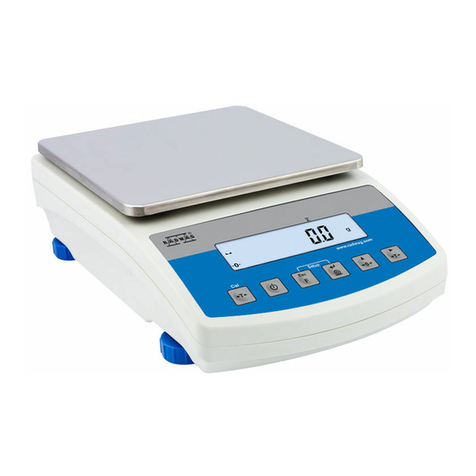

RADWAG WLC A1 User guide

Start up Guide
•WLC A1
•WLC A2
•WLC A1/C/2
•WLC A2/C/2
Precision Balances
IMMB-06-02-06-21-EN

To view a complete User Manual go to the website or scan QR code:
radwag.com/en/manuals/7012

*The plug type may vary by country.
1. CONTENT
Balance
×1
Balance
×1
Weighing pan
×1
Draft shield
×1
Weighing pan
×1
Grounding foot
×1
Grounding foot
×1
Foot
×3
Foot
×3
Power adapter*
×1
Power adapter*
×1
Models: WLC A1
Models: WLC A2
2. UNPACKING
1 2 3
Keep the packaging should a
warranty claim or service be required.
TOP

3. RECOMMENDATIONS AND WARNINGS
+30 °C
+86°F
+15°C
+59 °F
Operate the device in a room where the temperature ranges between 15–30 °C
(59–86 °F) and where the relative humidity is below 80%. Any changes
in temperature should be gradual and very slow.
Place the balance on a solid surface to ensure stability. To obtain stable and
repeatable weighing results, an anti-vibration table is recommended.
Place the balance away from heat
sources. Avoid exposing the balance
to the sunlight.
Avoid air drafts and air movements
at the workstation.
Avoid exposing the balance to amag-
netic field. Do not weigh magnetic
substances.
Make sure that the balance is placed
on an even surface.
Do not place the balance in a hazard-
ous area. Do not weigh explosive
materials.
Do not place the balance on an
unstable ground exposed to shocks
and vibrations.

4. ACTIVITIES TO BE DONE PRIOR TO OPERATION
4.1. Grounding spring check
Check whether the grounding
spring takes its intended
location.
Make sure that the grounding
spring juts slightly out of the
hole.
5. COMPONENTS ASSEMBLY
1
1
2
2 3
Models: WLC A1
Models: WLC A2
Grounding
foot
Install the
grounding foot
in a freely
selected opening.
Install the
grounding foot
in a freely
selected opening.

6. PREPARING FOR WORK
6.1. Temperature stabilisation
Prior to switching the device on, let it
reach room temperature (estimated
stabilisation time: up to 8 hours).
Connect the power adapter
to DC connector.
Connect the power
adapter to the mains
1 2 3
6.2. Levelling
6.3. Switching the alance on
To switch the device on, press ON / OFF key.
Your balance is ready to use!
To level the balance, turn its
feet and keep turning the feet
until an air bubble takes the
central position.

7. PANEL AND SCREEN
7.1. Panel keys
Switching
ON/OFF
Selecting
working mode
/ ESC
Sending weighing
result to a printer
or a computer / ENTER
Navigation
and zeroing
Navigation
and taring
Taring
7.2. Home screen
Weighing result
window and
communication and
information section
Stable result
pictogram
Balance zeroing
pictogram

Using key select “P1.CAL” parameter
and press key.
8. BASIC OPERATIONS
8.2. Adjustment (for models with an external adjustment only)
The adjustment mass standard does not come with the balance.
Prior to adjustment prepare the right mass standard.
You are recommended to use a mass standard of class F1 or F2.
View the table and select the mass standard you need.
External adjustment is carried out using an external mass standard of the
right accuracy and weight value, which value depends on balance type
and capacity. WLC 1/A2 1 000
WLC 2/A2 2 000
WLC 6/A2 * 5 000
WLC 10/A2 10 000
WLC 20/A2 10 000
Balance
model
Mass
standard [g]
1 2
Simultaneously press + keys to enter
home screen.
8.1. Adjustment (for models with an internal adjustment only)
1 2
Press “Adjustment” button. Wait for the process completion.
* - N/A in the case of a non-verified instrument

Using key select “1.1.CA-E” parameter
and press key.
5 6
Prepare suitable mass standard. Load the weighing pan with the mass standard.
3 4
Wait for completion of the start mass
determination process.
7 8
Adjustment completed.
Unload the weighing pan.
The balance has been zeroed.
1 2
Make sure that the weighing pan is empty
and press key.
8.3. Zeroing

The balance has been tared.
1 2
With loaded weighing pan: upon stabilisation of
the weighing result, press key.
8.4. Taring
1 2
Simultaneously press + keys
to enter home screen.
8.5. Working modes accessibility
3 4
With “3.1.UUGG” parameter activated, press
key.
Press key to select “3.1.1.Acc” parameter,
next press key.
Using key select “P3.Func” parameter
and press key.

5
Press key to select “YES” value, next press
key in order to save settings.
To configure other working
modes, follow the above
procedure.
Using key select working mode
and press .
Using key enter working modes menu.
1 2
8.6. Selecting working mode
In order to be able to select working modes,
it is necessary to make them available first (section 8.5).
Detailed overview of the
settings of the working
modes is to be found in
balance’s main user manual.
The menu features the following
working modes:
• Parts counting
• Percent weighing
• Checkweighing
• Animal weighing
• Totalising
• Peak hold
• Weighing

Simultaneously press + keys to enter
home screen.
1 2
8.7. Weighing unit selection
Using key select “P9.Unit” parameter
and press key.
3
Using key select weighing unit and press
key to confirm.
*(lb) pound unit unavailable for verified balances.
The balance enables selecting the following
weighing units:
• g (gram)
• kg (kilogam)
• ct (carat)
• lb (pound)*
4
Press key to select “9.2.Unin” parameter,
next press key.

9. PERIPHERAL DEVICES CONNECTORS

10. DEVICE CLEANING
Prior to cleaning, it is necessary to
disconnect the balance from the
mains.
Use soft cloths made of microfiber,
natural fiber or man-made fiber. Avoid
using abrasive cloths or cloths that
might scratch the surface.
Apply the cleanser onto the cloth first.
Avoid applying the cleanser directly
onto the device.
10.1. General recommendations
Do not use aggressive cleaning
agents (e.g. solvents, chlorine
preparations, corrosive chemicals,
bleach).
• GLASSPANESANDCOMPONENTS can be cleaned using window cleaner.
• WEIGHINGPANSANDSTAINLESSSTEELORALUMINIUMCOMPONENTScan be cleaned using a cloth slightly
soaked in a solution of water and gentle cleanser (e.g. soap or dishwashing liquid).
• OPERATIONPANELANDHOUSING can be cleaned using a cloth slightly soaked in a solution of water and gentle
cleanser (e.g. soap or dishwashing liquid).
• Dry sample leftovers can be removed using either brush or handheld vacuum cleaner.
•Clean components can be dried using soft cloth or dust-free paper towel, with this the remaining moist will be absorbed.
• Installallthecomponentsprovidingtheyarecompletelydry.
Neither use substances of sharp
structure nor intended for
scrubbing.
Make sure that neither dust nor
liquid gets inside the weighing
system (device inside).
10.2. Cleaning instructions
