Raidon SafeTANK GR3660 Series User manual

GR3660 Series
SafeTANK
User Manual

» GR3660 User Manual .......................................1
1. Environmental Requirements..................................................1
2. Product Appearance and Packaging Content......................1
3. Hardware Requirements and Precautions ............................2
4. Hardware Installation................................................................3
5. RAID Mode Setting...................................................................4
6. Description of HDD Indicators ................................................5
7. Hard Drive Replacement and Data Rebuild Instructions ....5
8. Install The Operation System Into This Device .............6
» GR3660 產品使用說明......................................11
1. 環境需求.....................................................................................11
2. 產品外觀及包裝內容.................................................................11
3. 硬體需求與注意事項.................................................................12
4. 硬體安裝.....................................................................................13
5. RAID 模式切換設定 ................................................................14
6. 燈號說明 ...................................................................................15
7. 更換硬碟與資料重建說明........................................................15
8. 外接磁碟安裝作業系統.............................................................16
iTANK GR3660 User Manual
V1.0

iTANK GR3660 User Manual
1
1. Environmental Requirements
About this Manual
Operating temperature: 0 ～40 ℃(32 ～104 ℉)
Storage temperature : -20 ～47℃(-4 ～116 ℉)
Operating voltage: 100 ～240V AC
» GR3660 User Manual
2. Product Appearance and Packaging Content
The following items should be inside the package upon opening:
Thank you for choosing the RAIDON product. This manual will familiarize you with the RAIDON
GR3660 product. We recommend reading through this manual before using the RAIDON GR3660
product. The information provided in this manual was checked before publication, but the actual product
specications may have changed before shipping; Latest product specications and updates can be
found at www.RAIDON.com.tw. No separate notications will be provided by our company. If you would
like to receive the latest RAIDON product information, manuals, and rmware, or have any questions
regarding RAIDON products, please contact your local supplier or visit www.RAIDON.com.tw for more
information.
All product-related content in this manual are copyrighted by RAIDON TECHNOLOGY, INC.
• Please check the product and accessories for any defect or missing parts. If you have any questions,
please contact your product supplier.
• Please visit the official website - Download page (https://www.RAIDON.com.tw/RAIDON2016/
download.php) to download drivers and other related resources.
GR3660-BA31 product x1
(with removable drive tray enclosed x1)
GR3660-B31 product x1
(with removable drive tray enclosed x1)
GR3660-B31A product x1
(with removable drive tray enclosed x1)
USB 3.2 C to C cable x1 USB 3.2 C to C cable x1 ――
USB 3.2 C to A cable x1 ――USB 3.2 C to A cable x1
Power cable x1 Power cable x1 Power cable x1
AC/DC Adapter x1 AC/DC Adapter x1 AC/DC Adapter x1
Quick setup guide x1 Quick setup guide x1 Quick setup guide x1
Screws and Ejector pin Screws and Ejector pin Screws and Ejector pin

iTANK GR3660 User Manual
2

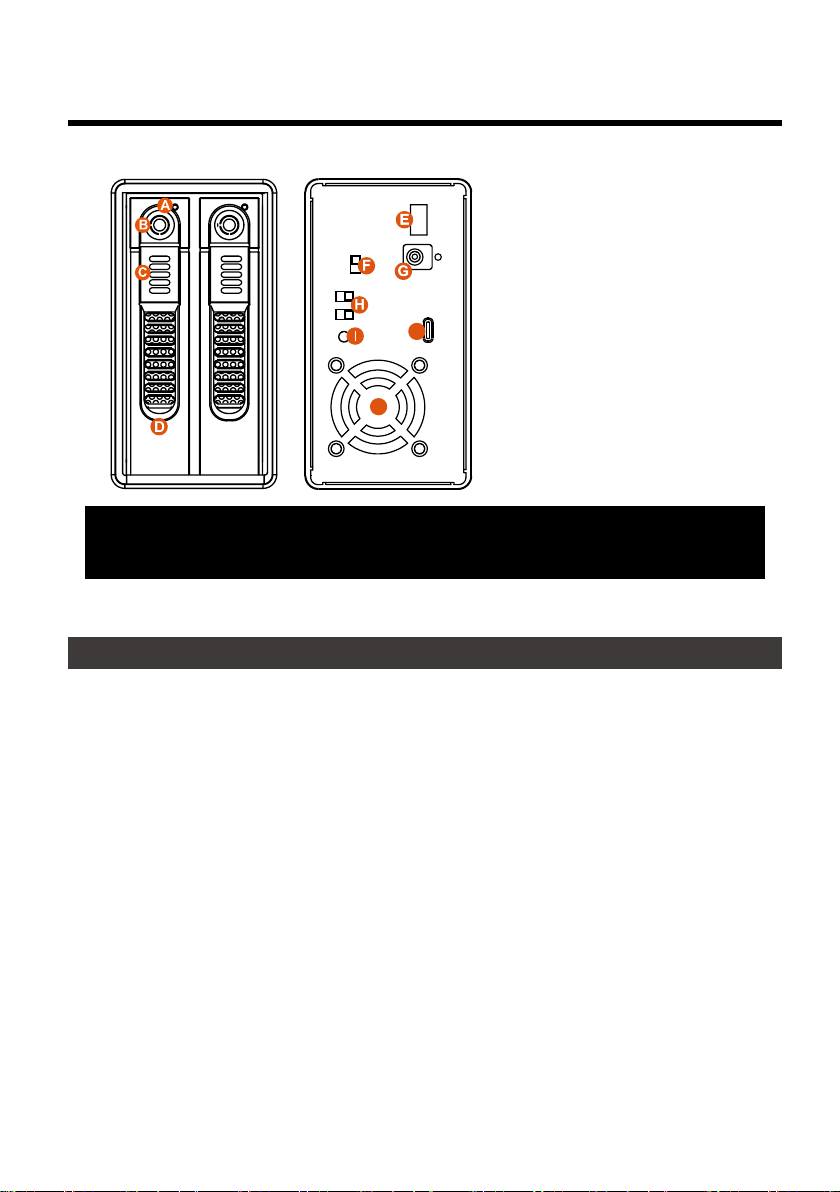

Front and rear view
3. Hardware Requirements and Precautions
1. This system can only transfer data to one computer through one interface at a time.
2. After the hard disk is formatted, the actual total capacity of the GR3660 detected by the computer
operating system will vary from the sum of all hard disk capacities stated by the manufacturer.
3. All existing data will be deleted when this product is set up for the first time. Please ensure that all
data on the hard disk has been backed up before installation to avoid data loss.
4. Before a new HDD is installed in the GR3660, please make sure that there are no bad tracks or
defects to avoid data loss.
5. If the GR3660 needs to be shut down or disconnected, please ensure the HDD is safely removed
through your operating system before turning off the power.
6. To prevent data loss, do not remove any of the hard disks while the system is running.
7. Once the system has been initialized, do not switch hard disks around during use. Doing so may
prevent the RAID from being recognized by the system.
8. Once RAID mode has been set up, the switching of hard drives will lead to the removal of data
from the hard disks. Please be sure to backup the data on the hard disk before making any
switches.
9. Please always connect the USB cable to the computer to ensure the energy saving function
operating normally.
10.If the GR3660 needs to be shut down or disconnected, please ensure the HDD is safely removed
through your operating system before turning off the power.
A. HDD access light
B. HDD tray key lock
C. Tray button
D. HDD enclosure handl
E. Power switch
F. Fan speed switch
G. Power socket
H. RAID switch
I. RESET hole
J. USB 3.2 Gen2 Type-C port
(10Gbps)
K. Fan
Front View Rear View
K
J
NOTE:
Please make sure that the product is connected to the host (power on status) before turning
on the power, otherwise the product will be on the sleep mode.

iTANK GR3660 User Manual
3
4. Hardware Installation
Please follow the instructions below to complete the hardware installation.
1. Place the system on a stable surface. Ensure that it is well ventilated without blockage to the vent
and kept away from areas near water and damage prone areas.
4. When the HDD installation has been completed, insert the tray into the system horizontally and
secure the latch into place.
5. Use the RAID switch on the back of GR3660 to set the RAID mode to be used.
6. Depending on the type of computer USB port, select the corresponding USB cable in the
accessory to connect the computer to the USB port on the GR3660.
7. Connect the power cord to the power adapter, connect the connectors at both ends to the
GR3660 and the power socket, and then start the GR3660.
8. After the computer is turned on, the storage capacity will be automatically recognized by the
operating system. After the storage capacity is recognized successfully, please format the system
according to your desired storage format and follow the instructions of the operating system. After
the hard disk is formatted, the GR3660 can be used directly.

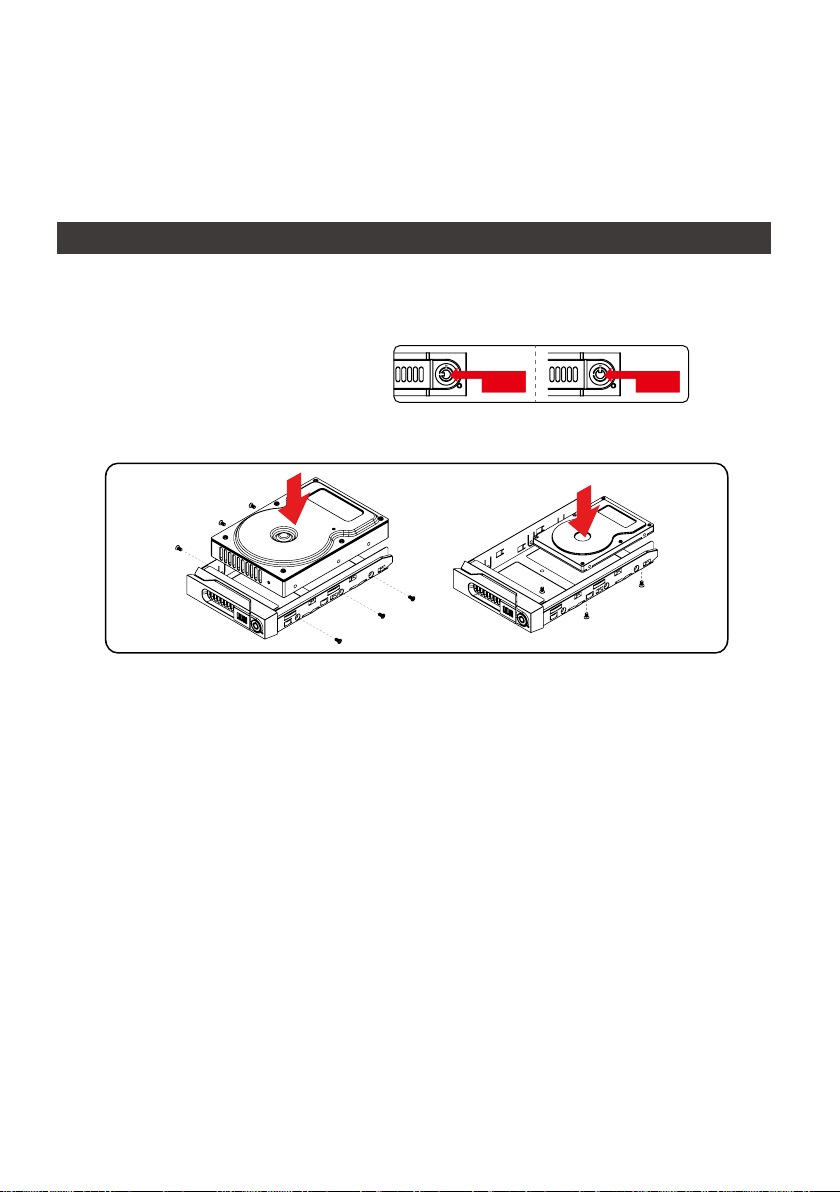

LockLock UnlockUnlock
2. Use the key included in the accessory kit to
unlock the HDD tray key lock, and then press the
HDD tray key lock. The removable drive tray will
pop open and extract the removable drive tray.
3. For 3.5" HDD/SSD, please secure it by use six the larger screws included in the accessory kit.
For 2.5" HDD/SSD, please secure it by use four the smaller screws included in the accessory kit.
11.Once the computer turn to “Standby” or “Sleep” mode, GR3660 will still complete the rebuilding
function. However, it will not change to “Standby” mode after rebuilding. You need to shut down
the GR3660 manually or wake up the computer to synchronize “Standby ” or “Sleep” mode
together.
12.GR3660 uses a 12V/5V AC/DC Adapter. Please do not use other non-certified Power Adapter to
avoid damaging to your GR3660 unit.
13.We strongly recommend backing up important data stored on the GR3660 to another storage
device or a remote site. RAIDON will not be held liable for the damage or loss of data you stored
on the GR3660.
※If you are using a USB 3.2 C to A cable, the Type-A on the host side needs to be USB 3.2 Gen2
for best access performance.

iTANK GR3660 User Manual
4
󾙒 󾙓  
5. RAID Mode Setting
Provide a big storage capacity and the data transfer efficiency, but no data
porotection feature.
Because of this Mirroring feature, your two HDDs/SSDs will keep an identical data
after your wtiting works. In case one of the two HDDs/SSDs is defect, GR3660 would
still work ne with only one of them. And once inserting a good HDD/SSD as the
defect replacement, it will do the rebuilding work by itself.
You could enjoy a double memory capacity from this BIG feature, but no data
porotection feature.
With JBOD mode, you could actually use the two HDDs/SSDs as the normal two
storages for your large memory capacity requirement, but no data porotection
feature.
RAID 0：
RAID 1：
BIG ：
JBOD ：
(default)
The Standard Procedure to Switch RAID Setting
Step-1: Please rst connect GR3660 to your Mac with Thunderbolt cable..
Step-2: Please set RAID Dip Switch to the position you choose.
Step-3: Please use the Key to press the hidden RESET key at the back-plate, hold and wait for
the end of Blue-Purple LED blinking till a stable Blue light.
Step-4: Please turn o󰀨 your GR3660, and re-turn it on again. You now have reset GR3660 with
a new RAID mode successfully.

iTANK GR3660 User Manual
5
6. Description of HDD Indicators
7. Hard Drive Replacement and Data Rebuild Instructions
1. During the use of GR3660, if you are required to replace a malfunctioning drive, refer to chapter
4“Hardware Installation”. Once drive replacement is completed and it is turned on, GR3660 will perform
data rebuilding procedure automatically.
2. If, during the rebuilding process, a drive malfunctions and is unable to continue the rebuilding process,
please restart GR3660 to check and see that whether the drive is in fact malfunctioning. If it is, please
refer to chapter 4 “Hardware Installation” to replace the malfunctioning drive.
Note:
GR3660 allows suspension during data rebuilding process. If you turn o󰀨 the power during the process, the
system will automatically continue to process the remains the next time you turn on the power of the unit.
Please do not change the position and sequence of the drives at any time.
Status
HDD Status Light
RAID 0, BIG RAID 1 JBOD
HDD idle Blue light always on Blue light always on Blue light always on
No HDD detected Red light always on Red light always on Red light always on
HDD failed Red light flashing Red light flashing N/A
RAID failed Red light flashing Red light flashing N/A
Data access Blue light flashing Blue light flashing Blue light flashing
Rebuilding data -
Source HDD N/A Breathing Blue Light N/A
Rebuilding data -
Target HDD N/A Breathing Purple Light N/A

iTANK GR3660 User Manual
6
8. Install The Operation System Into This Device
1. Need to have network online capabilities. If a wireless network is available, you can choose it
from the Wi-Fi menu in the menu bar. This menu is also available in macOS Recovery.
2. Turn on your Mac and immediately press and hold Command ( ⌘)-R. Continue holding until you
see the Apple logo or a spinning globe. Startup is complete when you see the utilities window:

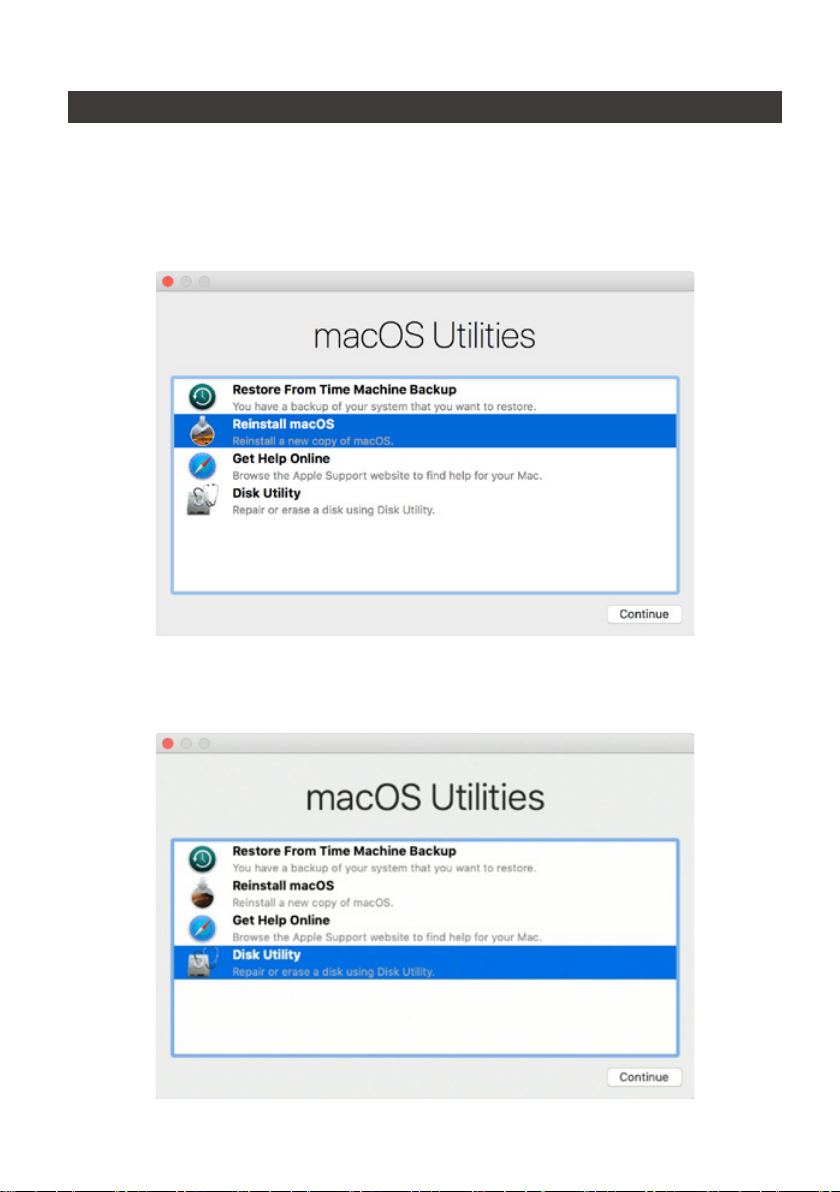

3. If you need to erase your disk before installing macOS, select Disk Utility from the Utilities window,
then click Continue. You probably don't need to erase, unless you're selling or giving away your
Mac or have an issue that requires you to erase.
Install macOS (Use macOS Mojave 10.14 for example)

iTANK GR3660 User Manual
7
4. Install macOS. Choose Reinstall macOS from the Utilities window, and click continue.
5. Follow the onscreen instructions, select agree to the software license agreement, and then select
the disk to start the installation.
6. Please allow installation to complete without putting your Mac to sleep or closing its lid. During
installation, your Mac might restart and show a progress bar several times, and the screen might
be empty for minutes at a time.

iTANK GR3660 User Manual
8
Install Windows
1. The following content is an example of using the software "WinToUSB Free Edition". For related
specications and copyrights, please refer to the software official website for details.
2. After the software is installed, press the shortcut icon of the desktop twice to open Hasleo
WinToUSB.
3. On the left side of the interface, select "Mirror to USB" and click the right folder icon to select the
ISO le for Windows 10.
4. Select the version of Windows you want to install and go to the next step.
Note: WinToUSB Free Edition does not support Windows Professional and Enterprise editions.
(Use Windows 10 Home Edition for example)

iTANK GR3660 User Manual
9
5. Select the USB external drive to install.
6. Select the version of the disk partition configuration according to your personal hardware
specications, then execute "Yes" to proceed to the next step.
7. Follow the default and follow the next step.

iTANK GR3660 User Manual
10
8. Windows 10 is installed to an external hard drive. After the installation is complete, click the "End"
button, and then conrm to leave.
9. Conrm that the external hard disk is inserted in the USB slot of the computer. After rebooting,
enter the BIOS or UEFI adjusts to the USB external hard disk box as the rst boot sequence, and
saves the settings and leaves.
10.Then start the installation process for Windows 10, and follow the system instructions and
personal requirements to complete the setup.
Note: The screenshot is for illustration only, and the actual situation varies depending on each motherboard.

iTANK GR3660 User Manual
11
2. 產品外觀及包裝內容
1. 環境需求
關於這份手冊
打開包裝外盒後，包裝內容應包含下列組件：
工作溫度 : 0 ～40 ℃(32 ～104 ℉)
儲存溫度 : -20 ～47℃(-4 ～116 ℉)
工作電壓 : 100 ～240V AC
感謝您使用RAIDON 的產品。本手冊將介紹RAIDON GR3660 產品。在您開始使用RAIDON
GR3660 產品前，建議您先閱讀過本手冊。手冊裡的資訊在出版前雖已被詳細確認，實際產品規格仍
將以出貨時為準；任何產品規格或相關資訊更新請您直接到 www.RAIDON.com.tw 網站查詢，本公司
將不另行通知。若您想獲得 RAIDON 最新產品訊息、使用手冊、韌體 ,或對 RAIDON 產品有任何疑問，
請您聯絡當地供應商或到 www.RAIDON.com.tw 取得相關訊息。
本手冊相關產品內容歸銳銨科技股份有限公司版權所有
• 請確認相關配件與產品本身是否有受損或配件缺少，若有任何疑問請與本產品供應商聯絡。
• 請前往官網 -產品資料下載頁面 (https://www.RAIDON.com.tw/RAIDON2016/download.php) 下載
驅動程式以及其餘相關資源。
GR3660-BA31 產品 x1
(內含抽取盒 x1)
GR3660-B31 產品 x1
(內含抽取盒 x1)
GR3660-B31A 產品 x1
(內含抽取盒 x1)
USB 3.2 C to C 連接線 x1 USB 3.2 C to C 連接線 x1 ――
USB3.1 C to A 連接線 x1 ――USB3.1 C to A 連接線 x1
電源線 x1 電源線 x1 電源線 x1
電源轉換器 x1 電源轉換器 x1 電源轉換器 x1
快速安裝導引 x1 快速安裝導引 x1 快速安裝導引 x1
螺絲及頂針 螺絲及頂針 螺絲及頂針

iTANK GR3660 User Manual
12
正面與背面示意圖
A. 硬碟讀取燈
B. 硬碟抽取盒鑰匙孔
C. 硬碟托盤退出鍵
D. 硬碟抽取盒把手
E. 電源開關
F. 風扇切換鈕
G. 電源插座
H. RAID 切換鈕
I. RESET 鈕
J. USB 3.2 Gen2 Type-C 埠
(10Gbps)
K. 風扇
前視圖 背視圖
3. 硬體需求與注意事項
1. 本系統同一時間只可透過一組介面與一台電腦執行資料傳輸。
2. 硬碟格式化後，由電腦主機作業系統所辨識 GR3660 的實際總容量會與硬碟廠所標示的容量加總
後，將有所差異。
3. 第一次使用本產品進行設定時，資料會被全數清除。請於硬碟置入前，確認硬碟已備份，避免資料
遺失。
4. 在安裝新硬碟到 GR3660 之前，請先確認硬碟是沒有壞軌而且是沒有故障的，以避免資料受損。
5. 當您需要關閉或移除 GR3660 時，務必透過您所操作的作業系統中執行硬碟安全移除後，方可進行
電源關閉的動作。
6. 當系統運作時，請勿任意移除任何一顆硬碟，以免導致資料遺失。
7. 完成系統初始化安裝後，在使用上請勿任意變更硬碟位置；此動作將可能導致系統無法形成
RAID。
8. RAID 模式一旦設定完成，若要進行切換，因切換過程中將會清除硬碟中的資料，請務必先將硬碟
中的資料另行備份後再行切換。
9. 為了確保節能功能的正常運作，請將 USB 連接線常態性與電腦端保持連接。
10.當您需要關閉或移除 GR3660 時，務必透過您所操作的作業系統中執行硬碟安全移除後，方進行電
源關閉的動作。
11.在資料自動重建狀態下，若電腦端進入系統待命或是休眠狀態，GR3660 會持續完成重建；但當重
建完成後將不會進入待命狀態。此時需用手動方式關機，或是先將電腦系統回復到正常運作狀態
後，之後才能再與電腦端同步進入待命或是休眠狀態。
K
J
注意：開啟產品電源前，請確認產品與主機端 ( 開機狀態 ) 已連接，否則產品將進入休眠狀態。

iTANK GR3660 User Manual
13
4. 硬體安裝
請參照以下步驟完成硬體安裝
1. 將主機置放於平穩空間上，並確認散熱風扇沒有被擋住，且四周有適當的散熱空間。 ( 請避免接近水
源或是其他容易造成產品損傷的環境 )
4. 硬碟安裝完成後，請將硬碟托盤平移放入主機內，並關上把手。
5. 視電腦 USB 埠類型選擇配件中的對應的 USB 連接線，連接電腦與 GR3660 的USB 3.1 Type-C 埠。
6. 將電源線與電源轉接器連接好 ,並將兩端接頭各自接到 GR3660 及電源插座後啟動 GR3660。
7. 電腦開機後，您的作業系統將會自動辨識到儲存容量；待辨識成功後，請依據您所需的儲存格式，將
系統依照作業系統的指示完成格式化。待硬盤格式化完成後，便可直接使用 GR3660。
LockLock UnlockUnlock
2. 請使用配件中所附的鑰匙插入硬碟托盤鑰
匙孔後轉開鎖頭，按下硬碟托盤退出鍵，
便將硬碟托盤取出。
3. 安裝 3.5 吋硬碟，請使用 6 顆配件欸件內附的大顆螺絲加以固定；安裝 2.5 吋硬碟，請使用 4 顆配件
內附的小顆螺絲加以固定。
12.GR3660 使用 12V 規格電源轉接器，請勿使用 5V 電源轉接器以免損壞機器及資料。
13.強烈建議除了使用 GR3660 的資料儲存功能外，請針對重要資料備份到另一個儲存裝置上或遠端備
份，雙重備份您重要的資料。若您儲存在 GR3660 的資料損毀或遺失，RAIDON 將不負任何的責任。
※若您使用的是 USB 3.2 C to A 連接線，主機端的 Type-A 需為 USB 3.2 Gen2 規格方可達到最佳存
取效能。

iTANK GR3660 User Manual
14
󾙒 󾙓  
5. RAID 模式切換設定
RAID 0：一個大的獨立資料儲存容量，並可加速資料存取但無資料保護功能。
RAID 1：兩顆硬碟是鏡射關係因此擁有相同的資料，因此有一顆硬碟損毀仍然可以正常運作。
當放⼊入新硬碟取代損毀硬碟後，系統會自自動將資料重建到新的硬碟。
BIG ：兩顆硬碟的容量會被加總成一個大儲存容量，但無資料保護功能。
JBOD ：可對兩顆獨立硬碟進行管理的工作，能大幅增加硬碟管理上的便利性，但無資料保護
功能。
切換 RAID 設定的標準程序：
步驟 1：請在 GR3660 連線到電腦後，一併打開電腦和 GR3660 的電源開關。
步驟 2：請在藍燈恆亮時，將在 GR3660 背板上設定 RAID 設定的「切換開關」調到你所要的
設定位置。
步驟 3：請使用頂針插入「重置鍵」，待前面板抽取盒上的閃爍藍紫燈結束、並轉成恆亮藍燈後
鬆開頂針。
步驟 4：請您再做一次關、開 GR3660 電源的動作後，您已經改變、並重新設定了 GR3660 的
RAID。

iTANK GR3660 User Manual
15
6. 燈號說明
狀態 硬碟狀態燈
RAID 0, BIG, RAID 1 JBOD
硬碟閒置 藍燈恆亮 藍燈恆亮 藍燈恆亮
無硬碟 紅燈恆亮 紅燈恆亮 紅燈恆亮
硬碟故障 紅燈閃爍 紅燈閃爍 N/A
RAID 降級 紅燈閃爍 紅燈閃爍 N/A
資料存取 藍燈閃爍 藍燈閃爍 藍燈閃爍
資料重建 -來源碟 N/A 呼吸燈（藍燈） N/A
資料重建 -目標碟 N/A 呼吸燈（紫燈） N/A
7. 更換硬碟與資料重建說明
1. 使用 GR3660 過程當中 ,如硬碟故障而必須更換新硬碟時，請參考「章節 4_ 硬體安裝」，取出故
障硬碟並更換成新硬碟。故障硬碟一旦完成更新並開機後，GR3660 會自動進行資料重建功能。
2. 在資料重建的過程當中，如其中硬碟又再次發生故障，而導致資料重建無法繼續。請將 GR3660 重
新開機，再次確認硬碟是否故障，如果確定有故障，請參考「章節 4_ 硬體安裝」進行硬碟更換。
注意：
GR3660 容許資料重建過程中斷。如您在資料重建過程中將電源關閉，在您下次開機，過程將會從您
上次關機時的階段繼續進行直到完成。請勿任意改變硬碟的位置與順序。

iTANK GR3660 User Manual
16
8. 外接磁碟安裝作業系統
安裝 macOS
1. 需具備網路連線能力。若有無線網路可用，可以從選單列的 Wi-Fi 選單中選擇該網路。「macOS
復原」也提供這份選單使用。
（以 10.14 Mojave 為例）
2. 開啟 Mac 並立即按住 Command( ⌘)-R，持續按住這些按鍵，直到出現 Apple 標誌或旋轉的地球。
看到工具程式視窗，即表示完成啟動：
3. 若必須在安裝 macOS 之前清除磁碟，請從「工具程式」視窗選擇「磁碟工具程式」，然後按一下「繼
續」。您可能不需要清除磁碟，除非要將 Mac 賣或送給別人，或是有問題需要清除磁碟。

iTANK GR3660 User Manual
17
4. 安裝 macOS，在「工具程式」視窗中，選擇「重新安裝 macOS」，按一下「繼續」。
5. 按照螢幕上的指示，選擇同意軟體許可協議，然後選擇磁碟，開始安裝。
6. 請不要讓 Mac 進入睡眠或闔上上蓋，以利安裝程序順利完成。安裝期間，Mac 可能會重新啟動並
顯示進度列好幾次，而螢幕畫面也可能會一次空白幾分鐘時間。

iTANK GR3660 User Manual
18
安裝 Windows
1. 以下內容為使用工具軟體「WinToUSB 免費版」作為範例，相關規範與版權請到軟體官網詳閱說明。
2. 軟體安裝後，連續按兩下桌面的捷徑圖示，開啟 Hasleo WinToUSB。
3. 在界面左方選擇「鏡像到 USB」，再點選右方資料夾圖示來選擇 Windows 10 的ISO 檔。
4. 選擇要安裝的 Windows 版本，執行下一步。
註：WinToUSB 免費版不支援 Windows 專業版與企業版。
（以 Windows 10 家庭版為例）
