INSTRUCTIONS FOR INSTALLATION,
USE AND MAINTENANCE
RAIS PALO & RAIS PILAR
IMPORTANT INFORMATION
On first lighting the stove yo m st be caref l not to to ch the painted
s rfaces and it is MOST IMPORTANT that the door is kept slightly ‘ajar’ in
order for the door seal and sealant to c re.
This will prevent the door seal sticking to the painted body and becoming
damaged.

Revision
Date : 2011
INTRODUCTION ………………………………………………………….. 4
WARRANTY …………………………………………………….………….. 4
SPECIFICATIONS ………………………………………………………….. 5
CONVECTION ………………………………………………………………. 6
INSTALLATION INSTRUCTIONS ………………………………….……… 7
CHIMNEY ………………………………………………………….…………. 8-9
INSTALLATION ……………………………………………………………... 11
OPERATION OF SWIVEL BASE ………………...……………………….. 12-13

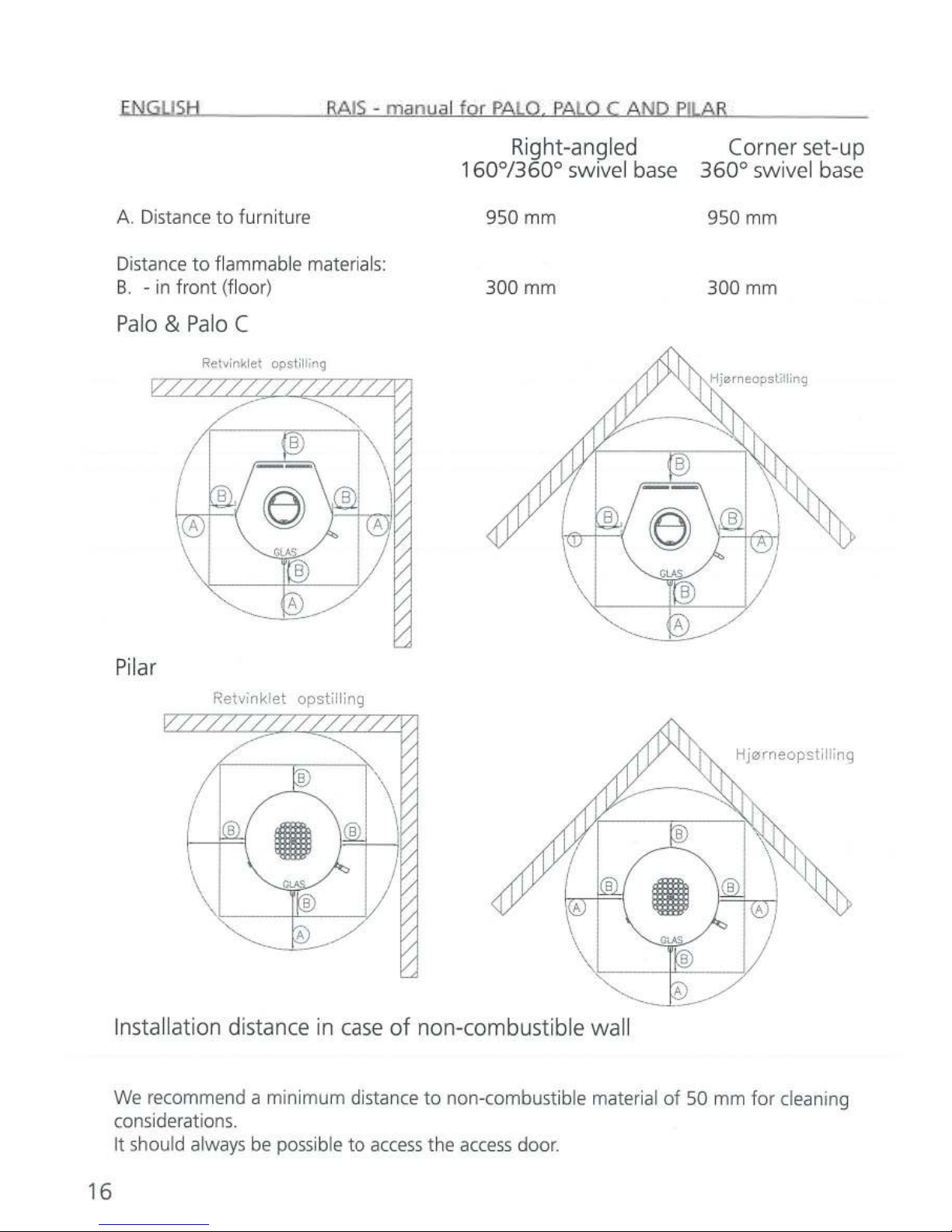

INSTALLATION DISTANCE TO COMBUSTIBLE WALL ……………… 14
GENERAL INSTALLATION ( PALO / PALO C ) ………………………. 14
(RIGHT ANGLE) SECURE BASE …………………………………... 14
CORNER INSTALLATION 45° ………………………………………. 14
GENERAL INSTALLATION ( PILAR ) ……………..……………………. 15
(RIGHT ANGLE) SECURE BASE …………………………………... 15
CORNER INSTALLATION 45° ………………………………………. 15
GENERAL INSTALLATION PALO, PALO C & PILAR .………………. 15
(RIGHT ANGLE) 160° / 360° SWIVEL BASE ……………………... 16
CORNER INSTALLATION 360° SWIVEL BASE …………………. 16
INSTALLATION DISTANCE TO NON-COMBUSTIBLE WALL ……….. 16
FOR THE INSTALLER …………………………………………………….... 17
OPERATING INSTRUCTIONS …………………………………………….. 18
FUEL …………………………………………………………………………... 18
DRYING AND STORAGE …………………………………………………… 19
REGULATION OF COMBUSTION AIR …………………………………… 19
ROOM VENTILATION AND STOVES …………………………………….. 19
USING THE WOOD BURNING STOVE …………………………………… 20

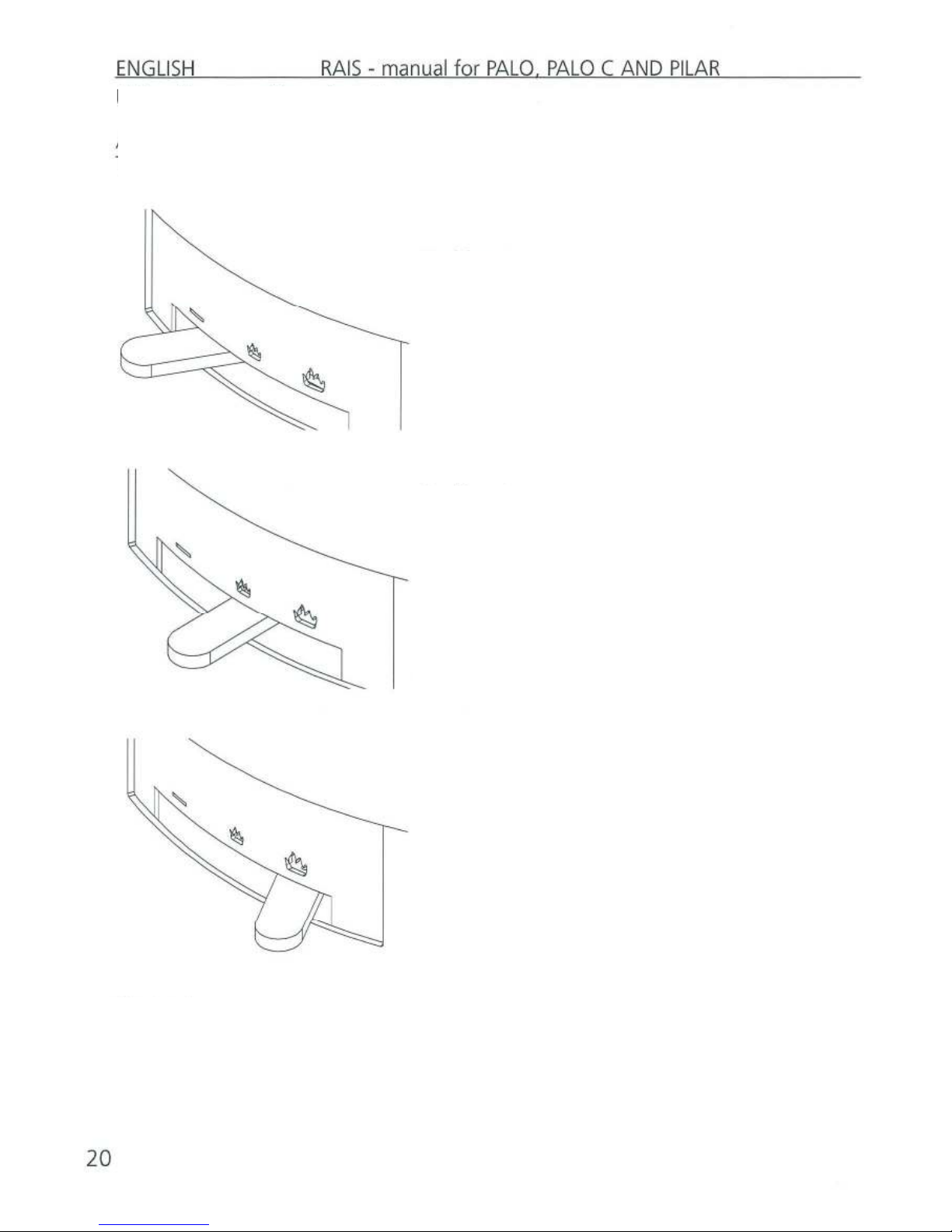

ADJUSTMENT OF AIR DAMPER …………………………………………. 20
CONTROL …………………………………………………………………….. 20
FIRST USAGE ……………………………………………………………….. 21
LIGHTING AND FUELLING ………………………………………………… 22-23
CLEANING AND CARE …………………………………………………….. 24
CLEANING OF THE FLUE WAYS ………………………………………… 25
PROBLEM SOLVING ……………………………………………………….. 26
ACCESSORIES AND SPARE PARTS ……………………………………. 27
SPARE PART DIAGRAMS ………...………………………………………. 28-33
QUICK GUIDE ……………………………………………………………….. 34

A Rais wood burning stove is more than just a heat source: it also shows that you
care about design and quality in your home.
To make the most of your wood burning stove it is important that you read the manual
thoroughly before installing and using it.
In the case of warranty coverage and for general queries regarding your wood
burning stove it is important that you know the stove’s production number.
We therefore recommend that you note down the number in the table below.

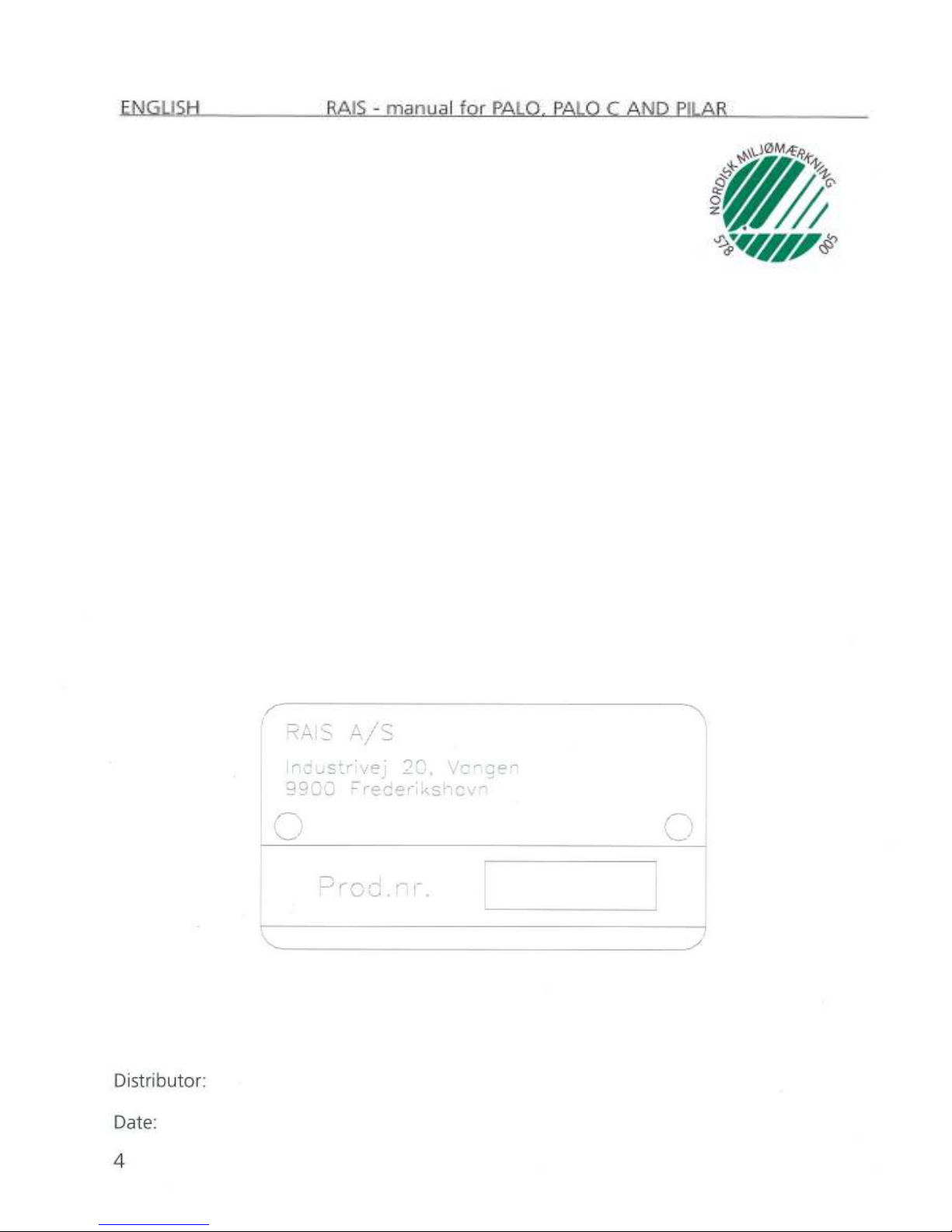

The production number is located at the back of the stove at the bottom.
Warranty
Your Rais wood burning stove comes with a 5 year warranty.
The warranty however does not cover heat-insulating materials glass and seals.
These are available to order from your local Rais dealer / stockist.
Any alterations made to the stove will void the warranty.
Introd ction
Thank you for purchasing a Rais wood burning stove.
These appliances have been approved by HETAS as
intermittent operating appliances for burning wood logs only.

Rais Palo Rais Pilar 152 Rais Pilar 172
Nominal o tp t (kW): 5 5 5 Min. / Max. o tp t (kW): 2 - 6 2 - 6 2 - 6 Heating area (m
2
): Ca. 80 Ca. 80 Ca. 80
Size, width/depth/height (mm): 435 - 428 - 1240 Ø440 - 1520 Ø440 - 1720 Comb stion chamber width/depth/height (mm). 275 - 245 - 475 275 - 245 - 475 275 - 245 - 475 Recommended amo nt of wood when f elling (kg) (Based on 2 - 3 logs of wood approx. 25cm)
1.8 1.8 1.8
Min. ptake / Min. dra ght (Pascal): -15 -15 -15 Weight (kg): 125 170 200 Efficiency (%): 76 76 76 Particles after NS3058/3059 (g/kg): 3.9 3.9 3.9 Smoke gas mass flow (g/s): 5.9 5.9 5.9 Smoke gas temperat re (°C): 199 199 199 Intermittent operation: F elling sho ld be ndertaken
within 3 ho rs
D st meas red according to Din+ (mg/Nm
3
):
Please Note this appliance has been tested by the manufacturers and works on a 3m straight flue.

Convection
Rais stoves are convection stoves. This means that the stove’s back and side panels are
not over-heated. Convection means that there is a circulation of air which ensures that
the heat is distributed more evenly throughout the entire room. The cold air is sucked in
at the base of the stove and up through the convection channel which runs along the
stove’s combustion chamber. The heated air comes out at the top of the stove which
ensures a circulation of warm air throughout the room.
The stoves are equipped with cool door handles - a Rais special feature - which
means you could almost do away with gloves. Be aware however that all exterior
surfaces become hot during use - so take extreme care.

Installation Instr ctions
The following pages give instructions for the safe and proper installation of this heating
appliance in the UK. These instructions cover the basic principles of installation
although some details may need slight modification to suit particular local site conditions.
In all cases the installation must comply with current UK Building Regulations Local
Authority Byelaws and other specifications or regulations as they affect the installation of
the stove.
Please note that it is a legal requirement under England and Wales Building Regulations
that the installation of the stove is either carried out under local Authority Building
Control approval or is installed by a Competent Person registered with a Government
approved Competent Persons Scheme. HETAS operate such a scheme and a listing of
their registered Competent Persons can be found on their website at www.hetas.co.uk.
It should be noted that the current Building Regulations requirements are given in
Approved Document J. These requirements may also be met by adopting the relevant
recommendations given in British Standards BS 8303 BS 6461 and BS 7566.
WARNING. Health and Safety Advice Notice.
The installation of this heating appliance is governed by the Health and Safety at Work
Act 1974. it is the responsibility of the installer to ensure that all requirements of this Act
are met during the installation works. Attention is drawn in particular to the following:
Handling: The appliance is a heavy item and adequate facilities must be available
for loading unloading and site handling.
Fire Cement: Some types of fire cement are caustic and should not be allowed to come
into contact with the skin. Protective gloves should be worn when
handling fire cement. In case of contact with the skin wash immediately
with plenty of water.
Asbestos: This stove contains no asbestos. If there is a possibility of disturbing any
asbestos in the course of the installation then please seek specialist
guidance and use appropriate protective equipment.
Metal Parts: When installing or servicing this stove care should be taken to avoid the
possibility of personal injury.
Important Warning - Preparatory Work and safety Checks:
• This stove must not be installed into a chimney which serves any other heating
appliance.
• There must not be an extractor fan fitted in the same room as the stove as this can
cause the stove to emit fumes into the room.
• If this appliance is installed into an existing chimney the chimney must first be
swept and examined for soundness and suitability before the appliance is installed
(see also section headed ‘Chimney’).

Chimney
The chimney is the driving force which makes the stove function. In order for the stove to
perform satisfactorily the chimney height must be sufficient to ensure the correct draught
of 14 to 18 Pa so as to clear the products of combustion and prevent problems of smoke
leaking into the room when the stove is lit.
Note: A chimney height of not less than 4.5 metres measured vertically from the outlet of
the stove to the top of the chimney should be satisfactory.
Alternatively the calculation procedure given in BS 5854:1980 may be used as the basis
for deciding whether a particular chimney design will provide sufficient draught.
Please Note this appliance has been tested by the manufacturers and works on a 3m
straight flue.
The outlet from the chimney should be above the roof of the building in accordance with
the provisions of the Building Regulations Approved Document J.
If the installation is into an existing chimney then it must be sound and have no cracks or
other faults which may allow fumes into the house. Older properties especially may have
chimney faults or the cross section may be too large i.e. more than 230 x 230mm.
Remedial action should be taken if required expert advice should be sought where
required.
If the chimney requires lining then a suitable solid fuel flue liner must be used in
accordance with Building Regulations Approved Document J.
Any existing chimney must be clear of obstruction and should have been swept clean
immediately before the installation of the stove. If the stove is fitted in place of an open
fire then the chimney should be swept one month after installation to clear any soot falls
which may have occurred due to the difference in combustion between the stove and the
open fire.
If there is no existing chimney then either a prefabricated block chimney in accordance
with Building Regulations Approved Document J or a twin wall insulated stainless steel
flue to BS 4543 can be used. These chimneys must be fitted in accordance with the
manufacturer’s instructions and the Building Regulations.
A single wall metal fluepipe is suitable for connecting the stove to the chimney but is
not suitable for using for the complete chimney. The chimney and
connecting fluepipe must have a minimum diameter of 150mm and it’s
dimension should be not less than the size of the outlet socket of the stove which is
150mm. Any bend in the chimney or connecting fluepipe should not exceed 45°. 90°
bends should not be used.
Combustible material should not be located where the heat dissipating through the
walls of fireplaces or flues could ignite it. Therefore when installing the stove in the
presence of combustible materials due account must be taken of the guidance on the
separation of combustible material given in Building Regulations Approved Document
J and also in these stove instructions.

If it is found that there is excessive draught in the chimney then either an adjustable
flue damper or alternatively a draught stabiliser should be fitted. The adjustable flue
damper should not close off the flue entirely but should in its closed position leave a
minimum continuous opening free area of at least 20 % of the total cross sectional
area of the flue or fluepipe.
Adequate provision e.g. easily accessible soot door or doors must be provided for
sweeping the chimney and connecting fluepipe.
You should also familiarise yourself with the draught conditions for chimneys with 2
flues.
For strong draughts the chimney or flue should be fitted with a draught stabiliser. In
which case it is important to ensure that there is a free flow-through area of minimum
20 cm
2
when the regulating gate is shut. Otherwise the fuel energy may not be used
optimally.
If at any time you are unsure about the condition of the chimney you should contact
a chimney sweep.
Remember that access to the soot door should be kept clear.

Installation
It is prohibited to carry out unauthorised alterations to the stove.
There must be plenty of fresh air in the room where the stove is being installed in order to
ensure proper combustion. Note that any mechanical exhaust ventilation - e.g. an
extraction hood - may reduce the air supply. Any air grilles must be placed in such a
manner that the air supply is not blocked.
Building Regulations Approved Document J gives specific guidance on the required
permanent ventilation into the room for combustion air of solid fuel appliances.
The floor structure must be able to carry the weight of the wood burning stove as well as
the weight of a chimney if necessary.
When you choose where to set up your RAIS wood burning stove you should consider the
heat distribution to the other rooms. This will enable you to get the best use out of your
stove.
The stove should be set up at a safe distance from inflammable materials.
See the manufacturer's plate on the wood burning stove.

Operation of revolving base
If the stove has a revolving base then please do the following:
Palo
Lift up the positioning bolt and rotate the stove
at 30 degree intervals.
When you have reached the desired position
release the positioning bolt and turn the stove
slightly until the bolt clicks into place.

Installation distance to comb stible wall
To find out whether the wall next to where the stove is going to be installed is flammable
you should contact your building contractor or the local building authorities.
The hearth should be able to accommodate the weight of the stove. The chimney must
be independently supported by wall brackets or a ceiling support plate. The weight of the
stove is indicated in the brochure.
The stove should always be installed on a non-combustible hearth of a size and
construction that is in accordance with the provisions of the current UK Building
Regulations Approved Document J.
If the stove is to be installed on a wooden floor it must be covered with a
non-combustible material at least 12mm thick in accordance with UK Building
Regulations Approved Document J to a distance of 300 mm in front of the stove and
150 mm to each side measuring from the door of the combustion chamber.
The clearance distances to combustible material beneath surrounding or upon the
hearth and walls adjacent to the hearth should comply with the guidance on the
separation of combustible material given in UK Building Regulations Approved
Document J and also in these stove instructions.
Inform the user that the appliance has been commissioned and ready to use and give
instruction on the safe operation of the stove.
These Instructions must be left with the user and the user should be instructed to keep
them in a safe place.

For the Installer
Finally before firing the stove for the first time a check should be made to ensure that the
assembly and stove installation has been satisfactory and that there are no leaks in any
seals in the appliance and appliance connections to the chimney.
Ensure that the appliance and chimney flue are functioning correctly before finally
handing over to the user. Read the later parts of this manual for guidance on care
required when first lighting.
Inform the user that the appliance has been commissioned and ready to use and give
instruction on the safe operation of the stove.
These Instructions must be left with the user and the user should be instructed to keep
them in a safe place.

ONLY USE RECOMMENDED FUELS
The following table shows the calorific value of different types of wood which have been
stored for 2 years and which have a residual moisture of 15 - 17%.
Wood Kg dry wood pr m
3
compared to beech/oak
Hornbeam 640 110%
Beech and oak 580 100%
Ash 570 98%
Maple 540 93%
Birch 510 88%
Mountain pine 480 83%
Fir 390 67%
Poplar 380 65%
1kg of wood yields the same heat energy irrespective of wood type.
1kg of beech merely takes up less space than 1kg of fir.
Operating instr ctions
Please note that HETAS Appliance Approval only covers the use of dry seasoned wood
logs on this appliance. HETAS Approval does not cover the use of other fuels either
alone or mixed with the wood logs nor does it cover instructions for the use of other
fuels.
F el
The stove is designed and approved in accordance with EN 13240 and NS 3058 for
stoking split dried firewood. The firewood must have a water content of 15-22% and its
max. length should be the length of the combustion chamber minus 50-60 mm.
Stoking with wet firewood causes both soot environmental pollution and bad fuel
economy. Freshly cut wood contains approx. 50-70% water and is thoroughly unsuitable
for stoking. Allow at least 1 year of storage time for newly cut wood before using. Wood
with a diameter of more than 100 mm should be split. Regardless of wood size it should
always have at least one surface area free of bark.
We do not recommend stoking with painted laminated or impregnated wood wood with
a synthetic surface painted refuse wood chipboard plywood domestic waste paper
bri-quettes and pit coal as this will produce malodorous smoke which could be
poisonous.
When firing with the above-mentioned items and amounts larger than those
recommended the stove is subjected to a larger amount of heat which results in a
higher chimney temperature and lower efficiency. This can result in the stove and
chimney becoming damaged and would void the warranty.
The calorific value of the firewood is closely connected to the moisture level.
Moist firewood has a low heat value. The more water the wood contains the more
energy it takes for this water to vaporise resulting in this energy being lost.

Drying and storage
Drying wood takes time: proper air drying takes approximately 2 years.
Here are some tips:
Store the wood sawn split and stacked in an airy sunny place which is protected against
rain (the south side of the house is particularly suitable).
Store the firewood stacks at a hand's breadth apart as this ensures that the air flowing
through takes the moisture with it. Avoid covering the firewood stacks with plastic as this
prevents the moisture from escaping. It is a good idea to bring the firewood into the house
2-3 days before you need it.
Reg lating the comb stion air
All RAIS stoves are equipped with a one-handed operating lever for regulating the damper.
The stove-specific regulating mechanisms can be seen on the diagrams.
Primary air is the combustion air added to the primary combustion zone i.e. the bed of
glowing embers. This air which is cold is only used in the lighting stage. Secondary air is
the air which is added in the gas combustion zone i.e. air which contributes to the
combustion of the pyrolysis gasses (preheated air which is used for the cleaner glass
system and combustion). This air is sucked through the damper under the combustion
chamber and is pre-heated through the side channels and then emitted as hot scavenging
air onto the glass. The hot air rinses the glass and keeps it soot-free.
The tertiary channel which can be seen at the top of the combustion chamber towards the
back serves to combust the final gas residues.
By setting the interval between position 1 and 2 the energy content in the firewood is used
optimally as there is oxygen for combustion and for the burning of the pyrolysis gasses.
When the flames are a clear yellow the damper has been set correctly. Finding the correct
position comes with time after you have used for stove for a while.
It is not recommended that you turn it down completely. A mistake commonly made is
shutting the damper too early because it feels too hot. This results in dark smoke emanating
from the chimney and in the calorific value of the firewood not being used to its fullest.
Room ventilation and stoves
There must not be an extractor fan fitted in the same room as the stove as this can cause
the stove to emit smoke and fumes into the room.
The stove requires a permanent and adequate air supply in order for it to operate safely and
efficiently.
In accordance with current Building Regulations the installer may have fitted a permanent air
supply vent into the room in which the stove is installed to provide combustion air. This air
vent should not under any circumstances be shut off or sealed.

Using the wood b rning stove
Adjusting the air damper.
The damper has 3 settings.
Position 1
The damper is closed meaning that there is no air in-
take.
Position 2
Pull the lever until it clicks. This position gives full
secondary air.
During normal use the lever is set between position
1 and 2.
When the flames are clear and yellow the damper is
set correctly i.e. resulting in a slow/optimal burning.
Position 3
Pull the lever to the next position.
The air damper is completely open and gives full
primary and secondary air. This position is for the
lighting stage and is not used under normal operation.
Control
If the ash is white and the walls in the combustion chamber are soot free after the stove
has been used the air regulation was set correctly and the wood was sufficiently dry.
