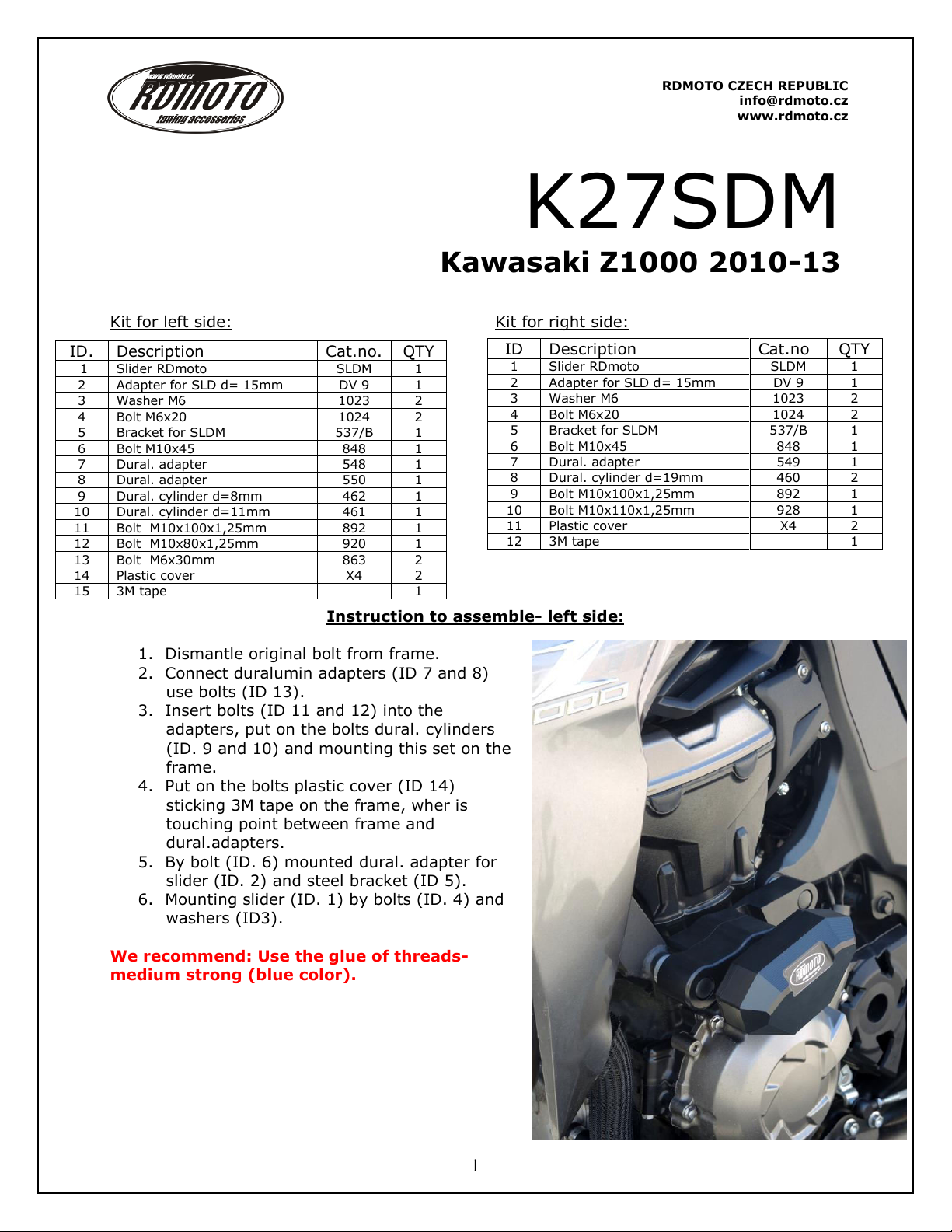

RDMOTO K27SDM User manual

RDMOTO CZECH REPUBLIC
[e-mail]
www.rdmoto.cz
1
K27SDM
Kawasaki Z1000 2010-13
Kit for left side: Kit for right side:
Instruction to assemble- left side:
1. Dismantle original bolt from frame.
2. Connect duralumin adapters (ID 7 and 8)
use bolts (ID 13).
3. Insert bolts (ID 11 and 12) into the
adapters, put on the bolts dural. cylinders
(ID. 9 and 10) and mounting this set on the
frame.
4. Put on the bolts plastic cover (ID 14)
sticking 3M tape on the frame, wher is
touching point between frame and
dural.adapters.
5. By bolt (ID. 6) mounted dural. adapter for
slider (ID. 2) and steel bracket (ID 5).
6. Mounting slider (ID. 1) by bolts (ID. 4) and
washers (ID3).
We recommend: Use the glue of threads-
medium strong (blue color).
ID
Description
Cat.no
QTY
1
Slider RDmoto
SLDM
1
2
Adapter for SLD d= 15mm
DV 9
1
3
Washer M6
1023
2
4
Bolt M6x20
1024
2
5
Bracket for SLDM
537/B
1
6
Bolt M10x45
848
1
7
Dural. adapter
549
1
8
Dural. cylinder d=19mm
460
2
9
Bolt M10x100x1,25mm
892
1
10
Bolt M10x110x1,25mm
928
1
11
Plastic cover
X4
2
12
3M tape
1
ID.
Description
Cat.no.
QTY
1
Slider RDmoto
SLDM
1
2
Adapter for SLD d= 15mm
DV 9
1
3
Washer M6
1023
2
4
Bolt M6x20
1024
2
5
Bracket for SLDM
537/B
1
6
Bolt M10x45
848
1
7
Dural. adapter
548
1
8
Dural. adapter
550
1
9
Dural. cylinder d=8mm
462
1
10
Dural. cylinder d=11mm
461
1
11
Bolt M10x100x1,25mm
892
1
12
Bolt M10x80x1,25mm
920
1
13
Bolt M6x30mm
863
2
14
Plastic cover
X4
2
15
3M tape
1

RDMOTO CZECH REPUBLIC
[e-mail]
www.rdmoto.cz
2
Instruction to assemble- right side:
1. Dismantle original bolt from frame.
2. Také adapter (ID 7),insert bolts into the adapter (ID 9 and 10) put on the bolt dural.
cylinder (ID 8).
3. This adapter mounting on the frame, put on the bolts plastic cover (ID 11).
4. By bolt (ID. 6) mounted dural. adapter for slider (ID. 2) and steel bracket (ID 5)
5. Mounting slider (ID. 1) by bolts (ID. 4) and washers (ID3).
We recommend: Use the glue of threads- medium strong (blue color).
