RealFlame 11564LP1 User manual

!
Warning:
For outdoor use only
DO NOT use for cooking
DO NOT use under any
overhead enclosure
!
Warning:
If the information in this manual is not
followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for future
reference. If you are assembling
this unit for someone else, give
this manual to him or her to read
and save for future reference.
!
!
!
!
!
Designed and Engineer
US
ed by
Real Flame. Manufactured as
Model # 11564LP ed in the vicinity of
DANGER
!
If you smell gas:
!WARNING
An LP-cylinder not connected for use
should not be stor
this or any other appliance.
PO: ______________
For Technical Support call
1-800-654-1704
Makena Propane Fire Table Owner’s Manual
Large Rectangle Style # 42100271/ 42100130
away from the appliance and
immediately call your gas supplier
or fire department.
1. Shut off gas to the appliance.Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
020417

3
5
7
8
9
13
14
15
17
!
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper,tent,car or home.
Important Safety Information
Propane (LP) Gas Dangers and Warnings

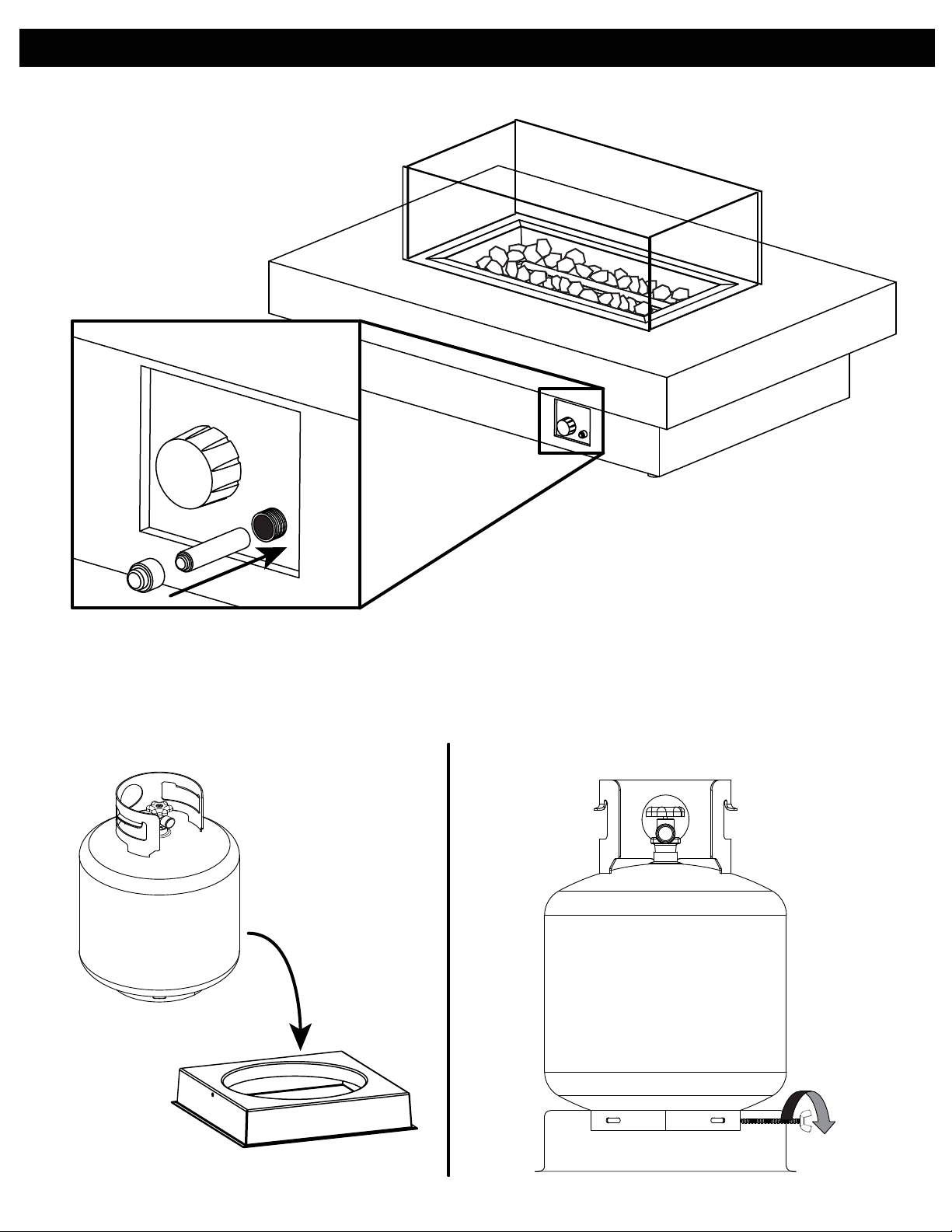

Hose and Regulator Assembly and Replacement

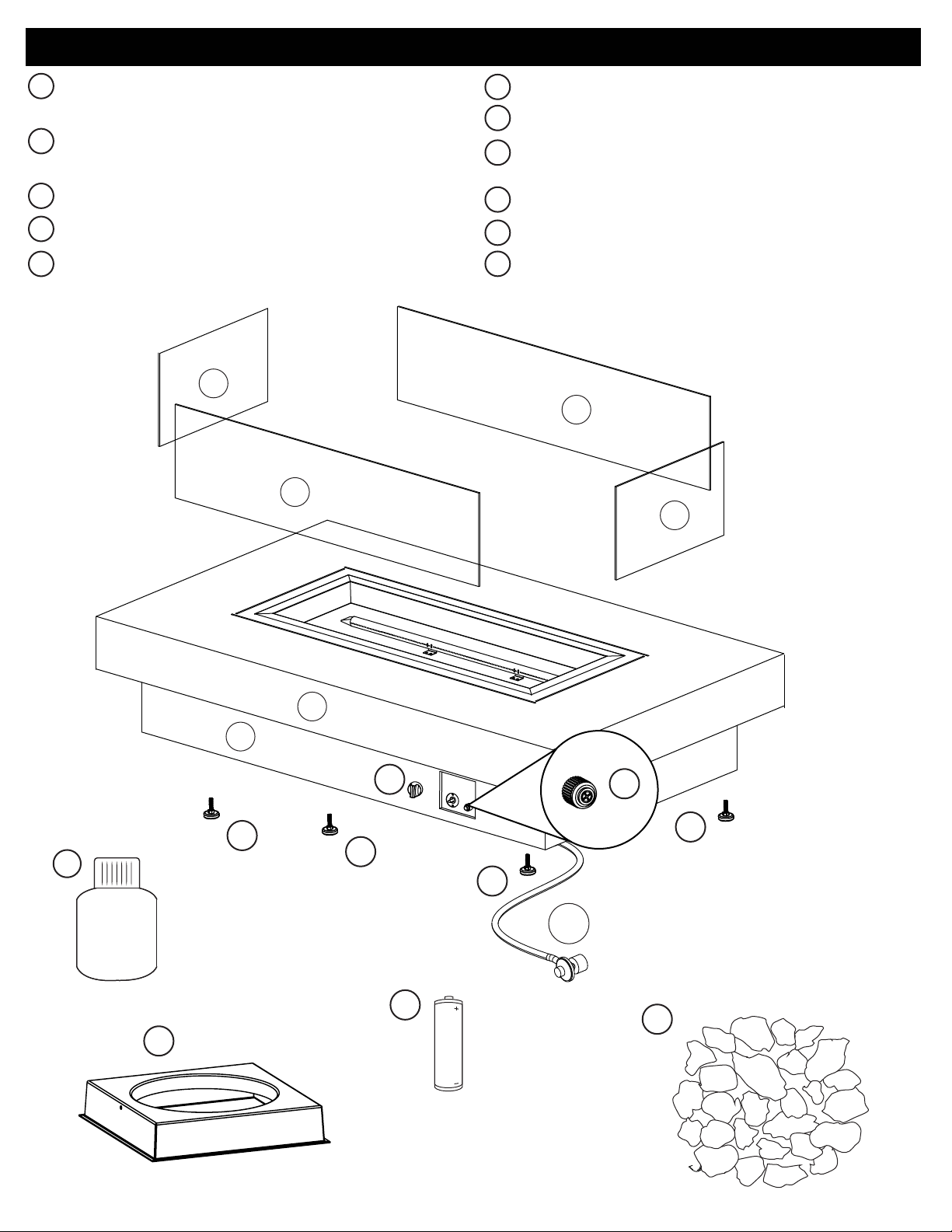

Parts List

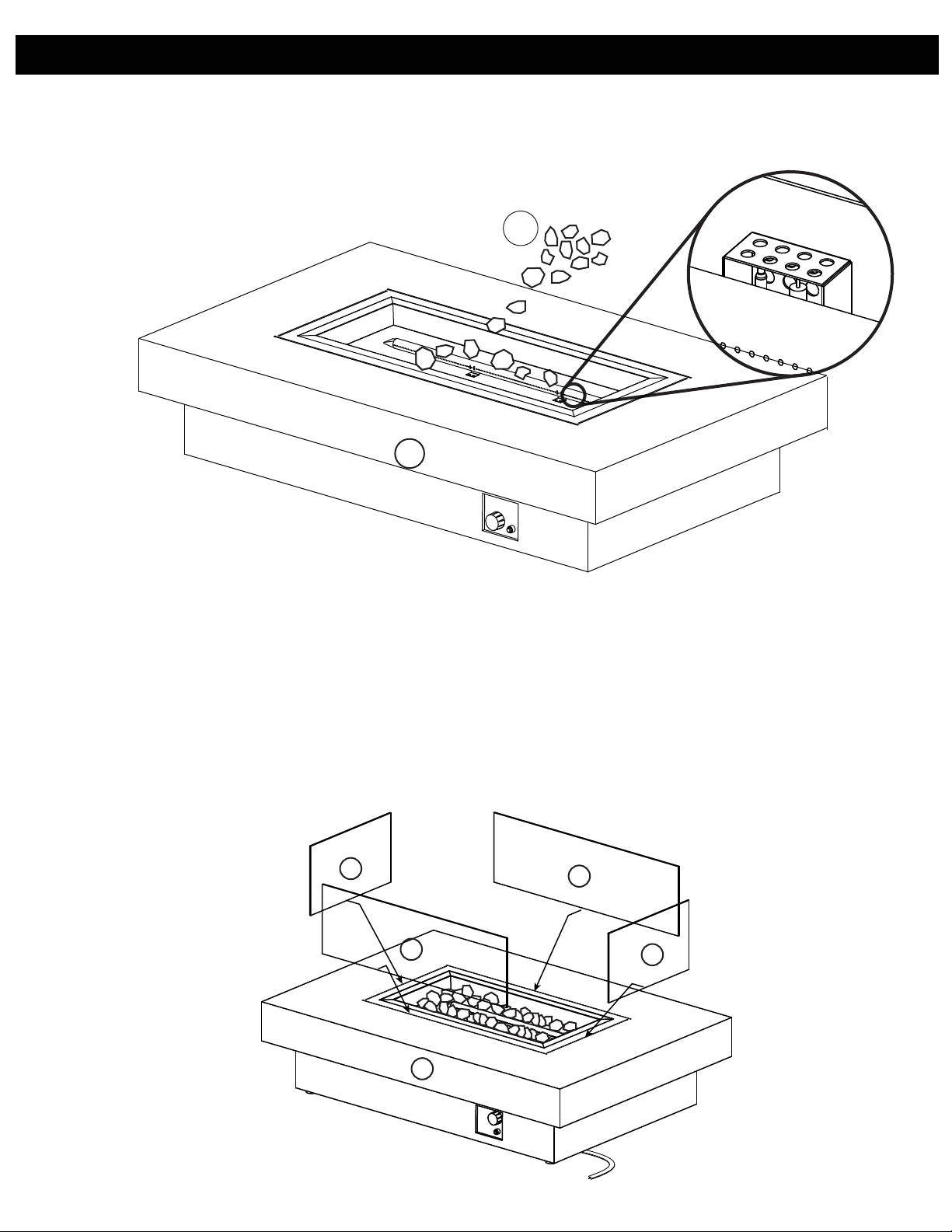

Assembly Instructions

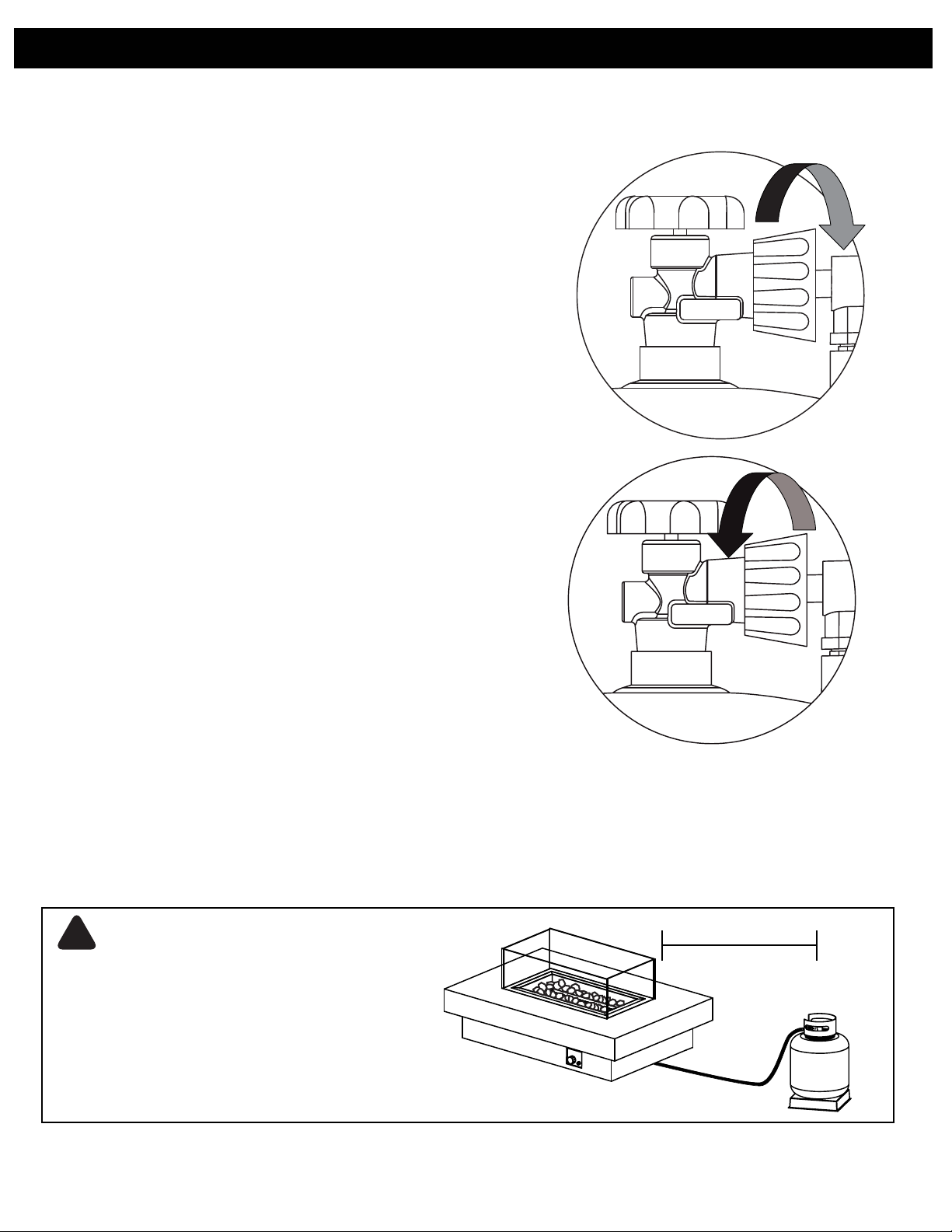

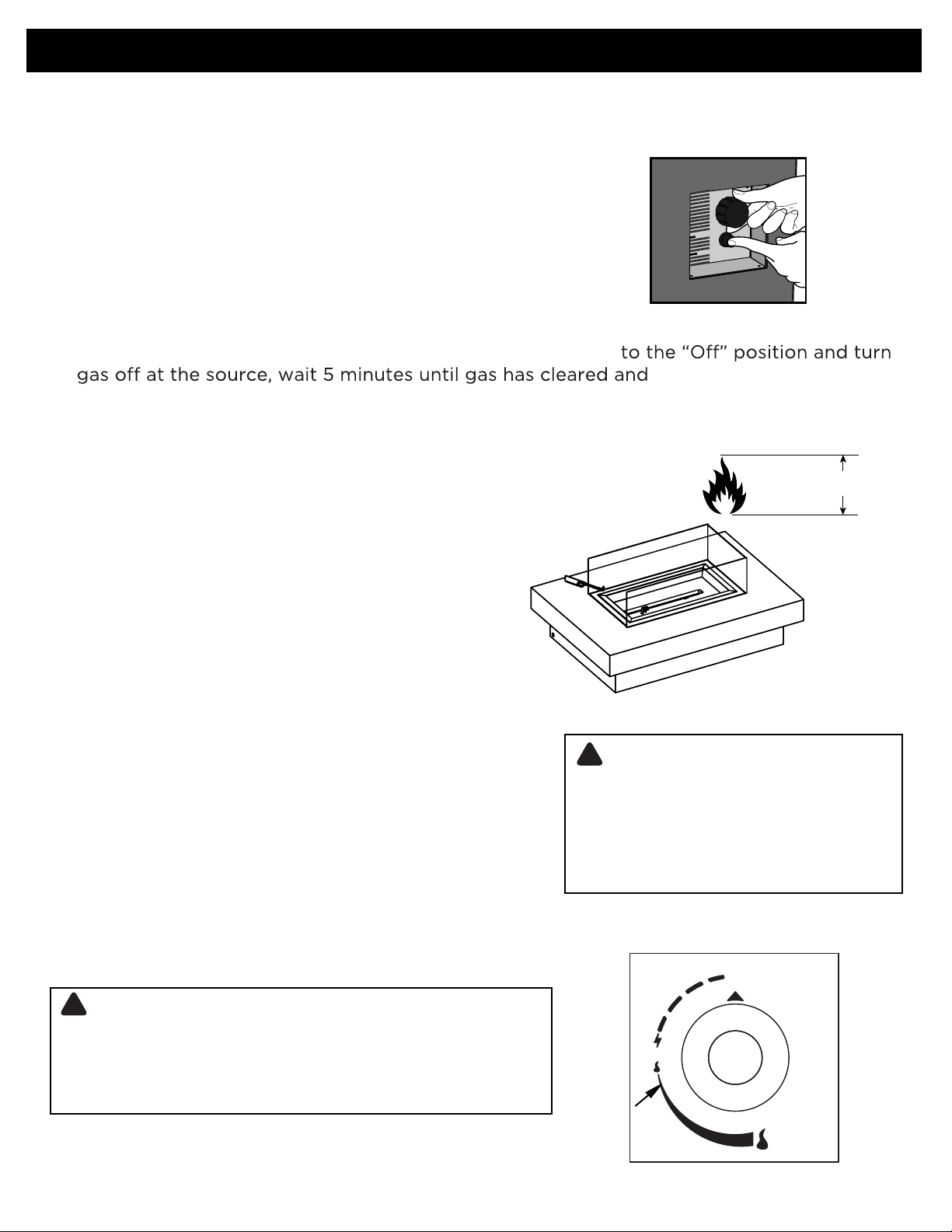

Lighting

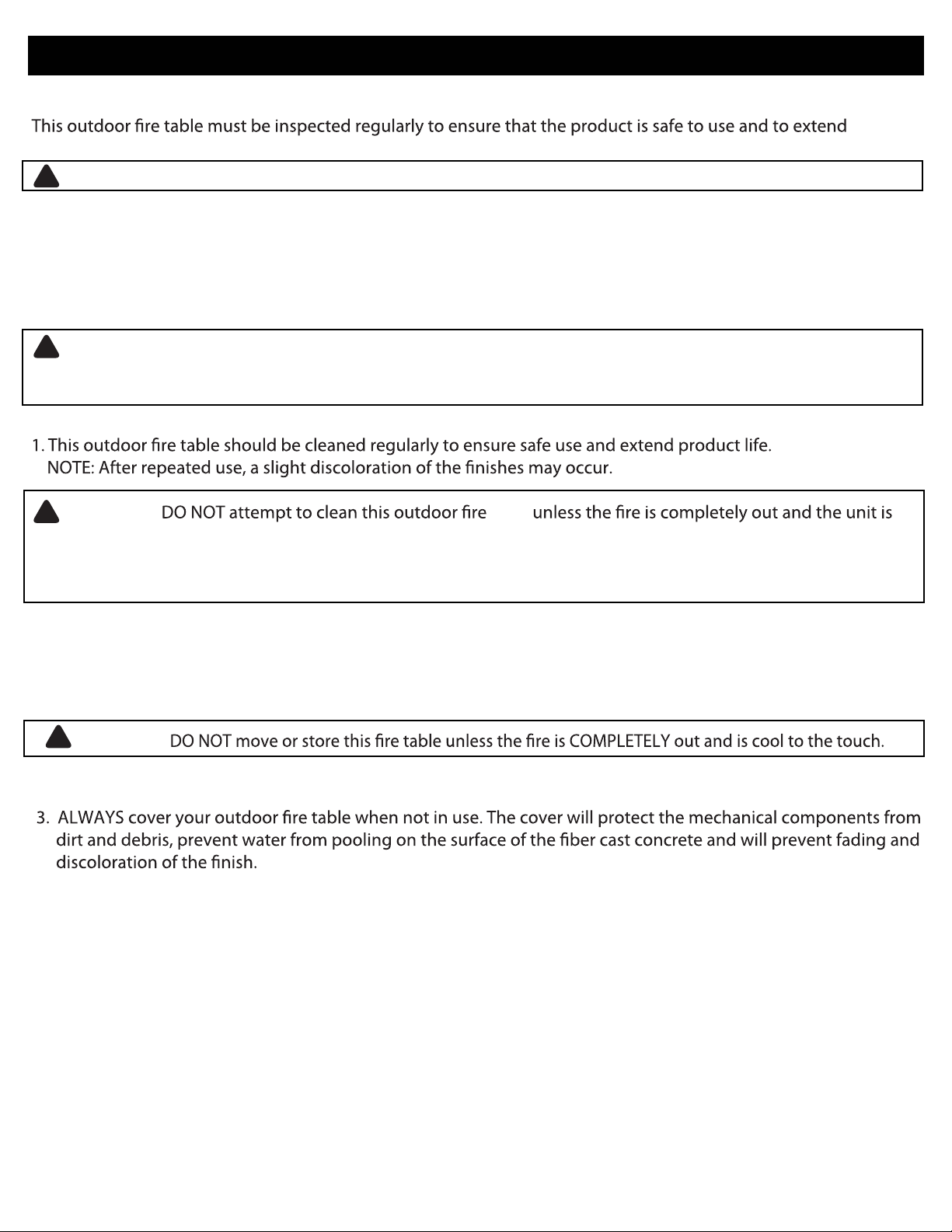

Care and Cleaning

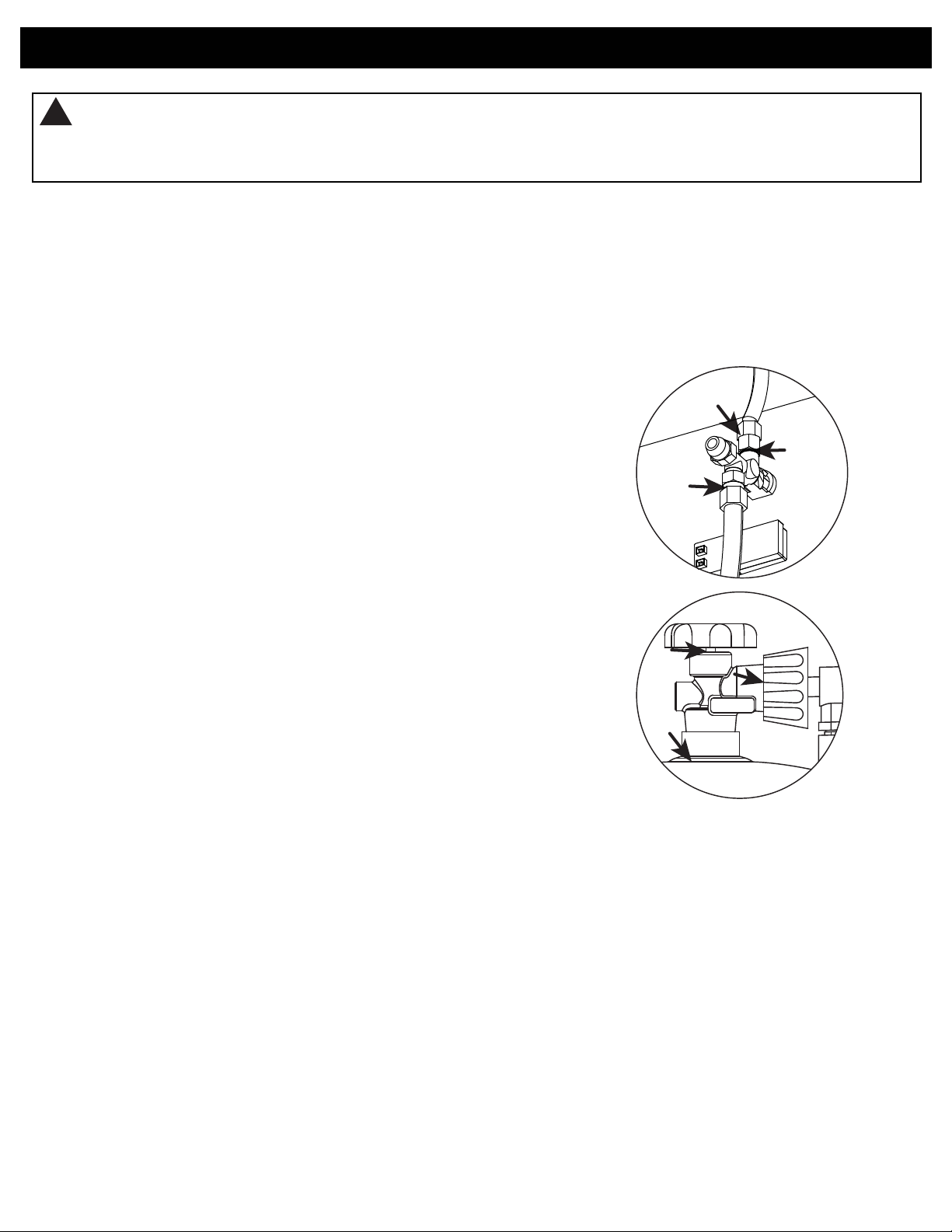

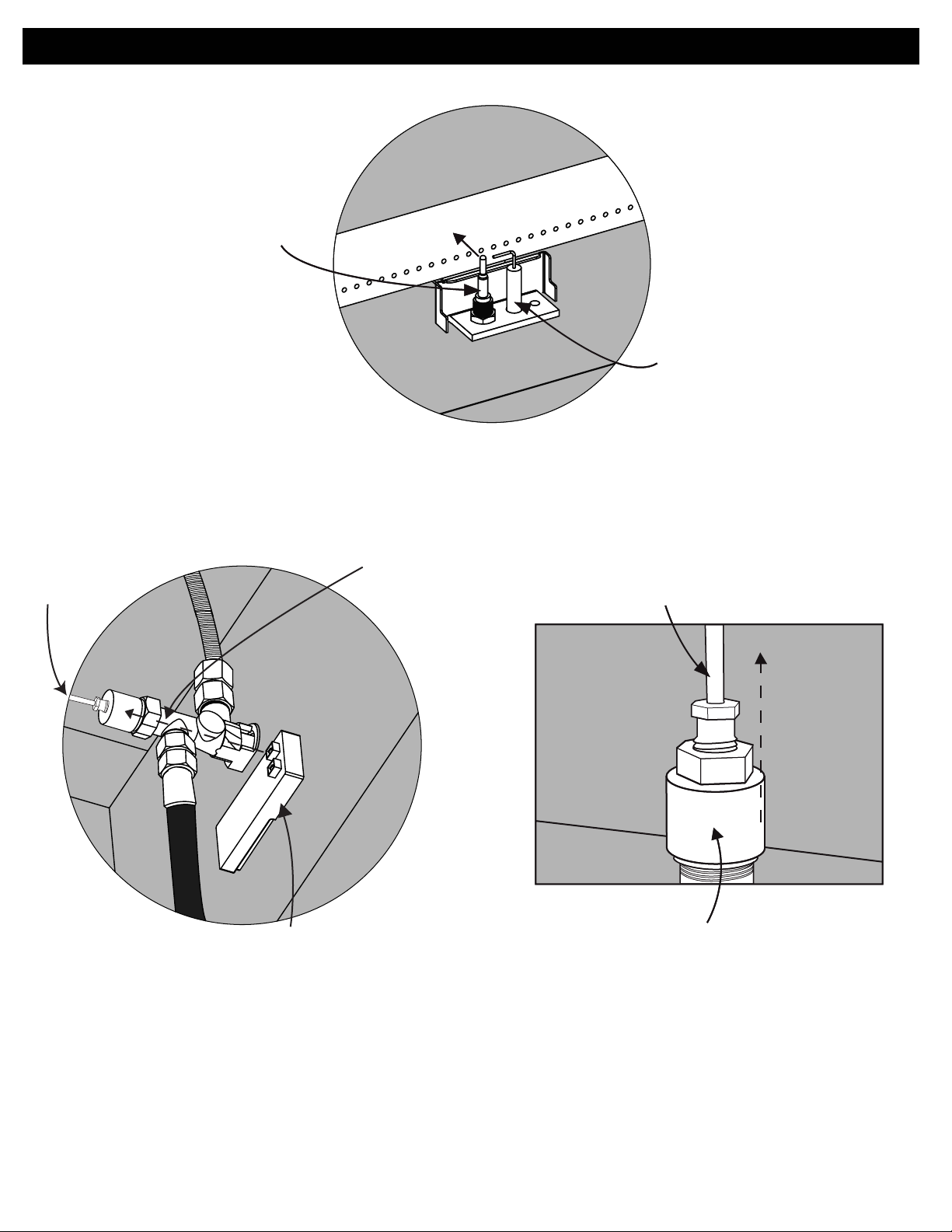

Gas Component Connection Checks

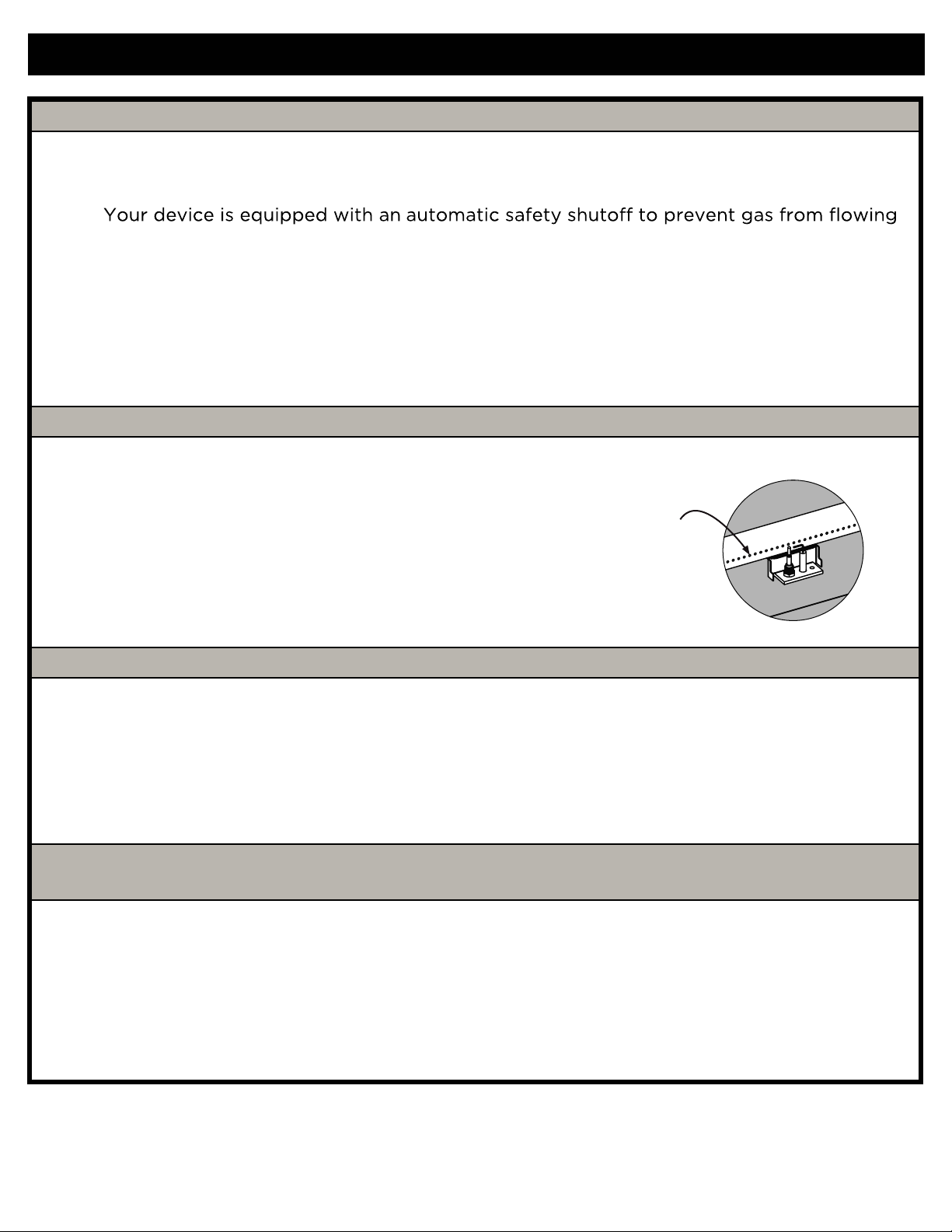

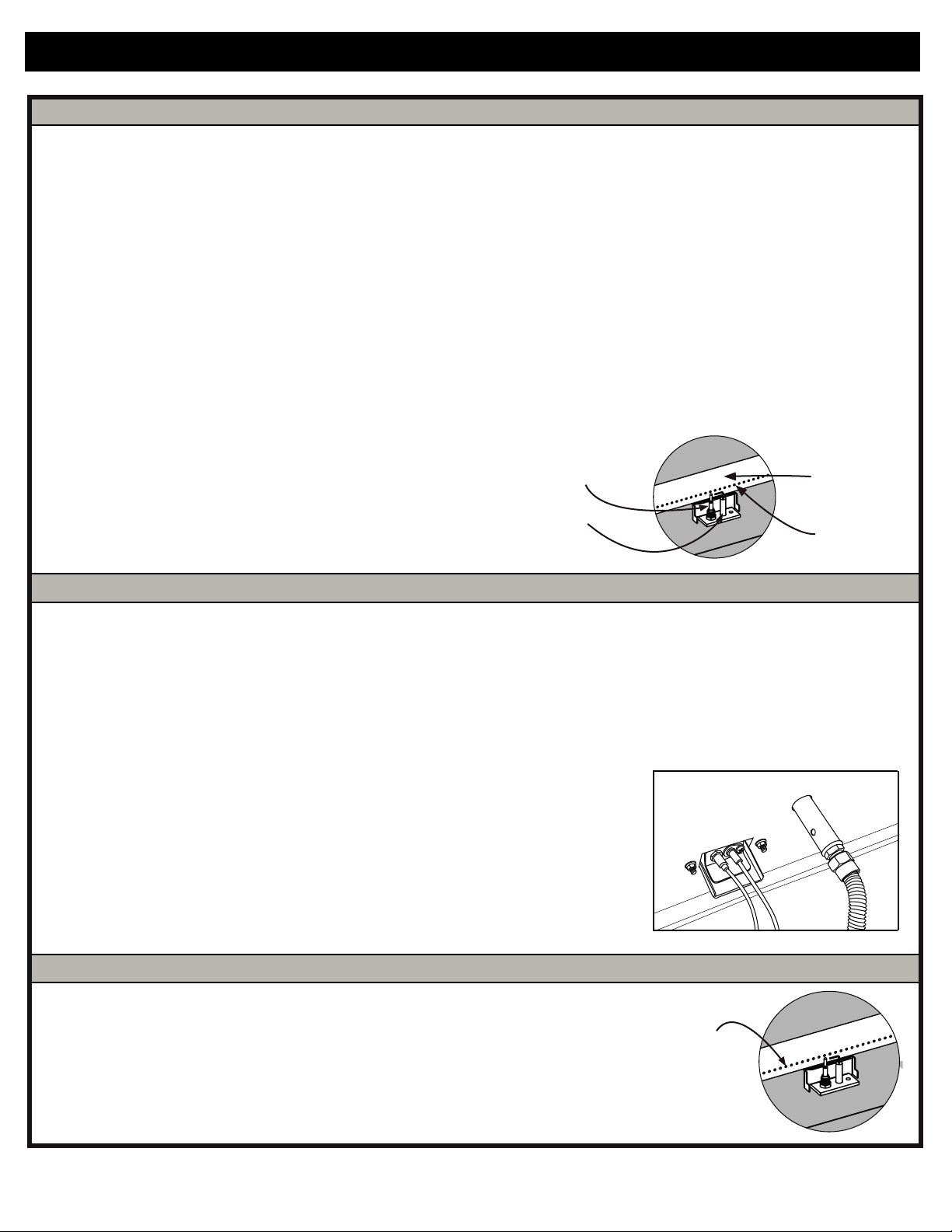

Troubleshooting
Table of Contents
DANGER
2
Product Name
Makena Rectangle Extra Large
Model No.
11564LP1
Rated Heat Output
65,000 btu/hr
Type of Gas
Propane (LP)
Gas Supply
20 lb LP-Gas Cylinder
SPECIFICATIONS
!

!
Important Safety Information
WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
3
• WARNING Failure to follow the dangers, warning and cautions in this manual may result in
serious bodily injury or death, or in a fire or an explosion causing damage to property.
• WARNING Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
• Minimum Clearance from Unit to Combustible Materials
48” (121.9 cm) from all sides and back. Do not locate this fire table under any overhead
enclosure.
IF YOU SMELL GAS
• Extinguish any open flame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• Children and adults should be alerted to the hazards of high surface temperatures and be
kept at a safe distance while fire table is in use.
• This outdoor fire table is NOT to be operated by children. Young children should be
closely supervised when in the vicinity of this outdoor fire table.
• Do not hang or place clothing or other flammable materials on or near the gas fire table.
• Any guard or protective device removed for servicing the appliance shall be replaced prior
to operating the appliance.
• Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartment,
burners, and circulating air passageways of the appliance are kept clean.
• Keep these instructions for future reference. If you are assembling this unit for someone
else, give this manual to him or her to read and keep for future reference.
• Do not use this unit for cooking.
• Do not pour water into the fire table.
• Do not use this outdoor fire table if any part has been under water. Immediately call a
qualified service technician to inspect the fire table and to replace any part or control
system and any gas control which has been under water.

Important Safety Information (Continued)
4
• This gas fire table must be used ONLY outdoors in a well-ventilated space and shall NOT be
used inside a building, garage, or any other enclosed area.
• DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fumes
can accumulate and cause asphyxiation.
• NEVER LEAVE this gas fire table unattended when in use.
• Do not store or use gasoline or other flammable vapors and liquids within 25 feet (7.62m) of
this or any other appliance.
• Do not store any combustible materials in the base enclosure.
• Never use a flame to check for gas leaks.
• The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability
to properly assemble or safely operate this outdoor fire table.
• DO NOT use in an explosive atmosphere. Keep gas fire table area clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
• This outdoor fire table is not to be installed or used in or on recreation vehicles and/or boats.
• Always use in accordance with all applicable local, state and national codes. Contact your local
fire department for details on outdoor burning.
• Use the same precautions you would with any open fire when using this outdoor fire table.
• DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured logs,
driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure treated
wood in this outdoor fire table.
• DO NOT use this outdoor fire table until it is COMPLETELY assembled and all parts are securely
fastened and tightened.
• DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor fire table while it is
in operation.
• DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational vehicles.
• DO NOT use this outdoor fire table under any overhead structure or near any unprotected
combustible constructions. Avoid using near or under overhanging trees and shrubs.
• Always use this outdoor fire table on a hard, level non-combustible surface such a concrete,
rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose.
• DO NOT wear flammable or loose clothing when operating this outdoor fire table.
• DO NOT use in windy conditions.
• Keep all electrical cords away from a hot outdoor fire table.
• Certain areas of this outdoor fire table when in use will become too hot to touch. Do not touch
hot surfaces until the unit has cooled unless you are wearing protective gear such as insulated
pot holders or heat resistant gloves or mittens to avoid burns.
• DO NOT attempt to move or store this outdoor fire table until all parts are cool.
• DO NOT lean over this outdoor fire table when lighting or when in use.
• Use only the regulator and hose assembly provided. The replacement regulator and hose
assembly shall be that specified by the manufacturer.
• DO NOT attempt to disconnect the gas regulator from the tank or any gas fitting while the
outdoor fire table is in use.
• Always shut o gas supply at the tank valve and disconnect regulator from the tank when the
fire table is not in use.
• DO NOT sit on the fire table when the unit is in operation.
• DO NOT throw anything onto the fire when the unit is in operation.
• It is essential to keep the outdoor fire table valve compartment, burners, and circulating air
passages clean. Inspect outdoor fire table before each use.
• Lava rocks or fire glass are very hot; please keep children and pets at a safe distance.

Important Safety Information(Continued)
Propane (LP) Dangers And Warnings
!
5
• Prior to each fire table operation, check the hose for evidence of excessive abrasion or wear.
Use a handheld mirror to see hose sections located under the unit. If the hose is damaged,
cracked or cut, it must be replaced before using the gas fire table. The hose assembly can only
be replaced with a hose assembly specified by the manufacturer. Please call Real Flame at
1-800-654-1704.
• Before each use, examine the burner and its components. If dirty, clean with a soft brush and
soapy water solution. Also examine the area around the burner. Any dirt or foreign material,
such as spider webs or nests in this area should be removed. If it is evident that the burner is
damaged, the fire table must not be used. The burner assembly must be replaced. Please
contact Real Flame at 1-800-654-1704 for technical support.
• Place the hose out of the pathways where people may trip over it. Do not place the hose in
areas where it may be subjected to accidental damage.
DANGER
This outdoor fire table is for use with liquefied petroleum (LP) gas only. The conversion to
or attempted use of natural gas (NG) in this outdoor fire table is dangerous and could
result in serious personal injury, or property damage.
ATTENTION: Any alteration of the outdoor fire table that is not specifically
directed in the operations manual will void manufacturer warranty.
LP GAS
LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics
before using any LP gas product.
Propane Characteristics
• Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
• In its natural state, propane has no odor. For your safety, an odorant has been added.
• Contact with propane could burn your skin.
• Propane is extremely flammable and hazardous if handled improperly.
LP GAS WARNINGS
• Cylinders must be stored outdoors in a well-ventilated area out of reach of children.
• Disconnected cylinders must have valve dust caps installed and must not be stored in a
building, garage or any other enclosed area.
• Never use a propane cylinder with a damaged body, valve, collar or footing.
• Dented or rusted propane cylinders may be hazardous and should be checked by your
propane gas supplier.
• Be sure to use only one 20 lb (9.1 kg) LP gas cylinder with a Type 1 valve with this appliance as
required by the American National Standards Institute (ANSI) and the Canadian Standards
Steering Committee.
• Only tanks marked “propane” may be used.
• The LP gas supply tank must be constructed and marked in accordance with the Specifications
for LP gas LP gas tanks of the U.S. Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339, LP gas tanks, Spheres and Tubes for the Transportation
of Dangerous Goods; and Commission.
• LP gas tank must be arranged for vapor withdrawal.
• The LP gas tank must have a listed overfilling prevention device (OPD) and a QCCI or
Type I (CGA810) LP gas tank connection.

Propane (LP) Dangers And Warnings
(Continued)
6
• The LP gas tank must have a tank collar to protect the tank valve.
Cylinder Valve Outlet and Inlet Connection, ANSI/CGA-V-1-1977, CSA B96.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store in a building,
garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach over 125°F.
• Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.
• Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to
increase, which may open the relief valve and allow gas to escape.
• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the type of
dust cap on the LP gas tank valve outlet that is provided with the LP gas tank valve. Other
types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious
injury may occur.
• LP gas cylinders should be filled only by a certified LP gas dealer.
• The pressure regulator is set for 11 inches of water column (pressure).
• The normal inlet gas pressure for this outdoor fire table is 11 inches of water column pressure.
• Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer,
motor home or house.
• Always use the pressure regulator and hose assembly provided with the appliance to connect
to a LP gas cylinder. Never connect to an unregulated LP gas supply. For technical support
contact Real Flame at 1-800-654-1704.
• Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do
not try to repair it. Call a Certified Gas Technician. The use of force or any self attempted repair
may result in a fire or explosion.
• Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
• Young children should be carfully supervised when they are in the area of the appliance.
• Clothing or other flammable material should not be hung from the appliance, or placed on or
near the appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
• Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartment, burners,
and circulating air passageways of the appliance are kept clean.
Connecting your gas cylinder
Before connection, besure that there is nodebris caught inthe head of the gas cylinder, head
of the regulator valve or inthe head of theburner and burner ports. Connect regulatorvalve
and hand-tighten firmly. Disconnect the propanecylinder from the regulator valve whenthe fire
tableis not in use.DO NOT obstruct the flow of combustion air and ventilation airtothe burner.

7
Hose & Regulator Assembly And Replacement
1. This fire table comes equipped with a standard LP gas hose and regulator including the
appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose and
regulator supplied with this fire table must be used. Only a hose and regulator specified by
manufacturer can be used for replacement.
a. The CGA No 791 connection incorporates a magnetic flow limiting device that acts to limit
the flow of gas if a leak is detected between the regulator and the burner valve.
b. If the burner valve is open prior to the LP gas cylinder service valve being opened, the
connection will interpret this free flow of gas to be a leak.
c. The connection safety feature will reduce gas flow from the regulator to the appliance to a
minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas cylinder service
valve to ensure that the connection flow limiting device is not triggered mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas cylinder
service valve and the burner valve, wait 10 seconds to allow the device to reset, open the
cylinder service valve, then open the burner valve and light the fire table as per lighting
instructions.
2. Be sure to protect the hose from any hot surfaces. Serious danger may result if the hose
contacts any hot surface.
3. Regular maintenance of the hose and regulator:
a. Inspect the hose before each use of the fire table.
Use a handheld mirror to see hose sections
located under the unit.
If the hose shows signs of cracks, abrasions, cuts or damage of any
kind, do not operate the appliance. Fix or replace the hose as required before using the
appliance. For assistance with repair or replacement of the hose, call Real Flame at
1-800-654-1704. Use only replacement parts from the manufacturer.
b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder when replacing
the cylinder or at least once per year. If there is any indication of damage, have the seal
replaced by a certified gas dealer before operating the appliance.
4. Do not use tools to tighten the CGA No 791 connection nut onto the LP gas cylinder service
valve. Hand tighten only.
5. Be careful to not cross the threads on the connection when tightening the CGA No 791
connection on to the LP gas cylinder service valve.
6. “Leak Test” should always be performed after attaching the connection to the LP gas cylinder
service valve. (See “Checking for Leaks” section of this manual on page 12)
7. For the connection of the hose and regulator to the LP tank, refer to the “Connection” section
of the LP gas cylinder section above.

8
Parts List
8
3
3
1
3
3
2
4
7
4
4
4
9
10
Tank Seat 95600940
LP Hose and
Regulator
Lava Rock (20lb) 66450999
AA Battery N/A
7
8
9
10
1Table Top LMST 115644796A
WSLT 115644396A
Table Base LMST 115644796B
WSLT 115644396B
Glass Panels 49510992
Feet 95600931
2
3
4
5
11
11 Touch-up Paint (.75oz)
WSLT -
LMST -
49490991
49490992
Igniter Button 95600938
6Control Knob 95600939
95600934
1
1
4
1 set
1
1
1
1
2 boxes
1
1
5
6

9

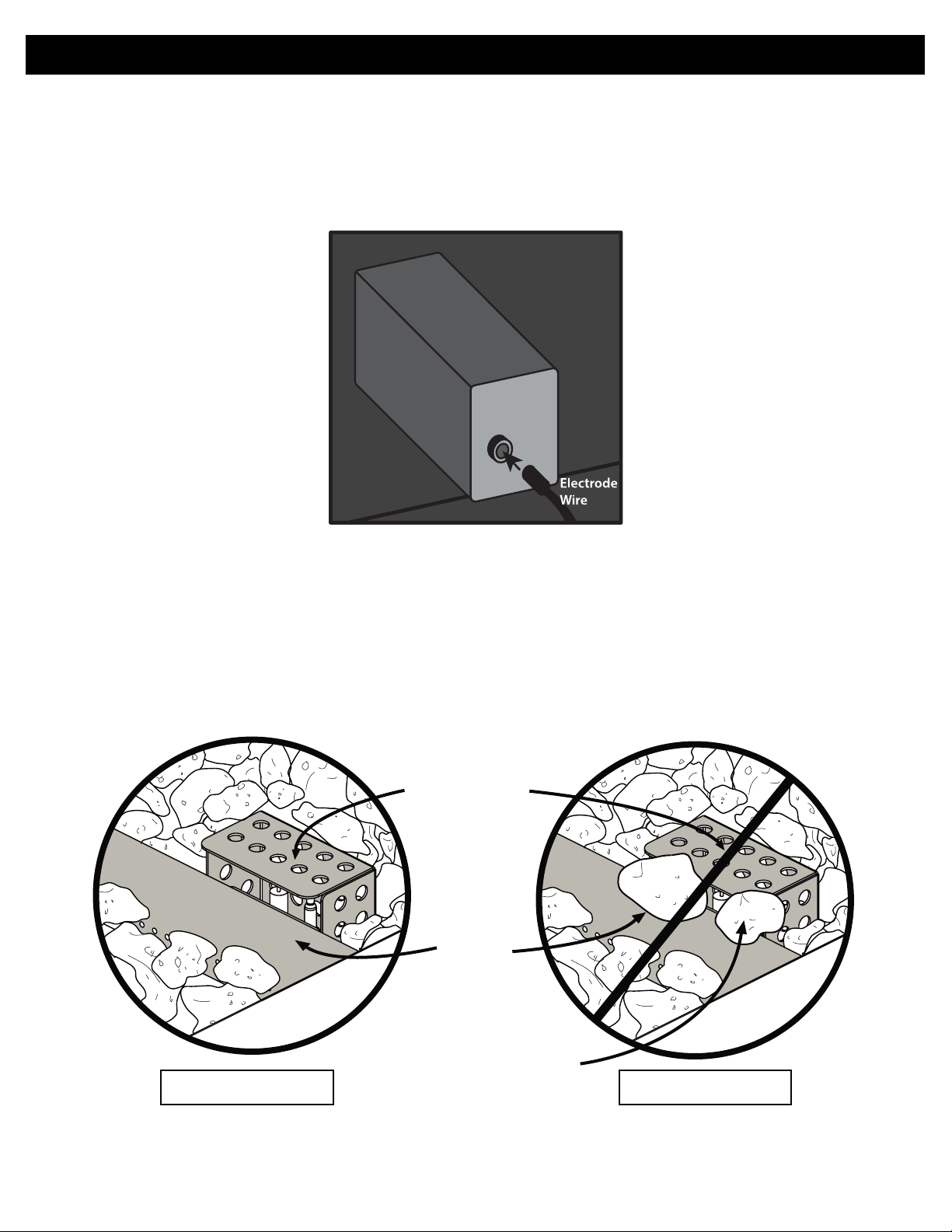

1.) Place lava rock by hand. DO NOT dump bag out into tray to avoid clogging the burner with
dust. Position the lava rock across the burn pan to a level about 1” above the top of the burner.
Make sure that you do not block the igniter housing with lava rock to ensure proper ignition.
Assembly Instructions
9
2.) Insert glass into the slots in
the table top as shown.
1
Igniter Housing
1
33
3
3
Lava Rock Warning:
2. Do not light or use this fire table if filler is wet. Ensure filler is completely dry before lighting.
Intense heat can cause wet filler to explode and hit someone causing injury.
3. Please keep away from the fire table for at least 20 minutes during initial start up as filler
could retain some moisture from manufacturing and shipping.
1. Do not overfill the burner area with rock. The depth of the filler should not be
more than one inch above the burner tube. Only Real Flame filler products have been
certified and tested by CSA for safe use with this Real Flame fire table. Using other filler
material may result in increased popping and cracking or increased CO gas emission.

10
Assembly Instructions
3.) Install the AA battery as shown in
the diagram below.
a. Place the tank seat on the ground and place a 20lb. propane tank into the tank seat.
a. Tighten down the screw on the side of the tank seat to secure the propane tank.
b
4.) Place LP tank
+
-
a
