Rear view safety RVS-770613-213 User manual

1
TM

What’s in the Box?
• 1 Color CCD infra-red weather proof backup camera
• 1 7" LED Digital Panel color rear view monitor with universal
mount/stand
• 1 Trailer quick connect/disconnect kit
• 1 Remote control
• 1 Power connection wire
• 1 Double RCA + power converter (to connect external audio, video
and power)
• 1 Screw kit for installation
REAR VIEW SAFETY
2

3
Table of Contents
Introduction...................................................................................................4
Safety Information ..................................................................................5-7
Before Beginning Installation...................................................................8
Installation Guide.........................................................................................9
Wiring Camera & Monitor.................................................................10-11
Installation Diagram .................................................................................12
Installing the Monitor ..............................................................................13
Monitor Operation.....................................................................................14
Splitting & Splicing ...................................................................................15
Positioning.................................................................................................. 16
Troubleshooting..........................................................................................17
Monitor Dimensions..................................................................................18
Monitor Specifications.............................................................................19
Camera Dimensions...................................................................................20
Camera Specifications..............................................................................21
Reverse Wi h Confidence™

REAR VIEW SAFETY
4
Introduction
Congratulations on purchasing a Rear View Backup Camera System.
With this manual you will be able to properly install and operate the
unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already
exists in your vehicle. The Backup Camera System should not be
used as a substitute for the standard rear view mirror or for any
other mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located
forward of the back of the driver’s seat or in any location that
is visible, directly or indirectly, to the driver while operating the
vehicle.
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.

5
Reverse Wi h Confidence™
Safety Information
Please read the entire manual and follow the instructions and
warnings carefully. ailure to do so can cause serious damage
and/or injury, including loss of life. Be sure to obey all applica-
ble local traffic and motor vehicle regulations as it pertains to
this product. Improper installation will void manufacturer’s
warranty.
USAGE
•The Rear View Camera System
is designed to help the driver
safely detect people and/or
objects helping to avoid
damage or injury. However,
you the driver, must use it
properly. Use of this system is
not a substitute for safe,
proper or legal driving.
•Never back up while looking
at the monitor alone. You
should always check behind
and around the vehicle when
backing up, in the same way
as you would if the vehicle
did not have the Rear View
Camera System. If you back
up while looking only at the
monitor, you may cause
damage or injury. Always
back up slowly.
•The Rear View Camera Sys-
tem is not intended for use
during exstensive back-up
maneuvers or backing into
cross traffic or pedestrian
walkways.
•Please, always remember,
the area displayed by the
Rear View Camera System is
limited. It does not display
the entire panorama that is
behind you.

REAR VIEW SAFETY
6
INSTALLATION
•Electric shock or product
malfunction may occur if
this product is installed
incorrectly.
•Use this product within
the voltage range specified.
ailure to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to firmly affix the
product before use.
•If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may
touch a metal case, cover the
cable with a friction tape. A
short circuit or disconnected
wire may cause a fire.
•While installing the Rear
View System be careful with
the wire positioning in order
to avoid wire damage
•The Rear View System should
only be used when the
vehicle is in reverse.
•Do not watch movies or
operate the monitor while
driving; as it may cause an
accident.
•Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
•Dropping the unit may cause
possible mechanical failure.
Safety Information

7
Reverse Wi h Confidence™
Safety Information
IN NO EVENT SHALL SELLER OR MANU ACTURER BE
LIABLE OR ANY DIRECT OR CONSEQUENTIAL DAMAGES O
ANY NATURE, OR LOSSES OR EXPENSES RESULTING ROM
ANY DE ECTIVE PRODUCT OR THE USE O ANY PRODUCT.

REAR VIEW SAFETY
8
Before Beginning Installation
Before drilling please check that no cable or wiring is on the
other side of the wall. Please clamp all wires securely to reduce
the possibility of them being damaged while vehicle is in use.
Keep all cables away from hot or moving parts and electrical
noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable
Step 3: Once all cables and wiring have been properly placed
routed, perform a system function test by temporarily connecting
he system. If the system seems to not be operating properly see
troubleshooting (page 17)
Before Beginning Installation

9
Reverse Wi h Confidence™
Installation Guide
Camera
1. Attach camera bracket close to rear marker lights, centered
on vehicle ( igure 1.5 number 5).
2. Attach camera to bracket using screws provided and adjust
the angle.
Cable + Quick Connect/Disconnect Kit
1. The cable on this system is split into three parts, two camera
cables that end with Quick Connect terminals and a Pigtail Cable.
2. The first camera cable (26') mounts on the tow vehicle. It runs
from the cab to the back of the tow vehicle where it is mounted
flush to the vehicle ( igure 1.5 number 2).
3. The second cable (66') mounts on the trailer. It runs from the
camera on the back of the trailer up to the front of the trailer
where it is mounted flush to the vehicle ( igure 1.5 number 3).
4. To complete the connection, just connect the Pigtail Cable to
both terminals and the circuit is complete ( igure 1.5 number 4).
Monitor
1. To Attach the Pedestal mount to the dashboard or
to the headliner using self-tapping screws and/or
adhesive pad.
2. Attach monitor to mount, and adjust mounting angle to allow
optimum driver viewing comfort. (see figure 1.1 on page 12)
Tip: Start wiring from the end with the quick connect bracket. In
other words, first install the quick connect bracket and then run
the cabling through the truck or the trailer.

REAR VIEW SAFETY
10
Wiring Camera & Monitor
•When installing a ONE (1)
camera setup, connect camera
extension cable from the rear
view camera to port labeled
“backup” (most systems port #3)
Connect red 12V+ wire to
ignition power source and black
wire 12V- to chassis ground. Do
not use white and brown wires.
•The blue wire is the REVERSE
trigger wire. In typical rear-view
installations, connecting this
wire to the vehicle’s backup
light circuit will activate the
rear-view image whenever the
vehicle shifts into reverse.
•Before drilling, be sure no cable
or wire is on the other side.
•eed as much cable as possible
into vehicle & clamp securely.
This reduces the possibility of
cable being hooked or snagged.
•Camera: Drill a 20mm (0.8in)
diameter hole into vehicle
body near the camera and
bracket. Insert camera cable into
vehicle (be careful not to kink
cable) and fit grommet into
hole. Apply sealant around
grommet to increase resistance
to water penetration.
Connect camera to the
camera extension cable which
runs inside the vehicle.
•The camera system can be wired
to be powered “ON” the entire
time the vehicle is on. This is
typical in RV and some
commercial applications.
•The camera and monitor
can always be activated by
manually pushing the power
button on monitor. This is in
addition to utilizing the positive
triggers.
Note: If connecting power
directly to battery, the camera
is always ON and therefore can
drain battery. Therefore it is
recommended to connect
power to an ignition switched
accessory power source.

11
Reverse Wi h Confidence™
Wiring Camera & Monitor
•Audio works on two ports, ports
2 and 3. The blue trigger for
port 3 must be activated (12V)
for the sound. or port 2 it will
work with no triggers.
•When installing a TWO (2)
camera setup, use ports #3 and
#2 and use positive triggers
Blue and Brown.
•There is a built-in voltage
regulator for our systems which
can handle 9-32 volts. Real
consumption is 10 to 30 Volts.
•When installing all THREE (3)
cameras, use all three ports and
connect all positive triggers to
appropriate connections.
•To activate grid lines connect
the blue trigger to a power
source. If you want the grid
lines to be on when reversing,
connect the blue trigger to
reverse power. If you want the
grid lines to be on all the time
connect the blue trigger to a
constant power.
FTo automatically have camera
and monitor turn ON when
vehicle activates, simply twist
BLUE positive trigger 12V+ to
Red Power line 12V+ and wire
to ignition power which can
be an accessory switch/fuse
line and black wire 12V- to
chassis ground.
FInfrared technology built
into camera IRs are activated
automatically according to the
lighting conditions.
FWhen using the postive trigger
functions (blue, yellow & white
wires) each trigger function
needs to work on a seperate
12V+ source i.e. the Yellow
and White wires can be wired
to a turn signal circuit etc.
FGrid lines function can be
turned on/off by manually
from menu. (See page 14)

REAR VIEW SAFETY
12

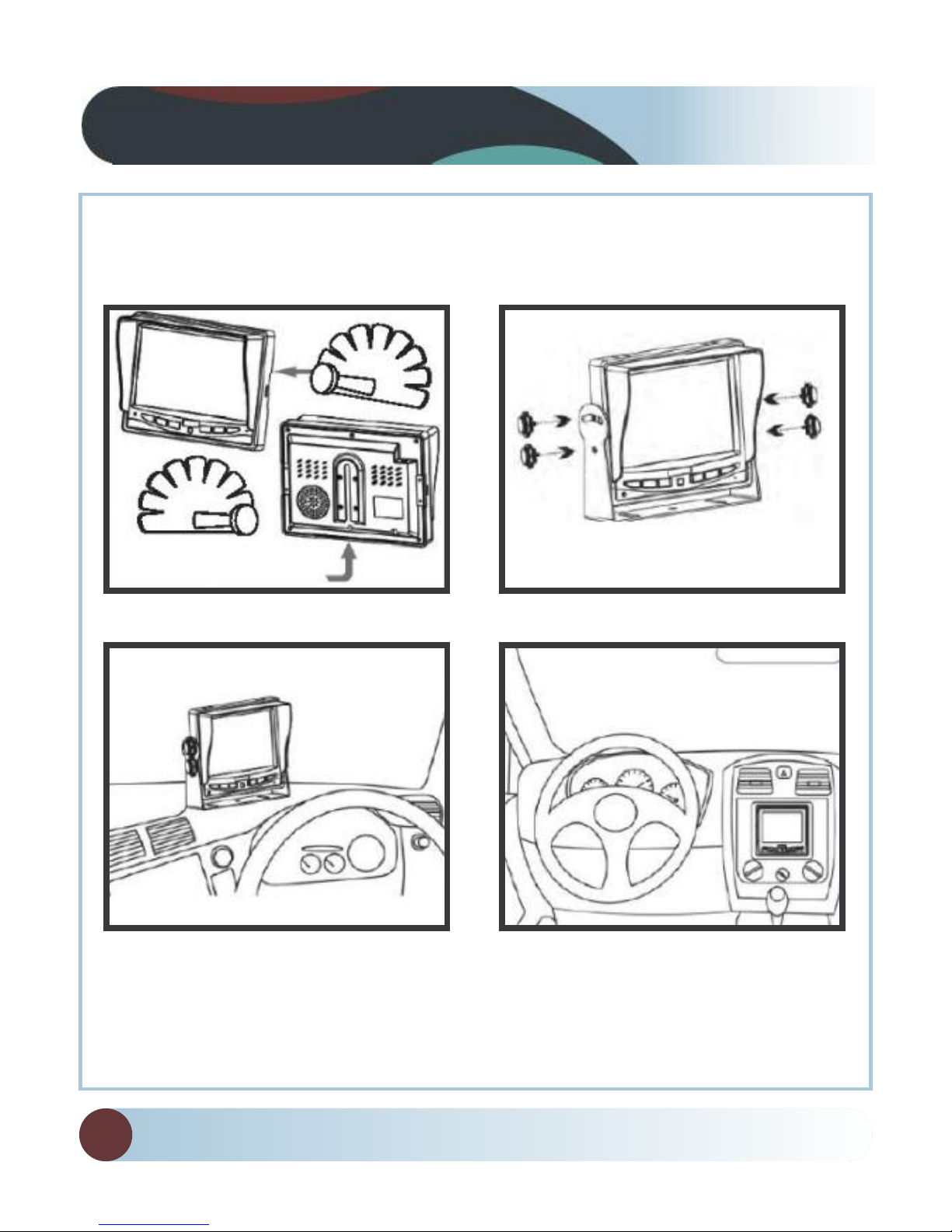

Installation Diagram
Figure 1.1 Figure 1.2
Figure 1.3 Figure 1.4
Connection of U
Bracket
Connection of
Flushmount Bracket

13
Reverse Wi h Confidence™
Installing the Monitor
Figure 1.5
1. Monitor
2, 3, 4. Trailer Connect/Disconnect Cable
5. Camera

14
Monitor Operation
REAR VIEW SAFETY
ME U
REV
V1/V2
▼
▼
POWER
O / OFF
ME U/
SELECTIO
BUTTO
CAMERA
SELECTIO
DOW
ARROW
UP
ARROW
ROTATE
(Back/Exit
when in
Menu Mode)
•Brightness, Contrast, Saturation, Sharpness: adjust image properties
•Turn: Toggle between mirror/normal image on each individual channel
•Day/Night: Toggle between back-lit buttons and auto dimming
•Name: Change name of each individual channel
•Trigger Source: Toggle channel destination for each trigger
•Trigger Delay: Adjust time delay on each trigger
•Distance Grid: Toggle which channel distance grid lines will display on
•Grid Position: Adjust grid lines
•Auto Power: On: Monitor will automatically turn on when powered. Off: Monitor will
only turn on when triggered. Auto: Monitor will follow previous state.
•Reset: Reset settings to factory default

15
Reverse Wi h Confidence™
Splitting & Splicing
Installing sun shield: Put shade cover on
the display. Installing back cover: Put the
monitor with shade cover in the back cover
(only for embedded monitor)
Splitting back cover: Hold monitor with 2
hands and detach with fingers, as indicated
by arrows. (only for embedded monitor)
Splitting sun shield: Take the monitor with
the left hand and detach with right hand as
indicated by the white arrow. (see below)
1. Red - Power (+)
2. Yellow - Video
3. Green - Mirror / Normal Imaging
4. White - Audio
5. Black - Ground (-)
1.
2.
3.
4.
5.

REAR VIEW SAFETY
16
Positioning

17
Reverse Wi h Confidence™
Troubleshooting
Monitor Displays Blue Screen & Displays No Signal
•Do a hard reset, unplug all
cables and power cables and
leave them out for 1 minute
and then re-connect them.
•Check to ensure that the con-
nection to the camera is tight.
•Verify camera cable is plugged
into port labeled Backup Camera
•Verify that the blue positive
trigger on power harness is
put to power 12v+.
If the problem still persists, ver-
ify that alternate ports work. If
alternate ports do not work, re-
move Blue Trigger wire from
12V+ and select alternate chan-
nels.
Monitor Will Not Power-Up (no backlight on power button)
•Check fuse
•Check 12v+ to monitor
•Check ground connection
No Image On Screen
•Verify camera is on correct
camera input
•Verify cable is connected to
monitor
•Verify camera is connected to
cable
•Connect known working
camera and cable to monitor.
•Verify Blue trigger is receiving
power
Audio on Camera
•Verify chosen camera has audio
•Verify volume setting
•Confirm that the Blue audio
trigger is connected to 12v+

REAR VIEW SAFETY
18
Monitor Dimensions
5.25”
7”
power
video select
down/up
menu
mirror/
normal
Power
n/ ff
Menu/
Selection
Button
Camera
SelectionDown
Arrow
Up
Arrow
Rotation
Imager
(Exit in
Menu
Mode)

19
Reverse Wi h Confidence™
Monitor Specifications
LED Digital Monitor
Screen Size 7”
Dot Resolution 800Hx 3 (RGB) x 480V
Display ormat 16:9 / 500:1
Display Brightness 400cd/m2
Viewing Angle U:50° / D:60° / R:70°
Video Input 3 channel
Video Source 1Vp-p, 75
Power Supply
Power Consumption
DC 9V-32V
5W
Operating Temperature
Storage Temperature
-20°C ~ +70° C
-30°C ~ +85°C
Overall Dimensions 7”Lx 5.25”Hx 1”D
Weight 400G
Impact Rating
Dot Pitch
5G
0.1926H x 0.1710V
Active Area 154.08 (H) X85.92 (V)
Sync System Internal

REAR VIEW SAFETY
20
Camera Dimensions
3”
3.25”
