Reliable F1 LO Manual

The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1 LO
K 8.0 (115 metric) Standard
Response Sprinklers
Model F1 LO Sprinkler
Standard Spray Upright
Standard Spray Pendent
Extended Coverage Pendent
Conventional

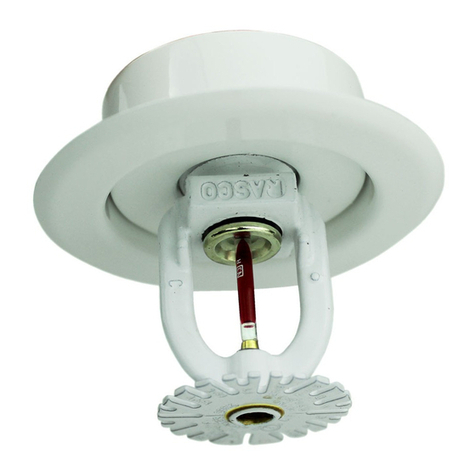

Model F1 LO Recessed Sprinkler
Recessed Standard Spray Pendent
Recessed Extended Coverage Pendent
For Model F11/2" K 5.6 (80), 4.2 (60) and 2.8 (40) Sprinkler Types
refer to Bulletin 013, 024 or 027 for technical specifications and
approvals.
Approval Organizations
1. Underwriters Laboratories Inc. (UL)
2. Underwriters’ Laboratories of Canada (ULC)
3. Factory Mutual Approvals (FM)
4. Loss Prevention Council (LPCB, UK)
5. VdS Schadenverhütung GmbH
6. EC Certificate: 1438-CPD-0041 (R1712)
1438-CPD-0040 (R1722)
UL Listing Category
Sprinklers, Automatic and Open (VNIV)
Product Description
Model F1 LO series sprinklers are K8.0 (115) standard-
response sprinklers with a glass bulb operating element. The
sprinklers use a compact frame for a low-profile, decorative
appearance. Model F1 LO series sprinklers are available in a
variety of finishes as indicated in the Finishes table in this Bulletin.
Standard spray Model F1 LO sprinklers are available in
pendent, recessed pendent, and upright configurations.
Extended coverage pendent and recessed pendent Model
F1 LO sprinklers are available for modifications or additions to
existing light hazard sprinkler systems with standard-response
sprinklers as well as for replacement of individual standard-
response sprinklers in existing light hazard sprinkler systems. A
conventional (old-style) Model F1 LO sprinkler is also available.
Refer to the Installation Data in this Bulletin for additional
information on each specific Model F1 LO sprinkler.
Upright
Model F1 LO sprinklers are available in a range of temperature
ratings as indicated in the Temperature Ratings table in this
Bulletin, which may be modified by the Installation Data for each
specific model.
Pendent
Conventional Recessed Pendent
Extended Coverage Pendent Recessed Extended
Coverage Pendent
Multilingualdocument:
Select your language below
Bulletin 117 Rev. Y_Multilingual
Bulletin 117 Rev. Y_Multilingual

2
117FG03
Technical data
Models Response Deflector
Orientation Nominal K-factor Thread Size Max.
Working
Pressure
Min.
Working
Pressure
Temperature
Rating Finish
F1 LO Standard Upright Pendent
Conventional K 8.0 (115 metric)
3/4" NPT
or ISO 7-1R
3/4175 psi (1) 7 psi See “Temperature
Ratings” Table See “Finish Table”
Material Data
Frame Deflector Load Screw Cup Washer Bulb
DZR Brass
QM Brass CDA Alloy 510 CDA Alloy 210, 220, 314, 316, 360
or
CDA Alloy 544
CDA Alloy 314
or
CDA Alloy 353
Nickel Alloy 440 or Alloy 360 coated
with PTFE Adhesive Tape Glass
See “Installation Data” table and from page for more details.
(1) Model F1 LO Pendent, Recessed Pendent, Extended Coverage Pendent, Extended Coverage Recessed Pendent, and Upright sprinklers (SIN R1712,
R1722, R1742) are cULus Listed for 250 psi (17 bar).
DEFLECTOR
WASHER
FRAME
LOAD SCREW
BULB
CUP

3
155FG01A
117FG01B
Model F1 LO Upright, Pendent and Conventional Sprinklers
Installation Wrench: Model D Sprinkler Wrench
Installation Data:
Nominal Orifice Thread Size Nominal K-factor Sprinkler
Height Approval Organization
Sprinkler Identification
Numbers (SIN)
US Metric Upright Pendent
Standard-Upright (SSU) and pendent Deflectors Marked to Indicate Position
17/32" (20 mm) 3/4" NPT (R 3/4)8.0 115 2.3" (58 mm) 1, 2, 3, 4 (1) R1722 (3)(4)(5) R1712(5)(6)
Conventional-Install in Upright or Pendent Position
20 mm 3/4" NPT (R
3/4)8.0 115 58.1 mm 4R1772
(1) LPCB Approval up to 286 °F (141 °C)
(2) FM Approval for SSU up to and including 200 °F (93 °C).
(3) Polycoated upright UL and ULC listed corrosion resistant R1722.
(4) FM Approved for polycoated sprinklers R1722, R1712.
(5) Electroless Nickel PTFE Plated - cULus listed Corrosion Resistant.
Upright Pendent Conventional
Installation Data:
Nominal Orifice Thread Size Nominal K-factor Sprinkler Height Approval
Organization Sprinkler Identification Numbers (SIN)
US Metric
17/32" (20 mm) 3/4" NPT (R 3/4)8.0 115 2.3" (58 mm) 1, 2, 3, 4, 8 R1712 (1)(3)
(1) LPCB Approval is for 57 °C through 93 °C ratings.
(2) Electroless Nickel PTFE Plated - cULus listed Corrosion Resistant.
Recessed Pendent
(1) When installed directly into a tee, the escutcheon dimension’s adjustment will be reduced.
Model F1 LO Recessed Pendent Sprinkler
Installation Wrench: Model GFR2 Sprinkler Wrench
TURN COLLAR
UNTIL TIGHT
AGAINST SPRINKLER
WRENCH BOSS
21/4" HOLE DIA.
(57.2 mM)
115/16" DIA.
(49.2 mM)
1" x 3/4" REDUCER
FACE OF FITTING TO FACE OF
CEILING DIMENSION
F1 ESCUTCHEON
AT MAXIMUM RECESS = 1" (25.4 mM)
AT MINIMUM RECESS = 3/8" (9.5 mM)
F2 ESCUTCHEON
AT MAXIMUM RECESS = 3/4" (19 mM)
AT MINIMUM RECESS = 3/8" (9.5 mM)
F1 ESCUTCHEON
AT MAXIMUM RECESS = 7/8" (22.2 mM)
AT MINIMUM RECESS = 1 5/8" (41.3 mM)
F2 ESCUTCHEON
AT MAXIMUM RECESS = 1 1/8" (28.6 mM)
AT MINIMUM RECESS = 1 5/8" (41.3 mM)
F1 ESCUTCHEON
3/4" (19 mM)
ADJUSTMENT
F2 ESCUTCHEON
1/2" (12.7 mM)
ADJUSTMENT
227/32" DIA.
(72.2 mM)
1/8"
(3.2 mM)

4
117FG02B
Model F1 LO Extended Coverage Pendent Sprinkler
Deflector: EC Pendent
Installation Wrench: Model D Sprinkler Wrench
Approval Type: Extended Coverage – Light Hazard Occupancy
Coverage Area
Flow Rate Pressure Nominal
K=8.0 (115) Max. Area Width x Length
gpm L/min psi bar ft x ft m x m
26 98.4 10.6 0.7 16x16 4.9x4.9
33 125.0 17.0 1.2 18x18 5.5x5.5
40 151.4 25.0 1.7 20x20 6.0x6.0
Installation Data:
Nominal
Orifice Thread Size
Nominal K-factor Sprinkler
Height Approval Organization
Temperature Rating Sprinkler
Identification
Numbers (SIN)
US Metric °F °C
17/32"
(20 mm)
3/4" NPT
(R
3/4)8.0 115 2.2" (56 mm) 1, 2 135, 155 57, 68 R1742(1)
(1) Electroless Nickel PTFE Plated - cULus listed Corrosion Resistant.
Installation Data:
Nominal
Orifice Thread Size Nominal K-factor Sprinkler
Height Approval Organization Temperature Rating Sprinkler
Identification
Numbers (SIN)
US Metric °F °C
17/32"
(20 mm)
3/4" NPT
(R
3/4)8.0 115 2.2" (56 mm) 1, 2 135, 155 57, 68 R1742(1)
(1) Electroless Nickel PTFE Plated - cULus listed Corrosion Resistant.
Recessed Pendent
(1) When installed directly into a tee, the escutcheon dimension’s adjustment will be reduced.
Coverage Area
Flow Rate Pressure Nominal
K=8.0 (115) Max. Area
Width x Length
gpm L/min psi bar ft x ft m x m
26 98.4 10.6 0.7 16x16 4.9x4.9
33 125.0 17.0 1.2 18 x18 5.5 x5.5
40 151.4 25.0 1.7 20 x20 6.0 x6.0
Model F1 LO Recessed Extended Coverage Pendent Sprinkler
Deflector: EC Pendent
Installation Wrench: Model GFR2 Sprinkler Wrench
Approval Type: Extended Coverage – Light Hazard Occupancy
Extended Coverage Pendent
21/4" HOLE DIA.
(57.2 mM)
115/16" DIA.
(49.2 mM)
1" x 3/4" REDUCER
(25.4 mMx19.1 mM)
TURN COLLAR UNTIL TIGHT
AGAINST SPRINKLER
WRENCH BOSS
F1 ESCUTCHEON
3/4" (19 mM)
ADJUSTMENT (1)
F2 ESCUTCHEON
1/2" (12.7 mM)
ADJUSTMENT
FACE OF FITTING TO FACE OF CEILING DIMENSION
F1 ESCUTCHEON
AT MAXIMUM RECESS = 1" (25.4 mM)
AT MINIMUM RECESS = 3/8" (9.5 mM)
F2 ESCUTCHEON
AT MAXIMUM RECESS = 3/4" (19 mM)
AT MINIMUM RECESS = 3/8" (9.5 mM)
F1 ESCUTCHEON
AT MAXIMUM RECESS = 7/8" (22.2 mM)
AT MINIMUM RECESS = 1 5/8" (41.3 mM)
F2 ESCUTCHEON
AT MAXIMUM RECESS = 1 1/8" (28.6 mM)
AT MINIMUM RECESS = 1 5/8" (41.3 mM)
1/8"
(3.2 mM)
227/32" DIA.
(72.2 mM)

5
Model F1 LO and F1 LO
Recessed Sprinklers
Application
Model F1 LO and F1 LO Recessed sprinklers are used in
fixed fire protection systems: Wet, Dry, Deluge or Preaction.
Care must exercised that the orifice size, temperature rating,
deflector style and sprinkler type are in accordance with the
latest published standards of the National Fire Protection
Association or the approving Authority Having Jurisdiction.
Installation
Model F1 LO sprinklers are standard response sprinklers
intended for installation as specified in NFPA 13. They must
also be installed with the Model D Sprinkler Wrench specifically
designed by Reliable for use with these sprinklers.
The Model F1 LO Recessed Sprinklers are to be installed with
a maximum recess of 3/4" (19 mm). The Model F1 Escutcheon
illustrated is the only recessed escutcheon to be used with
the Model F1 LO Pendent and EC Sprinklers. The use of any
other recessed escutcheon will void all approvals and negate all
warranties. When installing Model F1 LO Recessed Pendent and
EC Pendent Sprinklers, use the Model GFR2 Sprinkler Wrench.
Any other type of wrench may damage these sprinklers.
Note: A leak tight 1/2" NPT (R1/2) sprinkler joint can be obtained
with a torque of 8-18 ft-lb (11-24 N-m). Do not tighten sprinklers
over maximum recommended torque. It may cause leakage or
impairment of the sprinklers.
Glass bulb sprinklers have orange covers to protect the bulb
during the installation process. REMOVE THIS PROTECTION
ONLY AFTER THE SYSTEM HAS BEEN HYDROSTATICALLY
TESTED AND, WHEN APPLICABLE, THE ESCUTCHEONS
HAVE BEEN INSTALLED. RASCO wrenches are designed to
install sprinklers when covers are in place.
Maintenance
The Models F1 LO and F1 LO Recessed Sprinklers should be
inspected and the sprinkler system maintained in accordance
with NFPA 25. Do not clean sprinklers with soap and water,
ammonia or any other cleaning fluid. Remove any sprinkler which
has been painted (other than factory applied) or damaged in any
way. A stock of spare sprinklers should be maintained to allow
quick replacement of damaged or operated sprinklers. Prior
to installation, sprinklers should be maintained in the original
cartons and packaging until used to minimize the potential for
damage to sprinklers that would cause improper operation or
non-operation.
Ordering Information
Specify:
1. Sprinkler Model: F1 LO
2. Sprinkler Type
3. Temperature Rating
4. Sprinkler Finish
5. Thread Type: [3/4" NPT] [ISO 7-1R
3/4]
6. Escutcheon Finish (where applicable)
Temperature Ratings
Classification Sprinkler
Temperature
Maximum
Ambient
Temperature Bulb
Color
°F °C °F °C
Ordinary 135 57 100 38 Orange
Ordinary 155 68 100 38 Red
Intermediate 175 79 150 66 Yellow
Intermediate 200 93 150 66 Green
High(1) 286 141 225 107 Blue
Extra High(1) 360 182 300 149 Mauve
(1) Not Available for F1 LO Recessed
Maximum Working Pressure
175 psi (12 bar)
SIN R1712, R1722 & R1742 cULus listed for 250 psi (17 bar)
100% Factory tested hydrostatically to 500 psi (34.5 bar)
Finishes(1)
Standard Finishes
Sprinkler Escutcheon
Bronze
Chrome
Polyester Coated(6)(7)
Brass
Chrome
White Painted
Special Application Finishes
Sprinkler Escutcheon
Electroless Nickel PTFE(8)
Bright Brass(2)
Black Plated
Black Paint(3)(4)
Off White(3)
Chrome Dull
Lead Plated(3)(4)
Wax Coated(3)(4)(5)
Wax Over Lead(3)(4)
Electroless Nickel PTFE
Bright Brass
Black Plated
Black Paint
Off White
Chrome Dull
(1) Other colors and finishes are available on special order. Consult factory for
details. Custom color painted sprinklers may not retain their UL Corrosion
resistance listing.
(2) 200 °F (93 °C) maximum.
(3) UL and ULC listed, and NYC approved only.
(4) 155 °F to 200 °F (68 °C to 93 °C) ratings only.
(5) 286 °F (141 °C) sprinklers may be coated for ambient conditions not
exceeding 150 °F (66 °C).
(6) UL listed corrosion resistant SIN number: R1722 in standard Black or
White. Corrosion resistance in other polyester colors is available upon
request.
(7) FM Approved for SIN R1722, R1712.
(8) cULus listed Corrosion Resistant SIN R1722, R1712 and R1742 in
Electroless Nickel PTFE Plated.

The Reliable Automatic Sprinkler Co., Inc.
[phone] Sales Offices
[phone] Sales Fax
[phone] Corporate Offices
www.reliablesprinkler.com Internet Address
Manufactured by Recycled
Paper
Revision lines indicate updated or new data.
The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory
Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products
manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly qualified
and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
Reliable offers a wide selection of sprinkler components. Following are some of the many
precision-made Reliable products that guard life and property from fire around the clock.
Reliable... For Complete Protection
• Automatic sprinklers
• Flush automatic sprinklers
• Recessed automatic sprinklers
• Concealed automatic sprinklers
• Adjustable automatic sprinklers
• Dry automatic sprinklers
• Intermediate level sprinklers
• Open sprinklers
• Spray nozzles
• Alarm valves
• Retarding chambers
• Dry pipe valves
• Accelerators for dry pipe valves
• Mechanical sprinkler alarms
• Electrical sprinkler alarm switches
• Water flow detectors
• Deluge valves
• Detector check valves
• Check valves
• Electrical system
• Sprinkler emergency cabinets
• Sprinkler wrenches
• Sprinkler escutcheons and guards
• Inspectors test connections
• Sight drains
• Ball drips and drum drips
• Control valve seals
• Air maintenance devices
• Air compressors
• Pressure gauges
• Identification signs
• Fire department connection
EG. Printed in U.S.A. 12/15 P/N 9999970011
