Rear Steering Bar
R123, R143 Product Manual
R123, R143 Product Manual

3
Rear steering bar
Figure 2a: To prevent
pinching or crushing,
ensure adequate clearance between the
handlebar and push rod (C) during left
turns. Do not use a very low handlebar
position with a high support bar (A)
position.
Recommended use:
Figure 2b: The rear steering bar enables the
caregiver to guide the tricycle from behind.
Before attaching, check the size numbers
on the short tube of the rear steering bar
to ensure that the rear steering bar is the
correct size for the tricycle (R120, R130, or
R140).
Attaching:
Figure 2b:
The clamp (F) cannot be attached with the
handlebar in its lowest position. Once the
clamp is in place the handlebar can be fully
lowered.
1. Attach the support bar (A) to the
backrest tubes. The clamp channel and
oval adjustment knob (B) should face
the rear.
2. Snap the push rod (C) into the guide
loop (D).
3. Use the clamp knob (E) to open the
clamp (F), and then place it over the
handle bar U-tube and tighten it.
Adjusting:
Figure 2b: To raise or lower the support
bar (A) loosen knob (B) place in desired
position and tighten knob (B) again.

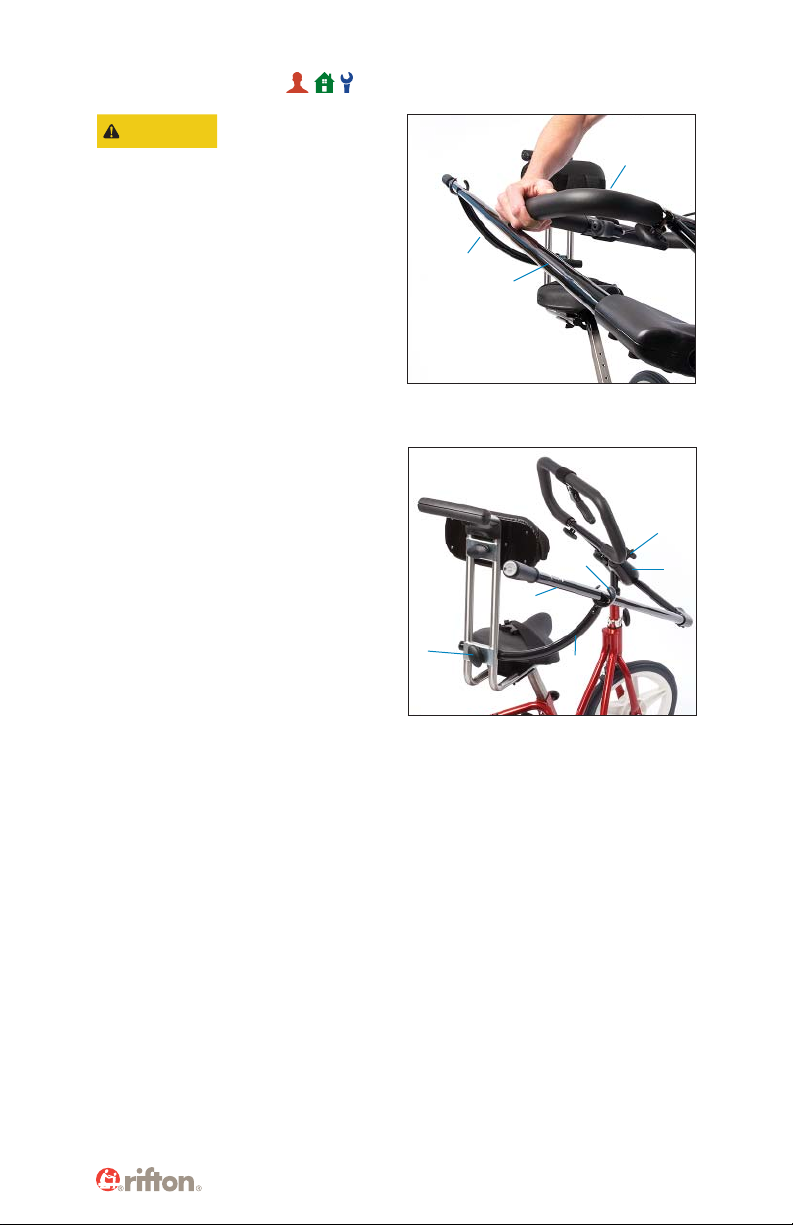

Figure 2a
Figure 2b
A
B
B
C
C
D
E
F
A
C
C
CAUTION
Handlebar

4
User modifications
To prevent serious injury or death, do not modify or alter Rifton
products or components, or use Rifton products or components
in conjunction with products from other manufacturers. Rifton does not accept
responsibility for any modifications or alterations made to our components or products
after they leave our premises. Customers modifying or altering our components or
products, or using them in conjunction with products from other manufacturers, do so
at their own risk.
WARNING
WARNING
• Please refer to the Rifton Tricycle product manual for important safety messages and
complete user instructions.
• Thoroughly read and understand the information in this product manual before
attempting to use this product. If the procedures and instructions in this product manual
are not followed, serious injury or death could occur.
• A qualified professional must assess the appropriateness and safety of all equipment for
each user.
• This product is intended for use by clients of unreliable judgment. Adult supervision is
required at all times.
• To prevent falls or structural failure resulting in serious injury or death:
○Inspect this product regularly for loose or missing screws, cracks, general instability
or other signs of excessive wear.

5
Warranty Statement
If a Rifton product breaks or fails in service during the first year, we will replace it
free of charge.
Maintenance
This product is designed and tested for an expected life of 5 years when used and
maintained in accordance with this manual. At all times, users must ensure that the
product remains in a safe and useable condition, including regular maintenance and
inspections as specified in this manual.
To prevent structural failure, which may result in serious injury or death:
• Immediately remove this product from use when any condition develops that might
make operation unsafe.
• Do not use Rifton components or products for any purpose other than their intended use.
• Replace or repair components or products that are damaged or appear to be unstable.
• Use only Rifton authorized replacement parts. Order information for replacement parts
is provided on the back of this product manual.
Materials
• Hardware items (nuts, bolts, screws, etc.) are zinc plated steel.
• Tubing is steel and aluminum, coated with a baked-on paint finish.
• Plastic components are injection molded from a variety of industrial resins.
All components are lead free and not made with natural rubber latex.
Cleaning
As needed, clean Rear Steering Bar with disinfectant wipes or a solution of up to 10%
bleach. Do not use excessive amounts of water.

6
Key for users
Use this key to determine which sections of this product manual apply to you.
Technical Users For professionals who order and set up Rifton products.
Home Users For care-givers who use Rifton products on a regular basis.
Maintenance Personnel For anyone who is responsible for service or
re-ordering of Rifton products and parts.
IMPORTANT
Please save this product manual for future reference. Additional copies are
available at http://www.rifton.com/customer-service/product-manuals.
