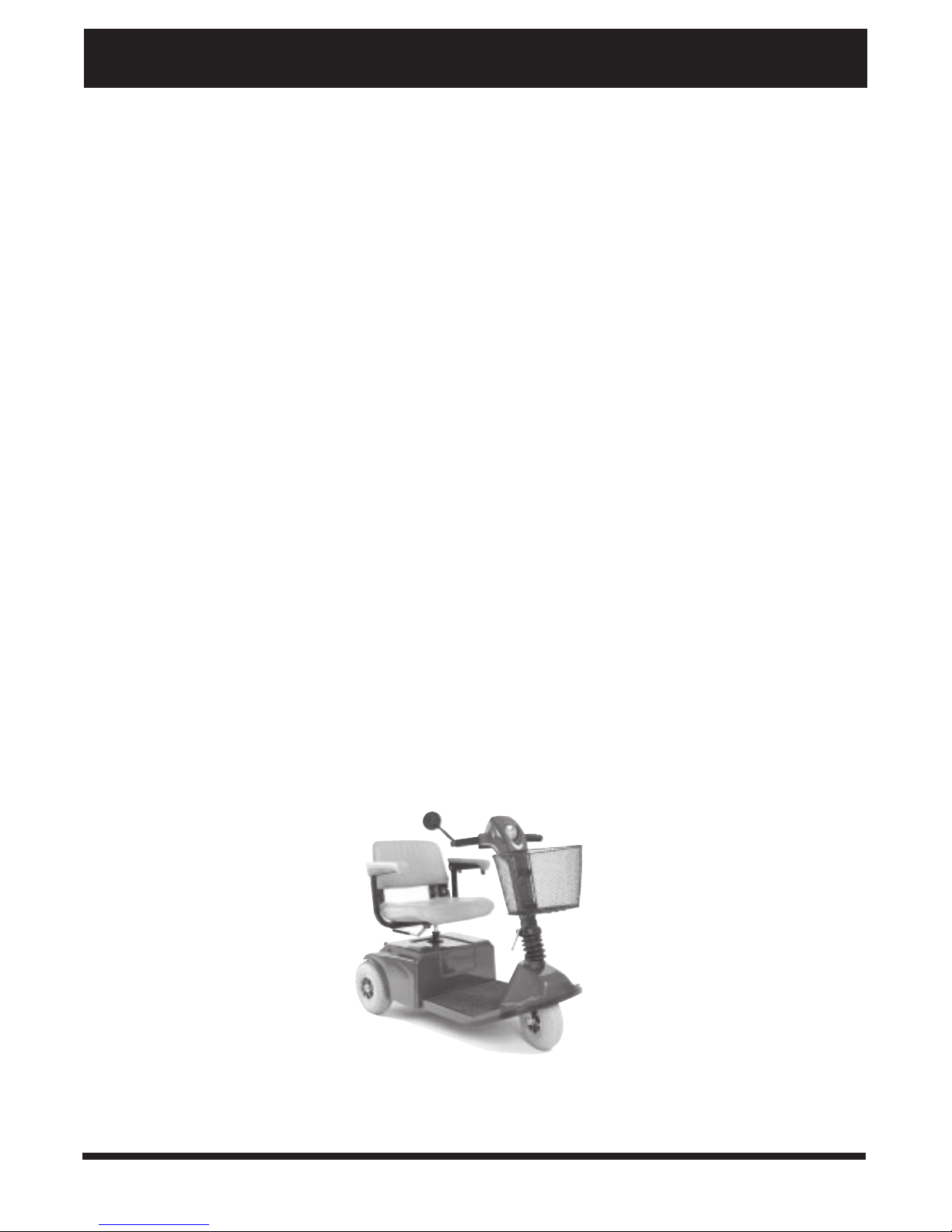

SAFETY GUIDELINES
Copyright ©2002
Pride Mobility Products Corp.
Please read and follow all instructions in this owners manual before attempting to operate your scooter for the first
time. If there is anything in this manual you do not understand or if you require additional assistance for setup
contact your authorized Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings cautions and instructions
in this owners manual. Using your Pride product safely also depends upon your own good judgement and/or
common sense as well as that of your provider caregiver and/or healthcare professional. Pride is not responsible
for injuries and/or damage resulting from any persons failure to follow the warnings cautions and instructions in
this owners manual. Pride is not responsible for injuries and/or damage resulting from any persons failure to
exercise good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It is very important
for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your
scooter.

3Vista
contents
I. INTRODUCTION......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. EMI/RFI ........................................................................................................................................ 15
IV. SPECIFICATIONS ................................................................................................................... 17
V. YOUR VISTA .............................................................................................................................. 19
VI. BATTERIES AND CHARGING ............................................................................................ 24
VII. OPERATION ............................................................................................................................... 28
VIII. COMFORT ADJUSTMENTS................................................................................................ 30
IX. DISASSEMBLY AND ASSEMBLY ..................................................................................... 32
X. OPTIONAL ACCESSORIES ................................................................................................. 34
XI. BASIC TROUBLESHOOTING ............................................................................................. 35
XII. CARE AND MAINTENANCE ................................................................................................ 36
XIII. WARRANTY ............................................................................................................................... 38
CONTENTS
VISTA

4Vista
INTRODUCTION
Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride
Scooter. Your scooter design combines the most advanced state-of-the-art components with modern attractive
styling. We are certain that the design features and trouble-free operation will add convenience to your daily living
and ensure complete satisfaction.
At Pride your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your scooter for the first time. These instructions were produced for your benefit.
Your understanding of these instructions is essential for the safe operation of your new Pride Scooter.
Pride is not liable for damage to property or personal injury arising out of the unsafe use of a Pride Scooter. Pride
is also not liable for any property damage or personal injury arising out of the failure of any person and/or user to
follow the instructions and recommendations set forth in this manual or any other instructions or recommendations
contained in other scooter related literature issued by Pride or contained on the Pride Scooter itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
If you experience any problems with your scooter that your are not able to solve or if you do not feel capable of safely
following any of the instructions and/or recommendations contained in this manual please contact your authorized
Pride provider for assistance.
Once you understand how to operate and take care of your scooter we are certain that it will give you years of trouble-
free service and enjoyment.
Information Exchange
We want to hear your questions comments and suggestions regarding this manual. We would also like to hear about the
safety and reliability of your new Pride Scooter and the service you received from your authorized Pride provider.
Please notify us of any change of address so we can keep you apprised of important information regarding safety new
products and new options that can increase your ability to use and enjoy your Pride Scooter. Please feel free to write us
at the address below:
Pride Mobility Products Corporation
Attn: Technical Service Department
182 Susquehanna Avenue
Exeter PA 18643-2694

5Vista
INTRODUCTION
Pride Owners Club
As a Pride product owner you are invited to register your products warranty and enroll in the Pride Owners Club.
You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at
www.pridemobility.com. As a registered member each time you visit our site you will have access to the most
interactive and honest educational venue available today for people with mobility needs their families and friends.
From our home page click on the button that reads Owners Club to enter a page dedicated to current and
potential Pride product owners. You will gain access to interviews stories recreation ideas daily living tips
product and funding information and interactive message boards. These message boards invite you to speak with
other Pride customers as well as Pride representatives who are available to assist you with any questions or
concerns you may have.
My Authorized Pride Provider Is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Scooter Model:________________________________________________________________________
Serial Number:__________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your warranty card or this owners manual, call or write to us and we
will be glad to send you a new one immediately.

6Vista
II. SAFETY
GENERAL
WARNING! Do not operate your new scooter for the first time without completely reading and
understanding this owners manual.
Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an exten-
sive variety of products to best fit the individual needs of the scooter user. Please be aware that the final selection
and purchasing decision regarding the type of scooter to be used is the responsibility of the scooter user who is
capable of making such a decision and his/her healthcare professional (i.e. medical doctor physical therapist
etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the
scooter to the user and has assisted the prescribing healthcare professional and/or the authorized Pride provider in
the instruction process for the use of the product.
There are certain situations including some medical conditions where the scooter user will need to practice
operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a family member
or care professional specially trained in assisting a scooter user in various daily living activities.
As you begin using your scooter during daily activities you will probably encounter situations in which you will
need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways on and off elevators up and down ramps and over moderate terrain.
Below are some precautions tips and other safety considerations that will help the user become accustomed to
operating the scooter safely.
MODIFICATIONS
Pride has designed and engineered your scooter to provide maximum mobility and utility. A wide range of acces-
sories is available from your authorized Pride provider to further customize your scooter to better suit your needs
and/or preferences. However under no circumstances should you modify add remove or disable any feature
part or function of your scooter.
WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized modifica-
tions may result in personal injury and/or damage to your scooter.

7Vista
II. SAFETY
PRE-RIDE SAFETY CHECK
Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before
each use to make sure your scooter operates smoothly and safely. For details on how to perform these necessary
inspections see XII. Care and Maintenance.
Perform the following inspections prior to using your scooter:
nCheck for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires).
nCheck all electrical connections. Make sure they are tight and not corroded.
nCheck all controller connections to the utility tray. Make sure they are secured properly.
nCheck the brakes.
nCheck battery charge.
WARNING! It is critically important that 30-35 psi tire pressure be maintained in pneumatic tires at
all times. Failure to maintain 30-35 psi tire pressure in pneumatic tires at all times may result in
catastrophic tire and/or wheel failure, causing serious personal injury and/or damage to your
scooter.
WARNING! Do not carry passengers on your scooter. Carrying passengers on your scooter may
result in personal injury and/or property damage.
If you discover a problem contact your authorized Pride provider for assistance.
WEIGHT LIMITATIONS
Your scooter is rated for a 300-lb. maximum weight limit.
INCLINE INFORMATION
More and more buildings have ramps with specified degrees of inclination designed for easy and safe access.
Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on
your scooter.
nProceed with extreme caution as you approach the downgrade of a ramp or other incline.
nTake wide swings with your scooters front wheel around any tight corners. If you do that the scooters rear
wheels will follow a wide arc not cut the corner short and not bump into or get hung up on any railing corners.
nWhen driving down a ramp keep the scooters speed adjustment set to the slowest speed setting to ensure a
safely controlled descent. See V. Your Vista.
nAvoid sudden stops and starts.
WARNING! Exceeding the weight limit voids your warranty and may result in personal injury and
damage to your scooter. Pride will not be held responsible for injuries and/or property damage
resulting from failure to observe weight limitations.

8Vista
200-250 lbs. 300 lbs.
150 lbs. 5º
6º
7º
II. SAFETY
When climbing an incline try to keep your scooter moving. If you must stop start up again slowly and then
accelerate cautiously. When driving down an incline do so by setting the speed adjustment dial to the slowest
setting and driving in the forward direction only. If your scooter starts to move down the incline faster than you
anticipated or desired allow it to come to a complete stop by releasing the throttle control lever. Then push the
throttle control lever forward slightly to ensure a safely controlled descent.
Other inclines may be natural or if man-made not designed specifically for scooters. Figure 1 illustrates your
scooters stability and its ability to climb grades under various weight loads and under controlled testing conditions.
These tests were conducted with the Vistas seat in the highest position and adjusted backward on the seat base to
its farthest rearward position. Use this information as a guideline. Your Vistas ability to travel up inclines is affected
by your weight your scooters speed your angle of approach to the incline and your scooter setup.
WARNING! Any attempt to climb or descend a slope steeper than shown in figure 1 may put your
scooter in an unstable position and cause it to tip, resulting in personal injury.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.
Drive your scooter straight up the incline. his greatly reduces the possibility of a tip or a fall.
Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered
with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the scooter in freewheel mode
while seated on it or standing next to it.

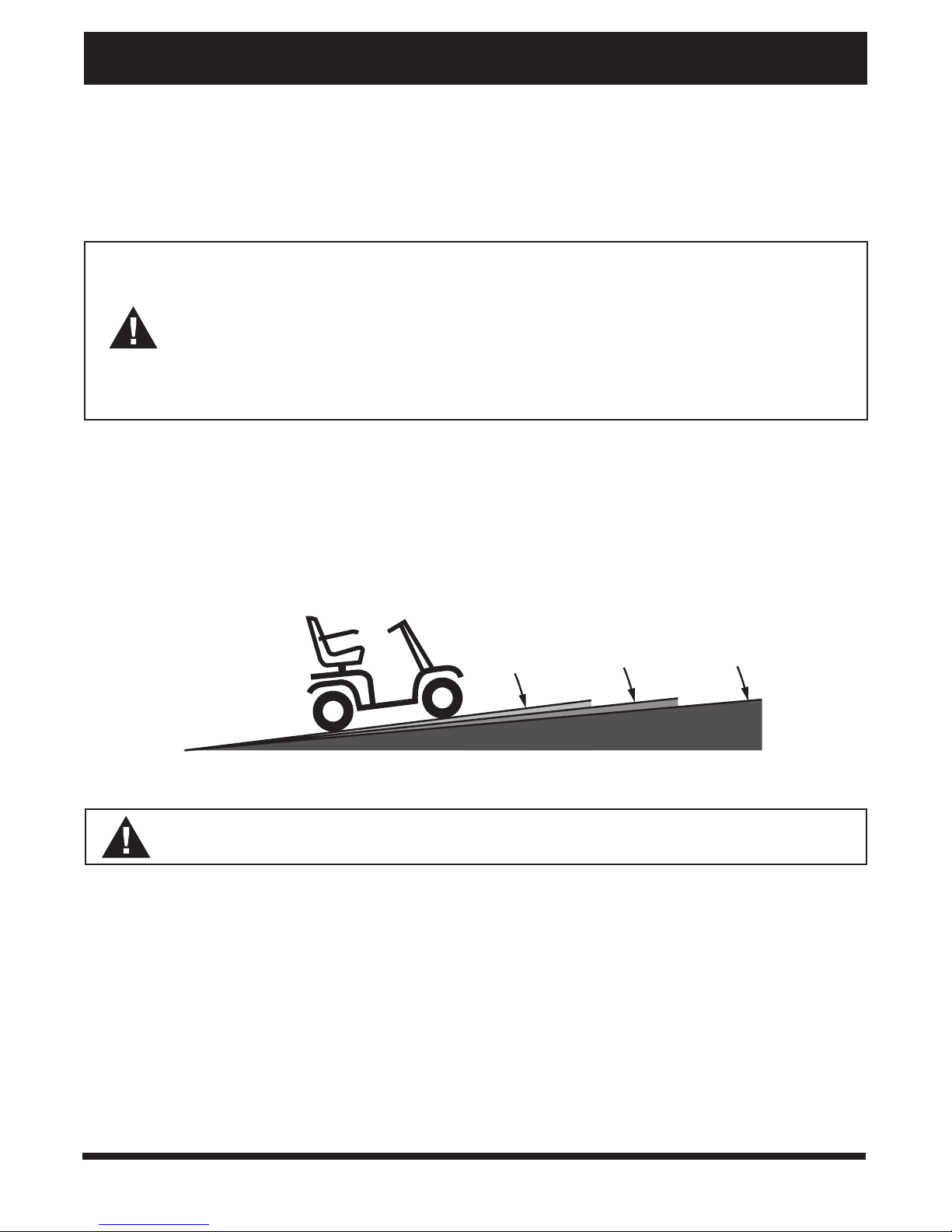

FIGURE 1. MAXIMUM RECOMMENDED INCLINE ANGLES

9Vista

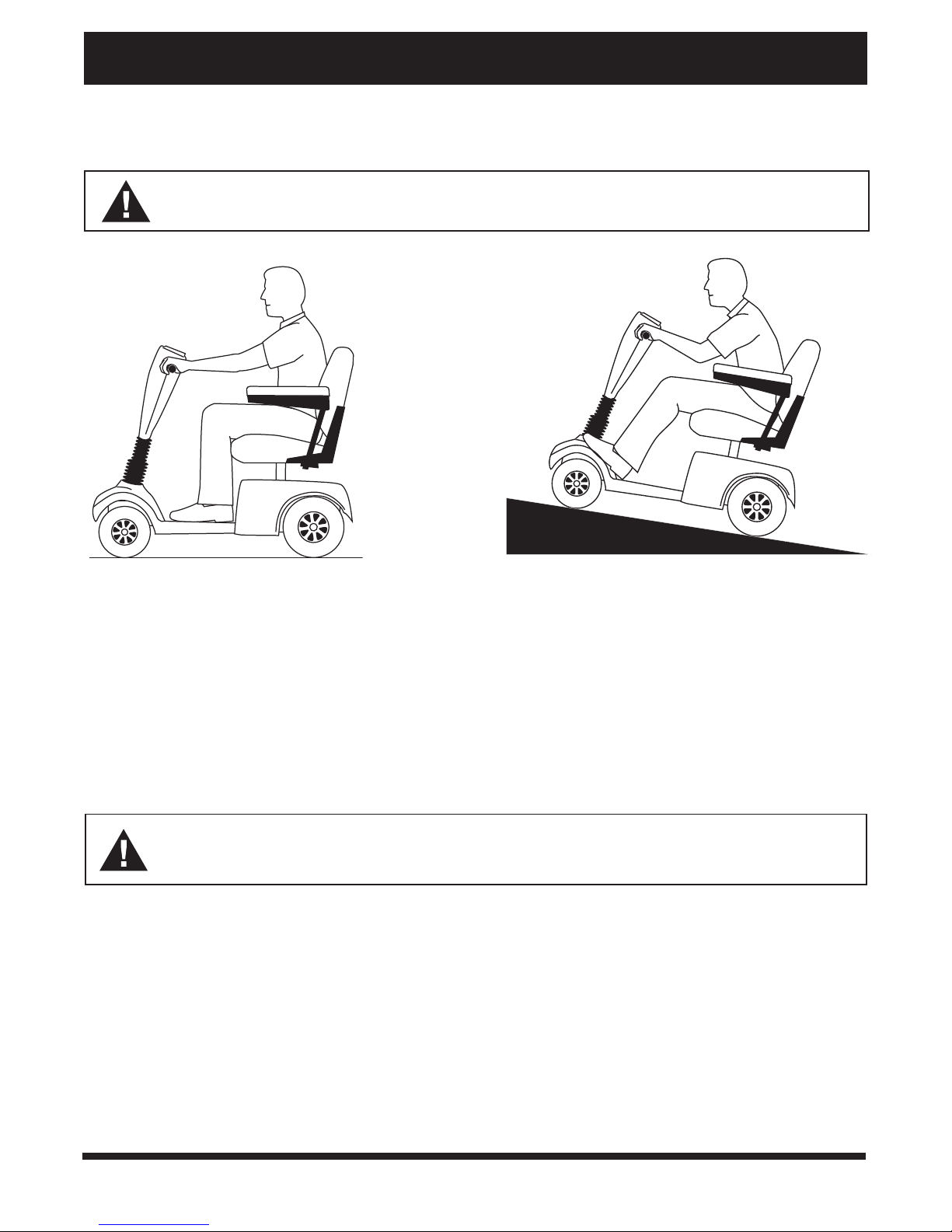

FIGURE 3. INCREASED STABILITY DRIVING POSITION
FIGURE 2. NORMAL DRIVING POSITION
When you approach an incline it is best to lean forward. See figures 2 and 3. This shifts the center of gravity of you
and your scooter toward the front of the scooter for improved stability.
WARNING! Do not exceed the incline guidelines or any other specifications presented in this
manual.
CORNERING INFORMATION
Excessively high cornering speeds can create the possibility of tipping. Factors which affect the possibility of
tipping include but are not limited to cornering speed steering angle (how sharply you are turning) uneven road
surfaces inclined road surfaces riding from an area of low traction to an area of high traction (such as passing
from a grassy area to a paved area  especially at high speed while turning) and abrupt directional changes. High
cornering speeds are not recommended. If you feel that you may tip over in a corner reduce your speed and
steering angle (i.e. lessen the sharpness of the turn) to prevent your scooter from tipping.
WARNING! When cornering sharply, reduce your speed. When using your scooter at higher
speeds, do not corner sharply. his greatly reduces the possibility of a tip or fall. o avoid personal
injury or property damage, always exercise common sense when cornering.
II. SAFETY

10 Vista
BRAKING INFORMATION
Your scooter is equipped with two powerful brake systems:
1. Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the center/
stop position; and
2. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or when
power is removed from the system for any reason.
Brake engagement is far more abrupt at higher speeds. It is important that you know when the brakes will engage
and that you are braced for the resulting deceleration.
WARNING! Your scooter can decelerate very quickly. Do not decelerate or turn abruptly when
traveling at high speed unless absolutely necessary. If it is absolutely necessary to decelerate or
turn abruptly when traveling at high speed, brace yourself by gripping the tiller tightly and planting
your feet firmly against the floorboard. Users who cannot grip the tiller tightly and/or plant their feet
firmly against the floorboard should avoid decelerating from or turning abruptly at high speed, and
therefore should avoid traveling at high speed. Serious personal injury and property damage can
result from falling forward as your scooter decelerates quickly unless you brace yourself firmly.
STATIONARY OBSTACLES (STEPS, CURBS, ETC.)
Proceed with extreme caution when driving near raised surfaces unprotected ledges and/or drop-offs (curbs
porches stairs etc.).
WARNING! Do not attempt to have your scooter climb or descend an obstacle that is inordinately
high. Serious personal injury and/or damage may result.
WARNING! Do not attempt to have your scooter proceed backwards down any step, curb, or other
obstacle. his may cause the scooter to tip and cause personal injury.
OUTDOOR DRIVING SURFACES
Your scooter is designed to provide optimum stability under normal driving conditionsdry level surfaces com-
posed of concrete blacktop or asphalt. However Pride recognizes that there will be times when you will encoun-
ter other surface types. For this reason your scooter is designed to perform admirably on packed soil grass and
gravel. Feel free to use your scooter safely on lawns and in park areas.
nReduce your scooters speed when driving on uneven terrain and/or soft surfaces.
nAvoid tall grass that can become tangled in the running gear.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface avoid that surface.
II. SAFETY

11Vista
FREEWHEEL MODE
Your scooter is equipped with a manual freewheel lever that when pulled up allows the scooter to be pushed. For
more information about how to place your scooter into and out of freewheel mode see V. Your Vista.
TIRE INFLATION
If your scooter is equipped with pneumatic tires you should check or have the air pressure checked at least once
a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your
scooter.
WARNING! You should not operate your scooter on public streets and roadways. Be aware that it
may be difficult for traffic to see you when you are seated on your scooter. Obey all local pedestrian
traffic rules. Wait until your path is clear of traffic, and then proceed with extreme caution.
PUBLIC ROADS AND PARKING LOTS
NOTE: afety accessories like reflectors, fluorescent flags, and various lighting packages are available to
order from your authorized Pride provider.
WARNING! Do not use your scooter in freewheel mode without an attendant present. Personal
injury may result.
WARNING! Do not attempt to personally place your scooter in freewheel mode while seated on it.
Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your scooter in freewheel mode while on an incline. he scooter could roll
uncontrollably on its own, causing personal injury.
INCLEMENT WEATHER PRECAUTIONS
WARNING! Pride recommends that you do not operate your scooter in icy or slippery conditions or
on salted surfaces (i.e., walks or roads). Such use may result in an accident, personal injury, or
adversely affect the performance and safety of your scooter.
WARNING! Pride recommends that you do not expose your scooter to any type of moisture at any
time (rain, snow, mist, or wash). Such exposure can damage your scooter. Never operate your
scooter if it has been exposed to moisture until it has dried thoroughly.
WARNING! It is critically important that pneumatic tires be inflated to 30-35 psi. Do not underinflate
or overinflate your tires. Improper tire pressure may result in catastrophic tire and/or wheel failure.
Serious personal injury and/or property damage may result.
WARNING! Inflate your scooter drive tires from a regulated air source with an available pressure
gauge. Minimum air pressure for scooter drive tires is 30-35 psi. Inflating your tires from an unregu-
lated air source could overinflate them, resulting in a burst tire and/or personal injury.
II. SAFETY

12 Vista
DOORS
nDetermine if the door opens toward or away from you.
nUse your hand to turn the knob or push the handle or push-bar.
nDrive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly
backwards to pull the door open.
ELEVATORS
Modern elevators have a door edge safety mechanism that when pushed reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close push on the rubber door edge or
allow the rubber door edge to contact the scooter and the door will reopen.
nUse care that pocketbooks packages or scooter accessories do not become caught in elevator doors.
LIFT/ELEVATION PRODUCTS
If you will be traveling with your scooter you may find it necessary to use a lift/elevation product to aid in transpor-
tation. Pride recommends that you closely review the instructions specifications and safety information set forth
by the manufacturer of the lift/elevation product before using that product.
WARNING! Do not use your scooter to negotiate steps or escalators. You may cause injury to
yourself and to others and damage your scooter.
STAIRS AND ESCALATORS
Scooters are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. his will prevent unexpected motion from inadvertent throttle control lever
contact. Failure to do so may result in personal injury.
WARNING! 32 AH scooter batteries weigh 25 lbs. each. If you are unable to lift that much weight, be
sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging
a frozen battery may result in personal injury and/or damage to the battery.
BATTERIES
In addition to following the warnings below be sure to comply with all other battery handling information. For
more information about your scooters batteries see VI.  Batteries and Charging.
PREVENTING UNINTENDED MOVEMENT
II. SAFETY

13Vista
MOTOR VEHICLE TRANSPORT
Currently there are no standards approved for tie-down systems in a moving vehicle of any type to transport a
person while seated in a scooter.
Although your scooter may be equipped with a positioning belt this belt is not designed to provide proper restraint
during motor vehicle transport. Anyone traveling in a motor vehicle should be properly secured in the motor vehicle
seat with safety belts fastened securely.
GETTING ONTO AND OFF OF YOUR SCOOTER
Getting onto and off of your scooter requires a good sense of balance. Please observe the following safety tips
when getting onto and off of your scooter:
nPower down your scooter. See VII. Operation.
nEnsure that your scooter is not in freewheel mode. See V. Your Vista.
nMake certain that the seat is locked into place and the key is removed from the key switch.
nThe seat armrests can be flipped up to make getting on and off the scooter easier.
WARNING! Position yourself as far back as possible in the scooter seat to prevent the scooter from
tipping and causing injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause the
scooter to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the floorboard. Such use may cause the scooter to tip
and cause personal injury.
POSITIONING BELTS
Your authorized Pride provider therapist(s) and other healthcare professionals are responsible for determining
your requirement for a positioning belt in order to operate your scooter safely.
WARNING! If you require a positioning belt to safely operate your scooter, make sure it is fastened
securely. Serious personal injury may result if you fall from the scooter.
WARNING! Do not sit on your scooter while it is in a moving vehicle. Personal injury and/or property
damage may result.
WARNING! Always be sure your scooter and its batteries are properly secured when it is being
transported. Failure to do so may result in personal injury and/or damage to your scooter.
II. SAFETY

14 Vista
REACHING AND BENDING
Avoid reaching or bending while driving your scooter. When reaching bending or leaning while seated on your
scooter it is important to maintain a stable center of gravity and keep the scooter from tipping. Pride recommends
that the scooter user determine his/her personal limitations and practice bending and reaching in the presence of a
qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reaching down between your knees. Movements such as these may change your center of gravity
and the weight distribution of the scooter and cause your scooter to tip, possibly resulting in
personal injury. Keep your hands away from the tires when driving.
PRESCRIPTION DRUGS/PHYSICAL LIMITATIONS
The scooter user must exercise care and common sense when operating his/her scooter. This includes awareness of
safety issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
ALCOHOL
The scooter user must exercise care and common sense when operating his/her scooter. This includes awareness
of safety issues while under the influence of alcohol.
WARNING! Do not operate your scooter while you are under the influence of alcohol, as this may
impair your ability to drive safely.
REMOVABLE PARTS
WARNING! Do not attempt to lift or move a scooter by any of its removable parts. Personal injury
and damage to the scooter may result.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your scooter in a safe manner.
II. SAFETY

15Vista
EMI/RFI WARNINGS
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause
unintended motion of electric scooters. Radio waves are a form of electromagnetic energy (EM). When electro-
magnetic energy adversely affects the operation of an electrical device that adverse effect is called Electromag-
netic Interference (EMI) or Radio Frequency Interference (RFI).
EMI/RFI FRE UENTLY ASKED UESTIONS (FA S)
The following FAQs summarize what you should know about EMI/RFI. Use this information to minimize the risk
that EMI/RFI will adversely affect your scooter.
Where do radio waves come from?
Radio waves are emitted from the antennas of cellular phones mobile two-way radios (such as walkie-talkies and
CBs) radio stations TV stations amateur radio (HAM) transmitters wireless computer links microwave sources
and paging transmitters. Radio waves are a form of EM. Because EM is more intense closer to transmitting
antennas (sources of emission) the EM fields from two-way radios are of special concern to electric scooter users.
If E I/RFI affects my scooter, what kind of motion should I expect?
Thisis difficulttopredict. The answerwoulddepend onanumberof factors:
nThe strength of the radio waves.
nThe construction of your particular scooter.
nThe location of your scooter (whether it is on level ground or on an incline).
nWhether or not your scooter is in motion.
The motion of any electric scooter affected by EMI/RFI can be erratic. The scooter may come to a sudden stop or
move in an uncontrolled manner. Also it is possible for EMI/RFI to release the brakes of an electric scooter. Some
intense EMI/RFI can even damage the control system components of an electric scooter.
Is there any way to know for certain whether or not radio waves are the cause of any unintended motion
of my scooter?
Unfortunately EMI/RFI may be difficult to recognize since the signals from radio sources are invisible and may be
intermittent. However the FDA recommends that you report all incidents of unintended motion or unintended
brake release of your electric scooter to the scooters manufacturer and if possible determine whether or not
there was a radio wave source nearby at the time of the incident.
One precaution you can take against inadvertent motion of your scooter is to make certain that you or someone
else is not the cause of the unintended motion.
nTurn off your scooter by removing the key from the key switch when you are getting on or off of your scooter.
nNever leave the key in the key switch of an unattended scooter.
By following these steps you greatly reduce the risk of you or anyone else inadvertently bumping the throttle
control levers and causing the scooter to move unintentionally.
Are all scooters susceptible to E I/RFI?
Each make and model of electric scooter differs in its ability to resist EMI/RFI. That is each scooter has a
particular level of resistance to EMI/RFI. This resistance is measured in volts per meter (V/m). A higher resistance
level offers greater protection against EMI/RFI. In other words an electric scooter with a high resistance level is
less likely to be affected by a strong radio source than is an electric scooter with a low resistance level.
III. EMI/RFI

16 Vista
What is the FDA doing about the problem?
The FDA has written to electric scooter manufacturers and requested that those manufacturers test their new
scooter models to be certain that they provide a reasonable degree of resistance against EMI/RFI. The FDA has
stated that all newly-manufactured models of electric scooters should have a resistance level of at least 20 V/m.
This resistance level provides a reasonable degree of protection against the common sources of EMI/RFI.
The FDA has also requested or recommended that:
nElectric scooter manufacturers clearly label new products with that products resistance level or state that the
resistance level is not known.
nThe labeling or informational material supplied with new electric scooters must explain what the resistance level
means and warn users about the possibility of EMI/RFI and how to avoid it.
nElectric scooter manufacturers undertake an educational program to inform electric scooter users and their
caregivers about the problems associated with EMI/RFI and about the actions they can take to minimize the
risk of EMI/RFI.
nWhile there is no exact way to tell if your scooter is totally safe an immunity level of 20 V/m is generally
achievable. This product has been tested and passed at an immunity level of 20 V/m. Adding accessories and
components or modifying the unit may change the susceptibility to EMI/RFI.
What can I do to find out if my scooter is likely to be affected by E I/RFI?
If you have had your scooter for some time and have not experienced any unintended motion it is not likely that
you will have a problem in the future. However it is always possible that EMI problems could arise if you are close
to a source of radio waves. Therefore it is very important for you to be alert to this possibility. The scooter meets
or exceeds a resistance level of at least 20 V/m.
What can I do to reduce the risk of my scooter being affected by E I/RFI?
Herearesomeprecautionsyoucantake:
nDo not turn on or use hand-held personal communications devices such as citizens band (CB) radios and
cellular phones while your scooter is turned on.
nBe aware of nearby radio wave transmitters such as radio or TV stations and hand-held or mobile two-way
radios. Try not to operate your scooter too close to those transmitters. For example if you are on an electric
scooter with a resistance level of at least 20 V/m you should remain at least three feet from a hand-held two-
way radio and at least ten feet from a mobile two-way radio.
nBe aware that adding accessories and/or components or modifying your scooter in any way may change its EMI/RFI
resistance level and may make it more susceptible to interference from radio wave sources.
What should I do if my scooter moves unexpectedly?
If unintended motion or unintended brake release occurs turn off your scooter (by removing the key) as soon as it
is safe to do so.
If my scooter moves unintentionally, where should I report the incident?
Callour headquarters at 1-800-800-8586 to report the incident.
III. EMI/RFI

17Vista
FIGURE 4. VISTADIMENSIONS
IV. SPECIFICATIONS
16"
21"- 29"
18"
32"
24"
46"
Turning Radius
4"
12
7"
12
12
"
"
12
"
12
33 35
-
19" 17 "-
80˚
Length

18 Vista
Model Numbers SC166CRED
Length 46 in.
Width 24 in.
Tires Type: Pneumatic
Front: 3.5 in. x 10 in.
Rear: 3.5 in. x 10 in.
Weight Capacity 300 lbs. maximum
Battery Type (Batteries not included) Two 12V, 32 AH, U-1 type, SLA (sealed lead-acid)
Horsepower 1.1 hp (peak)
Charger Onboard 3-amp charger
Speed Variable up to 5 mph
Maximum Grade See figure 1
Range Up to 20-25 miles
Turning Radius 32 in.
Body Colors Painted: Candy Apple Red
Seating Style: Foldable molded plastic; removable seat covers with foam inserts are attached
to seat.
Dimensions: 18 in. width (usable) x 12 in. height (usable) x 16 in. depth
Seat cover material: Gray or Black vinyl or fabric
Armrests: Gray molded rubber
User adjustable seat height from ground: 21.5 in., 22.5 in., or 23.5 in.
User adjustable seat height from scooter deck: 17 in., 18 in., or 19 in.
Included Features Adjustable seat height and positioning, external freewheel release lever, front basket,
external circuit breaker, easily accessible charger power cord receptacle, recessed
headlight, onboard accessory bracket
Brakes Electronic regenerative braking and electromechanical disc brake
Rear Wheel Drive Transaxle, 24V
Wheels Aluminum alloy wheels in Black
Tiller Type Adjustable
Freewheel Mechanism Freewheel release lever located upon upper-right rear portion of rear shroud
Weight of Scooter Total weight of the Vista with two 12V, 32 AH batteries = 152 lbs.
Component breakdown:
Front section: 32.5 lbs.
Rear section (without batteries or rear shroud): 45.0 lbs.
Rear plastic shroud: 3.5 lbs.
Seat: 21.0 lbs.
Batteries 12V, 32AH: 25.0 lbs.(each)
(Note: two batteries are required per scooter)
Front-to-Rear Lockup Lock pin and dual camlock lever system
Ground Clearance 4.5 in.
Optional Accessories Taillight, safety flag, cane/crutch holder, walker holder, rearview mirror,
oxygen holder, single and double crutch holder, cane/crutch holder (bracket mount),
cane/crutch holder (armrest mount), rear basket, Slime tire sealant
IV. SPECIFICATIONS

19Vista
CONTROL CONSOLE ASSEMBLY
The control console assembly houses all the controls you need to drive your Vista including the key switch the
speed adjustment dial the throttle control lever the battery condition meter the horn button and the light switch.
See figure 6.
V. YOUR VISTA
Your Vista is a motorized electric scooter designed to enhance your personal mobility. Your Vista is an indoor/
outdoor scooter designed to travel primarily on smooth surfaces such as sidewalks roads parking lots floors and
driveways. For easy transportation or storage you can disassemble your Vista into seven components. See figure 5.
FIGURE 5. SEVEN VISTA COMPONENTS
BASKET
REAR SECTION
SEAT
FRONT SECTION
REAR SHROUD
BATTERIES
Key Switch
nFully insert the key into the key switch to power up (turn on) your Vista.
nPull the key out to power down (turn off) your Vista.
WARNING! If the key is removed from the key switch while your Vista is in motion, the electronic
brakes will engage and your Vista will come to an abrupt stop!
BATTERY CONDITION METER
THROTTLE CONTROL
LEVER
LIGHT SWITCH
SPEED
ADJUSTMENT
DIAL
KEY SWITCH
KEY
HORN BUTTON
THROTTLE CONTROL
LEVER
FIGURE 6. CONTROL CONSOLE ASSEMBLY
WARNING! Do not expose the control console assembly to moisture. In the event that the console
does become exposed to moisture, do not attempt to operate your Vista until the console has dried
thoroughly.

20 Vista
Speed Adjustment Dial
Thisadjustment dialallowsyou to preselectandlimit yourVista’s top speed.
nThe image of the tortoise represents the slowest speed setting.
nThe image of the hare represents the fastest speed setting.
Throttle Control Lever
This lever allows you to control the forward speed and the reverse speed of your Vista up to the maximum speed
preset at the speed adjustment dial.
nPlace your right hand on the right handgrip and your left hand on the left handgrip.
nUse your right thumb to push the right side of the lever to disengage your Vistas brake and move forward.
nRelease the lever and allow your Vista to come to a complete stop before pushing the left side of the lever to
move in reverse.
nWhen the throttle control lever is completely released it automatically returns to the center stop position and
engages your Vistas brake.
Battery Condition Meter
Whenever you have the key fully inserted this meter gives an approximate reading of your Vistas battery voltage.
Horn Button
nThe key must be fully inserted into the key switch for the horn to be operational.
nThis button activates a warning horn.
nDo not hesitate to use the warning horn when you feel its use will prevent accident or injury.
Light Switch
This switch controls your Vistas headlight system.
nToggle the switch up to turn the light on.
nToggle the switch down to turn the light off.
V. YOUR VISTA
