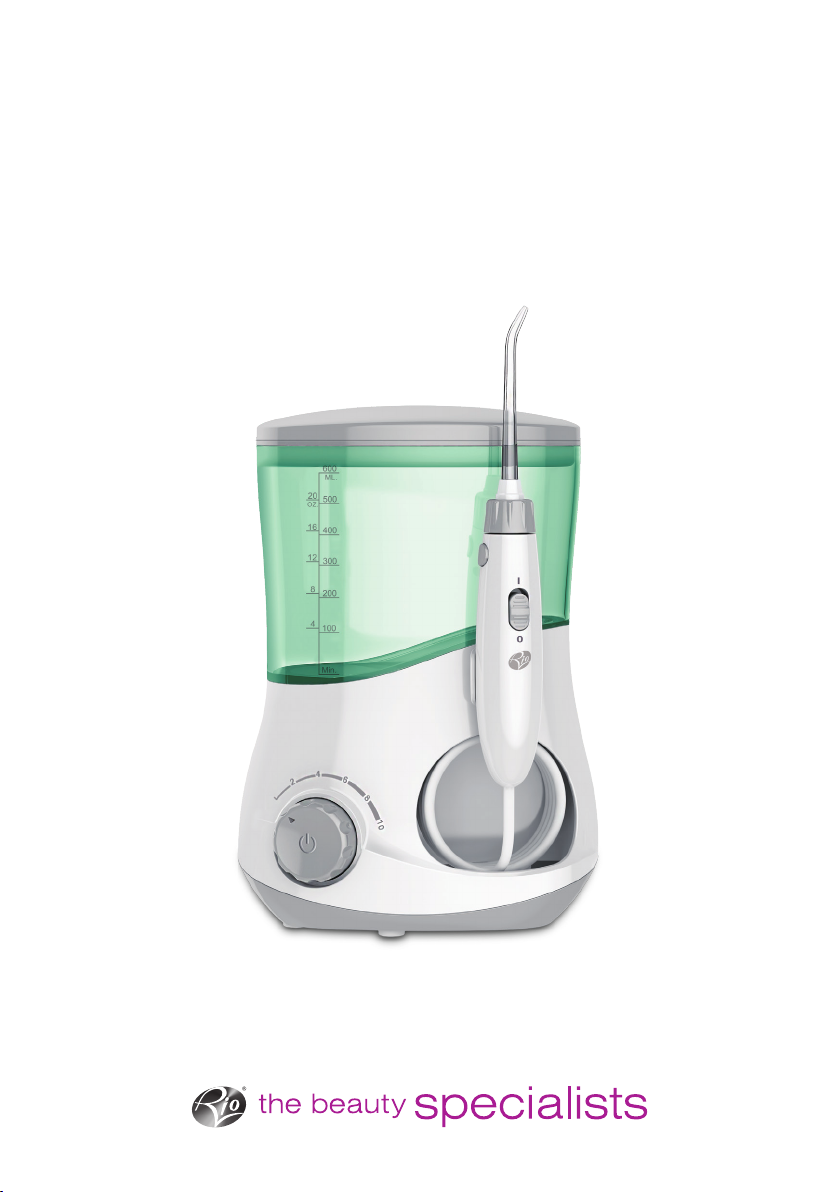

Rio 5019487085757 User manual

PROFESSIONAL
WATER JET FLOSSER
& ORAL IRRIGATOR
User Guide

2
!
• Please read all instructions thoroughly and retain for
future reference.
•This appliance can be used by children aged 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and maintenance shall not be made by children without
supervision.
• This appliance must only be supplied at safety extra low voltage
corresponding to the marking on the appliance. If any part of the
mains adapter or cord are damaged, discontinue use. Contact
Customer Care to arrange a replacement.
• Do not immerse product in water. Do NOT use solvents or
abrasive cleaners.
• Do NOT use this product if it is not working properly, or if it has
been dropped or damaged.
• Ensure the unit is off and disconnected from the power source
when filling with water and cleaning the water reservoir.
• Keep out of reach from children and pets.
• Do not store the product where it can fall or be pulled into the
bath or sink.
WARNINGS

3
!
• There are no user serviceable parts inside the unit.
• Keep away from any appliances which are sensitive to water to
avoid accidents.
• To prevent bacteria from propagating, ensure the unit and
nozzle(s) are thoroughly washed with soapy water and leave to
dry before storing.
• Do not fill the reservoir with water warmer than 40°C.
• Fill the water reservoir with water and/or mouthwash only. Some
antibacterial solutions (i.e. prescribed solutions) can shorten
the life of the product.
• Do not use for any other purpose than oral cleaning.
• If you have had oral or dental surgery in the past 2 months,
consult your dentist before using this product.
• Do not press the nozzle too firmly against your teeth or gums.
Doing so may cause injury.
• We recommend replacing your nozzle every 6 months.
• Do not use if you have an open wound on your tongue or in your
mouth.
• Do not use while wearing any oral jewelery. Remove prior to use.

4
KNOW YOUR UNIT
1Nozzle case
2Water tank
3Volume mark
4Handle holder
5Unit base
6Pressure/
Pulse rate
7Main button:
• Press - On/Off control
• Rotate - Pressure/
Pulse rate
8DC jack plug
9Nozzle
0Nozzle connector
!Release button
@Pause switch
£Handle
$Pipe
%Unit bottom
^Tank valve
Standard
Nozzle x1
Tongue
Cleanser x1
Orthodontic
Tip x1
Pocket
Tip x1
9
0
!
@
£
$
%
^
1
2
3
4
5
6
7
8

5
GETTING STARTED
INSERTING & REMOVING NOZZLES
Inserting the nozzle
Insert the tip into the centre of
the Nozzle Connector until you
feel it click in to place. Gently
try to pull the tip out to ensure
it is rmly locked in place.
Removing the nozzle
Press the Release Button on
the handle and pull the nozzle
out.
Place the device on a at surface away from sharp
objects and make sure the cord is dry and not
damaged. The device is powered by a special
adaptor with a DC jack connector.
STEP 1
Insert the plug into the DC
jack on the bottom of base
and plug the adaptor cord
into an electrical outlet.
STEP 2
Remove the Nozzle Case.
STEP 3
Fill tank with water no warmer
than 40ºC and replace
Nozzle Case.

6
HOW TO USE
STEP 1
When using for the rst time, simply point the nozzle in to the sink, then press the Main
Button to switch on the device.
STEP 2
Rotate the Main Button on the unit to adjust water pressure/pulse rate. Slide the Pause
Switch on the handle to the ‘O’ position to pause the water ow.
STEP 3
Now stand over the sink and place the tip in your mouth, and then slide the Pause
Switch to the ‘I’ position. Keep your mouth slightly open to avoid the water splashing.
STEP 4
Position the water jet ow at a 90°angle to the teeth and gums.
STEP 5
Move the water jet slowly along the teeth. The water ow will briey pause at 30 second
intervals to remind you to move to the next gum line, i.e. outside, inside, top & bottom.
The unit will continue to operate until the two-minute cycle is complete.
TO SWITCH OFF
Slide the Pause Switch on the handle to the ‘O’ position to pause the water ow and
then press the ON/OFF button.
1
3
4
2
5

7
AFTER USE
STEP 1
Take off the water tank and dispose of any unused water.
STEP 2
Slide the Pause Switch to the ‘I’ position, point the nozzle in to the sink and power on to drain the water
inside the unit, then slide the Pause Switch to the ‘O’ position again. Turn off the unit and unplug the
adapter.
STEP 3
Press down the Release Button, and remove the nozzle, then place it into the nozzle
case.
• To clean the nozzle, remove from the handle head by pushing the nozzle release
button. Rinse under a tap and dry thoroughly.
• Make sure the nozzle case and nozzle are rmly installed before switching the unit
back on.
STEP 4
Use a damp clean cloth to clean the unit.

8
Tongue Cleanser
To clean your tongue, gently place the tongue cleanser onto the centre midline of your tongue
about halfway back. Use the light water pressure/pulse rate setting first, and gradually increase
as required.
Orthodontic Tip
The orthodontic tip is specially designed for people who wear braces. It is ideal for cleaning the
hard-to-reach areas around the braces.
Slowly slide the tip along the gum-line, pausing briefly to use the brush bristles to clean the area
between teeth and around the orthodontic braces.
Pocket tip
The pocket tip is specially-designed to clean periodontal pockets. Only use on the lowest
pressure/pulse rate setting.
Place the soft tip against a tooth at a 45°angle and gently push the tip under the
gum-line, to reach the pocket.
TIP FUNCTIONS

9
• Use only water or a neutral cleaning agent to clean.
• Never use caustic or abrasive agents (i.e. vinegar or limescale removers), as they may damage the appliance.
• Do not use water over 40ºC in temperature.
• Keep the device away from high temperatures and avoid direct sunlight.
Main unit
1. Remove the water tank and drain the remaining water inside the device.
2. Clean by using a damp cloth with liquid soap and dry with a soft dry cloth.
3. Do not submerge the main unit in water to clean.
Handle
1. Wash with water and dry with a soft cloth.
2. Do not bend, pull or twist the water hose.
Water tank
1. Wash with water and wipe with a soft, dry cloth.
2. Make sure the water tank is firmly fixed in position before storing.
Nozzle
1. Wash with water and wipe with a soft dry cloth.
2. Place the nozzle in the storage compartment.
3. Replace the standard nozzle and tongue cleanser once every six months, and the other tips once every three months.
Charging adaptor
Wipe the metal part of the power plug with a dry cloth once every six months.
Problem Possible Cause Solution
Unit does not work Motor not running
Make sure the adapter is firmly connected
to the outlet and plugged in
Make sure the outlet and unit power is on
Water pressure is very low
Dirt stuck in the nozzle Clean or replace with a new nozzle
The nozzle is deformed Replace with a new nozzle
Dirt stuck in the tank valve Clean the valve and fill the tank with pure
water
Water does not come out
The tank is empty Fill the tank up
Pause switch on Ensure Pause switch is fully in the ‘I’ position
Tank valve is not open Press down on the tank and ensure it is
correctly fitted
Tank leaks
The valve is missing Replace with a new tank valve
The valve isn't installed correctly Take off the valve and reinstall again
Tear in pocket tip head Tip head is worn Replace with a new nozzle
MAINTENANCE
TROUBLESHOOTING

10
CUSTOMER CARE
If you have any questions, please contact us at: [email protected]
To reorder additional accessories, please visit
www.riobeauty.com or contact your local distributor.
GUARANTEE
To register your two year guarantee online, visit: www.riobeauty.com/warranty_online.htm
The Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle
products using best available recovery and recycling techniques to minimise the impact on the environment, treat
any hazardous substances and avoid the increasing landfill. This product is classed as Electrical or Electronic
equipment so please ensure that at the end of the life of this product it is disposed of in the correct manner in
accordance with local authority requirements. It must NOT be disposed of with household waste.
SPECIFICATION
Unit Input: DC 12V 1.5A, 18W
Water Pressure: 30-110psi
Read these instructions carefully before use and then retain for future use.
This product is for indoor use only.
This product complies with current EU product legislation.
Socket Input centre pin positive.
DISPOSAL

11

www.riobeauty.com
© The Dezac Group Ltd 2019 Manufactured by The Dezac Group Ltd PO Box 17, Cheltenham, England GL53 7ET
1-IN-DCIC-UK/1.1
UK
