Rohde & Schwarz ZVRE User manual

1127.8700.12-03- 1
Test and Measurement
Division
Operating Manual
VECTOR NETWORK
ANALYZER
ZVR / ZVRE / ZVRL
1127.8551.61/.62
1127.8551.51/.52
1127.8551.41
ZVC / ZVCE
1127.8600.60/.61/.62
1127.8600.50/.51/.52
ZVM
1127.8500.60
ZVK
1127.8651.60
Volume 1
Operating Manual consists of 2 volumes
Printed in the Federal
Republic of Germany

ZVx Tabbed Divider Overview
1127.8700.12 RE E-1
Volume 1 Volume 2
Contents Contents
Index Index
Data Sheet
Supplements
Safety Instructions Safety Instructions
Certificate of Quality Certificate of Quality
EC-Certificate of Conformity EC-Certificate of Conformity
Support Center Address Support Center Address
List of R&S Representatives List of R&S Representatives
Tabbed Divider Tabbed Divider
1 Preparation for Use 1 Remote Control
2 Manual Operation 2 Maintenance and Troubleshooting
3 Testing the Rated Specifications
4 Annex A: Interfaces
5 Annex B: List of Error Messages
6 Annex C: List of Commands
7 Annex D: Programming Examples
8 Annex E: Emulations

1112.8050.52-17- 1
Test and Measurement
Division
Release Notes
Firmware Version 3.52
for ZVR/ZVRE/ZVRL/ZVC/ZVCE/ZVM/ZVK
1112.7990.39
Printed in the Federal
Republic of Germany

ZVx Firmware Version 3.52
1112.8050.52 I.1 E-17
Contents
General Information..........................................................................................................................1
Manual for ZVR Family..................................................................................................................1
Update Procedure.........................................................................................................................1
Initial Steps....................................................................................................................................1
Documentation of Firmware Modifications....................................................................................1
1 Firmware Update........................................................................................................................... 2
System Requirements...................................................................................................................2
Preparations for Update................................................................................................................2
Contents of Firmware Update Kit..................................................................................................2
Update Procedure.........................................................................................................................2
2 New Features, Improvements and Modifications...........................................................5
New Features................................................................................................................................5
Improvements ...............................................................................................................................6
Modifications .................................................................................................................................6
3 Bug Fixes.........................................................................................................................................7
4 Extensions to Operating Manual............................................................................................8
5 New IEEE-Bus Commands..................................................................................................... 20
6 Special Features .........................................................................................................................28

ZVx Firmware Version 3.52
1112.8050.52 1 E-17
General Information
Manual for ZVR Family
The analyzers of the ZVR family are supplied with the following manual:
"Operating Manual – Vector Network Analyzer" ZVR/E/L, ZVC/E, ZVM, ZVK
Order No. 1127.8700.xx-03-
where xx 11 (German)
12 (English)
13 (French)
19 (English, US letter format)
Update Procedure
The update instructions given in section 1 of this release note are to the latest state; any deviating
instructions in the operating manual are to be ignored.
If you have received this document together with a new analyzer, you can skip section 1.
If you have received the document together with a firmware update kit or as a download together with
a self-extracting archive file, you should read section 1.
Initial Steps
If you work with a ZVR analyzer for the first time, it is recommended to read the operating manual to
familiarize yourself with the unit.
If you are already familiar with the instrument, this document informs you about new features.
Documentation of Firmware Modifications
This document covers firmware modifications that are not part of the current operating manual.

Firmware Version 3.52 ZVx
1112.8050.52 2 E-17
1 Firmware Update
System Requirements
None
Preparations for Update
No preparations are required.
Contents of Firmware Update Kit
The update kit comprises the following:
•Five 3.5"/1.44 Mbyte disks labelled as follows:
Disk 1 : „V3.52 DISK 1“
Disk 2 : „V3.52 DISK 2“
Disk 3 : „V3.52 DISK 3“
Disk 4 : „V3.52 DISK 4“
Disk 5 : „V3.52 DISK 5“
•This document
Update Procedure
1. If you have received a self-extracting archive file per e-mail or as a download
a set of disks must first be created from the archive file.
Proceed as follows:
½Check if you have received all files.
disk1.bin self extracting ZIP file, used to generate update disk 1
data2.cab packed contents of disk 2, automatically unpacked during FW update
data3.cab packed contents of disk 3, automatically unpacked during FW update
data4.cab packed contents of disk 4, automatically unpacked during FW update
data5.cab packed contents of disk 5, automatically unpacked during FW update
disk_d.bin this document packed
½Keep five DOS-formatted 3.5" / 1.44 Mbyte disks ready.
½Label disks as follows:
V3.52 DISK 1
V3.52 DISK 2
V3.52 DISK 3
V3.52 DISK 4
V3.52 DISK 5
½Create a temporary directory on your PC (e.g. ZVRTEMP on C:\). For this you require about
3 Mbytes of free memory on your hard disk.
½Copy file disk1.bin to this temporary directory.
½Rename file disk1.bin to disk1.exe.

ZVx Firmware Version 3.52
1112.8050.52 3 E-17
½Execute disk1.exe, e.g. by using the following command sequence for Windows95/NT:
<CTRL><ESC> - RUN –C:\ ZVRTEMP \DISK1 - <ENTER> (English version) or
<CTRL><ESC> - AUSFÜHREN –C:\ ZVRTEMP \DISK1 - <ENTER> (German version).
The files are extracted.
½Delete file disk1.exe in the temporary directory.
The temporary directory should contain the following files:
_inst32i.ex_ _isdel.exe _setup.dll _sys1.cab _user1.cab
data.tag data1.cab lang.dat layout.bin os.dat
readme.txt setup.exe setup.ini setup.ins setup.lid
½Copy all files to update disk 1 (V3.52 DISK 1).
Check if all files are on the disk with their correct names. In particular, the underscores ("_" as in
"_inst32iex_") are essential for a successful update.
½The contents of the other 4 disks are already in the format needed for the update. Files
data2.cab,..., data5.cab must be copied to the corresponding disks DISK2, ..., DISK5.
The disks are now ready, and you can continue with section 2 "If you have received a firmware
update kit on a disk ...".
Notes: If any error messages are output during creation of a disk, the installation process for the
disk in question must be repeated. Before re-creating the disk, check if the write
protection of the disk has been removed.
File disk_d.bin contains this document in pdf format. To unpack the document proceed as follows:
½Copy disk_d.bin to the temporary directory.
½Rename the file to disk_d.exe.
½Execute disk_d.exe, e.g. by using the following command sequence for Windows95/NT:
<CTRL><ESC> - RUN –C:\ ZVRTEMP \DISK_D - <ENTER> (English version)
or<CTRL><ESC> - AUSFÜHREN –C:\ ZVRTEMP \DISK_D - <ENTER> (German version)

Firmware Version 3.52 ZVx
1112.8050.52 4 E-17
2. If you have received a firmware update kit on a disk ...
You can load the firmware directly from the disk to your network analyzer.
½Insert the disk DISK 1 into the drive.
½Press the SETUP key and change to the side menu by pressing ⇒key.
½Press the FIRMWARE UPDATE softkey.
½Start the update by pressing the UPDATE softkey and follow the instructions on the analyzer
display.
First, the contents of the update disks are copied to the hard disk of the instrument. Then the
files are extracted and copied in the directories accordingly. After the extraction, the instrument
is rebooted.
The firmware update is complete.
The previous firmware version may be restored using softkey RESTORE.
3. If problems occur during the firmware update ...
The new firmware can if necessary also be loaded under NT. This should be done only with an
external keyboard and a mouse. Log-in has to be made using the ADMINISTRATOR function, and
the device firmware closed.
Log in as administrator.
½Press key combination ALT SYSREQ to switch to NT screen if not yet displayed.
½Call up the NT task bar START –SHUT DOWN.
½Select ‘Close all programs and logon as different user’.
½Hold the SHIFT key down and press the OK key to leave the input window until the login window
appears.
½Release the SHIFT key as soon as the login window appears.
½Now enter administrator as user name and 894129 as password.
Close the device firmware:
½Press the keys CTRL ALT DEL on the external keyboard simultaneously.
½Select the Task Manager.
½Select the Application Rohde&Schwarz ZVR NT Interface and terminate it with End Task.
Now the new firmware can be loaded:
½Insert DISK 1 into drive A:
½Start the installation with START RUN A:SETUP. You will be prompted to insert the remaining
disks one after the other.
After loading the software, the operating system is rebooted. Then change back from administrator
to instrument (password instrument) for the login. This is done in the same way as changing of login
to administrator.
Note: If the firmware is installed in this way, the previous version cannot be restored.

ZVx Firmware Version 3.52
1112.8050.52 5 E-17
2 New Features, Improvements and Modifications
New Features
•Support of waveguide calibration:
For this purpose, two new softkeys were added to the menu CAL →CAL KITS →right side menu:
WAVEGUIDE (position 6) and CUTOFF FREQUENCY (position 7)
•Deinstallation of calibration kits:
A new softkey is available in the menu CAL →CAL KITS:
UNINSTALL KITS (position 10)
•New SCPI commands:
- Reading out and modification of system error calibration and power calibration
- Support of waveguide calibration
- Query of electrical length, mechanical length and phase delay
•Support of additional, external devices:
- Generator SML (Rohde & Schwarz)
- Generator SMR30, SMR50, SMR60, SMR30B11, SMR50B11, SMR60B11 (Rohde & Schwarz)
- Generator HP8648 A/B/C/D (Agilent)
- Generator HP83650A (Agilent)
- Power Meter NRP (Rohde & Schwarz)
- Power Meter ML2438A (Anritsu)
- Power Meter E4417A (Agilent)
- Power Meter EPM-441A (Agilent)
-

Firmware Version 3.52 ZVx
1112.8050.52 6 E-17
Improvements
•When reading and writing system error correction data and level correction data in the REAL64
format, an error message is output.
Affected IEC/IEEE bus commands:
SENSe[1..4]:CORRection:DATA
SENSe[1..4]:CORRection:POWer:DATA
SOURce[1..4]:POWer:CORRection:DATA
•If a waveguide calibration (WAVEGUIDE = ON) is performed via IEC/IEEE bus with a CUTOFF
FREQUENCY that is higher than the START FREQUENCY, an error message is now output
because this action is not permitted.
•Omission of unnecessary level calibration interpolation (improves performance especially during
operation via the IEC/IEEE bus).
•The CALC:MARK:FUNC:RES? IEC/IEEE bus query now yields 10 significant marker points
(previously only 6).
•Improvement of signal quality of R&S SMR generators (SMR20/27/30/40/50/60,
SMR20/27/30/40/50/60B11) in TTL mode.
(This requires an SMR firmware version ≥1.26.)
•Generators currently not used are switched to RF OFF. This prevents erroneous measurements
and avoids disconnecting any cables.
Examples:
- During power calibration of the internal generator, any external generators connected to the
instrument and set to REMOTE are switched to RF OFF.
- This applies analogously to the calibration of an external generator. In this case, the internal ge-
nerator (and, if available, a second external generator connected and set to REMOTE) is switched
to RF OFF.
- When a COMP/SOI/TOI, arbitrary or mixer measurement is switched off, the external generators
used in the measurement are set to RF OFF.
Modifications
•New softkeys or softkeys shifted to another position in menu CAL →CAL KITS:
- Softkey USER CONN NAME now at position 9 of right side menu
- Softkey USER CONN IMPEDANCE now at position 10 of right side menu
- New softkey UNINSTALL KITS at position 10 of main menu
- New softkey WAVEGUIDE at position 6 of right side menu
- New softkey CUTOFF FREQUENCY at position 7 of right side menu

ZVx Firmware Version 3.52
1112.8050.52 7 E-17
3 Bug Fixes
•In the ACTIVE xx STANDARDS table, the entries for the OPEN standards are again available when
a calibration is performed.
•System error correction data sets generated with a version <3.50 can now be recalled again
(RECALL).
•The power correction function has been improved:
- External power calibration is reliably activated with COMP/SOI/TOI measurements.
- An existing power calibration can be used again in power sweeps and in time sweeps.
•The normal user (logged on under the name "INSTRUMENT") has write access again to the
directory AUTOKAL, so the AutoCal function works again.
•Commanding the OFFSET SHORT standards
(SENSe[1..4]:CORRection:COLLect:ACQuire:OSHORT1 or OSHORT2) in case of waveguide
calibration (WAVEGUIDE = ON) is possible again.
•Errors were corrected in the following SCPI commands:
- SENS:FUNC?
- SOURce:POWer:[LEVel]:[IMMediate]:CAMPlitude
•Softkeys that were not visible are now available again:
- Menu MEAS →USER DEF’D S-PARAMS: softkeys USER DEF’D S-PARAMS and USER DEF ACTIVE
- Menu CAL →START NEW CAL →FULL ONE PORT →BOTH PORTS: softkey 2.92 mm FEMALE
- Menu MEAS →WAVE QANTITY: softkey DRIVE PORT

Firmware Version 3.52 ZVx
1112.8050.52 8 E-17
4 Extensions to Operating Manual
Characteristics of Calibration Standards (Re section 2.15.1.3)
The MODIFY CAL KIT softkey opens a menu for the management of calibration kits for the individual
connector families.
Exact knowledge of the calibration standards is a prerequisite for a accurate system-error calibration.
More precisely, the calibration is based on the knowledge of those S-parameters of the standards which
are assumed to be known for the applied calibration method. These S-parameters are derived from
physical models which contain one or more parameters (such as the electrical length) depending on the
type of standard.
In addition to these physical parameters, there are three description fields for each standard listing the
assignment of the standard and further information for the user.
1. Standard type: The type depends on the kind of standard (e.g. open circuit, short circuit, through-
connection) and the sex of the connectors. Example: THROUGH (MF) denotes a through-
connection with a plug at one and a socket at the other port. The standard type determines the
physical description model and therefore the parameters which can be edited. Up to four individual
standards with different parameters can be defined for one standard type. Only one of them can be
selected (active) at one time.
2. Calibration kit (KIT): A calibration kit is an assembly of real, physical calibration standards.
Calibration kits are supplied by Rohde & Schwarz as an accessory for network analyzers. The
parameters of the standards in a calibration kit are stored on a floppy disk which can be read in via
the INSTALL NEW KIT softkey. Kits for coaxial connector families usually do not contain all possible
standard types of these families but only a subset comprising the types which are most frequently
used in coaxial technology. Calibration kits can be user-defined as well. Using the ACTIVATE KIT
softkey, the standards of a calibration kit can be selected altogether by just one keystroke.
3. Serial number (SERIAL #): All standards of a calibration kit are factory-labelled with the same serial
number so they can be assigned unambiguously to this kit. The serial number helps to avoid
confusion between standards of the same type from different calibration kits which might have
different physical parameters.

ZVx Firmware Version 3.52
1112.8050.52 9 E-17
CAL CAL - CAL KITS submenu:
USER
RESTORE
INSTD KITS
V
IEW
ACTIVE STD
MODIFY
STANDARDS
CAL KITS
CONNECTOR
TYPE
USER CON
N
NAME
USER CON
N
IMPEDANCE
KIT
THROUGH (FF)
ZV-Z21
OPEN (M)
OPEN (F)
SHORT (M)
SHORT (F)
REFLECT (M)
REFLECT (F)
LINE 1 (FF)
LINE 1 (MF)
LINE 1 (MM)
LINE 2 (FF)
LINE 2 (MF)
LINE 2 (MM)
ATTENUATION (FF)
ATTENUATION (MF)
ATTENUATION (MM)
SYMM NETWORK (FF)
SYMM NETWORK (MF)
SYMM NETWORK (MM)
SLIDING MATCH (M)
SLIDING MATCH (F)
ACTIVE N 50 ΩSTANDARDS
MATCH (M)
MATCH (F)
STANDARD TYPE
THROUGH (MM)
THROUGH (MF)
CAL KITS
ZV-Z21
ZV-Z21
ZV-Z26
ZV-Z26
ZV-Z21
ZV-Z21
ZV-Z21
ZV-Z21
ZV-Z21
ZV-Z21
ZV-Z41
ZV-Z41
OPEN PORT
OPEN PORT
ACTIVATE
KIT
LIST
INSTD KITS
INSTALL
NEW KIT
NOTE: The connector sex refers
to the ports of the standards!
CREATE
INST FILE
Selecting the connector families
After pressing the CAL KITS softkey, the ACTIVE XX STANDARDS selection table is
displayed, where XX denotes the connector family selected. By default, the
connector family of the test set ports is selected. The table gives an overview of the
active standards of the connector family:
•The STANDARD TYPE column lists all standard types which are required for the
calibration procedures of the respective type of instrument.
•The KIT column indicates to which calibration kit the currently selected physical
standard belongs. By default, for standard types contained in the calibration kits
offered by Rohde & Schwarz, the designation of the corresponding kit is also
displayed. Although typical parameter values are pre-defined for these standards,
the individual parameters for each calibration kit, which are supplied on a floppy,
should be read in for the sake of maximum accuracy (see INSTALL NEW KIT
softkey). The predefined standards without calibration kit assignment are
assumed to be ideal.

Firmware Version 3.52 ZVx
1112.8050.52 10 E-17
The cursor can be used to select the standard type the softkeys MODIFY
STANDARDS and VIEW ACTIVE STD refer to.
For polarized connector families, three types exist for each two-port standard,
namely male/male (MM), female/female (FF), and male/female (MF). One-port
standards are provided as male (M) and female (F). For non-polarized connectors,
such as PC 7, all standards are contained only once in the table.
If a calibration method requires to measure two standards with the same polarity
simultaneously, their characteristics are assumed to be identical. This applies, e.g.,
to the TOM-X calibration method if the OPEN BOTH PORTS measurement is
performed.
The following types of standards are provided for the various types of network analyzers. Due to the
restricted calibration facilities of the ZVRE, ZVCE and ZVRL compared to the ZVR, ZVC, ZVK and ZVM,
a reduced set of standards is required only.
Table: Standard types for the network analyzers
ZVR, ZVC, ZVK, ZVM ZVRE, ZVCE, ZVRL
THROUGH THROUGH through-connection
LINE 1 line 1 for TRL calibration procedure
LINE 2 line 2 for TRL calibration procedure
ATTENUATION unknown matched attenuator
SYMMETRIC NETWORK unknown mismatched reflection-symmetric
two-port standard
OPEN OPEN open circuit
SHORT SHORT short circuit
OFFSET SHORT OFFSET SHORT additional short circuit for waveguide calibration
REFLECT unknown mismatched one-port standard
MATCH MATCH broadband termination
SLIDING MATCH SLIDING MATCH sliding load

ZVx Firmware Version 3.52
1112.8050.52 11 E-17
CAL CAL - MODIFY CAL KIT - SELECT KIT submenu:
CONNECTOR
TYPE
MODIFY
STANDARDS
V
IEW
ACTIVE STD
SMA
PC 3.5
CONNECTOR
TYPE
USR CONN 2
Ν 50 Ω
Ν 75 Ω
PC 7
SEXLESS
USR CONN 1
CAL KITS
USER CON
N
NAME
USER CON
N
IMPEDANCE
ACTIVATE
KIT
RESTORE
INSTD KITS
LIST
INSTD KITS
INSTALL
NEW KIT
The CONNECTOR TYPE softkey calls a menu for selecting the
connector family shown in the ACTIVE XX STANDARDS table.
The type and order of the connectors shown in this menu are
different for the different models of the ZVx family. The connector
types used for the instrument test ports always come at the
uppermost position. This is also the default setting.
The following connector families are provided:
•N 50 Ω,
•N 75 Ω,
•PC 7,
•SMA,
•PC 3.5,
•2.92 mm.
In addition two connector families can be arbitrarily defined,
namely:
•SEXLESS USR CONN 1
•USR CONN 2
Only the two user-defined connector families can be configured
for waveguide calibration.

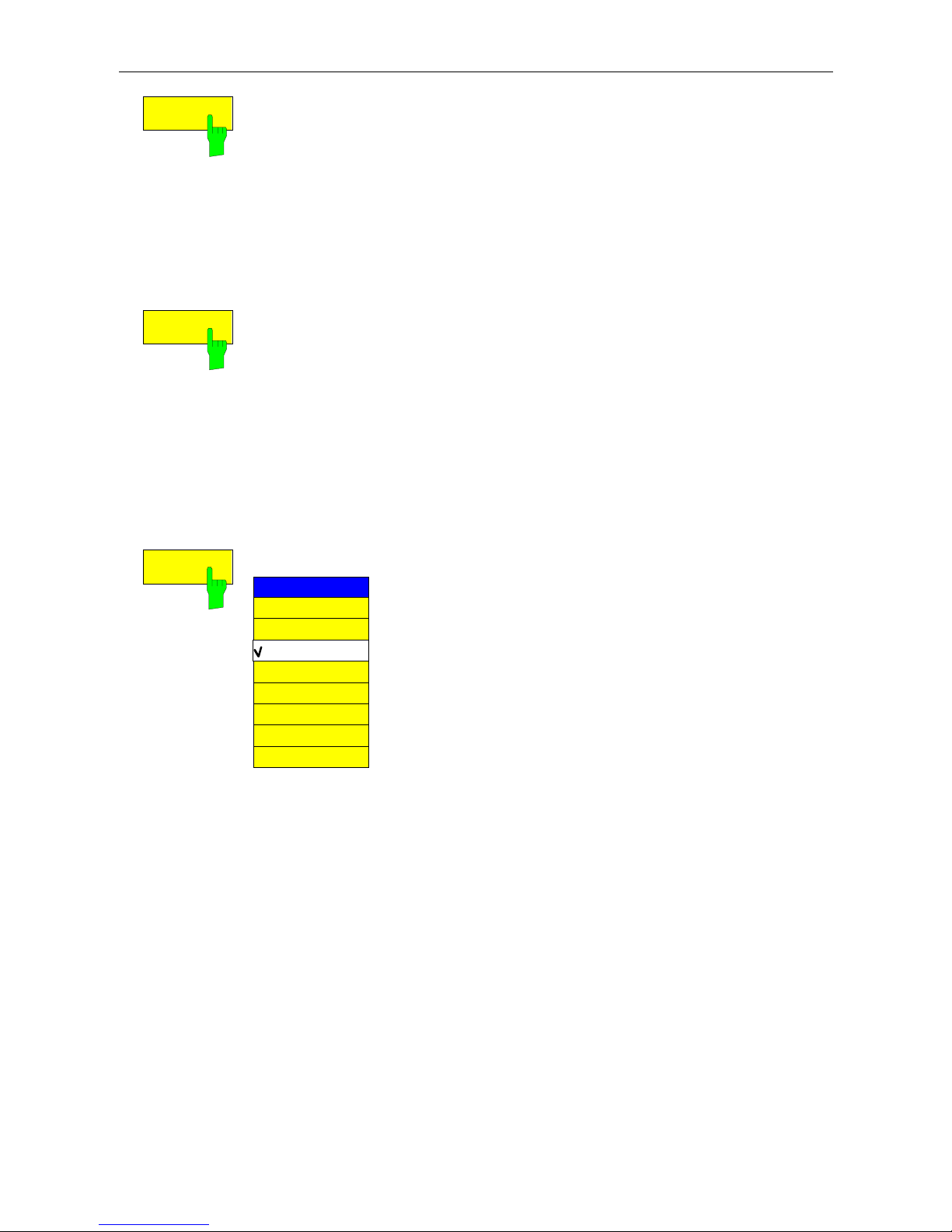

Ν 50 Ω The N 50
Ω softkey displays the table ACTIVE N 50 Ω STANDARD .
Ν 75 Ω The N 75
Ω softkey displays the table ACTIVE N 75 Ω STANDARDS.
PC 7 The PC 7 softkey displays the table ACTIVE PC 7 STANDARDS.
SMA The SMA softkey displays the table ACTIVE SMA STANDARDS.
PC 3.5 The PC 3.5 softkey displays the table ACTIVE PC 3.5 STANDARDS.

Firmware Version 3.52 ZVx
1112.8050.52 12 E-17
SEXLESS
USR CONN 1 The SEXLESS USR CONN 1 softkey displays the table ACTIVE USER CONN 1
STANDARDS. The connector family SEXLESS USR CONN 1 which can be user-
defined is not polarized (similar to PC 7) and particularly suited for non-coaxial cable
systems such as microstrip.
The two user-defined connector families SEXLESS USR CONN 1 and USR CONN 2
can also be used for waveguide calibration (refer to WAVEGUIDE softkey
description). As waveguides are as a rule not polarized, SEXLESS USR CONN 1 is
to be preferred to USR CONN 2.
The name of this connector family (USER CONN 1 by default) can be modified via
the USER CONN NAME softkey.
USR CONN 2 The USR CONN 2 softkey displays the table ACTIVE USER CONN 2 STANDARDS.
Unlike SEXLESS USR CONN 1, this user-defined connector family is polarized and
therefore suited for the coaxial connectors that are not pre-defined in the
CONNECTOR TYPE menu. The connector family USR CONN 2 can also be used
for waveguide calibration.
The name of this connector family (USER CONN 2 by default) can be modified via
the USER CONN NAME softkey.
CAL CAL - CAL KITS submenu:
ACTIVATE
KIT The ACTIVATE KIT softkey displays the selection table ACTIVATE KIT.
OPEN PORT
ZCAN
ACTIVATE KIT
ZV-Z26
ZV-Z28
ZV-Z41
ZV-Z21
This table lists all calibration kit names defined for the connector family currently
selected. All standards including the ones that are currently not active are
considered.
The cursor keys move the cursor within the table. A kit is selected via the units prefix
key. A checkmark displayed for a short time indicates that a kit has been selected.
All standards with the selected kit name are set active.
