Rointe ecodesign SYGMA User manual

MANUAL DE INSTALACIÓN Y USO
Página 18
MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO
Página 36
INSTALLATION AND USER MANUAL
Page 02
INSTALLATIE- EN GEBRUIKERSHANDLEIDING
Page 53
ES
EN
PT
NL
SYGMA Digital towel rail / secatoallas digital / seca-toalhas digital /
digitale handdoekdroger
GUARANTEE / GARANTÍA
/ GARANTIA / GARANTIE
ON THE BODY
EN EL CUERPO
NO CORPO
IN HET LICHAAM
YEARS / AÑOS
/ ANOS / JAAR
YEARS / AÑOS
/ ANOS / JAAR
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA
IN ELEKTRONICA

2
SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
HOT SURFACE. This symbol indicates that product surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.

EN
SYGMA ELECTRIC TOWEL RAIL
3
INDEX
1. General Warnings ........................................................................................................... 5
2. Technical information ..................................................................................................... 7
3. Installation ....................................................................................................................... 8
4. Screen & Keypad ........................................................................................................... 11
5. Functionality and programming .................................................................................. 11
5.1. Power ON and OFF ................................................................................................. 11
5.2. Adjust the day & time ............................................................................................ 12
5.3. Adjust temperature................................................................................................ 12
5.4. Lock the control panel........................................................................................... 12
5.5. Adjust the display panel brightness ..................................................................... 12
5.6. Two hour boost function ....................................................................................... 12
5.7. Manual / Automatic functions .............................................................................. 13
5.7.1. Manual function ............................................................................................... 13
5.7.2. Automatic function.......................................................................................... 13
5.8. Open windows function......................................................................................... 14
6. Maintenance and cleaning .......................................................................................... .15
7. European Regulation (WEEE) 2012/19/EU ................................................................ .15
8. Guarantee ..................................................................................................................... .15
9. How to register your product guarantee ................................................................... .18
Directive ERP Commission Regulation ..........................................................................70
EU Declaration of Conformity ..........................................................................................71

4
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on this
product. Children under 3 years of age should be kept away
from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product. DO NOT use
insecticides, paints, or chemicals on or near the product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the product.

EN
SYGMA ELECTRIC TOWEL RAIL
5
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
The product has an IP44 degree of protection and can be used
in bathrooms, but not in the vicinity of bathtubs, taps, showers,
water connections, toilets, swimming pools or other masses
of water. The product must never be installed where it, the
switches or the control panel are within the reach of people in
water. Never use the product with wet hands. Do not place any
water containers (glasses, vases, etc.) on or near the product.

6
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must be
followed. See WEEE in section 7.
!

EN
SYGMA ELECTRIC TOWEL RAIL
7
2. TECHNICAL INFORMATION
MODEL WIDTH 500 STN030SEB2 STN050SEB2 STN075SEB2 STIN100SEB2
STN030SEC2 STN050SEC2 STN075SEC2 STN100SEC2
DIMENSIONS, WEIGHT & FINISHES
Width (mm) 500 500 500 500
Height without control panel
(mm) 770 1,120 1,500 1,720
Height with control panel (mm) 870 1,220 1,600 1,820
Depth (mm) 30 30 30 30
Installed depth (mm) 100 100 100 100
Weight (Kg) 7.4 11.6 14.6 18.1
Finishes White RAL 9016 / Chrome
ELECTRICAL CHARACTERISTICS
Nominal power (W)
White 300 500 750 1,000
Chrome 300 300 500 750
Voltage (V) 230 V ~ 230 V ~ 230 V ~ 230 V ~
Current (A)
White 1.3 2.2 3.3 4.4
Chrome 1.3 1.3 2.2 3.3
SAFETY & INSTALLATION
Template & Installation Kit    
Safety thermostat    
Protection Grade IP 44 IP 44 IP 44 IP 44
EAN CODE
WHITE 8436045911834 8436045911841 8436045911858 8436045911865
CHROME 8436045911674 8436045911681 8436045911698 8436045911704

8
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5928 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back
of the product and note the product reference and serial number. You will need this
information to register your guarantee. See section 9 for help on how to register the
guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.

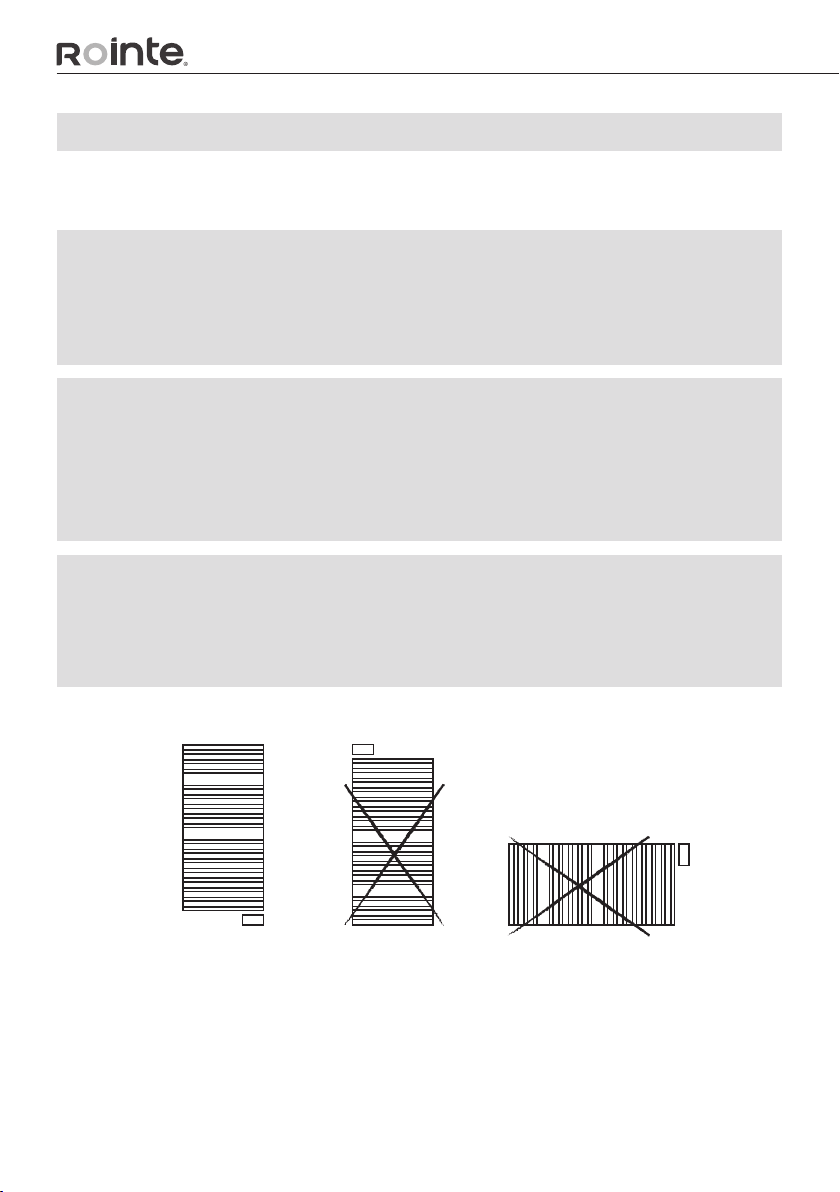

IMPORTANT: This product must never be installed with its control box in a raised
position. The vertical product must not be used horizontally. During installation, use
shims to prevent the control box from resting on the oor.
The mains connection must be made in compliance with the voltage indicated on the
product’s technical data label. This product is intended to be permanently connected to a
xed installation. The supply circuit of theproduct must be tted with a single-pole circuit
breaker with a contact separation of at least 3 mm. The product should be installed, if
possible, away from draughts (windows, doors) or anything else that could interfere with its
control. This will provide the best thermal comfort. Place any object that could impede air
OK

EN
SYGMA ELECTRIC TOWEL RAIL
9
circulation (furniture, armchairs) 50 cm from the front of the appliance. The product must
not be placed in front of or directly below a xed socket. The bottom of the control panel
must be at least 15 cm above the oor.
For any prodcut, if the power supply cable is damaged, it must be replaced with a specic
cable. The replacement of the cable must be carried out by ROINTE, our after-sales service
or qualied personnel. The technical characteristics of your product are indicated on the
technical characteristics label.

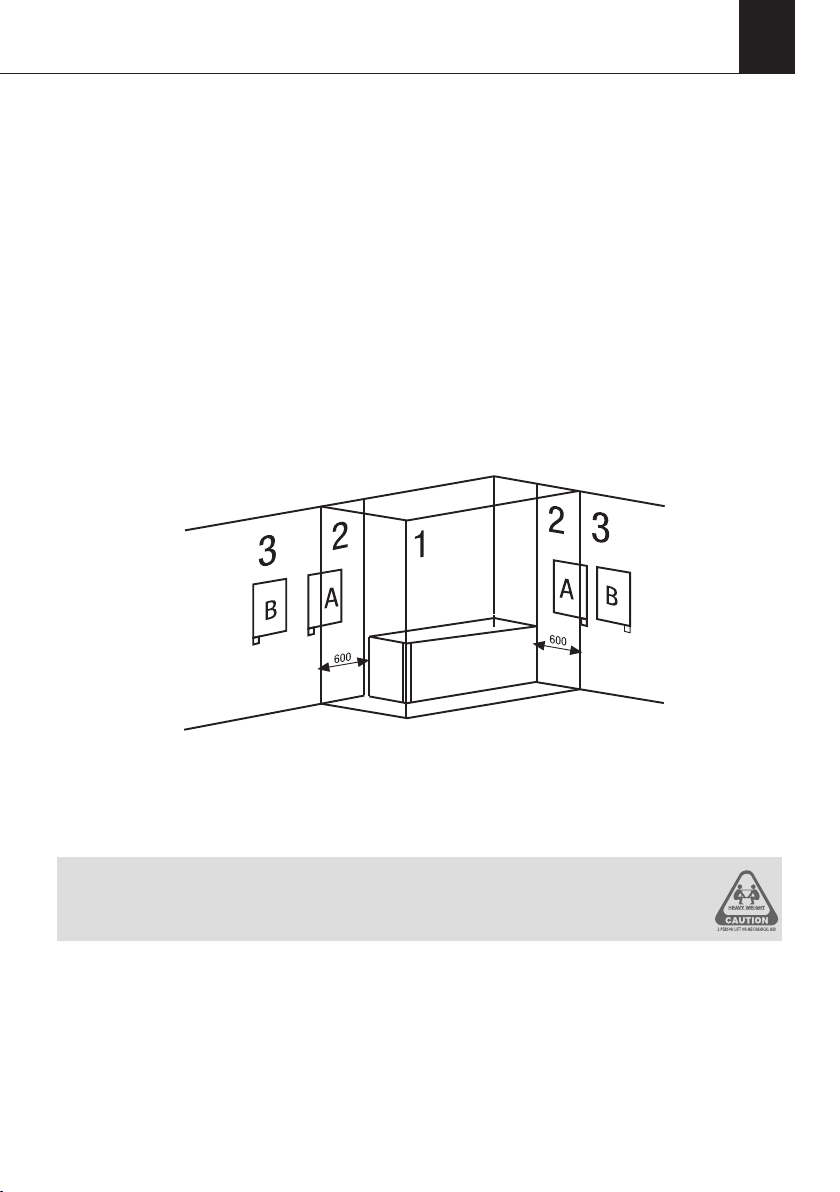

This product complies with CLASS II safety standards (double insulation). It can be installed
in Zones 2 and 3, positions A and B provided that the following rules are observed:
In bathrooms, the product must never be installed in such a way that the control panel can be
reached by a person in the bath or shower. The control panel must be located at a minimum
distance of 600 mm from any wet areas. The body of the product can be placed in Zone 2
if the control panel is located within Zone 3.
WARNING: The weight of some of the products may be heavy. The installation
may require two people.
IMPORTANT: Please follow these instructions carefully.

10
An installation kit is included in the packaging. Follow the instructions below:
1. Choose the right part of the wall.
2. Place the mounting stencil on the wall, marking the places for the holes.
3. Remove the stencil and make the holes in the wall.
4. Insert the rawl plugs in the holes made.
5. Screw the plastic fastener to the wall with the Ø 5.5 x 50 mm screw.
6. Screw the two brackets for supporting the product and the plastic fastener to the
horizontal tube of the product like in Figure 1 with the Ø 8 x 26 mm screw.
7. Insert what you have assembled in Section 6 into the plastic piece and x well with the
Ø 5 x 12 mm screw.
8. Place the cover on the piece supporting the product.
Nº. ITEM
1Ø 10 x 40 mm Rawl Plug
2Bracket
3Ø 5.5 x 50 mm Screw
4Ø 5 x 12 mm Screw
5Bracket Insert
6Bracket Head
7Ø 8 x 26 mm screw
8Cap
9Product
1
2
3
4
5
678
9

EN
SYGMA ELECTRIC TOWEL RAIL
11
4. SCREEN & KEYPAD
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
OPEN WINDOWS function - active ANTI-FROST mode - active
Heating element - active AUTOMATIC function - active
COMFORT mode - active MANUAL function .- active
ECO mode - active Control panel locked through keypad
5. FUNCTIONALITY AND PROGRAMMING
5.1. POWER ON AND OFF (STANDBY)
To switch the product on, please press the button once. After 5 seconds the temperature,
time and days of the week will be show on the display panel. To switch the product off,
please press the button again once. The product will go into stand-by mode with the
word ‘STAND-BY’ displayed on the display panel.
On / Off button
Accept / Conrm button
Increase temperature button /
Move right button
2 Hour BOOST function /
Move upwards button
Programming
Time of day
Days of the week
Temperature selected
Control panel locked
through keypad
MANUAL /
AUTOMATIC function
indicator
Heating element
active indicator
OPEN WINDOWS function
indicator
MANUAL / AUTOMATIC button
Move downwards button
Decrease temperature button
Move left button
COMFORT / ECO / AN-
TI-FROST mode indicator

12
5.2. ADJUST THE DAY & TIME
To adjust the day and time, please ensure you are in MANUAL function (see section 5.7.)
Then press and hold the button on the keypad for 3 seconds. Use the buttons and
to set the hour, then press to conrm. Then use the and buttons to set the
minutes and press to conrm. Finally, use the and buttons to set the day (1 =
Monday, 2 = Tuesday etc.) and conrm by pressing the button. You will then return to
the main display panel.
5.3. ADJUST TEMPERATURE
To change the temperature, please press the or the button. To decrease the
temperature press the button and to increase the temperature press the button.
When the room temperature is lower than the set temperature on the display panel, the
product will come on with the symbol appearing in the top right of the display panel.
5.4. LOCK THE CONTROL PANEL
To lock the keypad manually, please hold and press the button AND the button
TOGETHER for 3 seconds. The symbol will appear on the display panel and the keys will
not respond. To unlock the keypad manually, please hold and press the button AND the
button TOGETHER for 3 seconds.
5.5. ADJUST THE DISPLAY PANEL BRIGHTNESS
To change the brightness of the display panel you must be in MANUAL function. Press and
hold the button for 3 seconds. Then with the buttons and you can switch
between the two options for the display panel brightness.
With the buttons and you can increase or decrease the brightness as you wish. The
cursor indicates the intensity of the light. Once you have set the required brightness do not
touch any buttons on the keypad for 10 seconds and you will return to the main display.

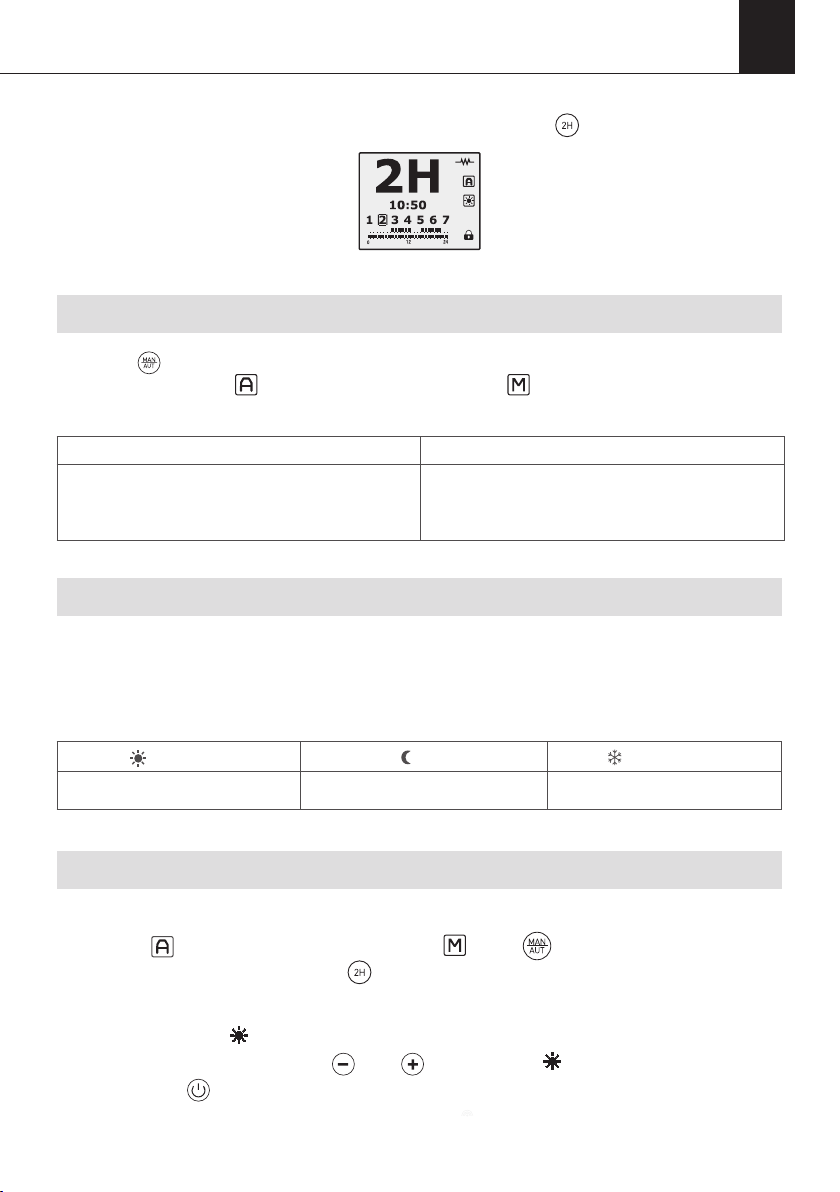

5.6. TWO HOUR BOOST FUNCTION
The two hour BOOST mode will override any other set mode and will boost your product to
maximum power for a period of two hours. To set the BOOST mode, press the button

EN
SYGMA ELECTRIC TOWEL RAIL
13
on the keypad. To cancel the two hour boost mode, press the button again.
5.7. MANUAL/AUTOMATIC FUNCTIONS
Press the button to toggle between Manual and Automatic functions. The symbol for the
AUTOMATIC function and the symbol for the manual will appear on the main display.
MANUAL AUTOMATIC
This function allows you to change the product
between the COMFORT, ECO and ANTI-FROST
modes and to change the temperature.
This function will activate the programming that
has previously been set in the product.
5.7.1. MANUAL FUNCTION
This function allows you to vary the temperature by switching the product modes between
COMFORT, ECO and anti-freeze. The icons for COMFORT, ECO and ANTI-FROST will appear
when the temperature changes to the above ranges. Depending on the selected temperature
you will see one of these symbols on the display:
COMFORT ECO ANTI-FROST
From 19ºC to 30ºC From 7.5ºC to 18.5ºC 7ºC
5.7.2. AUTOMATIC FUNCTION
To start programming, check that it is in the Automatic function, with the display showing
the symbol . If the display shows the symbol press to change function. Once in
Automatic function, press and hold for 3 seconds to enter in programming mode.
STEP 1- Select the COMFORT mode temperature.
The CONFORT mode will be programmed rst. Select the COMFORT mode temperature
between 19ºC and 30ºC with the and buttons. The icon and temperature will
ash; press the icon to conrm.

14
STEP 2 - Select the ECO mode temperature
The ECO mode will be programmed later. Use the and burtton to vary the
temperature within the range between 15ºC and 19.5ºC. The icon and the temperature
will start ashing; once you are satised with the selection, press to conrm.
STEP 3 - Select the days
The days of the week will start ashing on the display panel and will show DAY 1, DAY 2, DAY
3, etc. Use the and buttons to scroll forward or backward through the days. Press
to select the day(s) you wish to include in your AUTOMATIC programme. The day will
stop ashing once selected. Repeat all the days you wish to program with the same settings
and once all the days are selected press the button (while on day 7) to scroll to the time
setting.
STEP 4 - Select the hours
Once you have completed step 3, you will see the time on the screen in 24 hour format
(midnight is 0h, 1h, 2h...). Move through the hours using or to change them as you
wish. Use the button to chenge between CONFORT , ECO and ANTI-FROST modes
for the time you wish to change, for all the days selected in step 3.
The corresponding icon for that mode will appear at the top of the screen; repeat the process
of selecting the mode with the each time you need it.
Once programming is complete, press the button to end, or simply do not press any keys
for 30 seconds. To change the programming again go back to step 1 and proceed as
described above.
* If you want different schedules on different days within your programme, you will have to
modify each day or group of days separately, starting from the main menu again for each day
/ days. Follow steps 1 to 4 above to program several different days / times / temperatures.
5.8. OPEN WINDOWS FUNCTION
This function is activated when the temperature read by the sensor detects a drop of 4ºC
with respect to the setpoint temperature within 30 minutes. When this function is activated,
the following image appears on the screen of the towel rail for 5 seconds:
Once the Open Windows function has been activated, a screen will appear indicating that
the anti-freeze mode is active with this icon at the bottom .
The mode will be active for 2 hours. During this period, if the key is pressed, the towel
rail will switch off. Pressing , it again will switch the towel rail on, without the Open

EN
SYGMA ELECTRIC TOWEL RAIL
15
windows function active. At the end of a period of two hours without pressing any key, the
towel rail will automatically return to the previous state.
6. MAINTENANCE & CLEANING
The product does not require any maintenance. We recommend cleaning the product (back,
bottom of the product, etc.). Do not use abrasive substances on the product, clean it with
a damp cloth and neutral pH soap and the screen with a dry cloth. Before carrying out any
cleaning operation, make sure that the product is switched off and at room temperature.
7. EUROPEAN REGULATION (WEEE) 2012/19/EU
Based on the European regulation 2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE), these appliances cannot be thrown in the usual council bins; they must be collected
selectively to optimise the recovery and recycling of the components and materials that
make them up, and reduce the impact on human health and the environment. The crossed-
out wheelie bin symbol on a horizontal bar is marked on all ROINTE products to remind the
consumer of the obligation to separate them for separate collection. The consumer should
contact the local authority or the retailer for information regarding the correct disposal of
their product.
8. GUARANTEE
1. Agreement
1.1. This section describes the guarantee conditions available to the buyer when
purchasing a new product of the Rointe brand. These conditions include all the rights
that the buyer has in accordance with current national legislation, as well as the
guarantee and additional rights offered by the brand. Any incident detected in your
Rointe product can be dealt with by the seller of the product or in a more agile way
through the manufacturer itself.
1.2. Rointe offers you Technical Assistance from our After-Sales Service by telephone at
[phone] or email to [email protected], where we will indicate the steps
to follow to solve the incident. You will need the product reference (located on the metal
characteristics label), serial number, date of purchase and the nature of the fault when
contacting us. In addition, you must have a copy of the proof of purchase of the product.
1.3. ROINTE guarantees there are no material defects of design or manufacture at the
time of original purchase. ROINTE guarantees the body for 120 months (10 years) and
the electrical plus electronic components for 36 months (3 years) for this product only,

16
from the date of purchase, or delivery if later, provided it has not been modied, and in
accordance with the provisions of the following stipulations.
2. Conditions
2.1. If during the guarantee period, the product under normal use, and with proper
maintenance, fails to function properly and is found to be defective in design, material,
or workmanship, it will be repaired or replaced at the customer’s option, in accordance
with the provisions of the law, and subject to the following terms and conditions:
2.1.1. The guarantee is only applicable if the original guarantee is issued by the
seller and when such guarantee has been registered with Rointe correctly, including
the product reference, serial number (marked on the metal label of the product),
date of purchase and proof of purchase. The product guarantee can be registered
on our website at www.rointe.co.uk or can be emailed to [email protected]
within 90 days of installation. ROINTE reserves the right to refuse a guarantee when
this information has been removed or modied after the original product purchase.
2.1.2. The guarantee is only applicable if the product has been installed by a
competent person in accordance with this installation manual and all regulations in
force at the time of installation.
2.1.3. The guarantee is only applicable to those cases that refer to defects in
material, design and manufacture, and in no case covers damage to the product for
the following reasons:
i) Damage caused by negligence and/or misuse of the product, i.e. used for
purposes other than its normal use, or by not respecting the instructions for use,
maintenance and cleaning given by ROINTE, as well as by incorrect or inadequate
installation or use of the product that may not comply with the technical safety
standards in force.
ii) Corrosion of any part of the product caused by direct exposure to saltwater.
Where the product is installed within 200 m of the coast, the guarantee period for
damage caused by corrosion shall be reduced by 50%.
iii) Any unauthorised modications or repairs to the product carried out by third
parties or unauthorised persons, or the opening of the product by third parties or
unauthorised persons.
iv) Any accident deemed to be beyond ROINTE’s control, such as (but not limited to):
lightning, re, ood, natural disasters, public disorder, atmospheric or geological
SYGMA
STI030SEB3
300 W
SERIAL NUMBER
44

EN
SYGMA ELECTRIC TOWEL RAIL
17
phenomena, and all those of a similar nature.
v) Failures resulting from incorrect installation. In case of doubt, please contact
ROINTE.
2.2. Any repair or replacement carried out as part of this guarantee service does not
allow for extension periods or new guarantee periods, i.e. your guarantee will not be
extended in the event that a repair or replacement of this product is carried out, but will
be suspended until the product is returned repaired or a new one is delivered.
2.3. Any repair or replacement covered by this guarantee must be a functionally
equivalent part. Defective parts or parts removed or replaced shall become the property
of ROINTE and must be returned as such.
2.4. The product must be installed in such a way as to allow access by ROINTE
technicians or authorised persons in the event that they need to access the product for
repair or maintenance. The user/customer is responsible for the organisational means
necessary to allow access to the products by ROINTE for repair or replacement.
2.5. ROINTE’s Technical Support department will advise you if you need to purchase any
parts not covered by this guarantee or outside of this guarantee.
2.6. This guarantee will not be valid if the product has been tampered with, modied
and/or repaired in any way and/or by unauthorised persons. This guarantee will also not
be valid if the product is not correctly installed.
2.7. This guarantee is not transferable and does not include claims for limescale or frost
damage.
2.8. This guarantee does not affect the purchaser’s statutory rights under applicable
national legislation, nor does it affect any rights contracted with the dealer or installer
that may arise in performance of the contract of sale.
2.9. ROINTE, its oces, employees, distributors and installers shall not be liable for any
incidental damages arising from the infringement of any rule implied in this product, as
well as for its improper or incorrect use.
2.10. Check the EULA conditions (supplied with the product for Wi-Fi connected
products) for information on the legal agreement you accept when installing a ROINTE
product. For product or guarantee assistance, please contact ROINTE by telephone at
[phone] or by email to [email protected].

18
9. HOW TO REGISTER YOUR PRODUCT GUARANTEE
IMPORTANT: It is important that you register your ROINTE product as part of our guarantee
service, in case you wish to make a claim.
You can register your ROINTE product in the following ways:
WEB
1. Go to https://rointe.com/uk/register-your-guarantee/
2. Log in to your existing account or create a new account if necessary.
3. Click on “My products”.
4. Enter your product reference (alphanumeric and in capital letters).
5. Enter your serial number (26 digits located on the metal tag of your product starting with 84).
6. Upload your proof of purchase, such as your invoice in PDF, JPEG or PNG format. This is not
mandatory, but doing so ensures that your warranty period is accurate.
7. Click on “Register”.
8. Congratulations! Your product is now registered.
EMAIL
1. Send an email to [email protected] with the following information:
• Customer name
• Address and postcode
• Telephone number and email address
• Product reference
• Serial number
• The date of purchase of the product and proof of purchase (as described in the WEBSITE
section above).
• Our technical support team will conrm product registration and request any additional
information needed by email.
POSTAL
1. Send the information listed in the EMAIL section to:
• INDUSTRIAS ROYAL TERMIC, S.L. - Rointe, C/E Parcela 43, 30140, Santomera (ESPAÑA).
2. Please ensure you obtain proof of postage.

ES
SYGMA SECATOALLAS DIGITAL
19
SÍMBOLOS
PELIGRO. Este símbolo indica un peligro con un riesgo medio elevado el cual, si
no se evita, puede resultar en una lesión seria o incluso la muerte.
SUPERFICIE CALIENTE. Este símbolo indica que sus supercies están calientes
durante e inmediatamente después de su uso. Estas no deben ser tocadas:
peligro de quemaduras.
OBSERVE LAS INSTRUCCIONES EN EL MANUAL. Por favor, lea cuidadosamente
el manual antes de instalar y utilizar el producto. Guárdelo para su uso posterior.
Lea todas las instrucciones y advertencias de seguridad. Un fallo en el seguimiento
de estas puede resultar en una descarga eléctrica, incendio, así como heridas
graves.

20
ÍNDICE
1. Advertencias generales ...............................................................................................21
2. Información técnica .....................................................................................................24
3. Instalación ....................................................................................................................25
4. Teclado y pantalla ........................................................................................................28
5. Funcionalidad y programación ...................................................................................28
5.1. Encendido y apagado............................................................................................28
5.2. Ajustar día y hora...................................................................................................29
5.3.Selección de temperatura......................................................................................29
5.4. Bloqueo del panel de control ................................................................................29
5.5. Ajustar la iluminación de la pantalla ....................................................................29
5.6. Función BOOST de 2 horas ...................................................................................29
5.7. Funciones manual / automático...........................................................................30
5.7.1. Función manual................................................................................................30
5.7.2. Función automático ........................................................................................30
5.8. Función ventanas abiertas....................................................................................31
6. Mantenimiento y limpieza ...........................................................................................32
7. Normativa Europea (RAEE) 2012/19/UE ....................................................................32
8. Garantía .........................................................................................................................32
9. Cómo registrar la garantía de su producto ................................................................35
Directiva ERP Reglamento de la Comisión .....................................................................70
Declaración UE de conformidad ......................................................................................71
