INSTRUCTION MANUAL
KYROS DIGITAL
ELECTRONIC RADIATOR
Mounting, installation, starting and operation
EN
KYROS

2
Thank you very much for choosing Rointe heating. Before using the
low consumption KYROS digital electric radiators, we recommend
you to read this instruction manual in order to ensure correct
operation.
Thank you.

3
TABLE OF CONTENTS
1. DESCRIPTION OF THE “KYROS” RADIATOR .........................4
1.1. Front panel description .......................................................4
1.2. Switching On & Off (stand-by) ............................................7
1.3. Temperature selection.........................................................8
1.4. Locking the control panel....................................................8
1.5. Setting the day and time .....................................................9
1.6. Main menu ........................................................................10
1.7. Open windows function.....................................................24
1.8. FUZZY LOGIC ENERGY CONTROL function .....................25
2. INSTALLATION & MOUNTING.......................................................25
2.1. Mounting ................................................................................. 25
2.2. Fixing the supports ..................................................................... 27
3. MAINTENANCE & CLEANING................................................28
4. INSTALLATION & SAFETY PRECAUTIONS (EN-60335
STANDARDS) ..............................................................................28
4.1. Installation precautions ....................................................29
4.2. Safety precautions............................................................29
5. GUARANTEE ..........................................................................30
6. KYROS RADIATORS TECHNICAL CHARACTERISTICS............35

4

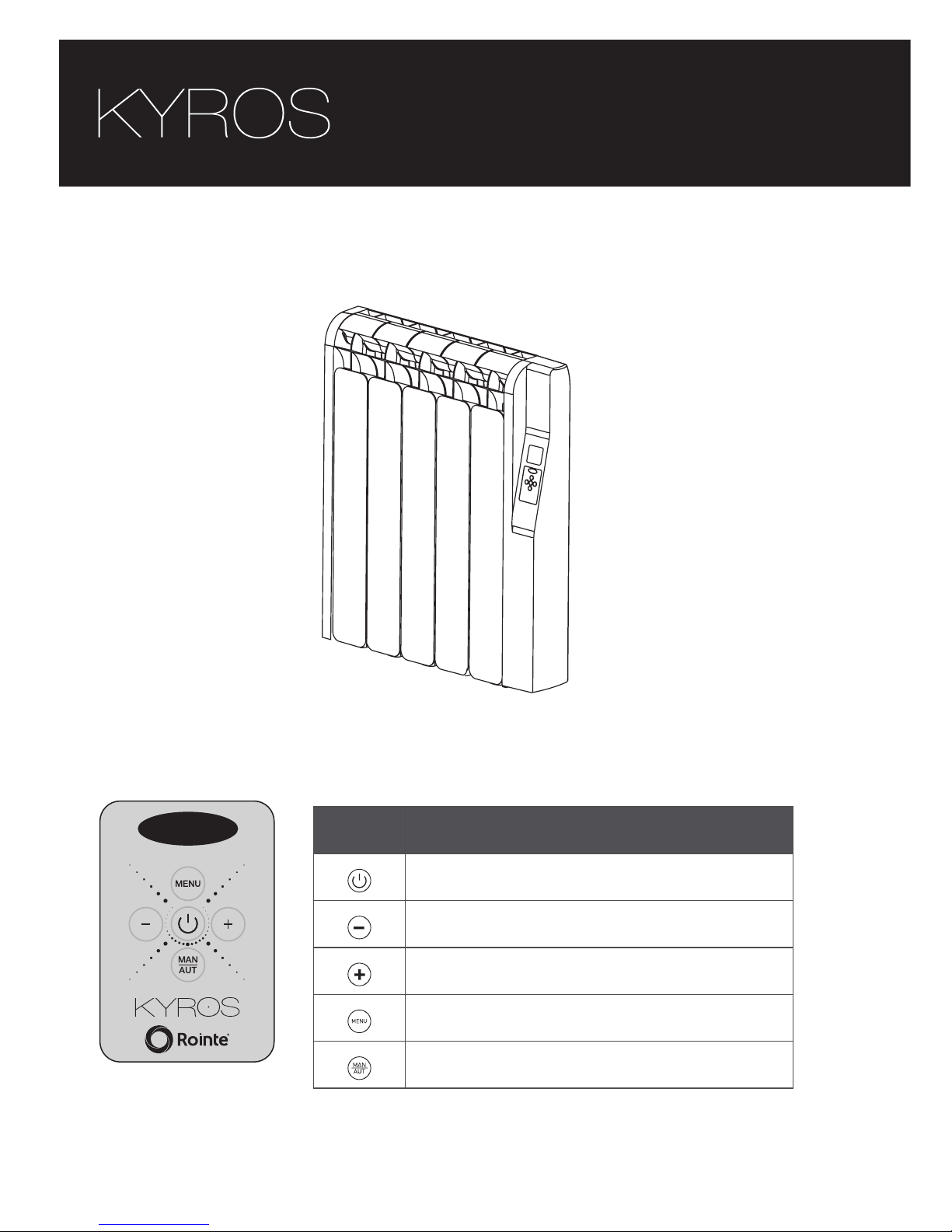

1. DESCRIPTION OF THE “KYROS ” RADIATOR
1.1. Front panel description.
ICON INDICATION
On / Off - Accept
Decrease temperature - Move left
Increase temperature - Move right
Access/Back to menu - Move up
Manual / Automatic - Move down

5

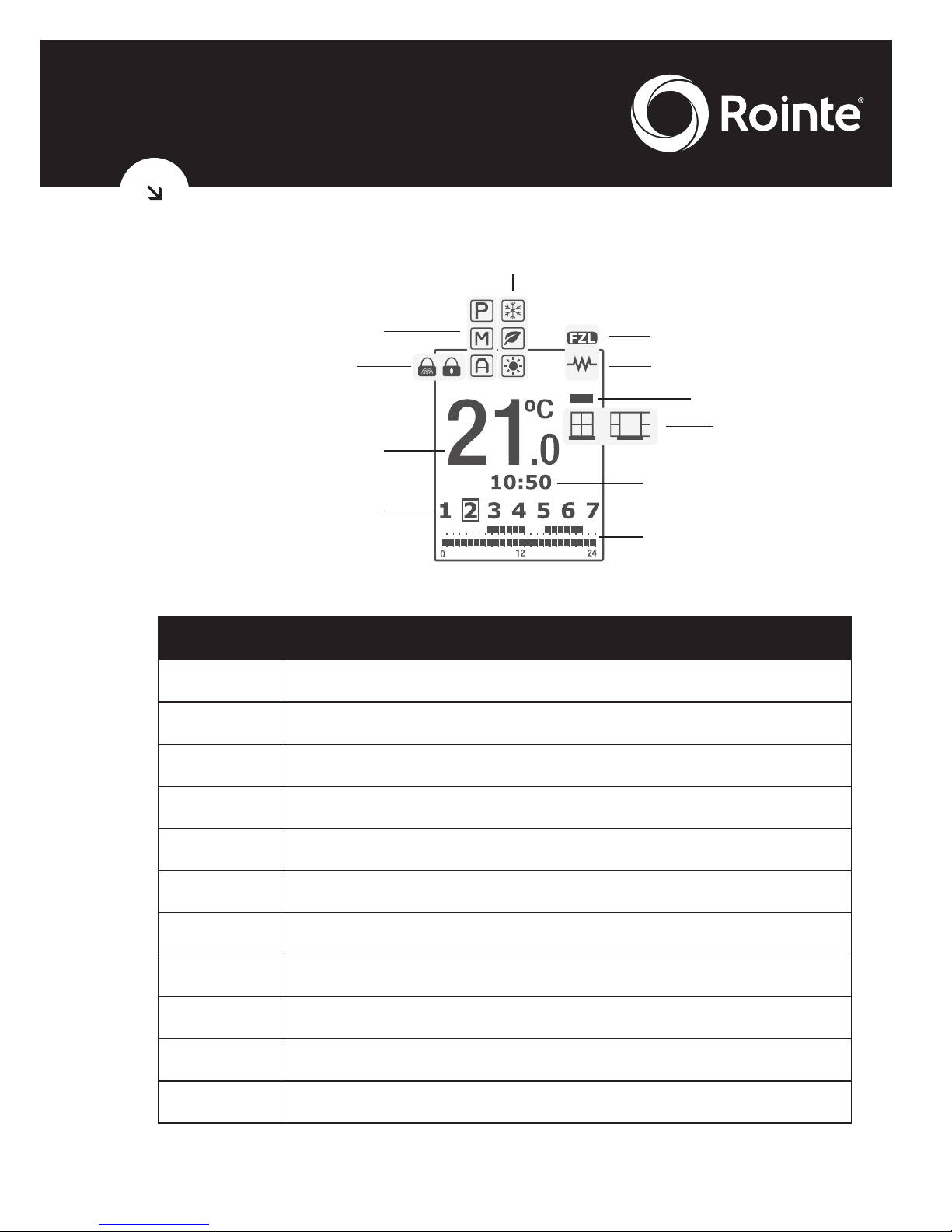

SEGMENT INDICATION
1Programming
2Days Of The Week
3Time Of Day
4Temperature Selected
5Locking The Control Panel
6Manual / Automatic Function / Pilot wire
7Comfort / Economy / Anti-Frost Mode
8Fuzzy Logic Energy Control Funct.
9Heater Element On
10 Consumption indicator
11 Open windows function
1
3
8
7
11
10
9
2
4
5
6

6

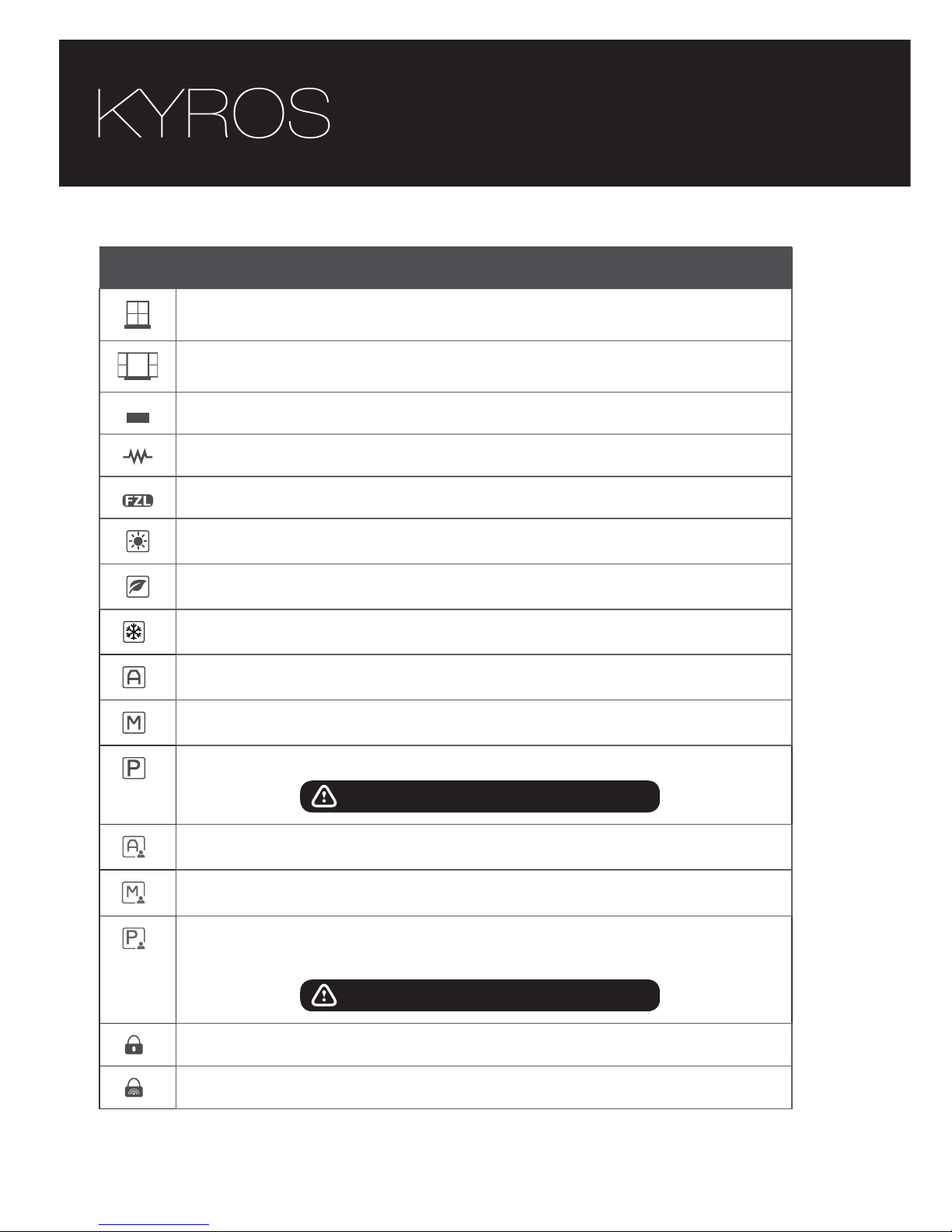

ICON INDICATION
Open windows function - enabled mode
Open windows function - active mode
Energy consumption indicator - green - yellow - red
Heating element on
Fuzzy Logic Energy Control working
Comfort mode on.
Eco mode on.
Anti-frost mode on.
Automatic function on.
Manual function on.
Pilot wire control function on.
Not available in Spain. Only upon demand
Automatic function on when USER function is working.
Manual function on when USER function is working.
Pilot wire control function on when
USER function is working.
Not available in Spain. Only upon demand
Locked through radiator control panel.
Remote lock. Locked through AIR remote control.

7

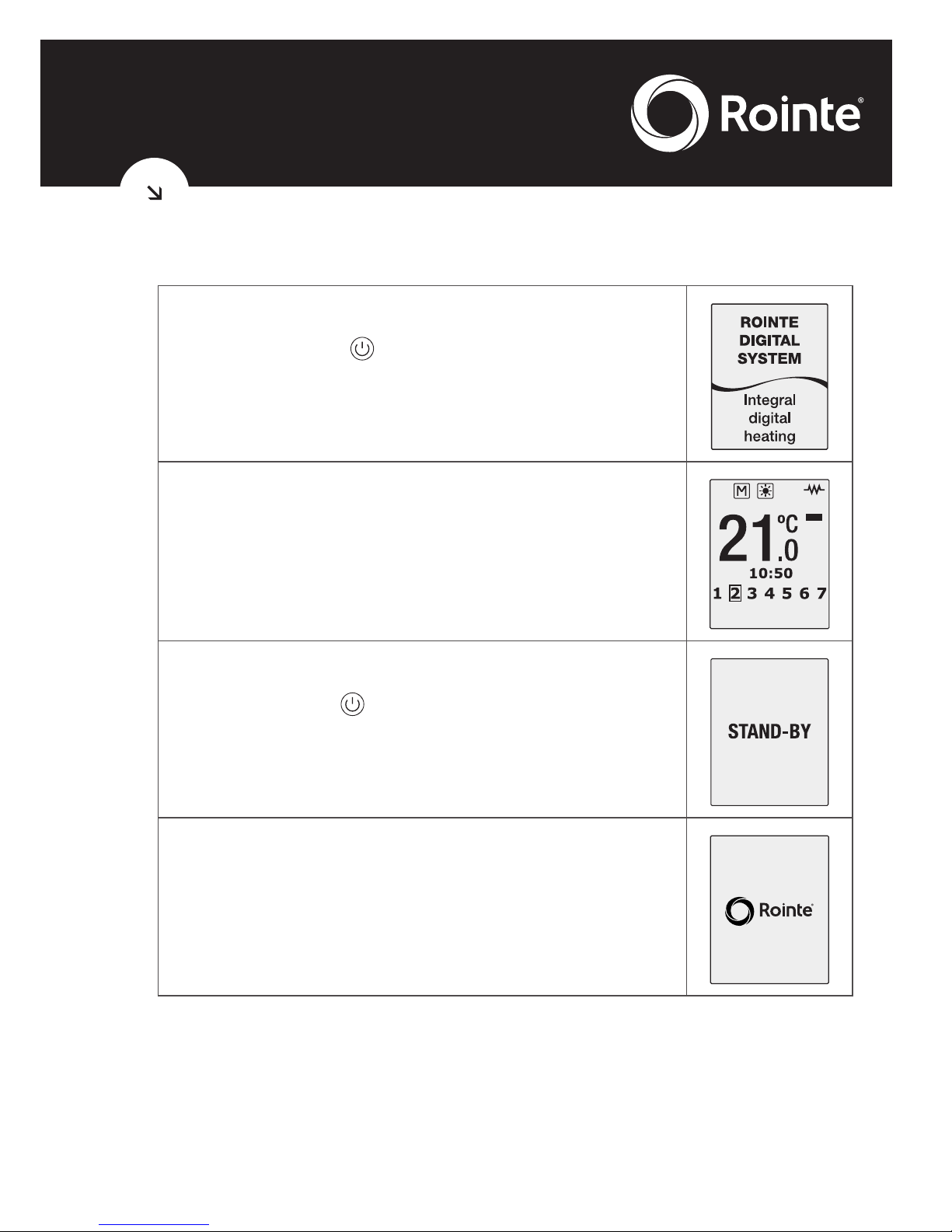

1.2. Switching On & Off (stand-by)
By pressing the key, you can switch the
radiator on. The following image will appear on
the screen when the radiator is switched on.
After 5 seconds, the temperature, time and
days of the week will be displayed on the main
screen.
By pushing the button again the radiator will
go into standby mode with the word ‘standby’
displayed.
After 5 seconds the Rointe logo will appear.

8

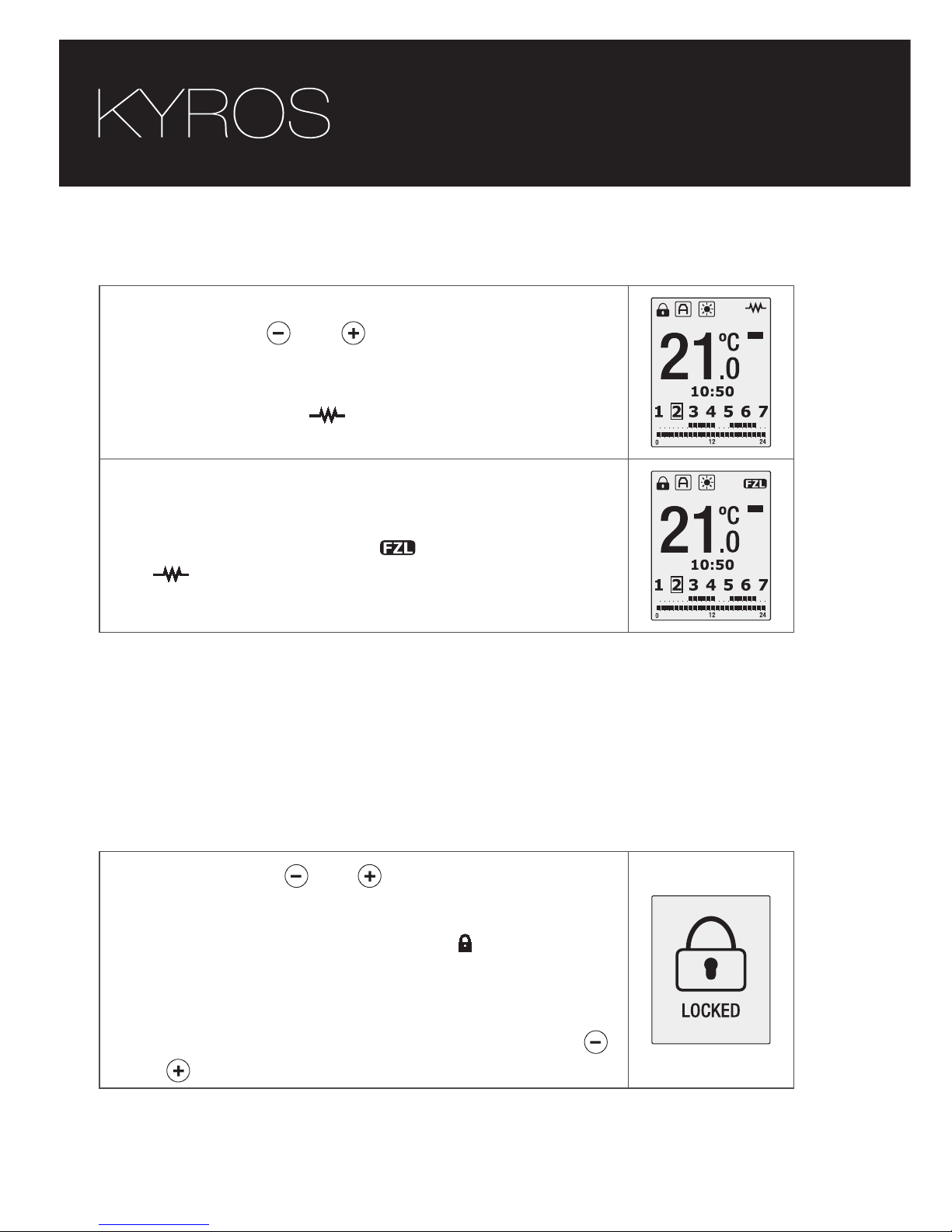

1.3. Temperature selection
By pressing or you can change the
temperature. When the room temperature is
lower than the set temperature the radiator will
come on with the symbol appearing.
When the Fuzzy Logic Enery control technology
is functioning this symbol will appear instead
of .
1.4. Locking the control panel
You can lock the control panel from the radiator or the AIR Control
remote (optional). Here we show how to do it from the control panel
of the product itself.
By pressing the and keys at the same time
for 3 seconds you can lock the control panel.
The locked control panel symbol appears and
the keys will not respond.
The following symbol will appear on the screen
if any button is pushed. To unlock, press the
and buttons together for 3 seconds.

9

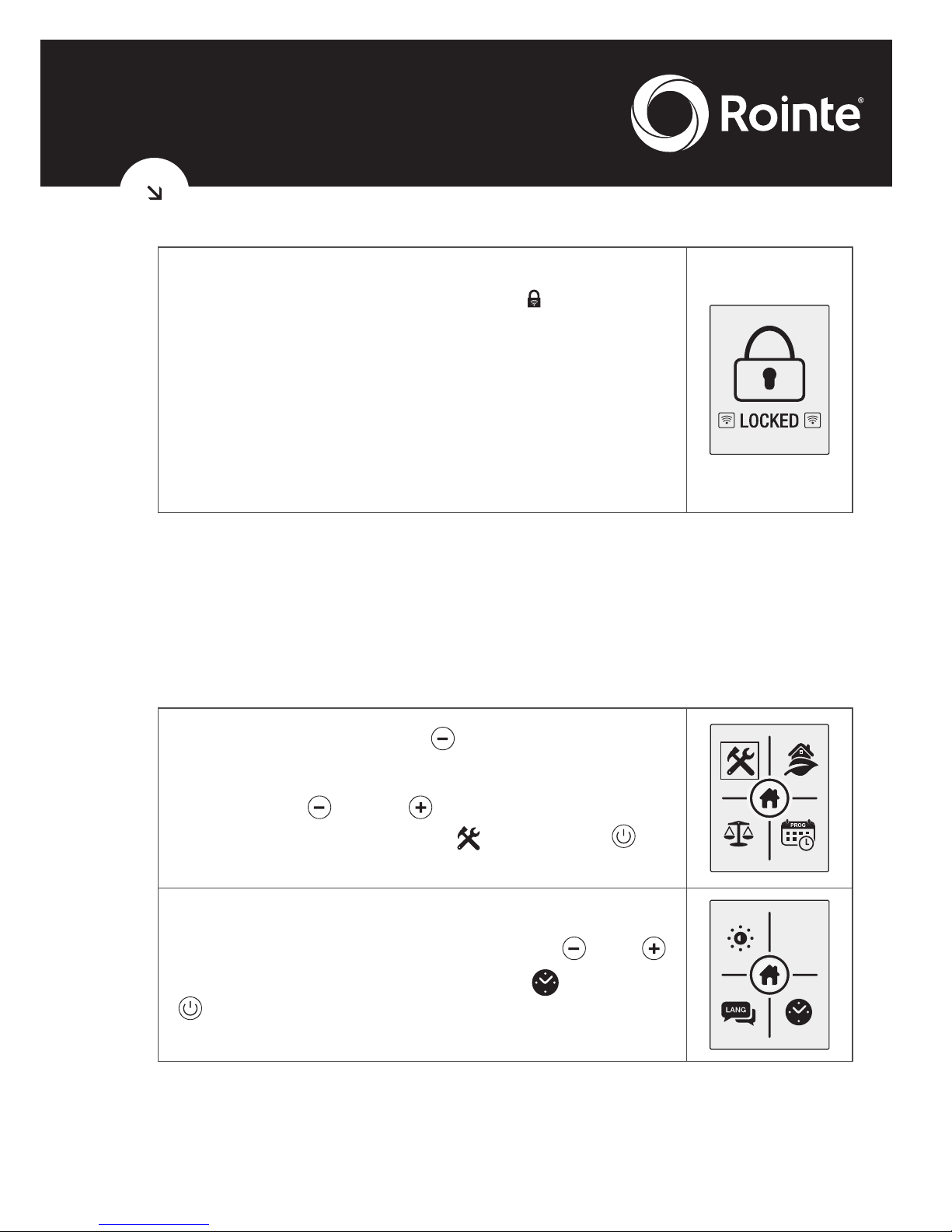

When the radiator is locked from the AIR Control
remote, the remote keypad lock will appear
on the screen.
If any button is pressed, the image on the right
will be displayed.
When the keypad has been locked remotely,
it can only be unlocked remotely via the AIR
Control remote.
1.5. Setting the day and time
You can set the time on the radiator from the control panel of the
product itself. Here we show how to do it from the control panel of
the product itself.
Press the menu button to access the main
menu.
Using the and buttons select the
configuration sub-menu and press to
access.
In the configuration menu use the and
buttons to select the clock option and press
to access.
Clear
Memory

10

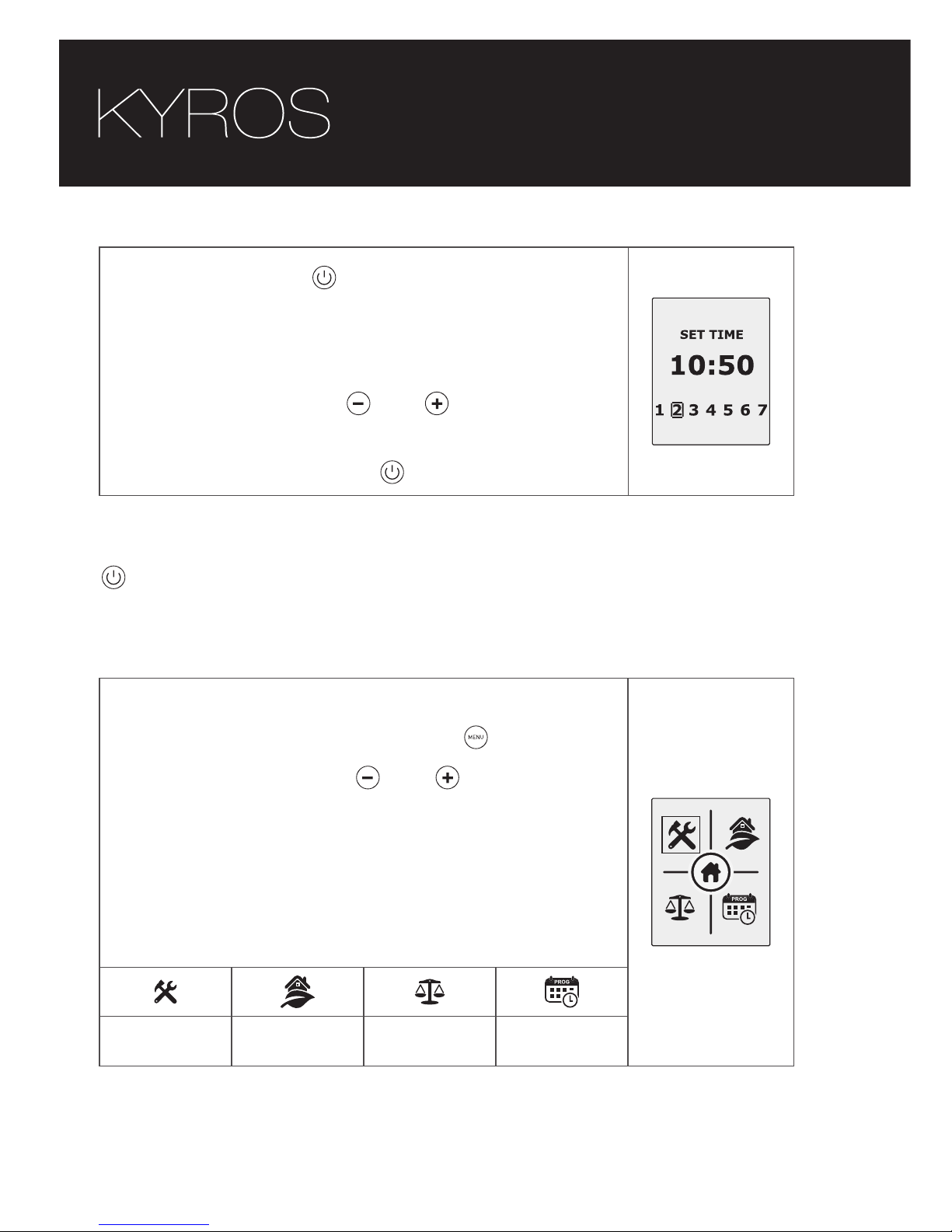

Press the button , the hours, minutes and
days of the week will flash according to the
number of times it is pressed (1 for hours, 2 for
minutes and 3 for day of the week).
Pressing the buttons and , set the correct
time and day.
Confirm by pressing the button.
To leave the time and date adjust feature, wait 30 seconds or press
after the day of the week selection.
1.6. Main menu
The main menu of your Kyros radiator is
accessed by pressing the menu button.
Pressing the buttons and , we can move
across the different options on the menu.
The selected submenu will be highlighted with
a frame.
The icons displayed on the following screen take
you to the following submenus.
Settings
submenu
Energy
submenu
Balance
function
Program
submenu

11

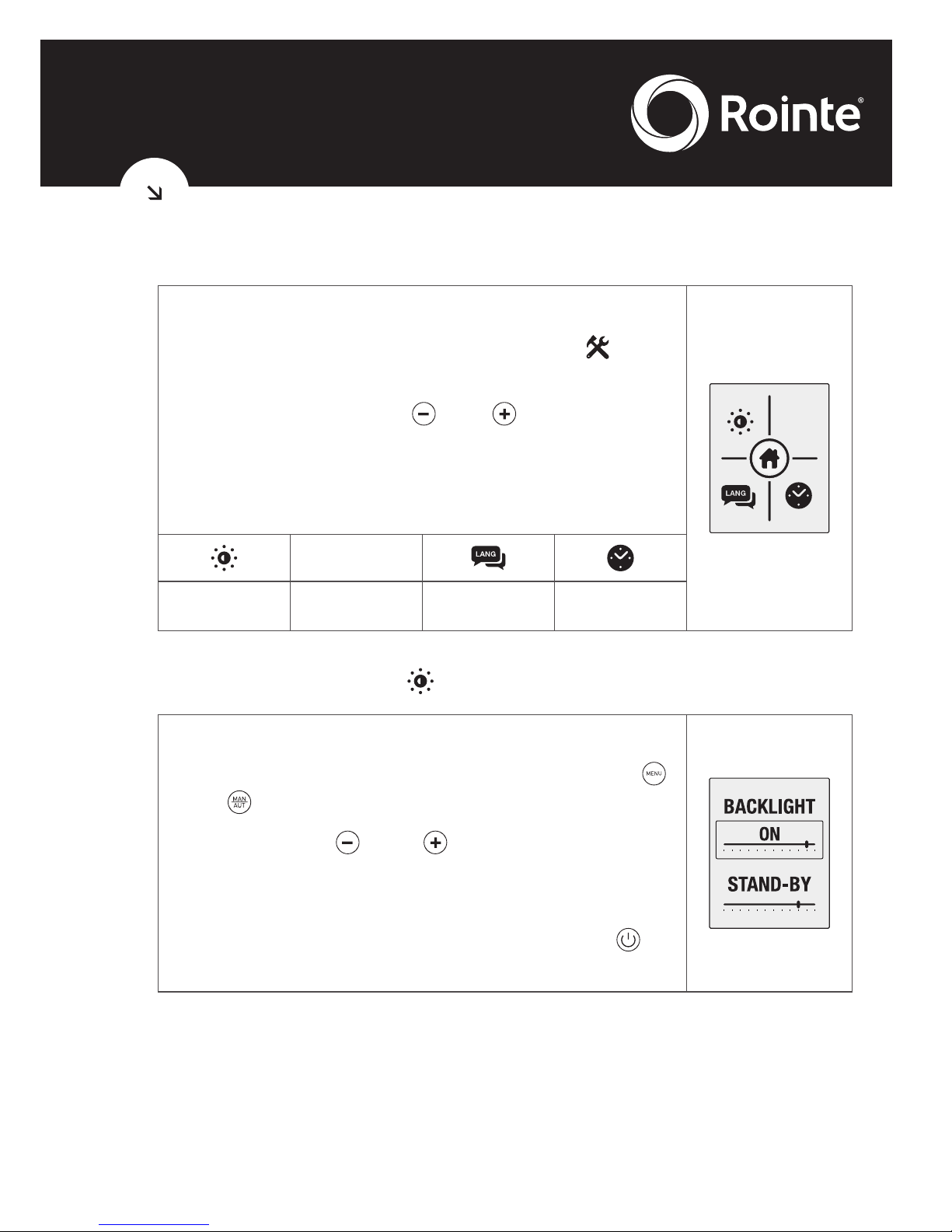

1.6.1. Settings submenu
The submenu settings configure technical
parameters. To access, select the icon
displayed in the main menu screen.
Pressing the buttons and , we can move
across the different options on the submenu.
The screen shown on the right appears. The
icons represent the following options:
Clear
Memory
Clear
Memory
Screen
backlight Clear memory Language Set time
• Screen brightness
This allows you to change the brightness in the
STAND-BY and ON modes. With the keys
and we can switch between the two options.
With the keys and we can increase or
decrease the brightness.
The cursor indicates the intensity of the light.
Having set the required parameters press to
exit.

12
• Clear memory Clear
Memory
This allows you to clear any information saved
in your radiator.
When you press this function, this image will
appear and the language will change to default.
MEMORIA
BORRADA
• Language
This sets the language you wish to use to
communicate with the product. With the keys
and select the language required and
confirm by pressing when the chosen
language is highlighted.
• Set time
This sets the hour, minutes and day of the week
in the product.
To set the time and day in your product refer to
section 1.5.

13

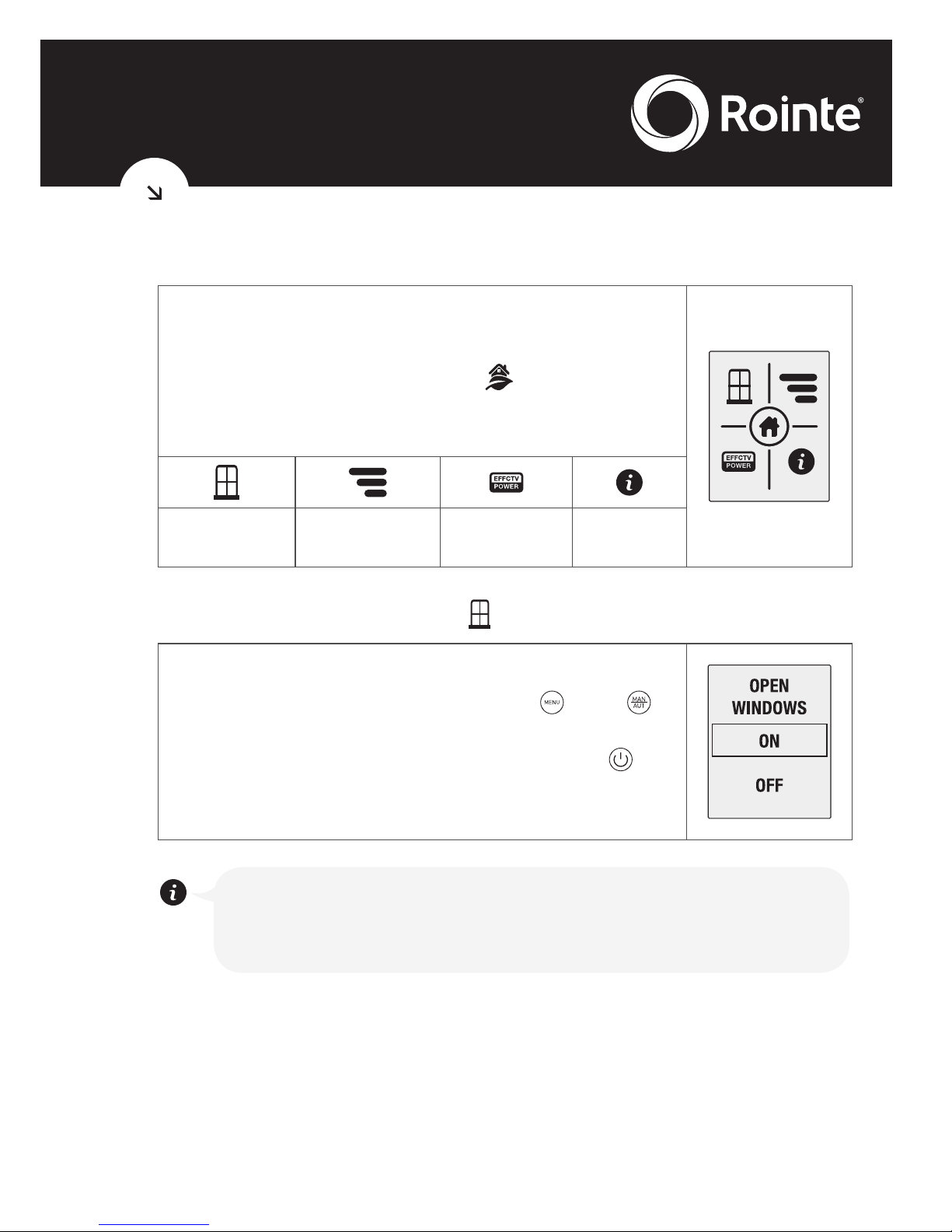

1.6.2. Energy submenu
The Energy submenu provides access to
functions related with the energy management.
Access by selecting the icon from the main
menu to enter the screen shown on the right. The
icons represent the following options:
Open windows
function
Consumption
status
Effective power
function Information
• Open windows function
Allows you to enable or disable the Open
windows function. With the keys and ,
select ON to activate or OFF to disable. Once
the desired option is selected press to
confirm and exit. To know how this function
works, please go to point 1.7.
This function activates the anti-frost mode to 7ºC when
the radiator temperature sensor reads a drop of at least
4ºC in 30 minutes.

14

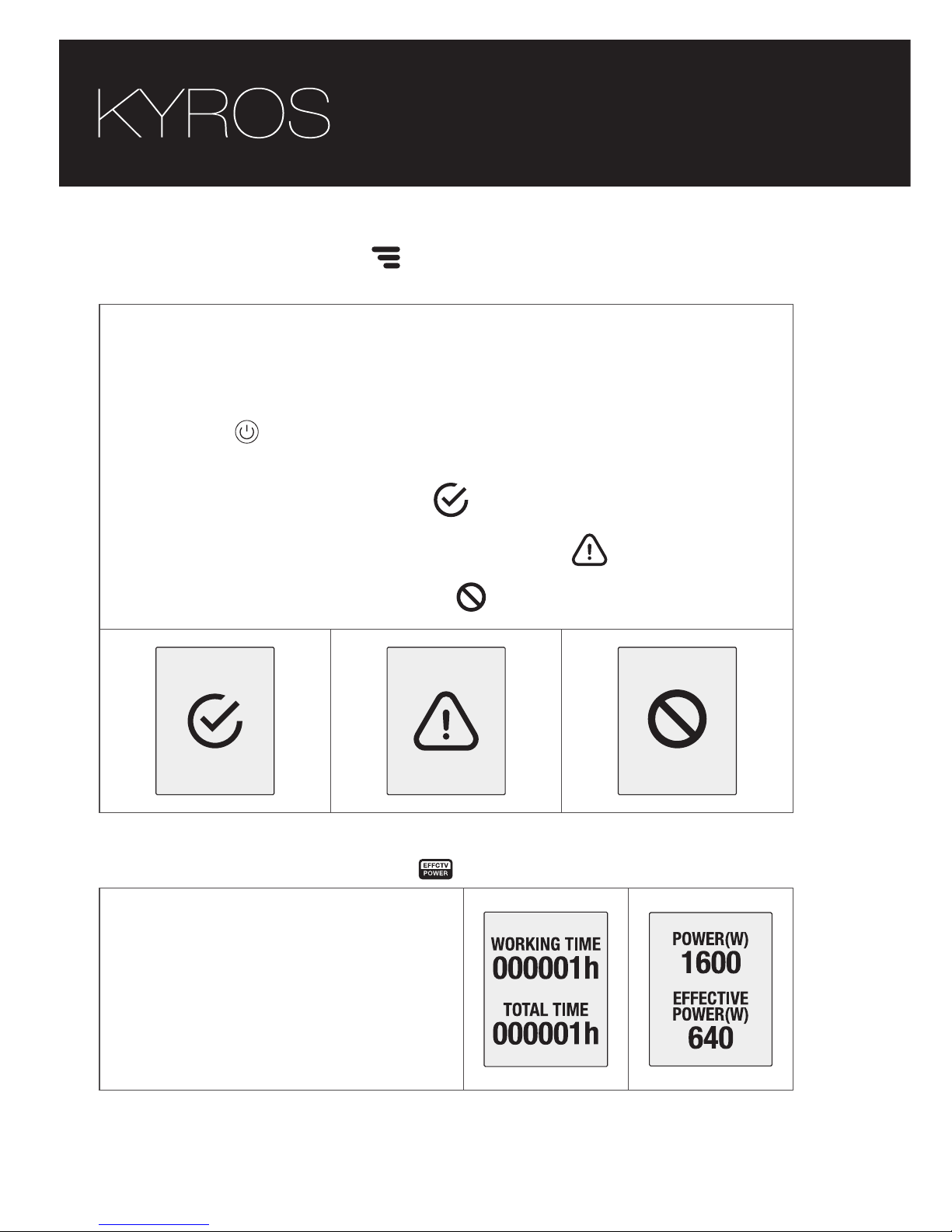

• Consumption status
This function displays a status consumption screen to alert the
user if the product works properly or there is an issue that makes
the product having a overconsumption.
When the key is pressed , appears one of the following
screens according to the state of consumption of the product.
Up to 40% of effective power
Between 40% and 60% of effective power
More than 60% effective power
OK
CONSUMPTION CONSUMPTION
CAUTION
CONSUMPTION
WARNING
• Effective power function
This function displays the
working and total time
connected and after 6 seconds,
the nominal and effective power
of the product.

15
The effective power is the actual value of its nominal power
that our product consumes during periods of operation.

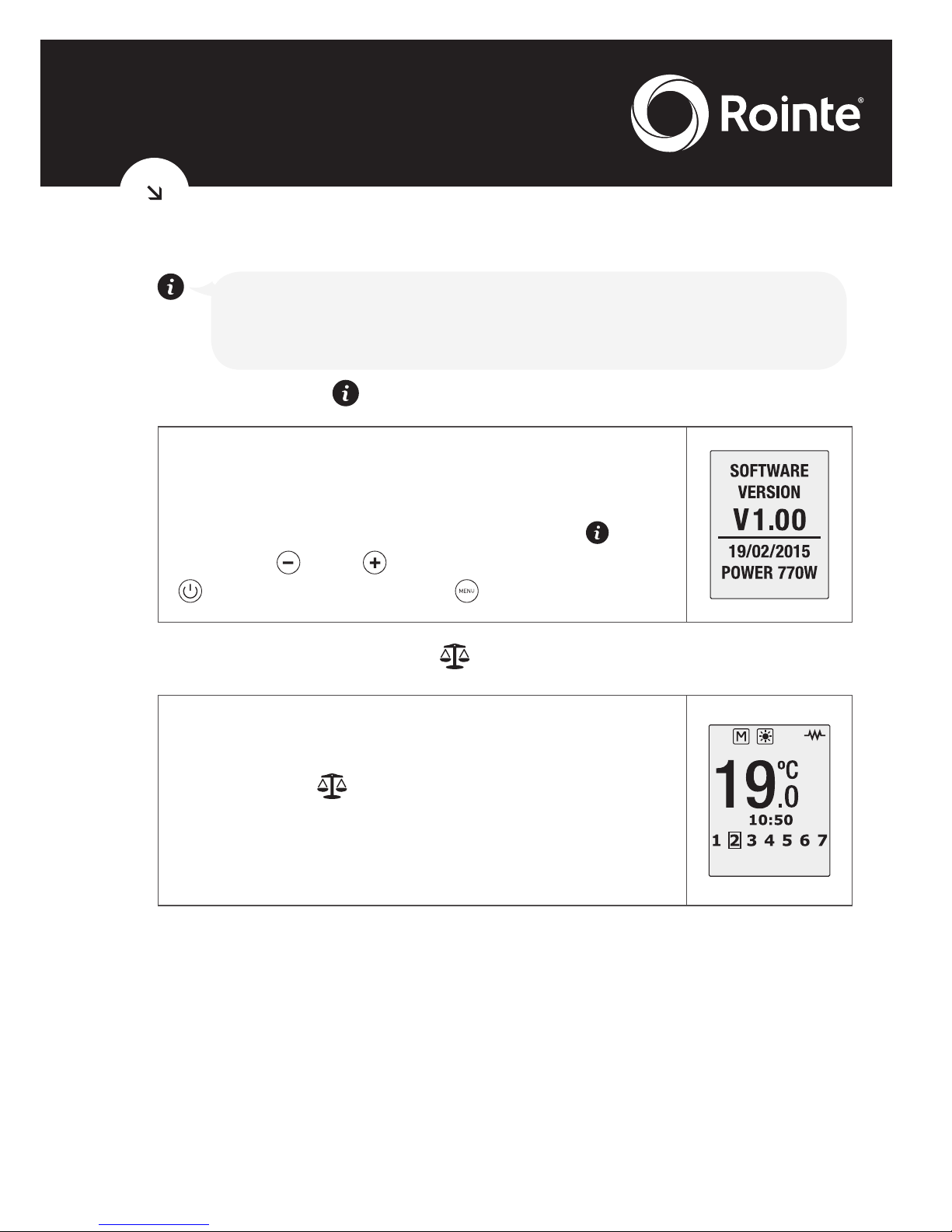

• Information
Displays the software version, the date of this
release and the rated power of the product.
To access, select the Information option using
the keys and and confirm pressing the
button. To leave press .
1.6.3. Balance submenu
The balance function returns the radiator to
a constant 19°C. Access this submenu by
selecting the from the main menu.
By pressing this option, the radiator will return
to the main screen in Manual function, with the
temperature set to 19ºC.

16
1.6.4. Program submenu
This section, explains the operational aspects of the radiator in
its various functions and modes.
What are the functions of Manual, Automatic and Pilot Wire
Control?
Manual function
This function, allows you to change between Comfort, Eco
and Anti-frost modes, and to change the temperature as
described in point 1.3.
Automatic function
This function activates the programming that has been
previously set in the radiator.
Pilot Wire function Not available in Spain. Only upon demand
This function allows the radiator to be controlled by a central
programmer.
¿What are Comfort, Eco and Anti-frost modes?
These modes are the different temperature ranges available
within the product.
Icon Mode Temperature range
Comfort From 19ºC to 30ºC
Eco From 7.5ºC to 18.5ºC
Anti-frost 7ºC

17

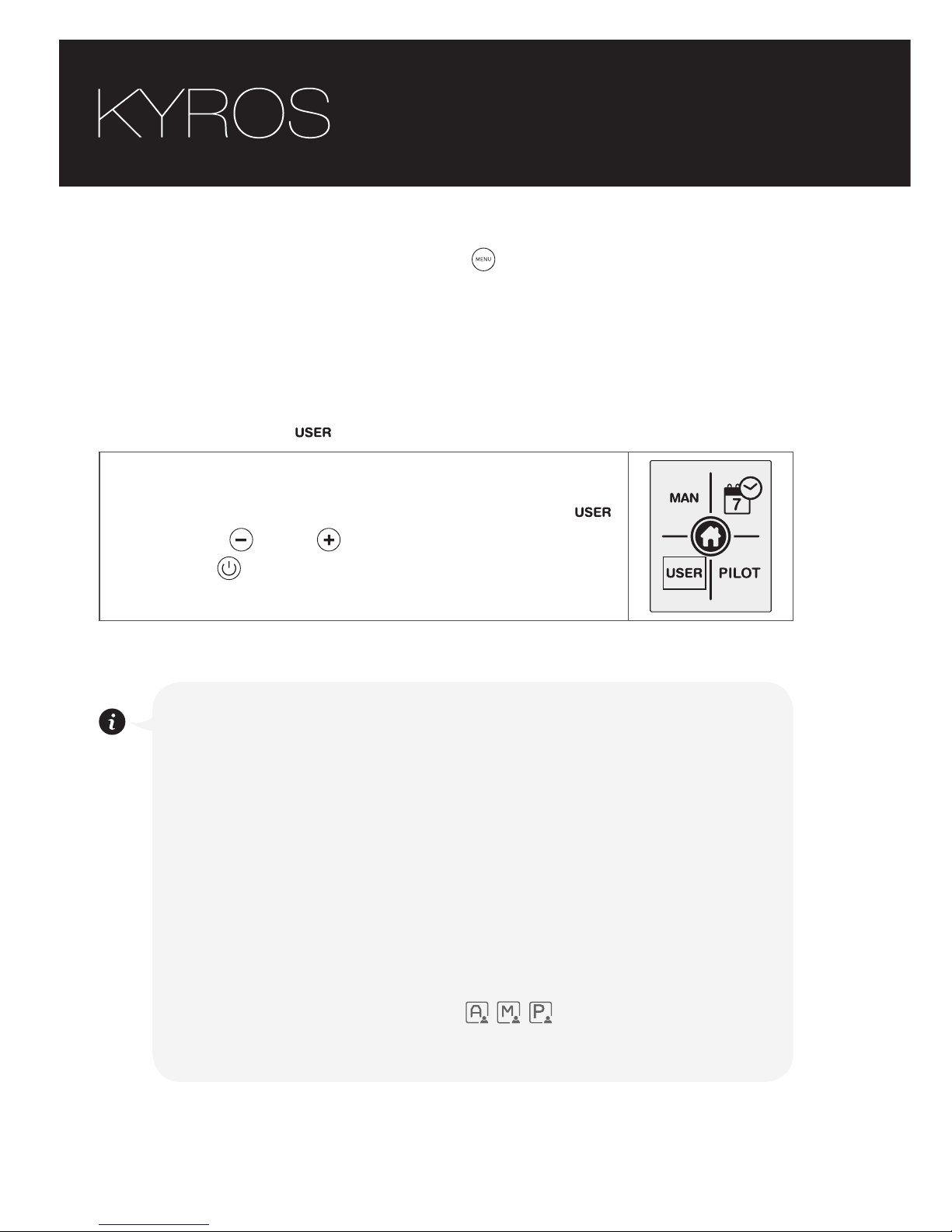

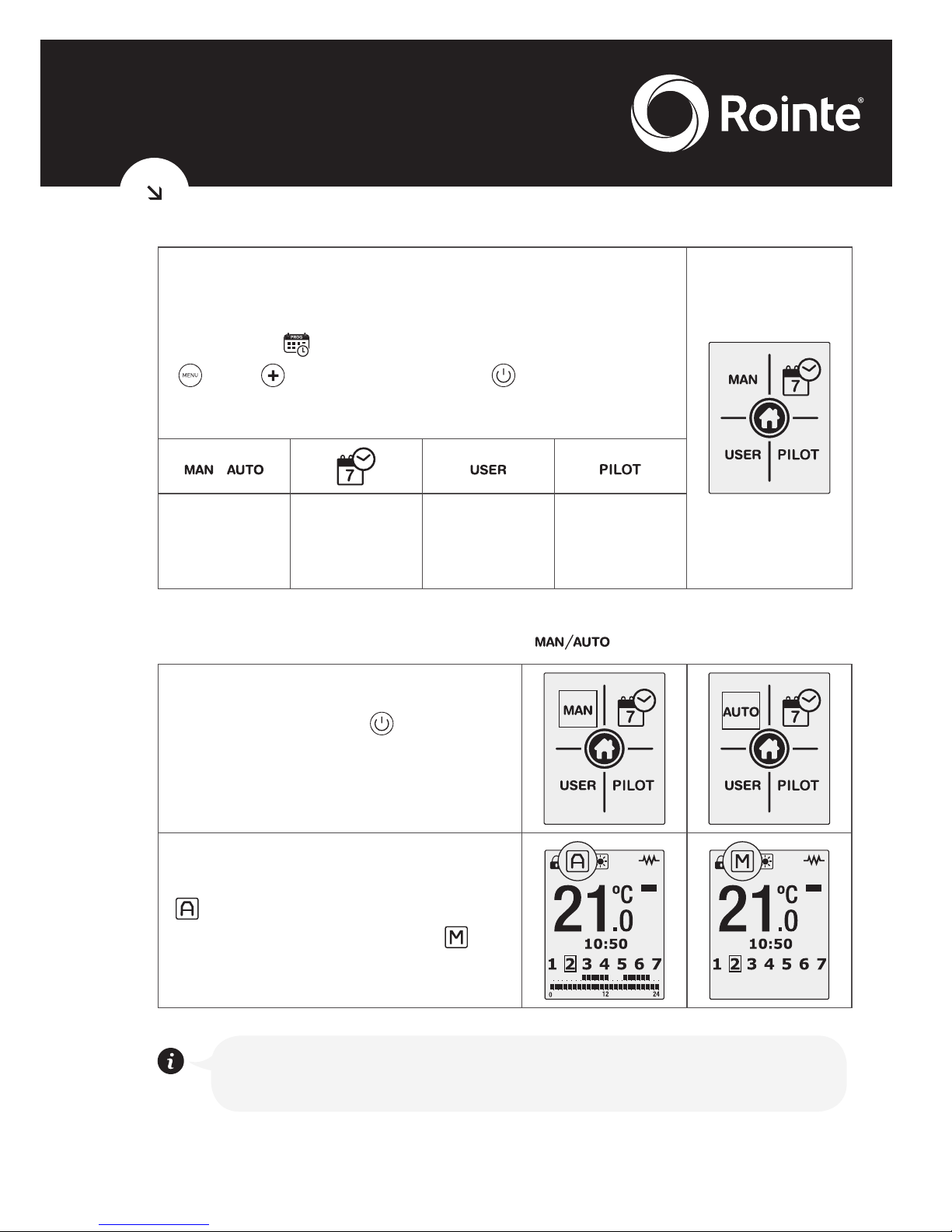

The submenu provides access to options related
to programming the radiator.
Select the from the main menu using the keys
and and press the key to enter.
The icons represent the following:
/
Manual /
Automatic
functions
Start
programming User function
Pilot wire
mode
(only upon
demand)
• Manual / Automatic functions
Press the button to switch
between manual and automatic
functions.
In the main screen the symbol
will appear for the Automatic
function and the symbol for
the Manual function.
The automatic function activates the programming you have
already established in the product.

18

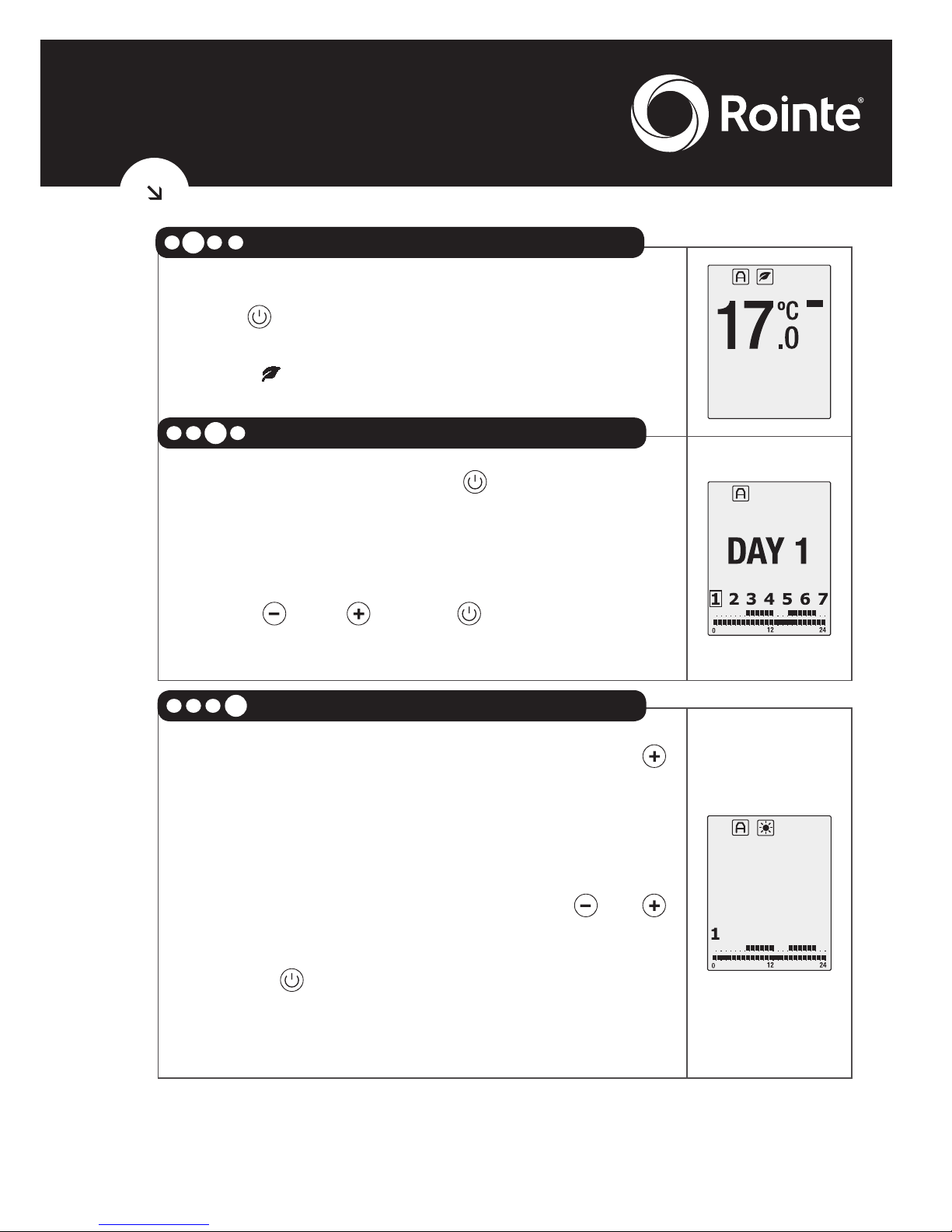

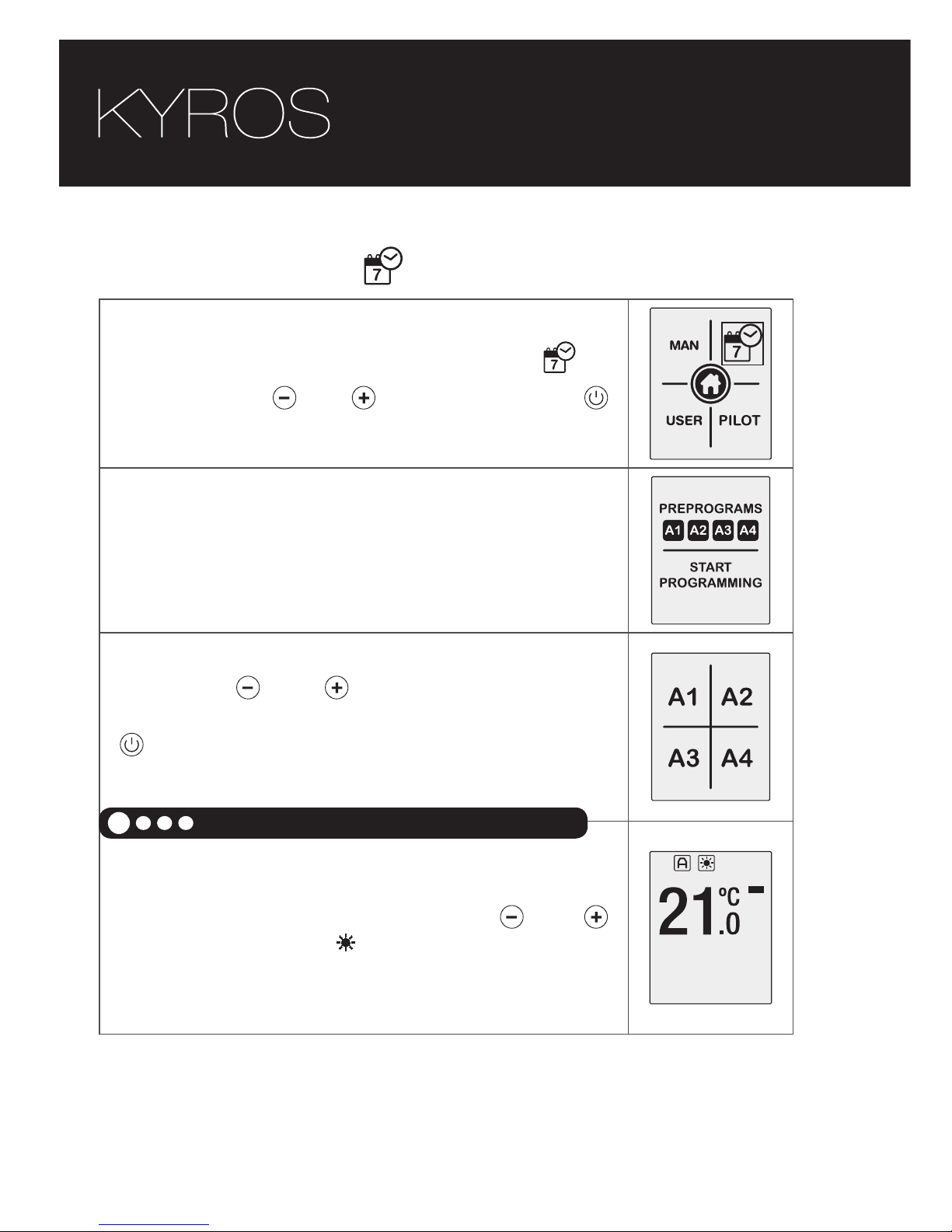

• Start programming
To start programming select the icon by
using the keys and and then press the
key.
We must be in AUTOMATIC MODE.
A screen for selecting one of the four initial
programming or self programming
With keys and is exchanged between
presets and programming custom home. With
confirmed with key and screen appears with
all 4 presets.
Select the COMFORT mode temperature
between 19ºC and 30ºC using the and
buttons. The symbol and the temperature will
flash.
Select COMFORT temperature
1

19
Press and proceed to the selection of the
Eco temperature between 7.5ºC and 18.5ºC. The
symbol and the temperature will flash.
After pressing the button once again, the
days of the week will start flashing and show as
DAY 1, DAY 2, DAY 3,...
We can go forwards and backwards using the
button and . Press to select the day
or days that you wish to program.
To access the hourly programming, press
until 0h appears on the main screen of the
radiator.
This is midnight.
To move through the hours use the or
buttons.
With the button, you can select between
Comfort, Eco and Anti-frost modes for every
hour.
12h
Select DAY
3
Set Mode to each HOUR
4
Select ECO temperature
2

20
To finish the programming press or leave it for 30 seconds
without pressing any buttons.
To change the programming, go back to point 1, and proceed as
described before.
• User function
To enter the User function, select the icon
using the and buttons and confirm by
pressing .
USER function
This allows you to establish a working temperature range
(i.e. a maximum temperature and a minimum temperature).
A 4 digit PIN code will allow you access to a menu: here
this feature can be enabled or disabled, your PIN code can
be changed and the parameters of the temperature range
can be set.
When this mode is enabled, one of the following icons will
appear on the main screen depending on which
mode it is currently in, Automatic, Manual or Pilot.
