PALAOS Digital vertical radiator / Radiador digital vertical / Radiador
digital vertical / Verticale digitale radiator
GUARANTEE / GARANTÍA
/ GARANTIA / GARANTIE
ON THE BODY
EN EL CUERPO
NO CORPO
IN HET LICHAAM
YEARS / AÑOS
/ ANOS / JAAR
YEARS / AÑOS
/ ANOS / JAAR
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA
IN ELEKTRONICA

EN
PALAOS VERTICAL DIGITAL RADIATOR
3
SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not
leave or place magazines, spray cans, volatile substances, or similar objects
within 250 mm of the radiator.
HOT SURFACE. This symbol indicates that your surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.

4
INDEX
1. General Warnings ..........................................................................................................5
2. Technical information ..................................................................................................8
3. Installation......................................................................................................................9
4. Screen & Keypad ..........................................................................................................15
5. Functionality and programming .................................................................................16
5.1. Features & functions ............................................................................................16
5.2. ON & OFF...............................................................................................................16
5.3. Setting the time & dates ......................................................................................17
5.4. Manual modes......................................................................................................17
5.5. Automatic modes.................................................................................................19
5.5.1. Weekly programming modes ........................................................................19
6. Maintenance and cleaning .........................................................................................21
7. European Regulation (WEEE) 2012/19/EU ...............................................................21
8. Guarantee ....................................................................................................................21
9. How to register your product guarantee ................................................................ .24
Directive ERP Commission Regulation ........................................................................91
Declaration of conformity ...............................................................................................92

EN
PALAOS VERTICAL DIGITAL RADIATOR
5
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on
this product. Children under 3 years of age should be kept
away from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT COVER. To avoid overheating, do not cover the
radiator.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the
product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.

6
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the
product.
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging
including bags and other items within reach of babies or
children.
The product has an IPX4 degree of protection and can be
used in bathrooms, but not in the vicinity of bathtubs, taps,
showers, water connections, toilets, swimming pools or other
masses of water. The product must never be installed where
it, the switches or the control panel are within the reach of
people in the water. Never use the product with wet hands.
Do not place any water containers (glasses, vases, etc.) on or
near the product.

EN
PALAOS VERTICAL DIGITAL RADIATOR
7
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must
be followed. See WEEE in section 7.
!

8
2. TECHNICAL INFORMATION
MODELS WHITE PIW1000RAD PIW1500RAD PIW2000RAD
GRAPHITE PIB1000RAD PIB1500RAD PIB2000RAD
Number of elements 2 3 4 MATERIALS High purity aluminium body Control panel with mechanical keypad DIMENSIONS, WEIGHTS & FINISHES
Width (mm) 236 356 476 Height (mm) 1,800 1,800 1,800 Depth (mm) 40 40 40 Installed depth (mm) 90 90 90 Weight (kg) 11 15.5 20.5
Finishes White RAL 9016
Graphite textured
ELECTRICAL CHARACTERISTICS
Nominal power (W) 1,000 1,500 2,000 Voltage (V) 230 ~V 230 ~V 230 ~V Current (A) 4.3 6.5 8.7
SAFETY & INSTALLATION Safety thermostat Template & Installation Kit Grade of protection IPX4 IPX4 IPX4 EAN code
White 8435556135494 8435556135500 8435556135517 Black 8435556135586 8435556135593 8435556135609

EN
PALAOS VERTICAL DIGITAL RADIATOR
9
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back of the
product and note the product reference and serial number. You will need this information
to register your guarantee. See section 9 for help on how to register the guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.
The product must be mounted on the wall in the position shown in the accompanying
image using the brackets and with the xings supplied.

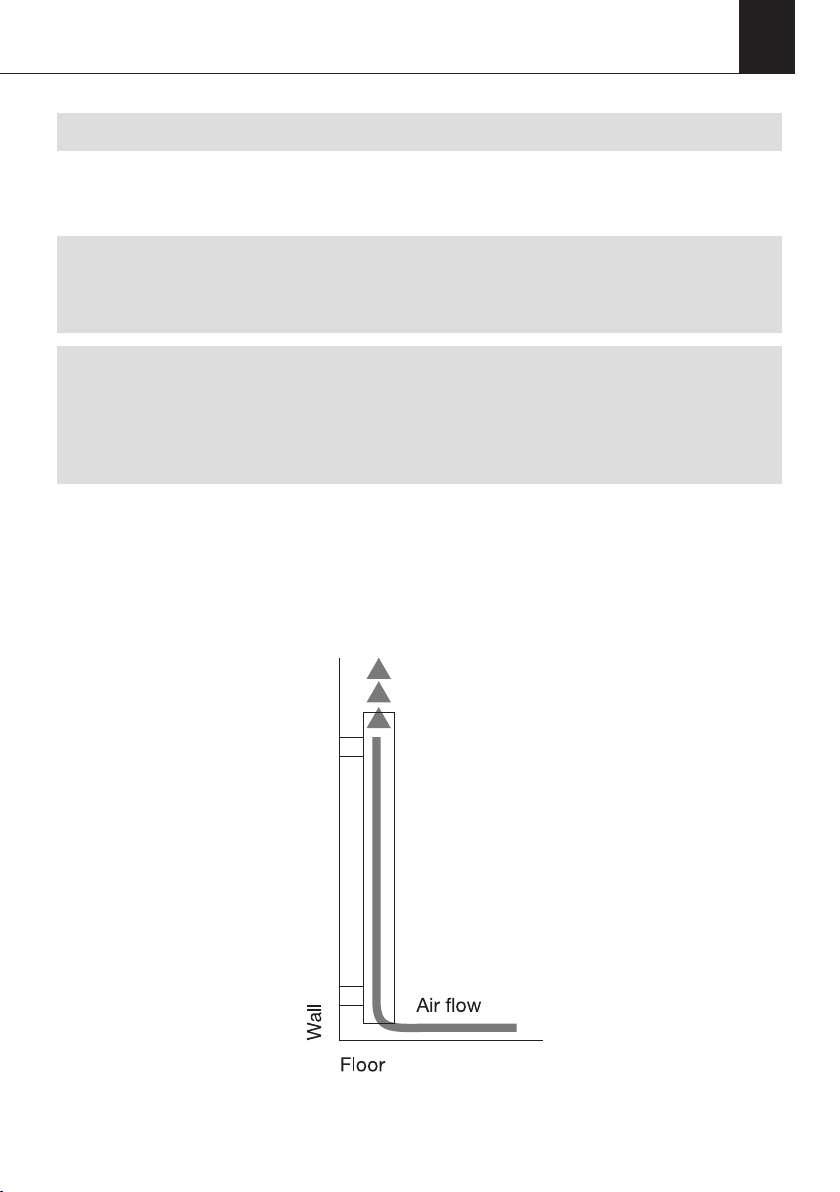

Our products transfer heat through the natural air convection. If the product is covered,
this will disrupt the airow and could cause overheating. It must be positioned in
accordance with the minimum distances shown in the accompanying picture.

10
WARNING: The product has an IPX4 degree of protection and may be used in bathrooms,
but not in the vicinity of bathtubs, showers, water connections, washbasins or other bodies
of water. It may only be installed in zone 3. The product must never be installed where it
or the switches/control panel are within reach of people in water.
ZONA EXTERIOR ZONA EXTERIOR
2.25 m
0.6 m 0.6 m
0.6 m
An installation kit is included in the product packaging. You will need a drill, a rubber mallet,
a spirit level and a pencil to complete the installation.
WARNING: The weight of some of the products may be heavy. The
installation may require two people.
IMPORTANT: Please follow these instructions carefully.
1. Install the radiator at least
20 cm from the oor.
2. The minimum distance from
the wall on the right must be
at least 30 cm.
3. The minimum distance from
the wall on the left must be at
least 10 cm.

EN
PALAOS VERTICAL DIGITAL RADIATOR
11
IMPORTANT: Template measurements per model.

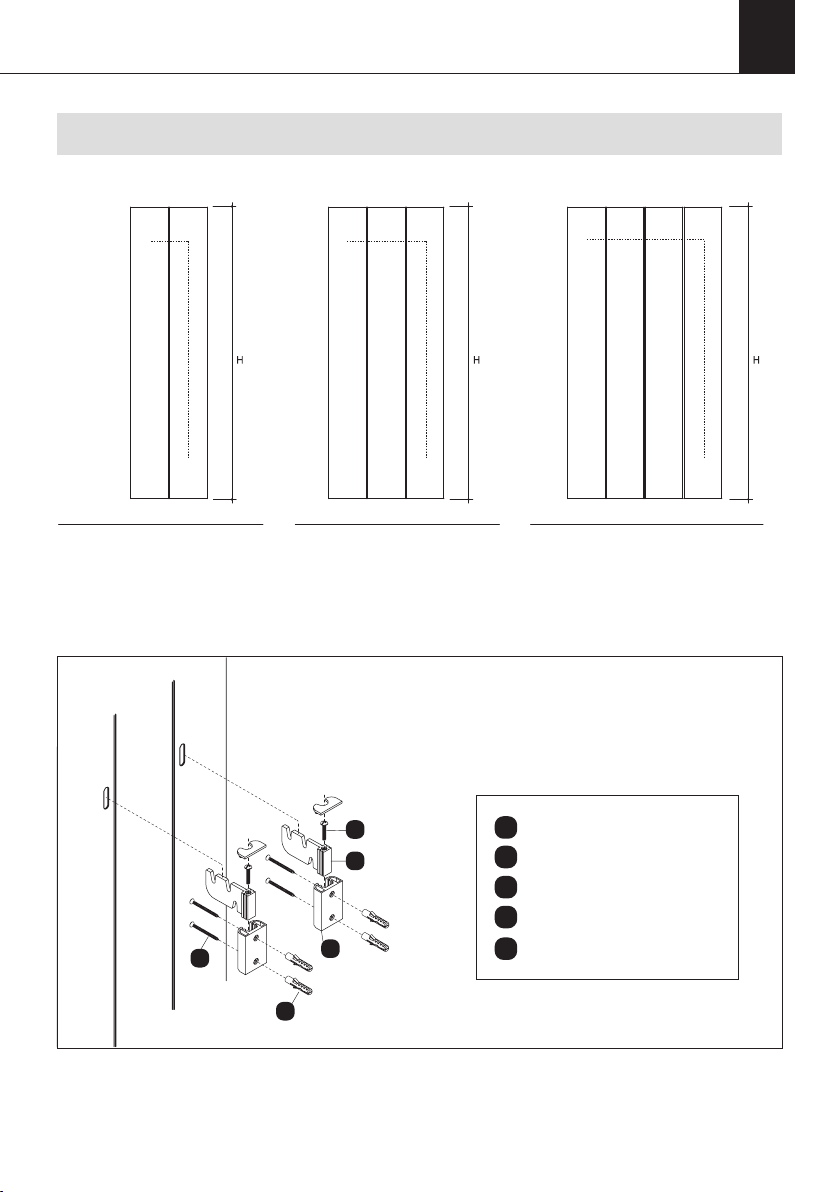

1. Drill the wall considering Lf and Hf as xing holes according to the model purchased:
+
+
+
+
Lf
Hf
++
Lf
Hf
+
+
++
Lf
Hf
++
Lf x Hf = 32 x 1,467 mm
1,800 mm 1,800 mm 1,800 mm
Lf x Hf = 144 x 1,467 mm Lf x Hf = 263 x 1,467 mm
Mod. 1,000 W
Floor
Mod. 1,500 W
Floor
Mod. 2,000 W
Floor
2. After inserting the rawl plugs, install the 4 bracket guides (C in Diagram 2) supplied.
B
A
C
D
EA
B
C
D
E
Wall xing screws
Wall plugs
Guides for support
Wall support
Fastening screws

12

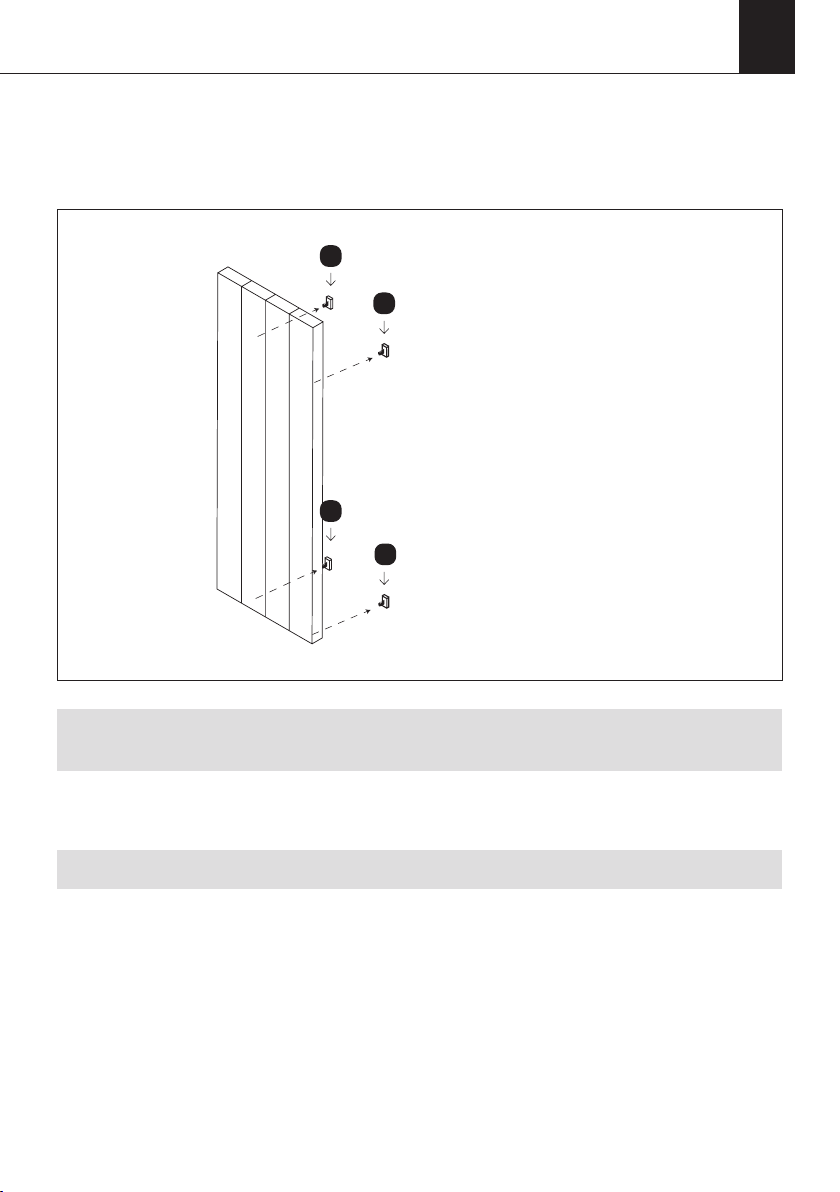

3. Insert the 2 upper wall brackets with the hook facing upwards and the lower wall brackets
with the hook facing downwards
4. Secure the brackets with the fastening screw.

EN
PALAOS VERTICAL DIGITAL RADIATOR
13

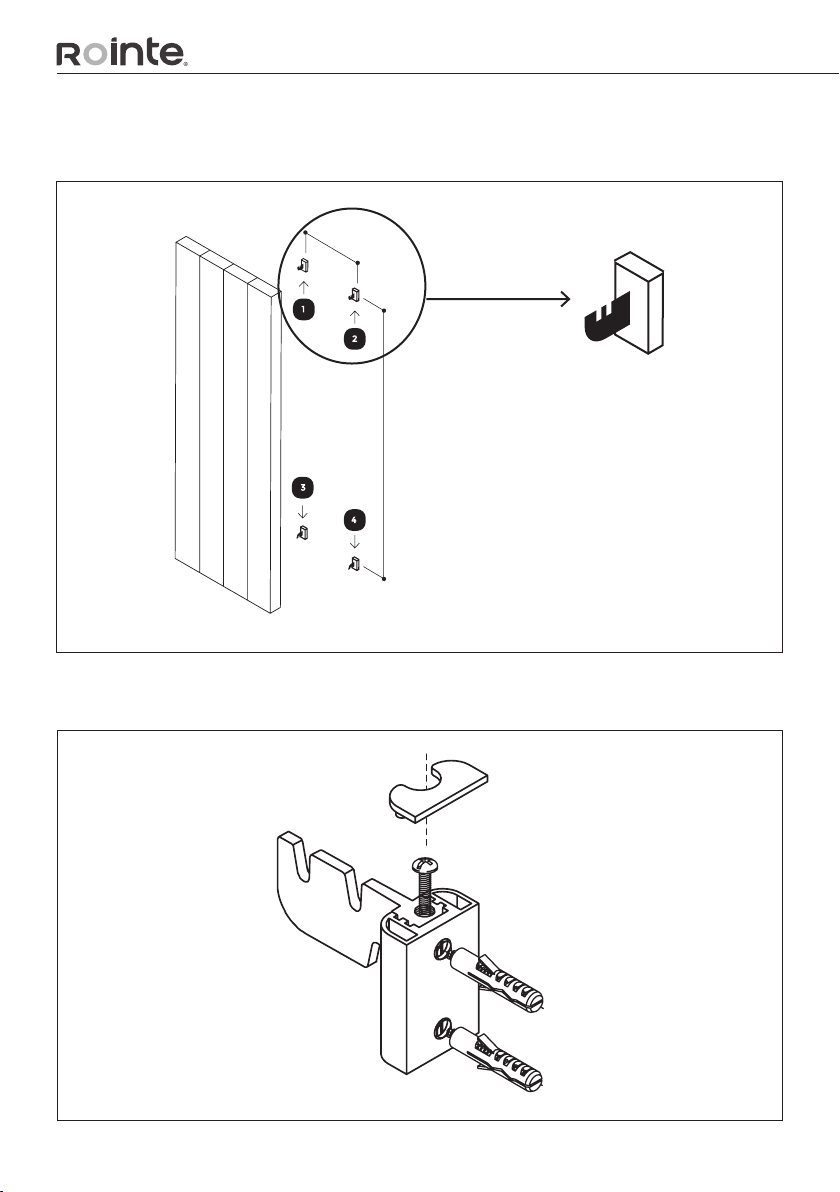

5. Mount the radiator on the 2 upper wall brackets. Then t the radiator onto the 2 lower
wall brackets and nish tightening the 4 xing screws.
1
2
3
4
INSTALLATION AND SAFETY PRECAUTIONS (UNE-EN 60335 REGULA-
TION)
Before starting the heater, read the “Installation and Safety Precautions” carefully to ensure
proper operation of the heater.
PRECAUTIONS FOR INSTALLATION
The towel rail is designed for domestic or residential use. We recommend that the towel
rail is installed by a distributor or an approved professional. Make sure that the heater is
correctly connected to 220V-230V.
This appliance has been designed for installation in a residential room. The installation
must be carried out in accordance with the standards in force in the country of
installation (NFC 15100 for France).
The towel rail must be directly connected to the mains after the omnipolar cut-off device
with a contact opening distance of at least 3 mm without any intermediate switch
(clock, mechanical and static relay, room thermostat, etc.).

14
The connection to the mains is made with a 3-wire cable (Brown = Phase, Blue =
Neutral, Black = Control wire) via a connection box. In wet rooms such as kitchens and
bathrooms, the connection box must be installed at least 25 cm from the oor. The
installation must be equipped with a protective device such as a circuit breaker.
Do not connect to earth. Do not connect the pilot wire (black) to the ground.
If the power cable is damaged, it must be replaced by the manufacturer, his service
department or a similarly qualied person in order to avoid a hazard.
If the pilot or controlled device is protected by a 30mA earth leakage circuit breaker (e.g.
bathroom) it is necessary to protect the supply to the pilot wire on this circuit breaker.

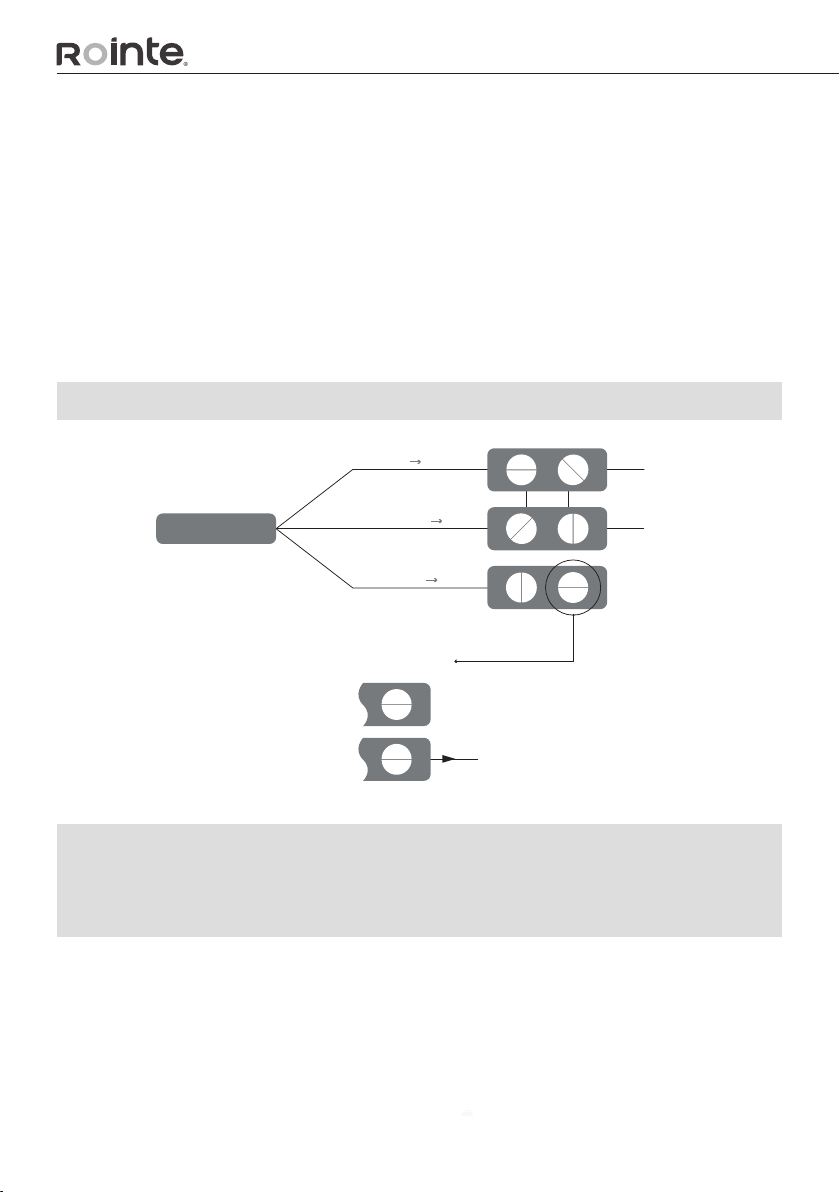

CONNECTION DIAGRAM OF THE UNIT
BLACK
BROWNPhase
Neutre
Fil pilote
BLUE
Device cable
PHASE
NEUTRAL
Two possible cases
Unit not controlled.
The pilot wire is not connected.
To device with cassette or
central programming unit.
Case 1: Single unit
Case 2: Slave device
WARNING: The “PILOT WIRE” is intended for radiators connected to the energy
management unit / chronothermostat. If the “PILOT WIRE” cable is black in colour it is
not used, safety regulations require it to be insulated and not connected to the cable
from the ground.

EN
PALAOS VERTICAL DIGITAL RADIATOR
15
You can connect the pilot wire if your house is equipped with a central programming
unit, a programmer or a manager. In this case, to check the correct transmission of the
programming orders, proceed with the following checks according to the modes chosen
(Comfort, Eco, etc.):
COMFORT ECO OUT OF
FROST
HEATING
OFF LOAD
SHEDDING
COMFORT
-1ºC COMFORT -2ºC
SIGNAL TO BE
TRANSMIT
MEASURE-
MENT BE-
TWEEN PILOT
WIRE AND
NEUTRAL
0 VOLT 230 VOLT -115 VOLT
NEGATIVE +115 VOLT POSITIVE
230 VOLT
DURING
3 s
230 VOLT
DURING
7 s
5’
3”
5’
7”
5’
3”
5’
7”
5’
3”
5’
7”
5’
3”
5’
7”
5’
3”
5’
7”
5’
3”
5’
7”
4. SCREEN & KEYPAD
ON / STAND-BY
MODE BUTTON
INCREASE temperature
DECREASE temperature

16
5. FUNCTIONALITY & PROGRAMMING
5.1. FEATURES & FUNCTIONS
Not only are our radiators Lot20 compliant, we also include functions to help
manage
eciency more effectively.
• Open Windows
This function can detect when windows are open, preventing energy waste. It
is activated when the temperature drops rapidly in a short period of time (e.g.
when a window in the room is opened).
When the Open Window status is detected, the display shows the word “Opn”
(Open = Open) and the radiator switches to ANTI-FROST mode (7°C). It ends
automatically when the product detects that the window has closed, or when
the MODE button is pressed.

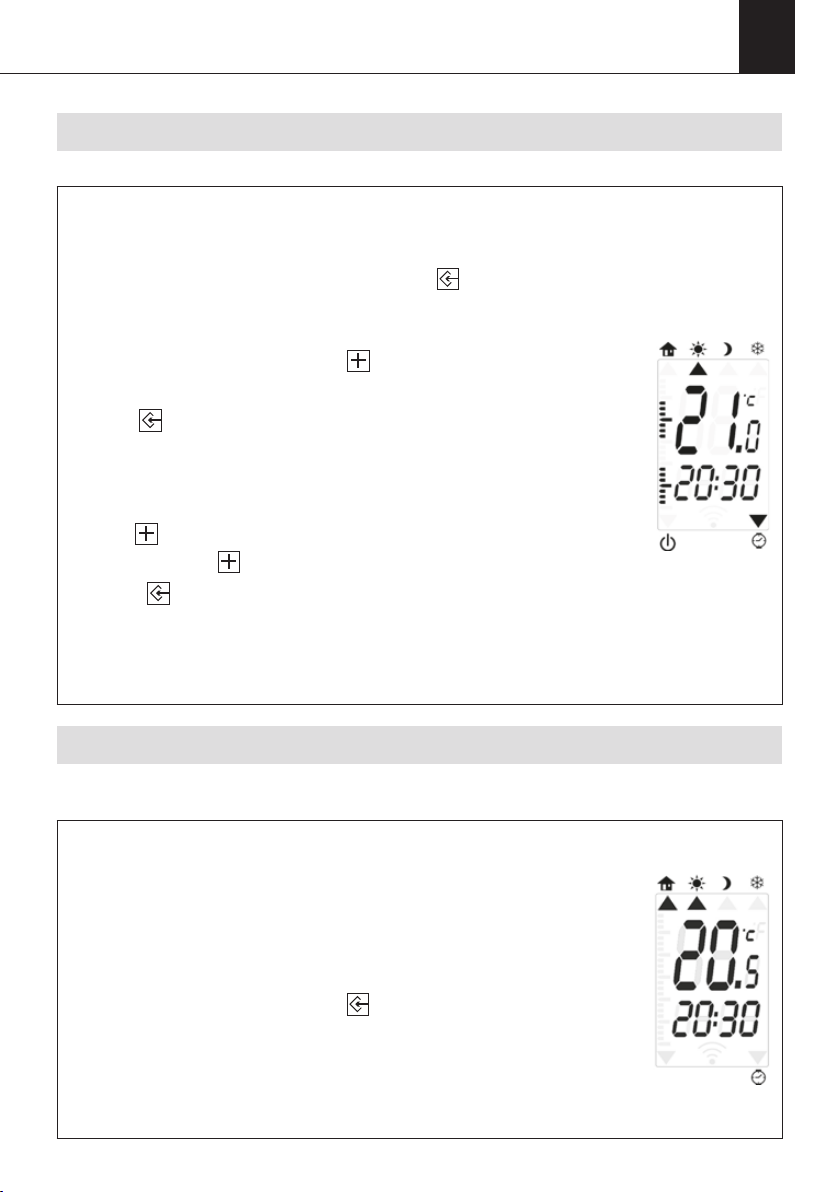

5.2. ON & OFF
When in STAND-BY mode the radiator does not heat up, but the
display will show the current time. Pressing the button for 2
seconds switches the product on or puts it into STAND-BY mode.
Press for 2 seconds to switch the product on. When it is switched on for
the rst time, the time and day will ash. It’s important to
congure these correctly in the next step.

EN
PALAOS VERTICAL DIGITAL RADIATOR
17
5.3. SETTING THE TIME & DATES
The time and day must be set when you rst switch the product on, or when
the product is disconnected and reconnected from the power supply.
It’s also possible to congure this by pressing the MODE button for 5 sec-
onds when the product is in STAND-BY. The display will show the word “SET”
and then suggests changing the TIME and DAY of the week.
The time is set by holding down the INCREASE button until the current
hour and minute value is reached.
Click the MODE button to conrm the clock setting and continue to the
day setting.
The display will show the word “DAT” and then suggests the day of the week.
D1 corresponds to Monday, D2 to Tuesday and so on.
Use the INCREASE button to set the current day of the week, e.g. if it’s
Thursday press the button 4 times until you reach D4.
Press the MODE button to conrm the day and exit the setting.Once the
time has been set, it will stop ashing.
If you product is in STAND-BY mode and you wish to turn it on, press the but-
ton for 2 seconds.
5.4. MANUAL MODES
There are 4 Manual operating modes: Pilot Wire, Comfort, Night and Anti-Frost.
PILOT WIRE mode (only available on request)
The Pilot Wire is a special communication protocol that allows an external
unit or control unit to control the radiator. It’s shown on the display by an
arrow pointing to the house symbol.
To activate Pilot Wire mode, press the MODE key once. The message “FP”
will appear briey along with an acoustic signal.
IMPORTANT: This function is not available unless requested, even if it is
displayed on the menu.

18

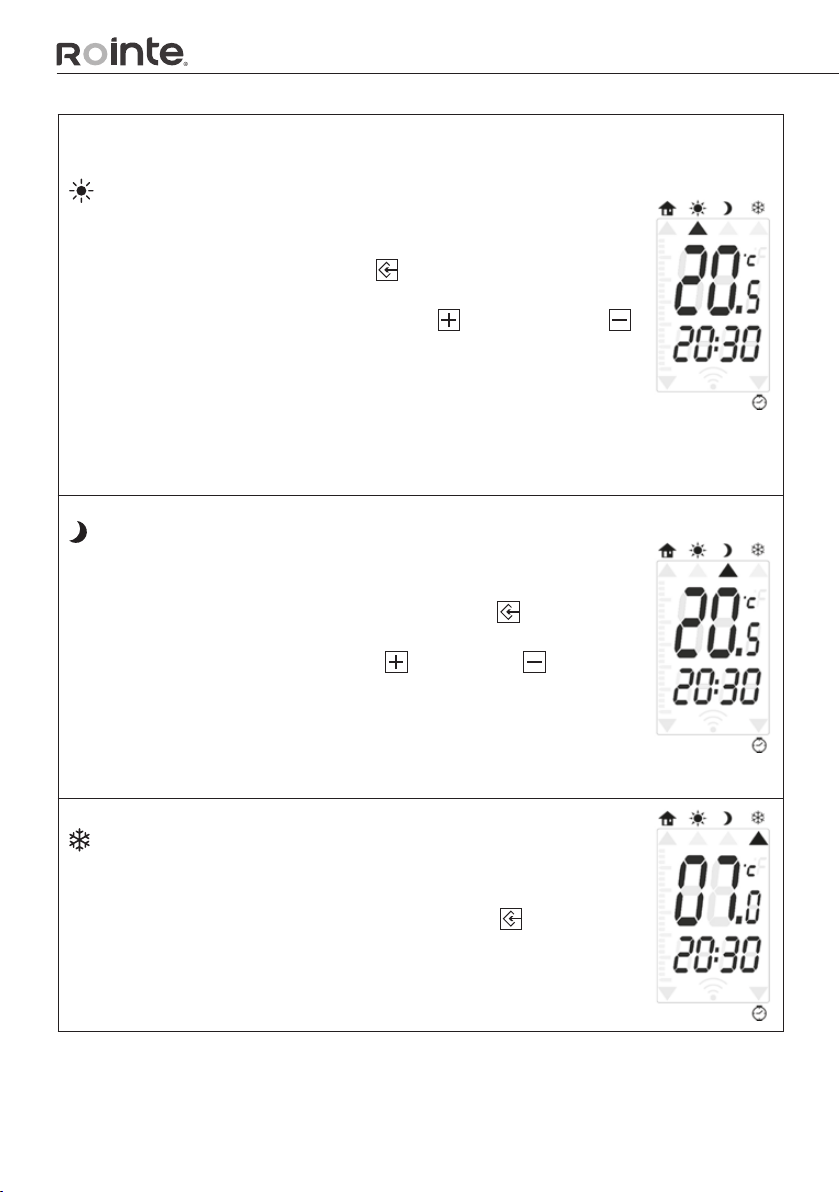

CONFORT mode
Comfort mode is shown on the display by an arrow pointing to the sun symbol
and the Comfort temperature on the screen.
To activate the Comfort mode, press the MODE key once. The message
“CON” will appear briey along with an acoustic signal.
You can set the desired temperature with the INCREASE and
DECREASE buttons. The radiator remains on until the room reaches the
selected temperature.
This selected temperature is used during the WEEKLY PROGRAMMING mode
as the temperature set for the periods in Comfort mode.
NIGHT mode
Night mode is shown on the display by an arrow pointing to the moon symbol
and the Night temperature on the screen.
To switch from Comfort mode to Night mode, press the MODE button
again. The word “RID” will appear briey along with an acoustic signal.
You can set the desired temperature with the INCREASE and DECREASE
buttons. This temperature does not depend on the Comfort temperature and is
usually used to set a temperature below 19°C, which is ideal for a good nights
sleep. This selected temperature is used during the WEEKLY PROGRAMMING
mode as the set temperature for the periods in Night mode.
ANTI-FROST mode
Anti-Frost mode is shown on the display by an arrow pointing to the snowake
symbol and 7ºC temperature on the screen.
To switch from Night mode to Anti-Frost mode, press the MODE button
again.
In this operating mode, the user cannot regulate the temperature as it remains
xed at 7ºC. This mode prevents the room temperature from falling below 7ºC.

EN
PALAOS VERTICAL DIGITAL RADIATOR
19
5.5. AUTOMATIC MODES
In Automatic mode, the product regulates the temperature according to the daily programme
created by the user, using the temperatures previously set in the Comfort and Night modes.
To switch from ANTI-FROST mode to PROGRAMMING mode, press the
MODE button again.
The word “PRO” will appear on the screen with an arrow pointing to the clock
symbol (located at the bottom right of the screen). In the “clock” section of
the screen, the current time of day is displayed, only if the time and day of the
week have been set correctly when the product is rst switched on.
The programming schedule is displayed on the left side of the screen by a
succession of lines that representing 24 hours of the day. An arrow at the top
of the screen indicates the operating mode (Comfort or Night).
The temperature selected for that mode is shown on the display.
To modify the temperatures of the Comfort or Night modes, access the
corresponding mode and then use the INCREASE and DECREASE
buttons to modify the temperature parameters.
5.5.1. WEEKLY PROGRAMMING MODES
In order to proceed to the weekly programming, you must:
Have established the correct time and day of the week.
Be in PROGRAMMING mode (press the MODE button for 5 seconds until “PRO” appears
on the screen. “FP” will appear rst, then “PRO”.)

20
In this mode, it is possible to program each day of the week independently.
1. Select the day with the INCREASE and DECREASE buttons
(D1 = Monday, D2 = Tuesday, etc.). Press the MODE button to conrm.
All the time bands for the day will then be displayed.
2. The lower screen shows the time interval that must be programmed for each hour.
Press INCREASE to activate the Comfort mode temperature OR the DECREASE to
activate the Night mode temperature for that hour. Comfort mode is indicated by a strip
on the side bar. After each selection, the time
interval will progressively advance (00h, 01h, 02h, 03h...).
3. The strips will only been seen for the time bands that are active in Comfort mode.
4. Once you have congured all hours of the day, press the MODE button once and then
select the remaining days you wish to program e.g. D2 - D7.
5. Press the MODE button for 5 seconds until the word “END” appears to save.
Example
Set the Comfort mode on Fridays from 7am to 9am, and from 5pm to 9pm keeping the rest
of the day in night mode:
Press for 5 seconds until “PRO” appears.
Choose Friday (D5) by pressing the button 5 times and then press to conrm.
The display will show the time bands (00h, 01h, 02h, 03h etc.), starting from
midnight onwards, which means that the rst time slot is from midnight to one in the
morning.
In this case, as you want to activate Night mode until 7am, press 7 times to
program 00h - 07h as Night mode. If Night mode has been set at 15ºC, the radiator will be
activated at 15ºC from midnight to 7am.
Now you can set the Comfort mode in the time band from 7am to 9am by pressing the
key twice. You will see this activation in the side strips. If Comfort mode has been set at
21ºC, the radiator will be activated at 21ºC from 7am until 9am.
Then set Night mode until 5pm by pressing button 8 times.
Then set Comfort mode from 5pm to 9pm by pressing 4 times.
Then set the remaining hours (9pm - midnight) in Night mode by pressing 3 times. To
