Rollplay 6V Mini Quad ACQUAD-P Assembly instructions

Owner’s Manual and Assembly Instructions
Model #: AVQUAD-P-F, AVQUAD-B-F, AVQUAD-O-F, AVQUAD-R-F, ACQUAD-CAM-F,
ACQUAD-P-CAM-F, ACQUAD-O-F, ACQUAD-R-F, ACQUAD-TTG，ACQUAD-TTP
Read and understand the entire manual before assembly and operation. The vehicle must
be assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store.
®

BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 4AH
6V 15W
18+months
20.4 kg (45 lbs)
68.5 x 43 x 48 cm
(26.97 x 16.93 x 18.9 in.)
2 - 3.2 km/h
(1.25 - 2 MPH)
8-12 Hours
1-2 Hours
DC 7.0V
Thank you for purchasing the Mini Quad. We hope the rider enjoys it
for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Web: www.rollplay.com
Email: [email protected]
Phone: [phone]
Introduction

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
BEFORE YOU RETURN YOUR
PRODUCT TO THE STORE,
CONTACT ROLLPLAY WITH
QUESTIONS
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
Email [e-mail] or
call customer service 1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

Table of Contents
Safety ..........................................................
Parts ...........................................................
Charging Instructions ..................................
Assemble the Wheels............................. ...
Attach the Handlebar ................................1
Assemble the Front Bumper .....................1
Attach the Seat..........................................1
Operating Instructions...............................1
Maintenance..............................................1
General Care .............................................1
Troubleshooting Guide ..............................1
FCC Information........................................1
Service and Repairs ..................................
Warranty ....................................................2
Product Registration .................................2

Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
Always use common sense and safe practices when using the vehicle. The user
must be at least 18 months old and weigh no more than 20.4 kg (45 lbs).
This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
Product Safety Commission (CPSC) Standard 16 CFR 1203.
Only sit on the seat in the vehicle.
Do not allow more than one rider.
Do not overload the vehicle. Do not remove the weight restriction decals.
Do not pull the vehicle with another vehicle or similar device.
Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
Always wear shoes in the vehicle.
Do not operate near streets or motor vehicles.
Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
Do not operate in dangerous weather conditions such as rain or snow.
Always use the vehicle in a safe, secure environment with adult supervision.
Adult assembly required.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time; Always replace the
whole set of batteries at one time , taking care not to mix old and new ones, or
batteries of different types.

Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead components.
DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

Parts
1. Battery
2. Charger
3. Quad Body
4. Wheels (4)
5. Hex Nuts (Installed on wheel axles)
6. Front Bumper
7. Handlebar
8. Seat
9. Screw Wrench
10. Hardware Bag
1
2
3
4
4
4
5
5
6
7
8
9
10
Phillips screwdriver
Not Included:
Wrench

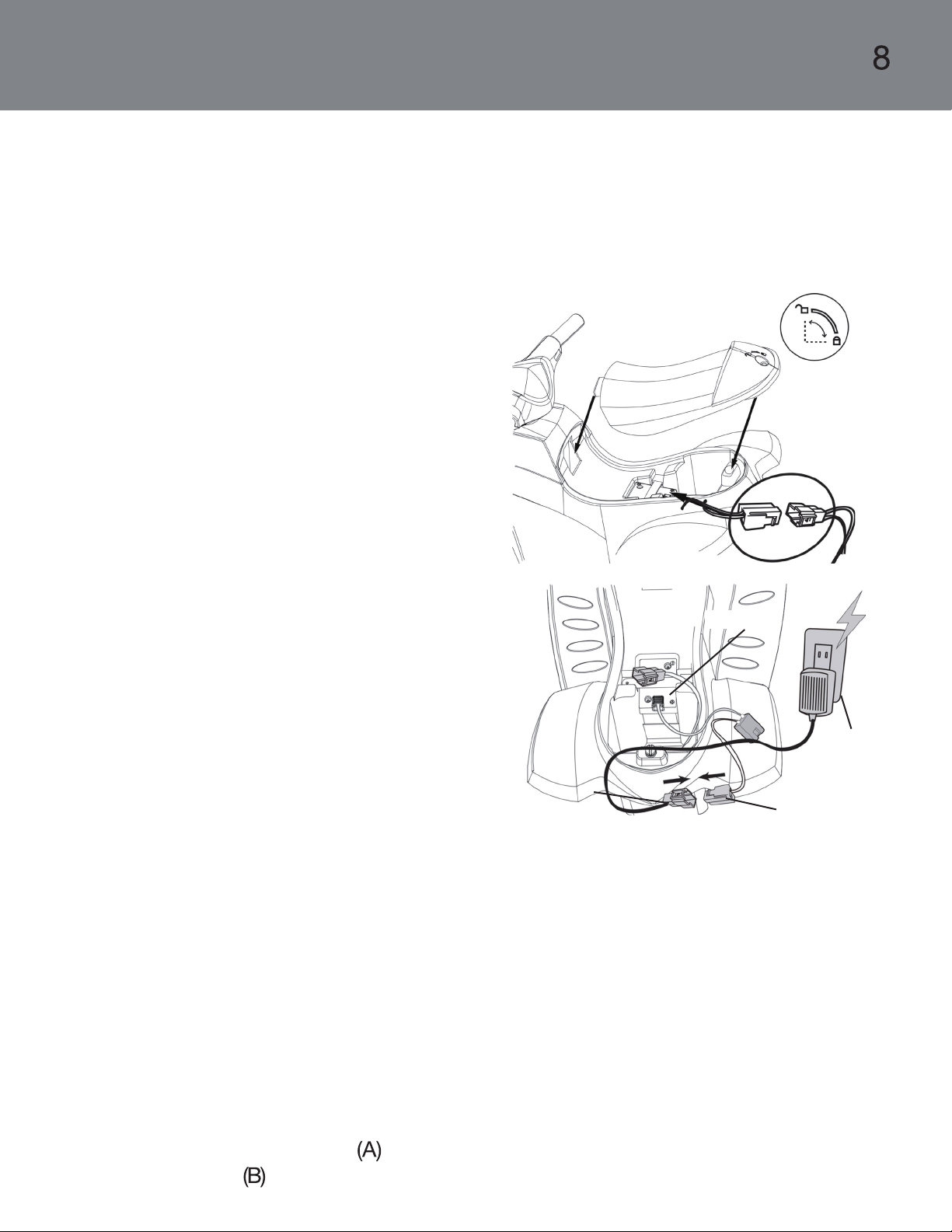

Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the quad is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove the
battery for charging. However, if the
battery does not reach the outlet, it can be
removed for charging. Use
a screwdriver to release the battery clamp
and disconnect the red battery connector
from the red engine connector to
remove the battery .
Battery
CA
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
A B

Wheel Assembly
1.
2. Slide the wheel (4) onto the axle.
4. Slide a split washer onto the axle.
3. Slide a small, at washer onto the axle.
5. Slide the hex nut onto the assembled wheel and tighten with a
wrench.
6. Repeat steps 1-5 for the remaining wheels.
Wheel Flat Washer
Split Washer
Hex Nut

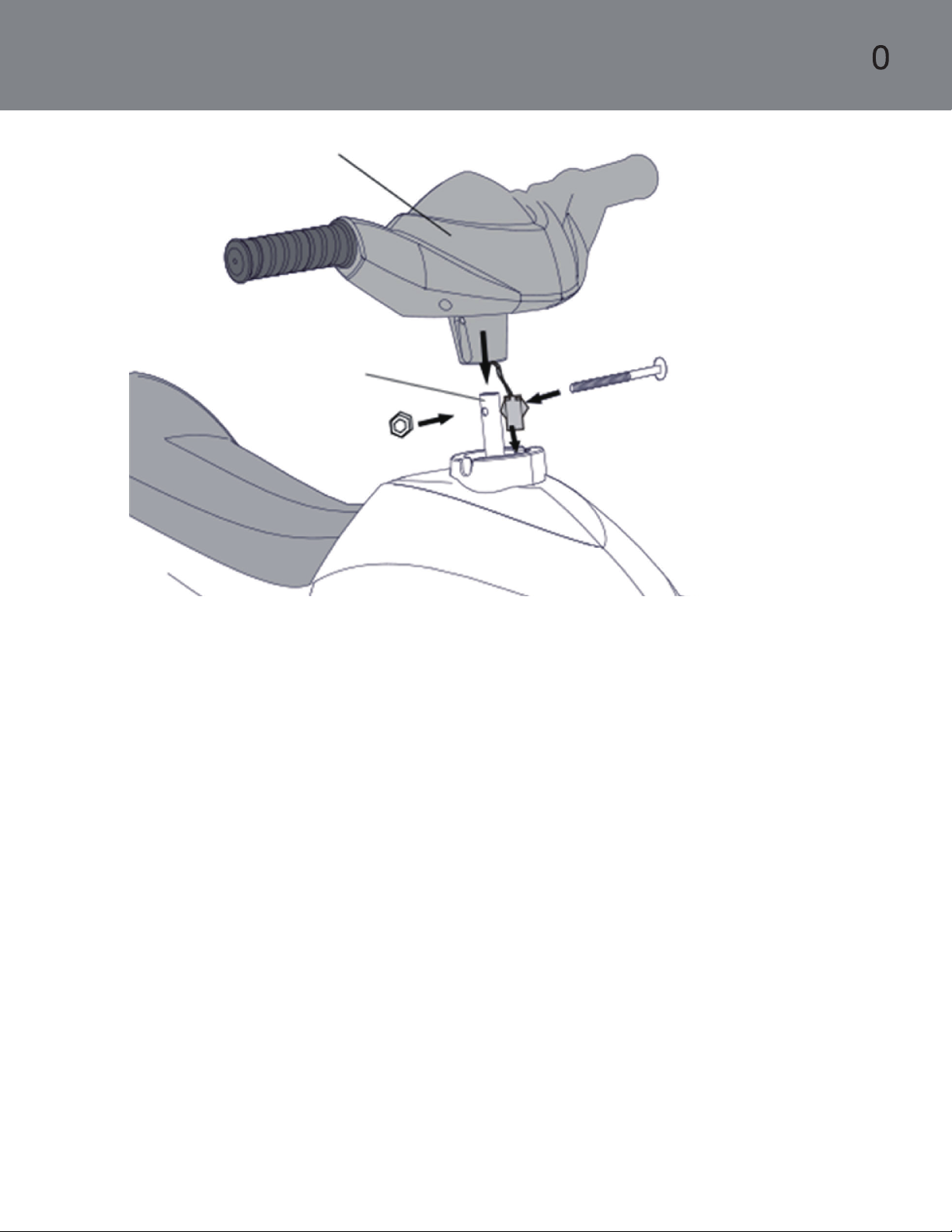

Attach the Handlebar 1
1. Remove the screw and nut from the handlebar (7) before
attaching.
2. Plug the handlebar connector (A) into the dashboard connector (B).
Then, carefully slide the wires into the car body.
3. Slide the handlebar (7) onto the steering rod, and align the screw
holes on the handlebar with the holes on the steering rod.
4. Insert the screw into the hole and fasten the nut to secure.
A
B

1Assemble the Front Bumper
Flip the quad upside down.
Slide the square hole on the back of the front bumper (6) onto the
front post protruding from the quad
Align the three screw holes on the bumper with the three screw
holes on the quad.
Remove the three screws from the hardware bag (10).
Using a screwdriver, tighten the screws to secure.

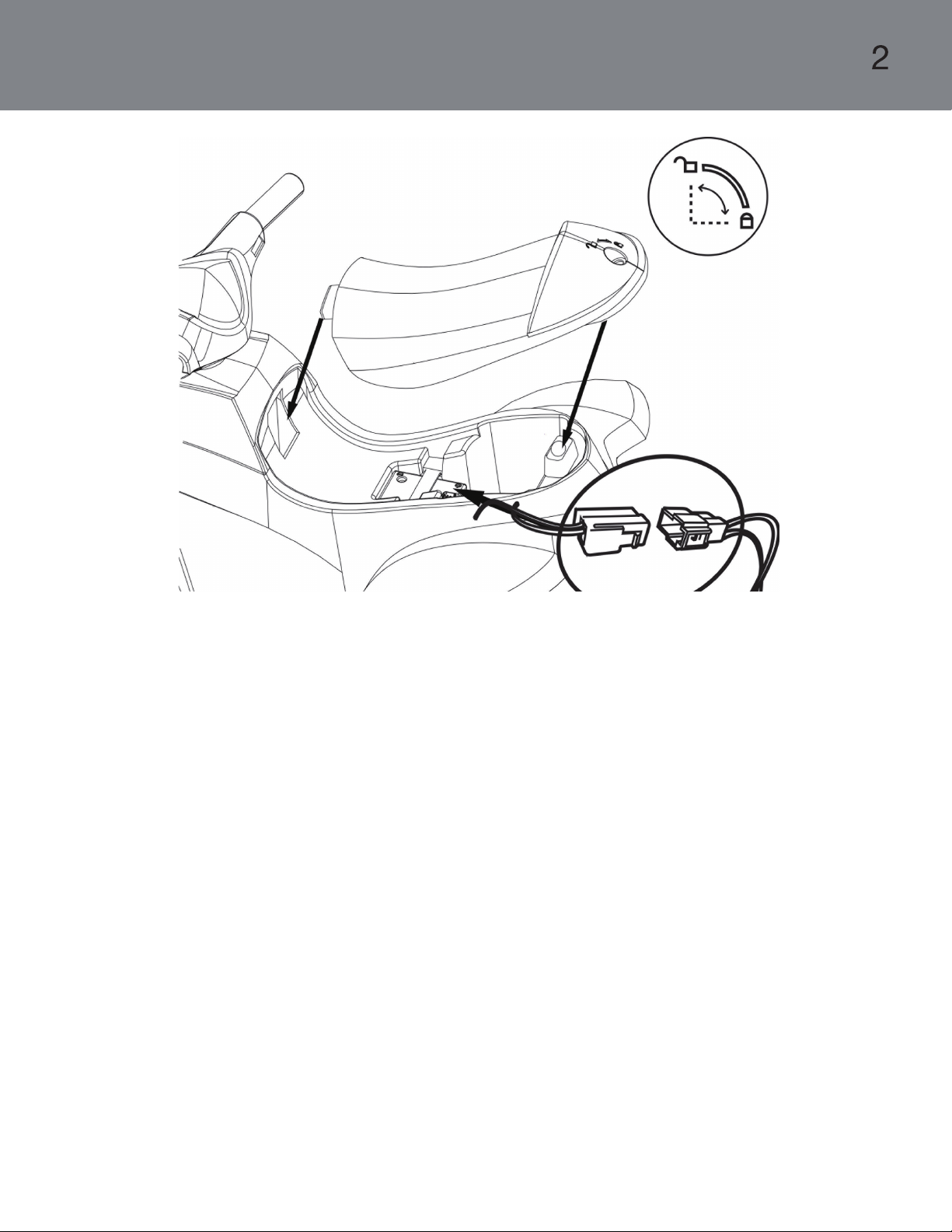

Attach the Seat 1
1. Ensure the red battery connector is connected to the red engine
connector before attaching the seat.
2. Position the seat (8) over the battery compartment.
3. Turn the lock at the end of the seat to the open position and align the
lock with the lock hole on the back of the battery compartment.
4. Slide the notch on the front of the seat into the hole on the front of
the battery compartment.
5. Turn the lock to the closed position.

1Operating Instructions
The rider should be sitting comfortably on the quad
Push the Press Button on the handlebar to go forward
Release the button to stop the quad
Note: The quad drives 2 MPH forward and does not reverse.
Use the handlebar to turn the quad left and right.
Press Button

Maintenance 1
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Charge the battery immediately after each use. Charge for at least 8-12
hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
•Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page for
replacement information.
• Remove damaged batteries from the quad immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

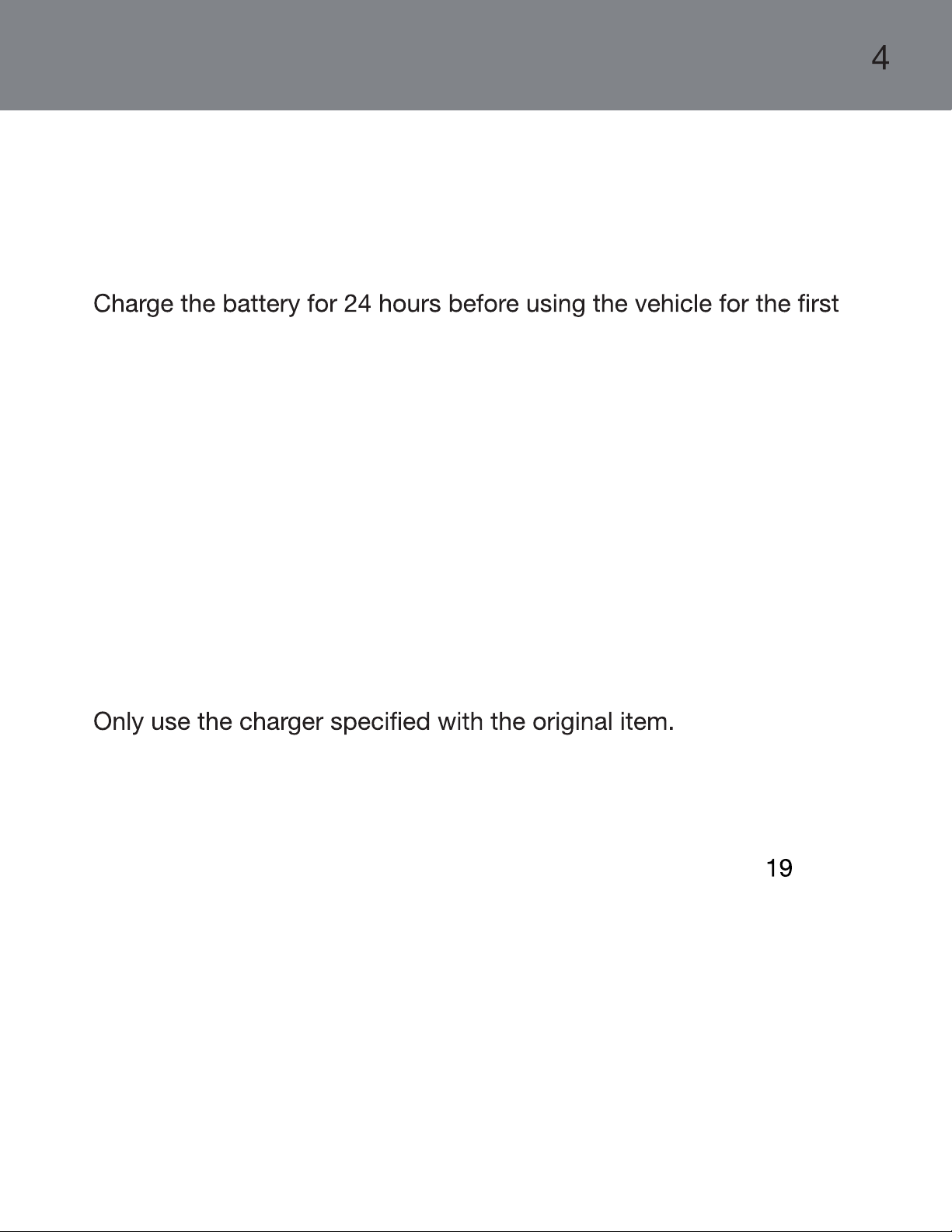

Important Battery and Charger Information

1General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not get
water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

Troubleshooting Guide 1
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service
Battery is dead Call Customer Service
Electrical system is
damaged
Call Customer Service
Motor is damaged Call Customer Service
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle (45
lbs max)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.

1
Problem Potential Cause Solution
Vehicle needs a push to
start
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service
“Dead spot” on motor A “dead spot” means
electricity is not being
delivered to the terminal.
Contact Customer Service
Cannot stop the quad Electronic part destroyed Contact Customer Service
Motor or gear box
making grinding noises
Motor or gear damage Contact Customer Service
Battery will not recharge Charger is not plugged in Plug in the charger to a
functional wall outlet
Charger is not working Call Customer Service for a
replacement
Loose connector or loose
adapter
Check that the connectors are
securely plugged in to each
other
Battery makes bubbling
noise while recharging
This is normal No action required
Battery produces noise
and heat when charging
This is normal No action required

FCC Information 1
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Consult dealer or an experienced radio/TV technician for help.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Check the state or local requirements for the product before using the
product.
responsible for compliance could void the user’s authority to operate the
equipment.

.
If your product requires service, repairs or replacement parts, please visit
us online at www.rollplay.com
Or contact us at:
Phone: [phone]
Email: [email protected]
Web: www.rollplay.com
Hours: 9 AM - 5 PM (CST), Monday - Friday
For a list of available replacement parts, please visit www.rollpaly.com.
Service and Repairs

Warranty 2
Rollplay 6-Volt Limited Warranty
One-year limited warranty from the date of purchase with proof of purchase from
a Rollplay
Six month limited warranty on the 6-Volt battery with proof of purchase from a
Rollplay
This one-year limited warranty covers the ride-on vehicle against defects in
materials and workmanship to the original purchaser. Proof of purchase receipt
from an Rollplay
laitinimorfshtnom6rofdetnarrawsiyrettabtloV-6lanigiroehtserusneyalplloR
This warranty covers normal use and does not cover the Rollplay vehicle or
abuse, misuse, improper service or other causes not arising out of defects in
materials or workmanship. Evidence of any attempt at consumer repair will void
this warranty.
This warranty does not cover, and is not intended to exclude any liability on the
part of Rollplay, whether under this warranty or implied by law for any indirect
or consequential damages for breach of warranty. Some states may not allow the
exclusion or limitation so this limitation may not apply to you.
Should you need service or assistance with your vehicle during the warranty period:
Please do not return vehicle to the store.
Consult the troubleshooting guide in this manual and online at www.rollplay.com
or Call Rollplay Customer Service at 1-888-982-9309
Note: For any necessary repairs, the consumer will be responsible for freight
charges to Rollplay Customer Service.
may vary from state to state.
Please save your original sales receipt.
