Rollplay 6V Porsche 918 Assembly instructions

®
Model #: W418, W418AC-R, W418AC-R-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
6V Porsche 918

Introduction
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle. Please have your model number
and serial number ready before calling. Please have proof of purchase.
Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.com
Specifications:
BATTERY 6V 7AH
MOTOR 6V 20W
AGE 3 and up
MAX WEIGHT 35 kg (77 lbs)
PRODUCT SIZE 128 x 63 x 51 cm ( 50.4 x 24.8 x 20.1 in)
SPEED 4 km/h (2.5 mph)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

5
Table of Contents
Safety ........................................................ 6-7
Parts ......................................................... 8
Charging Instructions.............................. 9
Assemble the Front Wheels.................... 10
Assemble the Left Rear Wheel............... 11
Assemble the Right Rear Wheel............. 12
Assemble the Speedometer.....................13
Assemble the Windshield ...................... 15
Attach the Steering Wheel...................... 14
Operation Instructions ............................ 18
Attach the Mirrors ................................... 16
Assemble the Seat................................... 17
Maintenance ............................................ 19
General Care ............................................ 20
Troubleshooting Guide............................ 21-22
FCC Information ...................................... 23
Service and Repairs ............................... 24
Warranty ................................................... 25
Product Registration ............................... 26

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3yearsold and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time ; Always replace the
whole set of batteries at one time , taking care not to mix old and new ones, or
batteries of different types.

7
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

Parts
8
1. Manual
2. Battery
3. Charger
4. Car body
5. Shifter
6. Steering wheel
7. Seat
8. Windshield
9. Mirrors
10. Speedometer
11. Large washers (3 + 1 extra)
12. Rear wheels (2)
13. Snap pins (4 + 1 extra)
14. Wheel covers (4)
15. Front wheels (2)
16. Small washers (4)
17. Inner wheel spacer
18. Steering wheel nut
19. Steering wheel screw
20. MP3 cable
21. Blister pack
15
8
9
10
23
5
7
6
4
14
12
11
11
13
13
16
16
14
1
21
19
20
18 17
13
16
11

9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the car is stopped and the
power switch is turned off.
2. Press the Seat Release button on the
car body and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector (B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging.
For battery removal, unscrew the
battery clamp, remove the clamp,
disconnect the battery, and remove
the battery.
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
Seat
A
A
B
C

10 Assemble the Front Wheels
Small washer
Small washer
Snap pin
wheel cover
Front wheel
1. Slide the small washer onto the front axle.
2. Slide the front wheel onto the front axle.
3. Slide the small washer onto the front axle.
4. Insert the straight end of the snap pin through the hole at the end
of the axle to keep the wheel in place.
5. Finally snap the wheel cover on the wheel to complete the assembly.
6. Repeat steps 1-5 for the remaining front wheel.
Correct Snap
Pin Installation

11
Assemble the Left Rear Wheel
Rear wheel
Large washer
Inner wheel spacer
Large washer
Snap pin
Wheel cover
Left Rear Wheel:
1. Slide the large washer onto the rear axle, then slide the inner wheel
spacer onto the axle.
2. Slide the left rear wheel onto the left rear axle, the side with the gear
teeth faces inward.
3. Slide the large washer onto the rear axle.
4. Insert the straight side of the snap pin through the hole at the end of
the axle to keep the wheel in place.
5. Finally snap the wheel cover onto the wheel to complete the
assembly.

Rear wheel
Large washer
Snap pin
Wheel cover
12 Assemble the Right Rear Wheel
Right Rear Wheel:
1. Slide the right rear wheel onto right rear wheel axle. The
side with gear teeth faces inward. (Note: the gear teeth must
engage with the gear box.)
2. Slide the large washer onto the rear axle.
3. Insert the straight side of the snap pin through the hole at the end
of the axle to keep the wheel in place.
4. Finally snap the wheel cover onto the rear wheel to complete wheel
assembly.
Helpful Tip:
1.
then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two
hands, push down on the rear wheel axle and slide it gently
toward the side of the vehicle that needs more room.
3. Once the rear axle is properly centered, refer to the above
steps to assemble the wheels.

13
Assemble the Speedometer
1. Plug the speedometer connector (A) into the dashboard connector (B).
2. Carefully slide the wires into the hole on the dashboard.
3. Snap the speedometer into the dashboard.
AB

14 Attach the Steering Wheel
1. Locate the steering wheel screw and nut from blister pack.
2. Plug the steering wheel connector (C) into the dashboard connector (D).
Carefully slide the wires into the steering column.
3. Insert the steering wheel into the steering rod, and align the holes
on the steering wheel with the holes on the steering rod.
4. Insert the screw into the hole and fasten the nut to secure.
DC

15

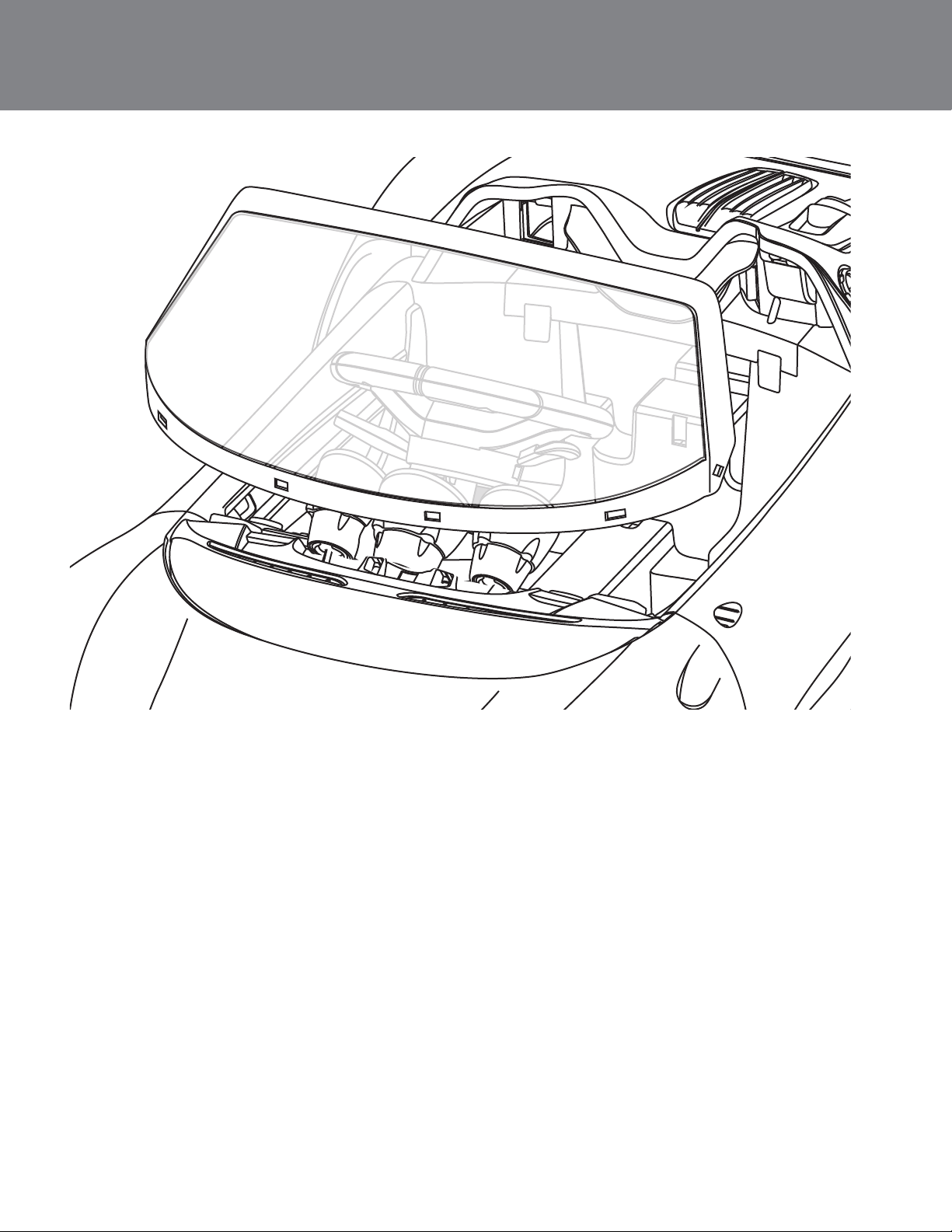

Assemble the Windshield
1. Align the windshield with the slots between the dashboard and the
body.
2. Push lightly on the windshield until it clicks into place.

16
Attach the Mirrors
1. Insert the left mirror into the slot on the left door near the windshield.
2. Insert the mirror until it snaps into place.
3. Repeat steps 1-2 for the right mirror.

2
17
Assemble the Seat
Seat
1. Insert the two hooks on the back of the seat into the slots on the car body. Push
down on the seat until it clicks into place.
2. Press the seat release button to unlock the seat.
Seat release button

Sound Buttons
Power Switch
Shifter
Pedal
18 Operating Instructions
MP3 Jack
Volume Dial
Battery Life
lndicator
Power lndicator Button
• Push the power switch to turn on the car. The power indicator light will
turn on when the car is on. Press the power switch again to turn off the
car.
• Push the shifter up to move forward. Pull the shifter down to go in
reverse.
• Insert the MP3 cable (20) into the MP3 jack and connect to your device.
Turn the MP3 on by rotating the on/off dial. To adjust the volume, rotate
the dial.
• Press the foot pedal down to go. Release the foot pedal to stop.
• Press the left and right steering wheel buttons for horn and engine
sounds.
•Battery power indicator: Press the power indicator button to check
battery level.
• Three Lights: Battery is fully charged.
• Two Lights: Battery power is low.
• One Light: Battery power is lower than 5.5V, and the battery must be
recharged.
Tuning
Reset

19
Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 24 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 24 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
20
