Rollplay 6V BMW X5 Assembly instructions

BMW X5 Children’s Electronic Car manufactured by Paragon Child Products Co., Ltd. The
BMW trademarks are used under license from BMW AG. BMW X5 name and associated logos
are trademarks of BMW AG.
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.rollplay.com for
assistance and replacement parts.
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
Model #: W498AC
6V
®

Introduction
Thank you for purchasing the BMW X5. We hope the rider enjoys it for miles
to come. Please read this instruction guide carefully before assembling and
operating the vehicle.
Please contact Rollplay Customer Service with any questions.
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 7AH
6V 36W
3 Years and Up
35 kg (77 lbs)
115 x 67 x 60.5 cm
(45.28 x 26.38 x 23.9 in)
4 km/h (2.5 MPH)
8-12 Hours
1-2 Hours
DC 7.0V0.7A
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone:
Email: [e-mail]
For French inquiries, please email only at [email protected] and
we will respond within 48 hours.

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Email or call Customer Service if you need assistance or replacement
parts.
[email protected]
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

This page is intentionally left blank.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Left Rear Wheel...............11
Assemble the Right Rear Wheel ............12
Attach the Steering Wheel......................13
Attach the Mirrors ...................................14
Attach the Seat ........................................15
Battery Removal ......................................16
Operating Instructions ............................17
Maintenance ............................................18
General Care ............................................19
Troubleshooting Guide............................20
FCC Information ......................................22
Service and Repairs ...............................23
Warranty ...................................................24
Product Registration ...............................26

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time. Always replace the
whole set of batteries at one time, taking care not to mix old and new ones, or
batteries of different types.
Do not operate near ammable vapours (gasoline, paint thinner, acetone, etc.).

7
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

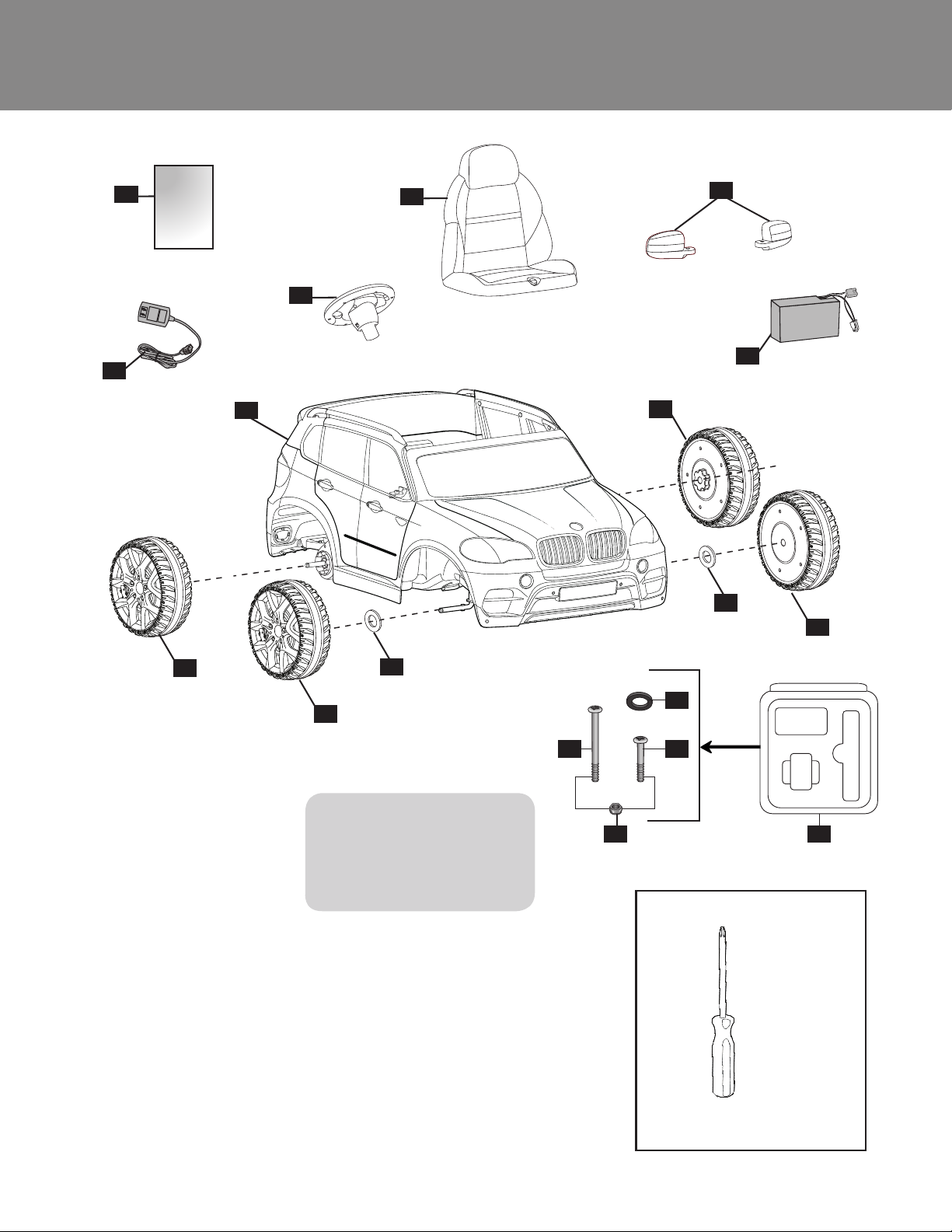

8Parts
1. Manual
2. Seat
3. Mirrors (2)
4. Battery
5. Steering wheel
assembly
6.
7.
8.
Vehicle body
9.
10. Blister pack
10.1. Steering wheel screw (1)
Front wheels (2) 10.2. Mirrors screws (2)
Rear wheels (2) 10.3. Nuts (3)
10.4. Washers (3)
Battery charger
• Phillips screwdriver
Not Included:
1
4
9
23
5
68
8
7
7
10.4
10
10.1 10.2
10.3
10.4
Helpful Tip:
1. Parts 10.1-10.4 are located
in the blister pack
2. Spare parts: washer 1
10.4

9

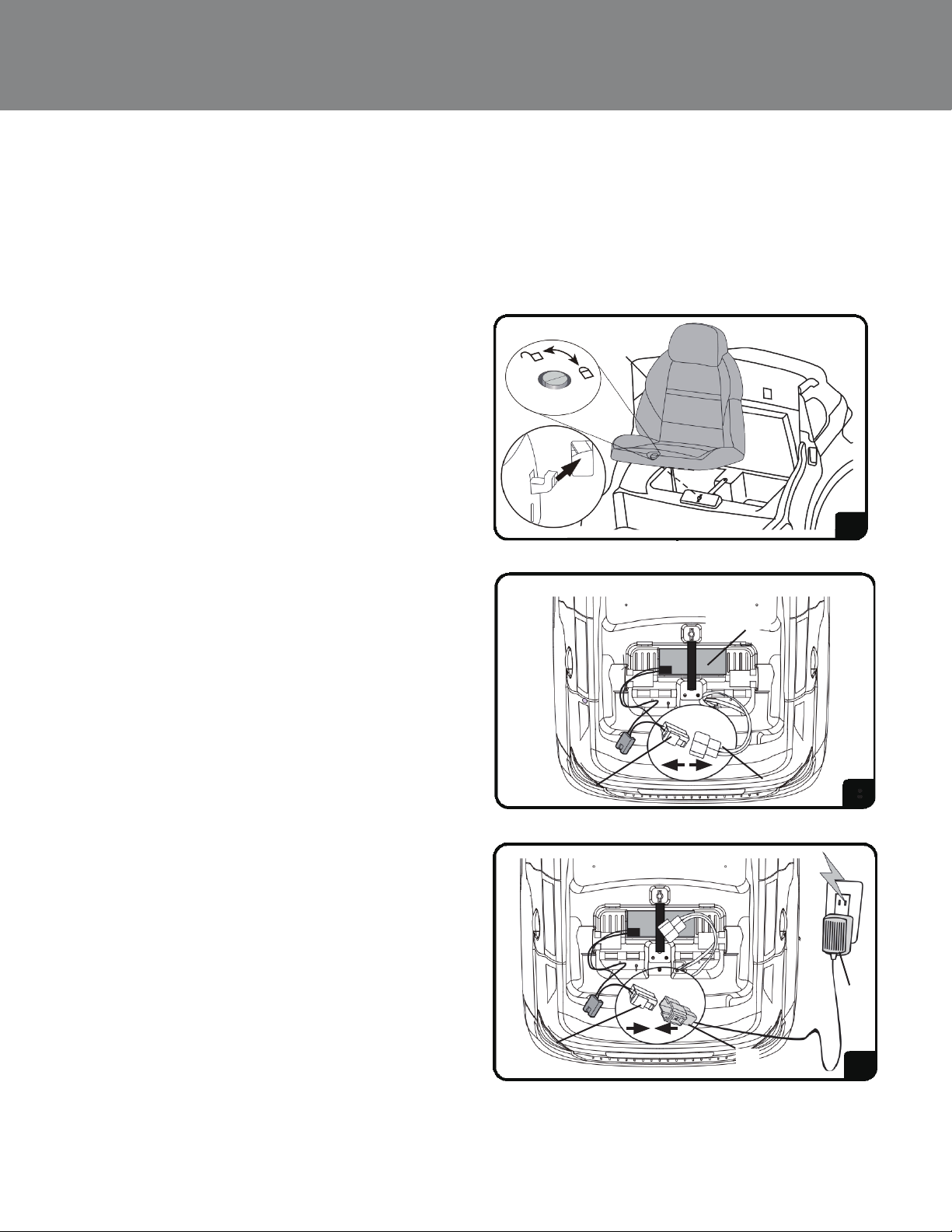

Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the Vehicle is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 16.
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
AC
Battery
AB
D

10 Assemble the Front Wheels
2. Slide the washer (10.4) onto the front axle (A).
1. Locate the washer(10.4) from the blister box.
3. Slide the front wheel (7) onto the front axle.
4. Push on the center BMW button on the wheel (B), and slide the
wheel into place while holding the button.
5. Release the BMW button then gently pull the wheel to ensure
steps.
6. Repeat steps 1-5 for the remaining front wheel.
1
7
10.4
B
A

11
Assemble the Left Rear Wheel
2. Slide the washer (10.4) onto the rear wheel axle (A).
1. Locate the washer (10.4) from the blister box.
3. Slide the left rear wheel (8) onto the left rear axle. The side with
the gear teeth (B) faces inward.
4. Push on the center BMW button on the wheel, and slide the
wheel into place while holding the button.
5. Release the BMW button then gently pull the wheel to ensure
steps.
2
8
10.4
B
A

12
1. Slide the rear wheel (8) with the gear teeth facing inward onto
the rear axle (A).
2. Line up the gear teeth on the wheel with the grooves on the
gear box.
3. Push on the center BMW button on the wheel, and slide the
wheel into place while holding the button.
4. Release the BMW button then gently pull the wheel to ensure
three steps.
Note: To remove the wheels, press down on the BMW logo button
on the wheel and slide the wheel off of the axle.
Assemble the Right Rear Wheel
3
A
8

13
Engine Sound Horn Sound
Attach the Steering Wheel
1. Locate the steering wheel screw (10.1) and nut (10.3) from the blister
box.
2. Plug the steering wheel connector (A) into the dashboard connector (B).
3. Insert the steering wheel (5) into the steering rod, and match the screw
holes of the steering wheel and the steering rod.
4. Insert the screw into the hole and fasten the nut to secure.
• Press the left and right buttons on the steering wheel to make sounds.
• Note: The steering wheel connector must be attached to the dashboard
connector to make sounds.
AB
4
5

14 Attach the Mirrors
1. Locate mirror screws (10.2) and nuts (10.3) from blister box.
2. Insert the left side mirror (3) into the slot on the side of the body.
Push it into the slot.
3. Insert the screw (A) and fasten the nut (B) to secure the mirror.
4. Repeat steps 1-3 for the right side mirror.
5
A
B
3

15
Attach the Seat
1. Position the seat (2) over the battery compartment
2. Slide in the hook on the back of the chair into the empty slot on the
Vehicle body.
3. Turn the thumb screw clockwise on the seat to lock it properly into
position.
6
2

16 Battery Removal
1. Disconnect the red battery connector (A) from the red engine
connector (B) .
2. Loosen and remove the screw.
3. Unfasten the battery (4) from the strap.
4. Remove the battery.
Note: It is not necessary to remove the battery for charging. However, if
the battery does not reach the outlet, it can be removed for charging.
Battery Strap
Screw
Battery (4)
AB
7

17
Operating Instructions
1. To turn on the vehicle, turn the power switch to “I.” To turn off the
vehicle, turn the power switch to “O.”
2. Push the shifter up to move forward. Push the shifter down to go in
reverse.
3. Press the foot pedal down to go. Release the foot pedal to stop. The
head lights on the Vehicle will turn on when the gas pedal is pressed
and the Vehicle is in motion.
4. Press the left and right buttons on the steering wheel for sounds.
1
2
3
4
8

18 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Charge the battery immediately after each use. Charge for at least 8-12
hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 23 for
replacement information.
• Remove damaged batteries from the vehicle immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

19
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 24 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

20 Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Consumer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle (77
lbs max)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
