Royal Sovereign RBC-ED250 User manual

HIGH SPEED BILL COUNTER
WITH VALUE COUNTING
Owner's Manual
Royal Sovereign International, Inc. Please read and retain these instructions.
To register your product, please go to www.royalsovereign.com
RBC-ED250

CONTENTS
Thank you for purchasing the Royal Sovereign Bill Counter with
Value Counting -RBC-ED250. This manual will provide you with
safety information, instructions for optimal use, and proper care and
maintenance for your product. Please read this manual carefully
before operating.
1
SAFETY INSTRUCTIONS ............................................................................... 2
BOX CONTENTS ........................................................................................ 3
PRODUCT VIEW......................................................................................... 3
QUICK START GUIDE ................................................................................... 4
CONTROL PANEL....................................................................................... 5
PRODUCT OPERATION................................................................................. 6 –8
MAINTENANCE OF THE MACHINE ................................................................... 8
ERROR CODE DISPLAY AND SOLUTIONS............................................................ 9
TROUBLESHOOTING ................................................................................... 10
SPECIFICATIONS ....................................................................................... 10
WARRANTY ............................................................................................. 11

SAFETY INSTRUCTIONS
2
When using this machine follow these safety precautions to reduce risk of fire, electric shock, or injury.
WARNING
Read & Fully Understand This Owner’s Manual Before Using This Machine.
1. Only use the power cord that comes with the machine. Plug the power cord into a properly
grounded wall outlet.
2. Do not use the machine if the power cord is damaged.
3. Do not place the machine in an area where it may be exposed to water or other liquids.
4. Do not take apart the machine. When service or repairs are needed, bring to a qualified service
repair technician or contact Royal Sovereign Customer Service.
5. When unplugging the power cord from the outlet, grip the plug to pull it out.
6. Do not place objects on the power cord and do not bend it excessively.
7. Before dusting the machine with a brush, unplug the machine from the wall. Do not use liquid
or aerosol cleaners on the machine. Use a soft brush to avoid any paper particles or dust from
sticking to the light transmitter or the light receiving sensors.
8. Do not use the machine in areas of high temperature, high humidity, or strong sunlight. This
may result in the machine not working properly.
9. When not using the machine for long periods of time, unplug the power cord from the outlet.
10. The effective power must be in scope of 110V.

3

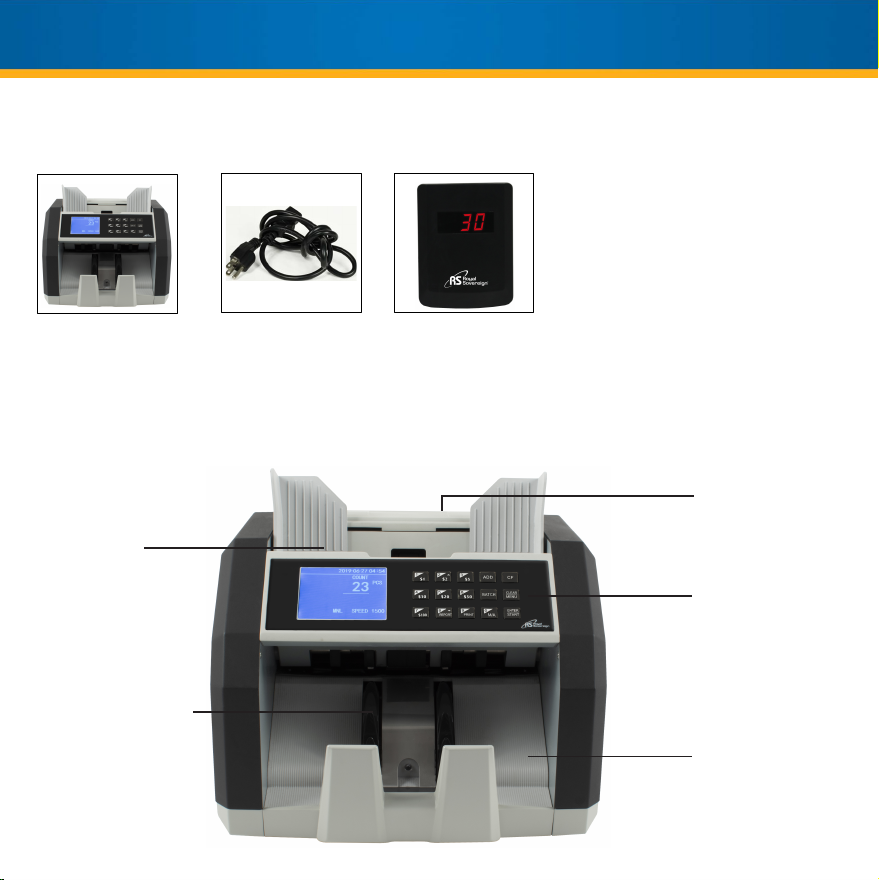

BOX CONTENTS
Control
Panel
Bill Receiving
Vanes
Carrying
Handle
Bill Counter Power Cord External Display
PRODUCT VIEW
Hopper
Stacker

4
QUICK START GUIDE
1. Plug the power cable into the back of the unit and into the wall power outlet (B).
2. On the back of the machine, flip the power switch to power on (A).
3. The machine will go through an automatic self-diagnostics test to ensure accurate
bill counting. The counting wheels in the bill counter will spin several times to ensure
it is ready for use. When the machine has completed its test run and “0” displays on
the machine, it is now ready for counting.
4. Place your currency into the hopper to automatically begin counting.
For More Detailed Instructions, Go To Page 6
A: Power Switch
B: Power Socket
C: Printer Port
D: External Display Port
E: Bill Thickness Adjuster
B
A
D
C
E

5
CONTROL PANEL
Counterfeit Detection (CF Button)– To use the detection methods, press the “CF” button once. If the machine
detects an error due to one of these methods, the machine will stop counting to allow for removal of the
suspect bill and an error code will display.
Ultraviolet Counterfeit Detection (UV)
The Ultraviolet detector will look for suspect bills that use white or bleached paper.
Magnetic Counterfeit Detection (MG)
The Magnetic detector will look for the presence of magnetic components that are standard in authentic bills.
Infrared Counterfeit Detection (IR)
The Infrared detector verifies dimensional specifications and imperfections caused in the counterfeiting
process.
Dimensional Detection (DD)
The Dimensional detector measures the width of the center of each bill, looking for odd sized bills.
REPORT Button
Select the Report button to view the count record. Byholding “REPORT”, you can view thetotal number of bills
and values ofeach denomination along with a grand total. Press the “ENTER/START” button to exit this screen.
CLEAR/MENU Button
Hold theClear/Menu button to enter the User Menu screen. Inthis screen, you can change the: bill counting
speeds, counterfeit detection levels, date/time settings, beep settings, and printer settings.

6
1. Attach the power cable tothe back of the machine, plug into a three prong outlet, and turn the switch on.
•The unit will conduct an automatic self-diagnostics to ensure accurate counts.
•After three seconds of the counting wheels spinning, the screen will display “0”.
•If there isaproblem, the preset display will show an error code. (See ERROR CODE DISPLAY AND
SOLUTIONS – LOCATED ON PAGE 9.)
2. Before counting, select counting settings that are related to your counting needs:
•Auto and Manual Start Modes: The machine ispreset to automatically start counting bills once placed
into the hopper. Tochange to manual start mode, press the “M/A” button, insert the bills into the
hopper, and press the “ENTER/START” button. Press the “M/A” button again to return to auto mode.
•Add Mode:The Add mode displays the cumulative total ofall bills counted. To turn the ADD mode on,
press the “ADD” button.
•Batch Mode:The machine is preset tocommon counting mode. Tocount bills in batches, press the
“BATCH” button. Batching ispreset to 100 bills. Tochange the batch amount, use the keypad toenter a
batch number between 1and 999. Press “ENTER/START”tosave the setting. Press the “BATCH” button
again to clear.
•Counterfeit Detection:Toturn on/off counterfeit detection methods, press the “CF” button. Ifa
suspicious bill is found, the machine will stop counting to allow removal and will display the error code
on the display. Toresume counting, simply press “ENTER/START”.
PRESET setting operation: Press and hold the “CF” button for 2seconds to enter the preset setting
mode. “MG” would be flickering on the screen and it would display “OFF” or “ON” at the BATCH
window, atthe meanwhile press the “▲”button to turn on the magnetic counterfeit detection then
it will display “ON” at the BATCH window and when you press the “▼”button to turn off the
magnetic counterfeit detection then it will display “OFF”. Press the “CF”button for once, “UV” (UV
counterfeit detection) would be flickering on the screen; repeatedly pressing the button for once,
then it would be turned to “IR” (Infrared counterfeit detection) and “DD” (dimensional detection) in
order. To turn on or turn off the detection, repeat the above steps. After the setting, press the
“ENTER/START” button to save and exit the mode.
PRODUCT OPERATION

7
PRODUCT OPERATION (Continued)
•Value Counting:
The machine will total the number of bills by denomination and total value by denomination as well as provide a
grand total. Each denomination must be counted separately. To operate press the “ADD” button. Then on the
keypad press the denomination to be counted ($1 -$100). After the denomination is counted, press the next
denomination to be counted and continue until all denominations needed to be counted are complete. Then
press and hold the “REPORT” button to view the total number of bills and values of each denomination along
with a grand total.
Single Denomination Counting-
Select denomination to be counted from the Numeric/Denomination keypad
Place bills in hopper.
Total number of bills and denomination value will show on display screen after bills are counted.
Multi-Denomination Value Counting-
Press the “ADD” button.
Select denomination to be counted from the Numeric/Denomination keypad
Place bills in hopper.
Select next denomination and repeat process above.
After all denominations are have been counted press and hold the “REPORT” button and the number
of bills and value for each denomination along with a grand total will show on the display screen.
•Menu Setting:
Press and hold the “CLEAR/MENU"buttonfor 2seconds, you will see: 1. SPEED SET 2.LEVEL SET 3.WARN
COUNT SET 4.DATE&TIME SET 5. BEEP SET 6.PRINTER SET these 6options interface, press the “▼”or “▲”
buttons to select the optionyou need, then press the “ENTER/START” button.
1. SPEED SET - Press the “ENTER/START” button to enterthe setting, there are three speeds: SPEED
1,900pcs/min, SPEED2, 1,200pcs/min, SPEED3, 1,500pcs/min. press the “▼ ”or “▲”buttons to
select the speed you need, then press the “ENTER/START” button to quit.
2. LEVEL SET - Press the “ENTER/START” button to enterthe setting, itwill show 1.UV LEVEL 2. MG
LEVEL 3.DD LEVEL 4.DOUBLE LEVEL. press the “▼”or “▲”buttons to select the item you need,
thenpress the “ENTER/START” button and enterthe setting. Each sensitivity has 5levels: (1.low,
2-4.middle, and 5.high), press the button 4or6to minus or add one sensitivity level,
then press then press the “ENTER/START” button to quit.
3. WARNCOUNT SET - Press the “ENTER/START” button to enterthe setting, press the “▼”or
“▲”buttons to select the itemyou need (WARN COUNT/ON means the counterfeit note is included
inthe amount; WARN COUNT/OFF means the total amount doesn’t include the counterfeit notes),
thenpress the “ENTER/START” button to quit.

PRODUCT OPERATION (Continued)
8
MAINTENANCE OF THE MACHINE
WARNING: Before dusting or cleaning, turn the power switch off and disconnect the power cord from the
machine. It is very important to clean all the sensors in the machine with a soft brush to avoid any paper
particles or dust from sticking to the light transmitter or the light-receiver sensors. It is important to clean the
inside of the machine occasionally. Unplug the machine and lift the top cover to gain access to the interior.
If necessary, the glass surfaces of the detectors may be wiped with a soft cloth damped with alcohol.
To get the best results out of your bill counter, Royal Sovereign recommends using Royal Sovereign Cleaning
Cards (RBC-CLN) to remove dirt, dust, oils, and other contaminates from bill counters. With the machine on,
simply run the cleaning card through the machine like a bill. This cleaning card will run through and clean the
sensors of dirt and other contaminates. Cleaning cards are recommended to be used after every 100 cycles.
4. DATE & TIME SET - Press the “ENTER/START” button to enter the setting, itdisplays
“YYYY-MM-DD HH:MM:SS”, press the “▼” or “▲”buttons to minus or add one for the value
to set the date and time, press the number 4 or 6to go tothe left or right option. Press the
“ENTER/START” button to quit.
5. BEEP SET - Press the “ENTER/START” button to enter the setting, itwill display 1.KEY
BEEP ON 2. KEY BEEP OFF3. WARNING BEEP ON 4. WARNING BEEP OFF. Press the “▼” or
“▲” buttons to select the item you need then press the “ENTER/START” button to quit.
6. PRINTER SET - Press the “ENTER/START” button to enter the setting, 1. 4800bps 2.
9600bps 3.14400bps 4. 19200bps 5. 28800bps 6.38400bps 7.57600bps, press the “▼” or
“▲”buttons to select the item you need then press the “ENTER/START” button to quit.
3. Place bills into the hopper to begin counting.

9
ERROR CODE DISPLAY AND SOLUTIONS
If you are receiving error codes above, check the machine for dust. If you continue to receive error codes,
please contact Royal Sovereign’s Service Center at 1-800-397-1025.
Error Code Reason Solutions
NL CHECK
FAIL The left counting sensor is dirty or broken Clean the sensor or contact Royal
Sovereign.
NR CHECK
FAIL The right counting sensor is dirty or broken Clean the sensor or contact Royal
Sovereign.
UV CHECK
FAIL UV Sensor Error Clean the sensor or contact Royal
Sovereign.
HOPPER
CHECK FAIL Hopper sensor is dirty or broken Clean the sensor or contact Royal
Sovereign.
STACKER
CHECK FAIL Banknote receiving sensor is dirty or broken Clean the sensor or contact Royal
Sovereign.
ERROR HALF Suspect note is flagged due to half note error
(suspicious bill size)
Remove first bill from the stacker, then
continue counting.
ERROR
DOUBLE
Suspect note is flagged due to double note error (two or
more banknotes passed together)
Remove first bill from the stacker, then
continue counting.
ERROR EC Suspect note is flagged due to jointed notes error Remove first bill from the stacker, then
continue counting.
ERROR JAM Jammed note. Remove jammed bill from the machine,
then continue counting.
ERROR UV Suspect note is flagged due to UV error Remove first bill from the stacker, then
continue counting.
ERROR MG Suspect note is flagged due to MG error Remove first bill from the stacker, then
continue counting.
ERROR DD Suspect note is flagged due to Dimensional note error Remove first bill from the stacker, then
continue counting.
The display may show some error codes when counting, which means there are some problems with the
machine. Refer to the chart below to solve the errors.

Model RBC-ED250
Power AC 100V~240V 50/60 Hz
Power Consumption 60W (Max)
Temperature Range of Operation 32~104 °F / 0~40 °C
Hopper Capacity 500 notes
Counting Speed 900 / 1,200 / 1,500 bills per minute
Accepted Note Size L:50~100mm (1.9 -3.9 in) W:90~190mm (3.5-7.5 in)
Accepted Currency USD
Display Range Counting: 4 Digits / Batch Counting: 3 Digits
Dimensions 10.20” W x 9.30” D x 9.80” H (261 x 238 x 249 mm)
Net Weight 10.80 lbs. / 4.90 kgs
10
SPECIFICATIONS
TROUBLESHOOTING
Error Code Reason Solutions
Bills get damaged /
Machine runs slow Hopper Tension is too tight
To loosen the tension, please turn the bill
thickness adjuster (located on the top of the
machine) anti-clockwise. Repeat bill counting
and adjust if the problem continues.
Bills eject from the
machine / Display shows
miscount
Hopper Tension is too loose
To tighten the tension, please turn the bill
thickness adjuster (located on the top of the
machine) clockwise. Repeat bill counting and
adjust if the problem continues.

ONE YEAR LIMITED WARRANTY
11
Royal Sovereign International, Inc. warranties this product to be free from defects in material and
workmanship for a period of one (1) year. This warranty is extended to the original purchaser only.
This warranty only covers products that are properly installed, properly maintained, and properly operated in
accordance with the instructions provided. This limited warranty does not cover any failures or operating
difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper
installation, or improper maintenance and service by you or any third party.
Returned product will not be accepted without a Return Authorization number. To request a Return
Authorization number, please visit us at www.royalsovereign.com. All transportation costs for the return of
damaged product or parts will be the responsibility of the purchaser. Return defective product, in original
packaging, to the address below.
Royal Sovereign International, Inc.requires reasonable proof of your date of purchase from an authorized
retailer or distributor.Therefore, you should keep your receipt, invoice, or canceled check from the original
purchase.The limited warranty shall be limited to the repair or replacement of parts which prove defective
under normal use and service within the warranty period.
Royal Sovereign International, Inc. (and its affiliated companies) SHALL HAVE NO LIABILITY WHATSOEVER
TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL,OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or
consequential damages so the above exclusion and limitations may not apply to you.
ROYAL SOVEREIGN INTERNATIONAL, INC.
2 Volvo Dr., Rockleigh, NJ 07647 USA
TEL: [phone]
Email: [e-mail]
For product support and warranty questions, please visit us at
www.royalsovereign.com/Customer-Support.html
