Royal Sovereign NB-1900N User manual

OWNER'S MANUAL
LAMINATOR Model No. NB-1900N
Royal Sovereign International Inc.
Read all instructions carefully before use.
For any customer support needs, please choose
the « Customer Support » tab on www.royalsovereign.com.

TABLE OF CONTENTS
TOPIC PAGE
INTRODUCTION
MAJOR PARTS
CHARACTERISTICS OF NB-1900N
SAFETY PRECAUTIONS
SET UP
CONTROL PANEL SETTINGS
HOT LAMINATING
COLD LAMINATING
COLOR FOIL LAMINATING
MOUNTING BOARD LAMINATING
CLEAN ROLLERSAND REMOVE JAMMED FILMS
IMPORTANT SAFETY CONCERNS
MAINTENANCE
ASSEMBLY PARTS
TROUBLESHOOTING
SPECIFICATIONS
3
3
3
4
5
5
7
8
9
10
11
12
12
12
12
13
NB-1900N

INTRODUCTION
MAJOR PARTS
CHARACTERISTICS
NB-1900N
Thank you for purchasing a Royal Sovereign Laminator.
To insure high quality lamination, please read this instroduction manual thoroughly.
For additional product support or factory-direct ordering information.
Call Royal Sovereign Customer Service at [phone].
LAMINATOR NB-1900N is an advanced laminator of contemporary design,
utilizing the lastest in laminating technology.
1. Contemporary design and rounded shape will enhance any decor.
2. A microprocessor is used for added protection.
1) The microprocessor protects the rollers
a.Even when power is off, rollers continue to turn until properly cooled down.
b.In the event of a power failure, rollers continue turning until properly cooled down.
2) The microprocessor prevents overheating
If a temperature sensor fails, the microprocessor prevents rollers from overheating.
3. Designed to prevent heat from radiating through the housing, using powerful fans.
4. Eight function settings, allow you to laminate various types of film.
5. Every time a button is pressed, a buzzor sounds.
6. Temperature is controled automatically for energy efficiency.

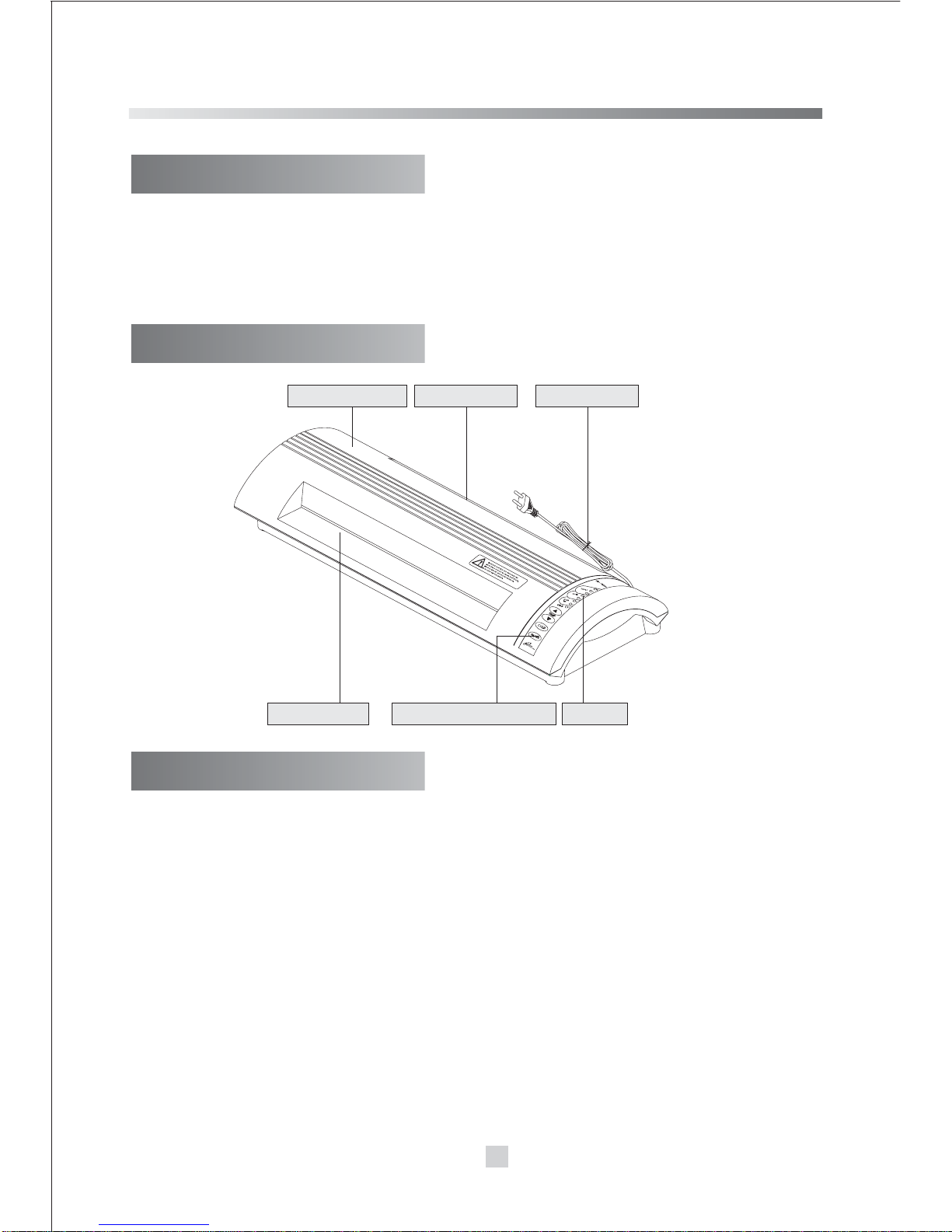

Top Cabinet
Control Button PanelInput LED
Output Power Cord
3

NB-1900N
4
Failure to comply with any of the following safety procedures could
result in serious injury. Keep this information for future reference.
1.To prevent the possibility of fire or injury, do not allow articles
of clothing (neckties, scarves, or paperclips etc.) inside the
machine.
2. Do not attempt to laminate items that exceed total
recommended material thickness.
3.To prevent the possibility of electric shock, do not immerse
the laminator in water or permit liquids inside the machine.
4. Do not operate machine for any other purpose other than its
intended use.And do not insert sharp objects into front or rear
machine openings.
5. This machine is for indoor use only.
6. Do not operate the machine if the outlet or power cord is
damaged. And do not alter the electric plug in any way.
Contact a qualified electrician.
SAFETY PRECAUTIONS
7.The electrical outlet should be installed near the equipment
and should be easily accessible.

Place laminator on a sturdy, flat work surface. Allow ample clearence
behind laminator for laminated document or photograph to exit completely
without bending.
Connect laminator to an electrical outlet that matches laminator's rated voltage
and power requirements.
If an extension cord is required, use a cord rated higher than the laminator's
capacity.
NB-1900N
5
SET UP
Eight Functions allow you to laminate as necessary.
TACT-BUTTON and LED were designed for your convenience.
CONTROL PANEL SETTINGS

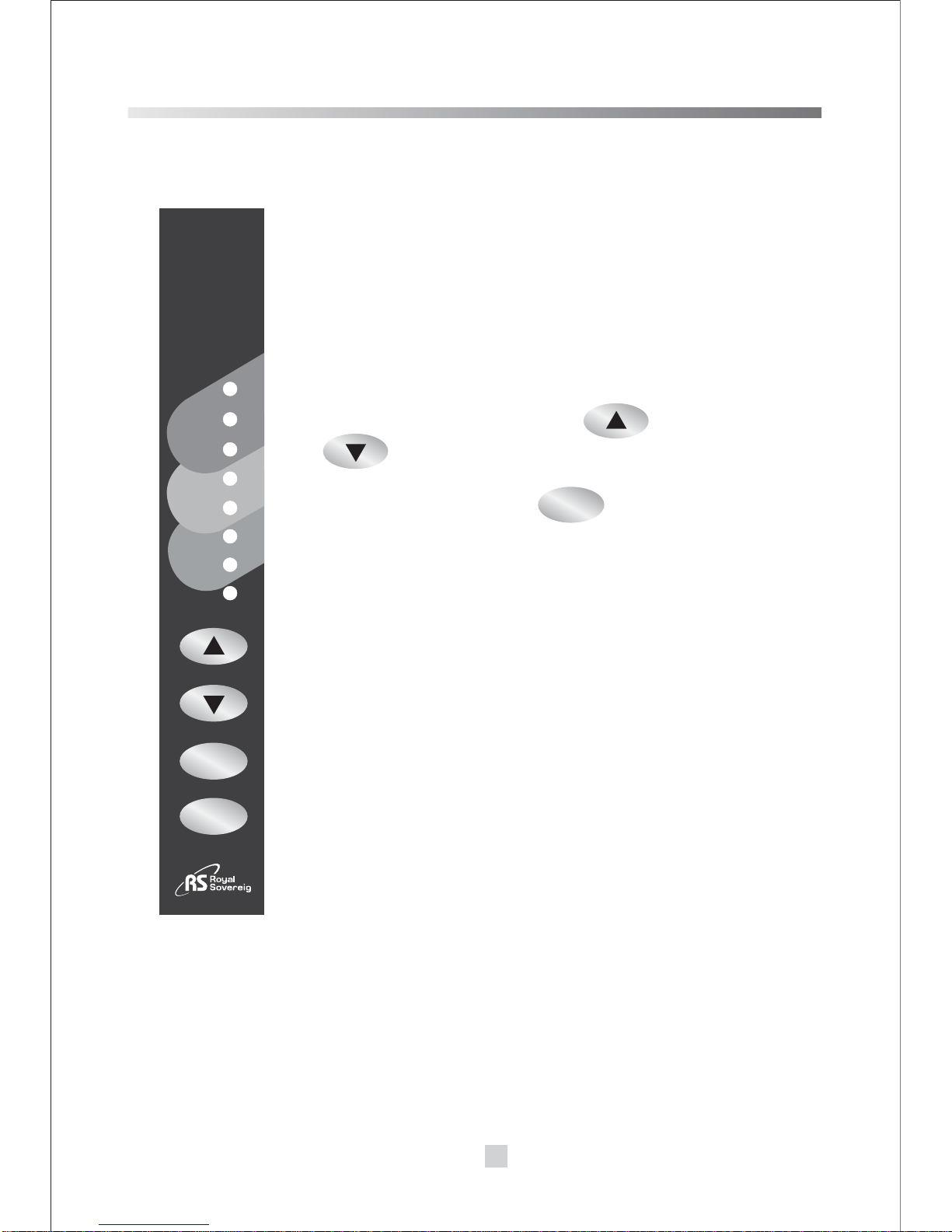

1.FUNCTION OF BUTTONS
2.DISPLAY
COLD
NB-1900N
B
7
6
5
4
3
2
1
200
~
Foil
150 180
~
80 125
~
Mic
COLD
ON/OFF
: Increase setting
: Decrease setting
: COLD Function
: Power On/off
200~250 micron (8~10 mil) film, color foil and
mount board laminating
150~180 micron (6~7 mil) film laminating
80~125 micron (3~5 mil) film laminating
Cold film laminating
COLD
ON/OFF
TEMP

COLD
1. Press power button to turn laminator on or off.
2. When you press power button, "FUNC 2"
LED is blinking. At this time, function buttons
become available.
3. To choose film thickness, press or
and you will see the LED read-out.
4. For cold laminating, press then green
LED will light up.
5. When you choose any function, a blinking LED light
means it's not ready. When the blinking stops, the
laminator is ready.
6. When blinking stops, a buzzer will ring once every
two minutes.
7. Even if you turn off as soon as finishing laminating,
rollers will continue to turn until cooled down properly,
and then stop.
NB-1900N
6
3.INSTRUCTION OF BUTTONSAND LED
COLD
NB-1900N
COLD
TEMP
ON/OFF
B
7
6
5
4
3
2
1
200
~
Foil
150 180
~
80 125
~
Mic

1. Press the power button.
2. Choose setting by or
3. When red LED stops blinking and buzzer rings, you're ready to laminate.
(It takes 4~5 minutes depending on setting function.)
4. Put document to be laminated, into a laminating pouch. Leave a minimum
border of about 3mm(1/8"), to provide a proper edge seal.
5. Insert pouch squarely into opening slot.
6. Finished lamination will exit through rear of machine.
7. Emerging laminated document is hot to the touch.
(Always allow lamination to cool down on a flat surface for about a minute
before handling, to prevent permanent bending. If document is not
laminated well, re-insert it and run it through a second time.)
8. When continuously laminating, run the laminator at a lower setting
because the internal machine temperature may be higher than the
required temperatur, causing the document to bend or ripple.
9. When finished laminating, turn off the machine.
NB-1900N
7
HOT LAMINATING
Sometimes, when continuously laminating, LED may begin
blinking. If this happens, finish laminating the current document,
then wait until the LED stops blinking, before inserting the next
lamination.
'***USEFUL INFORMATION***
* Do not laminate empty or thin pouch on a thick film setting.
The pouch could stick to the roller.
* Do not unplug laminator while laminating.
This could be fatal for the rollers due to the high internal temperature.

COLD
1. Press the power button to turn laminator on.
2. Press
3. It is ready when green LED blinking stops and buzzer rings.
4. Insert document into Royal Sovereign cold laminating pouch as follows.
NB-1900N
8
COLD LAMINATING
If it has recently been used for hot lamination, allow the rollers to
be cooled down about 20~30 minutes.

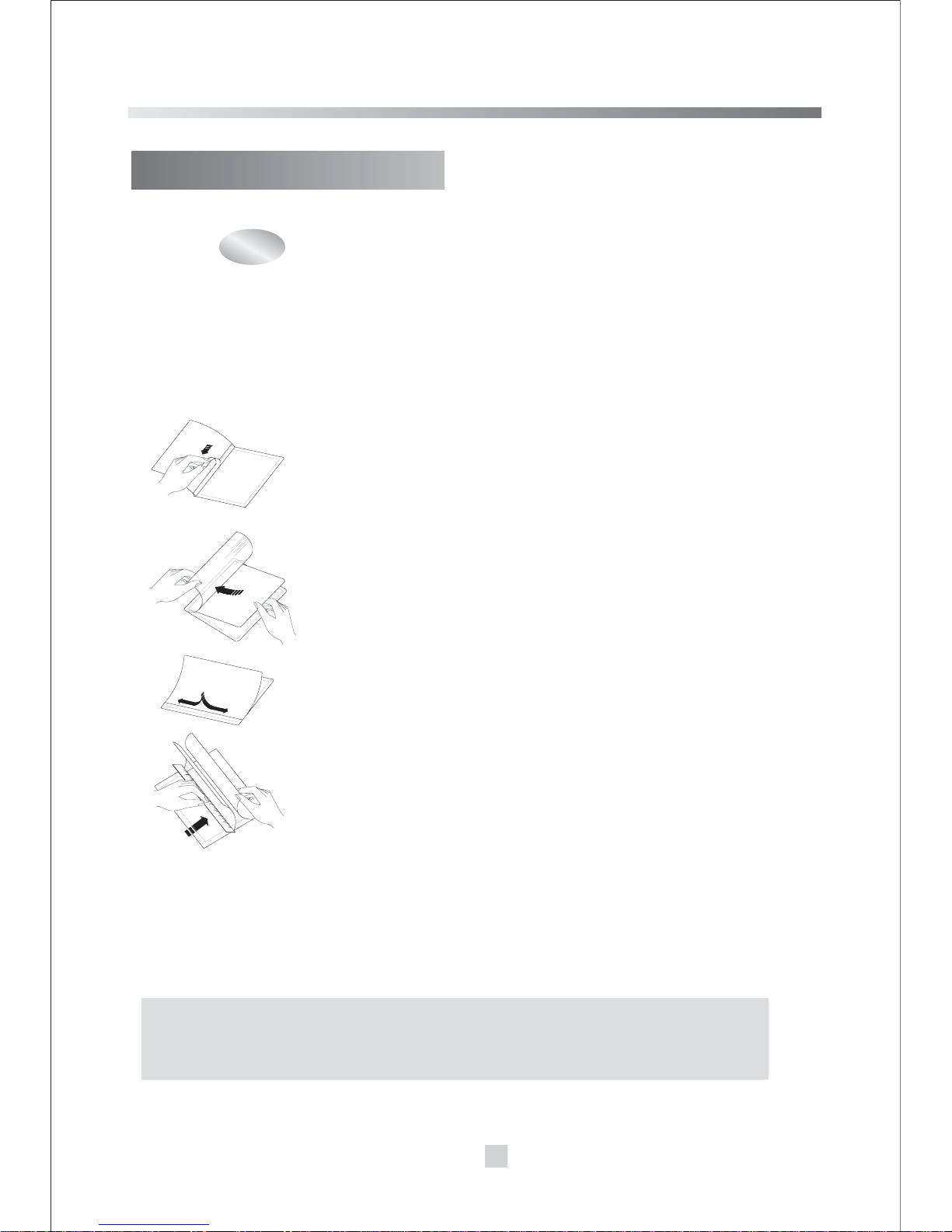

**HOW TO ATTACH DOCUMENT ON COLD POUCH FILM**
1) Prepare cold pouch film.
2) Remove protective paper inside cold pouch.
(Be careful not to allow the pouch to close and
seal itself closed. If the pouch closes on itself
and seals,you will not be able to the document
to be laminated inside.)
3) Place document squarely into the pouch, where
the protecting paper was.
Cold film's minimum border of about 3mm(1/8")
is necessary to provide a proper edge seal.
4) Beware of dust while inserting document.
5) Feed pouch squarely into opening slot.
Front
Back
Back
5. Finished laminated pouch will exit through rear of machine.
6. When you are finished laminating, press the power button to turn off.

Your laminator has ability to add color by using color foil to documents copied
or printed by laser printer using toner.
1. Press the power button to turn laminator on.
2. Find FOIL setting, using
3. Machine is ready when red LED stops blinking and the buzzer rings.
4. Position color foil where you want on the document and insert it into the
paper carrier.
5. Insert the paper carrier squarely into the opening slot.
6. Finished foil laminated paper will exit through rear of machine.
7. When you are finished laminating, press the power button to turn machine off.
* When you do laminating several colors, use high temperature tape
to hold color foils in place.
* For high quality lamination, choose FUNC depending on thickness of material
and PAPER CARRIER.
(Foil laminating temperature is set for a bond paper.)
NB-1900N
9
COLOR FOIL LAMINATING
The document, which has been foil laminated, is hot and easily
bent. Try not to touch the document until it has cooled down.
**PAPER CARRIER is required**
'***USEFUL INFORMATION***

**You can laminate photographs or pictures on a mounting board,
less than 2mm (1/12") thick without any tension adjustment.**
1. Press the power button to turn the machine on.
2. Set FOIL setting with
3. When the LED light stops blinking and buzzer rings, the laminator is ready.
4. Place material on Mounting board.
5. Insert Mounting board squarely into opening slot.
6. Finished Mounting board will exit through rear of machine.
7. When you are finished laminating, press the power button to turn machine off.
* When you do laminating several colors, use high temperature tape
to hold color foils in place.
1. Unplug the machine and unscrew the 8 screws on bottom of laminator,
set machine upright and lift off the cover.
2. Locate each end of left and right pressure spring on the upper part as shown.
3. Reassemble top cover with 8 retaining screws and do lamination.
* For general lamination, set pressure springs to lower position.
NB-1900N
10
MOUNTING BOARD LAMINATING
* The document, which has been mounting board laminated, is
pretty hot and easily bent. Try not to touch the document until
it has cooled down.
* When laminating to mounting board, pressure adjustment is
needed for good quality lamination.
'***USEFUL INFORMATION***
'***LAMINATION PRESSURE ADJUSTMENT***
•

Be careful not to allow to damage temperature sensor, as damaged
sensor could cause serious harm.
1) If film adhesive apears on the laminated pouch surface, Insert a sheet of
clean, thick paper (about 0.5mm(1/50") thickness) into the machine 2~3
times on "FUNC 4" setting. The paper will attract the excess adhesive
from the roller.
NB-1900N
11
CLEANING ROLLERSAND REMOVING FILM JAMMED
OR STUCK TO ROLLERS
1. Cleaning rollers with a clean and thick paper
1) When rollers are hot, turn on and
set "COLD" mode to cool them down.
2) Press the power button to turn off.
3) Loosen 8 retaining screws on bottom
and lift off the cover.
4) Use a recommended silicon roller
cleaning solvent such as Laminex
Poly-Off or equivalent, on a lint-free
cloth to clean residue of laminate
adhesive on exposed roller surface.
Prevent any liquid from spilling into
the unit.
5) Re-assemble the unit in reverse-order
of disassembling.
2. Cleaning rollers with cleaning solvent.
* Do not turn the unit on until the rollers are completely dry.
Wet rollers could cause serious harm.

1. Be sure that neckties, necklaces, long hair and loose clothing are
kept away while the laminator is in operation.
2. Prevent children from accessing the machine.
3. Place the machine on a sturdy, flat work surface to prevent damage.
4. Make certain that the machine is connected to an adequate power source.
5. Do not use for any other purpose, other than laminating.
NB-1900N
12
IMPORTANT SAFETY CONCERNS
1. Width of upper and lower side of film should be same in order not to
allow melted adhesive to stick to the roller.
2. Routine roller cleaning is required to prevent adhesive build-up.
3. Always keep the machine clean.
To remove dust, finger prints, etc. on housing, use diluted alcohol on
lint-free cloth. Prevent any liquids from getting into the laminator.
(Do not use strong alcohol or petroleum-based cleaning solvents
or abrasives.)
MAINTENANCE
Owner's manual : 1EA
ASSEMBLY PARTS
TROUBLESHOOTING
*Motor doesn't work. 1.Power cord may not be 1.Check the power cord.
plugged in
2.Power switch in
2.Check that switch is on
OFF mod
*Film is not laminated. 1.Cold mode is set. 1.Change the setting to
hot laminatio
*Lamination 1.Setting is too low. 1.Increase setting.
is not clear.
Cause
Check point
Symptom

NB-1900N
13
SPECIFICATIONS
NB-1900N
680x225x127mm (26.8"x10"x5")
445mm (17.5")
2mm (1/12")
75~125(micron)
Four Roller (no carrier)
4~5 min
Hot roller
8 SETTINGS
DC FAN
AC motor
520mm (20.5") per min.
11Kg (24 lbs.)
AC 100V 50/60Hz,
AC 120V 60Hz ,
AC 220-240V 50/60Hz
1000 W
DESCRIPTION
Dimensions(w x d x h)
Max. Laminating Width
Max. Laminating Thickness
Film Thickness
Transport Type
Pre-Heating Time
Temp. Operating Range
Cooling Fan Type
Motor Type
Max. Laminating Speed
Weight
Voltage/Cycle
Power Consumption
Heat Source

www.royalsovereign.com
RS Holland B.V.
Industrieweg 6K, 4104AR, Culemborg, The Netherlands
TEL : [phone]
FAX : [phone]
E-mail : [email protected]
RS International Australia PTY. LTD.
30 Prime Drive, Seven Hills, NSW 2147, Australia
TEL : [phone]
FAX : [phone]
E-mail : [email protected]
CORPORATE HEADQUARTERS
Royal Sovereign International Inc.
2 Volvo Drive, Rockleigh, NJ 07647 U.S.A.
TEL : [phone] FAX : [phone]
E-mail : [email protected]
Royal Sovereign Inc. <Oversea Sales Office>
1001, World Meridian II, 426-5, Gasan-dong,
Geumcheon-gu, Seoul, 153-759, KOREA
TEL : [phone] FAX : [phone]
E-mail : [email protected]
RS Canada Inc.
1025 Westport Crescent, Mississauga On L5T 1E8 CANADA
TEL : [phone]
FAX : [phone] TF: [phone]
E-mail : [email protected]
