Royal Sovereign APL-330U User manual

LAMINATOR MODEL NO.APL-330U
OWNER'S
MANUAL
Royal Sovereign International Inc.
Read all instructions carefully before use.
For any customer support needs, please choose the
« Customer Support » tab on www.royalsovereign.com

MAJOR PARTS 3
CHARACTERISTICS OF APL-330U 3
SAFETY PRECAUTIONS 4
HOT LAMINATING PROCEDURES 5
HOW TO USE CLEANING PAPER 6
SPECIFICATIONS 7
TROUBLE SHOOTINGS 7
TABLE OF CONTENTS
APL-330U
TOPIC PAGE

APL-330U
MAJOR PARTS
CHARACTERISTICS OF APL SERIES
3
1. Hot Laminating Function
The APL-330U is ideal for laminating all types of photos, documents, and digital
prints without a carrier.
2. Temperature Control
Precise temperature control using Digital Micom.
3. Auto-Reverse
When a jam occurs the motor reverses until the material exits the machine.
4. Sound/Light Alarm Function
When a jam occurs the Alarm LED Light (Blue) will blink and the alarm
will sound.
NOTE: When a jam occurs the heat automatically shuts off to protect the item
being laminated and the rollers.
5. Automatic Roller Cooling Function
After lamination when the machine is turned off, the rollers will continue to rotate
until the rollers temperature reaches 177
W2@6X?
?W.M?I/X
?7H?eN1
?@f?@
?3L?eJ5
?V/K?O.Y
V4@0Y?
F (81
W2@6X?
?W.M?I/X
?7H?eN1
?@f?@
?3L?eJ5
?V/K?O.Y
V4@0Y?
C), this is to protect the
rollers.
6. Automatic Fan Cooling Function
After lamination when the machine is turned off, the DC fan will continue to
run cooling the rollers.

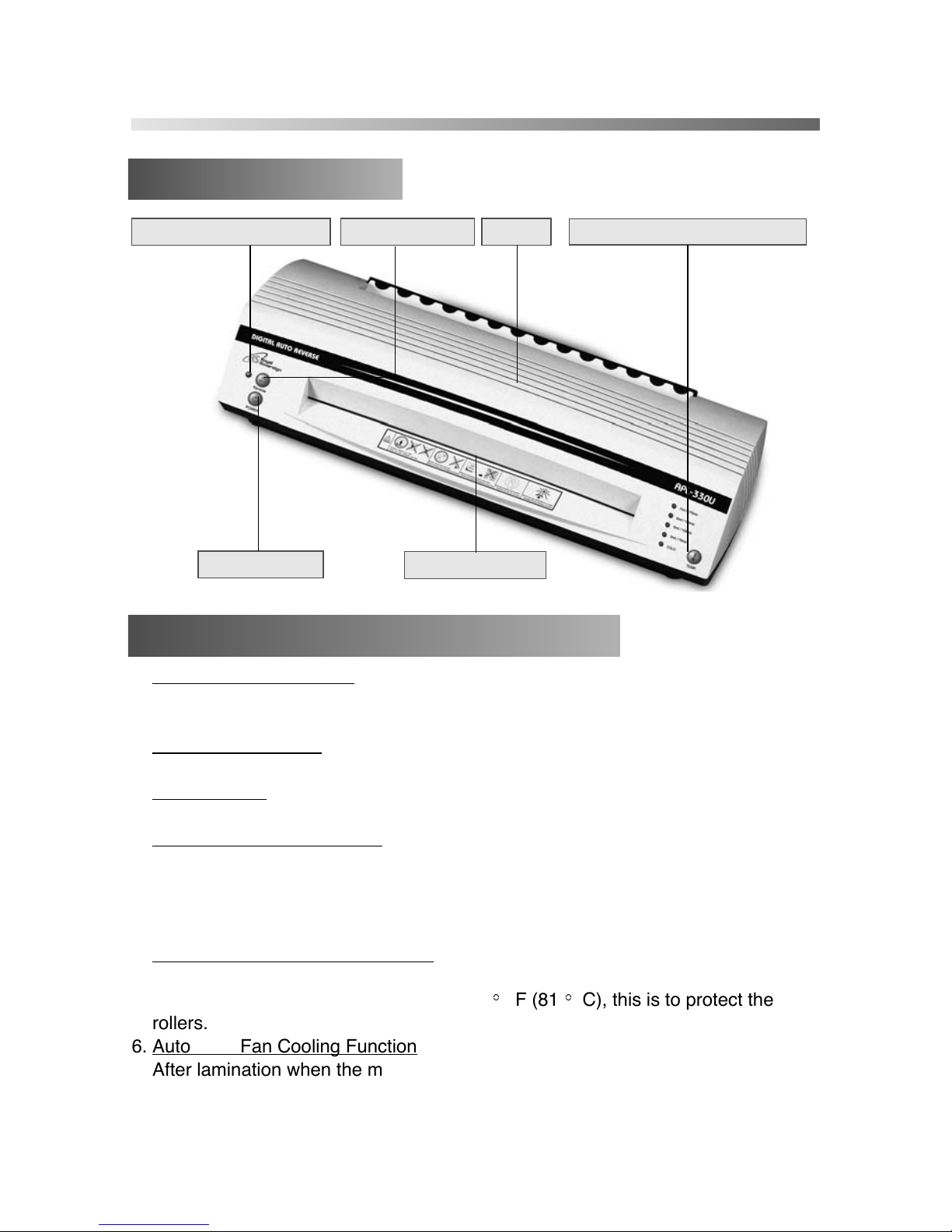

Reverse Button
Power & Reverse Light Temperature Control Button
Front Opening
Power Button
Cover

SAFETY PRECAUTIONS

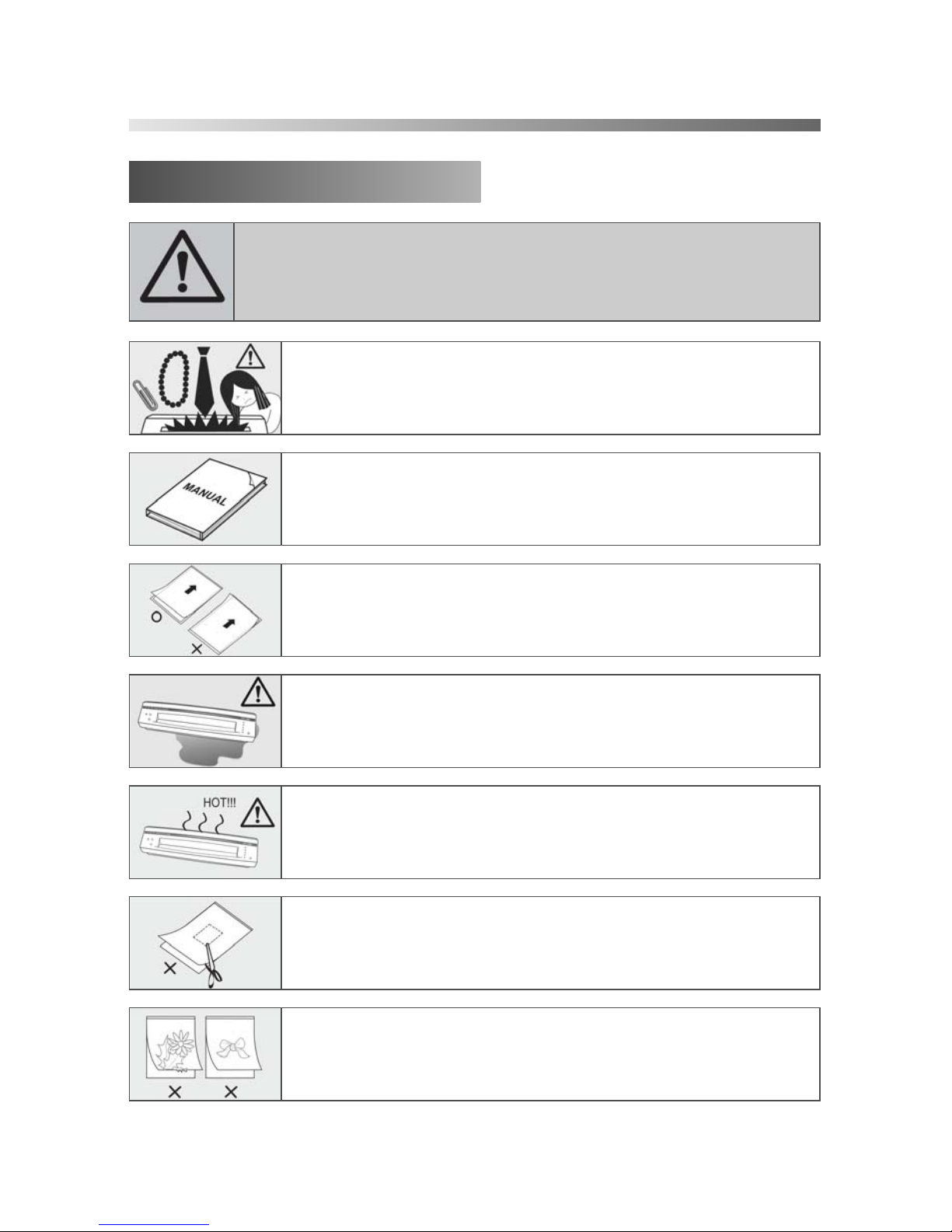

The safety recommendations outlined in this section are to be read
and followed before operating this machine. Keep this information for
future reference.
1. To prevent the possibility of a fire or injury ,do not allow
foreign articles (neckties, scarves, or paperclips) inside the
machine.
2. Do not attempt to laminate items that exceed total
recommended material thickness.
3. Do not insert pouch film with the back end first.
(Front of film: sealed side,Back of film: unsealed side.)
This may cause the pouch to jam the rollers.
4. To prevent the possibility of electric shock, do not immerse
the laminator in water or permit liquids inside the machine.
5. Because the laminator creates heat, keep out of reach of
children.
6. Do not cut pouch before inserting into laminator.
(This will cause the laminator to jam.)
7. Do not operate machines for any other purpose other than its
intended use. Do not laminate leaves, flowers, clothes etc.
4
APL-330U

8. This machine is intended for indoor use only.
If the room temperature is low(under 64
W2@6X?
?W.M?I/X
?7H?eN1
?@f?@
?3L?eJ5
?V/K?O.Y
V4@0Y?
F),The ready light
may take longer to come on.
9. Do not operate machine if plug or cord is damaged.
Contact a qualified electrician.
HOT LAMINATING PROCEDURE
5
1. Do not laminate pouch film without a document or photo inserted into the pouch.
2. When using a small pouch, place the film into the middle area (Sensor area)
of the machine. (There is only one sensor in the middle area of the machine.)
3. Place the item to be laminated into the pouch film.
4. Place the pouch film into the front opening of the laminator with the sealed end
first.
NOTE: If the front sensor is touched for more than 3 seconds, it can
automatically start the anti-jam system. If this occurs the rollers will reverse,
and you will not be able to laminate.
5. Anti-jam system will continue for approximately 15 seconds. You can try
laminating again after 15 seconds.
NOTE: Your finished laminated item will be hot,and will easily bend.
To keep your laminated item flat , place on flat surface and allow to cool.
APL-330U

6
HOW TO USE CLEANING PAPER
1. Turn the machine on. After the READY light is lit, insert non-coated copy
paper that fits the side of the front opening.
2. Pass the paper through the machine once or twice in order to remove glue
and residue from the rollers.
3. If the paper becomes excessively dirty, dispose of it and insert a new sheet.
4. Continue this process until paper comes out clean.
APL-330U

7
SPECIFICATION
TROUBLESHOOTING
Symptom Check Point
Motor doesn't work.
Hot laminating function
doesn't work.
1. Check if the power cord is plugged in.
2. Check if the switch is on.
1. Check if the temperature control switch
is set to the hot laminating position.
DESCRIPTION APL-330U
Voltage / Cycle AC 100V.120V.220V~240V (50/60Hz)
Power Consumption 800W
Max.Laminating Width 13.3 (inch), 340 (mm)
Film Thickness 3~7 (mil), 75~175 (micron)
Ready Time 3~4 Minutes
Heat Method HOT SHOE
Adjustable Temperature YES (Button)
Motor Type AC Synchronous-Rev.
Transport Type 4 Roller
Jam Alarm YES
Photo Lamination YES
Reverse Manual & Auto reverse
Laminating Speed 20.4 (inch/min), 520 (mm/min)
Dimensions (WxDxH) 22x9.8x6.5(inch)
560x250x165(mm)
Weight 15.4 (lbs), 7 (kg)
APL-330U

www.royalsovereign.com
RS Holland B.V.
Industrieweg 6K 4104AR Culemborg, The Netherlands.
TEL : [phone]
FAX : [phone]
E-mail : [email protected]
RS International Australia PTY. LTD.
30 Prime Drive, Seven Hills, NSW 2147, Australia
TEL : [phone]
FAX : [phone]
E-mail : [email protected]
CORPORATE HEADQUARTERS
Royal Sovereign International Inc.
2 Volvo Drive, Rockleigh, NJ 07647 U.S.A.
TEL : [phone] FAX : [phone]
E-mail : [email protected]
Royal Sovereign Inc. <Oversea Sales Office>
1001, World Meridian II, 426-5, Gasan-dong,
Geumcheon-gu, Seoul, 153-759, KOREA
TEL : [phone] FAX : [phone]
E-mail : [email protected]
RS Canada Inc.
164 Oakdale Road, Toronto, Ontario M3N 2S5
CANADA
TEL : [phone] FAX : [phone]
E-mail : [email protected]
