RTA Products TECHNI MOBILI RTA-8404 User manual

CLASSIC COMPUTER DESK WITH MULTIPLE DRAWERS
MODEL RTA-8404
ASEEMBLY INSTRUCTIONS
REV.FP-6919-0922
Thank you for purchasing our product
BOX 1 OF 2
BOX 2 OF 2
Please note that this procuct comes
packaged in 2 separate boxes Scan QR to view full
assembly video

BOX 1 OF 2
BOX 2 OF 2
•This product comes split in 2 separate boxes.
P.1 P.1
RTA-8404
•Please read carefully the assembly instructions before the installation.
• Do not discard this manual or any of the packaging
material until the unit has been completely assembled.
•The assembly might require of 2 persons for certain steps. Before you
start the instalation, make sure there is someone nearby to help you. 12
•Scan this QR code to view the complete assembly video online.
•For individual Step videos - please use the QR code found on
the corresponding step within the manual. SAMPLE - DO NOT SCAN

P.2 P.2
RTA-8404
A
x1 B
x1
C
x1 D
x1
Tabletop
The replacement parts service is limited to
the 48 contiguous United States.
If you reside in AK, HI, PR, U.S. territories
or other countries,
please contact the
supplier from where
the unit was purchased.
Missing, damaged and defective
parts can be replaced at no cost
to you. Please refer to the last
pages on this manual.

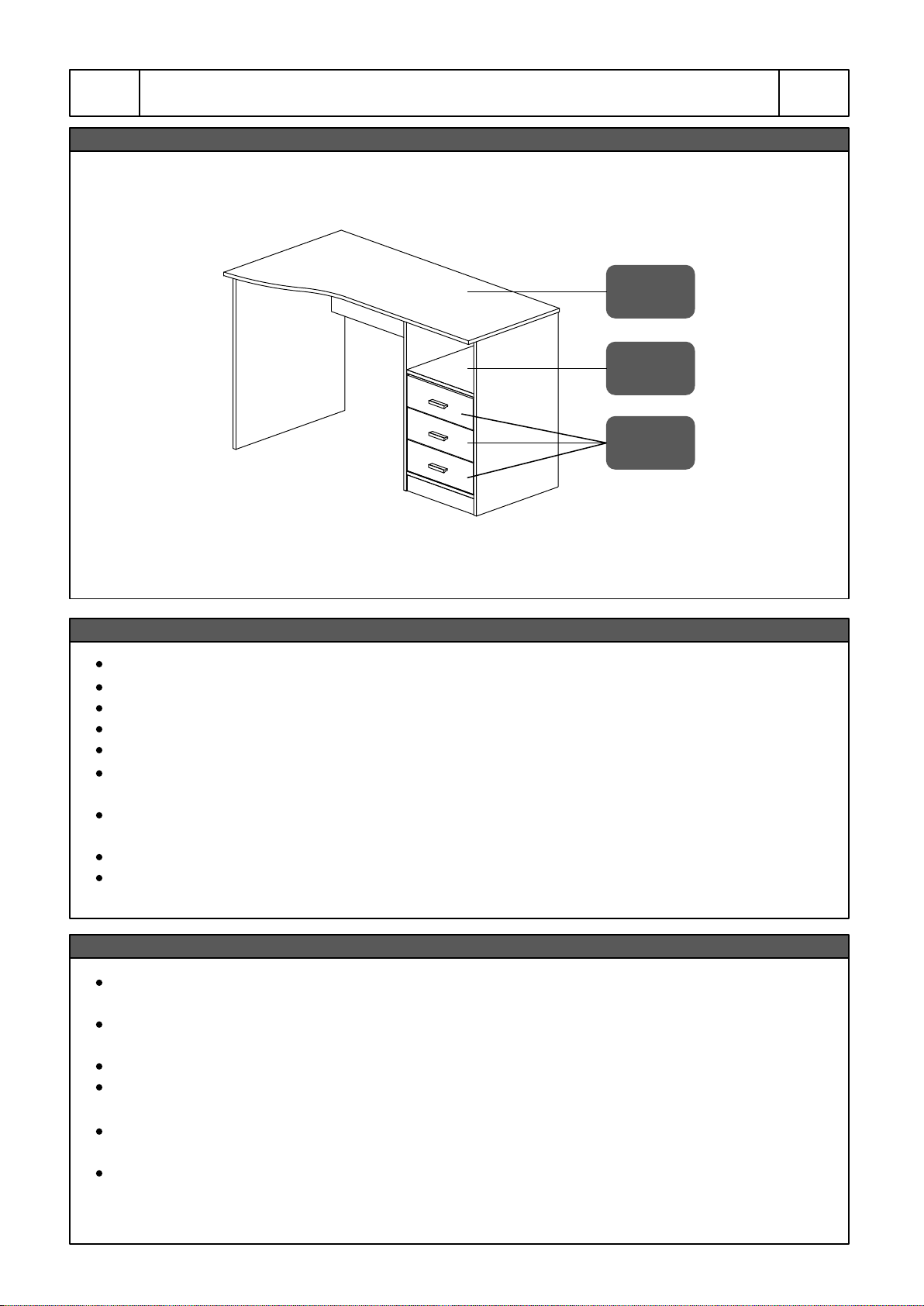

Do a quick inventory
of all the parts and
hardware listed below
MAIN PARTS LIST
Left back panel
Left side panel Right side panel E
x1 F
x1
G
x1
Middle side panel Right shelf panel
Right bottom panel
H
x3 Drawer front panel I x1 Bottom skirt panel J x3 Drawer left panel N x1 Right back board
K
x3 Drawer right panel L x3 Drawer back panel M x3 Drawer bottom
board
12.6"
15.4"
16"
14.8"

A
P.3 P.3
RTA-8404
PART QTY SIZE

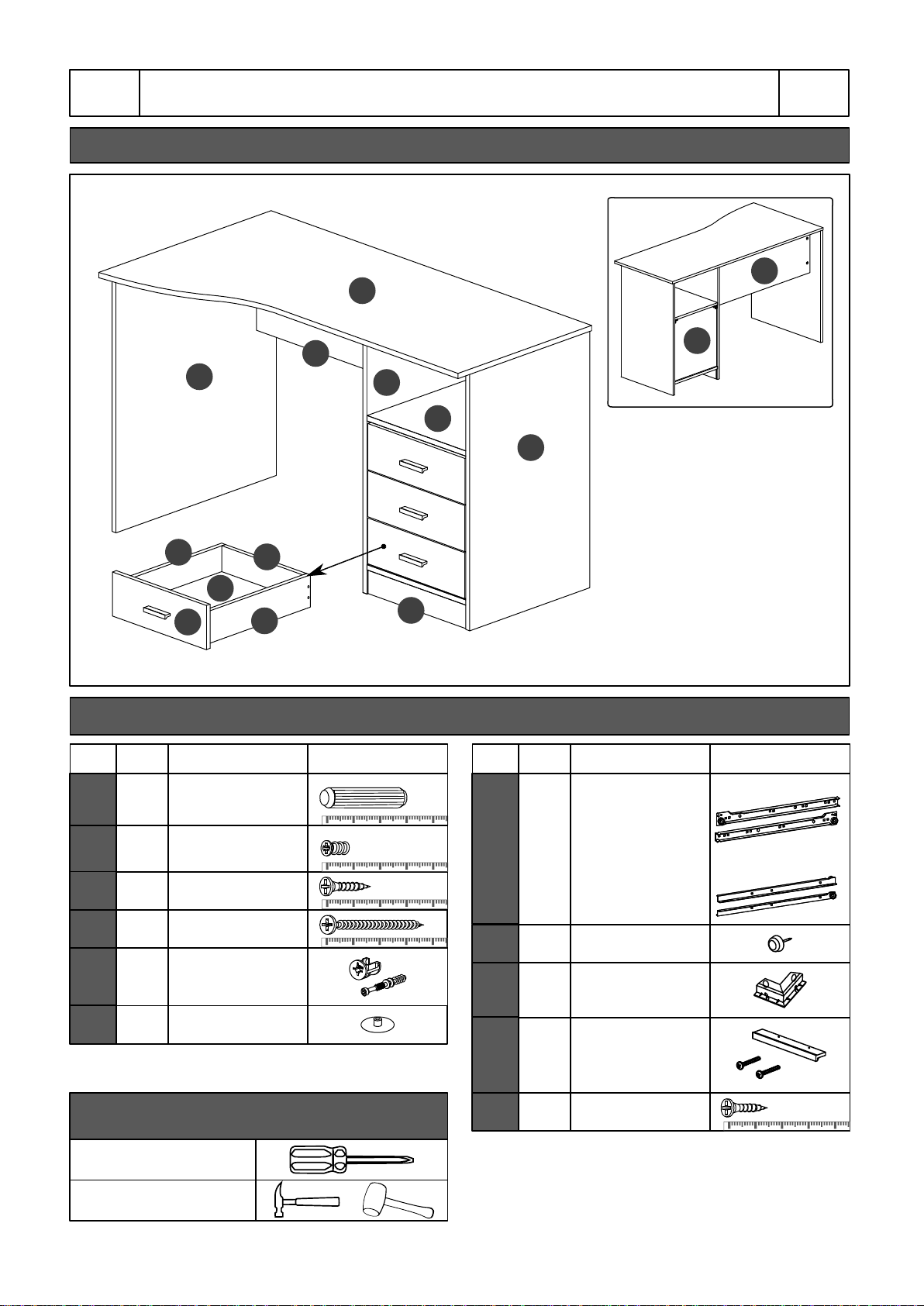

MAIN PARTS LAYOUT (For reference)
HARDWARE LIST
28 M6x30
Wooden dowel
1
Hammer or mallet
ITEM
12
2
4
3
12
4
25
Sets
5
17
6
7
6
8
PART QTY SIZE
2"Z" corner
bracket
9
ITEM
10
12
11
TOOLS YOU WILL NEED DURING ASSEMBLY
(NOT INCLUDED WITH PRODUCT)
Phillips Screwdriver
M5x8
Euro screw
M3x16
M4x38
Cam bolt
and lock
Hole cover
Sliders,
Set of 4 pcs
Plastic glide
"L" handle
84mm plus 2
screws M3.6x22
M3.5x15
B
C
D
E
F
HI
J
K
L
M
N
B
3
Sets
2 "flat" pieces per set:
2 "L shape" pieces
per set:
3
Sets

P.4 P.4
RTA-8404
1. Screw the bolt into the indicated hole on the
panel indicated in the assembly step.

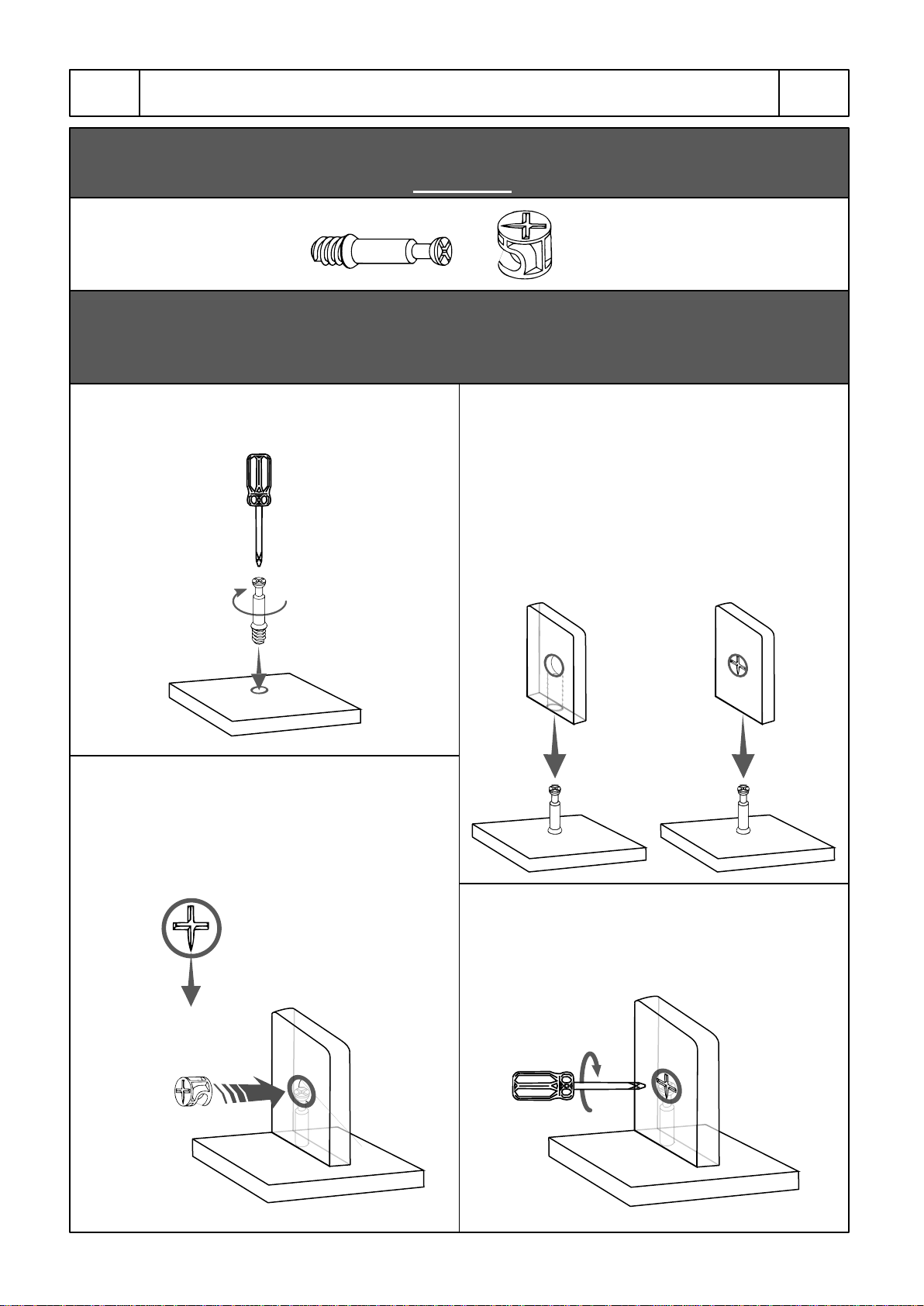

CAM BOLT AND CAM LOCK TUTORIAL
THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS
This unit uses cam bolts and locks (also known as mini fixes).
If you are not familiar with this kind of hardware, the below is a tutorial
that explains how to use them on the steps where they are required.
2. Join the other panel (with the big hole) to the
panel with the bolt. If it comes with the cam
locks already pre-installed, make sure to align
them to receive the bolt's head (refer to point
3). There might be a very small gap between
the panels which is normal.
3. Insert the cam lock on the panel with the big
hole making sure it goes aligned to receive the
bolt's head.
4. Use a Phillips screwdriver to turn the cam
lock clockwise. This will lock the panels
togheter and also will close any gaps.
Cam lock
alignment
If the cam locks come
pre-in stalled, make sure they
are aligned (see point 3).

P.5 P.5
RTA-8404
BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
• If during assembly you find an issue or need clarification,
please contact our Customer Service for assistance.
Please refer to the last pages on this manual.
• On each step read the instructions thoroughly and
analyze the illustrations before proceeding to do the
assembly.
• Follow the instructions step by step and do not skip any
unless our Customer Service advises it is OK to do so.
• Do not overtighten or force the screws as they might
break, strip, damage the threads of the holes or get stuck
inside the part.
• Make sure you understand which hardware will be
used on each step. Using the wrong size of screw,
bolt or pin might strip the threads or cause damage
to the part in which it is being used.
• To avoid misalignments, always leave the screws loose
and tighten them until all pieces are positioned correctly.
• If the hole seems too small for the screw, make sure you
are using the correct size of screw and/or that you are
installing it in the correct hole.
• Do not discard this manual or any of the packaging
material until the unit has been completely assembled.
√
√
M6
30mm
M6x30
•Sometimes on the panels the laminate or material might be
covering the hole partially or entirely. If there is no visible
hole or it seems too small, pass and press the tip of your
finger over the area where the hole should be located to feel
its indentation, and once found, carefully pierce the laminate
to uncover the hole underneath.

(Top)
P.6 P.6
RTA-8404
Insert the wooden dowels 1into the indicated holes on panels B, C, D, E, F, G,
I, Jand Kas shown. Make sure to insert in the correct holes as others are
intended for other hardware in other steps.
STEP 1
Hardware
1Dowel 28
Pcs
(Front)
ASSEMBLY STEPS
E
Tools (NOT included)
Scan QR to view step
Attach the cam bolts 5to the indicated holes on panels A, C, D, Eand Has
shown. Please make sure to insert in the correct holes as others are intended
for other hardware in other steps.
Please note that on panel Ethe bolts attach on both sides.
STEP 2
Hardware
5Bolt 25
Pcs
Tools (NOT included)
Scan QR to view step
You WIIL NOT join any panels in this step.
I
CD
E
B
F
G
JK
JK
JK
(Top)
(Top)
(Top)
C
D
E
E: Left side E: Right side
H
H
H
A
(Top)
(Top)
(Top)
(Top)

7
6 "flat" pieces:
P.7 P.7
RTA-8404
STEP 3
Hardware
7
(Front)
(Top)
DE
Scan QR to view step

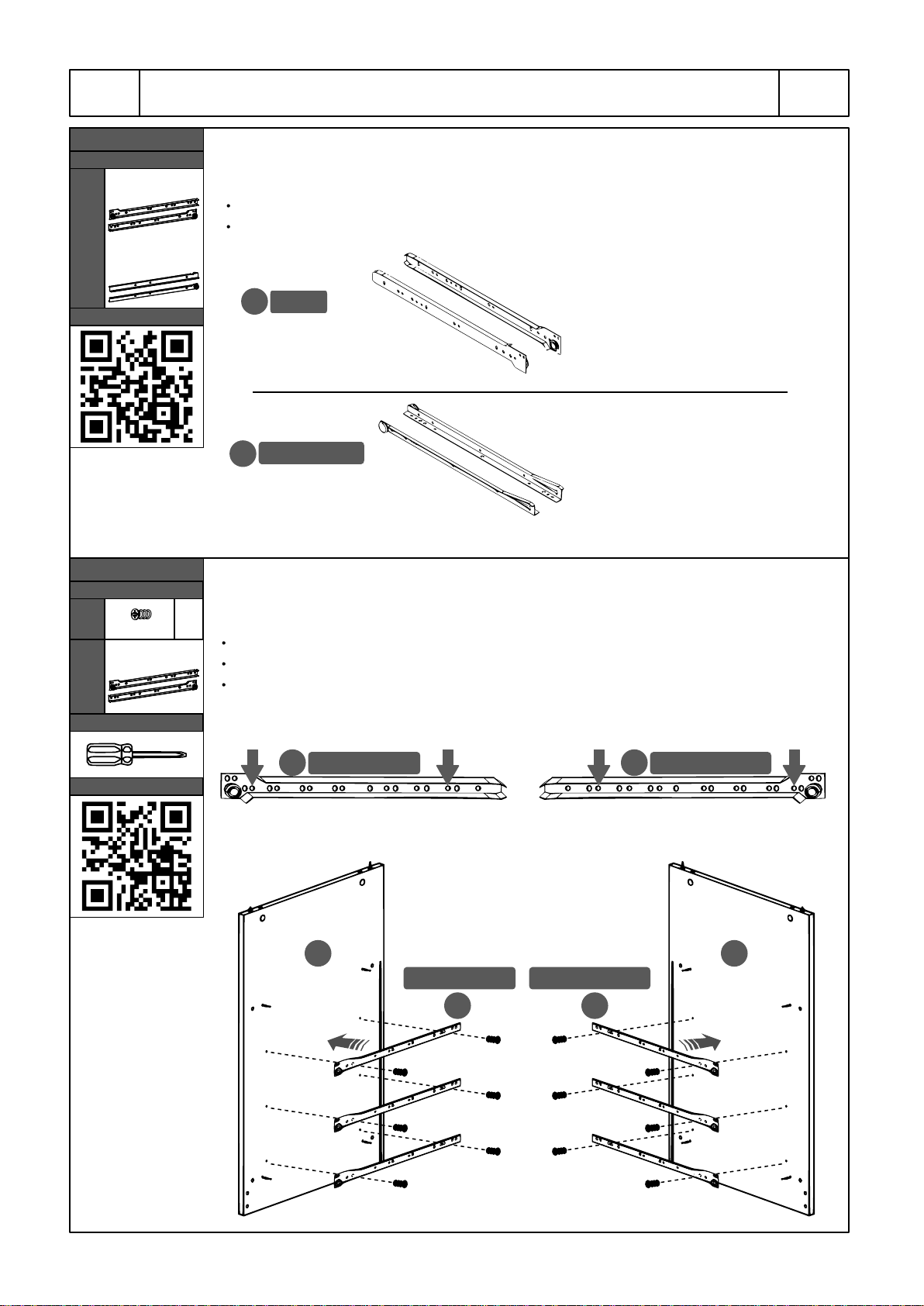

Use screws 2to assemble the "Flat" sliders 7to the panels Dand Ein their
respective sides (Left sliders to E, right sliders to D).
NOTES:
The wheels go towards the front of the panels.
Attach first on the front, through the 3rd hole on the slider.
The sliders will show 2 free holes above the wheels.
STEP 4
Hardware
2M5x18 12
Pcs
Tools (NOT included)
Scan QR to view step
2 "flat" pieces
per set:
2 "L shape"
pieces per set:
Grab all the 3 sets of sliders 7and separate them into 2 groups according to
their shape:
The "flat" ones will be used on the next step.
The "L" shaped will be used until step 14, set them aside.
(Front)
(Front)
(Front)
(Front)
7"L" Shaped
7"Flat"
RIGHT
LEFT
RIGHT
LEFT
The "flat" ones will be
used on the next step
.
The "L" shaped will be
used until step 14, set
them aside.
(Front)(Front)
7"Flat", LEFT
7"Flat", RIGHT
(Top)
(Front)
7
"Flat", LEFT
7
"Flat", RIGHT

P.8 P.8
RTA-8404
Join the right shelf panel Fand the right bottom panel Gto the middle side
panel E.
STEP 5
Hardware
5Cam lock 4
Pcs
(Top)
(Bottom)
E
F
G
N
Tools (NOT included)
Scan QR to view step
Slide the back panel Nthrough the grooves of panels Fand Gand into the
groove of panel E.
Cam lock
alignment on
F and G:
E
F
G
Install the cam locks 5into panels Fand Gand turn them to lock the pieces as
explained in page 4.
F
G
(Front)
(Back)
(Front)
Groove faces DOWN
Groove faces UP
14.8"
16"

Cam lock
alignment on
F and G:
P.9 P.9
RTA-8404

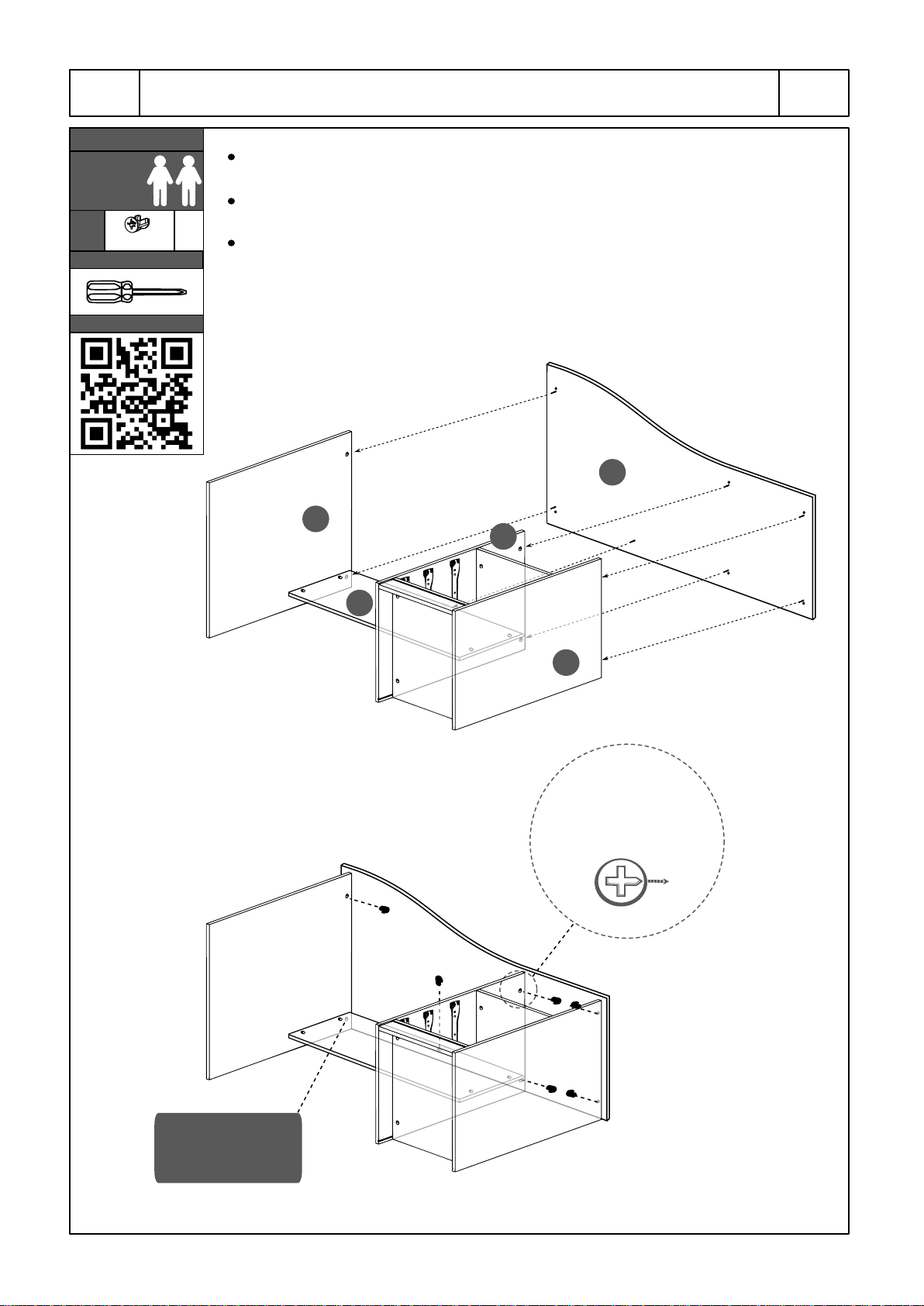

With the help of another person, attach the skirt panel Ito the middle side
panel Eand keep holding the panel while the other person assembles the
right side panel Dto the panels Fand Gusing cam locks 5as shown and as
explained in page 4.
STEP 6
(Front)
(Top)
This step
requires of
2 persons
5Cam lock 4
Pcs
Tools (NOT included)
Scan QR to view step
E
Hold panel I
D
F
G
I

Cam lock
alignment
on B
P.10 P.10
RTA-8404
STEP 7
(Front)
(Back)
(Top)
(Bottom)
This step
requires of
2 persons
Have ready on hand the cam locks 5and a screwdriver (not included).
With the help of another person, join the back panel Bto panel Eand keep
holding the panel on the other end, or place a 3" or 4" thick square object (like
a book) underneath to keep it horizontal.
Then the other person will join panel Cto panel B, while you install and turn
the cam locks in panel Bas shown and as explained in page 4.
5Cam lock 4
Pcs
Tools (NOT included)
Scan QR to view step
E
VERY IMPORTANT - PLEASE READ THE INSTRUCTIONS FIRST
It is very important to follow this step exactly as instructed as it avoids
the wood panels from cracking or splitting in the process.
B
Hold panel B
Or put a 3" - 4"
thick square
object underneath
B
C
E
Join B to E
Join C to B
Install the cam
locks on B
Encyclopedia
Vol 1
B
Encyclopedia
Vol 1
BC
B
(Front)
(Top)

P.11 P.11
RTA-8404
STEP 8
A
(Front)
(Back)
This last hidden
cam lock will be
installed later
B
C
D
This step
requires of
2 persons
With the help of another person, join the tabletop Ato the panels B, C, D
and E.
Install the cam locks 5into panels B, C, Dand Eand turn them to lock them
to the tabletop as shown and as explained in page 4.
Please note that there will be one last cam lock hidden on Cpending to
install later.
5Cam lock 6
Pcs
Tools (NOT included)
Scan QR to view step
Cam lock
alignment on
B, C, D and E
E

5Cam lock 1
Pc
P.12 P.12
RTA-8404

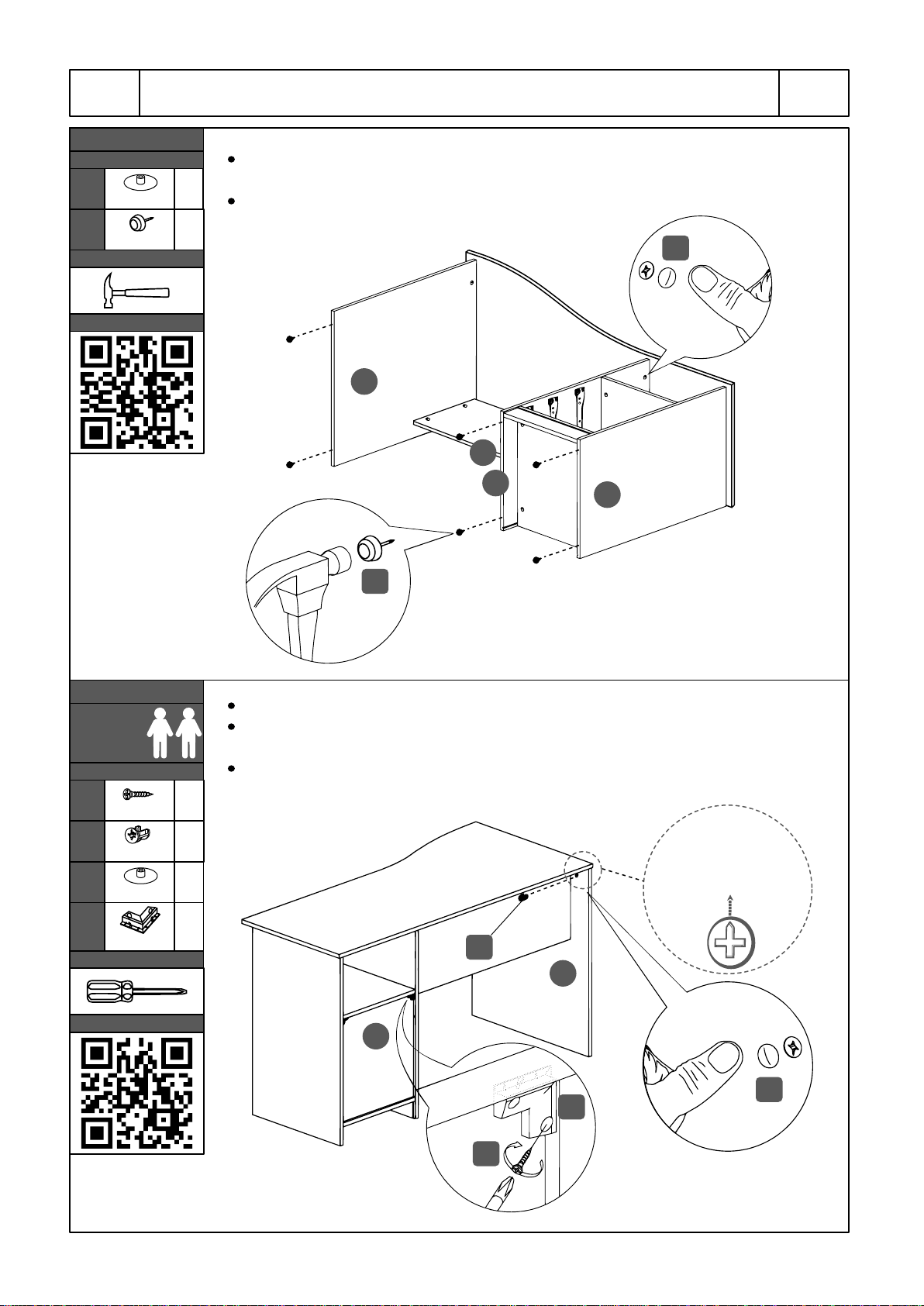

Use a hammer (not included) to install the glides 8to the bottom of the
panels C, Dand Eas shown.
Cover with 6all the cam locks on panels B, C, D and Ethat will become
visible when the item is finished.
8Glides 6
Pcs
(Front)
(Back)
C
N
3
5
6
8
6
6Covers 10
Pcs
Tools (NOT included)
Scan QR to view step
STEP 10
Hardware
3M3x16 4
Pcs
92
Pcs
Tools (NOT included)
Scan QR to view step
STEP 9
This step
requires of
2 persons
With the help of another person, bring the unit upright.
Install the cam lock 5into the back hole of panel Cas shown and as
explained in page 4, and cover it with 6.
Attach the corner brackets 9to the 2 upper corners of the back panel N
with screws 3.
Hardware
6Cover 1
Pc
Cam lock
alignment
on C
9
(Front)
C
D
E
B

P.13 P.13
RTA-8404

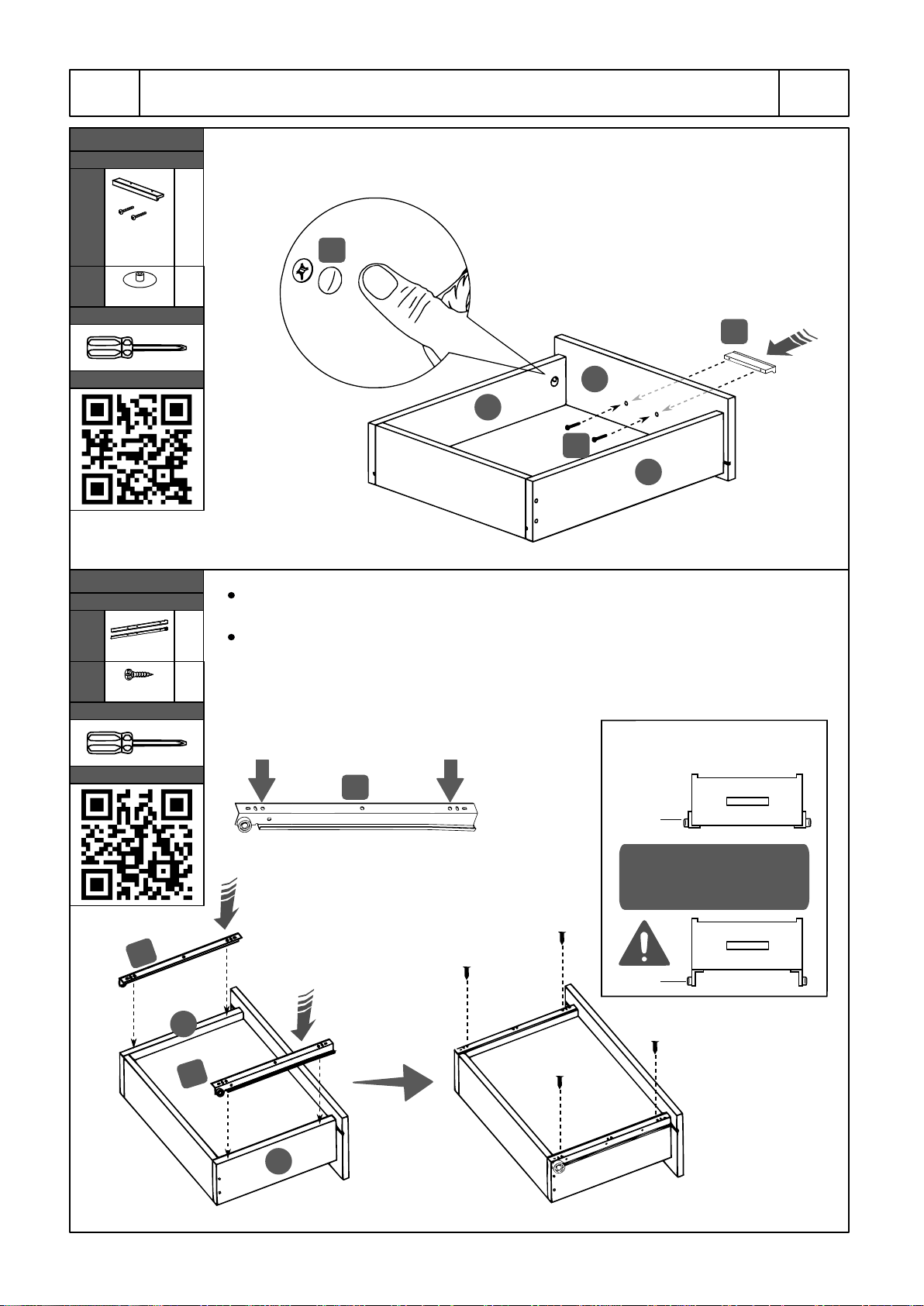

For each of the 3 drawers, assemble the side panels Jand Kto the front
panel Hon their respective sides with cam locks 5as shown and as
explained in page 4.
For each of the 3 drawers, slide the bottom board Mthrough the grooves of
panels Jand K and into the groove of panel H.
STEP 11
Hardware
STEP 12
Hardware
4M4x38 12
Pcs
H
K
JM
H
K
J
Cam lock
alignment
on J and K
(Top)
5Cam lock 6
Pcs
Tools (NOT included)
Scan QR to view step
(Bottom)
(Top)
(Bottom)
Tools (NOT included)
Scan QR to view step
For each of the 3 drawers, assemble the back panel Lto the side panels J
and Kwith screws 4from the sides.
L
K
RIGHT
LEFT
J

7
P.14 P.14
RTA-8404
For each of the 3 drawers, install the handle 10 to the front panel Husing
its own screws 10, then cover the cam locks on panels Jand Kwith 6.
STEP 13
Hardware
10 Handle with
2 screws
3
Sets
(Front)
If you install as below,
the drawer raises 1"
and won't fit in the unit.
J
6
7
10
6Cover 6
Pcs
Tools (NOT included)
Scan QR to view step
For each of the drawers, flip them upside-down and assemble the L
shaped sliders 7to the side panels Jand Kon the bottom with screws 11.
NOTES:
- The wheels go towards the back of the drawer.
- The sliders should not protrude on the bottom; if they do, the
drawers will raise 1" more and won't fit on the desk.
STEP 14
Hardware
7L sliders
6
Pcs
11 M3.5x15 6
Pcs
Tools (NOT included)
Scan QR to view step
H
10
(Front)
(Back)
7
LEFT
RIGHT
(Front)
(Front)
When finished, the sliders
look like this:
Sliders
Sliders
K
(Top)
(Bottom)
J
K

P.15 P.15
RTA-8404
Insert the drawers into the unit starting with the bottom, then middle, then top
drawer. You might have to insert them at an angle facing down.
NOTES:
If the drawers stop halfway, check and make sure that the screws inside
the unit and on the drawer are properly tightened and their heads don't
protrude or interfere with the drawers' rollers.
If the drawers don't seem to fit, review the assembly of the sliders in page
7step 4, and page 14 step 14 for the correct assembly.
STEP 15
Scan QR to view step
Give yourself a nice pat on the back, you did a great job!
ALL DONE!
ENJOY YOUR NEW UNIT!
If the drawers stop and do
not enter completely, tighten
the screws inside the unit as
flush as possible.
If the drawers don't seem to
fit, review the assembly of
the sliders in page 7 step 4,
and page 14 step 14.

66 Lbs
(30 Kg)
19 Lbs
(8.55 Kg)
10 Lbs
(4.5 Kg)
P.16 P.16
RTA-8404
Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and water,
then dry with a clean towel.
If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
Every 4 months, inspect the unit completely and make sure that all screws are tighten.
When transporting the unit to places far away, protect and secure the unit to avoid damage in
transit.
Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
The warranty does not extend to regular wear and tear, nor the manufacturer assumes liability
for damages or consequences due to accidents, incorrect assembly, negligence, improper
use, modifications, or not heeding the above warnings.
WEIGHT LIMITS
CARE AND MAINTENANCE
WARNINGS
Do not exceed the indicated weight limits.
Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
Do not use solvents or abrasive materials to clean the unit.
Do not sit on the unit or lean against it.
Do not allow small children to play under or over the unit.
Do not allow small children to reach inside the drawers or compartments without your
supervision.
Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by at
least 2 persons when moving in the same or adjacent rooms.
Before moving the unit, make sure to secure or remove any object that is heavy or might fall off.
When lifting the unit, use both hands and bend your knees, not your backs.

P.17 P.17
RTA-8404
TECHNI MOBILI WARRANTY
RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA
Products or its authorized resellers that this product will be free from defects in its workmanship
and materials, under normal use and service conditions, as described herein. "Defects" as used
in this warranty, is defined as any imperfections that impair the use of the furniture or product.
RTA Products LLC will replace any defective part, at its discretion, and without charge to the
original purchaser other than the freight from the end consumer to RTA Products.
Replacement parts can only be supplied if parts are available. Items out of production may be
unavailable. This warranty will be effective for the applicable time period beginning the date of
purchase on your original sales receipt. RTA product’s obligation under this warranty is limited to
repairing or replacing products or parts as provided herein. This product has been designed for
and is intended for office and home-office use only. This warranty is Original Purchaser’s sole
remedy for product defects, and this warranty does not extend to any product, or damage to any
product, caused by or attributed to abuse or misuse, products used for commercial or rental
purposes, use modifications of, or attachments to the product, and products or parts not used,
maintained, or extended hereunder is in lieu of any and all other warranties, express or implied,
including without limitations any implied warranty or merchantability or of fitness for a particular
purpose. Please note, all desks made with PVC Laminate surface should not be exposed to
direct sunlight, as it may damage the material. Damage of this nature is not covered under this
warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential damages.
This warranty is limited to merchandise purchased in the Continental United States, excludes
AK, HI and PR. Some States do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other rights that may vary from state
to state.
RTA Products will advise you of the procedure to follow in making warranty claims. The following
are the procedures for warranty claims:
a. Call us Monday – Friday, from 9am-5pm (Eastern Time) at [phone] to explain the
defect and give your name, address and phone number. Please have ready the model number
of our product, date and place of purchase. You can also write to us by e-mail to
[email protected] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine the
extent or the cause of the defect, purchaser will need to send the part in question at purchaser’s
expense. Once we receive the part, we will examine it and determine whether the claim is valid
(or not), and then proceed to send the replacement. We will ship the replacement at our
expense.
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
VISIT: WWW.TECHNIMOBILI.COM
AND CLICK ON SUPPORT TAB
Or scan the following QR Code:
Scan the following QR Code to order replacement parts:
[email protected]
EMAIL US:
