RTA Products Techni Mobili RTA-3520 User manual

Thank you for purchasing our product.
MODEL RTA-3520
ASSEMBLY INSTRUCTIONS
REV.LS-6541-0322-4

•Please read carefully the assembly instructions
before the installation.
• Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
•We have added QR Codes to some steps for your
assistance. If a QR Code is provided on a step,
scan it to view the assembly video online.
P. 1 RTA-3520 P. 1
SAMPLE - DO NOT SCAN

P. 2 RTA-3520 P. 2
1
x1
2
x1
3
x2
4
x1
Left panel Middle panel Glide studs
Cabinet top
panel

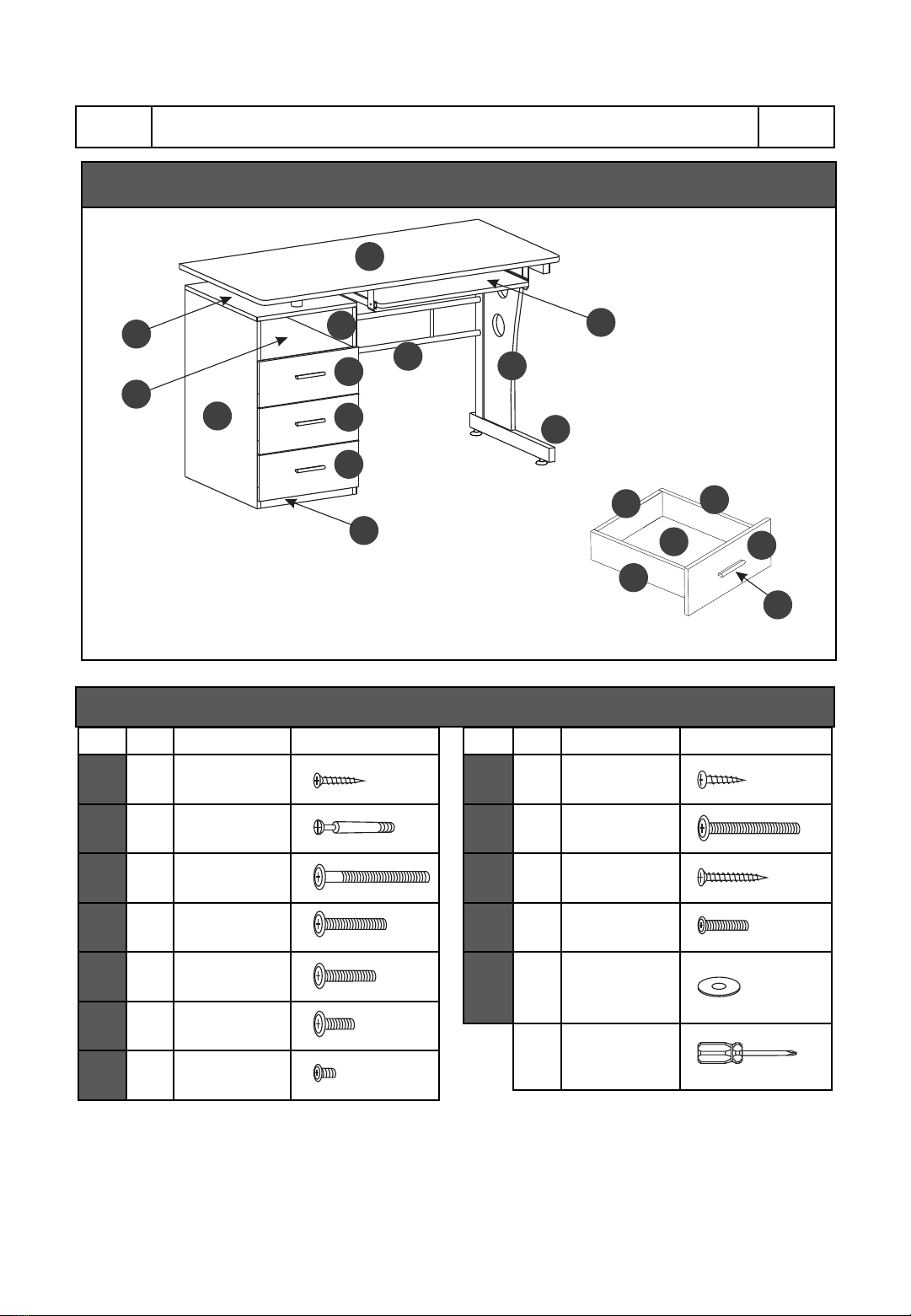

MAIN PARTS LIST
5
x1
6
x1
7
x1
8
x1
Cabinet shelf
panel
Bottom panel
Back panel Bottom skirt
panel
9
x1
10
x1
Right metal leg
Right panel 11
x1
12
x1
Back metal
structure
Desktop
13
x1
14
x4
Keyboard
panel
Slider base
bracket
15
x1
16
x2
Keyboard
sliders,
SET of 1 right
and 1 left
Support tube 17
x3
19
x3
Drawer left
panel
Drawer front
panel
22
3
sets
23
x3
Drawer sliders, SET of 4 pcs for each drawer:
•2 “Flat”, right and left for inside the cabinet
•2 “L” shaped, right and left for the drawers
Handle
18
x3
Drawer right
panel
20
x3
Drawer
bottom panel
21
x3
Drawer back
panel
"Flat": go inside the cabinet "L" shape: go on drawers

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 3 RTA-3520 P. 3
12
5
4
LIST OF HARDWARE, SCREWS AND FITTINGS
PART
QTY ITEM
A24 M3x15
B26 M6x40
C4M6x75
D4M6x35
E2M6x25
F4M6x12
G4M4x4
PART
QTY ITEM
H12 M4x14
I2M6x60
J12 M4x35
K6M4x20
L2
Ø40mm
Plastic
washer
1Screwdriver
1
13
9
820
2
19
19
19
10
11
19
17
18
21
23

P. 4 RTA-3520 P. 4

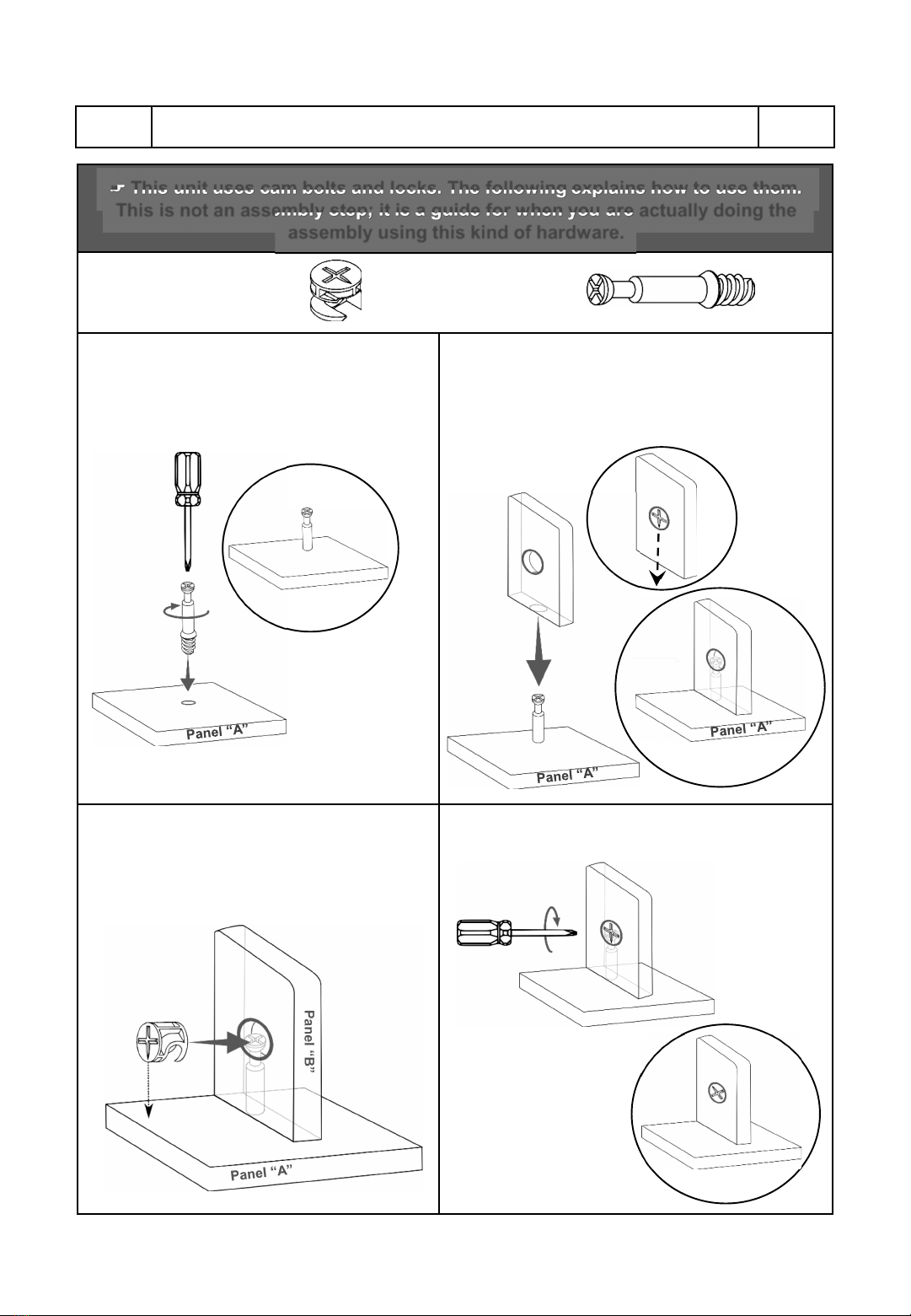

☛This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
assembly using this kind of hardware.
Cam Bolt
Cam Lock
1. Screw the bolt into the corresponding hole
on panel “A”.
3. Insert the cam lock on panel “B” making
sure it goes aligned to receive the bolt’s head.
4. Turn the cam lock clockwise. This will lock the
parts together and will close any gaps.
Alignment: The cross points
towards the panel “A” with the bolt.
2. Join panel “B” to panel “A”. If panel “B” comes
with the cam lock pre-installed, make sure it is
aligned to receive the bolt’s head (refer to point
3). There might be a very small gap between the
panels which is normal.
Panel “B”
Panel “B”
Panel “B”
Panel “B”

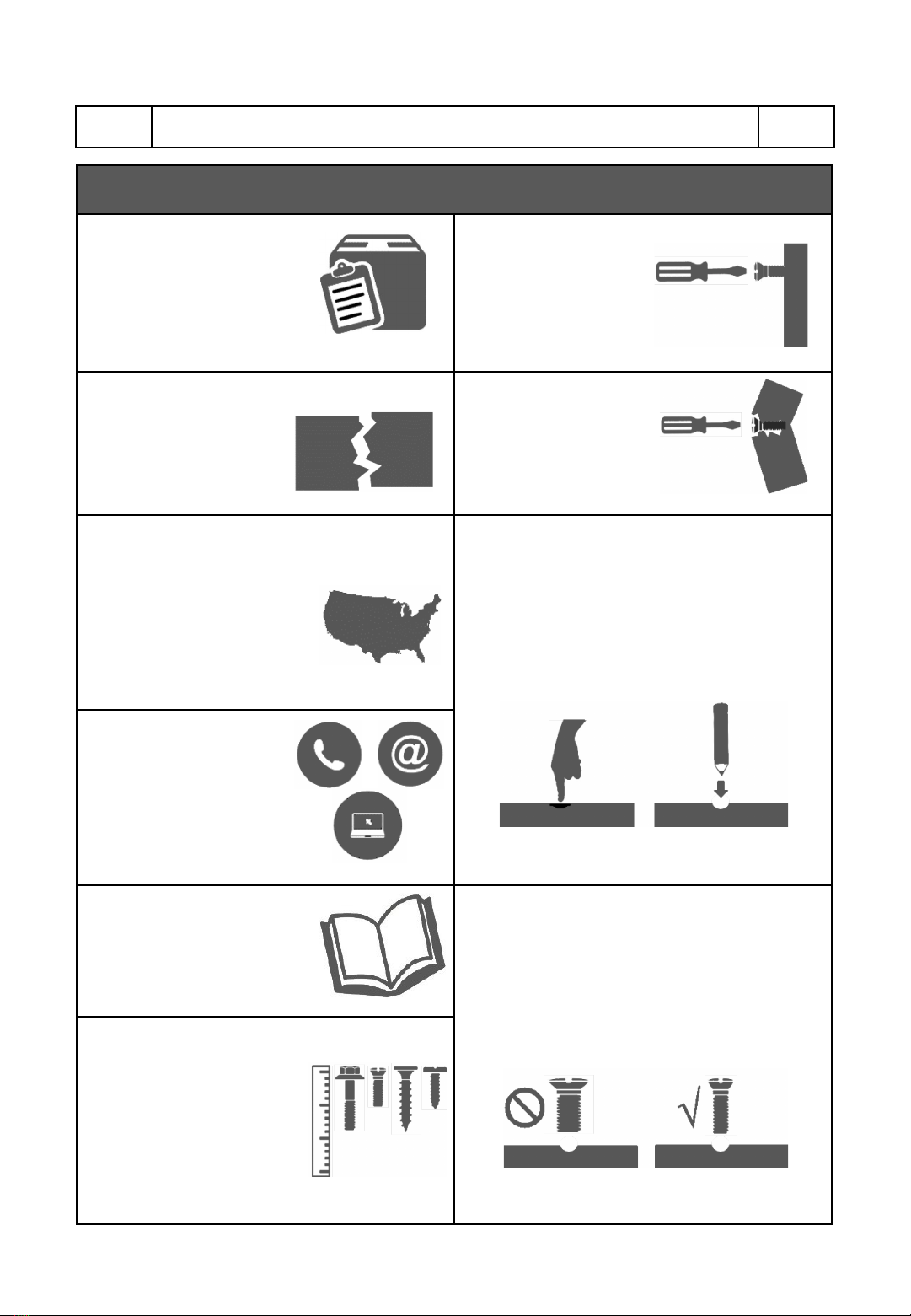

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P. 5 RTA-3520 P. 5
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

ASSEMBLY STEPS
P. 6 RTA-3520 P. 6

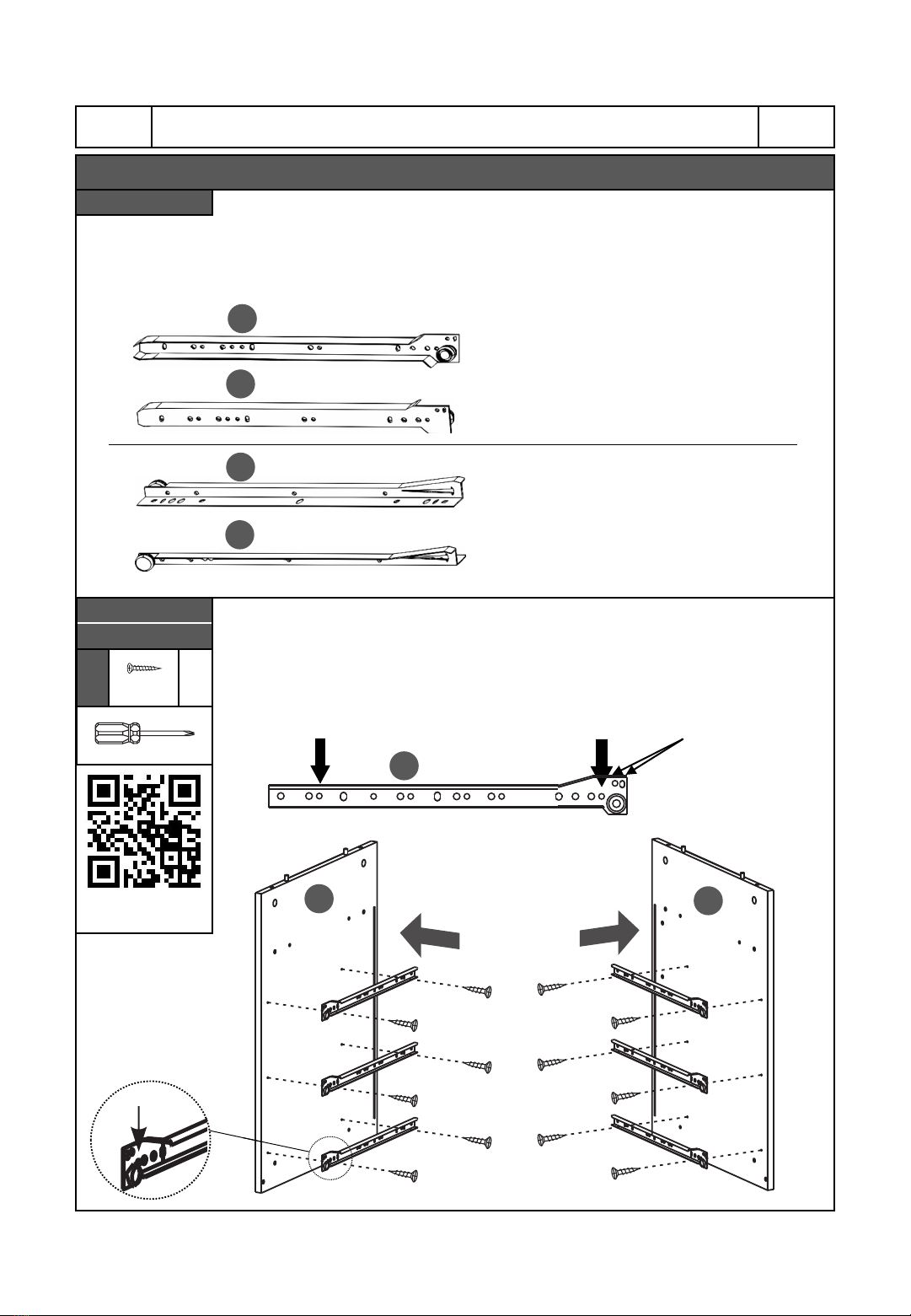

Grab all the sets of drawer sliders 22 (total 12 pcs) and separate them
into 2 groups according to their shape:
-The “Flat” ones will be used on the next step.
-The “L Shaped” will be used until step 19,set them aside.
STEP 1
(“Flat” Right, x3)
(Front)
(Front)
(Front)
(Front)
The “Flat” ones will
be used on step 2.
The “L-Shaped” will
be used on step 19,
set them aside.
22
22
22
22
(“Flat” Left, x3)
(“L” Right, x3)
(“L” Left, x3)
Assemble the “Flat” sliders 22 to the side panels 1 and 2 with screws A.
Please note:
•The sliders attach at the front on the 3th hole.
•The wheel is at the front, and faces down with 2 empty holes above it.
STEP 2
Hardware:
A
M3x15
12
Pcs
12
3th hole from front
(Front)
2 empty holes
above the wheel
22
(Top)
(Top)
(Front)
(Front)
("Flat")
Scan QR Code
to view video

P. 7 RTA-3520 P. 7

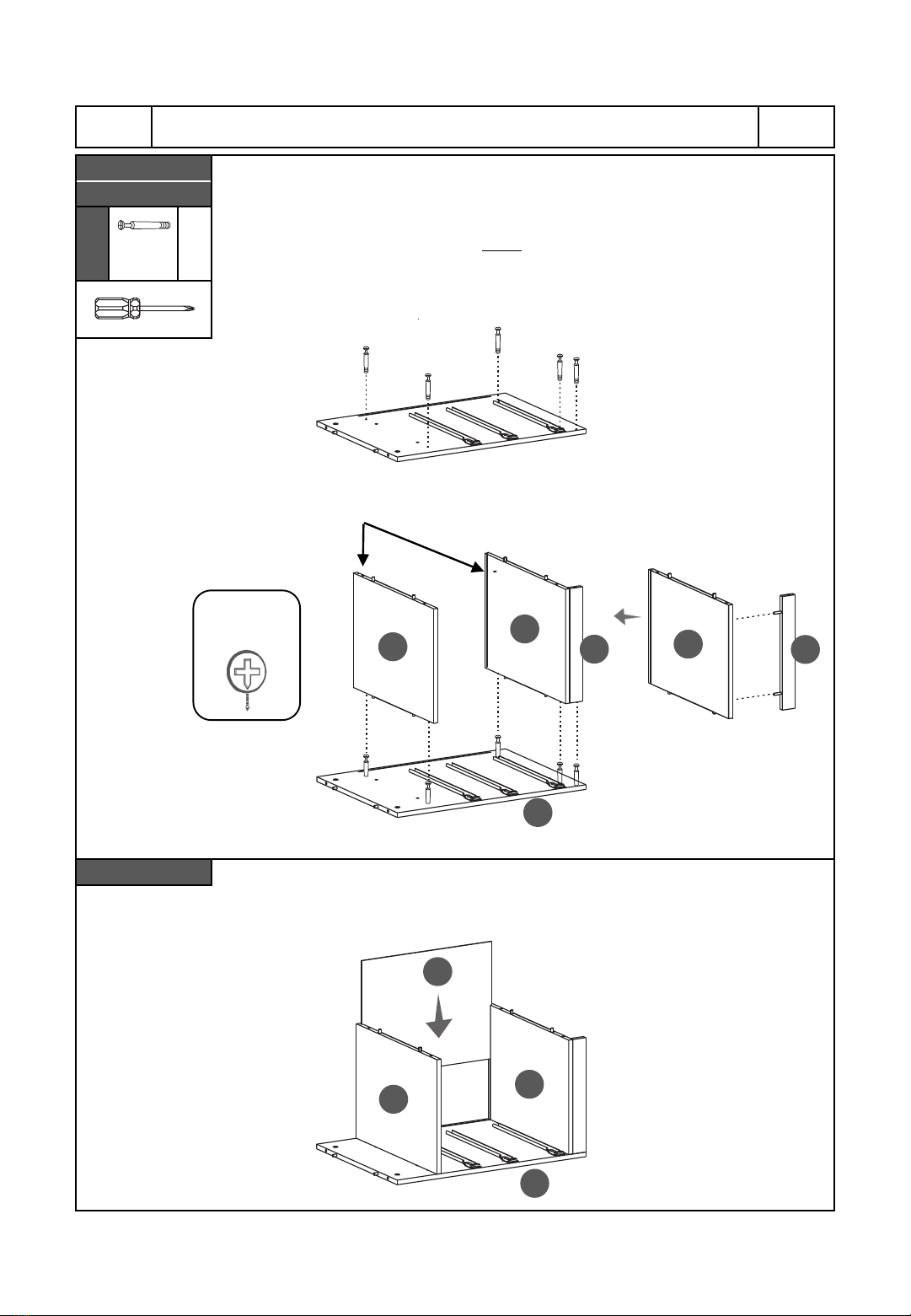

•Attach the bolts Bto panel 1into the indicated holes.
•Assemble the shelf 5to panel 1at the top as explained in page 5.
Note that the surface with the groove faces towards the bottom. The
groove will be located at the back.
•Join panel 8to panel 6, then assemble both panels to panel 1at the
bottom as explained in page 5. Note that on 6the surface with the
groove faces towards the top.
Slide the back panel 7through the grooves of panels 5and 6, and into
the groove of panel 1.
(Top)
STEP 3
Hardware:
BM6x40
Bolt
5
Pcs
STEP 4
1
5
5
7
6
Cam locks
alignment
6
1
Grooves facing
each other
(Top)
(Front)
868
(Front)
(Back)
(Back)
(Back)
(Top)
(Front)

P. 8 RTA-3520 P. 8
(Top)
(Front)
(Front)
5
2
•Attach the bolts Bto panel 2into the indicated holes.
•Assemble panel 2to panels 5, 6and 8as explained in page 5.
STEP 5
Hardware:
BM6x40
Bolt
5
Pcs
6
•Bring the cabinet upright.
•Attach the bolts Bto the bottom surface of panel 4.
•Assemble panel 4 to panels 1 and 2 as explained in page 5.
STEP 6
Hardware:
BM6x40
Bolt
4
Pcs
Cam locks
alignment
Cam locks
alignment 1
2
4
(Top)
(Front)
2
8

P. 9 RTA-3520 P. 9

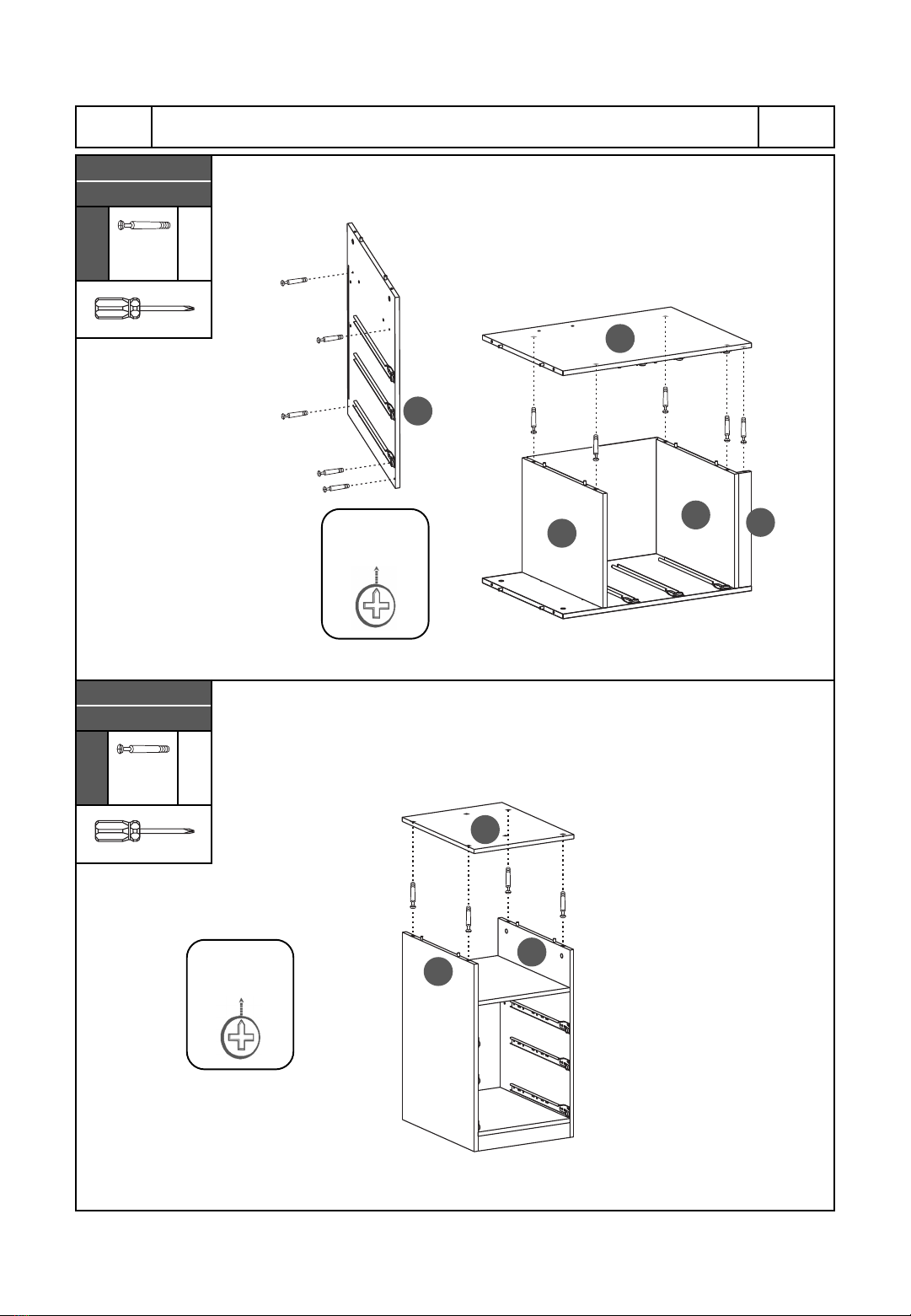

•On the right panel 10, check and make
sure the inserts are aligned to receive
the screws: The groove on the inserts
must run vertically. If the insert are
crooked, use a flat head screwdriver to
align them.
•Assemble panel 10 to the metal leg 9
with screws Cfrom above and
underneath as shown.
•Assemble the back structure 11 to the middle panel 2with screws E
from inside the cabinet.
•Assemble the leg 9to the backstructure 11 with screws D.
(Top)
(Bottom)
(Front)
(Back)
STEP 7
Hardware:
C
M6x75
4
Pcs
STEP 9
Hardware:
D
M6x35
2
Pcs
E
M6x25
2
Pcs
9
3
2
11
If the inserts on the panel are crooked,
the screws won’t go in; turn them with
a screwdriver to re-align them.
YES √
Needs
alignment
E
9
D
Screw the glide studs 3into
the bottom holes of the leg 9.
STEP 8
(Top)
(Bottom)
(Front)
(Back)
Scan QR Code
to view video
9
10

P. 1 0 RTA-3520 P. 1 0
Place the tabletop 12 upside-down and attach the brackets 14 with
screws Fmaking sure they face towards the inside.
Attach the keyboard sliders 15 to the brackets 14 with screws G.
Notes:
•The tabs on the sliders will face UP.
•The screws are the exact size, and will go from the outside through
the brackets and will reach into the threaded holes of the sliders.
(Front)
(Back)
STEP 10
Hardware:
F
M6x12
4
Pcs
STEP 11
Hardware:
G
M4x4
4
Pcs
12
14
12
16
Assemble the support tubes 16 to the tabletop 12 with screws H.
STEP 12
Hardware:
H
M4x14
8
Pcs
(Top)
(Front)
14
Facing towards
the inside
The tabs will face UP
(Front)
15
15
14 15

P. 11 RTA-3520 P. 11

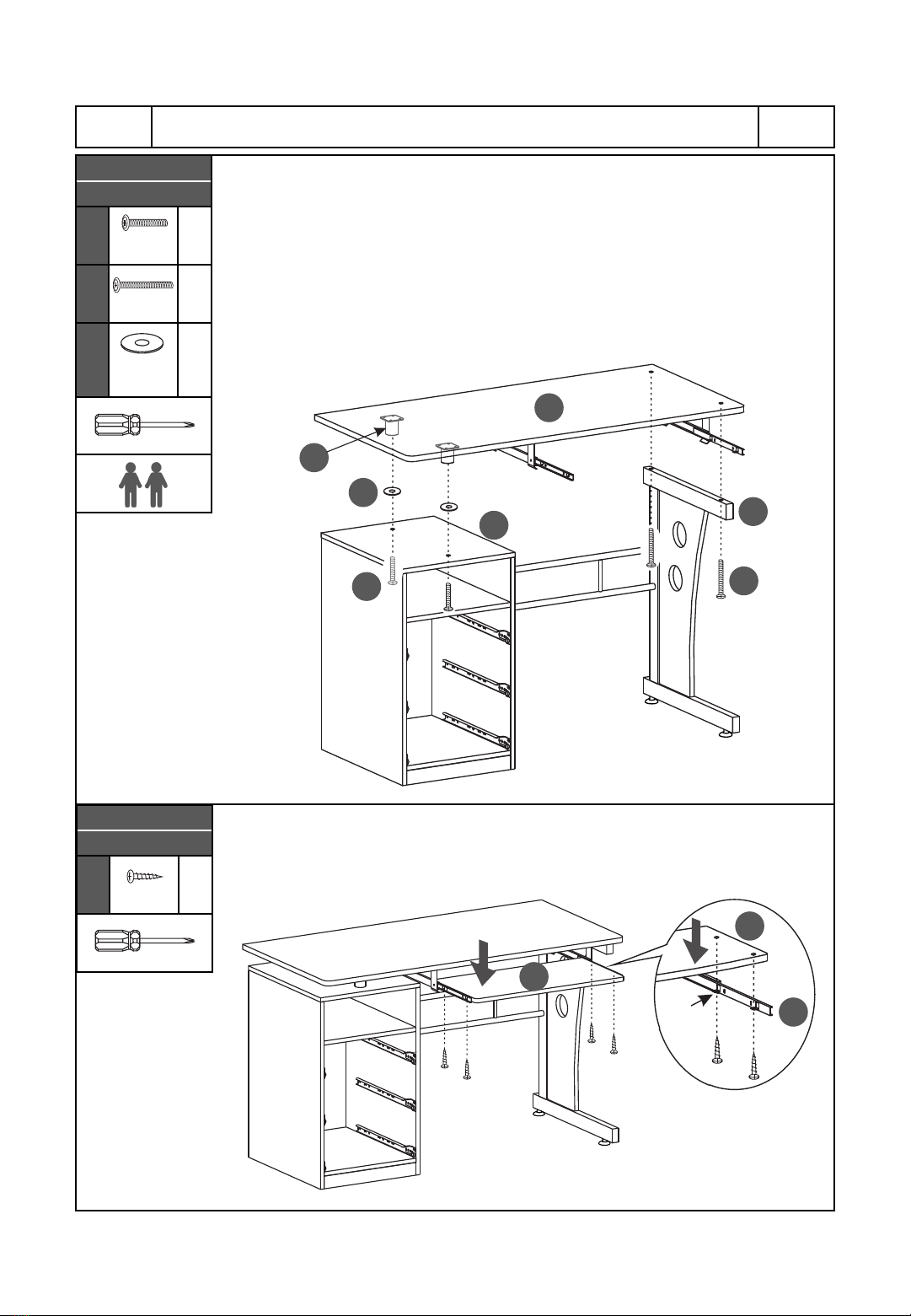

•Place the plastic washers Lover the holes on the cabinet top panel 4.
•With the help of another person, place the tabletop 12 over the
cabinet and leg, making the holes from the tubes 16 coincide with the
holes on panel 4and the washers L.
•Assemble the tabletop 12 with screws D from underneath. The screws
go through panel 4and the washers, and into the threaded holes of
the tubes 16.
•Assemble the tabletop 12 to the leg 9with screws Ifrom underneath.
Pull out the sliders 15 and place the keyboard panel 13 over its tabs
making sure the pre-drilled holes coincide with the hole on the tabs, then
attach the panel with screws Hfrom underneath.
(Front)
(Front)
STEP 13
Hardware:
D
M6x35
2
Pcs
I
M6x60
2
Pcs
LPlastic
washer
2
Pcs
STEP 14
Hardware:
H
M4x14
4
Pcs
4
12
16
9
L
DI
13
15
Tab
13

For each of the 3 drawers,
assemble the side panels
17 and 18 to the front
panel 19 with bolts B as
explained in page 4.
For each of the 3 drawers, slide the bottom
panel 20 through the grooves of the side
panels and into the front panel as shown.
STEP 15
Hardware:
BM6x40
Bolt
12
Pcs
22
22
18
17
19
STEP 16
17
20 18
19
For each of the 3 drawers,
assemble the back panel
21 to the side panels 17
and 18 with screws J.
STEP 17
Hardware:
J
M4x35
4
Pcs
17
18
For each of the 3 drawers,
assemble the handle 23 to
the front panel 19 with
screws K.
19 23
For each of the 3 drawers, flip them upside-down and assemble the “L”
sliders 22 with screws A, making sure the wheel goes towards the back,
and that they don’t protrude, otherwise, the drawer raises 1” and won’t fit
in the cabinet.
STEP 19
Hardware:
A
M3x15
12
Pcs
17
When finished, the sliders
should look like this from the
back of the drawer:
The assembly below is
incorrect, it raises 1” and the
drawer won’t fit:
STEP 18
Hardware:
K
M4x20
6
Pcs
P. 1 2 RTA-3520 P. 1 2
Left
Right
Cam locks
alignment
21
18
Scan QR Code
to view video

P. 1 3 RTA-3520 P. 1 3

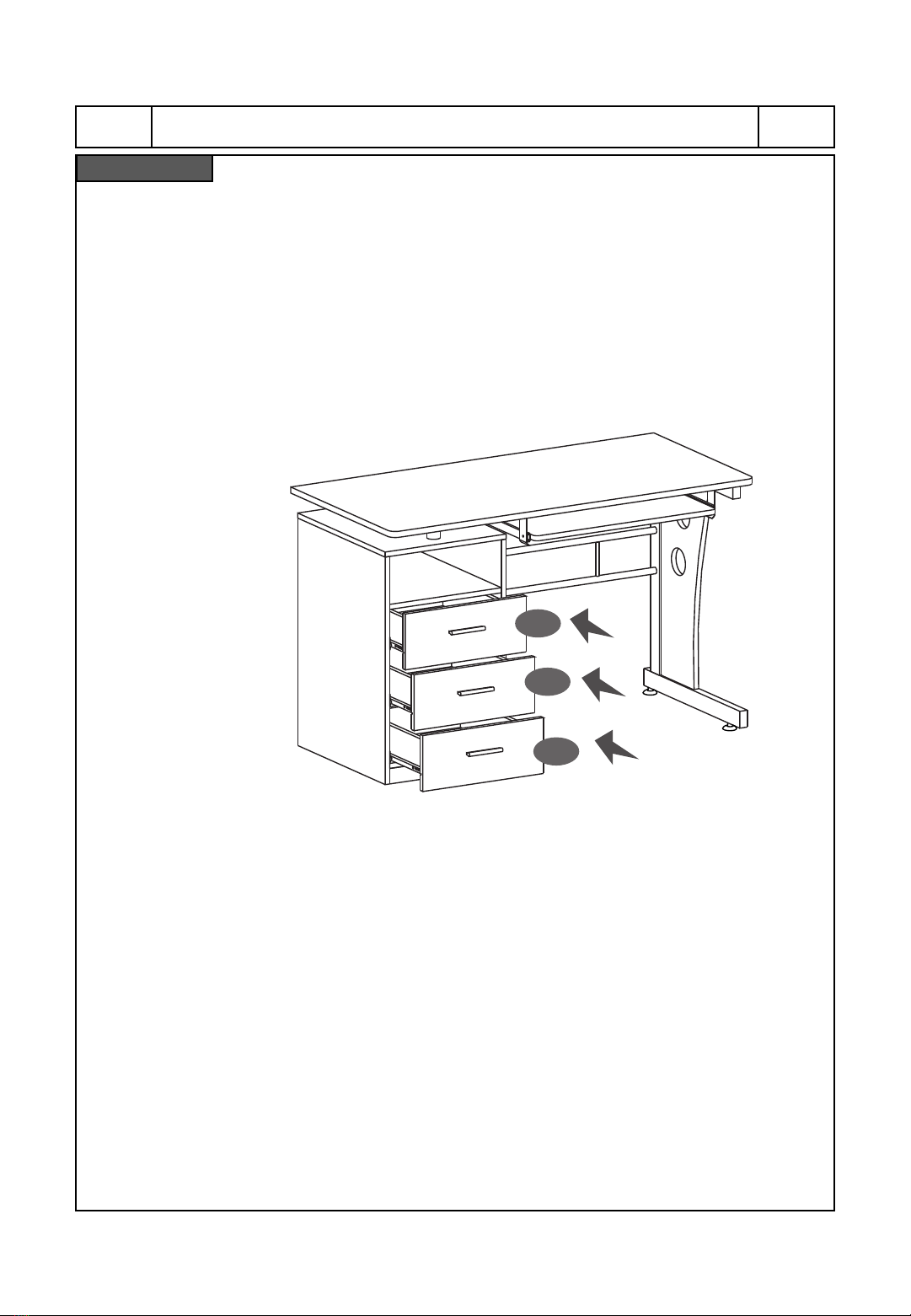

•Insert the drawers into the cabinet, starting with the bottom one, then
the middle, then the top one. Insert at an angle with their fronts facing
down, making sure the wheels from the drawer slide in the middle of
the sliders inside the cabinet.
•If the top drawer doesn’t fit, and there is a gap at the bottom and/or
the top drawer hits the top panel, make sure the drawers are sliding
through the cabinet sliders, not on top of them. Also review the
assembly done in steps 2and 19 for the correct assembly of the
sliders.
STEP 20
19
19
19

ALL DONE!
Give yourself a nice pat on the back. You did a
great job!
P. 1 4 RTA-3520 P. 1 4

WEIGHT LIMITS
P. 1 5 RTA-3520 P. 1 5
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the keyboard panel.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to reach inside the drawers or compartment without your
supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by
at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that is heavy or might
fall off. Please note that lifting from the tabletop with too much weight on the product might
lead to part damage/separation.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid damage
in transit.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
CARE, MAINTENANCE AND SAFETY WARNINGS:
80 Lbs.
(36.3 Kg)
20 Lbs.
(9.10 Kg)
20 Lbs.
(9.10 Kg)
15 Lbs.
(6.8 Kg)
20 Lbs.
(9.10 Kg)

RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA
Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described herein.
"Defects" as used in this warranty, is defined as any imperfections that impair the use of the
furniture or product. RTA Products LLC will replace any defective part, at its discretion, and
without charge to the original purchaser other than the freight from the end consumer to RTA
Products.
Replacement parts can only be supplied if parts are available. Items out of production may be
unavailable. This warranty will be effective for the applicable time period beginning the date
of purchase on your original sales receipt. RTA product’s obligation under this warranty is
limited to repairing or replacing products or parts as provided herein. This product has been
designed for and is intended for office and home-office use only. This warranty is Original
Purchaser’s sole remedy for product defects, and this warranty does not extend to any
product, or damage to any product, caused by or attributed to abuse or misuse, products
used for commercial or rental purposes, use modifications of, or attachments to the product,
and products or parts not used, maintained, or extended hereunder is in lieu of any and all
other warranties, express or implied, including without limitations any implied warranty or
merchantability or of fitness for a particular purpose. Please note, all desks made with PVC
Laminate surface should not be exposed to direct sunlight, as it may damage the material.
Damage of this nature is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages. This warranty is limited to merchandise purchased in the Continental United
States, excludes AK, HI and PR. Some States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights. You may also have other rights that may
vary from state to state.
RTA Products will advise you of the procedure to follow in making warranty claims. The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain the
defect and give your name, address and phone number. Please have ready the model
number of our product, date and place of purchase. You can also write to us by e-mail
to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine the
extent or the cause of the defect, purchaser will need to send the part in question at
purchaser’s expense. Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement. We will
ship the replacement at our expense.
P. 1 6 RTA-3520 P. 1 6
TECHNI MOBILI DESK WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
