Ryobi ONE+ 6 User manual

ORIGINAL INSTRUCTIONS
ONE+ 6 Port Charger
RC18627U

Important!
This appliance is not intended to be used or cleaned by
persons with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been
given instructions concerning the safe use of the appliance by
a person legally responsible for their safety. They should be
supervised whilst using the appliance. Children shall not use,
clean or play with this appliance, which when not in use should
be secured out of their reach.

3
Safety, performance, and dependability have been given
top priority in the design of your charger.
INTENDED USE
This charger is only intended to charge RYOBI ONE+
Lithium-Ion battery packs listed in this manual.
The product is only for use indoors in dry conditions.
The product is not intended to charge any other type of
battery or be used as a power supply or any other purpose.
It should never be used in explosive or inammable
environments.
CHARGER SAFETY WARNINGS
Please read and observe these instructions before using the
product. Failure to follow these instructions and warnings
increases the risk of electric shock, fire and explosion.
WARNING
Do not recharge primary cells (non-rechargeable).
WARNING
Mains voltage must correspond with the voltage
specications on the product.
■Before using the product, check that the product
enclosure, cable and adaptor plug are not damaged.
If damage is found, do not use and follow instruction in
the maintenance section of this manual.
■The product must not be damp, and should never be
used in a damp environment.
■The product is for indoor use only.
■Do not use the product if it has suffered any heavy
shock or jolting, or is damaged in any other way.
■Do not conduct charging in a position which may
become exposed to sunlight or other heat source.
Recommended temperature range at charging vicinity
is 10° to 25° C.
■Due to the heat generated during charging, the product
should not be operated on a combustible surface.
■Do not conduct charging operations in the vicinity
of flammable materials. Example: Cloth, packaging
materials, paint, spray paint or aerosols, lubricant,
thinners, petrol containers, gas containers or gas
appliances.
■Do not cover any ventilating slots and provide adequate
ventilation during operation.
■Never modify, disassemble or attempt to repair the
product yourself.
■Do not allow the charger or batteries to become
contaminated with any material which could be
conductive. Example: Metal particles from grinding,
cutting or machining processes.
■Remove the plug of the product from the power socket
when it is not in use or when cleaning it.
■Only use extension cable that is approved and in good
condition.
■Protect battery contacts to avoid a short circuit caused
by metallic objects which could cause a fire or explosion!
■Do not charge batteries which show signs they have
leaked electrolyte. Dispose of them properly.
■Never charge a damaged battery pack. If damaged,
replace immediately.
■If the battery is not going to be used for a while, remove
the charger plug from the power socket and take the
battery off the product.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING
To reduce the risk of re, personal injury, and product
damage due to a short circuit, never immerse your
tool, battery pack or charger in uid or allow a uid to
ow inside them. Corrosive or conductive uids, such
as seawater, certain industrial chemicals, and bleach
or bleach-containing products, etc., can cause a short
circuit.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps
or tape. Do not transport batteries that are cracked or
leaking. Check with the forwarding company for further
advice.
KNOW YOUR PRODUCT
See page 6.
1. LED indicators
2. Battery port
3. USB charging port
4. Battery port number
5. Key hole hanger
OPERATION
CHARGING THE BATTERY PACK
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should charge
them before rst use. If the charger does not charge your
battery pack under normal circumstances, return both
the battery pack and charger to your nearest authorised
service center for electrical check.
Do not charge nickel cadmium (NiCd) battery packs. When
a NiCd battery pack is inserted, the corresponding LED
indicator will fade in red.
NOTE: When multiple battery packs are connected to the
charger, the battery packs are charged one at a time in the

4
order of battery port numbers.
Make sure the power supply is normal household voltage,
220 V – 240 V, 50Hz, AC only.
NOTE: After charging is complete, the green LED will
remain on until the battery pack is removed from the
charger or charger is disconnected from the power supply.
The battery pack will become slightly warm to the touch
while charging. This is normal and does not indicate a
problem.
Do not place the charger and battery pack in an area of
extreme heat or cold. They will work best at normal room
temperature.
NOTE: The charger and battery pack should be placed in
a location where the temperature is more than 10°C but
less than 38°C.
CHARGING A HOT BATTERY PACK
When using a tool continuously, the batteries in the battery
pack will become hot. You should let a hot battery pack
cool down for approximately 30 minutes before attempting
to recharge.
MAINTENANCE
■If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
■Remove the plug of the product from the power socket
when it is not in use or when cleaning it.
■Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloth or soft brush to remove dirt, dust, etc.
■Do not at any time let brake fluids, gasoline, petroleum
based products, penetrating oils, etc., come in contact
with plastic parts. They contain chemicals that can
damage, weaken or destroy plastic.
WARNING
Hazardous voltages are present within this product; do
not disassemble.
■There are no user service or replacement parts inside
this product. In case of damage or failure please
return to your authorised RYOBI service centre for
professional repair.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories and
packaging should be sorted for environment-
friendly recycling.
SYMBOLS ON THE PRODUCT
Safety alert
Class II equipment
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.
Please read the instructions carefully
before starting the machine.
For indoor use only.
Time-lag fuse 3.15A
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authority or retailer for recycling
advice.
SYMBOLS IN THIS MANUAL
Connect to the power supply
Disconnect from the power supply
Parts or accessories sold separately
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that
may result in property damage.

5

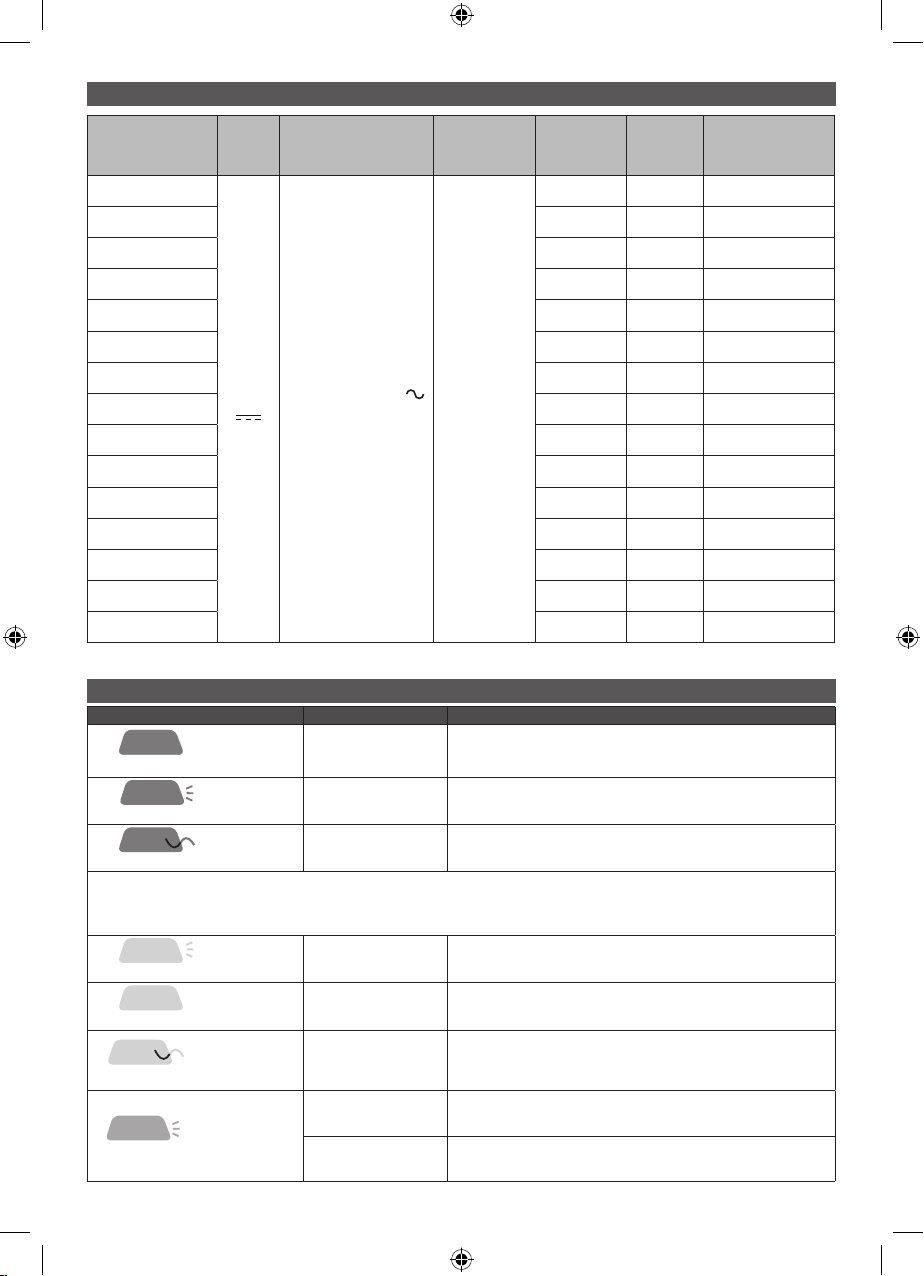

COMPATIBLE BATTERY PACKS
Battery Pack Voltage Charger Input Battery type Battery
Capacity
Number
of Cell for
Battery
Approximate
charging
time(minutes)*
RB18L13
18 V 220 - 240V
50 Hz 90 W
Lithium-
Ion
1.3 Ah 5 30
RB18L15 1.5 Ah 5 35
RB18L15A 1.5 Ah 5 35
RB18L15B 1.5 Ah 5 35
RB18L20 2.0 Ah 5 45
RB18L20A 2.0 Ah 5 45
RB18L25 2.5 Ah 5 60
RB18L25A 2.5 Ah 5 60
RB18L26 2.6 Ah 10 60
RB18L40 4.0 Ah 10 90
RB18L40A 4.0 Ah 10 90
RB18L50 5.0 Ah 10 120
RB18L50A 5.0 Ah 10 120
RB18L60A 6.0 Ah 10 135
RB18L90A 9.0 Ah 15 200
*results may vary depending on condition of battery
LED CHARGE INDICATOR
LED FUNCTION BATTERY PACK ACTION
Battery In
Red on
Waiting Battery is standing by awaiting its turn to charge.
Testing
Red ashing
Deeply discharged Charger pre-charges battery until normal voltage is reached,
then begins charge mode.
Defective
Red fading
Defective Battery pack or charger is defective.
●If defective, try to repeat the conditions a second time by removing and reinstalling the battery pack. If the LED status repeats a second
time, try charging a different battery.
●If a different battery charges normally, dispose of the defective pack (see battery pack operator’s manual).
●If a different battery also indicates “Defective,” the charger may be defective.
Charging
Green ashing
Charging Battery is being charged.
Charged
Green on
Battery full Charging is complete.
Energy Save
Mode
Green fading
Battery full / Energy
Save mode
Battery pack is fully charged and charger is in Energy Save
mode.
Temperature
Delay
Orange ashing
Hot battery pack When battery pack reaches a cooler temperature charging
will begin.
Cold battery pack When battery pack reaches a warmer temperature charging
will begin.

6
5
3
4
4
1 2 3
4 5 6
2
1
229 mm229 mm

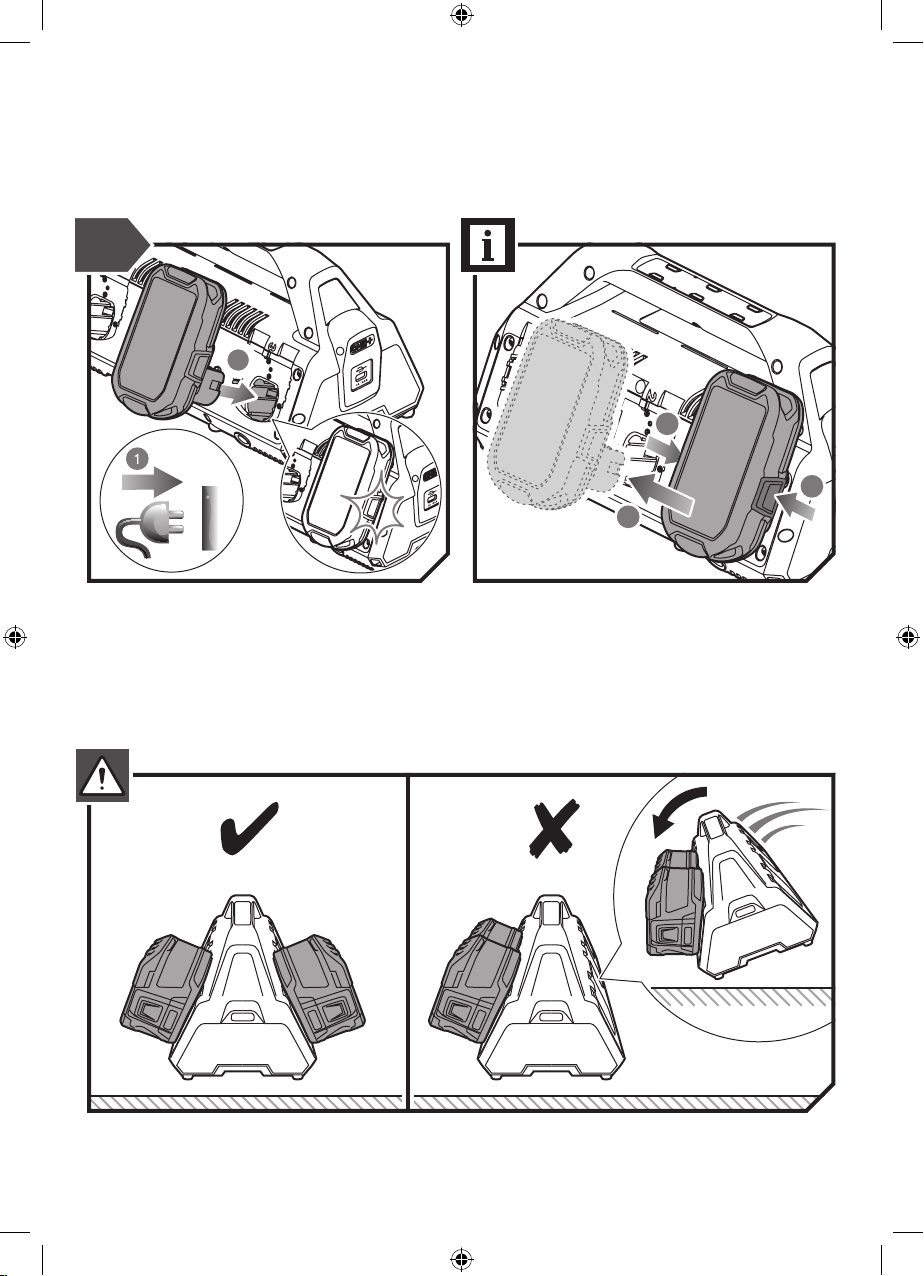

7
1
1
2
2
1

8
1
2
20200430v4

9

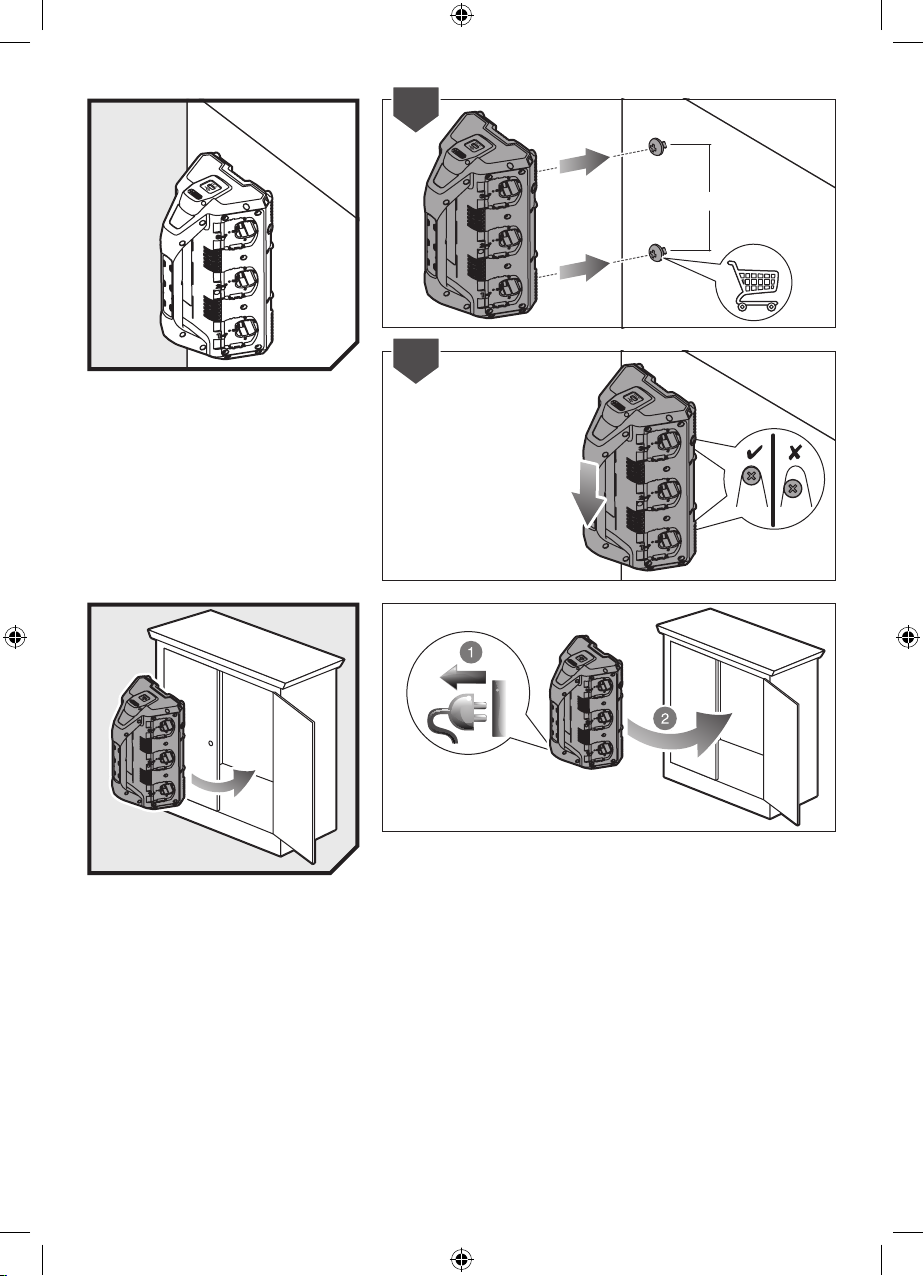

229 mm229 mm
1
2

PRODUCT SPECIFICATIONS
ONE+ 6 Port Charger
Model RC18627U
Charger
Input 220 - 240V, 50 Hz 90 W Max.
Output 18 V 2.7A
Battery Pack
Voltage 18 V
Battery type Lithium-Ion
Operating temperature 5°C - 40°C
USB battery charging
Output 5 V
Maximum output current 2A

961096687-01
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
www.ryobi.com.au
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.ryobi.co.nz
Imported by:
RYOBI is a trademark of Ryobi Limited,
and is used under license.
© 2016-20 Techtronic Cordless GP. All rights reserved.
