Ryobi P180 User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
EverCharge™Wall Charger
CHARGEUR MURAL
DE EverCharge™
CARGADOR DE PARED
DE EverCharge™
P180
TOOLS SOLD SEPARATELY
OUTILS VENDUS SÉPARÉMENT
LAS HERRAMIENTAS SE VENDEN POR SEPARADO
Safety Rules for Charger ....................2
Symbols..............................................3
Assembly............................................4
Operation.........................................4-5
Maintenance.......................................6
Illustrations .........................................7
Parts Ordering/Service........Back page
Règles de sécurité
concernant le chargeur......................2
Symboles............................................3
Assemblage........................................4
Utilisation.........................................4-5
Entretien .............................................6
Illustrations .........................................7
Commande de pièces
et réparation......................Page arrière
WARNING: To reduce the
risk of injury, the user must read and
understand the operator’s manual
before using this product.
Reglas de seguridad para el
empleo del cargador.......................... 2
Símbolos............................................ 3
Armado.............................................. 4
Funcionamiento..............................4-5
Mantenimiento................................... 6
Ilustraciones ...................................... 7
Pedidos de piezas
y servicio........................Pág. posterior
ADVERTENCIA: Para reducir
el riesgo de lesiones, el usuario debe
leer y comprender el manual del
operador antes de usar este producto.
AVERTISSEMENT : Pour
réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien
comprendre le manuel d’utilisation avant
d’employer ce produit.
TABLE DES MATIÈRES ÍNDICE DE CONTENIDO
TABLE OF CONTENTS
**************** **************** ****************
SAVE THIS MANUAL FOR
FUTURE REFERENCE
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS

2 — English
chemicals that can damage, weaken, or destroy
plastic.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Failure to do so could result
in objects being thrown into your eyes resulting in pos-
sible serious injury.
An extension cord should not be used unless
absolutely necessary. Use of improper extension cord
could result in a risk of fire and electric shock. If extension
cord must be used, make sure:
a. That pins on plug of extension cord are the same
number, size and shape as those of plug on charger.
b. That extension cord is properly wired and in
good electrical condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25’ 50’ 100’
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
Do not operate charger with a damaged cord or plug,
which could cause shorting and electric shock. If damaged,
have the charger replaced by an authorized serviceman.
Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way.
Take it to an authorized serviceman for electrical check
to determine if the charger is in good working order.
Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of electric
shock.
Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock or
damage to the charger if metal items should fall into the
opening. It also will help prevent damage to the charger
during a power surge.
Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also
to prevent misuse of the product and possible injury.
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result
in electric shock, fire and/or serious personal injury.
Before using charger, read all instructions and
cautionary markings in this manual, on charger, battery,
and product using battery to prevent misuse of the
products and possible injury or damage.
WARNING:
Charge only one nickel-cadmium or lithium-ion
rechargeable battery at a time. Other types of batteries
may burst, causing personal injury or damage. For
compatible battery packs see tool/appliance/battery
pack/charger correlation supplement 987000-432.
 Do not use charger outdoors or expose to wet or damp
conditions. Water entering charger will increase the risk
of electric shock.
Use of an attachment not recommended or sold by
the charger manufacturer may result in a risk of fire,
electric shock, or injury to persons. Following this
rule will reduce the risk of electric shock, fire, or serious
personal injury.
Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather than
the plug when disconnecting from receptacle. Damage
to the cord or charger could occur and create an electric
shock hazard. If cord or charger is damaged, have the
charger replaced by an authorized serviceman.
Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges
or moving parts or otherwise subjected to damage or
stress. This will reduce the risk of accidental falls, which
could cause injury, and damage to the cord, which could
result in electric shock.
Keep cord and charger from heat to prevent damage
to housing or internal parts.
Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
SAFETY RULES FOR CHARGER
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS - DANGER: TO REDUCE RISK OF FIRE
OR ELECTRIC SHOCK CAREFULLY FOLLOW THESE INSTRUCTIONS.
This manual contains important safety and operating instructions for wall charger P180.
2. Before using wall charger, read all instructions and cautionary markings on wall charger, battery, and product using
battery.
3. CAUTION: To reduce the risk of injury, charge only lithium-ion or nickel-cadmium rechargeable batteries. Other
types of batteries may burst, causing personal injury or damage.

3 — English

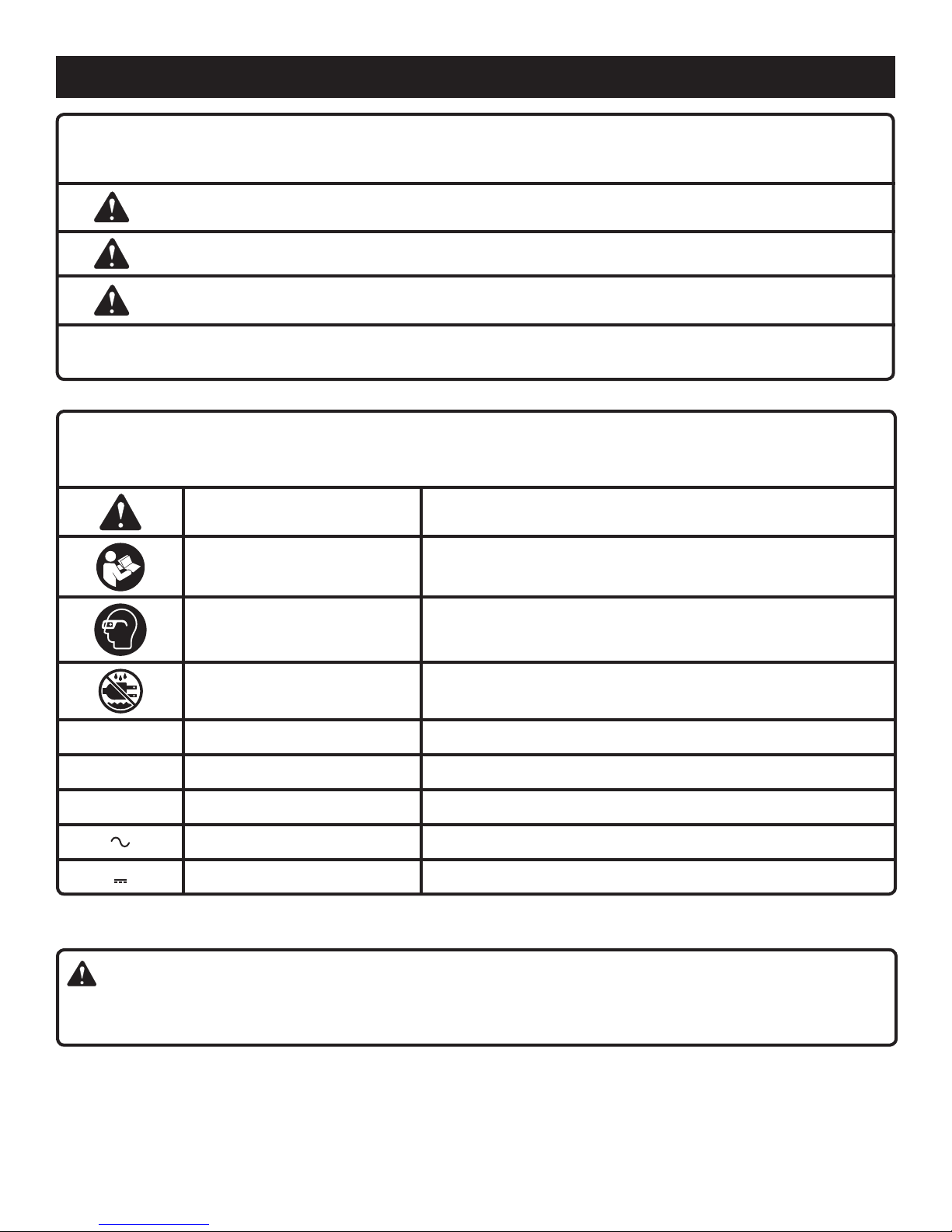

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates important information not related to an
injury hazard, such as a situation that may result in property damage.
SYMBOLS
CALIFORNIA PROPOSITION 65
WARNING:
This product may contain chemicals, including lead, known to the state of California to cause birth defects and other
reproductive harm. Wash hands immediately after handling.
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter-
pretation of these symbols will allow you to operate the product better and safer.
SYMBOLE NOM DÉSIGNATION / EXPLICATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Wet Conditions Alert Do not expose to rain or use in damp locations.
V Volts Voltage
Hz Hertz Frequency (cycles per second)
W Watt Power
Alternating Current Type of current
Direct Current Type or a characteristic of current

4 — English
ASSEMBLY
WARNING:
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
or with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories or attachments not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
WARNING:
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
APPLICATIONS
You may use this product for the following purposes:
Charging EverCharge™Tools with Ryobi One+ 18V Li-ion
or Ni-Cd battery packs installed
NOTICE:
Charge in a well-ventilated area. Do not block charger
vents. Keep them clear to allow proper ventilation.
OPERATION
MOUNTING THE WALL CHARGER
See Figures 1- 3, page 7.
WARNING:
Make sure the charger is mounted high enough to
prevent unauthorized activation of the tool being charged.
Unauthorized activation of the tool can result in serious
personal injury.
Find desired location indoors and away from any objects
that could block vents on charger. Locate a wall stud to
securely mount charger.
NOTE: Do not place the charger in an area of extreme
heat or cold. It will work best at normal room temperature.
You will need two #8 - 2 1/2 in. screws (not included).
Use alevel tobe surethat chargeris ina verticalposition.Use
a pencil to mark screw hole placement and install top screw.
Place the wide portion of the key hole over the head of
the top screw.
Slide the charger down until the screw is inside the narrow
portion of the key hole.
Check the orientation of the charger and install bottom
screw into the screw hole.
CHARGING BATTERIES
See Figure 4, page 7.
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should charge
them before first use.
If the charger does not charge your battery pack under
normal circumstances, return both the battery pack and
charger to your nearest repair center for electrical check.
Charge time is approximately 5 hours and is dependent upon
the type of battery pack.
If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

5 — English
OPERATION
Make sure the power supply is normal household voltage,
120 volts, AC only, 60 Hz.
Connect the charger to a power supply.
With the battery installed, place the tool in the wall-
mounted charger by aligning the raised ribs on the tool
housing with the grooves in the charger’s cradle.
Slide the tool down until it is fully seated in the cradle.
Once the tool is seated, the charger will provide charge
for approximately 5 hours.
The battery pack may become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
After charging is complete, the charger will enter into
Energy Save mode.
Charger will periodically wake from Energy Save mode to
ensure the battery pack remains in a fully charged state.
To remove the tool from the charger, lift the tool up and
away from the charger.
CHARGING A HOT BATTERY PACK
When using a tool continuously, the battery pack may
become hot. A tool with a hot battery pack may be placed
directly onto the charger but charging will not begin until the
battery temperature cools to within acceptable temperature
range. When the battery pack cools, the charger will
automatically begin charging.
CHARGING A COLD BATTERY PACK
A tool with a cold battery pack may be placed directly onto
the charger but charging will not begin until the battery
temperature warms to within acceptable temperature range
When the battery pack warms, the charger will automatically
begin charging.
NOTE: MAINTENANCE INFORMATION BEGINS ON PAGE 6
AFTER FRENCH AND SPANISH LANGUAGE SECTIONS.
ILLUSTRATIONS START ON PAGE 7.
