Ryobi P119 User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
18 V DUAL CHEMISTRY BATTERY CHARGER
CHARGEUR DE PILES À COMPOSITION
CHIMIQUE DOUBLE DE 18 V
CARGADOR DE BATERÍA PARA
DOS TIPOS DE COMPUESTOS
QUÍMICOS DE 18 V
P119
Safety Rules for Charger ....................2
Symbols..............................................3
Assembly............................................4
Operation.........................................4-5
Maintenance.......................................5
Figure Numbers (Illustrations).............6
Parts Ordering/Service........Back page
Règles de sécurité pour le chargeur ..2
Symboles............................................3
Assemblage........................................4
Utilisation.........................................4-5
Entretien .............................................5
Figure numéros (illustrations) .............6
Commande de pièces
et réparation......................Page arrière
WARNING: To reduce the
risk of injury, the user must read and
understand the operator’s manual
before using this product.
Reglas de seguridad para el
empleo del cargador.......................... 2
Símbolos............................................ 3
Armado.............................................. 4
Funcionamiento..............................4-5
Mantenimiento................................... 5
Figura numeras (ilustraciones)........... 6
Pedidos de piezas
y servicio........................Pág. posterior
ADVERTENCIA: Para reducir
elriesgo delesiones,el usuariodebeleer
y comprender el manual del operador
antes de usar este producto.
AVERTISSEMENT : Pour
réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien
comprendre lemanuel d’utilisationavant
d’employer ce produit.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
ACCEPTS ALL ONE+ BATTERY PACKS
COMPATIBLE AVEC TOUS LES BLOCS PILES ONE+
ACEPTA TODO LOS PAQUETES DE BATERÍAS DE ONE+

2 − English
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Failure to do so could result
in objects being thrown into your eyes resulting in pos-
sible serious injury.
An extension cord should not be used unless
absolutely necessary. Use of improper extension cord
could result in a risk of fire and electric shock. If extension
cord must be used, make sure:
a. That pins on plug of extension cord are the same
number, size and shape as those of plug on charger.
b. That extension cord is properly wired and in
good electrical condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
Do not operate charger with a damaged cord or plug,
which could cause shorting and electric shock. If damaged,
have the charger replaced by an authorized serviceman.
Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way.
Take it to an authorized serviceman for electrical check
to determine if the charger is in good working order.
Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of electric
shock.
Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock or
damage to the charger if metal items should fall into the
opening. It also will help prevent damage to the charger
during a power surge.
Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also
to prevent misuse of the product and possible injury.
SAFETY RULES FOR CHARGER
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Fail-
ure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
Before using charger, read all instructions and caution-
ary markings in this manual, on charger, battery, and
product using battery to prevent misuse of the products
and possible injury or damage.
WARNING:
Charge only one nickel-cadmium or lithium-ion recharge-
able battery at a time. Other types of batteries may burst,
causing personal injury or damage. For compatible
battery packs see tool/appliance/battery pack/charger
correlation supplement 987000-432.
 Do not use charger outdoors or expose to wet or damp
conditions. Water entering charger will increase the risk
of electric shock.
Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of
fire, electric shock, or injury to persons. Following this
rule will reduce the risk of electric shock, fire, or serious
personal injury.
Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather than
the plug when disconnecting from receptacle. Damage
to the cord or charger could occur and create an electric
shock hazard. Replace damaged cords immediately.
Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges
or moving parts or otherwise subjected to damage or
stress. This will reduce the risk of accidental falls, which
could cause injury, and damage to the cord, which could
result in electric shock.
Keep cord and charger from heat to prevent damage
to housing or internal parts.
Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS - DANGER: TO REDUCE RISK OF FIRE
OR ELECTRIC SHOCK CAREFULLY FOLLOW THESE INSTRUCTIONS.
This manual contains important safety and operating instructions for battery charger P119.
2. Before using battery charger, read all instructions and cautionary markings on battery charger, battery, and product
using battery.
3. CAUTION: To reduce the risk of injury, charge only nickel-cadmium or lithium-ion rechargeable batteries. Other
types of batteries may burst, causing personal injury or damage.

3 − English

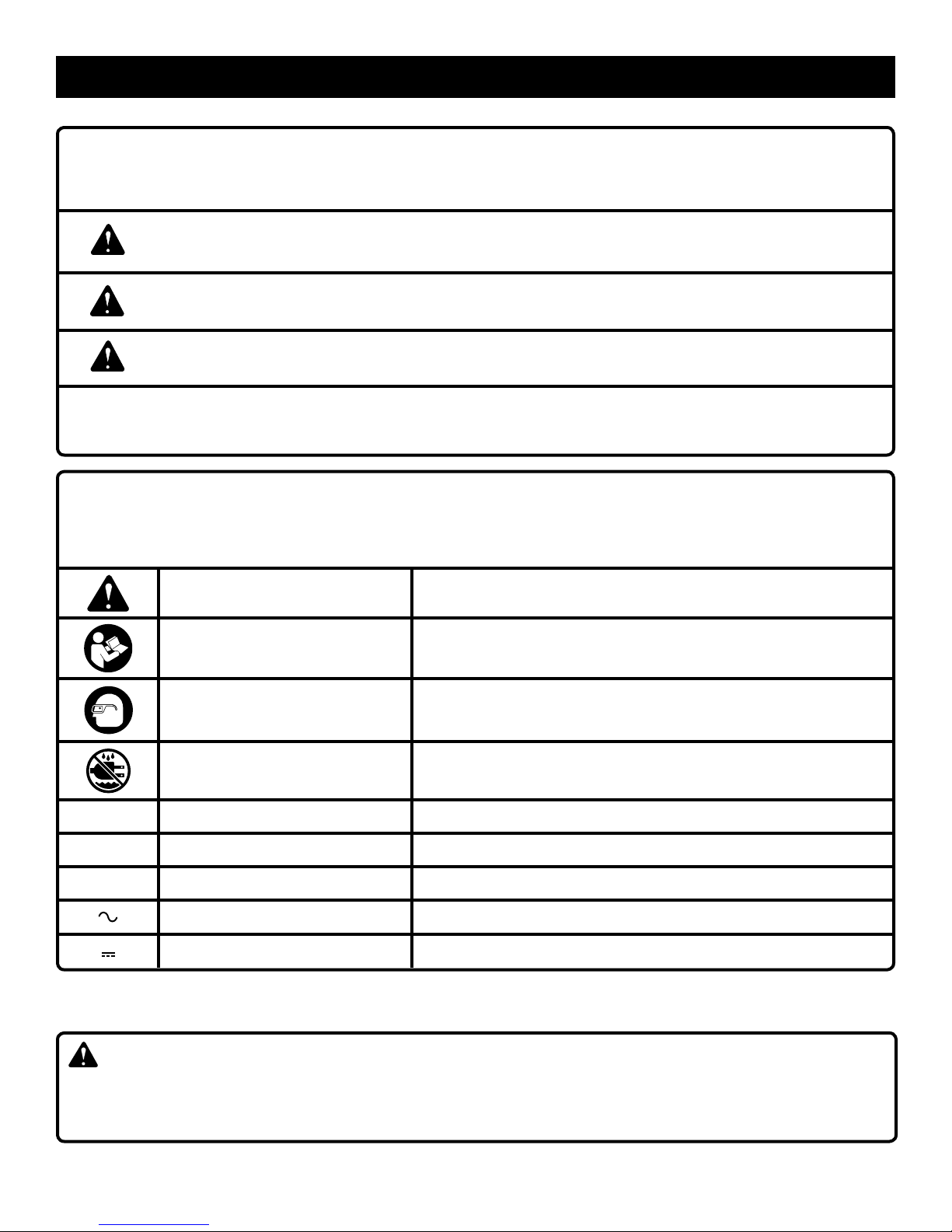

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Wet Conditions Alert Do not expose to rain or use in damp locations.
V Volts Voltage
Hz Hertz Frequency (cycles per second)
W Watt Power
Alternating Current Type of current
Direct Current Type or a characteristic of current
SYMBOL NAME DESIGNATION/EXPLANATION
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates important information not related to an
injury hazard, such as a situation that may result in property damage.
WARNING:
This product may contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or
other reproductive harm. Wash hands after handling.
CALIFORNIA PROPOSITION 65

4 − English
ASSEMBLY
WARNING:
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
could result in serious personal injury.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
OPERATION
WARNING:
Do not allow familiarity with products to make you care-
less. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
APPLICATIONS
You may use this product for the following purposes:
Charging Ryobi 18V Li-Ion or Ni-Cd batteries.
NOTICE:
If at any point during the charging process the LED does
not light, remove the charger from the battery to avoid
damaging the product. DO NOT insert another battery.
Return the charger and battery to your nearest service
center for service or replacement.
ENERGY STAR QUALIFIED
This battery charger meets the ENERGY STAR®energy-
efficiency guidelinesset by the U.S. EnvironmentalProtection
Agency and the U.S. Department of Energy. Battery chargers
meeting this standard use an average of 35% less energy
than conventional battery chargers.
CHARGING

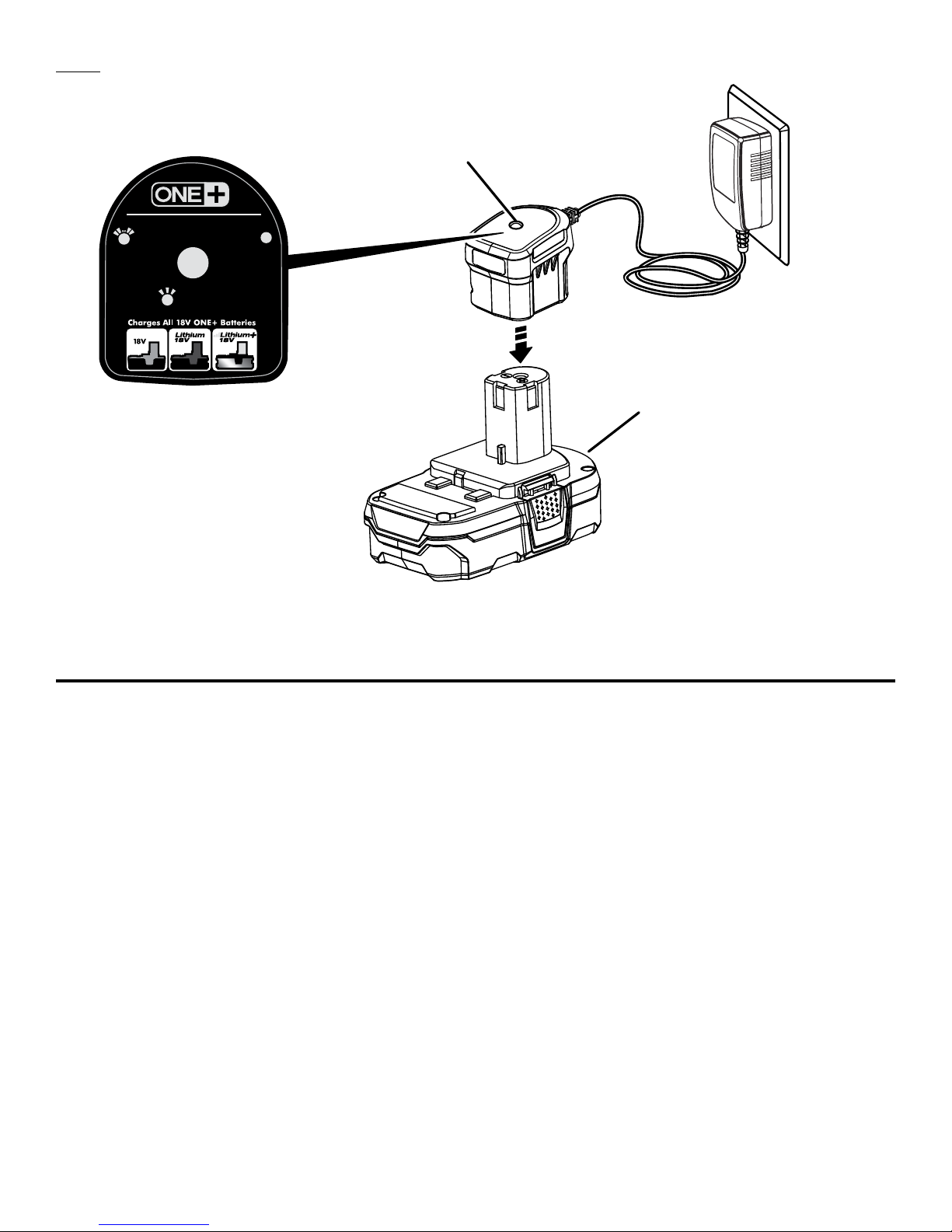

See figure 1, page 6.
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should charge
them before first use. If the charger does not charge the
battery pack under normal circumstances, return both the
battery pack and charger to your nearest repair center for
electrical check.
Charges battery packs in as little as 8 hours, depending
upon the type of battery pack.
Make sure the power supply is normal household voltage,
120 volts, AC only, 60 Hz.
Connect the charger to a power supply.
Attach the battery pack to the charger by aligning the
raised ribs on the battery pack with the grooves in the
charger, then slide the charger onto the battery pack.
Press down on the charger to be sure contacts on
the battery pack engage properly with contacts in the
charger.
Do not place the charger in an area of extreme heat or
cold. It will work best at normal room temperature.
The battery pack may become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
After charging is complete, the LED will remain on while
the charger is in Maintenance mode.
Charger will periodically wake from Energy Save mode to
ensure the battery pack remains in a fully charged state.
When the battery pack is fully charged, remove the
charger.
CHARGING A HOT BATTERY PACK
Whenusingatoolcontinuously,the battery pack may become
hot. The charger may be placed onto a hot battery pack but
charging will not begin until the battery temperature cools
to within acceptable temperature range. When the charger
is placed on a hot battery pack, the LED will flash in the
"Evaluate" pattern - two quick pulses followed by a pause.
When the battery pack cools, the charger will automatically
begin charging.
CHARGING A COLD BATTERY PACK
The charger may be placed onto a cold battery pack but
charging will not begin until the battery temperature warms
to within acceptable temperature range. When the charger
is placed on a cold battery pack, the LED will flash in the
"Evaluate" pattern - two quick pulses followed by a pause.
When the battery pack warms the charger will automatically
begin charging.

5 − English
NOTE: FIGURES (ILLUSTRATIONS) START ON PAGE 6 AFTER FRENCH AND
SPANISH LANGUAGE SECTIONS
OPERATION
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts could create a hazard or cause
product damage.
WARNING:
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which could result in serious personal
injury.
STORAGE
Always remove the battery pack before storing the charger
or any time the charger is unplugged.
This product has a Three-Year Limited Warranty.
Warranty details are available at www.ryobitools.com
MODE LED ACTION
Evaluating
Flashing
Battery is being tested. If voltage is low, battery is being conditioned and will begin charging when
normal voltage is reached. If battery is hot or cold, charger will begin charging when temperature
reaches an appropriate level.
Charging
Flashing
Battery is being charged.
Charged
On
Battery pack is fully charged and charger is in Energy Save mode.
• If charger indicates “Evaluate” for longer than 30 minutes at room temperature, battery pack may be defective. Try to repeat the
conditions a second time by removing and reintalling the battery pack. If the LED status repeats a second time, try charging a
different battery.
• If a different battery charges normally, dispose of the defective pack (see battery pack operator’s manual).
• If a different battery also indicates “Evaluate” for longer than 30 minutes, the charger may be defective.
