OPERATORʼS MANUAL
CORDLESS SCREW DRIVER
MODEL NO. CPD48N
THANK YOU FOR BUYING A RYOBI CORDLESS SCREW DRIVER.
Your new cordless screw driver has been engineered and manufactured to Ryobiʼs high standard for dependability,
ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
CAUTION: Carefully read through this entire operator's manual before using your new cordless screw driver.
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions. If you use your cordless screw driver
properly and only for what it is intended, you will enjoy years of safe, reliable service.
Thank you again for buying Ryobi .
SAVE THIS MANUAL FOR FUTURE REFERENCE
4.8V
46
3

4.8V
46
3
4.8V
46
3
4.8V
46
3
A
B
Fig. 1
A
C
A
B
A
B
A
B
C
B
Fig. 3
Fig. 5
Fig. 2
Fig. 4
Fig. 6
2
D
C
4.8V
46
3
4.8V
46
3
4.8V
46
3
A
4.8V
46
3

3
THANK YOU FOR BUYING A RYOBI SCREW DRIVER.
Your new screw driver has been engineered and
manufactured to Ryobi's high standard for dependability,
ease of operation and operator safety . Properly cared for,
it will give you years of rugged, trouble-free performance.
CAUTION
Carefully read through this entire operator's
manual before using your new screw driver.
Pay close attention to the Rules for Safe Operation,
Warnings and Cautions. If you use your screw driver
properly and only for what they are intended, you will
enjoy years of safe, reliable service.
Thank you again for buying Ryobi tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
GENERAL SAFETY RULES
WARNING
When using battery operated tools, basic safety
instructions should always be followed to reduce
the risk of fire, leaking batteries and personal
injury including the following. Read all these
instructions before operating this product and
save these instructions for future reference.
Keep work area clean. Cluttered areas and benches
invite injuries.
Consider work area environment. Do not expose
power tools to rain. Do not use power tools in damp
or wet locations.
Keep work area well lit. Do not use power tools
where there is risk to cause fire or explosion.
Keep children away. Do not let visitors touch the
tool. All visitors should be kept away from the area.
Dress properly. Do not wear loose clothing or
jewellery, they can be caught in moving parts.
Use safety glasses. Use face or dust mask if the
cutting operation is dusty. Also use ears protection to
reduce the risk of induced hearing loss.
Stay alert. Watch what you are doing at all times.
Use common sense. Do not operate tool when you
are tired or under the influence of drugs or alcohol.
Store batteries or idle tools. When not in use, tools
and batteries should be stored separately in a dry,
high or locked up place, out of the reach of children.
Ensure that battery terminal will not be shorted by
other metal parts such as screws, nail etc.
Secure work. Use clamps or vice to hold the work.
It is safer than using your hand and it frees both
hands to operate the tools.
Do not overreach. Keep proper footing and balance
at all times.
Do not force the tool. It will do the job better and
safer at the rate for which it was intended.
Use the right tools. Do not force small tools or
attachments to do the job of a heavy duty tool.
Do not use tools for purposes not intended.
Maintain tools with care. Keep cutting tools sharp
and clean for better performance. Follow instructions
for lubrication and changing accessories.
Inspect tool cord periodically and if damaged
have it repaired by an authorized service facility.
Keep handles dry, clean and free from oil and grease.
Check damage parts. Before further use of the tools, a
guard or other parts that is damaged should be carefully
checked to determine that it can operate properly and
perform its intended function. Any parts that is damaged
should be properly repaired or replace by an authorized
service center unless otherwise indicated in this
instruction manual. Have defective switches replaced by
an authorized service facility. Do not use the tool if the
switch does not turn it on and off.
Avoid accidental starting. Be sure that the switch
trigger is in the locked or OFF position after use.
Do not carry the tool with a finger on the switch.
Disconnect tools. Where the design permits,
disconnect the tool from its battery pack when not
in use, before servicing and when changing accessories.
Disconnect charger. To reduce the risk of electric
shock, unplug the charger from the wall outlet before
attempting any maintenance or cleaning.
Turning off
the controls will not reduce this risk.
Disconnect battery pack. Disconnect battery pack
from tool before making any adjustments, changing
accessories or storing the tool. Depending on the design.
Charger maintenance. Do not disassemble the
charger. Take it to a qualified service agent when
service or repair is required. Incorrect assembly may
result in risk of electric shock of fire.
Do not abuse the cord. Never use the cord to carry
the charger. Keep cord away from heat, oil,
sharp edges or moving parts. Replace damaged
cords immediately. Damaged cords may create a fire.
A battery operated tool with integral batteries or a
separate battery pack must be recharged only
with the specified charger for the battery.
A charger that may be suitable for one type of battery
may create a risk of fire when used with another
battery. Use battery only with charger listed.
MODEL CHARGER NO.
CPD48N 720293001
The screw driver should only be charged with the
RYOBI charger model 720293001.
The charger should not be used by young or
infirm persons unless supervised. Young children
should be supervised to ensure they do not play with
the charger.

4
GENERAL SAFETY RULES
Use battery operated tool only with specifically
designated battery pack. Use of any other batteries
may create a risk of fire. Use only with battery pack
supplied.
Do not abuse the supply cord (if fitted).
Never carry the tool by the cord or yank it to disconnect
it from the socket. Keep the cord away from heat, oil
and sharp edges.
ACCESSORIES: Only use accessories that are
recommended by the manufacturer of your model.
Accessories that may be suitable for one tool may
create a risk of injury when used on another tool.
WARNING
The use of any accessories or attachments,
except those recommended in this instruction
manual and from other recognised accessory
suppliers, may present a risk of personal injury.
Ensure the battery pack is correct for the tool.
Ensure the outside surface of battery pack or tool is
clean and dry before plugging into charger.
Ensure that batteries are charged using the correct
charger recommended by the manufacturer, incorrect
use may result in risk of electric shock, overheating or
leakage of corrosive liquid from the battery.
Have your tools repaired by a qualified person.
This tool is manufactured in accordance with the
relevant safety requirement. Repairs should only be
carried by qualified persons using original spare
parts otherwise this may result in considerable
danger to the user.
If under abusive conditions, liquid is ejected from
the battery, avoid contact. If this accidentally
occurs, flush with water. If liquid contacts eyes
additionally, seek medical help.
SPECIFIC SAFETY RULES
To reduce the risk of electric shock, unplug
charger from outlet before attempting any
maintenance or cleaning. Turning off controls will
not reduce this risk. Following this rule will reduce the
risk of electric shock, fire or serious personal injury.
Disconnect charger from power supply when not
in use. Following this rule will reduce the risk of
electric shock, fire or serious personal injury.
DANGER
RISK OF ELECTRIC SHOCK. DO NOT TOUCH
UNINSULATED PORTION OF OUTPUT
CONNECTOR OR UNINSULATED BATTERY
TERMINAL.
Save these instructions. Refer to them frequently
and use them to instruct others who may use this tool.
If you loan someone this tool, loan them these
instructions also. Following this rule will reduce the
risk of electric shock, fire or serious personal injury.
SERVICE: Now that you have purchased your tool,
should a need ever exist for repair, parts or service,
simply contact your nearest Ryobi Authorized Service
Center or call Ryobi customer service on 1300 361 505.
SPECIFICATION
Motor 4.8 Volts DC
Collet 6.35 mm
No Load Speed 330 min-1
Switch Forward and Reverse
Maximum Torque 5.64 Nm
Charger Rating 240 V ~ 50 Hz 4 W
Charge Time 5 - 8 hours
UNPACKING INSTRUCTIONS
Your screw driver has been shipped completely assembled.
Carefully remove the screw driver, and accessories
from the box. Make sure that all items listed in the
packing list are included.
Inspect the screw driver carefully to make sure no
breakage or damage has occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tools.
PACKING LIST
-
- Bits
- Charger
- Operator's Manual
WARNING
If any parts are missing, do not operate this tool
until the missing parts are replaced. Failure to do
so could result in possible serious personal injury.

5

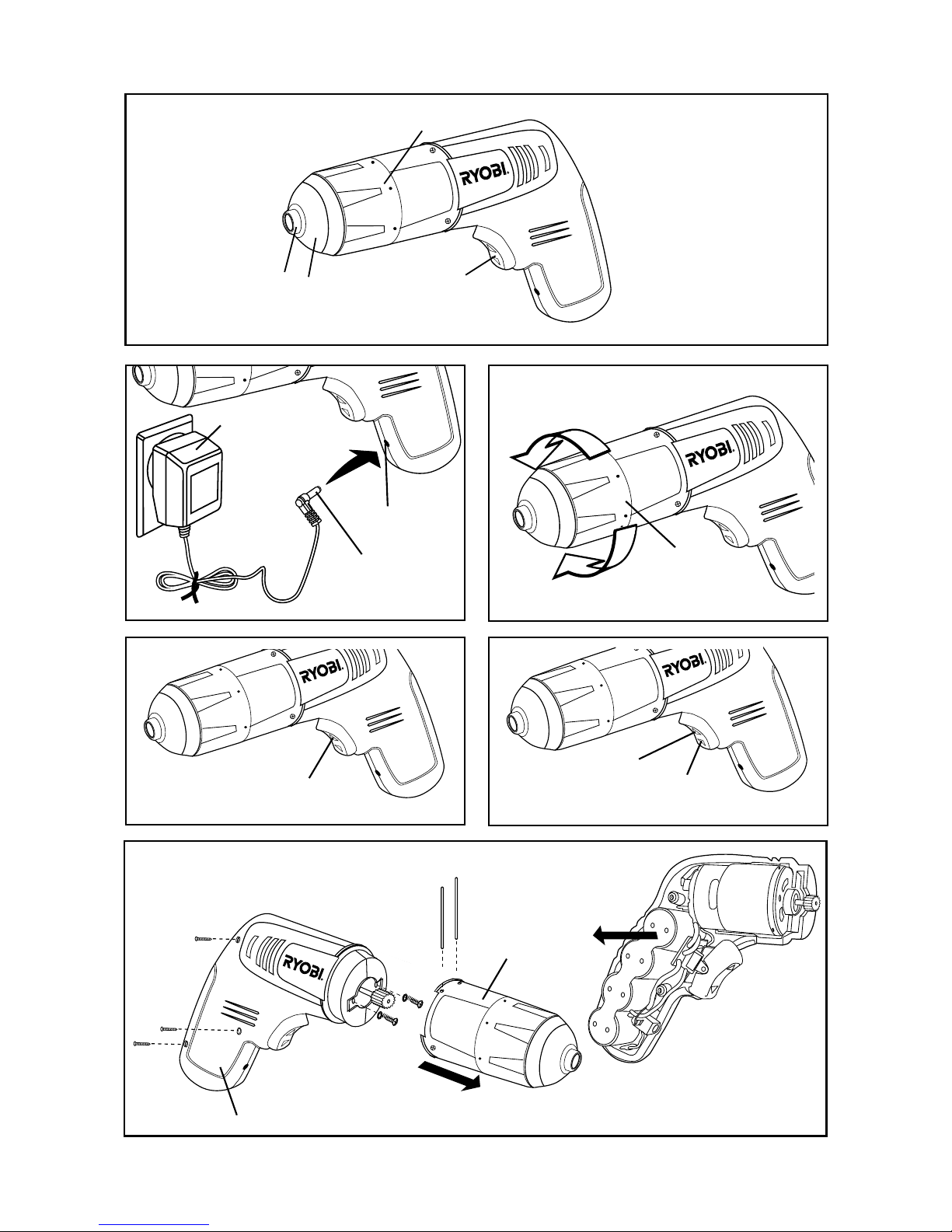

FEATURES
KNOW YOUR SCREW DRIVER
Fig.1
OPERATING INSTRUCTIONS
CHARGING YOUR SCREW DRIVER
Fig. 2
A. CHARGER
B. CHARGER PLUG
C. INPUT JACK
A. ON/OFF, FORWARD/REVERSE SWITCH
B. TORQUE ADJUSTMENT RING
C. COLLET
D. CLUTCH RING COVER
This tool has been shipped in low charge condition to
prevent possible problems. Therefore, you should charge
it overnight prior to use.
Note: Batteries will not reach full charge the first time
they are charged. Allow several cycles (drilling followed
by re-charging) for them to become fully charged.
Note: Only use the charger provided.
Connect charger to the tool by inserting charger plug
into input jack. Make sure the power supply is normal
household voltage, 240V, 50Hz, AC only.
Connect charger to power supply.
After normal usage, a minimum charge time of
3-5 hours is required to recharge a completely
discharged battery.
The charger housing and the tool handle will become
slightly warm to the touch while charging. This is
normal and does not indicate a problem.
DO NOT operate driver while it is connected to the
charger. The driving ability will not increase.
DO NOT place charger in an area of extreme heat
of cold. It works best at normal room temperature.
TORQUE ADJUSTMENT
Fig. 3
A. TO DECREASE TORQUE
B. TO INCREASE TORQUE
C. TORQUE ADJUSTMENT RING
The torque is adjusted by rotating the torque adjustment ring.
The torque is greater when the torque adjustment ring is
set on higher setting and less when set on a lower.
Rotate the adjustment ring to the desired setting.
ON / OFF, FORWARD/REVERSE SWITCH
Fig. 4
A. ON/OFF, FORWARD/REVERSE SWITCH
Depress to start and release to stop your driver.
CHANGING DRIVER ROTATION
Fig. 5
A. UP(FORWARD)
B. DOWN (REVERSE)
To insert a screw, depress the up arrow.
To remove a screw, depress the down arrow.
REMOVING BATTERIES
Fig. 6
A. HANDLE HOUSING
B. GEAR BOX HOUSING
To remove the batteries ensure that your driver is
disconnected from the charger.
Drive out the four screws that connect the gearbox
housing and handle housing and pull off the gear box.
Loosen the two screws that connect the handle to the
motor housing.
Loosen the three screws holding the handle housing.
Open the handle and take out the battery only when it
is time for disposal.
OPERATING INSTRUCTIONS
WARNING
Upon removal, cover the battery terminals with
heavy duty adhesive tape. Do not attempt to
destroy or disassemble batteries or remove any of
its components. Nickel-cadmium batteries must
be recycled or disposed of properly.Also never
touch both terminals with metal objects and/or
body parts as short circuit may result. Keep away
from children. Failure to comply with these
warnings could result in fire and/or serious injury.
BATTERY DISPOSAL
To preserve natural resources please recycle or dispose
of the battery properly.
The charger must be turned off and unplugged after 8
hours. The charger does not turn itself off. If left turned
on for more than 8 hours, damage will occur to the
battery cells or charger which is not covered under
warranty.

6
MAINTENANCE
WARNING
When servicing, use only Ryobi replacement
parts. Use of any other part may create a hazard
or cause product damage.
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged by
their use. Use clean cloths to remove dirt, carbon dust, etc.
WARNING
Do not at any time let brake fluids, petrol,
petroleum-based products, penetrating oils, etc.
come in contact with plastic parts. They contain
chemicals that can damage, weaken or
destroy plastic.
DO NOT abuse power tools. Abusive practices can
damage tool as well as workpiece.
WARNING
Do not attempt to modify this tool or create
accessories not recommended for use with this
tool. Any such alteration or modification is misuse
and could result in a hazardous condition leading
to possible serious personal injury. Have your tool
repaired by a qualified person. This tool is in
accordance with the relevant safety requirements,
repairs should only be carried out by qualified
person, otherwise this may result in considerable
danger to the user and void your warranty.

RYOBI TECHNOLOGIES AUSTRALIA PTY.LTD.
GUARANTEE
RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
A.B.N. 98 002 277 509
SYDNEY: 359-361 Horsley Road, Milperra, N.S.W. 2214.
Contact during normal business hours.
RYOBI NEW ZEALAND PTY. LTD.
AUCKLAND: 27 Clemow Drive, Mt Wellington, N.Z.
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi tool
(hereinafter called “the product”) is guaranteed by Ryobi
(hereinafter called “the Company”) to be free from
defects in material or workmanship for a period of 24
months from the date of original purchase covering
both parts and labour. Under the terms of this
guarantee, the repair or replacement of any part shall
be the opinion of the Company or its authorised agent.
Should service become necessary during the warranty
period, the owner should contact the RYOBI HELPLINE
1300 361 505 or contact the retailer from whom the
product was purchased.
In order to obtain guarantee service, the owner must
present the sales docket and Guarantee Certificate
to confirm date of purchase. This product is sold by the
dealer or agent as principal and the dealer has no
authority from the Company to give any additional
guarantee on the Company’s behalf except as herein
containedorhereinreferred to.
Guarantee Conditions
This guarantee only applies provided that the Product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable
care (in the opinion of the Company) and such
guarantee does not cover damage, malfunction or
failure resulting from misuse, neglect, abuse, or used
for a purpose forwhich it was not designed or is not
suited and no repairs, alterations or modifications
have been attempted by other than an Authorised
Service Agent.This guarantee will not apply if the tool is
damagedbyaccident or if repairs arise from normal
wear and tear.
The Company accepts no additional liability pursuant to
this guarantee for the costs of travelling or
transportation of the Product or parts to and from the
service dealer or agent - such costs are not included in
this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the seller in
certain circumstances. Nothing herein shall have the effect
of excluding, restricting or modifying any condition,
guarantee, right or liability imposed, to the extent only
that such exclusion, restriction or modification
would render any term herein void.
BRISBANE : All enquiries Tel : [phone]
TOWNSVILLE: All enquiries Tel : [phone]
MELBOURNE: 960 Stud Road, Rowville,Vic. 3178
Tel : [phone]
HOBART: All enquiries Tel : [phone]
ADELAIDE: All enquiries Tel : [phone]
PERTH: 33-35 Sorbonne Cres. Canning Vale, W.A. 6155
Address Of Dealer
Present This Form With Your Purchase Docket When Guarantee Service Is Required.
Tel: [phone] - Fax: [phone] - www.ryobi.com.au
Tel: [phone] - Free Call: 0800 279 624 - Fax: [phone] - www.ryobi.co.nz
For your record and to assist in establishing date of purchase (necessary for in-guarantee service)
please keep your purchase docket and this form completed with the following particulars.
This Guarantee Form Should Be Retained By The Customer At All Times
Date Model No Serial No
Tel : [phone]
